cnc grinding used for sale

Manufacturer: FERMAT Model: VMF 1000 CNC Year: 2008 Condition: Used Stock number: 9494 Control System: FANUC Series Oi-MC Switch-on hours: 25998 h Work table length: 1300 mm Work table width: 600 mm Spindle drive power: 15 kW Speed: 10000 1/min X-axis travel: 1006 mm Y-axis travel: 598 mm Z-axis travel: 600 mm Machine weight: 5000 kg

- Max afstand tussen de punten: 7100 mm - Max bewerkingslengte: 6600 mm - Max werkstukgewicht tussen de punten: 18 ton - 2x 2 brillen worden meegeleverd met de machine - Max conische slijphoek: 10° - Max concaaf/convex slijpen: max 12,7 mm van de diameter - 1 bed met slijpkop (in twee delen over de lengte) en 1 werkstukbed met aandrijfkop en tegenpunt. - 1 filtereenheid - 1 elektrische kast Center distance: 7100 mm Max dia of the workpiece: 1100 mm Control: Num 1060 Motorpower: 90 kW Weight: 126 ton

LVD-gereedschap 4 assen: Y1 / Y2 / X / R 2 beweegbare plaatsteunen Capacity: 80 ton x 2100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 1550 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 400 mm Table width: 120 mm Locking speed: 130 mm/sec Working speed: 10 mm/sec Returning speed: 113 mm/sec Electric motor (power): 12,5 kW Weight: 6 ton Capacity: 80 ton Bending length: 2100 mm

dist. between centers: 6.000 mm greates pass round over bed: 1.200 mm swing diameter over slide transversal: 1.000 mm rapid traverse feeds: X/Z 10.000 mm/min guideways: 4 St. cross travel: 530 mm centre height: 600 mm control: FAGOR 8055 TC : main spindle speeds:: 20-1.600 U/min main drive motor: 42 kW spindle passage: 150 mm transmission ratio: 2 Turret: DUPLOMATIC Revolver station: 8 tools dimension: VDI-50 tail stock: tailstock quill diameter: 180 mm total power requirement: 61 kW weight of the machine ca.: 20 t dimensions of the machine ca.: 11.210 x 3.700 mm Equipment C-axis + live tooling Ø 800 mm 4-jaw independent chuck 3-point steady rest, Ø 50 -500 mm 3-point steady rest, Ø 50 - 520 mm 3-point steady rest, Ø 480- 930 mm MORARI hydraulic self-centering steady rest, capacity 50 - 315 mm MORARI hydraulic self-centering steady rest, capacity 280 - 540 mm Motorized tailstock V- ...

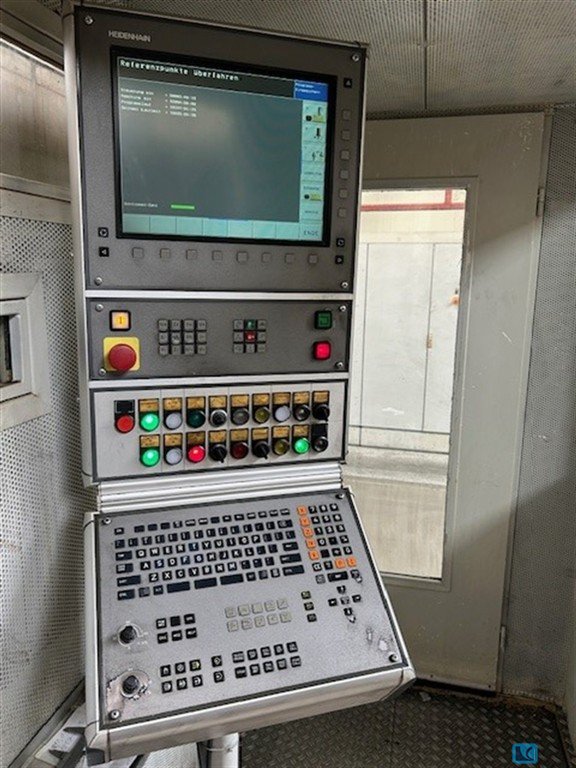

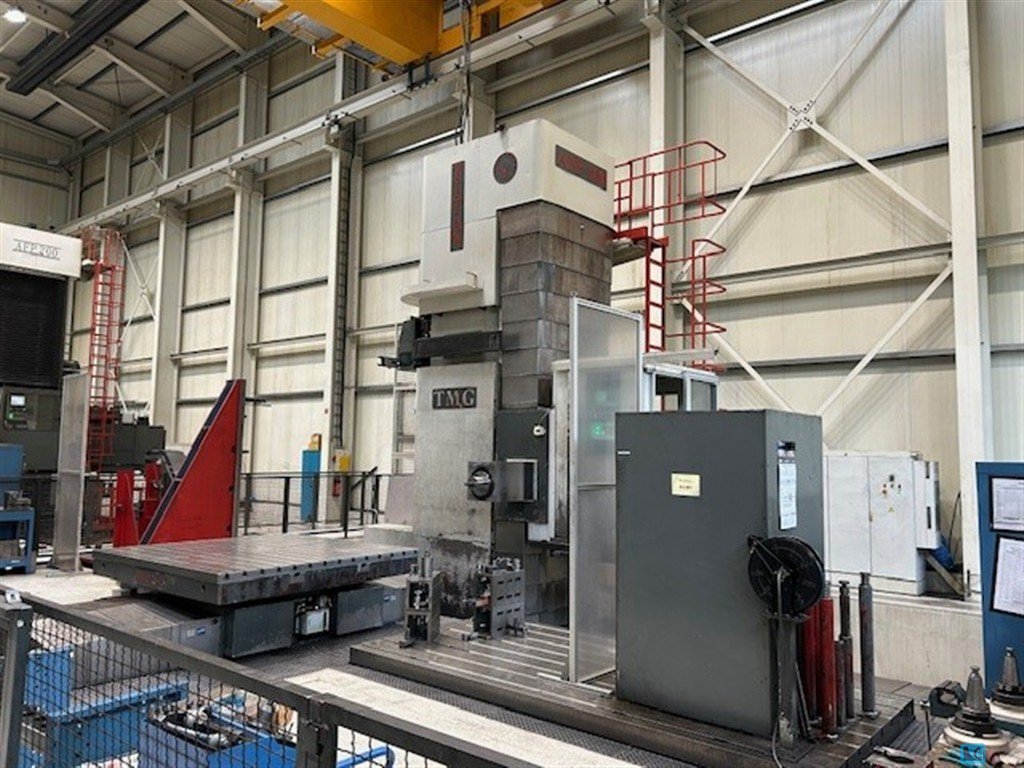

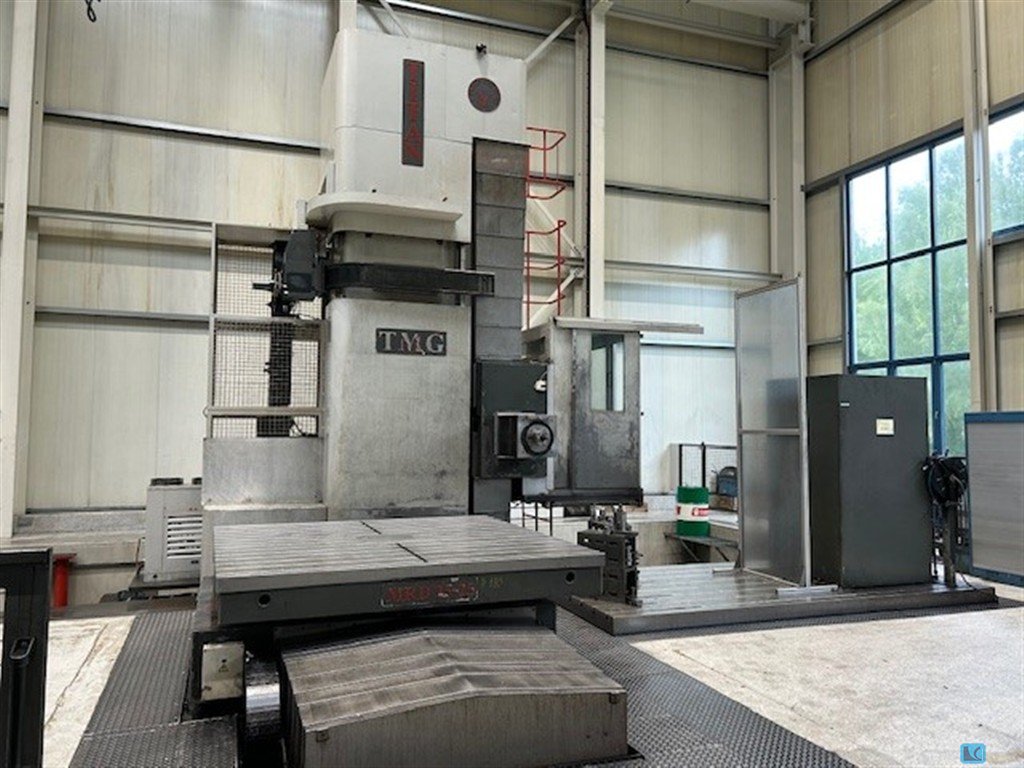

Spindle diameter: 110 mm Travel: X: 1985 mm Y: 1620 mm Z: 1260 mm W: 710 mm Table surface: 1400 x 1600 mm Spindle taper: ISO 50 Control system: HEIDENHAIN TNC 426 Maximum table load: 6300 kg Feed rate: 5 m/min Working feed rate: 5 to 2500 mm/min Spindle speed: 6 to 1250 rpm Motor power: 33 kW Total power: 90 kW Table rotation: 360° Weight: 25400 kg

turning diameter: 2500 mm swing diameter over bed slide: 1400 mm turning length: 6000 mm Distance between centres: 5740 mm centre height: 1250 mm faceplate turning speed range: 4 - 400 U/min rapid traverse:: 200 mm/min faceplate: 2000 mm spindle bore: 200 mm face feeds: 700 mm upper slide-adjustment: 350 mm tailstock quill diameter: 320 mm max. workpiece weight between centres: 40 t Control: Siemens Sinumerik 8 T drive motor: 95,5 kW total power requirement: 125 kW weight of the machine ca.: 43 t dimensions of the machine ca.: 11,5 x 3,5 x 3,5 m Heavy duty high precision horizontal lathe with: - CNC Control Siemens Sinumerik 8T (CNC 6 axes) - 3-way Bed - hydraulic clamping system Rohm - Machine modified with 2000 mm face clamping plate - slide with two working positions - Sauter 4 side tool holder - circular turning unit - tailstock - chip conveyor - Rexroth Hydraulic suitable for both,  ...

Martin T26 tilting table spindle moulder with CNC 4-ax control Manufacturer: Martin Type: T26 CNC Year: 2002 Control: 4-ax CNC Control Control panel: eye-level Remark: Special paint Martin 75 Years Ral 7035& 6004 Motor: 7.5/9.5 kW – twin-speed motor Tilting: -45 tot + 45° Spindel diam.: ø40 mm spindel SK40 – Dornfix-quick change Spindel elevation: Electric spindel elevation 150mm (2 speed) Spindel elevation Electric-pneumatic spindel lock (Tool changing) Central greasing Rotation speed: Twin-speed 3000-6000 rpm or 4.500-9000 rpm, electronic display, electric -automatic brake Spindel pick-up: Dornfix-quick change spindel Table: Table extension, infeed and outfeed 2405mm long, frontside support 3000mm long, frontside extension 700mm Control panel: 1. CNC-controlled spindel elevation, with automatic dept and height control when spindle is tilted 2. CNC-controlled spindel tilting, with ...

CNC Machining Center Kunzmann WF 600 CNC Control: Heidenhain TNC 640 Year of Make: 2015 Internal machine number: 76 Travels: X-axis 600 mm Y-axis 400 mm Z-Axis 400 mm Z-Axis 400 mm Mount: SK 40 DIN69871 Speed: 1 - 5,000 rpm

• Incl. left roller conveyor • Roller conveyor width: 240 mm

cutting diameter: 360 mm saw band length: 4870 x 41 x 1,3 mm cutting width: 360 mm cutting speed: 11 - 110 m/min : 4,0 kW height of the workpiece: 800 mm weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,3 x 1,9 x 2,2 m Automatic hydraulic band saw with - SIMATIC OP17 NC control - Single material feed 600 mm - Max. programmable length 6000 mm - Hydraulic saw blade tensioning (36–40 bar) - Motorized chip conveyor - Emergency stop device - infeed roller conveyor 4m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC SCREEN PRINTING MACHINE Balsfulland CNC 1500 H Manufacturer: Werner Kamann Model: CNC 1500 H Year of manufacture: 2008 Design: Fully enclosed safety cabinet with protective glazing Machine type: Multi-color CNC screen printing system CE certified: Yes Details: CNC-controlled axes Multi-color printing stations Automatic product transport system Fully enclosed safety housing Integrated drying / curing unit Designed for industrial serial production Heavy-duty steel / aluminum frame construction Application: Cosmetic containers Brochure stand Glass bottles Plastic packaging Cylindrical or slightly tapered products Industrial packaging components

total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

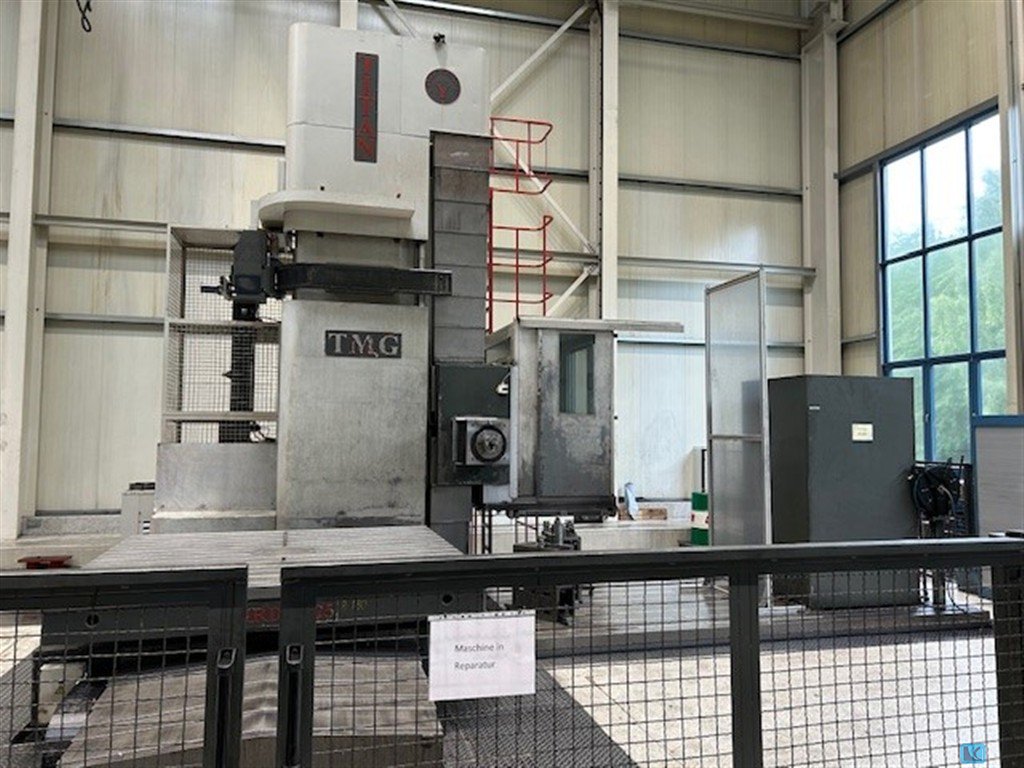

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

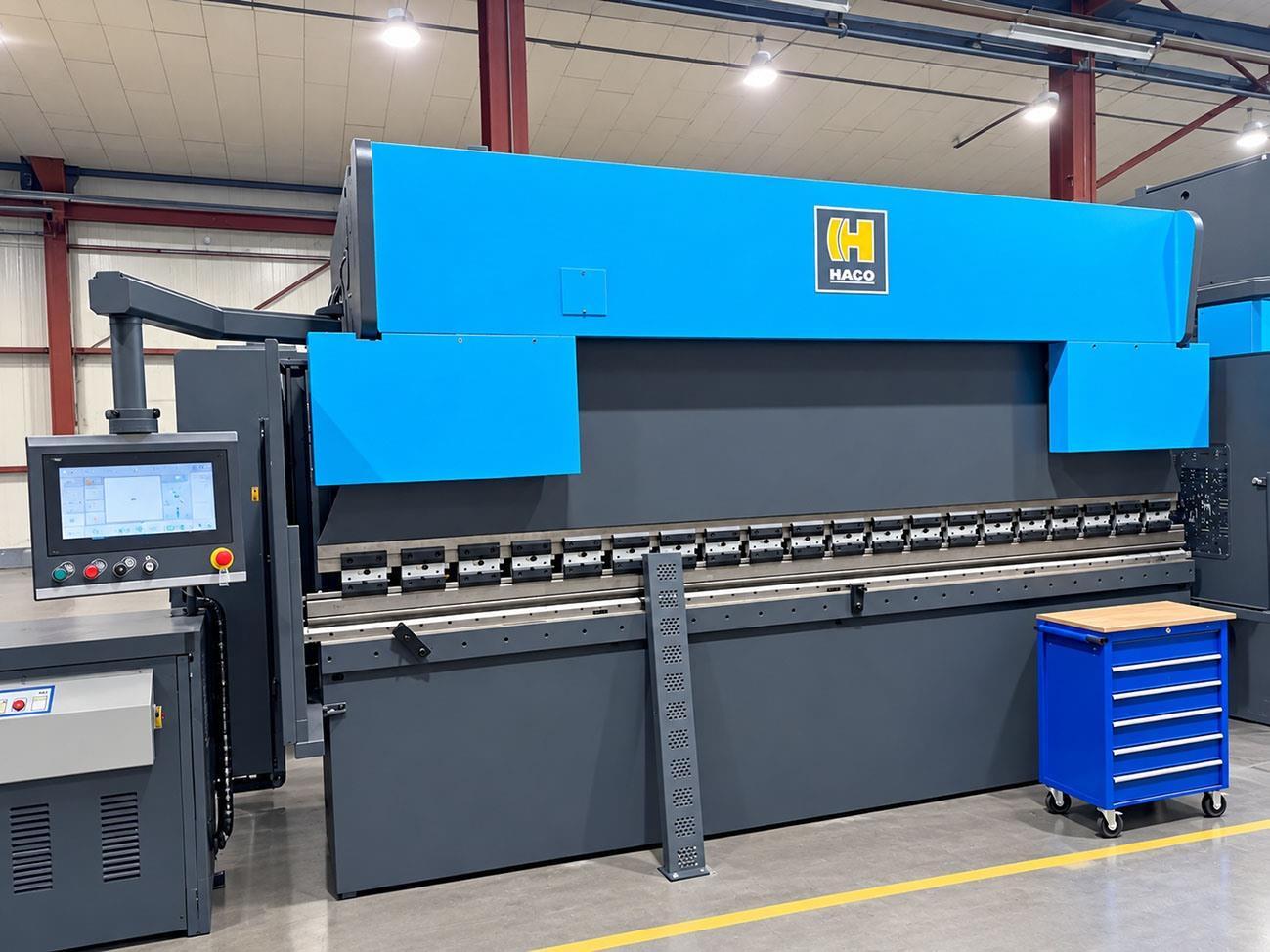

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 200 ton x 4100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3670 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Table width: 200 mm Locking speed: 100 mm/sec Working speed: 8 mm/sec Returning speed: 80 mm/sec Electric motor (power): 19 kW Length: 4330 mm Depth: 1950 mm Height: 2980 mm Weight: 17 ton

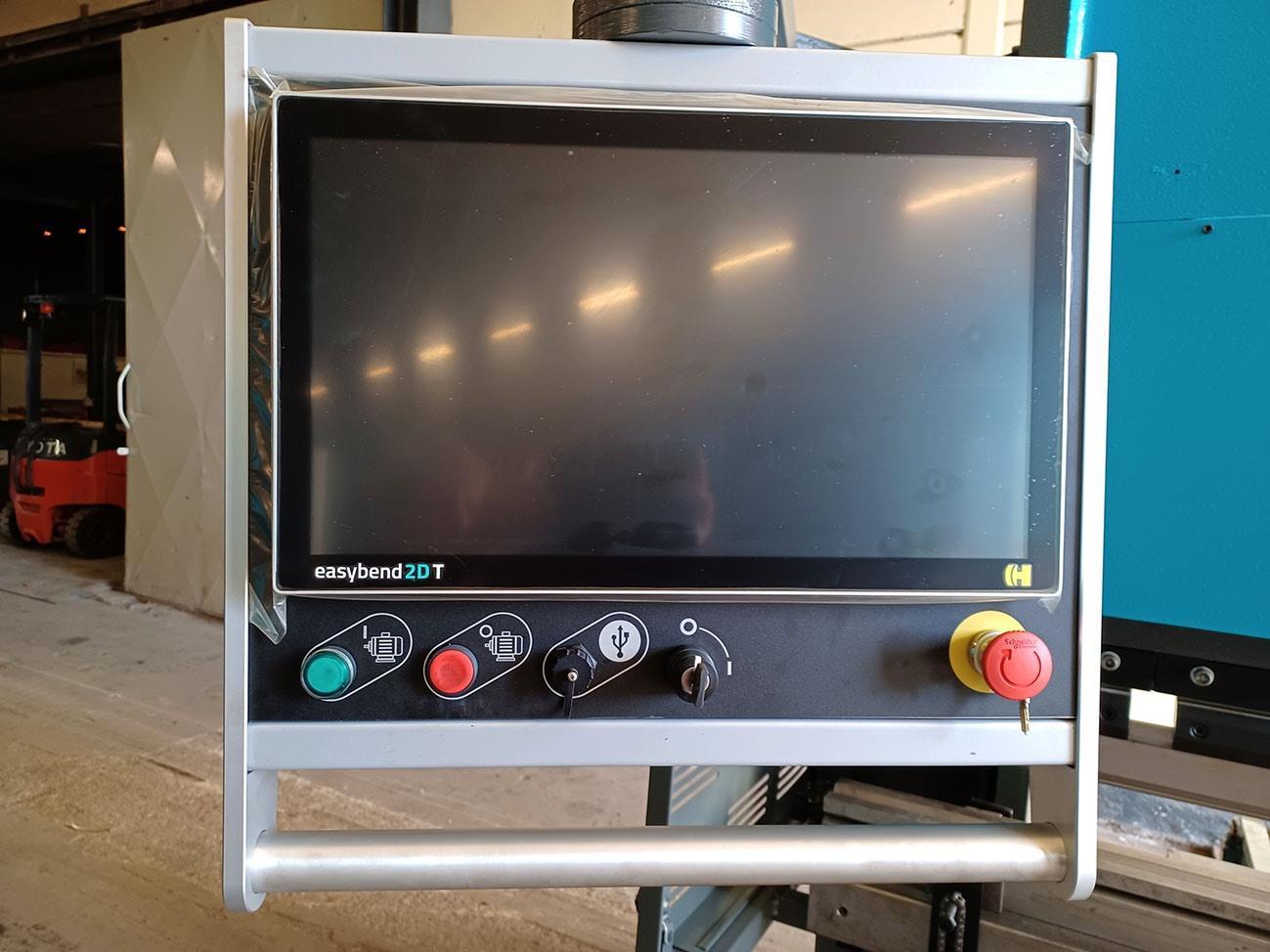

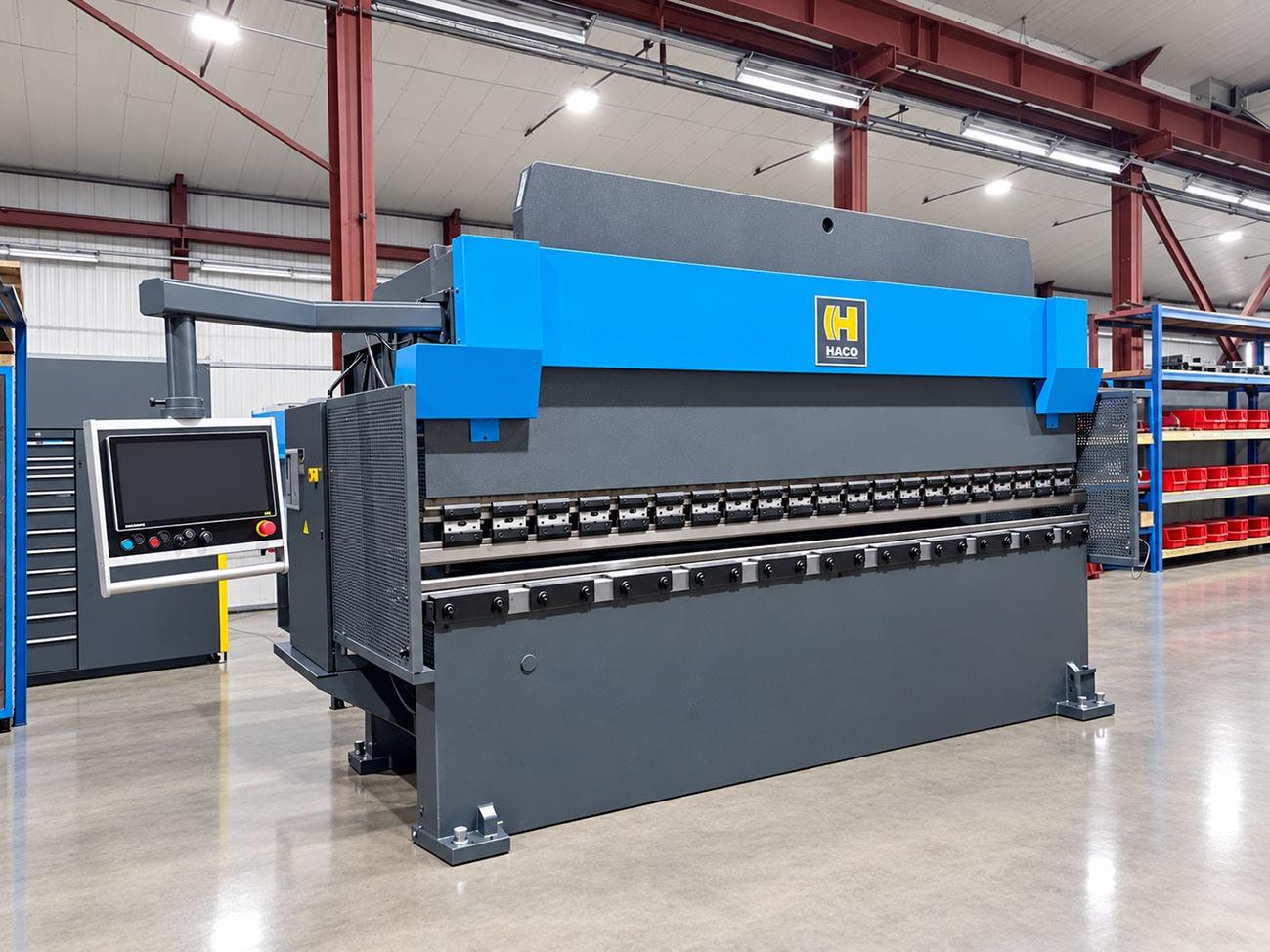

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 150 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3750 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 4700 mm Depth: 1700 mm Height: 2850 mm Weight: 11 ton

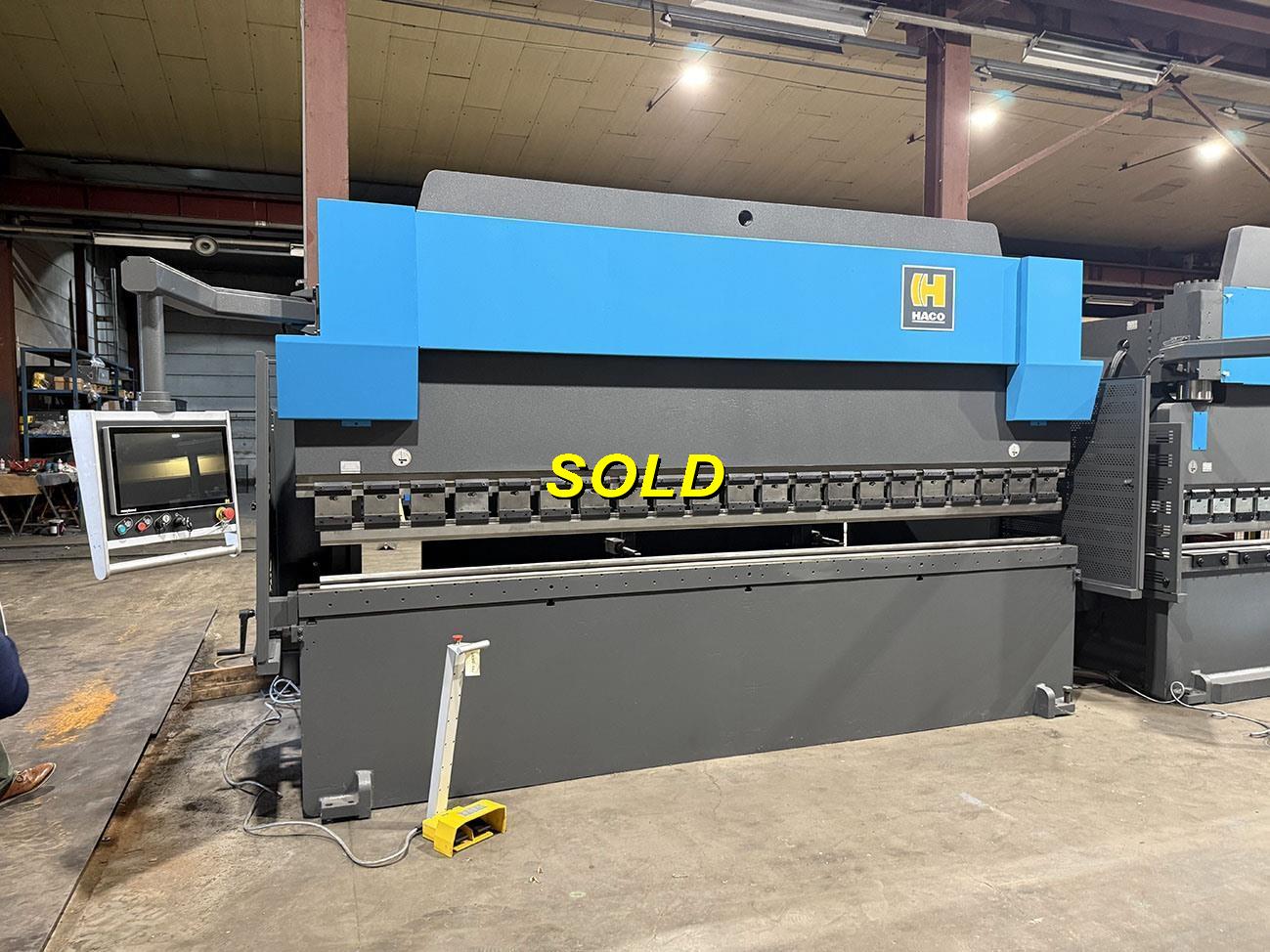

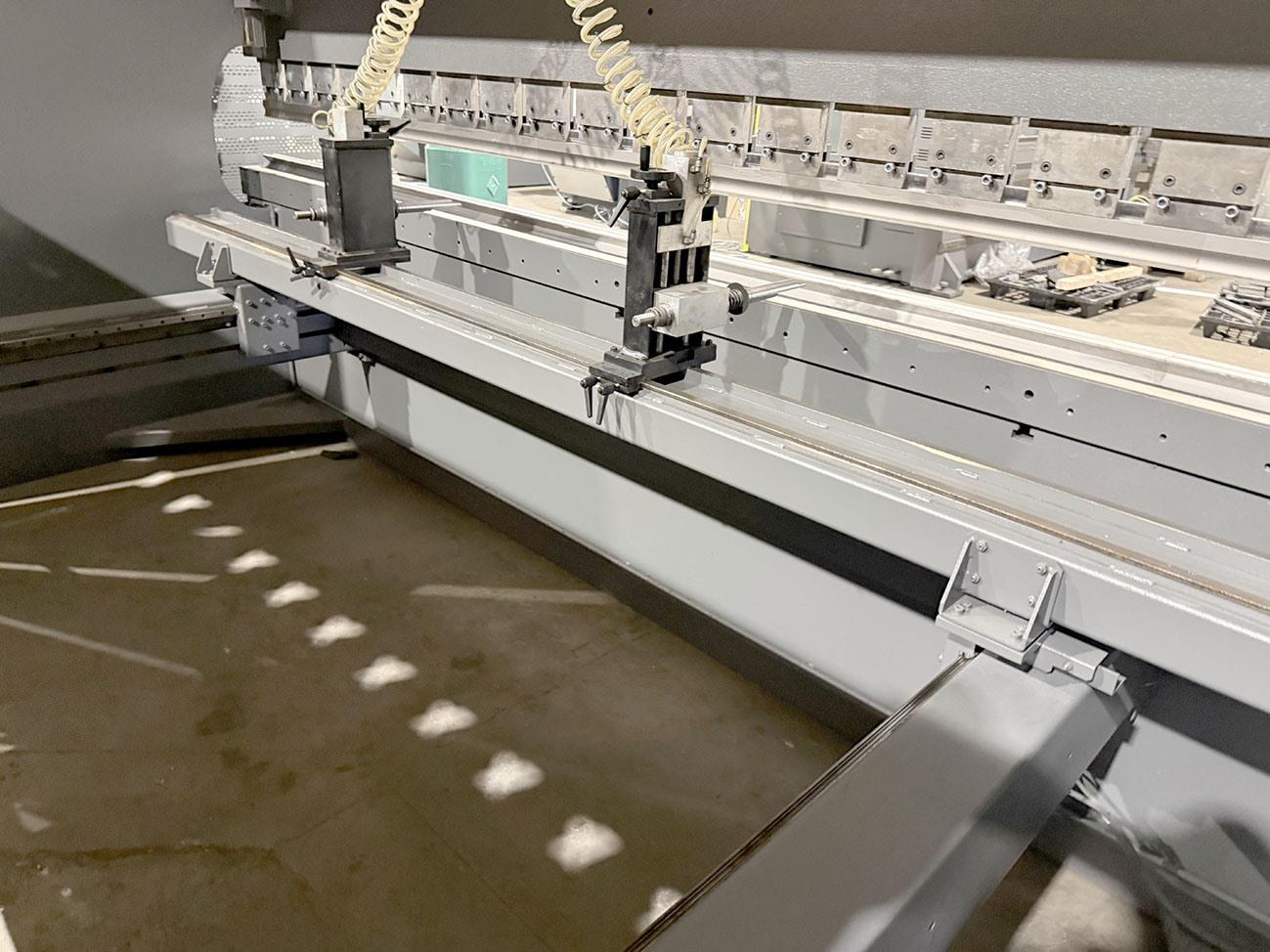

Haco ERMS 230 ton x 4300 mm CNC Capacity: 230 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Table width: 180 mm Locking speed: 200 mm/sec Working speed: 8 mm/sec Returning speed: 125 mm/sec Electric motor (power): 19 kW Length: 4320 mm Depth: 2000 mm Height: 2800 mm Weight: 15 ton

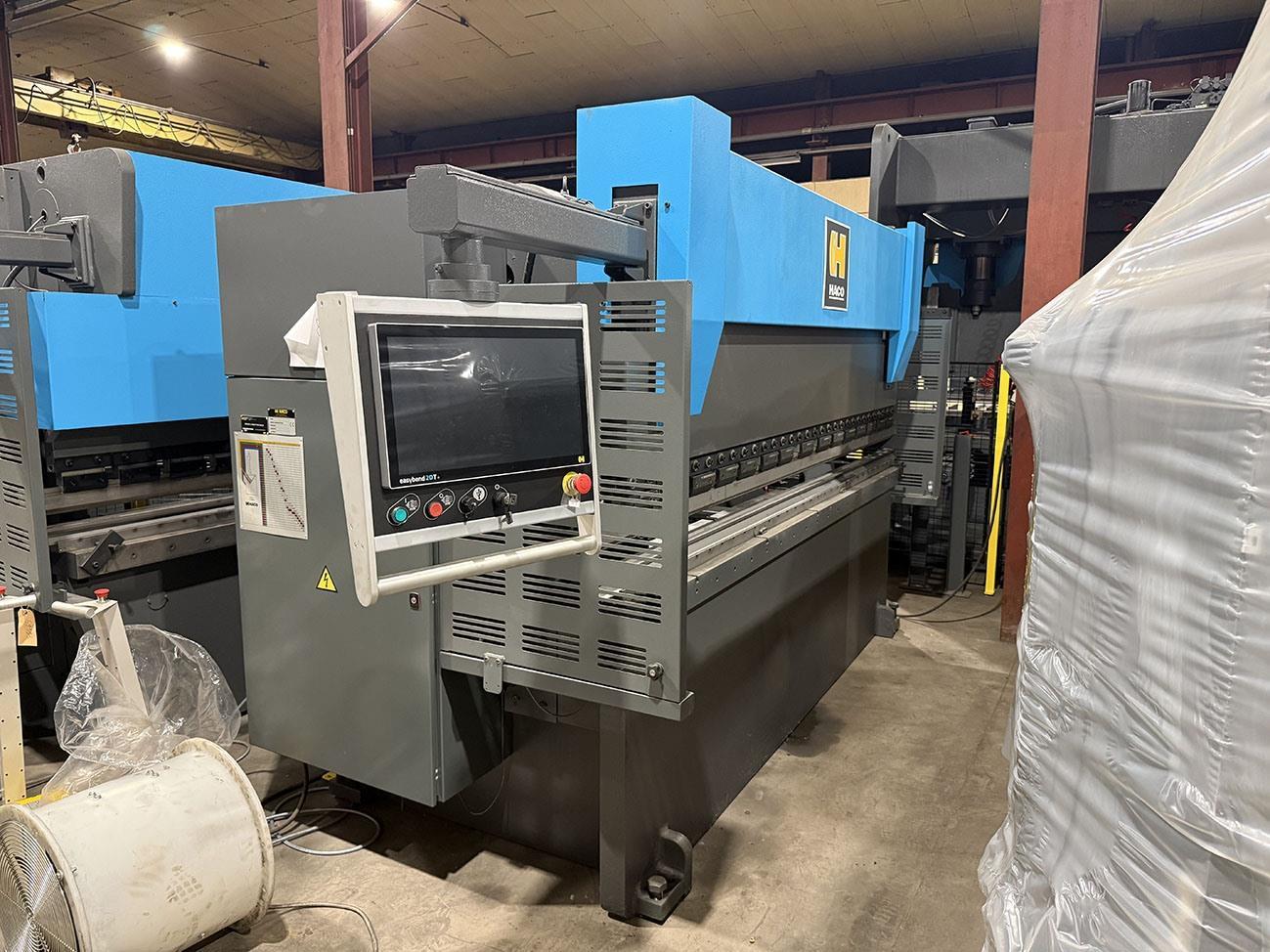

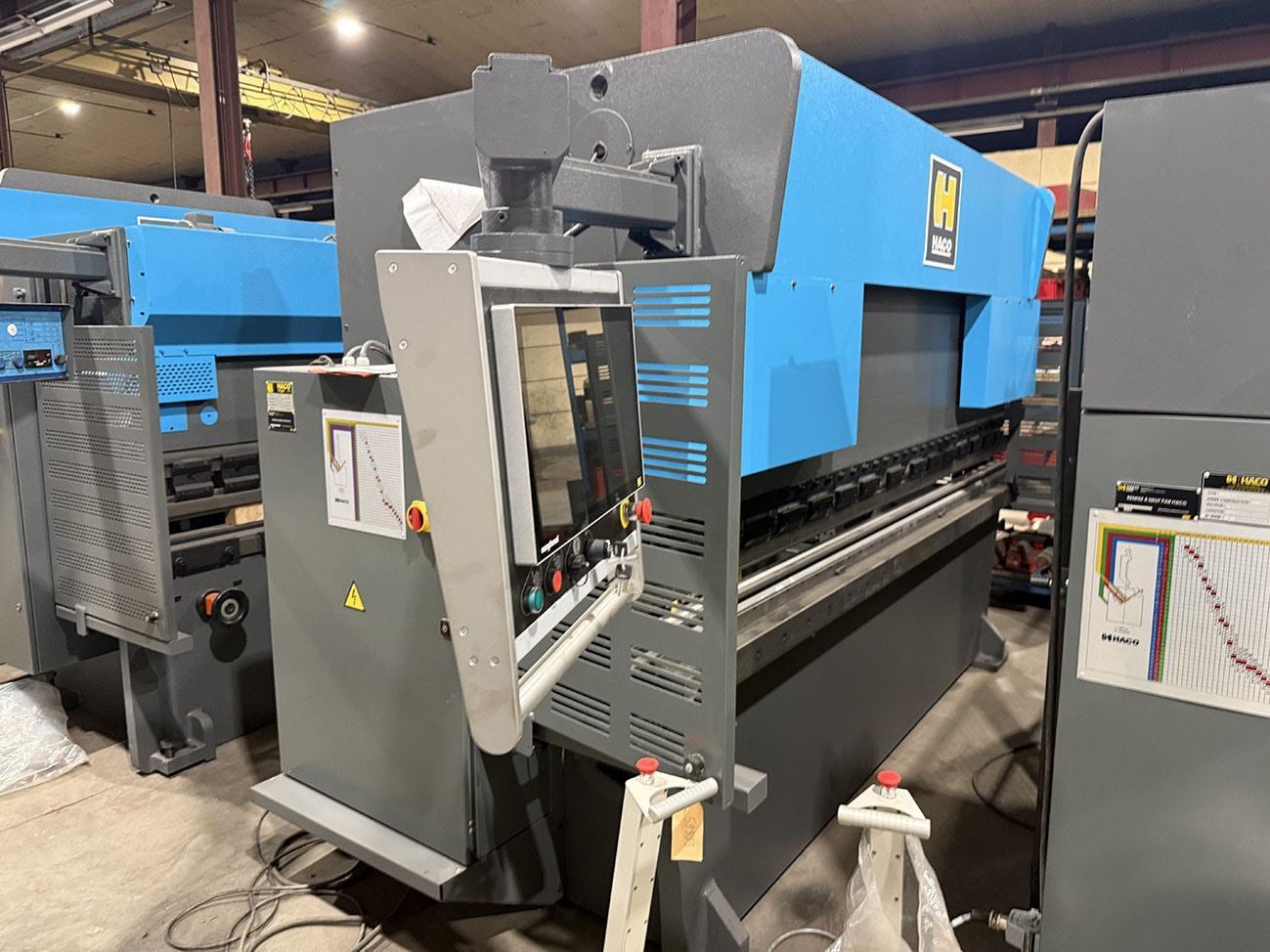

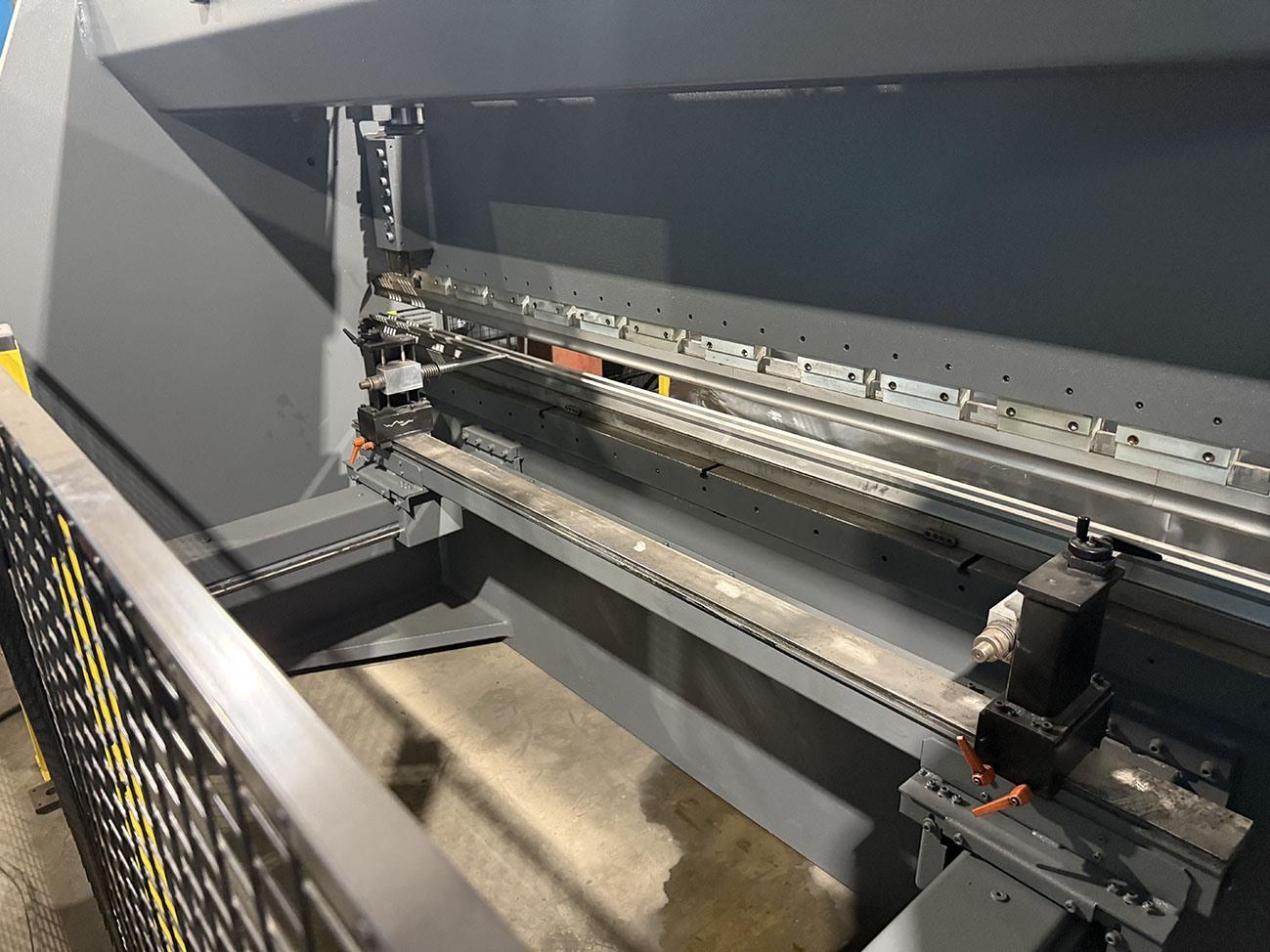

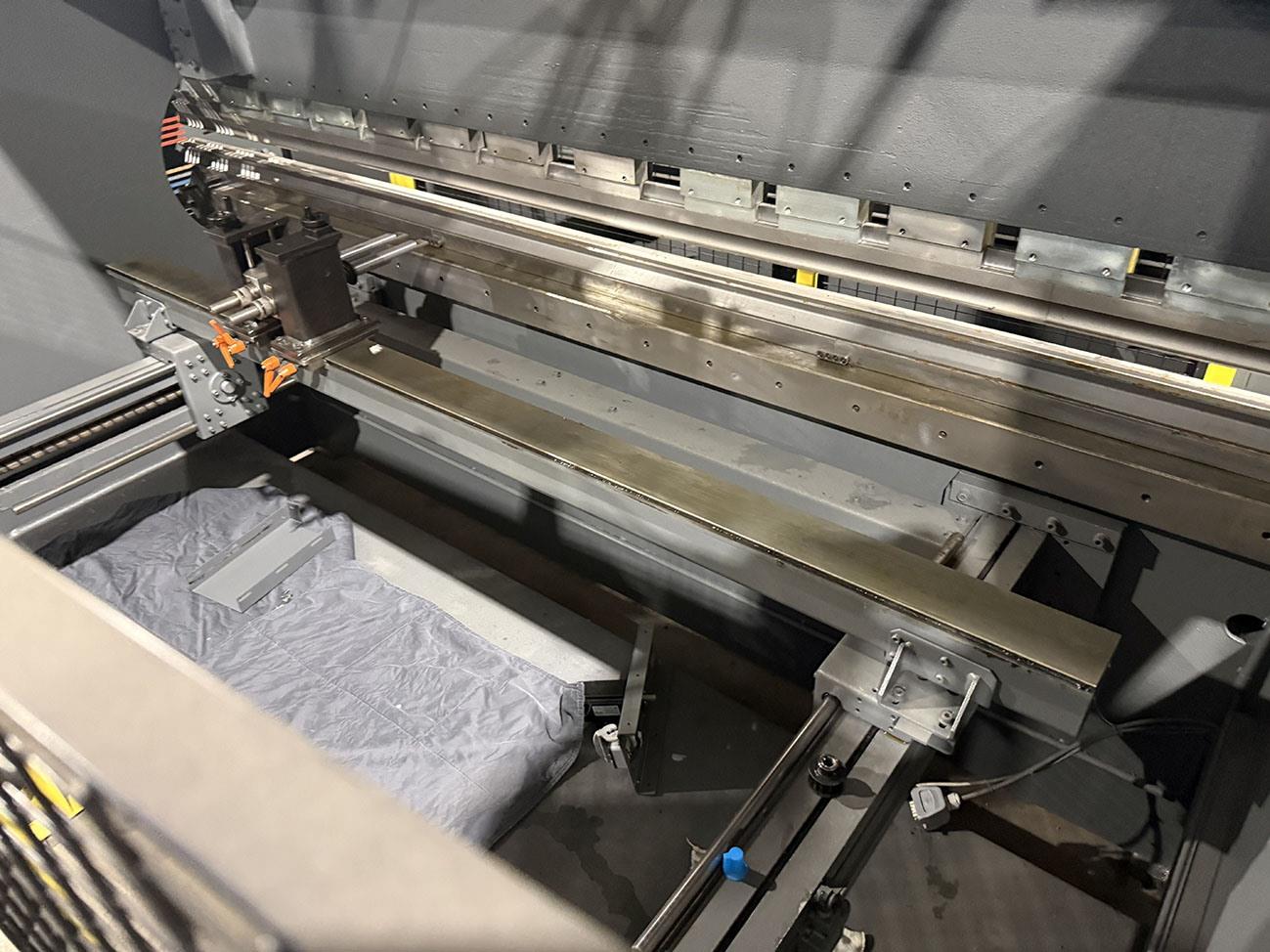

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 3100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 2600 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 3500 mm Depth: 1700 mm Height: 2500 mm Weight: 8 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 3100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 2600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 100 mm/sec Electric motor (power): 12 kW Length: 3270 mm Depth: 1500 mm Height: 2460 mm Weight: 8 ton

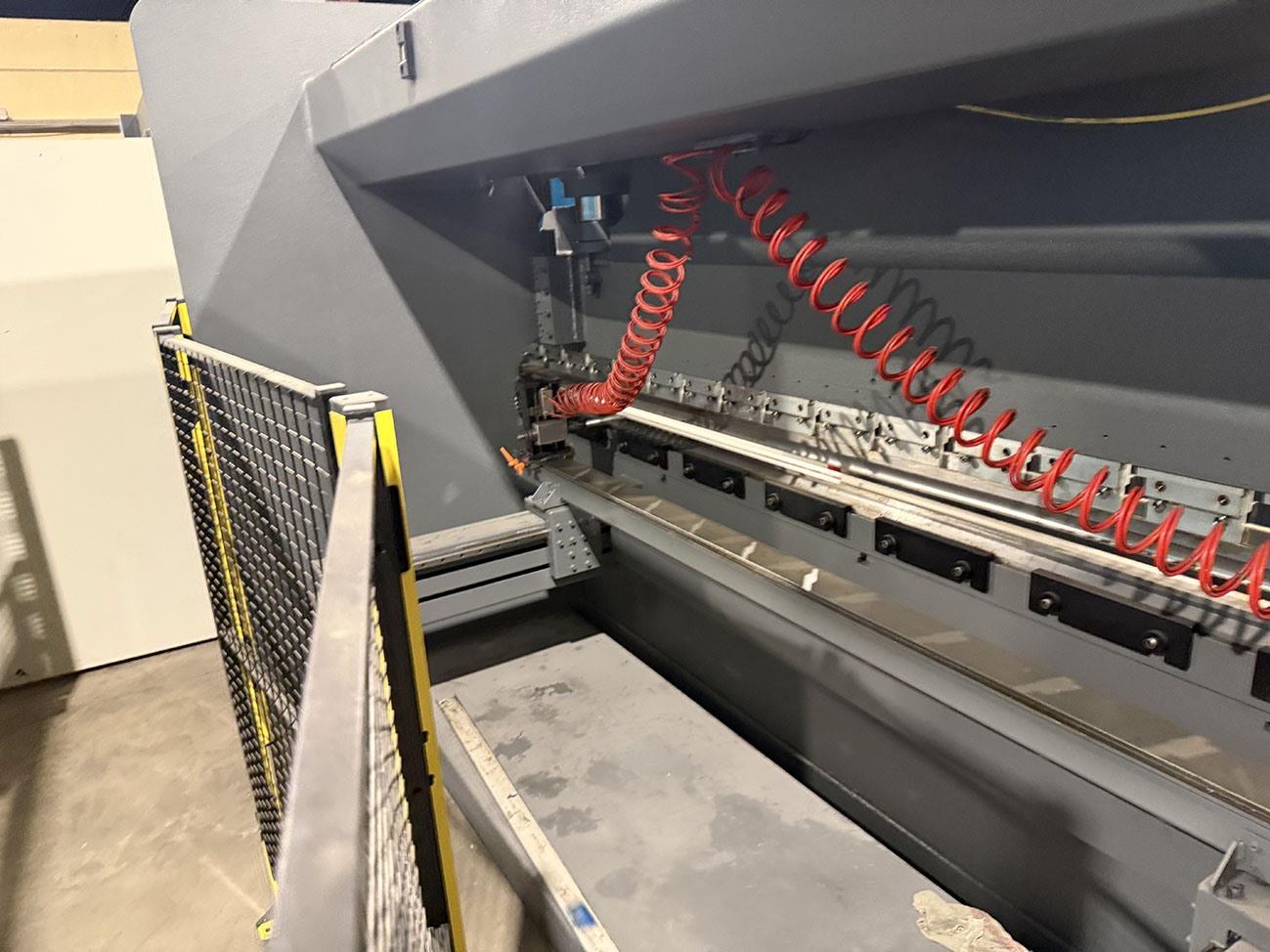

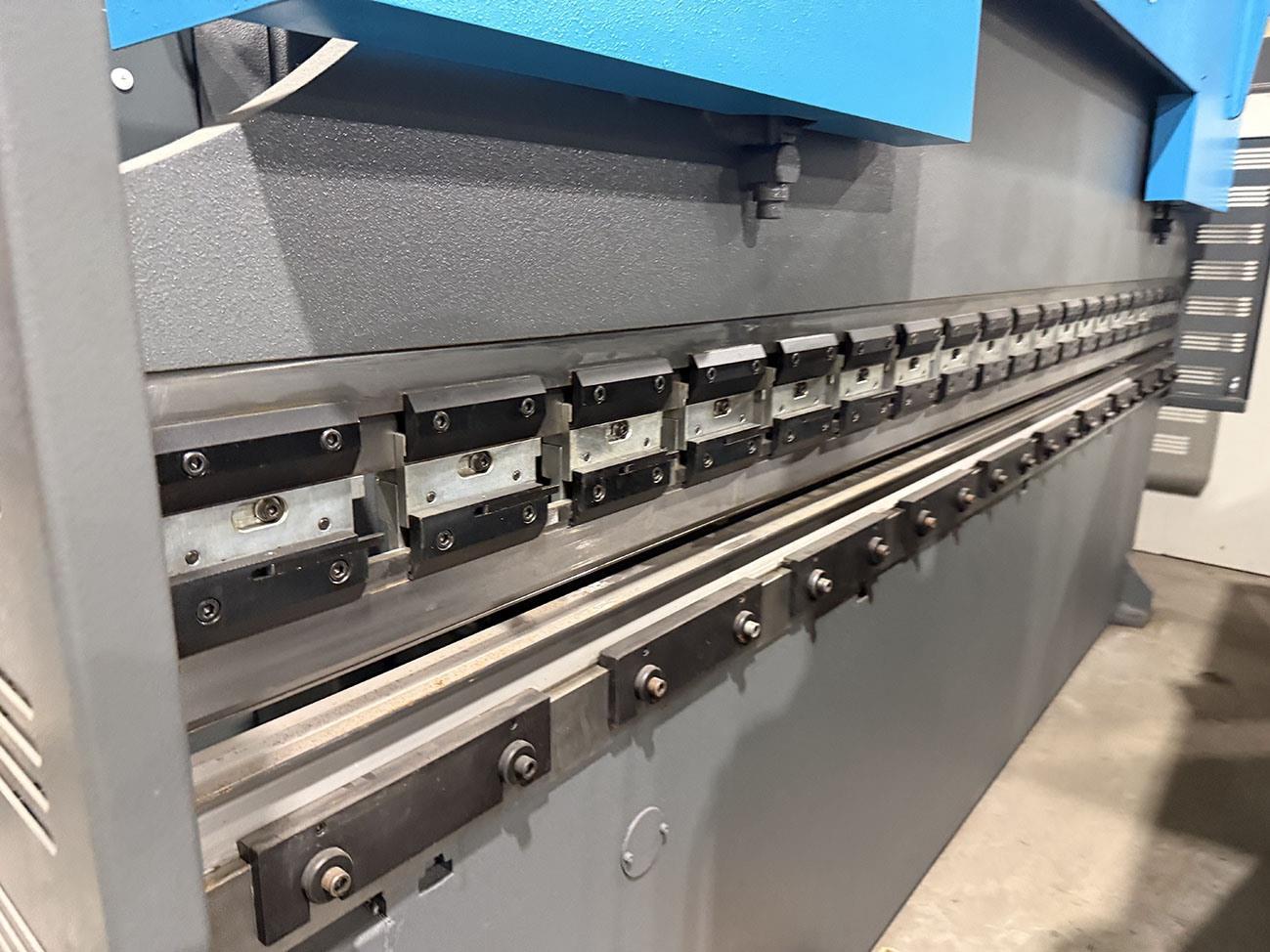

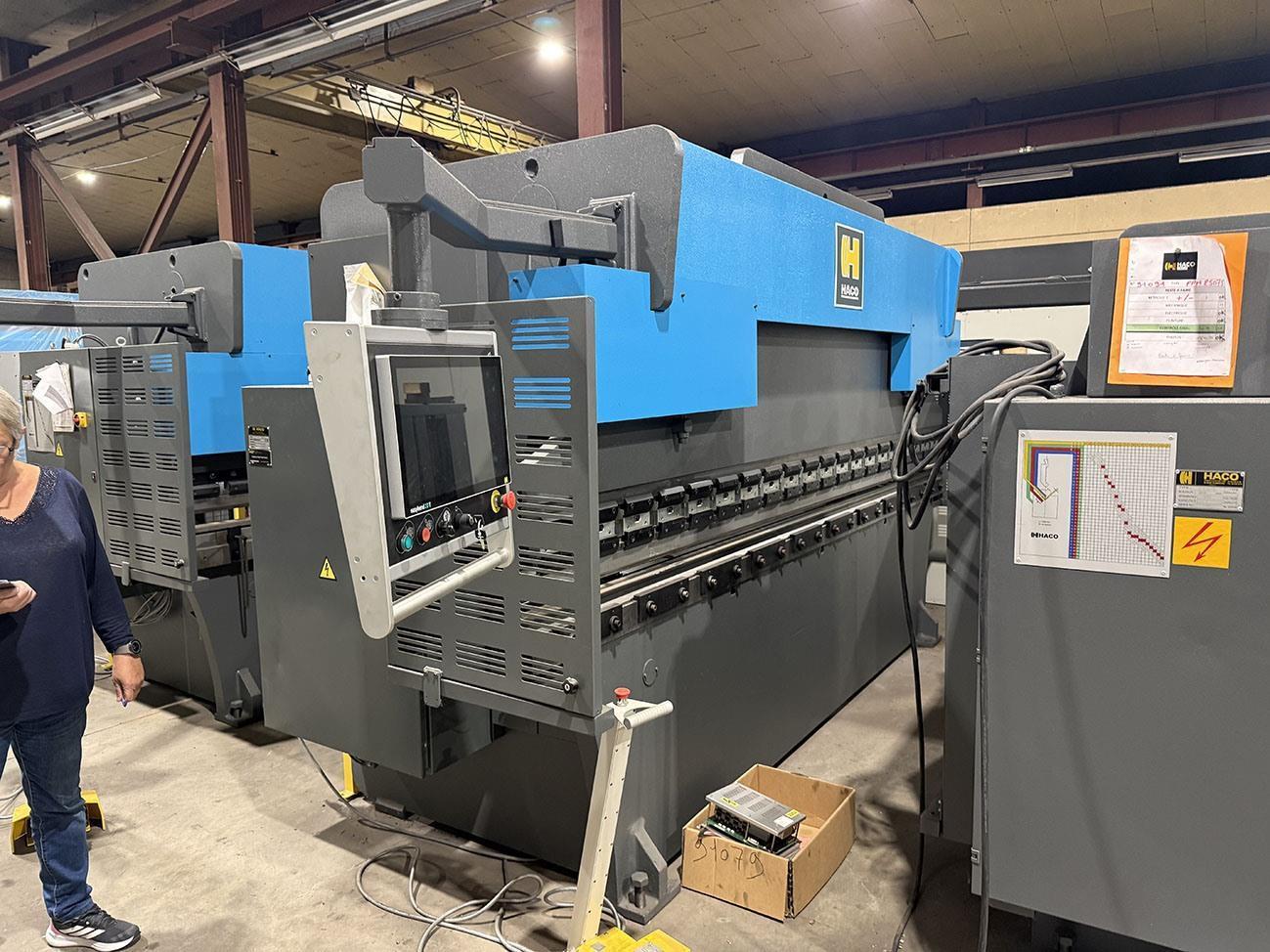

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 4100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 100 mm/sec Electric motor (power): 15 kW Length: 4270 mm Depth: 1500 mm Height: 2530 mm Weight: 11,5 ton

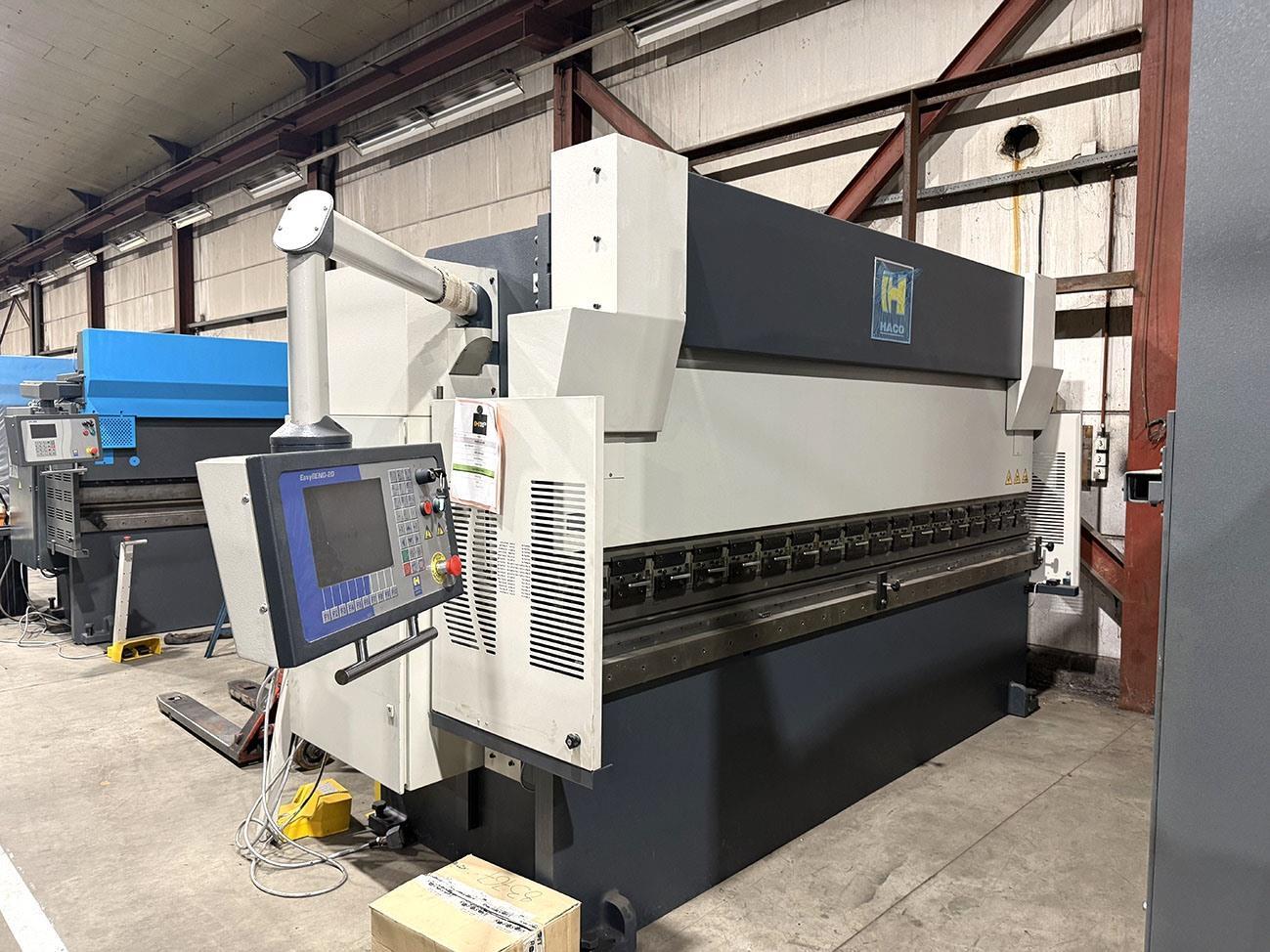

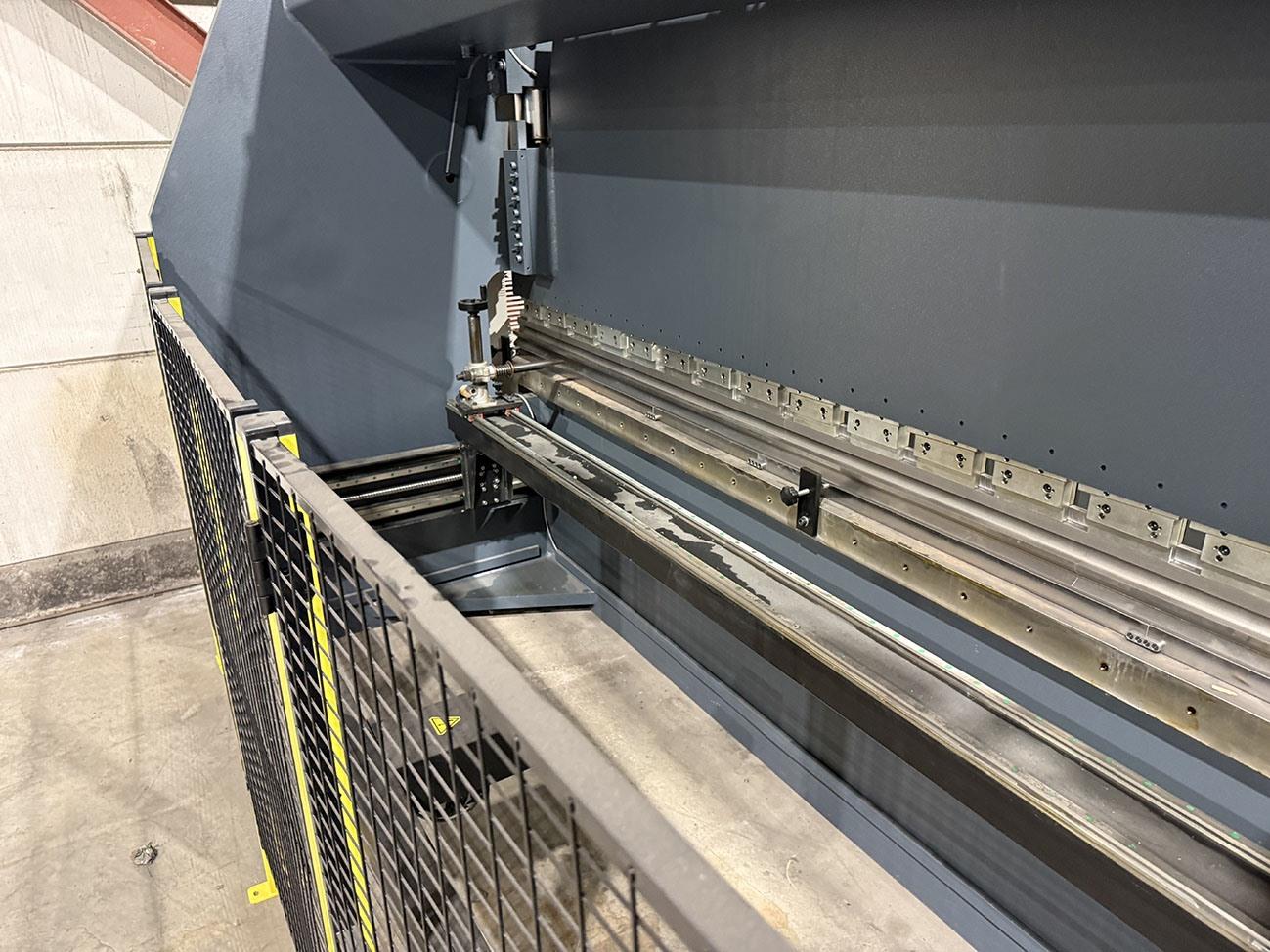

3 assen: Y1 / Y2 / X bovenste en onderste Amada-systeemtooling Gerenoveerd door Haco in 2024 Capacity: 135 ton x 3600 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 4200 mm Depth: 1700 mm Height: 2500 mm Weight: 9 ton Capacity: 135 ton Bending length: 3100 mm

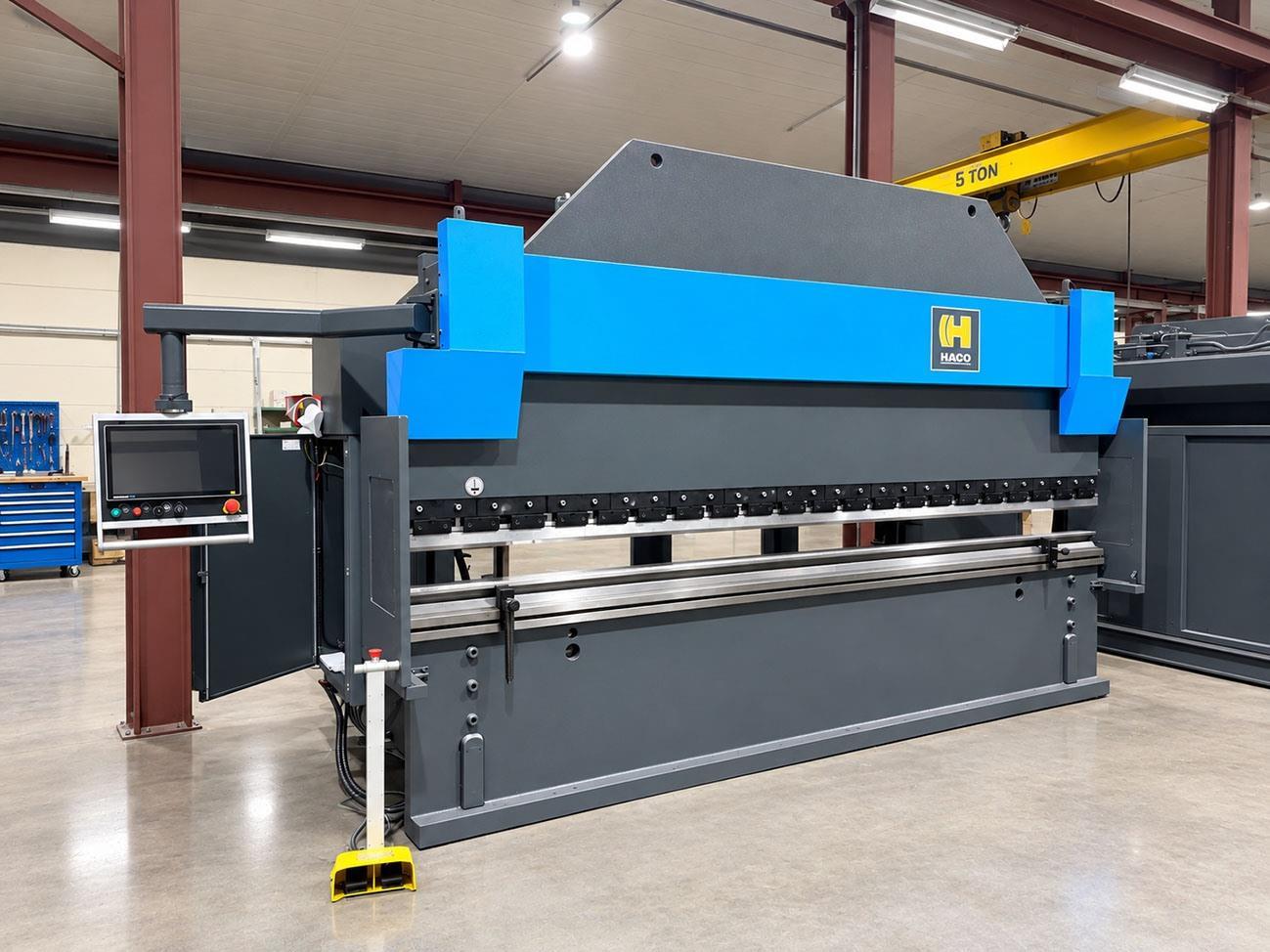

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 200 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3700 mm Electric motor (power): 15 kW Weight: 18 ton Capacity: 200 ton Bending length: 4300 mm

Machine number: 2355 Operating voltage: 400 V Frequency: 50 Hz Rated current: 125 A Connection: 45 kW Control: SIEMENS SINUMERIK Center height: 320 mm Center width: 3000 mm Max. grinding length: 3000 mm Grinding spindle diameter: max. 620 mm Grinding spindle tool holder: 80 mm diameter, taper 1:5 Swivel capability: +- 10° Workpiece spindle bore: MORSE K 6 mm Swivel capability: +30° incl. extensive item spare parts and accessories, documentation, grinding wheels, belt filter system, extraction and filter Hours read: 2667 Attention: the machine can be transported on a standard truck up to 3000 mm wide ! Auction-ID: A7-49089-231

Machine number: 2356 Operating voltage: 400 V Frequency: 50 Hz Rated current: 125 A Connection: 45 kW Control: SIEMENS SINUMERIK Center height: 320 mm Center width: 3000 mm Max. grinding length: 3000 mm Grinding spindle diameter: max. 620 mm Grinding spindle tool holder: 80 mm diameter, taper 1:5 Swivel capability: +- 10° Workpiece spindle bore: MORSE K 6 mm Swivel position: +30° incl. extensive batch Tips in different sizes, matching steady rests, documentation, belt filter system, suction Hours read: 2355 Attention: the machine can be transported on a standard truck up to 3000 mm wide ! Auction-ID: A7-49089-235

Pot discs - diameter:175 mm spindle extension:180 mm operating voltage:400 V Machine weight approx.:300 kg room requirements approx.:0.90 x 0.60 x 1.80 m

-High performance -Belt grinding device height-adjustable 0-90° -Maximum usable face grinding surface -Belt adjustment with fine adjustment -Combined belt grinding/grinding machine -Longitudinal stop for material guidance -Perfectly balanced and low vibration -Double-sided connection for dust extraction Ø 50 mm -Motor circuit breaker with undervoltage trigger -Fixed stop -1 sanding belt standard (brown), grain 80 -1 grinding wheel 250 x 40 x 51 mm, grain 80 -Spark protection -Connection cable with CEE plug -with machine stand, EMERGENCY STOP push button, brake and suction Delivery: in Germany free domicile incl. packaging

Code 0776 Description Surface grinding machine Make ELB Type SWBD 030 MCNC82 Machine No. 18.346.0383 Manufacturing date 1983 Control MCNC / 82-PC Tablesize 3520 x 600 mm Table grinding size L x B x H 3000 x 600 x 600 mm Magnetical plate size L x B 3000 x 400 mm Speed table movement 0,2 – 6 m/min. Max. distance table – centre grinding wheel 850 mm Speeds vertical 3 – 375 mm/min. Speeds cross 1,2 m/min. Speeds grindingwheel stepless 750 – 1400 omw/min Grindingstone: Ø 600 x Wide:100 x Bore: 200 mm Weight 18.000 kg Motor power 37 kW – 380 Volt Accessoiries Electro table 3000 x 400 mm Grinding unit with water cooling Filtering unit with paperfilter Profile grinding unit Condition Machine is in very good condition

GER RS-12/50 surface grinding machine. Grinding area: 1200x550mm. Distance table-centre of spindle: 625mm. Table speed: 2 to 25m/min. Maximum table travel: 1250mm. Maximum work weight: 1200Kgs. Maximum cross travel: 500mm. Grinding wheel size: 400x80x127mm. Manual diamond grinder. Vertical orientable headstock. Vertical automatic feed. Power of grinding spindle: 12,5cv. Weight: 4500Kgs.

220627 Code Description Universal Cylindrical Grinder Make Jones - Shipman Model 1310 ( 8" x 18" ) Serial No. Year ? Grinding length, max. 450 mm Grinding diameter, max. 203 mm Center height 103 mm Weight workpiece kg Table tilting angle - 15 ° till + 15° Diam. Grinding wheel 350 mm Width Grinding wheel, max. 40 mm Motor power grindingwheel 1.5 kW Speeds Grindingwheel 1750 / 2300 rpm Speeds workpieceholder ( 6x ) 30 – 415 rpm Total power 3.5 kVA 380 Volts Machine size L x W x H 1.7 x 1.2 x 1.75 meters Weight 1800 kg Accessories internal grinding ( 10500-16500-24500 rpm ) coolant some tooling Condition Machine is in good condition

Machine overhaul , Repairs , On-site maintenance at the user's site , Spare parts supply , We specialize in the overhaul and repair of Kellenberger and Strausak universal grinding machines. We have the production and license rights of the company Strausak for the Type 57 U / W the resulting Special machines 82 S , multi-spindle fine milling machines, as well as CNC machines built from type 57 U / W We manufacture special machines especially for the ceramics and carbide industry.

In 2001 we acquired the license and production rights of Strausak. These rights include the entire 57 U / W conventional series as well as the CNC machines of the type U / W CNC in the tool grinding range 3 G / 4 G / 5 G as well as in the universal cylindrical grinding area, the 2 axes / 3 axes and 4 axes CNC machine and special machines 81 CNC. We have an extensive stock of spare parts. Our specialization is the general overhaul of these machines, as well as the new production of the above-mentioned machine types and the production of special machines.

NC – controlled precision rotary table face grinding machine with vertical grinding spindle and cup grinding wheel - brand new Rotary table diameter 400 mm Largest grindable diameter 400 mm Rotary table speeds 0 to 50 rpm infinitely variable Maximum workpiece weight 75 kg Cup grinding wheel Ø 200 mm x H 80 mm Grinding wheel speed 280 to 2,800 rpm infinitely variable Maximum workpiece height 170 mm Smallest programmable infeed dimension of the grinding wheel 0.001 mm Grinding wheel drive power 3 kW Rotary table drive power 0.5 kW Weight approx. 650 kg

Langbein double-saddle grinding bench with left/right feed for woodworking. Technical data: Clamping length per side: approx. 450 mm Spindle diameter: 45/35 mm Condition: Gebraucht Location: Tauberbischofsheim, Germany

Rated Voltage: 230V/50Hz-2.5A Auction-ID: A1-49964-14

ELB Perfect BD 15 PLC surface grinding machine, grinding area 1500 x 550 mm, grinding wheel 400 x 100 mm, electric perm magnetic clamping plate 1500 x 550 mm, automatic dresser with compensation, paper belt filter, the machine is overhauled, grinding spindle rebeared, guideways are scraped, meets the tolerance of a new machine. We are happy to take over the installation / training on site, as well as the subsequent service

Magnetic table 455 x 170 mm Digital Water tank Pulling device Wet grinding device

Precision Surface and Profile Grinding Machine FS1570 SL Grinding area: 1500 x 700 x 650 mm Grinding spindle motor: 18 KW Table drive: hydraulic Transverse drive: electromechanical Paintwork: RAL 6011 – reseda green Equipment: •Central lubrication • Wet grinding device • Fine adjustment knob on the transverse path handwheel • Dressing Diamond • Electro magnetic clamping plate 1500 x 750 mm • Magnetic plate adhesive force control Accessories: • Vertical automatic type SL with "LCD" flat screen and membrane keypad • Electric Straight Dresser • Stepless change of speed • Universal paper filter machine • Machine light • Column elevation by 200 mm • Precision balancing scale • 2 new grinding wheels Machine has been overhauled in 08/2018 "Invoice is available" Here's what was done: •Timing belt •Storage • Ball screw •  ...

ELB Perfect BD 10 750 PLC, Year of construction 2008 Control Siemens STC Grinding area 1000 x 750 mm Grinding wheel 400 x 100 mm Grinding spindle 10 KW Electro Perm Magnetic Clamping Plate 1000 x 750 mm Automatic straight-dressing device with compensation Coolant system with paper belt filter Machine is immediately ready for use CE compliant Installation / on-site training included

Condition of the machine: The machine is currently in a used, unoverhauled condition. All machine wear parts are replaced, including the feed spindle in the X-axis, and all assemblies are restored to like-new condition. After the overhaul, the machine can be easily compared to a new machine. Geometry: The machine is completely dismantled except for the guides. Before the geometry of the individual tables and assemblies can be restored, the two guides of the Z and X axes are scraped by hand and restored to mint condition. After completion of the work, the machine receives a measurement report according to the original specifications of the manufacturer. Electronics: The electronics and the control cabinet housing will be completely replaced. All electrical parts are replaced, including the motors. Hydraulics: The entire lubrication system, including the lubrication un ...

Favretto 500, Rotary table surface grinding machine, horizontal spindle, dia 500mm, electric elettrico with DRO

Cylindrincal grinding machine, KNUTH RSM 750, interna/external, DRO, This machine can be inspected under power in our warehouse., Mimu Machine Tools, Gussago BS Italy

Vertical Grinding Machine, Surface Grinding Machine DORMAC / DORIA Type PerseoCup Grinding MachineFabr. No. 786 Year of construction 1987Grinding area 500 x 250 mmMagnet 400 x 150 mmGrinding height Grinding wheel - magnet approx. 190 mmGrinding height Grinding wheel - clamping surface Table approx. 235 mmGrinding wheel diameter 175 mmTable longitudinal movement approx. 600 mmGrinding wheel speed approx. 2800 rpm. Motor power approx. 2.2 kWNerg connection 380 volts, 50 Hz manual depth delivery via handwheel, travel per

grinding diameter: 360 mm grinding length: 1600 mm centre height: 180 mm internal diameter: 0 mm grinding depth: 0 mm swing diameter: 0 mm total power requirement: 40 kW weight of the machine ca.: 10000 kg dimensions of the machine ca.: m K A R S T E N S (Germany) Universal CNC” - Cylindrical Internal and Face Grinding Machine also for grinding excentric and cam profiles and polygons and even suitable for Threadgrinding Model K 51 – 1500 Year 2000 Serial No. 99 093 Height of centres 180 mm Distance between centres / grinding length 1,700/1.600 mm Cylindrical Grinding: Grinding Ø, approx. 5 - 360 mm Grinding wheel: Ø x width x bore 500 x 100 x 127 mm Grinding spindle speeds (35 m/s / 50 m/s) 1.900 / 2.200 rpm Drives of cyl./int/face spindle units 7.5/4,0/7,5 kW Grinding Wheelhead: 3  ...

workpiece diameter: 350 mm workpiece weight: 99999999 kg workpiece height: 240 mm total power requirement: 7,5 kW weight of the machine ca.: 2 t dimensions of the machine ca.: m Seltene Gelegenheit: Teilüberholte Hochpräzisions-Rundtischflachschleifmaschine Rundtisch-Durchmesser 380mm Magnet-Durchmesser 350mm Schleifscheibenabmaße 300x25x76,2mm Tischdrehzahl variabel max. 200U/min Schwenkwinkel des Tisches +-3 Grad Schleifspindeldrehzahl 800-4200 U/min Leistung Schleifspindelantrieb 5KW Verfahrweg quer max. 225mm Verfahrweg vertikal max. 480mm Abstand zwischen Magnetspannfutter und Spindelmitte, max. 390mm Automatischer Kopfabrichter AF65: zum zylidrischen Abrichten der Schleifscheibe im CD-Abrichtverfahren (Abrichten während des Schleifprozesses) Hierdurch werden Schleifzeiten reduziert und Abrichtzeiten eingespa ...
