cnc floor boring used for sale

Auction-ID: A1-41281-8

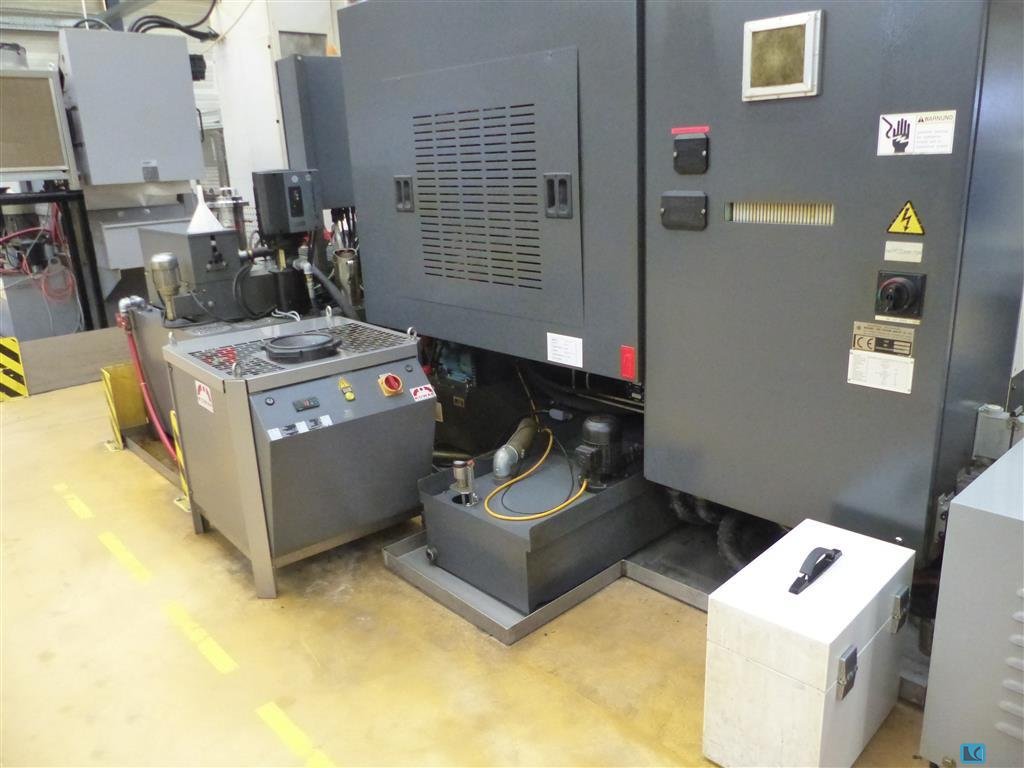

Equipped with: Siemens Sinumerik CNC control, 2007 Rittal SK 3304142 cooler, 2007 Knoll FKA/350 refrigerant system (116x83x150cm), 350 litres, 2.2 kW, 3×400 V, serial number 349718, Knoll chip conveyor type 350 K-1/100, year of manufacture 2000, serial number 88972; (450x110x184cm) Auction-ID: A1-41281-1

Consisting of different aggregates and tool holders Auction-ID: A7-51362-6

Brother TC-S2D-O CNC Tapping / Machining Center Manufacturer: Brother Industries, Ltd. Model: TC-S2D-O Year: 2010 Serial number: 113796 CNC: Brother CNC-B00 Spindle: 16,000 rpm Tool capacity: 21 Compact high-speed vertical CNC machining center for drilling, tapping and milling operations. Specifications: X/Y/Z travel: 500 / 400 / 300 mm Table: 600 × 400 mm Max. table load: 250 kg Spindle motor: 4.9 kW Tool interface: MAS-BT30 / BBT30 Max. tool: Ø80 × 250 mm, 3 kg ATC time: approx. 0.9 sec Rapid traverse: 50,000 mm/min Repeatability: ±0.003 mm Supply: 220 V, 3-phase, 50/60 Hz Power capacity: 9.5 kVA continuous / 29.4 kVA max. Air: 0.4–0.6 MPa, approx. 120 L/min Operating data: Operation time: approx. 14,113 h Power-on time: approx. 52,768 h Dimensions (L × W × H): 1,624 × 2,829 × 2,592 mm Weight: 2,400 kg Condition: Used. Control po ...

x-travel: mm y-travel: mm z-travel: mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 210 mm turning length: 700 mm control: Okuma OSP-E 100 L total power requirement: 35,7 kVA weight of the machine ca.: 7,1 t dimensions of the machine ca.: 2660 x 2000 x 2330 mm CNC turning and milling center with C-axis and Y-axis, 2 turrets, and subspindle. CNC control: Okuma OSP-E 100 L Maximum turning diameter: 210 mm Swing over bed: 400 mm Distance between spindle noses: 960 mm Main spindle: Spindle bore: 53 mm Speed range: 50 to 6000 rpm Motor power: 11/7.5 kW Subspindle: Spindle nose: JIS A2-6 Speed range: 38 to 5000 rpm Motor power: 11/7.5 kW Z-axis: Travel: 700 / 700 mm (ZA + ZB) Rapid traverse: 40000 mm/min W-axis: Travel: 940 mm Rapid traverse: 40000 mm/min X-axis: Travel: 167 / 192 mm (XA + XB) Rapid traverse: 30000 mm/min Y-axis: Travel: 92 mm (+50/-42 mm) Rapid traverse: 15000 mm/min C-axis: Indexing: 360 x 0.001 deg. Rapid traverse: 400 rpm Disc turret: 2  ...

turning diameter: 465 mm axis distance: 1.150 mm control: Siemens 840D centre height: 360 mm Swivel range via X-slide: 465 mm chuck diameter: 250 mm travel -x axis: 300 mm travel -z axis: 1.050 mm rapid power traverse in X-and Z direction: 30 m/min Max. workpiece weight – chuck: 150 kg Max. workpiece weight – tailstock: 350 kg Max. workpiece weight – steady and tailstock: 600 kg weight of the machine ca.: 7,5 t dimensions of the machine ca.: 2,5 x 5,3 x 2,2 m Equipment/Accessories: - 12-station tool turret (VDI 40 mount) - With 6 driven tool stations (VDI 40 coupling) - Hinged chip conveyor - Reinforced coolant pump (12 bar) - Hydraulic 3-jaw chuck (D 315 mm) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

TECHNICAL DATA SHEET WINTEC MV 45 Control: Fanuc Series 18-M X-axis travel: 800 mm Y-axis travel: 450 mm Z-axis travel: 500 mm Table dimensions: 900 x 450 mm Spindle Attachment: BT 40 Spindle speed: 8,000 RPM Tool Change: ATC 20/24 Position Rapid: 24 - 30 m/min Overall dimensions: 2400 x 2200 x 2550 mm Machine weight: 4500 kg Auction-ID: A7-51375-14

Main Technical Data Strokes (X / Y / Z): 1020 x 650 x 610 mm Table: 1120 x 650 mm - Max load: 1000 kg Spindle: BT 40 / ISO 40 - Speed: 8,000 rpm Spindle power: 11 / 15 kW Tool Magazine (ATC): 24 positions (quick exchange with arm) Fast Feeds: 24 - 30 m/min FANUC Series Oi-MC Control Auction-ID: A7-51375-19

Böhringer DUS 560 with additional digital display with Siemens 805 control with Forkardt 3 jaw chuck D 250 mm Multifix Holder Auction-ID: A7-50850-3

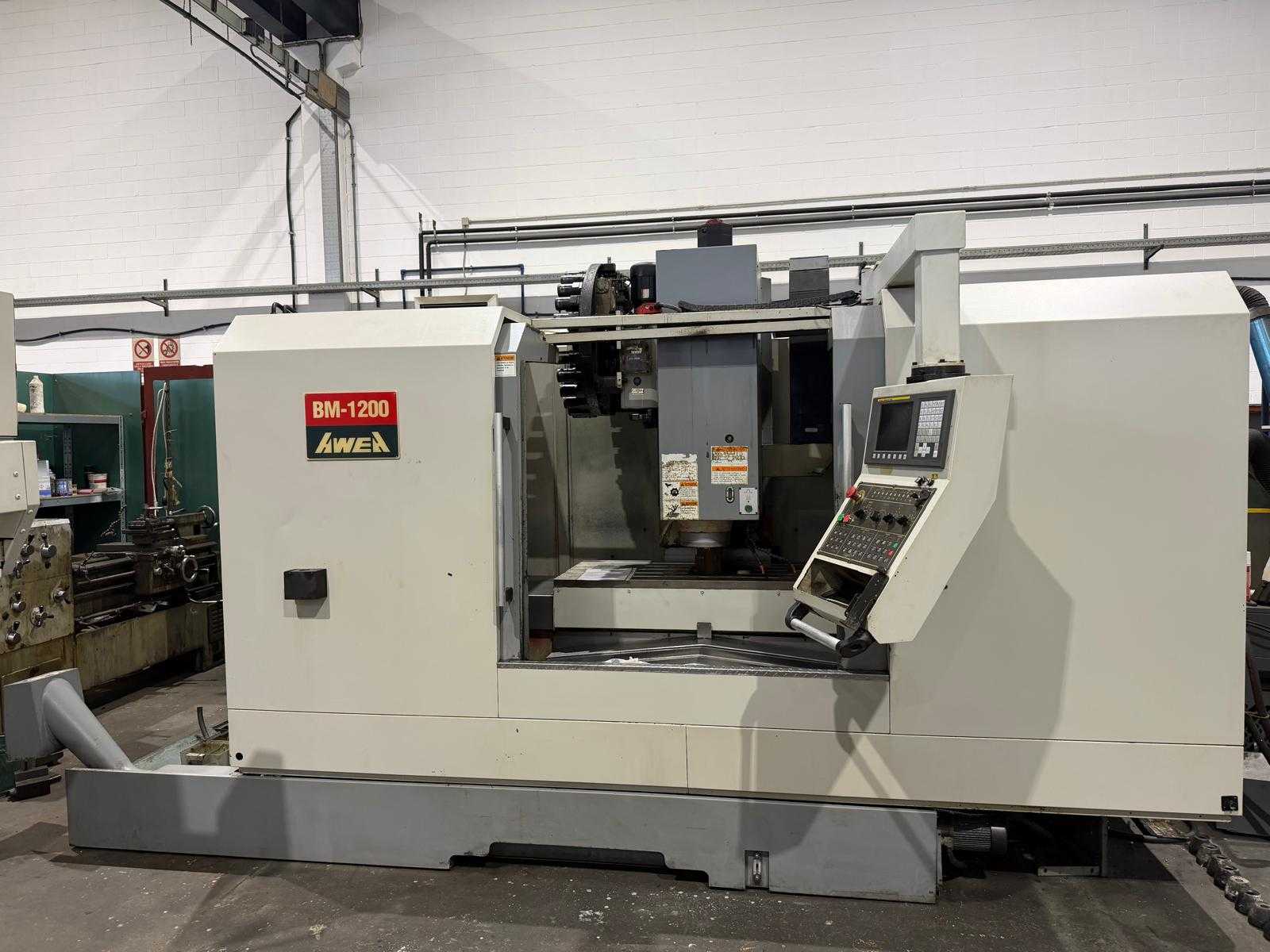

Awea BM 1200 vertical machining center X-axis travel: 1,200 mm Y-axis travel: 600 mm Z-axis travel: 600 mm Table dimensions: 1,350 x 600 mm Maximum Table Load: 1,200 kg Spindle Mount: BT-40 Total Machine Weight: approx. 8,500 - 9,000 kg Ground Clearance (W x D): 3,200 x 2,400 mm Maximum Height: 2,600 mm Auction-ID: A7-51375-10

Heidenhain TNC 426/430M control Racing and Board: X-axis (longitudinal): 1,000 mm Y-axis (Transverse): 600 mm Z-axis (Vertical): 600 mm Table surface: 1,200 x 600 mm Maximum Table Load: 800 kg Speed 10,000 rpm (belt or direct drive) Tool Mount: SK 40 / BT 40 Spindle power: approx. 9 - 13 kW (S1/S6) Torque: ~82 Nm Fast Feeds: 30 m/min (X/Y/Z) Tool magazine: 24 spaces (basket or chain configuration with exchange arm) Tool Change Time: ~1.6 - 2.5 seconds (T-to-T) Total Weight: approx. 6,500 kg Floor space approx. 3,500 x 2,400 x 2,800 mm TOOLS NOT INCLUDED Auction-ID: A7-51375-2

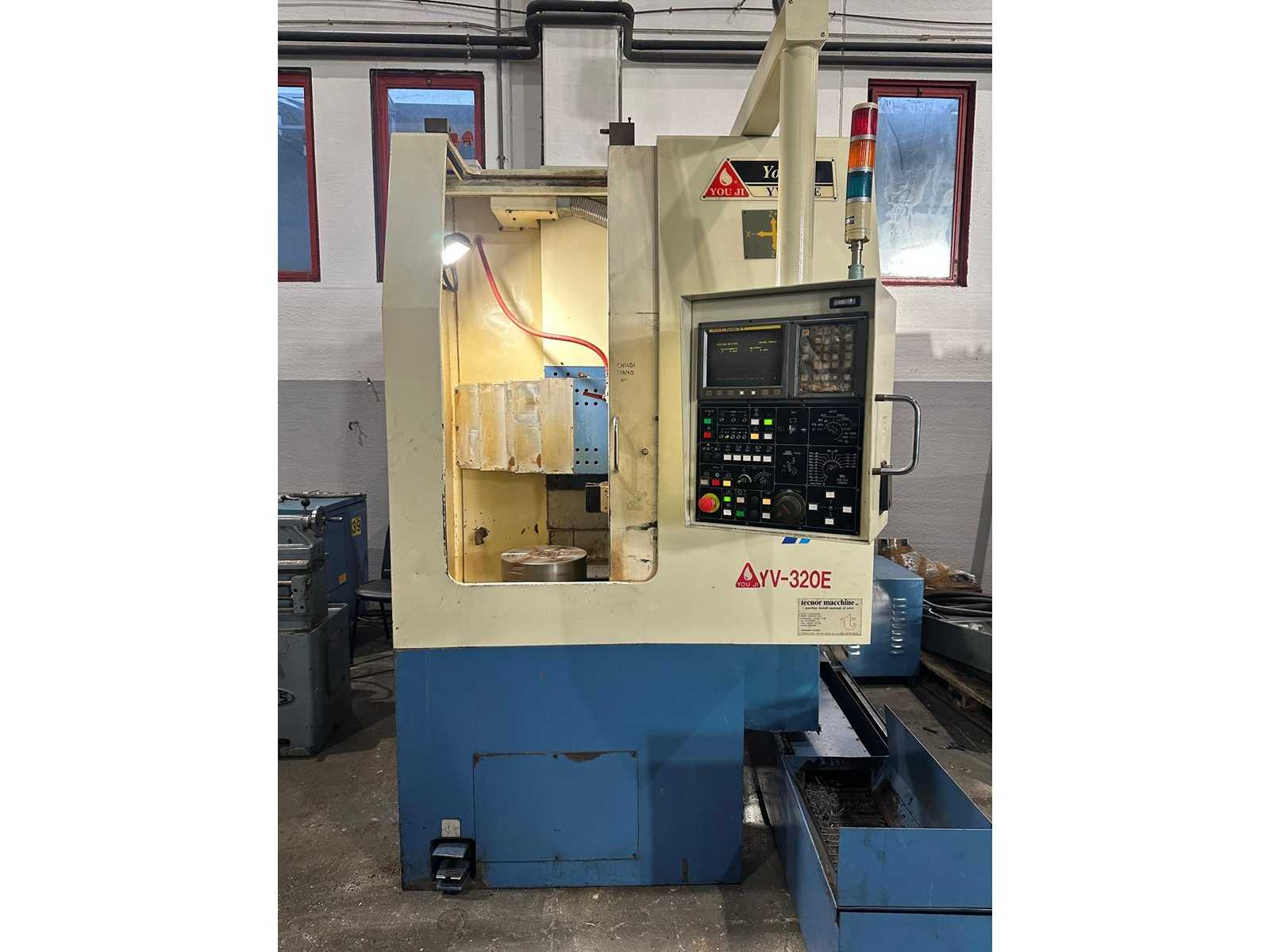

YOU-JI Vertical Lathe Model YV-320 E Fanuc Control Maximum Turning Diameter: 450 mm Self-centering diameter: 200 - 250 mm (8\" - 10\") X-axis travel (horizontal): Approx. 200 - 250 mm Z-axis travel (vertical): approx. 400 - 450 mm Spindle speed: Up to 3,000 - 4,000 rpm Total Machine Weight: approx. 4,500 - 5,000 kg Ground Clearance (W x D): Approx. 1,600 x 2,400 mm Total Height: Approx. 2,600 mm Auction-ID: A7-51375-22

Capacity and Working Area Maximum diameter of rotation on the bench (Swing over bed): Ø550 mm  Maximum rotating diameter on the carriage: Ø400 - 415 mm Max turning diameter: Ø350 - 400 mm  Maximum turning length (distance between centres): 1,250 - 1,300 mm Spindle Spindle rotational speed: 25 - 2,500 rpm Spindle bore / Bar capacity: Ø90 mm (up to 105 mm on some A2-8 nose configurations)  Spindle nose attachment: ASA / DIN A2-8  Spindle motor power: 18.5 - 22 kW (AC Motor)  Recommended Centering Size: 10\" / 12\" (250 - 300 mm) Strokes and Feeds X-Axis Travel (Transverse): 240 mm Z-axis travel (longitudinal): 1,320 mm  X-axis rapid feed: 12,000 - 18,000 mm/min  Z-axis fast feed: 15,000 - 18,000 mm/min  Tool Turret and Tailstock Turret Type: Automatic Disc Turret (Hydraulic) Number of tool stations: 10 or 12 positions   ...

Racing and Board Capacity X-axis travel: 1,450 mm Y-axis travel: 750 mm (up to 800 mm) Z-axis travel: 750 mm Table dimensions: 1,600 x 800 mm Max Table Load: 2,000 kg Distance between spindle nose and table: 200 – 950 mm Spindle Center - Column Distance: 850 mm Spindle and Power Spindle Mount: ISO/BT50 (heavy-duty standard) Spindle speed: 4,500 – 6,000 rpm (with gear change) Spindle Motor Power: 11 / 15 kW (up to 18.5 kW continuous/peak) Feeds and Structure Rapid Feed (X / Y / Z): 20,000 mm/min (X/Y) — 12,000 mm/min (Z) Working Rate: 1 – 10,000 mm/min Guide Type: Flat / prismatic guides (Box Ways) in Turcite-B Tool Magazine (ATC) Magazine capacity: 24 or 30 positions (CAM exchanger arm) Max tool dimensions: Ø110 mm (adjacent occupied seats) / Ø 200 mm (free seats) Length / Max Tool Weight: 350 mm / 15 kg FANUC Series 21i-MB Control Auction-ID: A7-51375-8

Runs and Work Area X-axis travel: 1,270mm Y-axis travel: 670mm Z-axis travel: 625mm Spindle nose - table top distance: 150 - 775 mm Working Table Table dimensions: 1,300 x 670 mm Maximum permissible load: 1,000kg Tool holder: ISO 40 Standard rotational speed: 8,000 rpm Feeds and Speeds Fast Forward (X/Y/Z Axis): 36/36/ Tool Magazine (ATC) Number of tool positions: 30 positions DOOSAN FANUC i Series Numerical Control (CNC) WITH 10.4\" graphic display and Manual Guide Auction-ID: A7-51375-4

Working Range: Max. turning diameter: Ø290 mm Max. turning length: 490 mm Bar passage: Ø65 mm Main Spindle: Self-centering: 8\" 210 mm ASA Nose 6\" (A2-6) Max. speed: 4,500 rpm Motor power: 11 / 15 kW C-axis: 360° (0.001°) Motorized turret (MB): Workstations: 12 positions (all motorized) Tool attachment: BMT 55 Rotary tool speed: 4,000 rpm (3.7 kW) Strokes & Advancements: X-axis / Z-axis: 205 mm / 550 mm Rapid X/Z: 20 m/min/30 m/min Hydraulic tailstock: Steerer stroke: 80 mm (CM4 taper) Fanuc 21i-TB Numerical Control Auction-ID: A7-51375-6

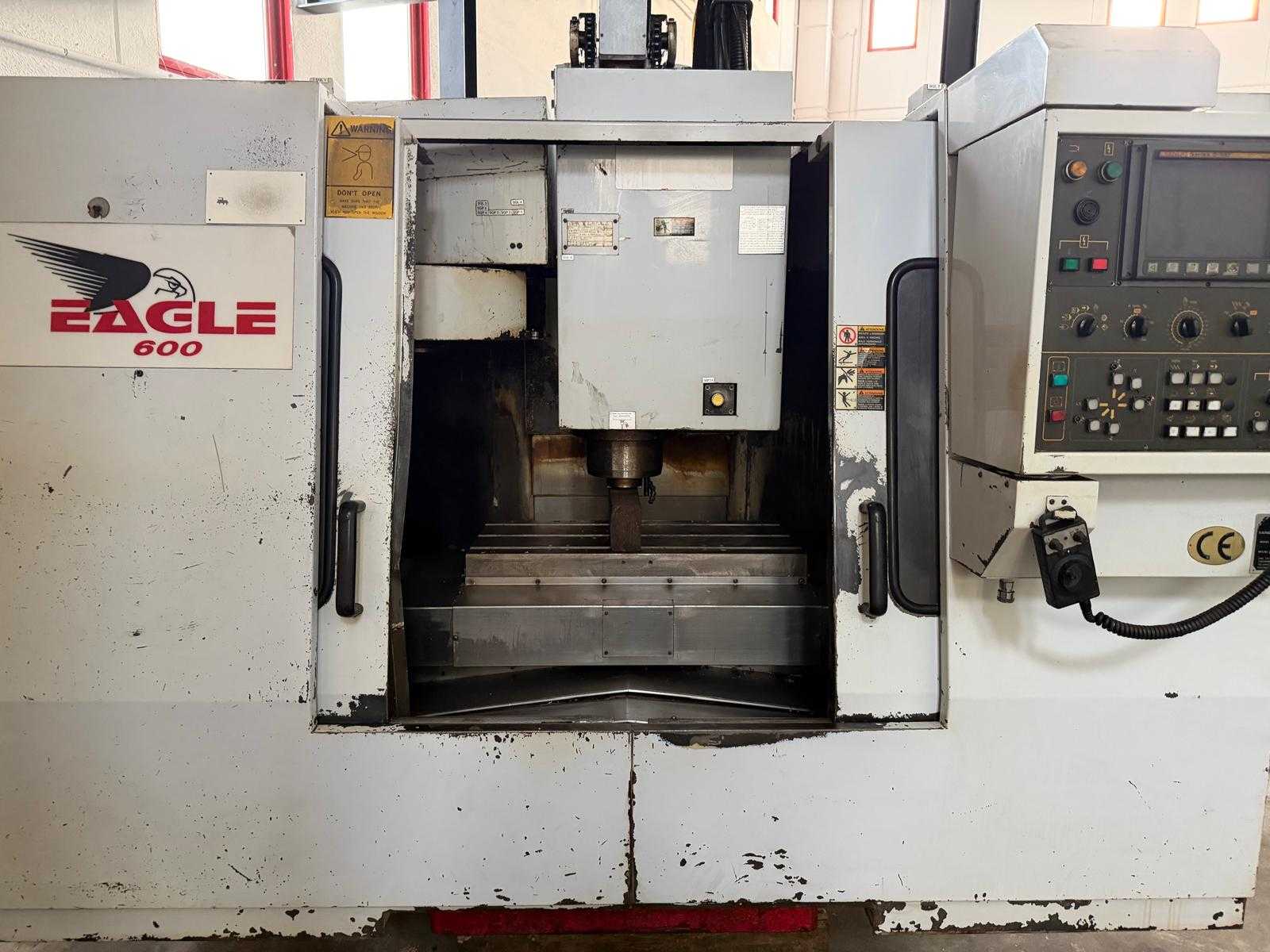

vertical machining center YANG EAGLE 600 X-axis travel: 600 mm Y-axis travel: 410 mm Z-axis travel: 450 mm Table dimensions: 700 x 400 mm Maximum Table Load: 300 - 350 kg Spindle Mount: BT-40 / ISO-40 Total machine weight: approx. 3,200 - 3,500 kg Floor Dimensions (W x D): Approx. 2,000 x 2,200 mm Maximum Height: 2,450 mm Auction-ID: A7-51375-12

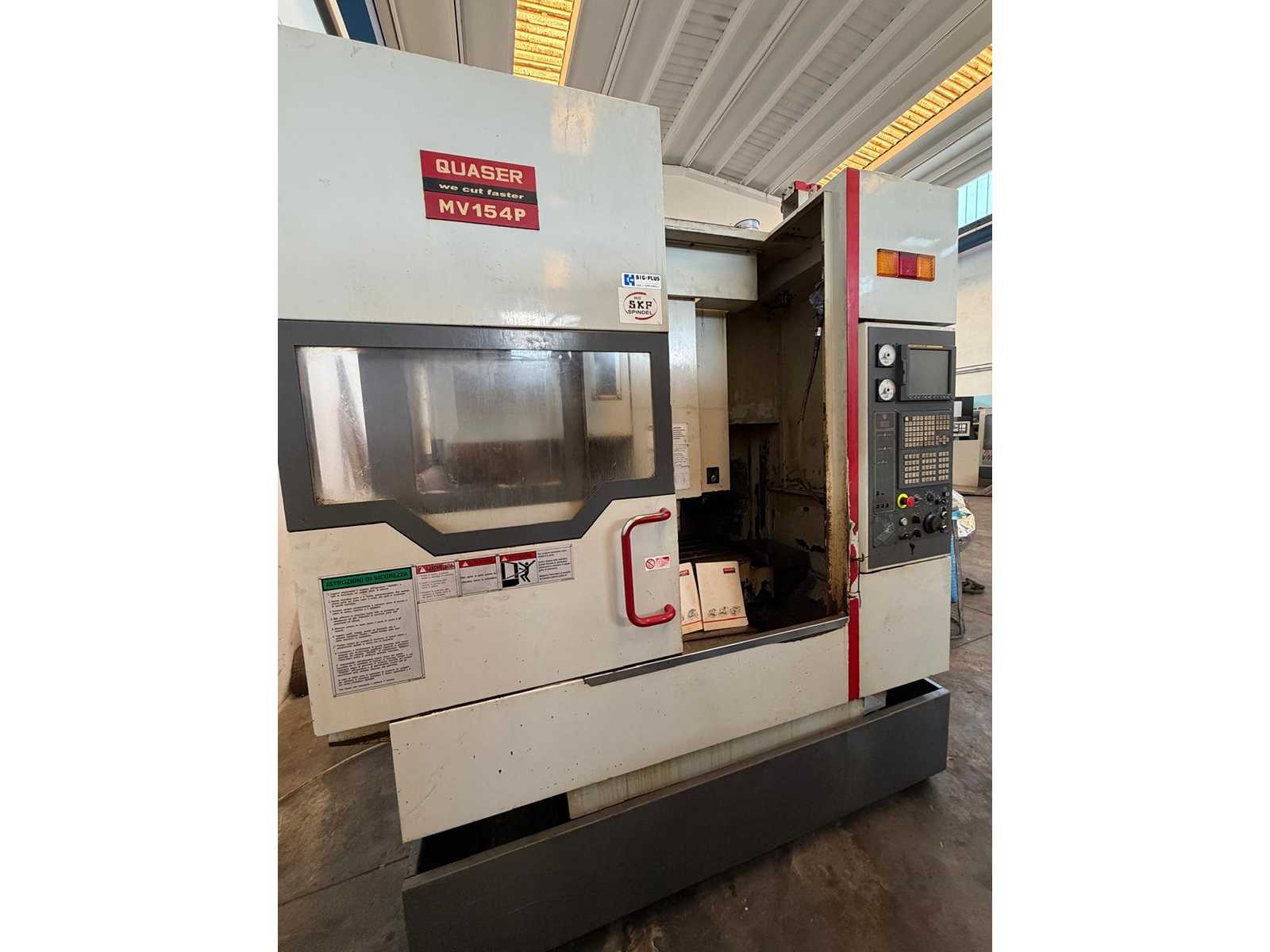

Quaser MV 154 P Vertical Machining Center Stroke X 1020 ; Y 530 ; Z 540 mm Table: m{1.200 imes 500 ext{ mm}} (Max load: 500 kg) Spindle: 12,000 rpm (Direct Drive) Spindle power: 18.5 kW Tool magazine: 30 stations (Quick Arm Change) Fast feeds: 36 m/min (all axes) CNC: Fanuc 0i-MD Features: High Speed (AICC II), Advanced Look-ahead for superior surface finishes. Length (with conveyor): ~3,800 mm Width (depth): ~2,200 mm Height: ~2450 mm Machine Weight: 5.300 kg Auction-ID: A7-51375-18

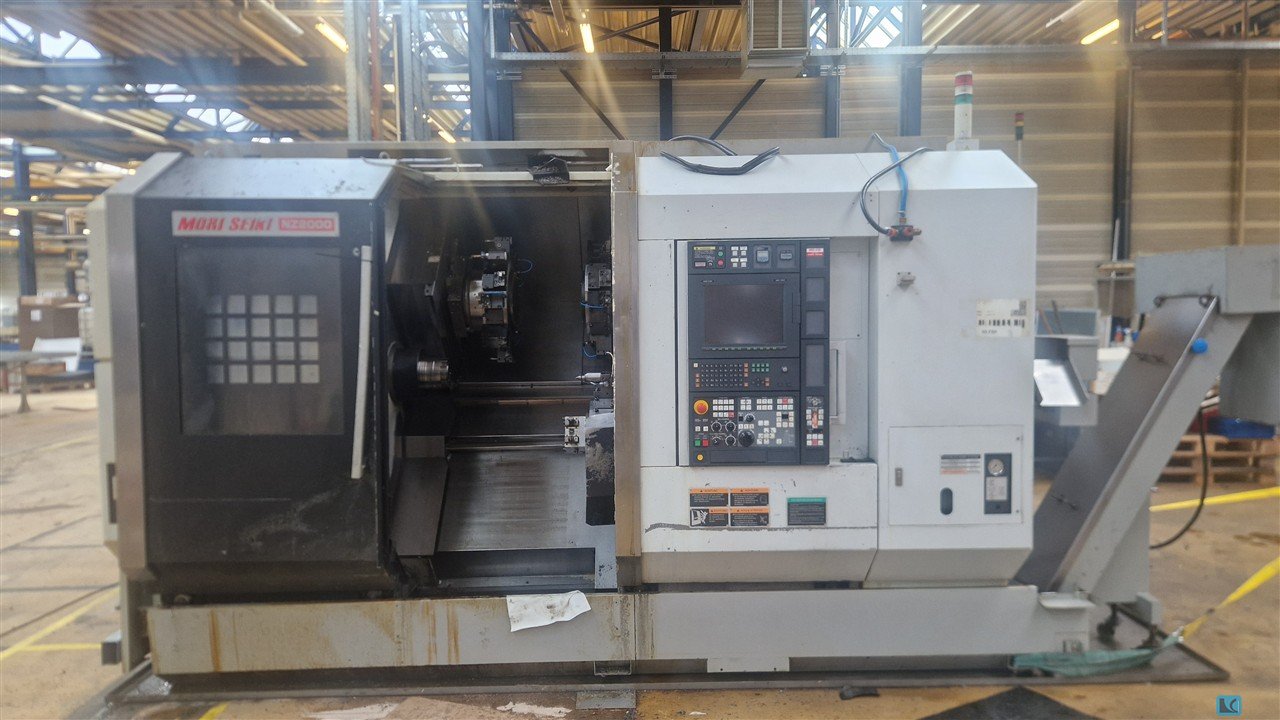

Type: CNC lathe with inclined bench with flat guides (Box Ways) CNC: Mori Seiki MSC 516 Self-centering: 10\" (Ø 250 mm) Bar passage: Ø 68 – 75 mm Rotating / Turning Diameter: Ø 520 mm / Ø 260 – 360 mm Turning Length: ~500 mm (standard version) / ~1000 mm (B/1000 version) Spindle Rpm: 3,500 rpm (up to 4,000 rpm) | Port: ASA A2-6 / A2-8 Spindle power: 11 / 15 kW Turret: 10 or 12 positions Auction-ID: A7-51375-15

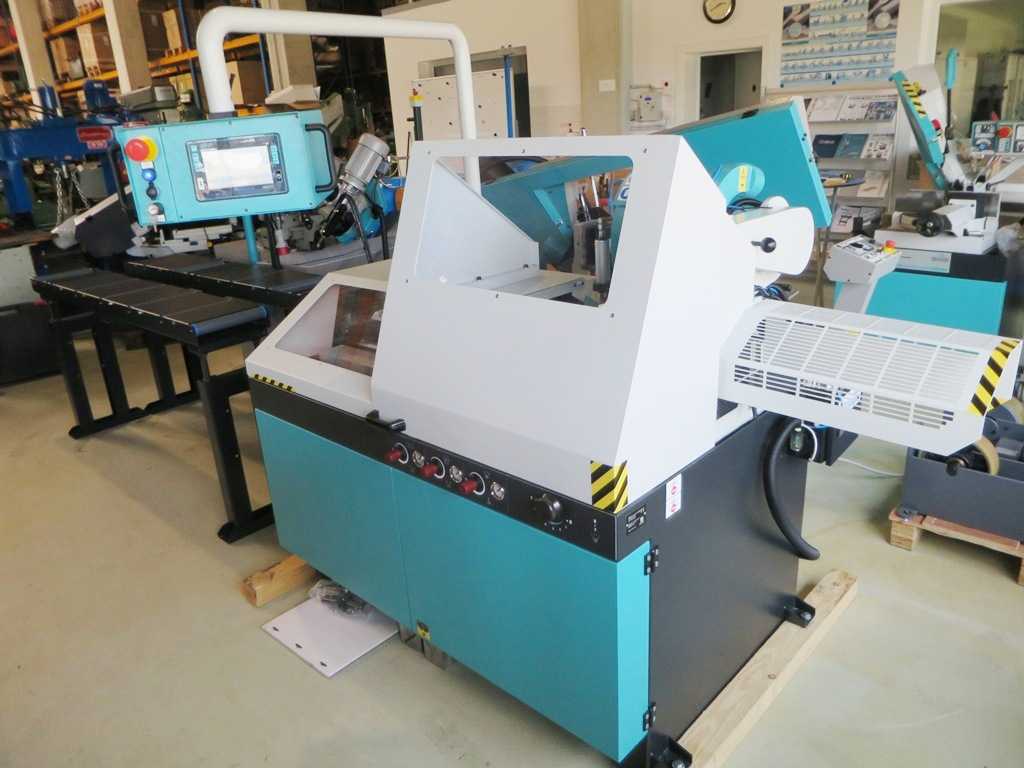

New machine SPECIAL PRICE incl.: - Starter Kit 2 - Micro spraying device Ready for demonstration in our exhibition Shown roller conveyors optional Fully automatic hydropneumatics · Mitre left/right · Head bevel cuts up to 45° (Schifter) a. b. · Pneumatic vertical clamping device · Clamping vice before and after the saw blade Saw blade diameter 350 mm Cutting range at 90 degrees: around 120 mm Cutting range at 90 degrees: square 110 mm Cutting range at 90 degrees: flat 200x88 mm Cutting range at 45 degrees: around 115 mm Cutting area at 45 degrees: square 110 mm Cutting range at 45 degrees: square 150x80 mm Total power requirement 1.5/1.8 kW Machine weight approx. 0.59 t Dimensions L x W x H 1.1 x 0.95 x 1.7 m Condition: never used / new Auction-ID: A7-51438-416

Max turning diameter: Ø432 mm Maximum turning length: 864 mm (1,524 mm in the L version) Bar passage: Ø76 mm (102 mm in the Big Bore version) Spindle: 22.4 kW (30 HP) | 3,400 RPM (2,400 RPM Big Bore) | A2-6 shank (A2-8 Big Bore) Self-centering: 254 mm (10\") (12\"/15\" Big Bore) Strokes (X/Z): 287 mm / 864 mm Rapid (X/Z): 18 m/min Turret: 10 or 12 stations Auction-ID: A7-51375-7

Schüco LKF 2600 3-axis CNC milling machine Features: Brand: Schüco Model: LKF 2600 Year: 2004 3-axis CNC milling machine CNC Mach3 CNC control software Work table with several clamping systems Swivel spindle Power supply: 400 V – 50 Hz Compressed air pressure: 0.7 MPa Separate control panel with computer and display Separate electrical cabinet Safety controls with emergency stop The machine has recently benefited from various improvements and works perfectly. Sold with a large set of accessories and tools, including: many strawberries Set of collet in different diameters Tool holders and accessories different clamping elements Complete, clean and directly functional machine. Professional equipment ideal for CNC milling and machining work. Condition: Good overall condition, works perfectly. Auction-ID: A3-46110-36620

Lehmann two-axis CNC rotary table (4th and 5th simultaneous axis) D 200 On pallet 1200 x 800x 500 mm transport dimensions Auction-ID: A7-50850-11

The bundle does not include the cabinet and display CNC lathe, in excellent condition. Rigid and precise machine, equipped with motorized tools and a C-axis, ideal for machining technical parts in general mechanics, industrial maintenance or serial production. Order: Fanuc Oi-TF Turning capacity: Ø 400 mm Bar Passage: Ø 102 mm Main pin: Power: 30 kW Speed: 1–3,500 RPM Turret: 24 stations, motorized tools C-axis: Yes Chip conveyor: Included Hydraulic chuck: 3 Ø320 samchully jaws Clean machine, stable geometry, silent spindle. Regular maintenance, professional use. Hydraulic chuck 3 jaws Chip conveyor Standard tool holders Technical documentation available but without a manual, it can easily be found Auction-ID: A3-46110-35869

Working Capacity and Strokes Maximum rotating diameter on the bench: 300 mm (up to 560 mm of passage on the body)  Max turning diameter: 200 mm  Max turning length: 430 mm  Main spindle bar passage: Ø 56 mm  Counter spindle bar passage: Ø 42 - 45 mm Distance between spindle noses: 790 mm  X1 / X2 axis travel: 250 mm Z1 / Z2 axis travel: 500 mm Main Spindle and Sub-Spindle Spindle nose attachment: ASA 6\" Rotational speed (both): 80 - 4,000 rpm  Main spindle motor power: 22 kW (continuous) / 26 kW (peak) Recommended chuck: Ø 200 mm (main) / Ø 160 mm (counter spindle)  C-axis (C1 and C2): Integrated 0.001° resolution on both spindles Turrets and Live Tools Configuration: 2 independent overlapping turrets Upper turret stations: 12 positions (with VDI 30 / VDI 40 connection)  Lower turret stations: 8 or 12 positions  Motor ...

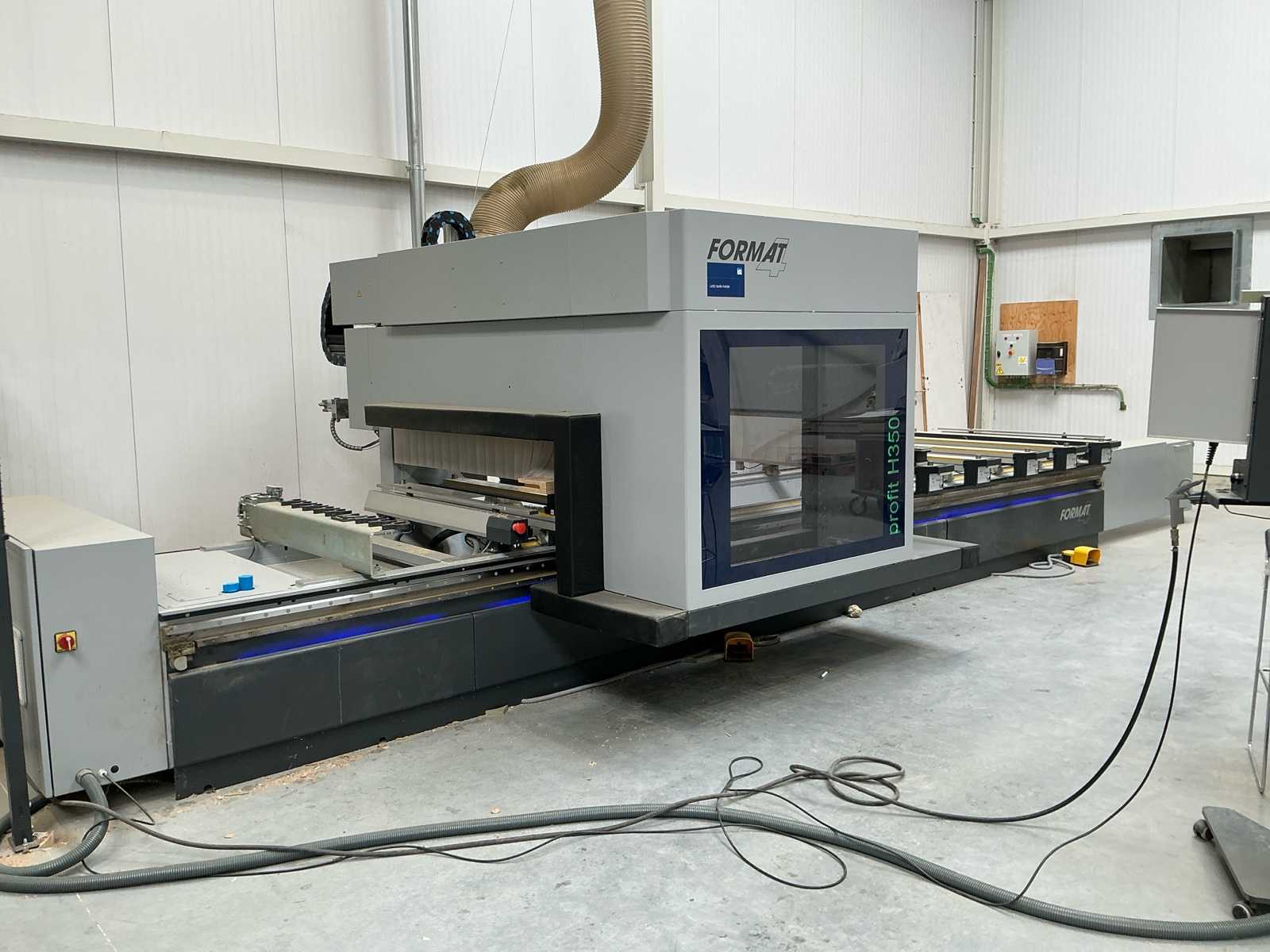

Here's a version that you can use directly as a lot description: Auction title: FORMAT 4 Profit H350 16.50 5-axis CNC machining centre – working area 5000 x 1550 mm FORMAT 4 Profit H350 16.50 – 5-axis CNC machining centre Professional 5-axis CNC machining centre from FORMAT 4, type Profit H350 16.50 , equipped with a large working field of 5000 x 1550 mm, automatic tool changer and provisions for sawing operations. Specifications: Brand: FORMAT 4 Model: Profit H350 16.50 Type: CNC Machining Center Number of axles: 5 Connection: 380 V / 50 Hz CE: Yes Working area: 5000 x 1550 mm Travel speed X-axis: max. 20 m/min Commuting work: in 2 fields of work Execution and options: Security system with fenders instead of light curtain 2 continuous stop rulers in Y-direction Stop rulers mounted on the stop cylinders at the left and right end of the work area ...

Working Capacity and Strokes Maximum rotating diameter on the bench: 300 mm (up to 560 mm of passage on the body)  Max turning diameter: 200 mm Max turning length: 430 mm Main spindle bar passage: Ø 56 mm Counter spindle bar passage: Ø 42 - 45 mm Distance between spindle noses: 790 mm X1 / X2 axis travel: 250 mm  Z1 / Z2 axis travel: 500 mm Main Spindle and Sub-Spindle Spindle nose attachment: ASA 6\" Rotational speed (both): 80 - 4,000 rpm  Main spindle motor power: 22 kW} (continuous) / 26 kW (peak) Recommended chuck: Ø 200 mm (main) / Ø 160 mm (counter spindle)  C-axis (C1 and C2): Integrated 0.001° resolution on both spindles Turrets and Live Tools Configuration: 2 independent overlapping turrets Upper turret stations: 12 VDI 40 positions Lower turret stations: 12 positions  Numerical Control and Equipment CNC: GE FanucSeries 0-TT  ...

Steering unit: Siemens 840D powerline CNC C-axis: High precision for radial and axial machining Working Capacity Max. rotating diameter on the bench: 500 mm Max. turning diameter: 400 mm Max. turning length: 1200 mm Bar Passage: 65 mm Spindle and Turret Spindle speed: Up to 3500 rpm Spindle power: 21 kW Turret: 12 positions type VDI 40 (All motorized) Driven tool speed: 4,000 rpm Included Accessories Hydraulic steady rest Carpeted chip conveyor Tool Setting Arm Programmable hydraulic tailstock Tool holder set (fixed and motorized) Auction-ID: A7-51375-17

Equipped with Mitsubishi numerical control: Strokes and Capacities X-Axis Travel (Longitudinal): 1000 mm Y-Axis Travel (Transverse): 600 mm Z-Axis Travel (Vertical): 630 mm Distance between spindle nose and table surface: 100 – 730 mm Working Table Table dimensions: 1150 x 600 mm Maximum permissible load: 700 kg Spindle Tapered connection: BT 40 Rotational speed: 8,000 rpm Spindle motor power: 7.5 kW Feeds and Speeds Fast Feed X/Y/Z Axis: 20/20/20 m/min Working rate (pass work): 1 – 10,000 mm/min Tool Magazine Number of tool stations: 24 positions Maximum weight of each tool: 6 kg Numerical Control and Electronics Mitsubishi Control Portable electronic handwheel for axis zeroing and manual handling Communication port: RS-232C / Ethernet (depending on the Mitsubishi series fitted) 4-AXIS TABLE NOT INCLUDED Auction-ID: A7-51375-1

First vertical machining center X-axis travel: 1,500 mm reach to 2000 mm Y-axis travel: 700 mm Z-axis travel: 600 - 700 mm Table dimensions: 1,700 x 700 mm Maximum Table Load: 1,200 - 1,500 kg Spindle Mount: BT-40 Total Machine Weight: approx. 9,000 - 10,000 kg Floor Dimensions (W x D): Approx. 4,200 x 3,000mm Maximum height: 2700mm Auction-ID: A7-51375-20

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis. Machine was running with oil, not coolant. A fire extinguisher system is installed.

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
