cnc floor boring used for sale

axis stroke (X,Y,Z): 6175x1550x300 mm Number of spindle head vertical: 20 St. Number of spindles head horizontal: 10 St. Number of milling agregates: 1 St. Speed: 24.000 U/min. Capacity: 300 kg/h Sawing unit: ja_yes 0 Control: Homag PC85 CNC powerTouch HOMAG BMG 511 /60/12/F/K Profi ----------------------------------- Machine already professionally dismantled and stored at our warehouse in Oberkochen: - 5-axis CNC processing center - Moving gantry machine (dual-drive gantry system) - 1 HOMAG DRIVE 5 C+ routing spindle, 5-axis, HSK-F63, 15 kW, max. 24,000 rpm - 1 HOMAG Multi Processing Unit Drilling head with 30 spindles: V20 / H10 / S360° MPU MultiProcessingUnit with C-axis +/- 185° - 1 Chain tool changer, 30-position - Includes SL laser projector - Includes vacuum suction cups (as available) - Spare parts and accessories as shown in photos - Last HOMAG 5-axis service: 2024 - Last HOMA ...

Number of spindles: 6 St. Working width: 230 mm Working height: 120 mm Length of the planing table: 2500 mm Feed motor: 4 kW Feed speed: 5-30 m/min. control: Memory-Funktion Weinig Powermat 400 with HSK/Powerlock, axial/radial CNC controlled ---------------------------------------------------------------------- - The machine renovated and functionally checked ! Short summary: ---------------------------------------------------------------------- - 6 spindles with 8,000 rpm 5 x HSK/Powerlock Axial and radial CNC adjustment of the spindles via control CNC - controlled adjustment and positioning of the feed Detailed description: ---------------------------------------------------------------------- - Technical specifications: Working width: 20-230 mm Working height: 8-120 mm Number of spindles: 6 1. Tool holder - below ------------------------------------------------ Motor with brake: 5.5  ...

3 assen: Y1 / Y2 / X Capacity: 160 ton x 3100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 2550 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 300 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 79 mm/sec Electric motor (power): 14 kW Length: 3500 mm Depth: 2350 mm Height: 2850 mm Weight: 9 ton

Opklapbare achteraanslag Cutting length: 3100 mm Max sheet thickness st 45: 12 mm Strokes/min: 7 > 17 str/min Backgauge: CNC SP8 - 1000 mm Adjustable cuttingedge: 0,5 > 3° Electric motor (power): 22 kW Length: 4050 mm Depth: 1900 mm Height: 2200 mm Weight: 10 ton

Hermle C800U X: 800 - Y: 600 - Z:500 mm CNC X-axis: 800 mm Y-axis: 600 mm Z-axis: 500 mm Table dimensions: 800 x 700 mm Admission in spindle (ISO): SK40 Power on the spindle: 23 kW Control : Heidenhain iTNC 530 Number of axes: 5 axis Toolchanger: yes Number of toolholders: 30 tools Number of rotations: 10 0000 rpm Power principal motor : 31 kVa Weight: 9 ton

Hermle C30U X: 650 - Y: 600 - Z: 500 mm CNC X-axis: 650 mm Y-axis: 600 mm Z-axis: 500 mm Table dimensions: Ø 630 mm Admission in spindle (ISO): SK40 Power on the spindle: 26 kW Control : Heidenhain iTNC 530 Number of axes: 5 axis Toolchanger: yes Number of rotations: 18 000 rpm Length: 3500 mm Depth: 2480 mm Height: 2950 mm Weight: 9,5 ton ACCESSORIES: yes

Type: UMC-750 5-assige verticale bewerking X-axis: 762 mm Y-axis: 508 mm Z-axis: 508 mm Table dimensions: Ø 630 mm Admission in spindle (ISO): BT40 Power on the spindle: 22,4 kW Control : Haas Number of axes: 5 axis Toolchanger: yes Number of toolholders: 40 positions Number of rotations: 8100 rpm (122 Nm) Weight: 6 ton

Type: EC-1600ZT voor het bewerken van grote onderdelen met geïntegreerde draaitafel met 4e as Tafeldiameter: 760 mm X-axes: 1626 mm Y-axes: 1270 mm Z-axes: 1016 mm Table dimensions: 1626 x 914 mm Max weight on the table: 4536 kg Admission in spindle (ISO): BT50 Power on the spindle: 22,4 kW Control: Haas Toolstore: yes Tools: 50 positions Frequency : 7500 rpm (460Nm) Length: 3378 mm Depth: 4928 mm Height: 4674 mm Weight: 14 ton ACCESSORIES: yes

Type: EC-1600ZT voor het bewerken van grote onderdelen met geïntegreerde draaitafel met 4e as Tafeldiameter: 760 mm X-axes: 1626 mm Y-axes: 1270 mm Z-axes: 1016 mm Table dimensions: 1626 x 914 mm Max weight on the table: 4536 kg Admission in spindle (ISO): BT50 Power on the spindle: 22,4 kW Control: Haas Toolstore: yes Tools: 50 positions Frequency : 7500 rpm (460Nm) Length: 3378 mm Depth: 4928 mm Height: 4674 mm Weight: 14 ton ACCESSORIES: yes

LVD PPEB 320 ton x 6100 mm CNC Capacity: 320 ton x 6100 mm Backgauge: CNC Control: Cadman B Touch Passage between uprights: 5050 mm Max stroke: 300 mm Max distance between table -- ram: 570 mm Depth of throat: 400 mm Table width: 200 mm Locking speed: 120 mm/sec Working speed: 14 mm/sec Returning speed: 130 mm/sec Electric motor (power): 42 kW Length: 8000 mm Depth: 3200 mm Height: 3775 mm Weight: 36 ton Capacity: 320 ton Bending length: 6100 mm

pressure: 56.0 t chamfer lenght: 1400 mm distance between columns: 1300 mm throat: 220 mm stroke: 200 mm dayligth: 485 mm work speed: 8.0 - 10.0 m/min return speed: 35.0 mm/sec Control: CNC Boschert back stop - adjustable: 0 - 370 mm work height max.: 915 mm Cylinders :: 2 Stück voltage: 3x 400 V connected load: 8.0 kVA weight: 3700 kg very good / well-maintained condition () with lots of bending tools - in checked conditions - machine video - https://www.youtube.com/watch?v=NrpZs6Ar0Vo Equipment: - NC electro-hydraulic press brake - BOSCHERT NC control unit, front - NC electro-motorized back stop (X axis) with 2x manually adjustable stop fingers (R+Z axis) - AMADA PROMECAM (SYSTEM A) upper tool holder - AMADA PROMECAM (SYSTEM A) lower tool holder - Handwheel with analog display for adjusting the bending angle - lots of insert tools, including tool cabinet - 1x working cylinder = dou ...

Manufacturer: FERMAT Model: VMF 1000 CNC Year: 2008 Condition: Used Stock number: 9494 Control System: FANUC Series Oi-MC Switch-on hours: 25998 h Work table length: 1300 mm Work table width: 600 mm Spindle drive power: 15 kW Speed: 10000 1/min X-axis travel: 1006 mm Y-axis travel: 598 mm Z-axis travel: 600 mm Machine weight: 5000 kg

dimensions of the machine ca.: 6,2 x 3,4 x 2,6 m weight of the machine ca.: 9,6 t power requirement: 22 kW Control: FAGOR 8055i table-size: 1800x500 mm long. travel of table: 1660 mm table weight: 1700 Kg cross travel: 600 mm number of spindle speeds: 1500 U/min/rpm spindle drive: 12 kW -Usable grinding area 1,500 x 680 mm -Max. distance table – grinding wheel center 625 mm -Infinitely variable table speed 2–28 m/min -Cross-feed speed 0.02 – 5 m/min -Vertical feed speed 0.02 – 2 m/min -Infinitely variable table speed control Included -Max. grinding width (with 80 mm wheel) 680 mm -Smallest programmable CNC increment 0.001 mm -Grinding wheel dimensions Ø 400 x 80 x 127 mm -FAGOR servo motors and drives for 3 axes (X, Y, Z) Included -Electromagnetic chuck (high density) Included -Electromagnetic chuck dimensions 1,500 x 600 mm -Coolant filtration system with paper filt ...

- Max afstand tussen de punten: 7100 mm - Max bewerkingslengte: 6600 mm - Max werkstukgewicht tussen de punten: 18 ton - 2x 2 brillen worden meegeleverd met de machine - Max conische slijphoek: 10° - Max concaaf/convex slijpen: max 12,7 mm van de diameter - 1 bed met slijpkop (in twee delen over de lengte) en 1 werkstukbed met aandrijfkop en tegenpunt. - 1 filtereenheid - 1 elektrische kast Center distance: 7100 mm Max dia of the workpiece: 1100 mm Control: Num 1060 Motorpower: 90 kW Weight: 126 ton

LVD-gereedschap 4 assen: Y1 / Y2 / X / R 2 beweegbare plaatsteunen Capacity: 80 ton x 2100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 1550 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 400 mm Table width: 120 mm Locking speed: 130 mm/sec Working speed: 10 mm/sec Returning speed: 113 mm/sec Electric motor (power): 12,5 kW Weight: 6 ton Capacity: 80 ton Bending length: 2100 mm

dist. between centers: 6.000 mm greates pass round over bed: 1.200 mm swing diameter over slide transversal: 1.000 mm rapid traverse feeds: X/Z 10.000 mm/min guideways: 4 St. cross travel: 530 mm centre height: 600 mm control: FAGOR 8055 TC : main spindle speeds:: 20-1.600 U/min main drive motor: 42 kW spindle passage: 150 mm transmission ratio: 2 Turret: DUPLOMATIC Revolver station: 8 tools dimension: VDI-50 tail stock: tailstock quill diameter: 180 mm total power requirement: 61 kW weight of the machine ca.: 20 t dimensions of the machine ca.: 11.210 x 3.700 mm Equipment C-axis + live tooling Ø 800 mm 4-jaw independent chuck 3-point steady rest, Ø 50 -500 mm 3-point steady rest, Ø 50 - 520 mm 3-point steady rest, Ø 480- 930 mm MORARI hydraulic self-centering steady rest, capacity 50 - 315 mm MORARI hydraulic self-centering steady rest, capacity 280 - 540 mm Motorized tailstock V- ...

turning diameter: 2500 mm swing diameter over bed slide: 1400 mm turning length: 6000 mm Distance between centres: 5740 mm centre height: 1250 mm faceplate turning speed range: 4 - 400 U/min rapid traverse:: 200 mm/min faceplate: 2000 mm spindle bore: 200 mm face feeds: 700 mm upper slide-adjustment: 350 mm tailstock quill diameter: 320 mm max. workpiece weight between centres: 40 t Control: Siemens Sinumerik 8 T drive motor: 95,5 kW total power requirement: 125 kW weight of the machine ca.: 43 t dimensions of the machine ca.: 11,5 x 3,5 x 3,5 m Heavy duty high precision horizontal lathe with: - CNC Control Siemens Sinumerik 8T (CNC 6 axes) - 3-way Bed - hydraulic clamping system Rohm - Machine modified with 2000 mm face clamping plate - slide with two working positions - Sauter 4 side tool holder - circular turning unit - tailstock - chip conveyor - Rexroth Hydraulic suitable for both,  ...

grinding length: 5200 mm grinding width: 1000 mm workpiece height: 320 mm Control: Siemens 840D Passage width: 1300 mm grinding height: 320 mm grinding motor: 306 kW grinding motor turning speeds up to: 320 U/min grinding motor feed, infinitely variable: 0,5-35 m/min grinding motor adjustment in steps: 0,002-1 mm grinding motor adjustment, continuously stepless: bis/upto 5 mm/min dimensions of the machine ca.: 11,21 x 3,2 x 3,85 m CNC production surface grinding machine with segment head Equipment / Accessories: - with segment head, diameter 1400 mm segment head dimensions: 120/106 x 41 x 250 mm number of segments: 1 set = 26 pieces - with electro-magnetic table 5200 x 1300 mm - Marposs measuring control travel (Z1 axis), vertical: 420 mm - coolant flow rate 2000 l/min lifting station 2x pump for 1000 l/min The data for this ad was created with ModulMWS - the software solution of L ...

Martin T26 tilting table spindle moulder with CNC 4-ax control Manufacturer: Martin Type: T26 CNC Year: 2002 Control: 4-ax CNC Control Control panel: eye-level Remark: Special paint Martin 75 Years Ral 7035& 6004 Motor: 7.5/9.5 kW – twin-speed motor Tilting: -45 tot + 45° Spindel diam.: ø40 mm spindel SK40 – Dornfix-quick change Spindel elevation: Electric spindel elevation 150mm (2 speed) Spindel elevation Electric-pneumatic spindel lock (Tool changing) Central greasing Rotation speed: Twin-speed 3000-6000 rpm or 4.500-9000 rpm, electronic display, electric -automatic brake Spindel pick-up: Dornfix-quick change spindel Table: Table extension, infeed and outfeed 2405mm long, frontside support 3000mm long, frontside extension 700mm Control panel: 1. CNC-controlled spindel elevation, with automatic dept and height control when spindle is tilted 2. CNC-controlled spindel tilting, with ...

CNC Machining Center Kunzmann WF 600 CNC Control: Heidenhain TNC 640 Year of Make: 2015 Internal machine number: 76 Travels: X-axis 600 mm Y-axis 400 mm Z-Axis 400 mm Z-Axis 400 mm Mount: SK 40 DIN69871 Speed: 1 - 5,000 rpm

HAUSER S 50 CNC 311 ist eine CNC Koordinatenschleifmaschine, die Präzision, hohe Genauigkeit und Zuverlässigkeit für anspruchsvolle Schleifaufgaben bietet. Ausführung 2-Ständer, Tisch 1020×860 mm, Längsweg X 900 mm, Querweg Y 600 mm, Weg Vertikalschlitten 635 mm, Durchlass Spindel-Tisch 750 mm, Durchlass zwischen Ständern 950 mm; größter Schleifdurchmesser 230 mm (360 mm mit Auslegerplatte); Konusschleifen bis 16°. Technische Daten: Z-Hub 0–170 mm stufenlos, Hubgeschwindigkeit Z 1–12000 mm/min, Hubfrequenz 6 Hz, radiale Feinzustellung U max 6 mm, Planetenbewegung C 5–300 t/min, Schleifspindel 4500–80000 t/min (Luftturbine 160000 t/min); Anschluss 3×400 V 50 Hz, Gesamtleistung 9 kVA; Gewicht ~6300 kg; Abmessungen 3000×2500×2870 mm. Ausstattung: retrofizierte Steuerung, Satz Schleifstifte/Maschinenschraubstock, Schleifmotoren 45 S/45 ST, C-Achse; Maschine revidiert 20 ...

• Incl. left roller conveyor • Roller conveyor width: 240 mm

cutting diameter: 360 mm saw band length: 4870 x 41 x 1,3 mm cutting width: 360 mm cutting speed: 11 - 110 m/min : 4,0 kW height of the workpiece: 800 mm weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,3 x 1,9 x 2,2 m Automatic hydraulic band saw with - SIMATIC OP17 NC control - Single material feed 600 mm - Max. programmable length 6000 mm - Hydraulic saw blade tensioning (36–40 bar) - Motorized chip conveyor - Emergency stop device - infeed roller conveyor 4m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC SCREEN PRINTING MACHINE Balsfulland CNC 1500 H Manufacturer: Werner Kamann Model: CNC 1500 H Year of manufacture: 2008 Design: Fully enclosed safety cabinet with protective glazing Machine type: Multi-color CNC screen printing system CE certified: Yes Details: CNC-controlled axes Multi-color printing stations Automatic product transport system Fully enclosed safety housing Integrated drying / curing unit Designed for industrial serial production Heavy-duty steel / aluminum frame construction Application: Cosmetic containers Brochure stand Glass bottles Plastic packaging Cylindrical or slightly tapered products Industrial packaging components

centre height: 175 mm grinding length: 650 mm grinding diameter: 350 mm control: Fanuc 0i-TD Resolution: 0,0001 mm grinding spindle head:: grinding wheel turining speeds: 1-2810 U/min grinding spindle - swivable: 0-15 -30 ° grinding wheel size: 500 x 63 x 203 mm peripheral speed: max. 50 m/sec power capacity: 11,5 kW workpiece spindle head:: Number of revolutions: 1-1500 U/min power capacity: 1,8 kW spindle passage: 26 mm Fitting taper: MK 4 Tailstock:: taper of center: MK 3/4 quill stroke: 35 mm diameter of quill: 50 mm fine adjustment: +/- 0,04 mm axis stroke:: x-axis: 370 mm z-axis: 800 mm b-axis: ? ° feeds:: feed speeds: X: 0,001 - 15.000 mm/min feed speeds: Z: 0,001 - 20.000 mm/min workpiece weight: 80 kg workpiece length - max.: 650 mm max. workpiece diameter: 349 mm table swivelabel +/-: 10 ° total power requirement: 20 kVA weight of the machine ca.: 9 t dimensions of the  ...

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 200 ton x 4100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3670 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Table width: 200 mm Locking speed: 100 mm/sec Working speed: 8 mm/sec Returning speed: 80 mm/sec Electric motor (power): 19 kW Length: 4330 mm Depth: 1950 mm Height: 2980 mm Weight: 17 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 150 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3750 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 4700 mm Depth: 1700 mm Height: 2850 mm Weight: 11 ton

Haco ERMS 230 ton x 4300 mm CNC Capacity: 230 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 450 mm Depth of throat: 300 mm Table width: 180 mm Locking speed: 200 mm/sec Working speed: 8 mm/sec Returning speed: 125 mm/sec Electric motor (power): 19 kW Length: 4320 mm Depth: 2000 mm Height: 2800 mm Weight: 15 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 3100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 2600 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 3500 mm Depth: 1700 mm Height: 2500 mm Weight: 8 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 3100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 2600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 100 mm/sec Electric motor (power): 12 kW Length: 3270 mm Depth: 1500 mm Height: 2460 mm Weight: 8 ton

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 135 ton x 4100 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 100 mm/sec Electric motor (power): 15 kW Length: 4270 mm Depth: 1500 mm Height: 2530 mm Weight: 11,5 ton

3 assen: Y1 / Y2 / X bovenste en onderste Amada-systeemtooling Gerenoveerd door Haco in 2024 Capacity: 135 ton x 3600 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3150 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 250 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 15 kW Length: 4200 mm Depth: 1700 mm Height: 2500 mm Weight: 9 ton Capacity: 135 ton Bending length: 3100 mm

3 assen: Y1 / Y2 / X bovenste Amada-systeemtooling Achteraf ingebouwd door Haco met Easybend 2D Touch-bediening Capacity: 200 ton x 4300 mm Backgauge: CNC Control: Easybend 2D Passage between uprights: 3700 mm Electric motor (power): 15 kW Weight: 18 ton Capacity: 200 ton Bending length: 4300 mm

Eclipse 7/7/6 CNC Technical data: Measuring range X=700mm, Y=700mm, Z=700mm Control C99 with control panel BP26_SE Renishaw TP20 probing system Equipment: Calibration ball Pushbutton Accessories Calculator HP with monitor 27" Software: Calypso Basic 2017 CNC Preset Module Freeform surface Upgrade to current version possible The machine is technically and visually in excellent condition and has very few operating hours Immediately available

drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill

total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

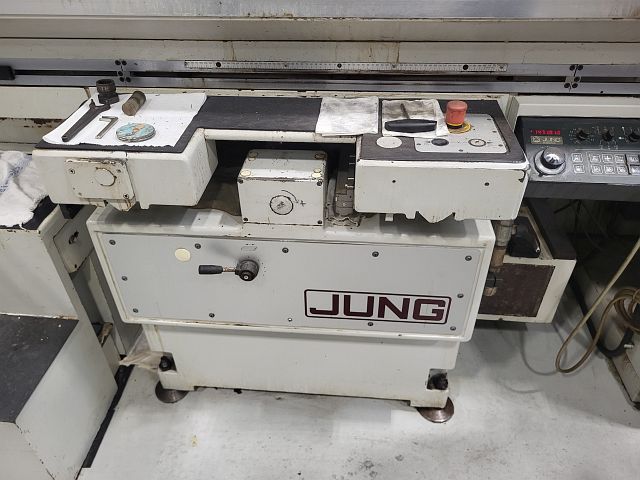

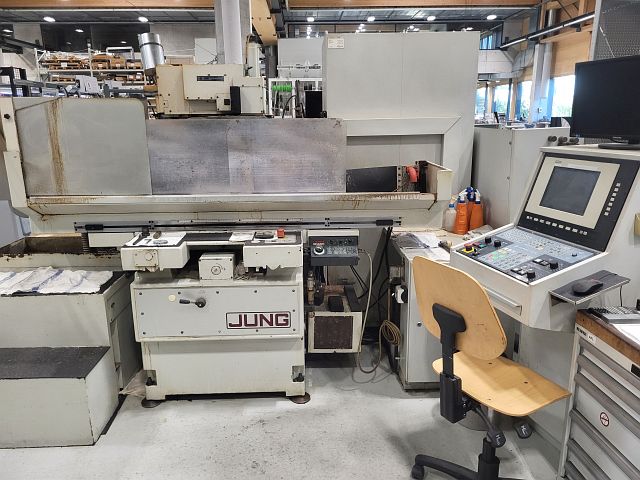

CONTROLS   CNC controls WORKING RANGE SURFACE GRINDING   grinding length: 600 mm   grinding width: 250 mm   vertical travel: 280 mm TABLE (SURFACE GRINDING)   magnetic table: yes SPINDLESTOCK GRINDING SPINDLE   X-axis travel: 600 mm GRINDING TOOL   type of grinding tool: wheel DRESSING DEVICE   dressing tool: single diamond ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 2500 kg ATTACHMENTS (GRINDING)   coolant unit: yes

Floor cleaners, floor preparation products, floor coating -Manufacturer: Multi Clean, floor cleaner, floor preparation agent -Types: Ultra Brite II Ultra Primer -Type/Quantity: see photo parts list -Price/tax: complete -Transport dimensions: 1200/800/H400 mm -Total weight: 138 kg

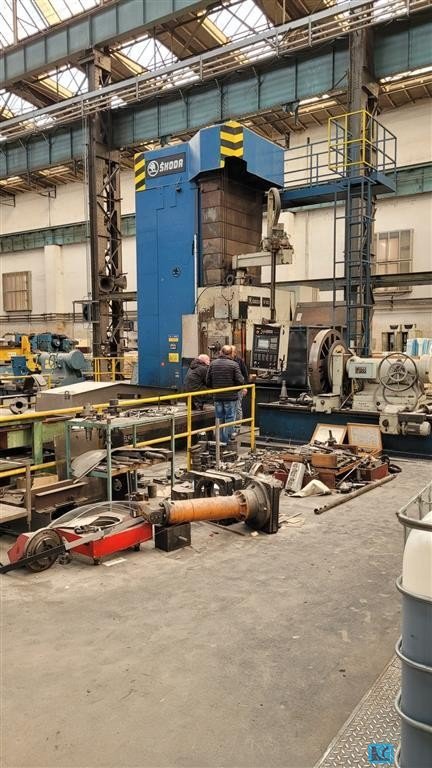

Spindle diameter 203.2 mm x-travel 9,000 mm y-travel 4,000 mm Grinding spindle diameter 335 mm Spindle holder ISO 60 Spindle speeds 1-350 / 5-1,200 rpm w-axis 800 mm z-axis 1,200 mm Rapid x-axis 8,000 m/min Rapid y-axis 6,000 m/min RAM Dimensions 530 x 600 mm Main drive 75 kW Total power requirement 165 kW Machine weight approx. 130 t Space requirements approx. 16 x 5.5 x 8.1 m Addition: - hydrostatic guides in x-, y- and w-axis - Telescopic cover for the X-axis of the bed - cumulative Z and W axes - Leveling shoes - Platform Y axis

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW Machine Technical Data ·Machine weight: approx. 130 t including accessories ·Z travel (ram): 1250 mm ·W axis (spindle): 1000 mm ·Sleeve extension: 1250 mm ·Sleeve dimensions: 450 x 450 mm ·Boring spindle stroke: 1000 mm ·Boring spindle speed: 920 rpm Rotary Table: ·Motor driven rotary table ·IOS 40 ·CNC control ·2 axes B and V ·Rotary table size: 3000 x 3500 mm ·Rotary table CNC IOS 40 NC Indexing and Accuracy: ·Infinitely adjustable ·Diameter related ·Indexing: 4 x 90 degrees up to 360000 ·Angular resolution: 0.001 degrees Travel Ranges: ·Longitudinal cross travel: 1230 mm Load Capacity: ·Maximum rotary table load: 40 t Clamping Plate: ·Clamping plate: 3 x 8000 x 2000 mm

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways
