cnc fanuc used for sale

Make: Sodick Type: CNC Die Sinking EDM Machine Model: AQ35LR Control: Sodick LN1 Controller model: LQ3 Technical data: - Axes: 3 (linear) - Working tank: Die-sinking EDM - Table size: approx. 600 x 400 mm (estimated) - Z-axis display visible on control Equipment: - Sodick LN1 CNC control with keyboard & monitor - Integrated dielectric system - Tooling system (Walker-Hagou fixture visible) - Electrode changer / tool rack - Pressure gauges and flushing system - Manual control pendant Condition: Used Auction-ID: A7-45993-52

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

Make: Big-Plus (Taiwan) Type: CNC Vertical Machining Center Model: 850 VMC Serial number: BM110CE01 Control: FANUC Series 0i-MD Technical data: - X / Y / Z travel: approx. 850 mm / 500 mm / 500 mm - Table size: approx. 1000 x 500 mm - Spindle speed: 10,000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: approx. 6–8 kg/cm² Equipment: - Vertical spindle (Big-Plus spindle system) - Tool changer (carousel type) - Coolant system - Enclosed working area with sliding door - Manual pulse generator (handwheel) Control panel: - FANUC interface with display and full keyboard - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-49

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

Type: CNC surface grinding machine Model: ABA Z&B EL 806 Year: 2003 Control: CNC control panel (integrated aba control) Working area: Magnetic clamping table Machine layout: Horizontal grinding spindle with enclosed working area Technical data: Voltage: 400 V Total power: 29 kW Machine weight: approx. 5,700 kg Equipment: - Magnetic clamping table - Enclosed grinding cabin with sliding door - Coolant system - Air filtration unit (AIRTECH) - Control panel with joystick and keypad Condition: Used, not tested Remarks: Signs of wear and corrosion visible; complete system with extraction unit Own mass: approx. 5,700 kg Dimensions (LxWxH): approx. 4000 x 2200 x 2200 mm Auction-ID: A7-45993-17

Make: Dugard Type: CNC Vertical Machining Center Model: Eagle 1000 VMC Serial number: MC97BF06 Control: FANUC Series 0i-MC Technical data: - X / Y / Z travel: approx. 1000 mm / 500 mm / 500 mm (typical for model class) - Spindle speed: 8000 rpm - Main voltage: 415 V AC - Power requirement: 20 kVA - Air required: 5–6 kg/cm² Equipment: - Vertical spindle - Tool holders included (side mounted rack) - Coolant system - Manual pulse generator (handwheel) - Enclosed working area with sliding door Control panel: - Full FANUC keyboard and display - Feed / rapid / spindle override controls - Emergency stop and cycle controls Condition: Used Auction-ID: A7-45993-48

Type: CNC Vertical Machining Center Brand: EMSIL Techtrans Model: DMC2100H Control: FANUC Series 18i-MB Machine Type: Super Vertical Machining Center Axes: 3-axis (X / Y / Z) Equipment: - Enclosed working area with sliding doors - Large T-slot worktable - Automatic tool interface (tool holder included) - CNC control panel with screen and full keypad - Emergency stop - Coolant system with adjustable nozzles - Electrical cabinet integrated - Status signal tower (stack light) Displayed Data (at time of inspection): Run time: approx. 19,568 h Part count: 84,933 Condition: Used Remarks: Alarm displayed (pressure low); machine not tested; sold as seen Auction-ID: A7-45993-78

CNC control Traub System TX8 D, with 1 turret with 14 tool positions and 1 turret with 9 tool positions, driven tools, max. turning length approx. 1000 mm, bar passage 80 mm, power 73 KW, with fleece filter system and chip conveyor

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY KBF 452/500

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

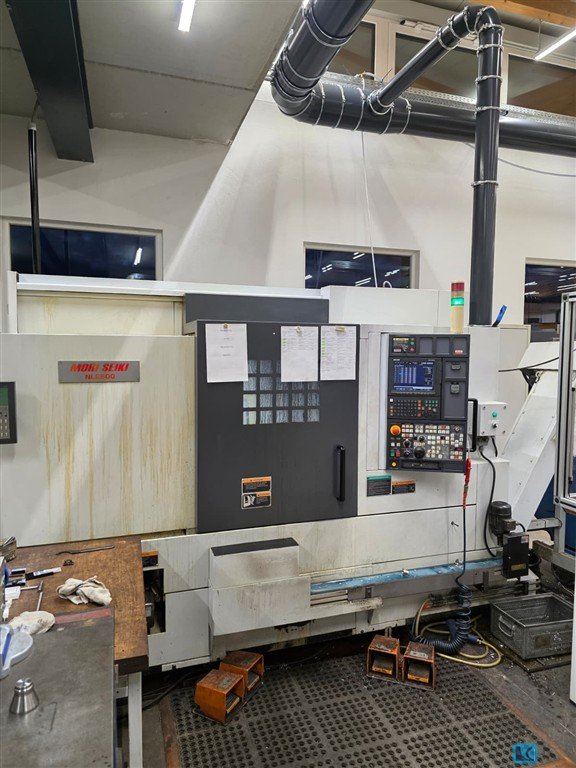

CNC control MORI SEIKI MSX-501, 2 turrets with 16 tool positions each, driven tools, 2 spindles, bar passage 52 mm, max. speed 6000 rpm, max. turning diameter 190 mm, max. turning length 450 mm, Y-axis +/- 40 mm, machine weight 5,100 kg, chip conveyor

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

Key data: 800 mm, 600 mm, 500 1/min

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, coolant device, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

consisting of: CNC lathe EMAG VL3 DSL, BJ. 2012, Ser. No. 103899 and CNC lathe EMAG VLY , BJ. 2012, Ser. No. 10390, each CNC control SIEMENS SINUMERIK, robot loading system with loading robot FANUC M10iA, BJ. 2012, each machine with WW ME-FI 600 filter system, Sermeto HENNIG 30 S chip extraction, EMAG cooling unit, coolant device, workpiece conveyor system and hand control panel

CNC control FANUC Series 31i MODEL B, spindle passage 20 mm, 8-axis incl. Y2 axis, main and counter spindle speed max. 8000 rpm, driven tools, machine weight 3,800 kg, with bar loading magazine FMB Minimag 20, with coolant system, filter system, extinguishing system KRAFT & BAUER and chip conveyor

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

CNC control FANUC Series 31i MODEL B, spindle passage 20 mm, 8-axis incl. Y2 axis, main and counter spindle speed max. 8000 rpm, driven tools, machine weight 3,800 kg, with bar loading magazine FMB Minimag 21, with coolant system, filter system, extinguishing system KRAFT & BAUER and chip conveyor

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

Fanuc 18i-T, live tooling, sub-spindle Max turning diameter: 390 mm Recommended turning diameter: 170 mm Max bar capacity: 65 mm X-axis travel: 205 mm Z-axis travel: 580 mm C-axis: 360° Chuck size: 210 mm Spindle nose: ASA A2-6 Spindle bore: 76 mm Spindle motor power: 15/11 kW Rapid traverse X/Z: 20/25 m/min Turret positions: 12 Bar capacity: 65 mm Coolant pump motor: 0.24 kW Electrical requirement: 25 kVA Machine height: 1740 mm Machine weight: 4240 kg Control system: FANUC FS18T-C / FS16T-C Auction-ID: A7-46053-17

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

Supply voltage: 380 V Phase: 3P Frequency: 50 Hz Rated capacity: 46 kVA Full load current: 70 A Largest motor rate: 129/10 A Interrupt capacity: 15 kA Diagram No.: W6000-270/-247-6 Serial number: 0317 Made in Japan by OKUMA Corporation Maximum machining capacity: 1000 × 800 × 810 mm Maximum workpiece size: 939.37 × 810 × 810 mm X-axis travel: 1000 mm Y-axis travel: 800 mm Z-axis travel: 810 mm Spindle center to table: 200–1010 mm Spindle end to table center: 87.8–976 mm Table pallet size: 630 × 630 mm Index positions: 360 positions Maximum table load: 1200 kg Spindle speed range: 50–10000 rpm Spindle taper: NT No.50 Spindle diameter: Ø110 mm Rapid feedrate (X/Y/Z): 30000 mm/min Jog feedrate: 1–20000 mm/min 4-axis horizontal machining center Auction-ID: A7-46053-25

Model: Rover 24XL Serial Number: 32495 Working range X: 6170 mm Working range Y: 1380 mm Working range Z: 155 mm Main motor: 7.5 kW Max rotation speed: 24,000 rpm Tool change positions: 7 Vertical drill bits: 14 Horizontal drill bits X: 4 Horizontal drill bits Y: 2 Worktop: 10 bars, 4 trolleys per bar Suction cups: also included, in good condition, spare Plane positioning: automatic Vacuum pump: Busch MM1252 AV Chip conveyor belt Auction-ID: A7-46828-1

Fanuc 21i-M control, enclosed VMC Spindle taper: BT40 Spindle speed range: 72–10000 rpm Spindle motor power: 5.5/3.7 kW Pull stud bolt type: MAS-P40T-1 Number of tools: 20 Maximum tool weight: 5 kg Maximum tool diameter: 100 mm Maximum tool length: 250 mm Tool change time (T-T): 1.2 sec Tool change time (T-C): 2.8 sec Pallet change method: Turning-table method Pallet change time: 4 sec Drilling capability: Ø22 mm Tapping capability: M18 Milling capability: 20 cc/min Machine weight: 4000 kg NC device: FANUC 21i-MA Auction-ID: A7-46053-21

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t

turning diameter:x. 350 mm turning length:985 mm swing dia.:610 mm clamping range for bar work:77 mm speeds:350 - 4.000 U/min Torque:465 Nm spindle nose:A2 - 8" spindle bore diameter:88 mm chucking diameter:254 mm numbers of tools:12 travel -x axis:190 mm travel -z axis:1.025 mm rapid traverse X-axis:30 m/min rapid traverse Z-axis:33 m/min Tailstock Travel:1.010 mm tailstock taper MT:4

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included

turning diameter:1070 mm turning length:8500 mm total power requirement:62 kW turning diameter over slide rest:800 mm spindle bore:128 mm max. workpiece weight between centers:8000 kg max. workpiece weight:12000 kg bore spindle turning speed range:1,120-01120 U/min tailstock quill diameter:200 mm dimensions of the machine ca.:12 x 2,8 x 2,4 m Machine equiped with Alan Bradley 9 series CNC control - SAUTER 6-postiion revolving head - 360 mm seld centering steady rest - 385 mm rotary work rest (used for gun barrels) - faceplate 800 mm - chip conveyor

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

turning diameter:1600 mm turning length:3000 mm centre height:800 mm turning diameter over bed:1600 mm turning diameter over bed slide:1400 mm turning dia. over face-slide:1200 mm max. workpiece weight between centers:20 to speeds:5,6 -800 1/min transmission ratio:3 spindle bore:112 mm turret (x-stations):8 / VDI 60 travel -x axis:850 mm travel -z axis:3020 mm rapid power traverse in X-and Z direction:6 / 10 m/min power maindrive:46 kW weight of the machine ca.:22 to. dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 m tech-in lathe, flatbed, tailstock, 8-pos. BARUFFALDI turret with 4 live tools, power 9kW, 4-pos. BARUFFALDI square-headed turret horizontal, C-axis, 3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm, quick adjustment, power cylinder with 2 pressure clamping system, chipconveyor, coolant device, accessories

bar material dia.:65 mm turning length:644 mm turning dia. over bed:600 mm turning diameter over slide:430 mm y-axis:100 (+-50) mm turning speeds:2x 5.000 1/min positive location each:2x C-Achse, 0,001° Grad Sub spindle:ja/yes turret (x-stations):2x 12 VDI 30 Pos. driven tools:2x 12 Pos. turning speeds:2x 4.000 1/min control:FANUC 18 iTB total power requirement:30 kVA weight of the machine ca.:8 t dimensions of the machine ca.:3,5 x 2,5 x 2,3 m turning- milling center with Y-axis, collet device on main and subspindle, high pressure pumps 2x 14bar, parts catcher/conveyor, barloader ENTL 10-65, chip conveyor, lot of accessories approx. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"

turning diameter:80 mm turning length:235 mm max. bar capacity:42 mm power capacity - driven tools:1 kW speeds spindle 1:6000 1/min speeds spindle 2:5000 1/min numbers of turret head positions:8 pos drive capacity - spindle motor:SP1 11 / SP2 5,5 kW Tools speed:60-6000 1/min weight of the machine ca.:ca. 3 t dimensions of the machine ca.:2,4 x 1,5 x 1,6 m High Performance CNC Turning- and Milling Center - chipconveyor - subspindle - live tools - C-axis - brake - partscatcher and partsconveyor - tool eye - barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

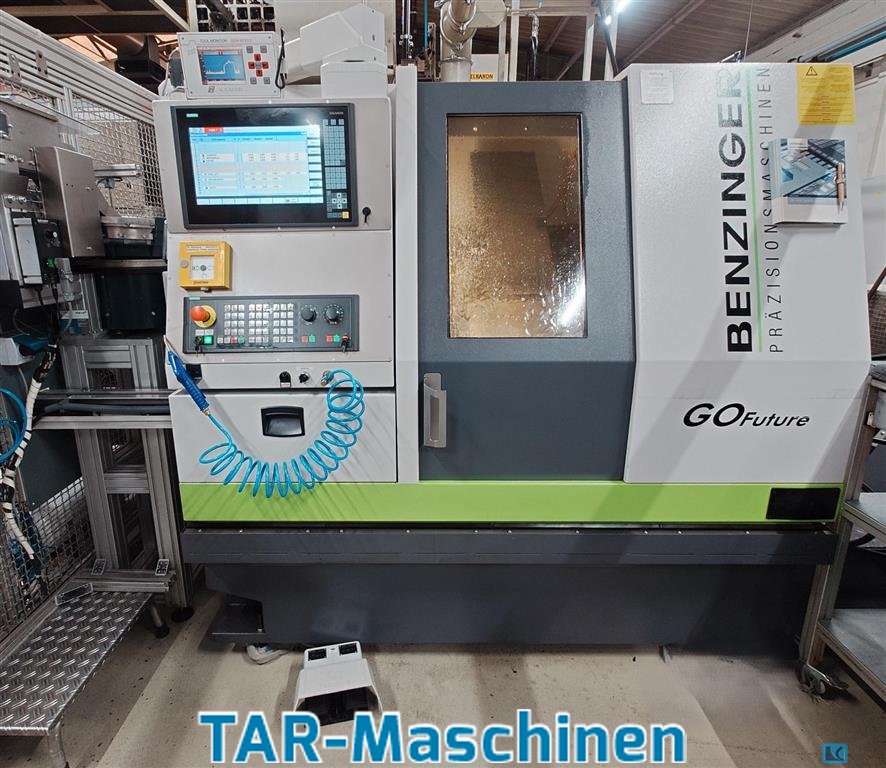

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2015 Machine was only used for reworking, so only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Chip processing container with coolant pump: 30l/min at 5bar Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading conveyor Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. Transmit function Adjusting microscope 16x magnification Coolant supply through the clamping cylinder of the spindle, sealing air, Speed increase of the motor spindle to 8,0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Kno ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

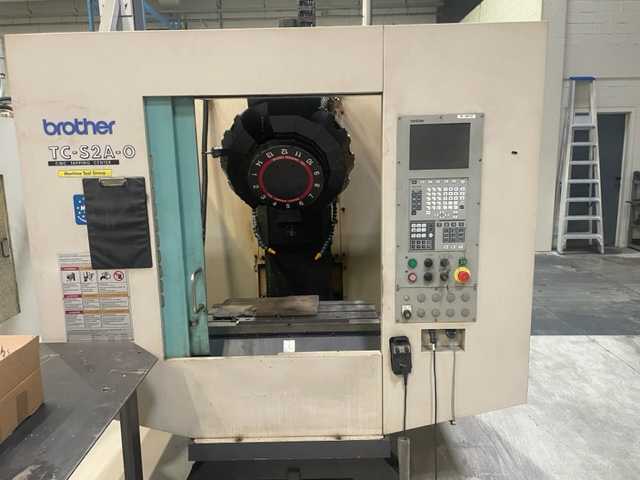

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER

Serial number: 1537001259A Operating voltage: 400 V Frequency: 50 Hz Connection: 17 kVA Rated current: 35 A Control: HEIDENHAIN TNC 620 Spindle speed: up to 12,000 rpm Max. spindle torque: 83 Nm Feed speed in X/YZ: up to 20,000 mm/min Rapid traverse in X/Y/Z: 30 m/min Setup operation in X/Y/Z: 20 - 2000 mm/min Travel X-axis: 635 mm Travel Y-axis: 510 mm travel distance Z-axis: 460 mm Displacement measuring system X/Y/Z: 1 μ Positioning uncertainty X/Y/Z: 6 μ Tool holder: SK 40 Table dimensions: 790 x 560 mm Spindle hours read with 5 grooves: approx. 5000 incl. 20-fold tool changer Attention: all tool holders located in the tool changer are included in the scope of delivery! Reference: Schönichen - Lot 47
