cnc cut used for sale

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

turning diameter:1600 mm turning length:3000 mm centre height:800 mm turning diameter over bed:1600 mm turning diameter over bed slide:1400 mm turning dia. over face-slide:1200 mm max. workpiece weight between centers:20 to speeds:5,6 -800 1/min transmission ratio:3 spindle bore:112 mm turret (x-stations):8 / VDI 60 travel -x axis:850 mm travel -z axis:3020 mm rapid power traverse in X-and Z direction:6 / 10 m/min power maindrive:46 kW weight of the machine ca.:22 to. dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 m tech-in lathe, flatbed, tailstock, 8-pos. BARUFFALDI turret with 4 live tools, power 9kW, 4-pos. BARUFFALDI square-headed turret horizontal, C-axis, 3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm, quick adjustment, power cylinder with 2 pressure clamping system, chipconveyor, coolant device, accessories

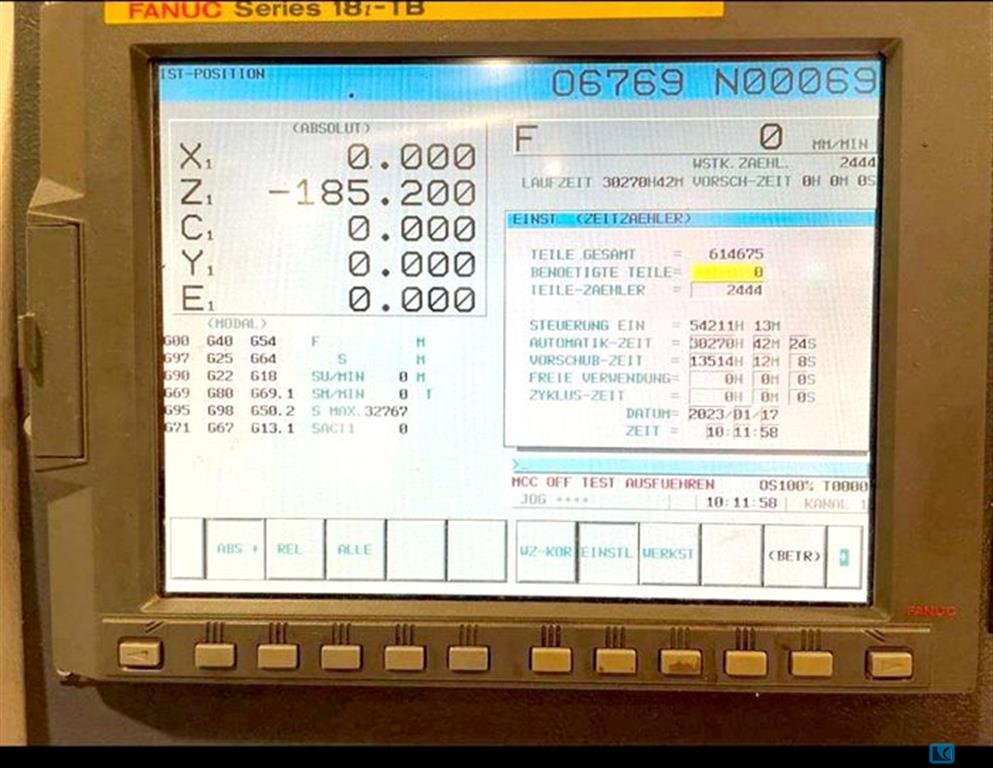

bar material dia.:65 mm turning length:644 mm turning dia. over bed:600 mm turning diameter over slide:430 mm y-axis:100 (+-50) mm turning speeds:2x 5.000 1/min positive location each:2x C-Achse, 0,001° Grad Sub spindle:ja/yes turret (x-stations):2x 12 VDI 30 Pos. driven tools:2x 12 Pos. turning speeds:2x 4.000 1/min control:FANUC 18 iTB total power requirement:30 kVA weight of the machine ca.:8 t dimensions of the machine ca.:3,5 x 2,5 x 2,3 m turning- milling center with Y-axis, collet device on main and subspindle, high pressure pumps 2x 14bar, parts catcher/conveyor, barloader ENTL 10-65, chip conveyor, lot of accessories approx. 54.500 hours "machine on", 30.500 h "automatic", 14.000 h "feeding"

turning diameter:80 mm turning length:235 mm max. bar capacity:42 mm power capacity - driven tools:1 kW speeds spindle 1:6000 1/min speeds spindle 2:5000 1/min numbers of turret head positions:8 pos drive capacity - spindle motor:SP1 11 / SP2 5,5 kW Tools speed:60-6000 1/min weight of the machine ca.:ca. 3 t dimensions of the machine ca.:2,4 x 1,5 x 1,6 m High Performance CNC Turning- and Milling Center - chipconveyor - subspindle - live tools - C-axis - brake - partscatcher and partsconveyor - tool eye - barloader LNS HYDROBAR MINI-SPRINT approx. 5000 working hours

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

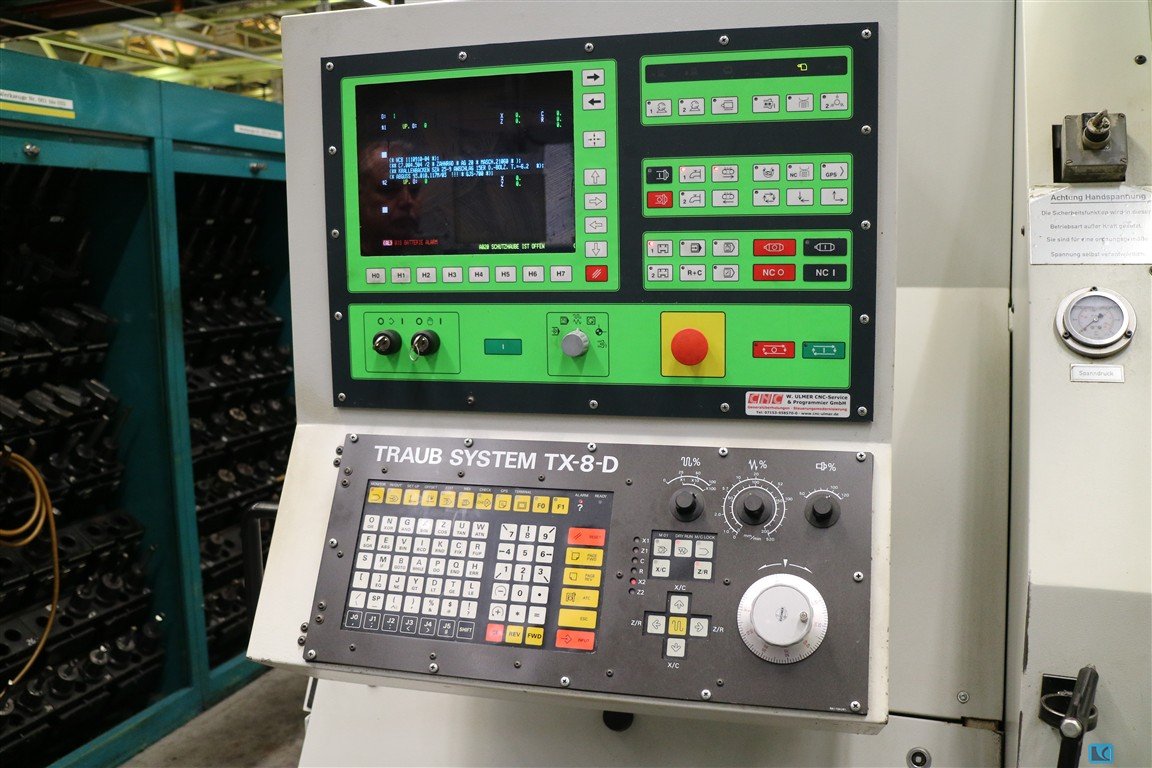

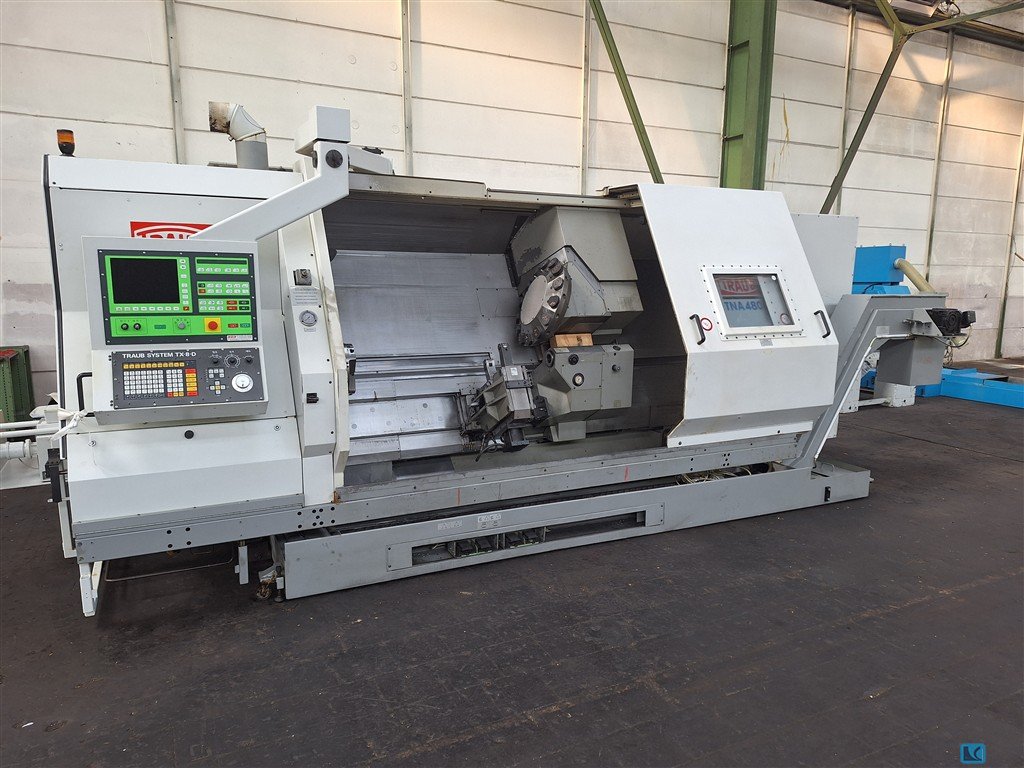

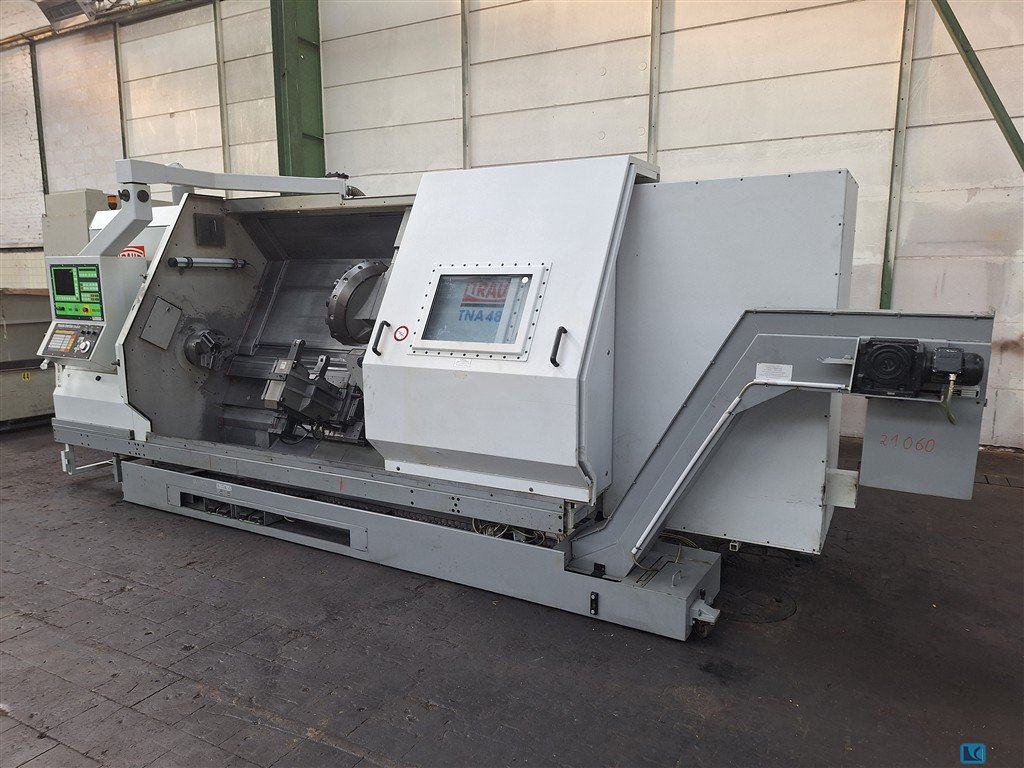

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

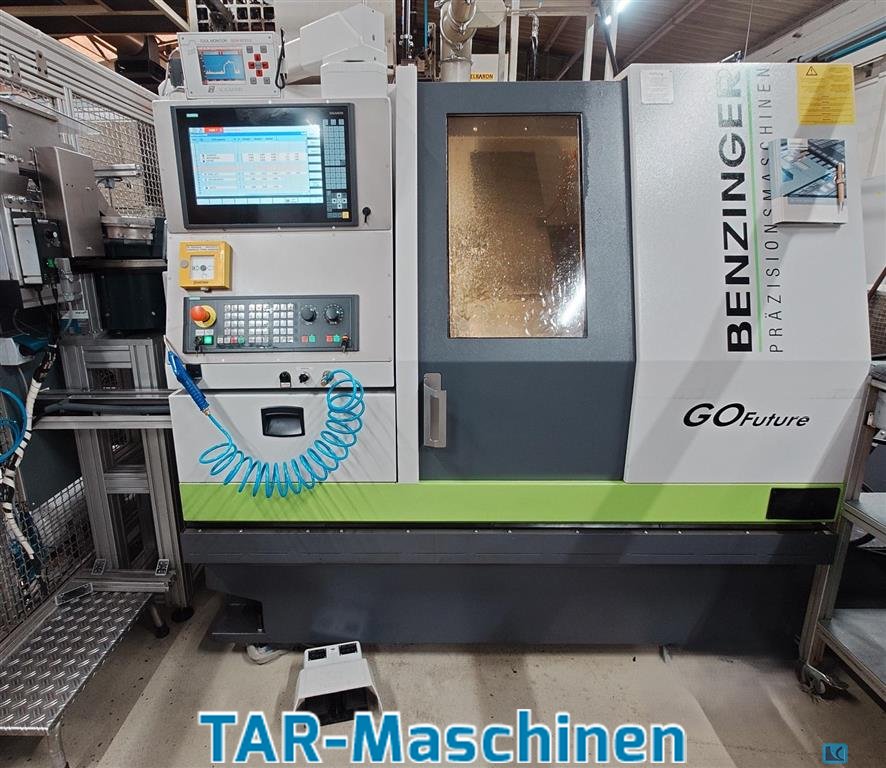

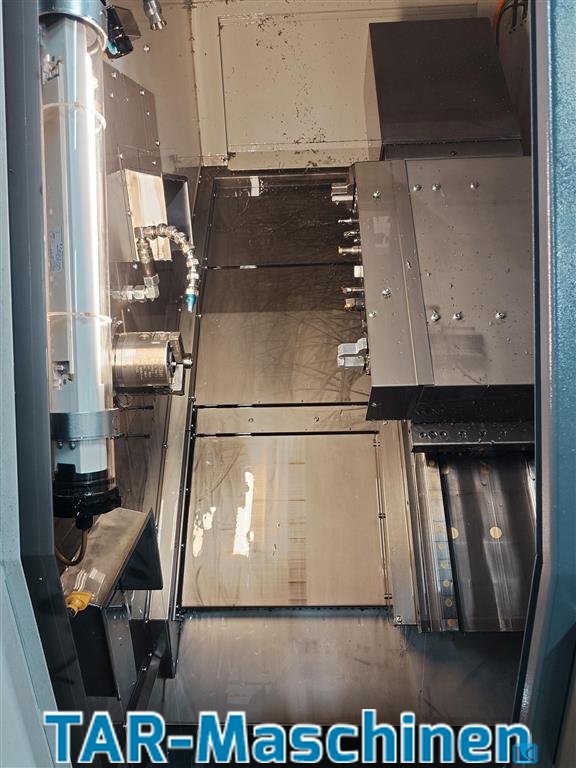

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2015 Machine was only used for reworking, so only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Chip processing container with coolant pump: 30l/min at 5bar Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading conveyor Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. Transmit function Adjusting microscope 16x magnification Coolant supply through the clamping cylinder of the spindle, sealing air, Speed increase of the motor spindle to 8,0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Kno ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

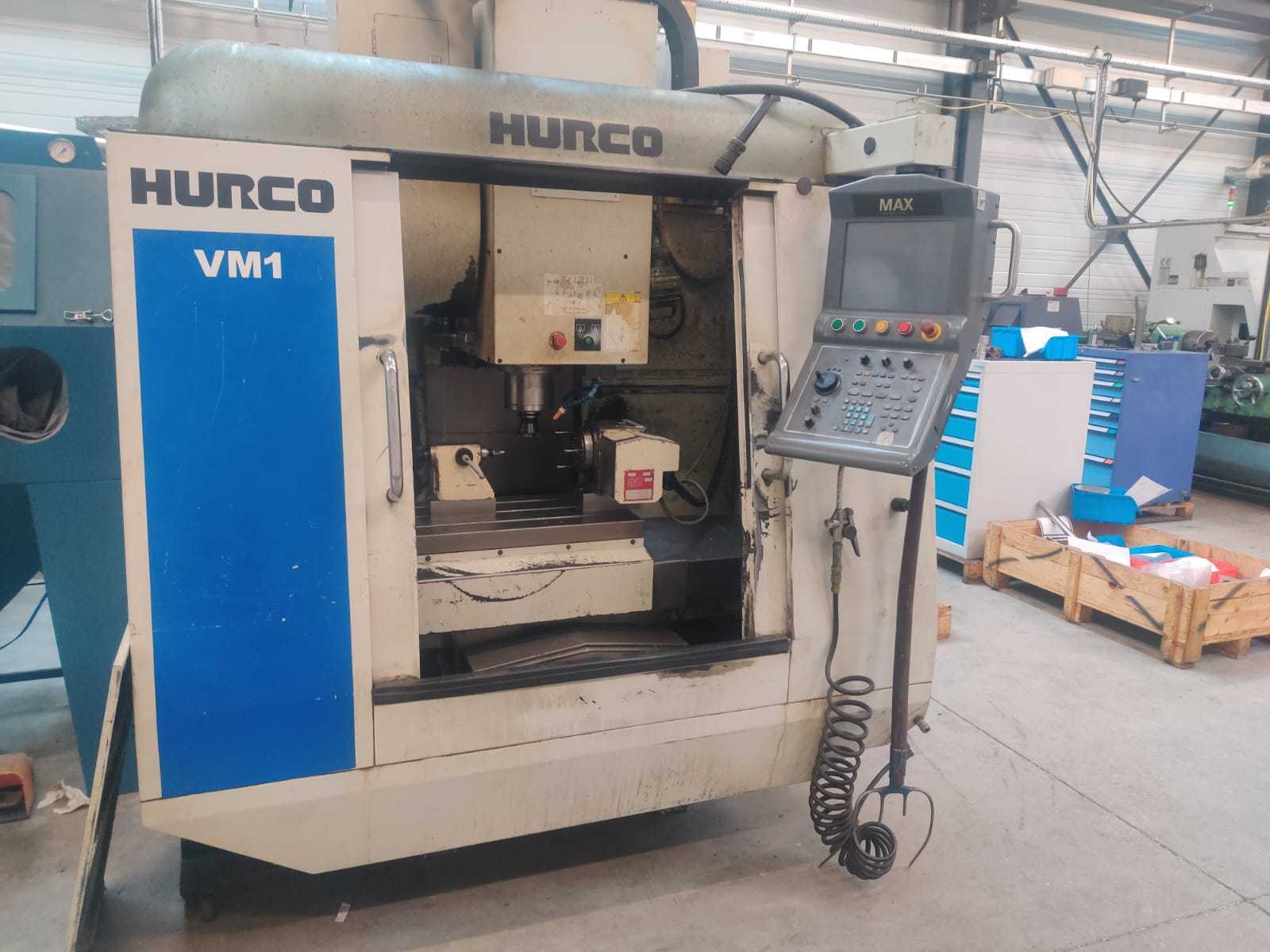

CNC vertical machining center for machining metal parts. Numerical control: Hurco WinMax Axes: 4 axes (including 1 rotary axis) Strokes: X 660 mm / Y 355 mm / Z 457 mm Table: 762 × 355 mm Maximum load table: 500 kg Spindle taper: ISO 40 Spindle speed: 10,000 rpm Spindle power: 11 kW Tool changer: 24 tools (RANDOM type) Equipment: 1-axis divider with tailstock

CNC lathe for turning and machining metal parts. CNC control: Fanuc 16 T AA Max. turning diameter: 165 mm Turning length: 100 – 340 mm Diameter above bed: 220 mm Main spindle speed: 50 – 5,000 rpm Main spindle power: 5.5 / 7.5 kW Main spindle bar passing: 65 mm Sub-spindle speed: 50 – 5,000 rpm Sub-spindle power: 3.7 / 5.5 kW Sub-spindle bar passage: 42 mm C-axis: 0.001° Turrets: 2 Tool positions: 2 × 16 Motorized tools: 2 × 16 positions Strokes: X 175 mm / Z 240 – 680 mm Total power: 41 kVA Dimensions (mm): 3,500 × 2,800 × 2,000 Weight (kg): 5,500

CNC vertical machining center for machining metal parts. Numerical control: Siemens Sinumerik 810D Powerline Strokes: X 640 mm / Y 600 mm / Z 500 mm Table: 850 × 600 mm Maximum table load: 600 kg Spindle taper: SK 40 (DIN 69871) Spindle speed: 1 – 8,000 rpm Fast feeds: X 70 m/min / Y 40 m/min / Z 40 m/min Tool changer: 30 positions Spindle motor power: 12 / 17 kW Energized hours: 43,000 h Operating hours: 15,000 h Note: Without tool holder

CNC lathe Angelini Oscar Year of Make: 2003 Control: GE Fanuc Series 21i-T Technical data Permissible diameter on the slide: 320 mm Recommended turning diameter: 220 mm Maximum turning diameter: 320 mm Turning length with chuck: 600 mm X-axis travel: 270 mm Travel Z-axis: 720 mm C-axis: available Tool turret: 12-speed VD30 Rapid traverse X-axis: 24 m/min Rapid traverse Z-axis: 32 m/min Spindle nose: ASA 5" Spindle bore: 61 mm Bar Passage: 52 mm Power spindle motor: 15 kW Maximum spindle speed: 4,500 rpm Diameter hydraulic chuck: 210 mm Tailstock quill diameter: 70 mm Tailstock quill stroke: 190 mm Collet chuck: available Dimensions (L x W x H): 402 x 130 x 199 cm Weight: 4,500 kg

Capabilities: Maximum turning diameter: 420 mm (standard 290 mm) Maximum turning length (Z-axis): 635 mm Bar passage: 65 mm Spindle Bore: 79 mm Spindle: Rotational speed: 25 to 5,000 rpm Power: 21 kW (100%) / 28 kW (40%) 3-jaw hydraulic chuck (Ø approx. 200–250 mm) Turret & tooling: Sauter Turret VDI 30 (DIN 69880) Capacity: 12 stations Motorized substations C-axis (pin indexing) CNC Control: Heidenhain Turn Plus Electrical data: Power supply: 400 V / 3~ / 50 Hz Installed effective power: 44 kVA Current rating: 64 A Protection: 80 A Auxiliary voltage: 230 V Control voltage: 24 V DC

Manufacturer: FAMUP Year: 1994 Type: CNC vertical machining center Numerical control: FANUC Series O-M Strokes: X 600 mm / Y 400 mm / Z 400 mm Table: 400 × 400 mm – max. load 300 kg Spindle: ISO / SK 40 – 6,000 rpm – 11 kW Tool magazine: 18 positions – Max. tool Ø 75 mm – changeover time 2 s Chip conveyor: Yes Dimensions (mm): 3200 × 2900 × 2600 Weight (kg): approx. 3500 Notes: Italian-made CNC vertical machining center, suitable for general milling. Lots sold as is, unchecked, without tools or tool holders.

Turning diameter max. 390 mm Turning length max. 572 mm Control MSD 501 Circumferential diameter over bed 700 mm Circumferential diameter over face slide 560 mm Distance between tips 725 mm Standard turning diameter 248 mm max. turning diameter 1: 390 / 2: 260 mm Main spindle: Speed range - main spindle 35 - 3,500 min/-1 Drive power - main spindle 18.5 / 15 kW Spindle nose JIS A2-8 Spindle bearing diameter 130 mm Spindle bore 86 mm Usable rod diameter 62 mm Travels: x-axis 1: 238 / 2: 173 mm z-axis 1: 650 / 2: 650 mm Tool turret: Number of turrets 2 Number of tool positions 10 + 8 pos. Number of driven tool stations - pos. Switching time 0.3 sec Shaft diameter 25 mm Shank diameter of the drills max. 50 mm Tailstock: Tailstock travel 500 mm Quill diameter 110 mm Tailstock mount MK 5 Quill stroke 150 mm Feeds: Rapid traverse X1/2: 18 m/min Rapid traverse Z1/2: 24 m/min Feed  ...

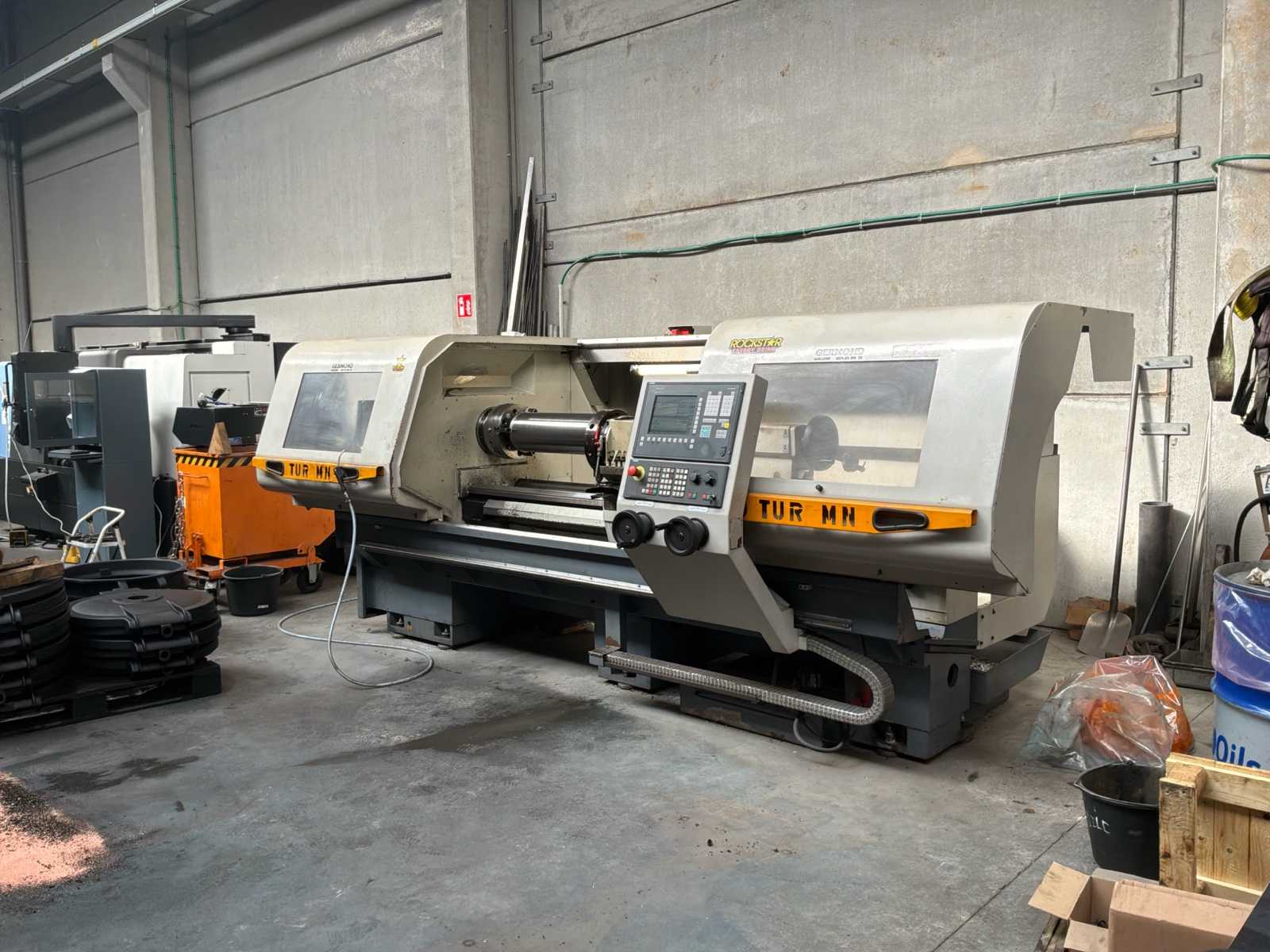

FAT TUR 630 MN x 2000 mm – Siemens 840D ShopTurn – SCHUNK ROTA-S 315 mm chuck – Fixed bezel 140–300 mm – Full backup Robust and precise CNC lathe, ideal for machining single or small series parts. Highly intuitive Siemens 840D ShopTurn control, fast programming. Machine equipped with SCHUNK ROTA-S Ø315 mm chuck, 140–300 mm fixed bezel and full NC backup. Machine in excellent working order, ready to produce. Siemens 840D Full Backup - Machine Documentation + NC Jaw Sets - Wrenches, Service Tools Possibility to add additional glasses or tools Numerical control Siemens 840D sl (ShopTurn version) ShopTurn Conversational Programming - Dynamic Error-Free Graphics - Simple Tool Management Multiple languages available (FR / EN / DE / PL / etc.) Memory card / Full backup available General features: FAT / HACO TUR CNC Tower 630 MN Permissible diameter above the straggler: ~3 ...

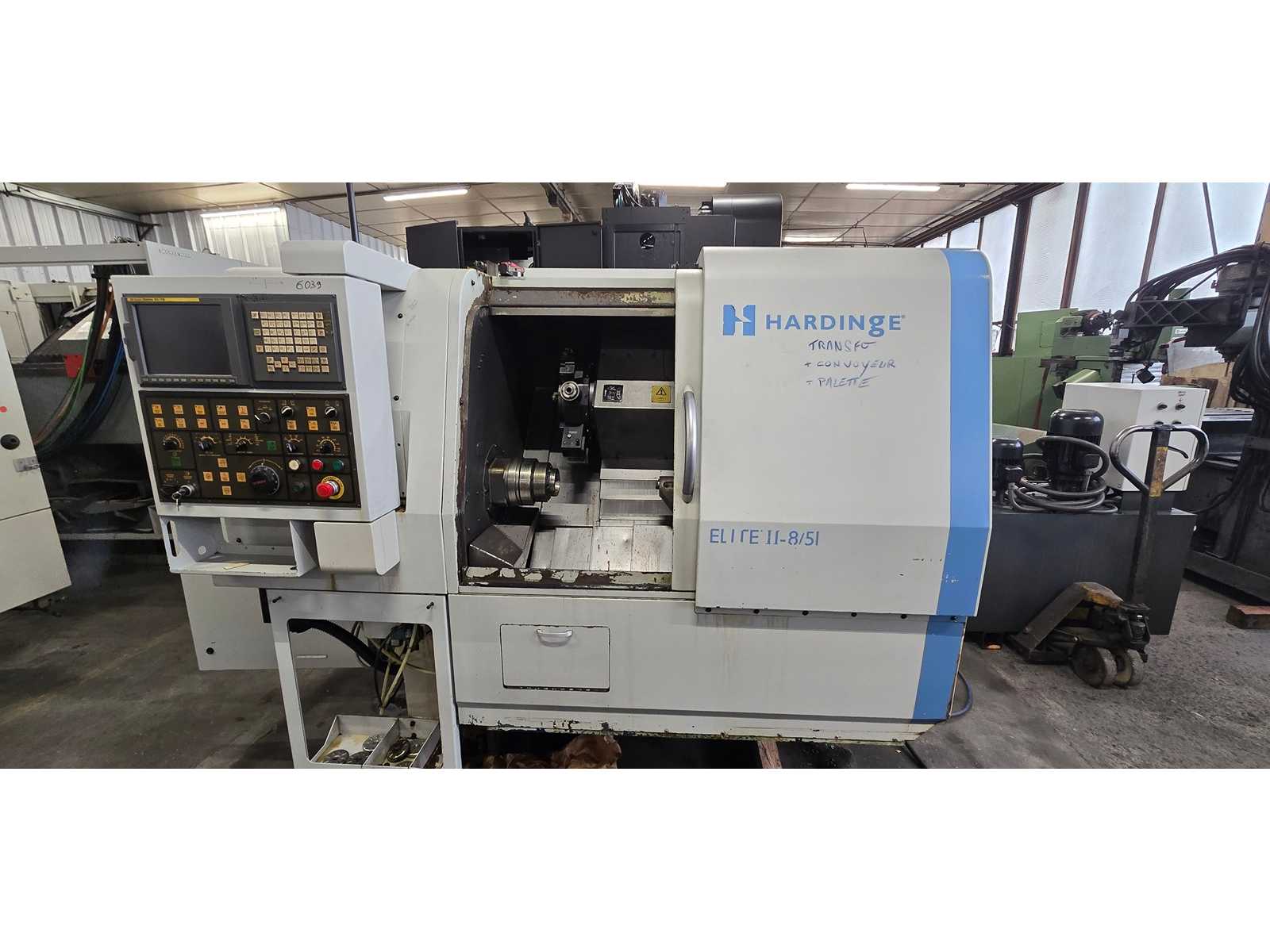

Manufacturer: HARDINGE Year: 2005 Type: CNC Motorized Tool Lathe with C-Axis Numerical Control: FANUC 21i-TB Bar Capacity: Ø 51 mm Max. Turning Circle: Ø 310 mm Max. Turning Length: 470 mm Chuck: Ø 200 mm (8") Bed Inclination: 45° Spindle: 50–5,000 rpm – 18.5 kW (max) / 11 kW (continuous) Turret: 12 stations, all motorable positions Motorized implements: 4,000–5,000 rpm – 3.7 kW Fast feeds: X/Z 19 / 24 m/min Accuracy: ±0.005 mm Included equipment: Programmable C-axis (0.001°), IEMCA Boss 545 bar feeder Weight (kg): approx. 4200

CNC lathe GILDEMEISTER NEF 400 Year of Make: 2005 Control: Siemens 840 D Technical data Turning length: 650 mm Circumferential diameter over bed: 400 mm Circulation diameter over face slide: 270 mm Spindle bore: 65 mm Flat travel (X): 220 mm Longitudinal travel (Z): 700 mm Max. main spindle speed: 4,000 rpm Tool turret: 8-speed Machine weight: approx. 3,175 kg

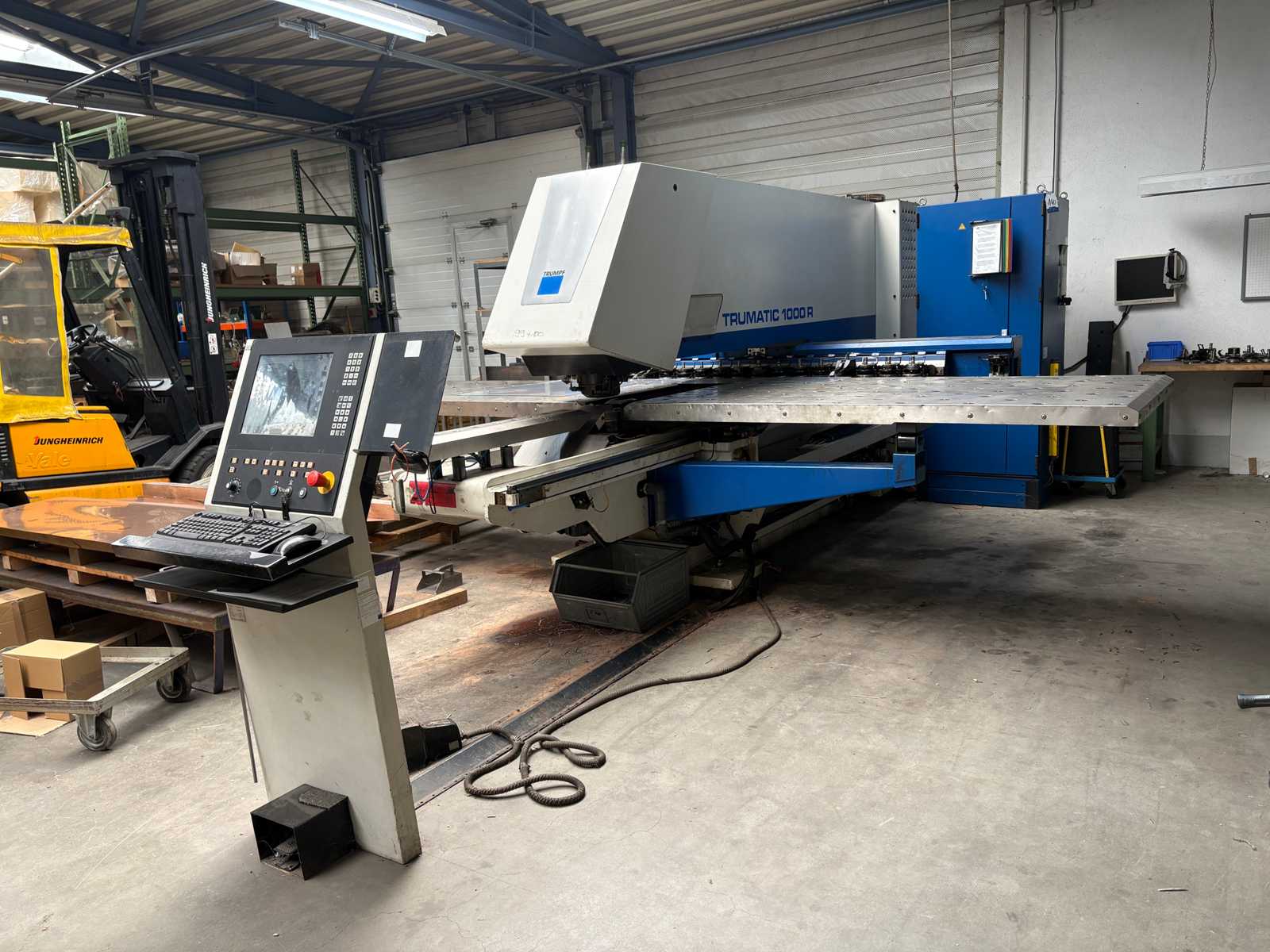

Machine number: A0045A0007 Operating voltage: 400 V Frequency: 50 Hz Connection: 17 kVA Rated current: 35 A Travel X-axis: 2015 mm Travel Y-axis: 1215 mm Max. material thickness: 6.4 mm Max. workpiece weight: 150 kg Max. punching force: 165 kN max. hold-down force: 10 kN Max. stroke sequences punching Hole spacing 1 mm: 600 rpm Signing: 1300 rpm Max. axis speed X-axis: 80 m/min Y-axis: 55 m/min simultaneous: 97 m/min max. acceleration X-axis: 10 m/qs Y-axis: 5 m/qs C-axis punching/thread forming: 175/min Number of positions in the linear magazine: 17 Number of tools/claws: 15/2 Number of tools when using multi-tool/claws: 15-150/2 Number of claws location/2: max. 2/3 Reject parts: max. part size via disc chute: standard 180 x 150 mm max. part size via disc chute with movable support table: 460 x 500 mm Accuracy position deviation: +- 0.1 mm Average position spreading width: +- 0.03 mm in ...

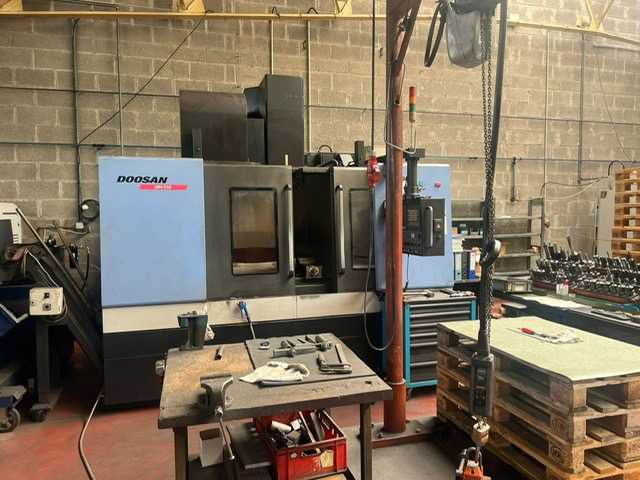

Manufacturer: DOOSAN Year: 2008 Type: CNC Vertical Machining Center Numerical Control: FANUC 0i-M Series Strokes: X 1020 mm / Y 510 mm / Z 525 mm Fast Feeds: X/Y 36 m/min – Z 30 m/min Spindle: 12,000 rpm – 11 kW (continuous) Tool magazine: 30 tools Table: 1200 × 500 mm – max. load 799 kg Accuracy: ±0.005 mm – repeatability±0.003 mm Dimensions (mm): 2795 × 2850 × 2275 Weight (kg): 6500

Mori Seiki ZL 250-600 CNC Lathe Power of the main spindle 18.5 Kw Passage of the main spindle rod 73 mm Diameter of rotation 250 mm Length of rotation 650 mm Number of revolutions of the main spindle 3500 Number of Tool Turrets 2 Number of first turret tool locations 12 Number of motorized first turrets 12 Travel X-axis first turret 238 mm Travel Z-axis first turret 650 mm Number of second turret tool locations 10 Number of fixed tool positions second turret 10 Travel X-axis second turret 173 mm Z-axis travel second turret 650 mm Tailstock Quill stroke 150 mm Chip conveyor

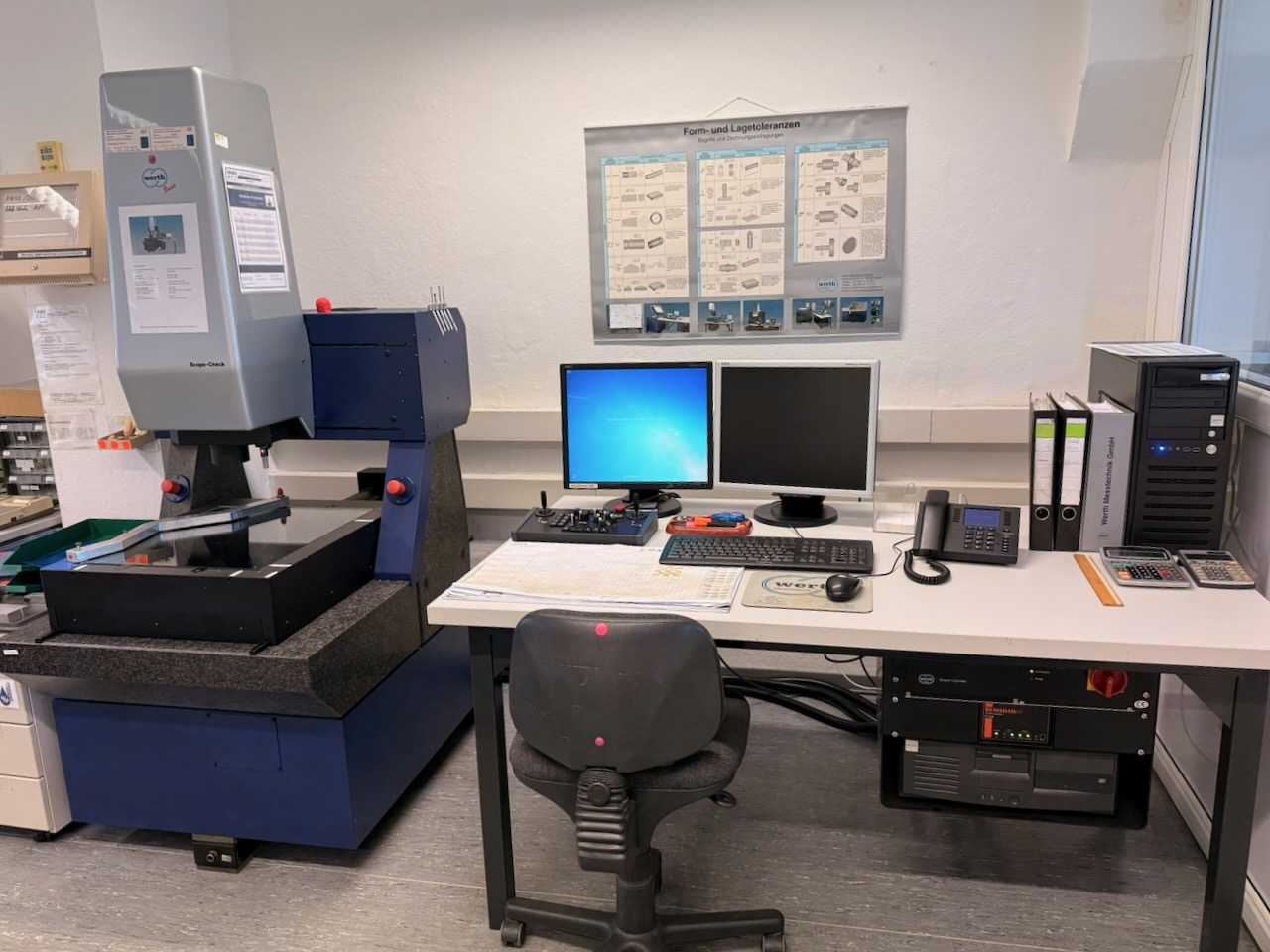

" Manufacturer: Werth Messtechnik GmbH Type / Model: Scope-Check 400 × 400 × 150 3D CNC Machine type: Multi-sensor coordinate measuring machine (optical / tactile) • Year of manufacture: 2006 • Serial number: 06-00376 Condition • Used, well-maintained overall condition • Machine was in measurement operation until the end • Regular calibrations documented • No obvious damage to granite, guides or measuring system Accessories / Scope of Delivery • Granite machine with measuring glass and cover • CNC control with scope controller • Renishaw pushbutton (several probe inserts available) • PC workstation with: • Computer • Monitor(s) • Keyboard, mouse • Control panel / joystick • Documentation: • User manuals (WinWerth) • Calibration and test protocols • Folder with machine and measuring room documentation • Software and calibration data carrier (CD/DV ...

Serial Number: 324 Operating Voltage: 380 V Frequency: 50 Hz Connection: 20 kVA Control: MORIC-T5F Circumference Diameter over Bed: 450 mm Circumnavigation Diameter over Turret: 300 mm Center Width: 595 mm Standard Diameter: 160 mm Max. Turning Length: 525 mm Travel X-Axis: 222 mm Travel Z-Axis: 560 mm Spindle Speed: from 50 to 5000 rpm Spindle Bore: 52 mm Front Bearing Inner Diameter: 90 mm Number of Tools: 12 max. 6 stations for driven tools Shaft cross-section of the lathe bits: 20 mm Shaft diameter for boring rods: max. 32 mm Spindle speed of the driven tools: 100 - 2000 rpm Rapid traverse X-axis: 12,000 mm/min Rapid traverse Z-axis: 15,000 mm/min Feed speed in X-axis: 0.00001 to 250 mm/min Z-axis: 0.00001 to 350 mm/min Tipping feed speed X- and Z-axis: 1260 mm Tailstock Travel: 450 mm quill diameter: 75 mm quill travel: 80 mm the machine is equipped with a tailstock, as well as a 12 ...

CNC Control: FANUC Series 18-T Number of axes: 3 (including C-axis) Maximum machining diameter: 200 mm Distance between tips: 300 mm Max. spindle speed: 3,000 rpm Spindle power: approx. 17.5 kW Turret: 12 fixed positions + 6 rotating positions Chuck: Ø 200 mm Spindle: direct collet mounting possible Weight (kg): approx. 4200 Year & Manufacturer: 1993 – HARDINGE

Diameter above the bench : 700 mm Maximum turning diameter: 420 mm Maximum turning length: 737 mm Chuck: 305 mm (12 inches) Spindle speed: 2,500 RPM Engine power: 22 kW (peak) / 18.5 kW (continuous) Maximum torque: 1,050 Nm Spindle Bore: 105 mm Turret: 12 positions Power Tools: 5,000 RPM (5.5 / 7.5 kW) X-axis: 280 mm Z-axis: 790 mm Y-axis: 120 mm (± 60 mm, optional) Fast Forwards: 20 / 24 m/min Tailstock Stroke: 750mm (Standard) CNC Control: FANUC Weight: 5,200 kg Dimensions: 4,354 x 2,076 x 1,917 mm

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 660 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance from table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vice shown in the photos! incl. the tool holders located in the tool changer as well as touch probe and 4th axis Ref ...

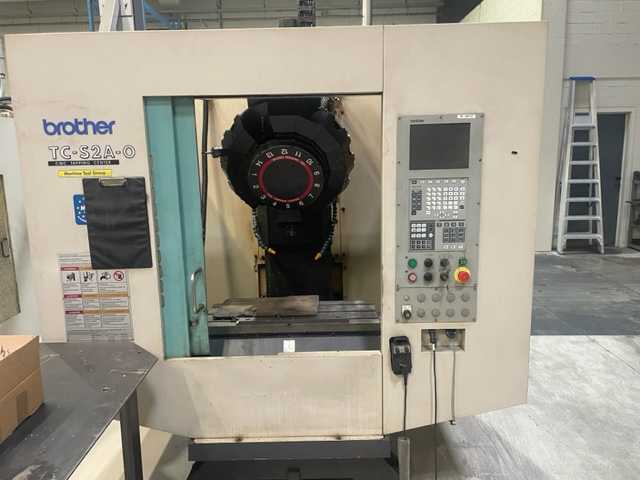

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER

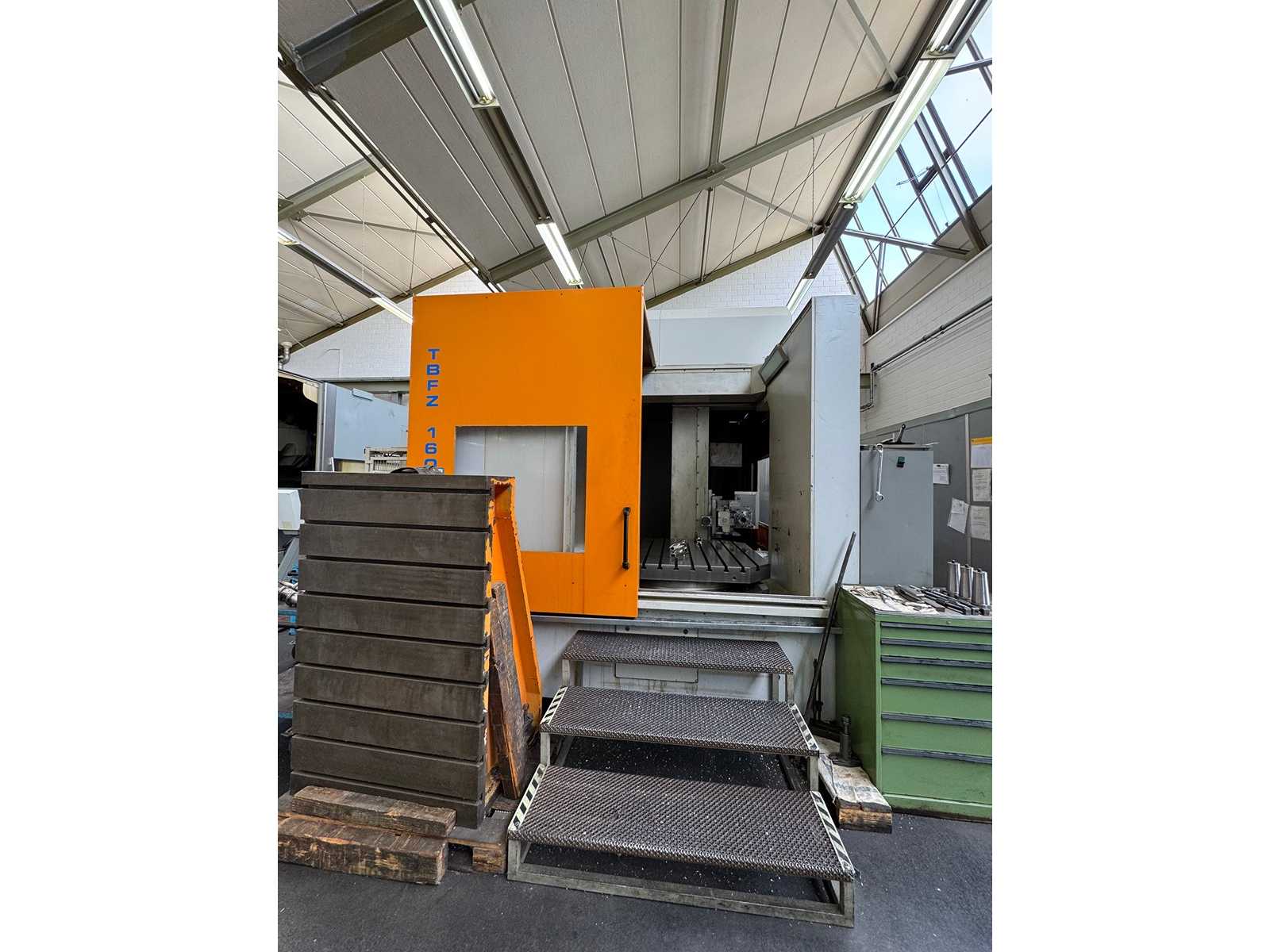

Deep Hole Milling Machine TBFZ 1600 CNC Year of Make: 2003 Technical data Travels X-axis travel: 1600 mm Y-axis travel: 1200 mm Z-axis travel: 500 mm W-axis travel: 1200 mm B-axis travel: 360° (turntable) Table Table size (L x W): 1500 x 1500 mm Slots (T-slot): 5 x DIN 650-22 H12, 150 mm spacing Facilities Tool clamping: hydraulic Electrical connection: 400 V, 50 Hz Compressed air connection: nominal flow rate 7000 rpm, operating pressure: 6 bar Botek Driller optionally available Feed Feed Drive: Brushless AC Servo Motors Feed speed: 0 - 20,000 mm/min Rapid traverse: X-axis: 20,000 mm/min Y- and Z-axis: 20,000 mm/min Operating modes Manual mode: 20,000 mm/min Set-up mode: 0 - 2,000 mm/min
