cnc cut used for sale

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Minimag bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Year of manufacture: 2009 Machining time: 20,627 h Powerful CNC universal lathe with counter spindle and Y-axis. Control: Fanuc 31i-B Max. turning diameter for bar machining: 65 mm Max. turning diameter for chuck machining: 230 mm Turning length: approx. 250 (320) mm Max. swing diameter: approx. 520 mm Main spindle (HSP): Spindle nose: 6 Spindle bore: 80 mm Speed: 4,000–5,000 rpm Counter spindle (GSP): Spindle nose: 5 Spindle bore: 55 mm Speed: 5,000 rpm Tool turret: 2 × 12 stations, driven Y-axis travel: ±50 mm Equipment: 2 turrets, each with 12 tool positions and 24 driven tools 2 C-axes and 2 Y-axes CNCDB70 bar feeder from Giovanni Cucchi Workpiece unloading system with conveyor belt Chip conveyor with 2 pumps, 7 bar each, incl. filter Spray gun (4 bar) High-pressure pump 25 bar incl. filter Extended ejector 200 mm All tool holders shown in the pictures Complete technical document ...

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Minimag bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Technical data - Number of axes: 5 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 12 [mm] - Z-axis travel: 140 [mm] - Spindle speed: 8000 [rpm] - Spindle drive power: 2.2 [kW] - Number of tool positions: 13 COUNTER SPINDLE - Max. bar diameter: 10 [mm] - Spindle speed: 8000 [rpm] - Number of tool positions: 4 FMB Minimag bar loading magazine The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Year of Manufacture: 2021 Control: Fanuc 32i Operational Status: Fully operational Operating Hours: approx. 15.000 hours Technical Data Spindle Bore: Ø 27 mm Spindle Nose: A2-5 Chuck Capacity: max. 80 mm Maximum Spindle Speed: 6,000 rpm X-Axis Travel: 607 mm Z-Axis Travel: 286 mm Coolant System Loading and Unloading System Accessories / Tools / Manuals Machine Dimensions and Weight Machine Dimensions: approx. 1850 × 1750 × 1750 mm Machine Weight: approx. 2100 kg Loading/Unloading System Dimensions and Weight Dimensions: approx. 1900 × 950 × 2000 mm Weight: approx. 1000 kg Coolant System Dimensions and Weight Dimensions: approx. 1500 × 800 × 1100 mm Weight: approx. 250 kg The machine is fully operational and in good used condition. For further information or to arrange a live demonstration under power, please feel free to contact us. All technical data and information are approxima ...

Year of manufacture: 12/2020 Operating hours: approx. 17,265 Serial no.: 8794_463 Internal no.: 231023 CNC control: FANUC 0i-TD with 7 axes C-axis on main and sub spindle Convertible from sliding headstock to fixed headstock turning Main and sub spindle collet type: E145 Synchronized driven guide bush unit Guide bush type: T223 HFT (High-Frequency Turning) eliminates chip problems CE declaration of conformity Bar feeder FMB micromag 20 / 3200 A Serial no.: 31-320684 R1845925 Hinged belt conveyor MAYFRAN type MT 10 Fire extinguishing system Kraft & Bauer with CO? container (6 kg) High pressure unit SFB-200eco Serial no.: 12631 Machine dimensions: approx. 2070 x 1177 x 1760 mm Machine weight: approx. 1,800 kg Bar feeder dimensions: approx. 5015 x 720 x 1700 mm Bar feeder weight: approx. 600 kg High-pressure unit dimensions: approx. 1500 x 500 x 1000 mm High-pressure unit weight: approx. 25 ...

FMB loading magazine Turbo 3-26 year 2004 Fire extinguishing system Kraft & Bauer / GUT Feuerschutz Mayfran chip conveyor The machine can be inspected by appointment. Changes and errors in the technical data and information as well as prior sale reserved!

Year of manufacture: 2004 – major overhaul by manufacturer CHIRON in 2013 The machine underwent a complete factory overhaul by CHIRON in 2013. Operating hours: approx. 80,374 h Spindle replacement: March 2021 – spindle hours: approx. 8,000 h Last maintenance performed: January 2024 Technical Specifications: Control: Siemens 840D (PCU50, NCU572.4) NC swivel head High-speed package: Motor spindle up to 12,000 rpm, 140 Nm Travels: X 6,000 mm / Y 630 mm / Z 550 mm Rapid traverse in X / Y / Z: 60 m/min Chip-to-chip time: 3.0 sec (3.3 sec DIN) vertical / 4.7 sec (5.0 sec DIN) horizontal Production package: Scraper belt conveyor, discharge height 1,050 mm Preparation for internal coolant supply (IKZ) Vacuum rotary filter KNOLL VRF250 (for steel, cast iron, aluminum, plastic, brass) High pressure 70 bar with HP pump and variable valve Automatic loading doors Central partition for pendulum ma ...

Includes oil cooler, cooling water mixer, 30 tool holders and various accessories Auction-ID: A1-43894-1

A deposit of €4125.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Fast feed speed 42 m/min Cutting speed 1-8000 mm/min 30-position tool changer Max tool diameter 80-125 mm Max tool weight 8 kg X-axis positioning accuracy 0.015 mm Positioning accuracy Y/Z axes 0.010 mm X-axis repeatability 0.006 mm Y/Z axis repeatability 0.004 mm Tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. It should be noted that the dismantling and loading operations of the machinery subject to sale must be carried out exclusively by a specialized ...

Equipped with 30 tool holders and various accessories Auction-ID: A1-43894-2

Control: CNC AMADAN 04 PC Machine type: CNC turret punch press with fully automatic sheet handling Punching force: 30 t Max. material thickness (steel): 8 mm Working area: 3,000 mm X-axis travel: 2,500 mm Table type: Brush table (scratch-free & low-noise operation) Repositioning: Automatic sheet repositioning Tool lubrication: Air Blow automatic lubrication Pneumatic punches: 2 pcs Power supply: Three-phase Tappet stroke: 31.9 mm Max. hole diameter: 114.3 mm Punching frequency (X/Y direction): - Stroke 8.0 mm – Pitch 25.4 mm – 300 / 375 strokes/min - Stroke 4.5 mm – Pitch 25.4 mm – 375 / 375 strokes/min - Stroke 4.5 mm – Pitch 2.0 mm – 600 / 600 strokes/min Tool turret: Amada Thick Turret Turret speed: 25 rpm Turret capacity: 58 stations (4 auto-indexable) Accuracies: Punching accuracy: ± 0.10 mm Positioning accuracy: ± 0.0 ...

Offered is a vertical three-axis machining center. Travels X/Y/Z: 1524mm/660mm/610mm, table: 1675mm x 660mm, spindle speed: 12000rpm, tool holder: SK40, tool changer: 24 positions, spindle hours: 1937h (spindle replaced 10/2019), chip disposal: scraper conveyor, control system: WinMax. Equipped with 3D probe Renishaw, scraper chip conveyor, coolant system, spindle cooler, coolant spray gun, chip splash protection enclosure, flushing system for chip removal, electronic handwheel, rigid tapping, DXF software, cooling air through spindle switchable. Weight: approx. 8400kg, overall dimensions X/Y/Z: approx. 4650mm/3470mm/3030mm. Inspection possible by arrangement.

Key data: 480 mm, 785 mm, 45 1/min

Control OKUMA ... OSP-P300LA Turning diameter... 480mm Turning length... 785mm Inclined bed Axis Y ... 115mm Sub-spindle Spindle bore ... 80mm Tool turret ... 12/12 Bar Feeder Axis X ... 260mm Axis Z ... 510mm Spindle speed ... 45-5000 rpm. Speed of the driven tools ... 45-6000 rpm Rapid traverse of the X axis ... 25m/min Rapid traverse of the Z axis ... 30m/min Rapid traverse of the Y axis ... 12.5m/min Axis C ... 360° Main engine power ... 22kW L x W x H ... 3330 x 1800 x 2250 mm Machine weight ... 5250kg Chip conveyor

Key data: 480 mm, 785 mm, 45 1/min

Control OKUMA ... OSP-P300LA Turning diameter... 480mm Turning length... 785mm Inclined bed Axis Y ... 115mm Sub-spindle Spindle bore ... 80mm Tool turret ... 12/12 Bar Feeder Axis X ... 260mm Axis Z ... 510mm Spindle speed ... 45-5000 rpm. Speed of the driven tools ... 45-6000 rpm Rapid traverse of the X axis ... 25m/min Rapid traverse of the Z axis ... 30m/min Rapid traverse of the Y axis ... 12.5m/min Axis C ... 360° Main engine power ... 22kW L x W x H ... 3330 x 1800 x 2250 mm Machine weight ... 5250kg Chip conveyor

Key data: 65 mm

3 TURRETS - Y AXIS IN UPPER TURRET - 2 X C AXIS - LNS SERVO 3 SHORT BARFEED - VERY WELL TOOLED - FANUC 310 CONTROL - IMMEDIATELY AVAILABLE

CMA Long Bed Machining Center Model 3RD-CNC-6006 with 4th Axis The CMA 3RD long-bed machining center is the third generation of successful predecessor models that are used in a variety of ways around the world every day. The machine is designed with the latest generation of industrial PC control, servo drives and servo motors from OMRON (Japan). What does a machining center have to offer in practice? - Drilling quickly and easily in the exact position (a hole in the wrong position leads to problems, i.e. high assembly costs) - Can be used both for individual parts (manually 1 or 2 holes in a product) and for small and large series - Have the option of using both conventional HSS drills and modern carbide drills to drill faster - Be suitable for processing (several) small or large products - Be suitable for drilling, tapping, countersinking and flow drilling, among other thin ...

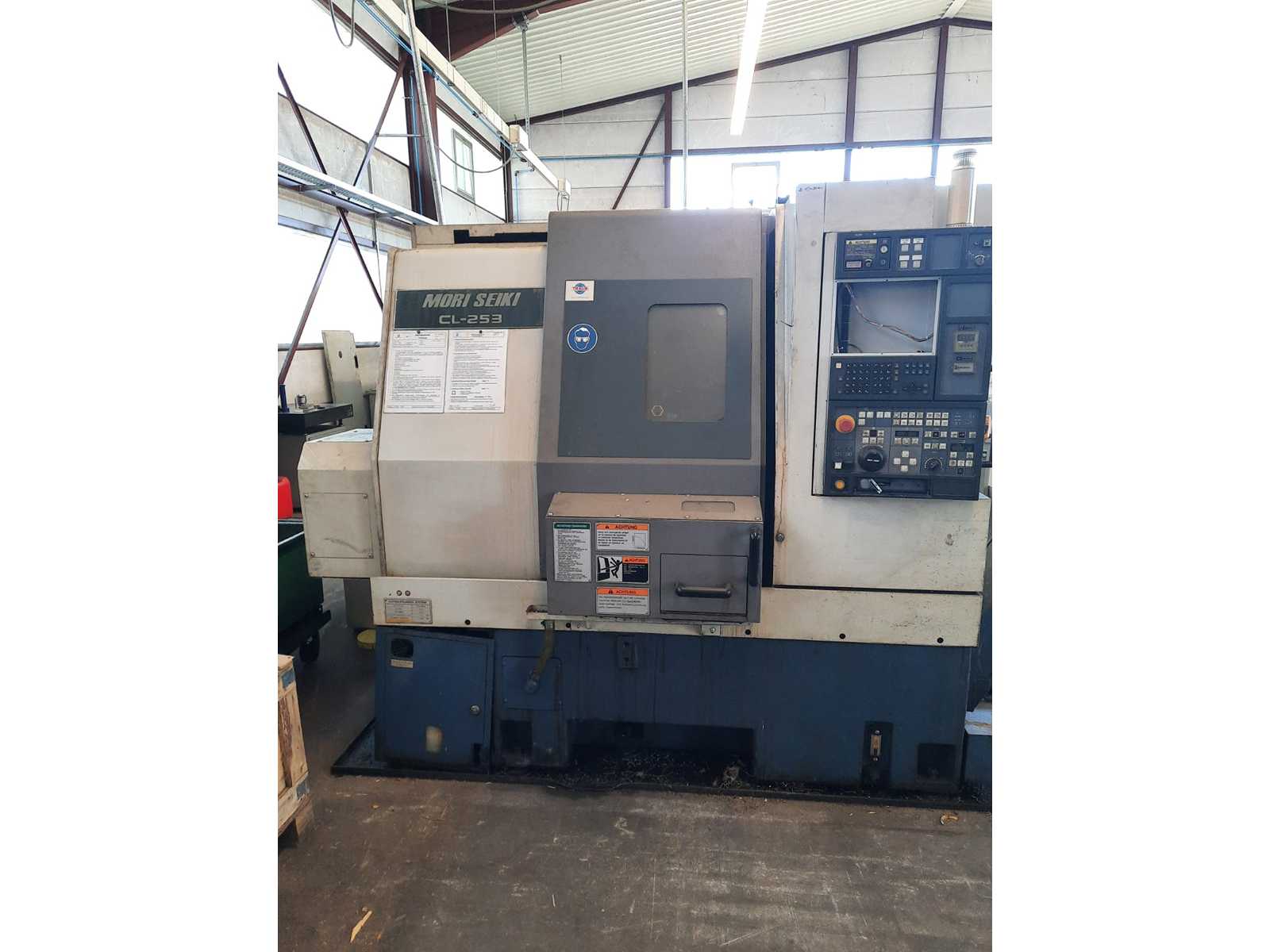

Mori Seiki CL 253 B CNC Lathe - Monitor defective • Maximum turning diameter: 260 mm • Maximum turning length: 1035 mm • Spindle nose/bore: JIS A2-8 / 86 mm • Rod capacity: 74 mm Lrsbknjy D Rnyo Aurwel • Rapid traverse (X/Z): 18 / 24 m/min • Tool feed (BMC): 3,000 rpm / 6.5 kW • Tailstock: MT 5, 150 mm stroke • Control: MSG-501 MAPPS (Fanuc) • Turret: 12 stations VDI 40 Auction-ID: A7-47048-8

SCM Cella Accord CNC machining centre – year of construction 2009. Machine was operational until the control system failed. Suspected defect in SCM PLC/CNC control. Spindle drive is working. Machine is complete including vacuum pumps, suction and some accessories (see photos). Sold in current condition, without warranty. Dismantling, loading and transport are entirely at the expense of the buyer. Auction-ID: A3-43538-21457

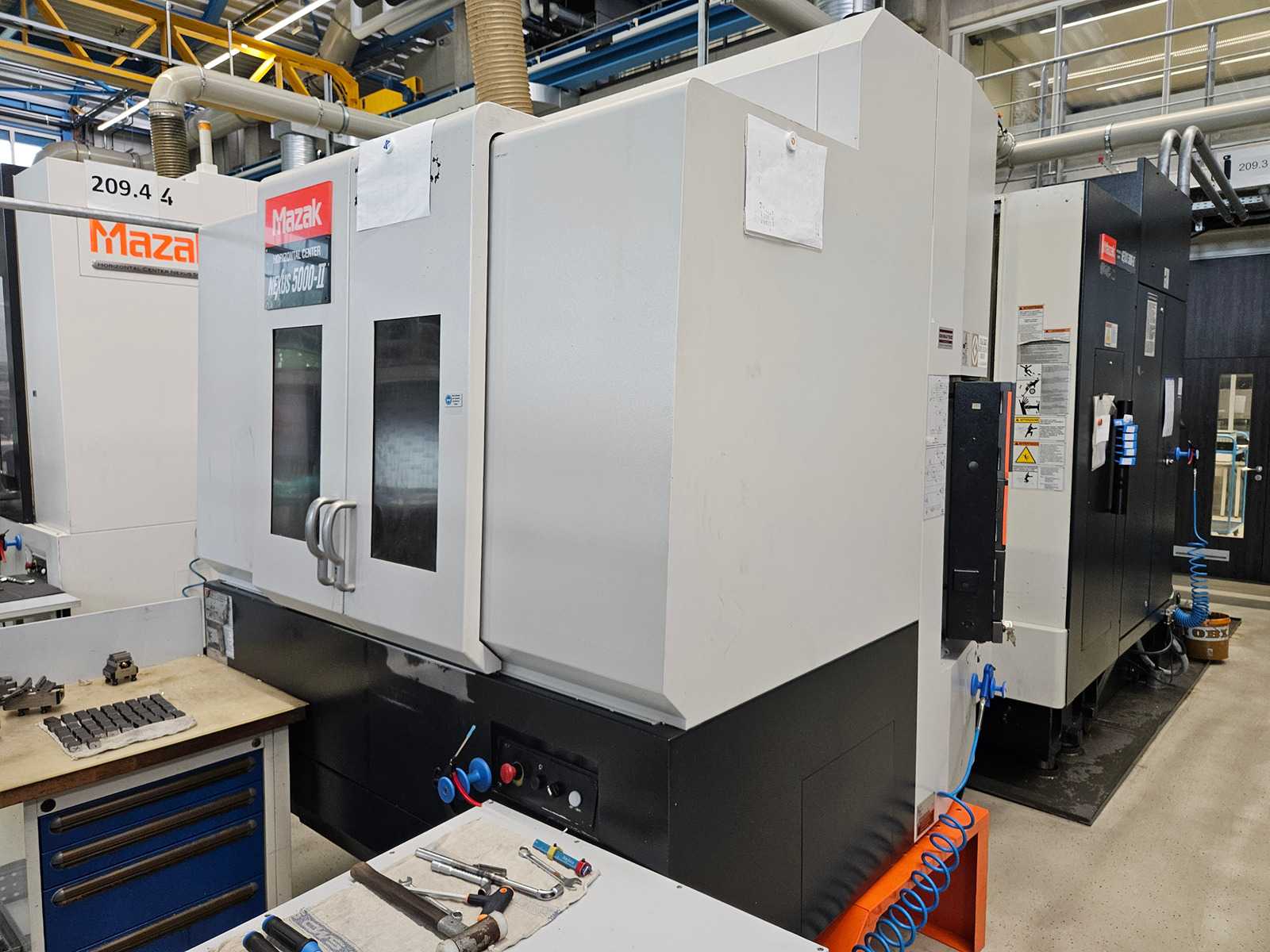

Mazak - HCN 5000 -II - CNC Horizontal machining centre - 2005 X-axis travel: 730 mm Y-axis travel: 730 mm Travel Z-axis: 740 mm Workpiece weight (max.): 700 kg Control manufacturer: Mazatrol Total height: 2,813 mm Total length: 5,985 mm Overall width: 3,056 mm Total weight: 11,000 kg Table length: 500 mm Table width: 500 mm Control model: 640 Spindle speed (max.): 14,000 rpm Equipment: Documentation/Manual/ 3 loading towers without chips / No tools! Auction-ID: A7-47048-79

Electrospindle power 7.5 kW, rotation speed 8000 rpm 4th and 5th axis rotary table 5-axis control Stroke X=450 mm Stroke Y=350 mm Stroke Z=400 mm Auction-ID: A7-47148-2

Operating voltage: 400 V Frequency: 50 Hz Rated current: 225 A Connection: 62 kVA Swing diameter over bed: 250 mm Swing diameter over slide: 250 mm Max. turning diameter: 250 mm Standard Turning diameter: 100 mm Max. turning length: 435 mm Max. rod size: 51 mm Chuck size: 6 inch Travel X-axis: 195 mm Travel Z-axis: 480 mm Spindle speed: 4500 rpm Infinitely adjustable Spindle nose: A2-5 Spindle bore: 63 mm Front spindle bearing diameter: 90 mm Rod passage: 52 mm Tailstock Travel: 620 mm Tailstock Rapid traverse: 24 m/min Ball screw diameter: 32 mm Ball screw pitch: Diameter 12 mm Distance between spindle lugs: min. 250 mm, max. 870 mm Position accuracy of the feed axes: 0.05 mm Rapid traverse X-axis: 12 m/min Rapid traverse Z-axis: 24 m/min The machine is equipped with a counter spindle, HAINBUCH clamping system, a main spindle with HAINBUCH clamping system, a double turret with the tool  ...

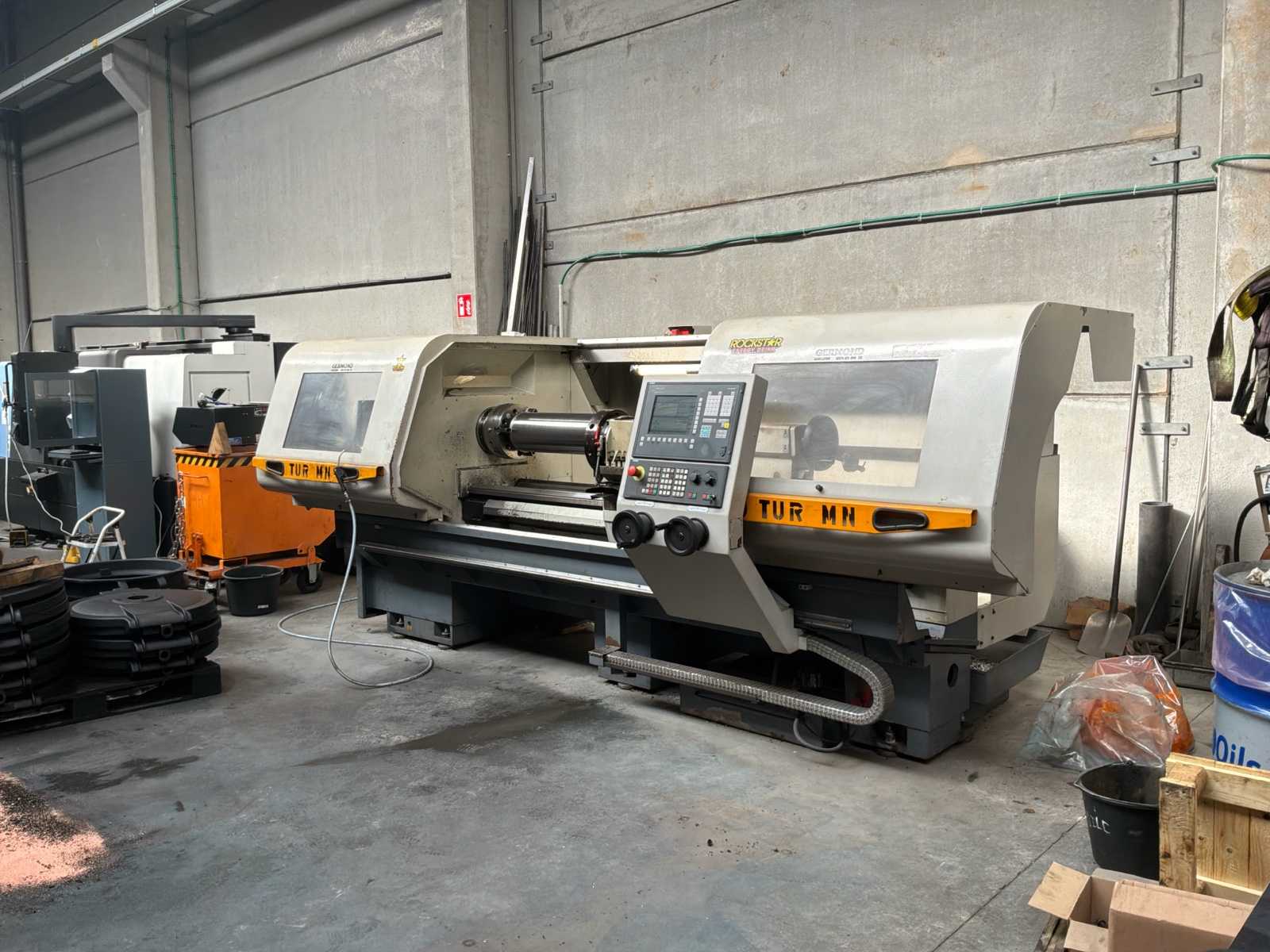

FAT TUR 630 MN x 2000 mm – Siemens 840D ShopTurn – SCHUNK ROTA-S 315 mm chuck – Fixed bezel 140–300 mm – Full backup Robust and precise CNC lathe, ideal for machining single or small series parts. Highly intuitive Siemens 840D ShopTurn control, fast programming. Machine equipped with SCHUNK ROTA-S Ø315 mm chuck, 140–300 mm fixed bezel and full NC backup. Machine in excellent working order, ready to produce. Siemens 840D Full Backup - Machine Documentation + NC Jaw Sets - Wrenches, Service Tools Possibility to add additional glasses or tools Numerical control Siemens 840D sl (ShopTurn version) ShopTurn Conversational Programming - Dynamic Error-Free Graphics - Simple Tool Management Multiple languages available (FR / EN / DE / PL / etc.) Memory card / Full backup available General features: FAT / HACO TUR CNC Tower 630 MN Permissible diameter above the straggler: ~3 ...

Max. deflection: 575 mm diameter Standard chuck size: 305 mm Distance between tips: 1527 mm Headstock center height: 310 mm Max. load capacity: Feed work: 250 kgf Top work: 1000 kgf Control: MAZATROL T PLUS Max. speed of KITAGAWA chuck: 3000 rpm With technical documentation as shown in the pictures Auction-ID: A7-46763-392

Machine serviced and 1 year warranty on replaced parts: New brocaded motor X and Y Axis Pinion and Pinion. On-board computer and runners Possibility to have a 4th focused on request with an extra charge. As well as an optional 2D laser Training that can take place at the seller's premises or by means of an additional supplement on site at the buyer's premises if in Belgium. ( French - Dutch - English - German - Russian ) The machine will be available 6-8 weeks after payment of the deposit. The seller can take care of the transport but not the unloading (additional quote) Can take care of the installation work in the control room (additional quote) Vacuum pump 170m3 /h Auction-ID: A3-43538-35562

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:270 -300 mm turning length:710 mm total power requirement:43 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:3,16 x 2,15 x 2,15 m The machine does not include a chuck or tools ? the machine was originally purchased without these accessories. The G300 has X, Z, Y, C, SP, and driven tools. A bar feeder can be used, but the machine does not have one.

turning diameter:220 mm turning length:310 mm total power requirement:17 kW weight of the machine ca.:3,3 t dimensions of the machine ca.:2,25 x 1,63 x 1940 m greates pass round over bed:430 mm bore diameter:45 mm centre distance:687 mm slide travel radial ( X-axis ):160 mm slide travel axial ( Z-axis ):310 mm spindle turning speed range:0-6.300 U/min

turning diameter:220 mm turning length:700 / 665 mm total power requirement:17 kW weight of the machine ca.:2,6 t dimensions of the machine ca.:2,63 x 1,98 x 1,94 m greates pass round over bed:430 mm Part length max.:510 slide travel radial ( X-axis ):160 mm bore diameter:45 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:145 mm turning length:210 mm total power requirement:40 kW swing diameter:145 mm Spindle bore sp. 1:56 mm Spindle bore sp. 2:56 mm swing diameter over face slide:145 mm greates pass round over bed:145 mm RPM Main Spindle:7.000 1/min number of workpiece supports:12 Shank diameter:25 mm C-axis RPM:2.000 1/min Chuck diameter spindle 1:140 mm Chuck diameter Spindle 2:140 mm Number of tools:12 fach St. Tool bore:VDI 25 Shank diameter:25 mm weight of the machine ca.:5.300 kg dimensions of the machine ca.:5.000 x 4.100 x 2.050 mm Slide path flat: X1, X2, X3: 220mm, 120mm ( 145mm ) Longitudinal slide travel: Z1, Z2, Z3: 320mm, 345mm, 380mm Vertical slide travel Y1: +/- 30mm Longitudinal spindle travel Z3: 380mm Clamping tube inner draw tube 46mm diameter Speed range main drive 1+2 up to 7,000 rpm Speed of driven tools up to 6,000 rpm Main and counter spindle collet chuck 1 axial ...

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

turning diameter:356 mm turning length:700 mm y-axis:±60 mm spindle drive:18 kW counterspindle motor:15 kW Direct drive for driven tools:5,5 kW Motor starting torque:640 Nm Main spindle mount:A2-8 counter spindle mount:A2-6 Rod passage:80 mm main spindle speeds::4.000 U/min Drehzahl angetriebene Werkzeuge :6.000 U/min rapid traverse speed:30 m/min auf X- und Z-Achse machine weight ab.:5.800 kg 12-station turret, all positions driven C-axis on both spindles Belt-driven and infinitely variable drive on all motors Prismatic guideways on all axes Oil cooler for both spindles, manufacturer Daikin Automatic, dialog-guided programming system MAPPS Automatic monitoring of tool load and tool wear Two Renishaw measuring arms for automatic tool measurement Interfaces: USB, PCMCIA card, and RS-232 port Interface for bar feeder Automatic parts catcher Dual foot pedal for independent opening and clos ...

turning diameter:570 mm turning length:635 mm travel -x axis:220 mm travel -z axis:635 mm Torque:240 Nm feed::X: 20m/min; T: 24m/min disc turret:12 fach main spindle speeds::25-25.000 dimensions of the machine ca.:3210 x 1750 x 1750 mm weight of the machine ca.:5.300 t

turning diameter:x. 350 mm turning length:985 mm swing dia.:610 mm clamping range for bar work:77 mm speeds:350 - 4.000 U/min Torque:465 Nm spindle nose:A2 - 8" spindle bore diameter:88 mm chucking diameter:254 mm numbers of tools:12 travel -x axis:190 mm travel -z axis:1.025 mm rapid traverse X-axis:30 m/min rapid traverse Z-axis:33 m/min Tailstock Travel:1.010 mm tailstock taper MT:4
