Year of manufacture: 1997 Control system: similar to Fanuc Technical specifications Max. bar diameter: 36 mm Standard bar capacity: 26 mm Max. turning length: 100 mm Swivel diameter over cross slide: 120 mm Main spindle Speed range: 100 – 6,300 rpm (continuously variable) Spindle power: 7.5 kW / 11 kW (continuous/peak) Spindle nose: A2-5 C-axis: resolution 0.001° Number of slides: 4 linear slides (X/Z) for simultaneous machining 8-station star turret (VDI 20) Rapid traverse speeds: 15 m/min (X-axis) / 20 m/min (Z-axis) Feed force: 2,500 N Single bar feed: ERGOMAT, for bar lengths up to 3,000 mm. The machine can be viewed in operation by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!
Key data: 242 t
This is a 242 Ton x 12ft and deep 16" throat depth with 5 axis machine with auto crowning, a good variety of dies and punches including 2 bolsters and a nice 4way. Segment acute punches and dies also available with this machine. It is clean and fully operational. Machine is wired 208 3 phase.
pressure: 28.0 t chamfer lenght: 1050 mm distance between columns: 890 mm throat: 200 mm stroke: 200 mm dayligth: 325 mm back stop - adjustable: 500 mm working feed: 8.0 - 10.0 mm/sec return speed: 35.0 mm/sec back stop - adjustable: 0 - 370 mm Control: CYBELEC total power requirement: 4.75 KW weight: 3250 kg range L-W-H: 1595 x 1390 x 2020 mm Very good / well-maintained condition () new price in 2012 ... approx. 36.000 Euro special price on request The machine was in continuous use in a test area and as a result has only very few operating hours ! - in checked conditions - machinevideo - https://www.youtube.com/watch?v=2LsTlpSaEuE Equipment: - CNC electro-hydraulic press brake - CNC control CYBELEC ModEva 15PAC Large 15 touch display Workpiece creation simply by hand in 2D thanks to the TouchProfile function Intuitive and interactive programming Clearly arranged keyboard Clear ...
Offered is an automatic fitting drilling machine. Workpiece size L: 100-1350mm, W: 100-600mm, d: 16-25mm, operating pressure: 6-7bar, extraction air speed: 30m/s, extraction volume flow: 70m³/min, working height: 1000mm, traverse speed X-axis: 60m/min, traverse speed Y-axis: 50m/min, control system: Ferrocontrol CNC. Equipped with vibratory feeder for hinges, spiral vibratory feeder for buffers, drilling and insertion units, light barrier monitoring. Weight: approx. 6000kg, overall dimensions X/Y/Z: approx. 5500mm/2200mm/2400mm. Inspection possible by arrangement.
Offered is a CNC-controlled drilling and insertion machine. Workpiece size max.: 1350mm x 600mm x 25mm, operating pressure: 6-7bar, extraction speed: 32m/s, working height: 1000mm, control system: Ferrocontrol. Equipped with two-station machine for alternating loading, feed system for workpieces, vibratory feeder with sound-insulating hood for hinges, drilling and insertion unit, control cabinet, extraction collector. Weight: approx. 6000kg, overall dimensions X/Y/Z: approx. 6240mm/4500mm/2200mm. Inspection possible by arrangement.
cutting diameter: 300 mm saw band length: 3660 x 27 x 0.9 mm capacity 90 degrees: flat: 320 x 290 mm capacity 45 degrees: round: 290 mm capacity 45 degrees: flat: 260 x 280 mm capacity 60 degrees: round: 200 mm capacity 60 degrees: flat: 180 x 170 mm coolant capacity: ca. 100 l Control: SPS total power requirement: 2.4 kW AC weight: 904 kg range L-W-H: 2410 x 1920 x 2020 mm in good conditions Original price approx. 22.000 euros Special price on request Features: - Robust electro-hydraulic miter band saw, fully automatic (INDUSTRIAL) Fully automatic with automatic material feed Material feed unit with recirculating ball screws - Includes PLC MITSUBISHI control unit 20 programs, each with 15 cutting lengths + number of pieces programmable - For angles from 0° to 60°, with ball-bearing rotary table Mitre cuts up to 45° possible in automatic mode Mitre cuts up to 60° possible in ...
grinding diameter: 630 mm grinding length: 3000 mm centre height: 315 mm grinding wheel size: 750 x 100 x 305 mm grinding wheel width: 150 taper: MK 6 chuck diameter: 315 mm grinding head swivelling: 90 Grad grinding spindle head - swivable: 30 ° table - swivable: 4,30 - 6,30 Grad grinding spindle speed: 815 / 935 U/min spindle speeds: 8 - 57 / 28 - 150 mm grinding sp.stock-cross tvl. frwd/rear/total: 420 mm grinding head quick motion: 80 mm table speed -stepless-: 0,05 - 4,5 m/min workpiece weight: 1200 kg grinding spindle drive: 22 kW Control: Siemens 840D total power requirement: 56 kVA weight of the machine ca.: 13 t dimensions of the machine ca.: 9900×2980×1875 mm The machine is suitable for grinding cylindrical and conical workpieces using longitudinal and plunge grinding methods. The table movement, the feed movement of the grinding headstock, and the tailstock quill return are ...
3 assen: Y1 / Y2 / X Amada bombering Capacity: 100 ton x 3100 mm Backgauge: CNC Control: EMA Passage between uprights: 2600 mm Max stroke: 105 mm Max distance between table -- ram: 370 mm Depth of throat: 400 mm Table width: 90 mm Locking speed: 85 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 10 kW Length: 3640 mm Depth: 2210 mm Height: 2340 mm Weight: 6,5 ton
Control Heidenhain ... TNC 430 Clamping table surface... 800 x 400mm Axis X ... 500mm Axis Y ... 400mm Axis Z ... 400mm ISO 40 Spindle speed ... 0-4000 rpm. Max. workpiece weight ... 300kg L x W x H ... 2800x2700x1980mm Machine weight ... 2600kg Main engine power ... 5.5kW The machine is in good condition.
drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill
total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30
max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm
rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel
max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...
groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer
distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg
grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden
faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders
spindle diameter:200 mm x-travel:10000 mm y-travel:4000 mm z-axis:1500 mm W-axis (spindle longitudinal):1000 mm bore spindle turning speed range:1 - 2000 U/min dimension of the ram:600 x 530 mm high speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/min rapid motion - y-axis:8000 mm/min rapid traverse Z-axis:5 m/min total power requirement:120 kW weight of the machine ca.:135 t dimensions of the machine ca.:16,0 x 5,0 x 10,0 m with CNC Steuerung HEIDENHAIN iTNC 530 hydrostatic guideways x and Y- axis autom. toolchanger 40-pockets autom. Pickup Station for angular milling head, universal milling head and facing head rotary table 3000 x 3000 mm , max load 60 to. v-axis 2500 mm chip conveyor and coolant attachment
grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

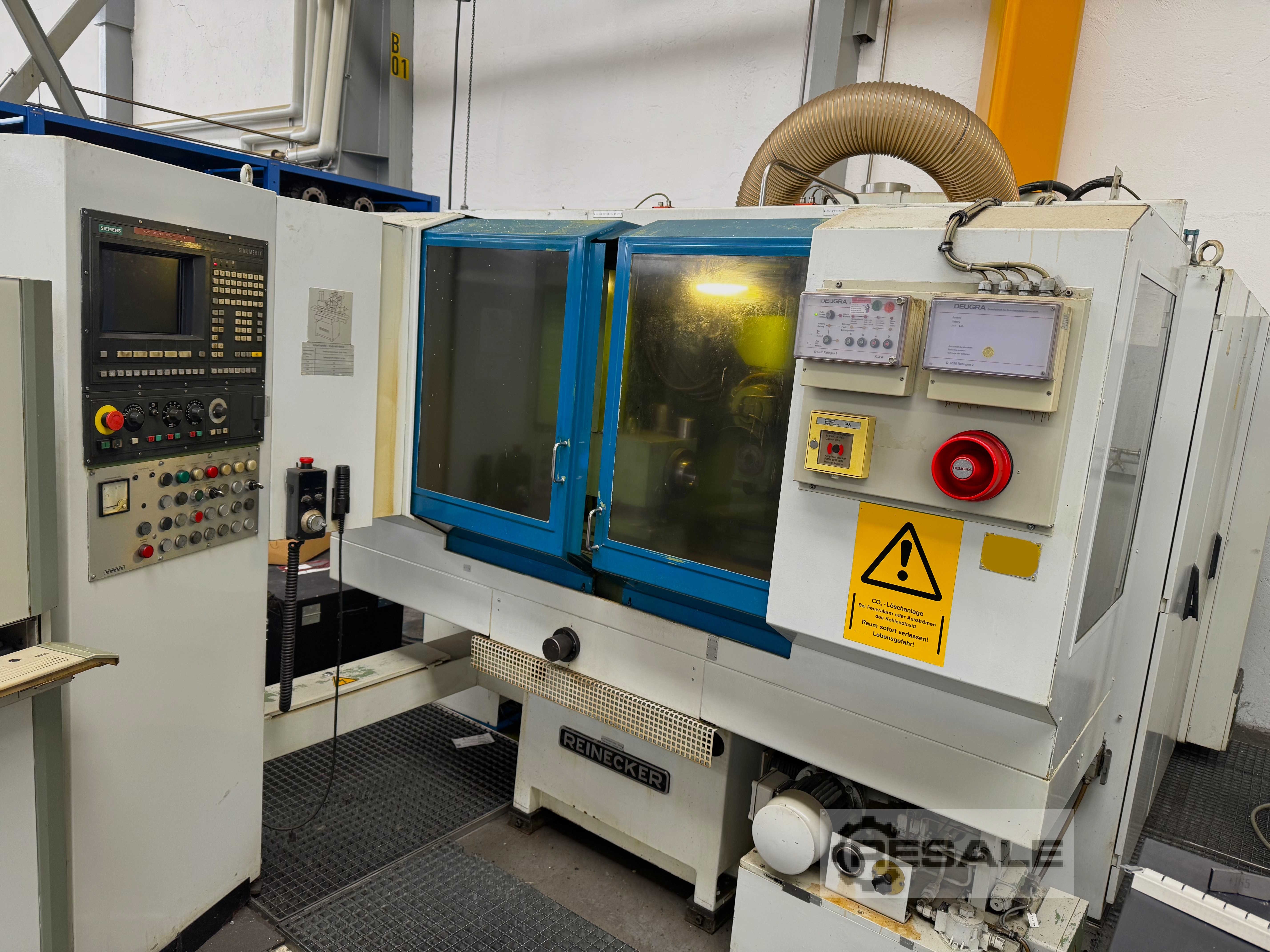

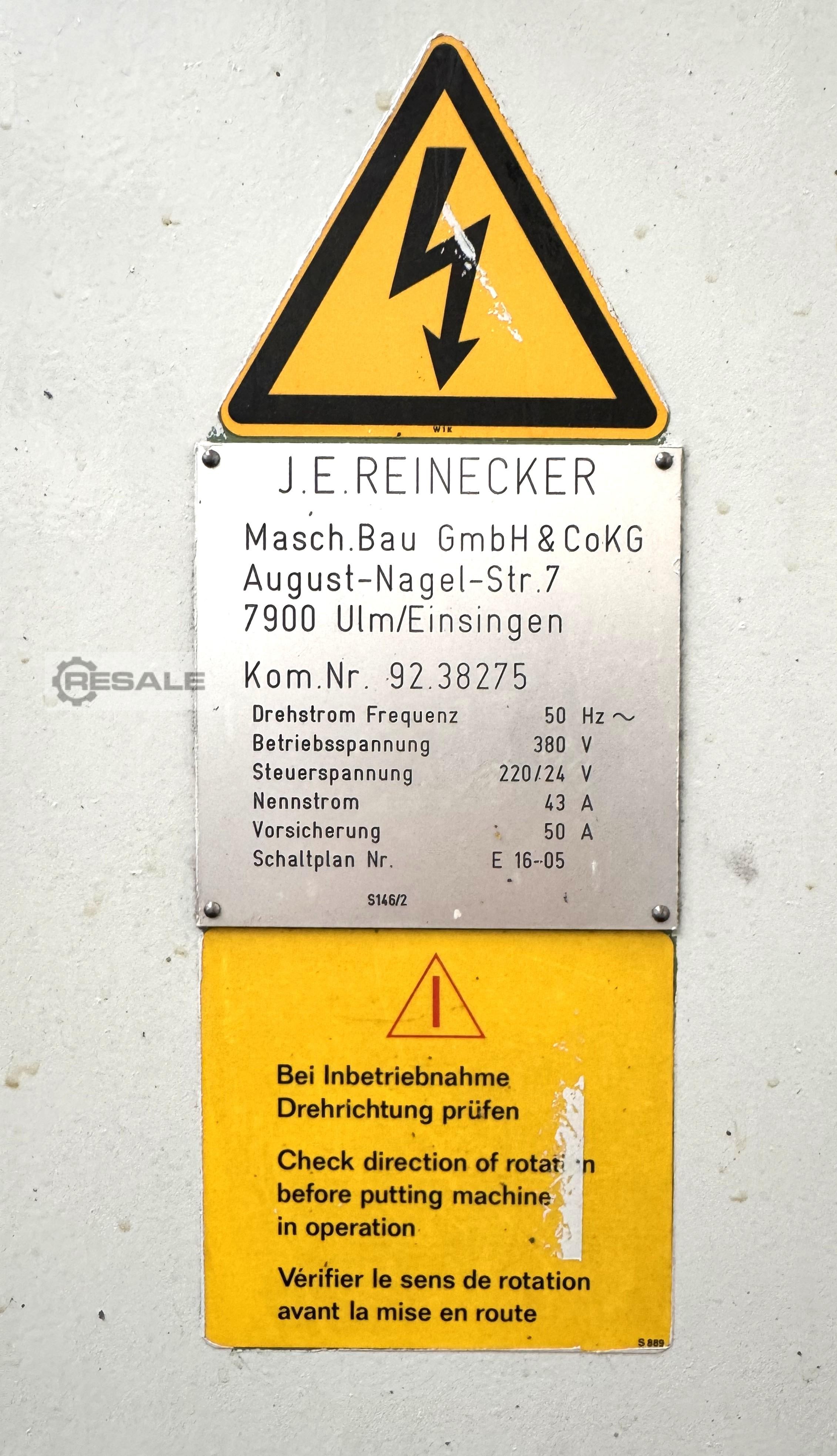

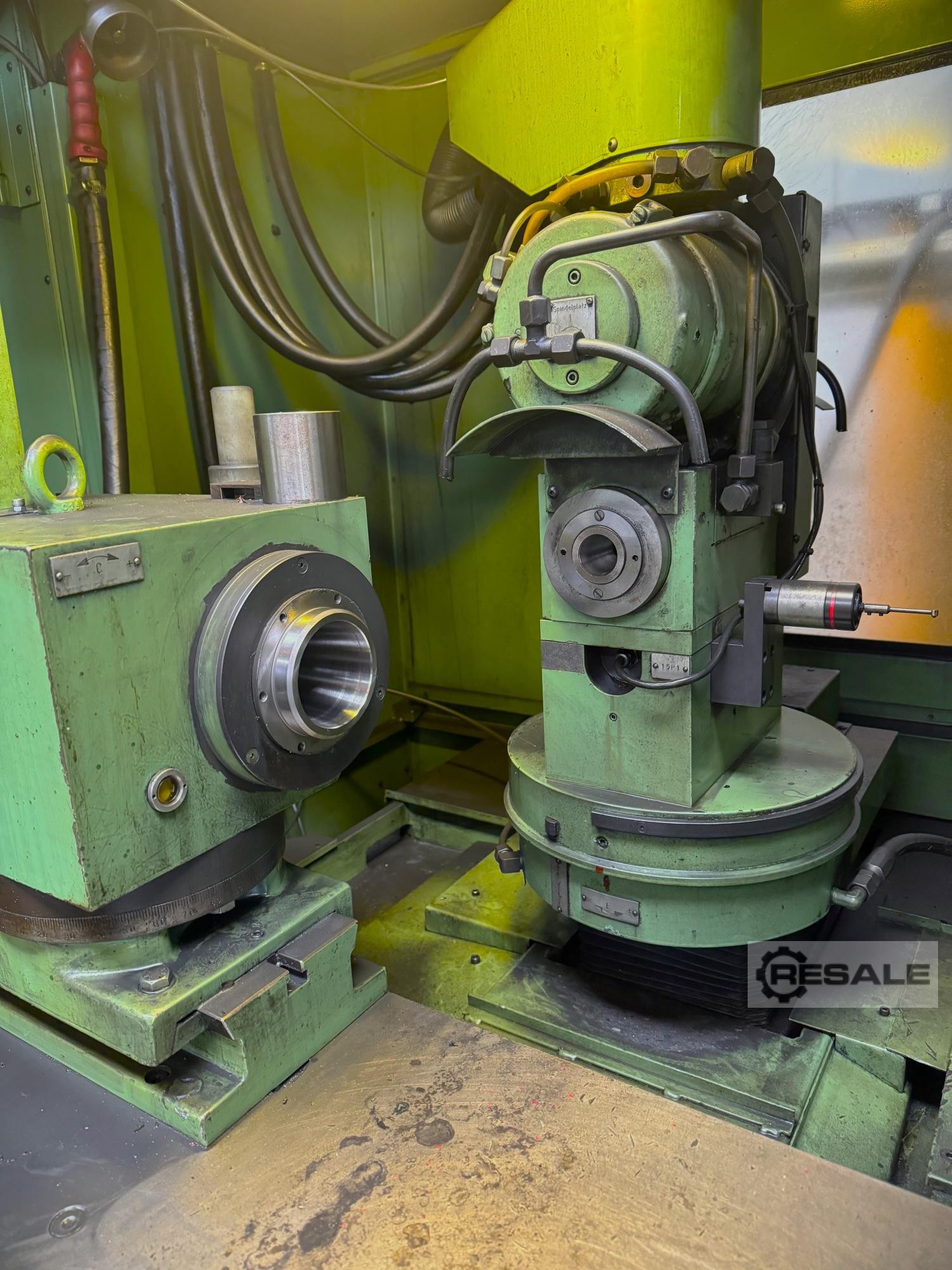

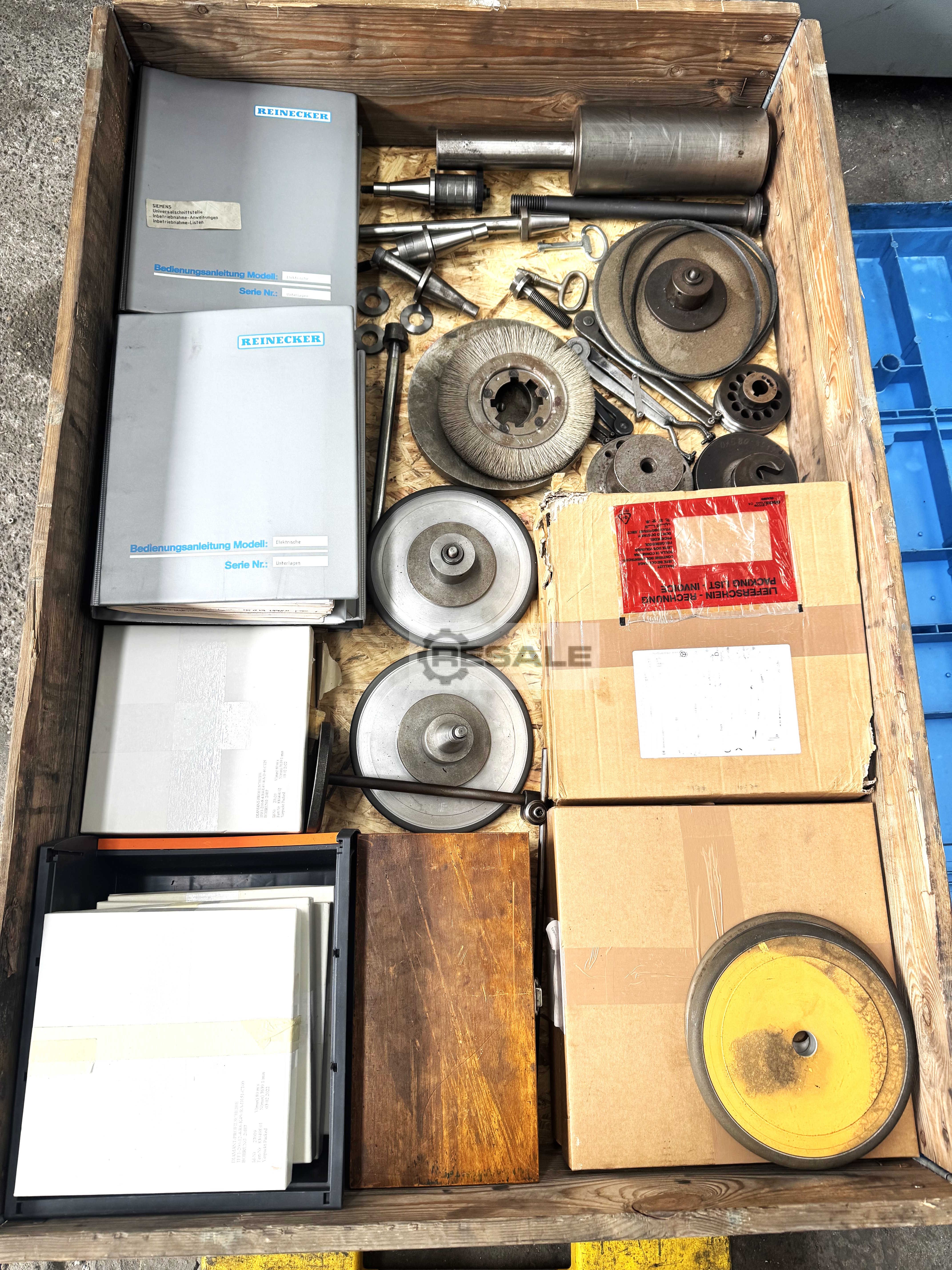

Reinecker Universal Tool Grinding Machine WZS-50 CNC Precision Grinding Machine Profile Grinding Machine Hersteller [manufacturer]: Reinecker Type [ type]: WZS-50 CNC Control unit: Siemens Sinumerik 880G Baujahr[construction year]: 10/1992 Incl. extinguishing system Incl. various accessories Travel axis: X – Y – Z – C – E Interface Type: E32R Weight [weight]: 3000kg Approx. (L x D x H): 3m x 3m x 3m Full documentation is available. Inspection under power can be done at short notice. We will be happy to answer any further questions you may have. Price, from stock here plus VAT. Condition: good - ready for demonstration Delivery: from stock - as seen Payment: purely net - upon receipt of invoice Prior sale, errors excepted. We ask for your order. Other machines and systems available from stock – please inquire. We look forward to seeing you. Phon ...
Semi-automatic bending, pipe bending machine, mandrel bending machine MOBITEC type BAH 1-2KOTTMANN and BERGER GmbHFabr. No. 056 Year of construction 09/2004- for simultaneous bending of two pipe sections made of steel up to 12 mmBending angle max. 90Pipe diameter max. 12mmMandrel length approx. 65 mmNominal power 3.5 kWDreturn air max. 6 bar / approx. 1 litre per bending cycleMains connection 400 volts, 50 Hz- Pneumatic clamping- Pneumatic mandrel retraction- Control for angle input via STOBER Controlbox Series 4000/5000- Control SIEMENS
Folding machine KRAMER type A-toll. II 1000Fabr. No. 48 287 Year of construction 1990Useful length 1060 mmmax. Sheet thickness 3.75 mmStroke of the upper beam 180 mmAdjustability of the bending beam 60 mmBack gauge 480 mmDrive power of bending beam drive 4 kWAdrive power of upper beam drive 1.5 kWNet connection 400 volts, 50 Hz- manual and semi-automatic control- angle adjustment via angle selector- one-piece pointed rail 135- back gauge with hand crank adjustment and simple measurement scale-
Bending tool, die, upper knife, upper tool, straight tool, die tool, seam closing tool -Tool: for folding machine RAS Typ 74.30 -Dimensions: see the drawing in the photos -Distance recess rail: center center 650 mm -Dimension: 3060/28/H121 mm -Weight: 65kg
Bending tool, die, lower knife, lower tool, lower jaw -Tool: for swivel bending machine -Widthen: for lower cheek -Dimensions: 59 x 19 mm -Length: 1452 mm -Weight: 10 kg
Bending tool, die, upper blade, upper tool, upper jaw, claw bar -Tool for swivel bending machine -Pointed tool -Dimensions: 45 x 120 mm -Length: 800 mm -Weight: 19 kg
Bending tool, die, lower knife, lower tool, lower jaw -Bending tool: from Lotze HDZK swivel bending machine -Widthen: for lower cheek -Dimensions: 2487 x 100 x 15 mm / 190 x 100 x 15 mm -Hole spacing: 100 x 18 mm -Transport dimensions: 2487/100/H30 mm -Total weight: 29.4 kg
Bending tool, die, upper blade, upper tool, upper jaw -Bending tool: from Lotze HDZ swivel bending machine -Length 2678 mm -Hole spacing: 100 mm / M10 -Dimensions: see drawing in the photos -Dimensions: 2678/15/H57 mm -Total weight: 15.7 kg
Bending tool, matrix, upper knife, upper tool, upper beam -Bending tool: from Lotze HDZ swivel bending machine -Length 2678 mm -Hole spacing: 100mm M10 -Dimensions: see the drawing in the photos -Dimension: 2678/6/H45 mm -Total weight: 5,6 kg
Bending tool, die, upper knife, upper tool, straight tool, upper beam -Bending tool: for folding machine -Tool angle: 45° -Dimensions: see the drawing in the photos -Dimension: 47 x 11mm -Length: 945mm -Weight: 3.5 kg
Tube bending machine - mandrel bending machine TRACTO-TECHNIK Type Transfluid DB 2060 KSerien. No. 70173 Year of construction 2004Bending capacity (steel) max. 76.1 x 3.0 mmBending capacity (stainless steel) max. 76.1 x 1.65 mmBending tool max. 70 x 2 mm (for stainless steel)Pipe slide length 4572 mm (4300mm)Bending radius max. 150 mmBending direction clockwise (right)Bending angle max. 190Bending head speed at 90 8 sec. Hydraulic operating pressure 200 barEngine power 3 KWnet connection 400 Volt, 50 Hz, 15
Hand - Swivel bending machine KRAMER type AMS 650 x 1.5Hand swivel bending machine, bending benchYear of construction approx. 1985Working length 650 mmSheet thickness at 40 kg/mm2 1.5 mmUpper beam opening approx. 60 mmBending beam adjustment approx. 0-25 mmBending angle 0-180- Upper beam adjustment via hand crank- Pilot rail for the bending brace- One-piece sharp rail 135Space requirement L x W x H 1200 x 600 x 1100 mmWeight 160 kggood condition; used
Hydr. Press brake, die bending machine HAMBURGER JONESCHEIT type HYPM 70-2600Fabr. No. 4004 Year of construction 1987Printing capacity 70 ton. Working length 2600 mmStand width 2770 mmPlunger stroke 60 mmDistance table - ram max. 390 mmTable size 2750 x 200 mmMotor power 7.5 kWWet connection 380 volts, 50 Hz.- Crimping depth via mechanical fixed stop with electric adjustment and mechanical depth indicator- Lower tool consisting of 2 segments, each 835 mm, with 2 different prisms (15 and 24 mm)- Upper tool,
Manual Pipe Bending Machine, Pipe Bending Machine, Mandrel Bending MachineHand Pipe Bending Machine, Hand Wire Bending Machine, Bending MachineManufacturer: MEWAGing Power: max. 16 mm1 piece bending tool 15 mm with 25 mm bending radius1 piece bending tool 10 mm with 16 mm bending radius1 piece bending tool 8 mm with 9 mm bending radius1 piece bending tool 6 mm with 8 mm bending radius1 piece bending tool 5 mm with 8 mm bending radius- Turning plate with degree marking- Scope of delivery as shown- Wooden box for storageDimensions L x W x H: 570 x 480 x 145
The CNC press brake SMD PBH 110-3100-4C produced in 2006 is offered in a set with the ANTIL TWISTER F5 robot. Technical parameters : - manufacturer: SMD - type: PBH 110-3100-4C - year of production: 2006 - control: CNC CYBELEC ModEva 10 - overworked time: about 20,000 man-hours - pressure force: 110 tons - bending width: 3100 mm - maximum working speed: 10 mm / s - table width: 60 mm - table height: 960 mm - stroke: 465 mm - frame spacing: 2600 mm - throat: 410 mm - power supply: electric - 11.5 KW, 400 V three phases - oil tank capacity: 250 l - dimensions of the press: 3960 × 2045 × 3650 mm - total weight: 9500 kg Processing on a 3 m table and palletizing of finished details on 3 europallets.
Max Bending Length 2250mm Machine is in excellent condition - As New LOW HOURS
• 3000w IPG with Picking • Sorting Unit LSR & Combo Storage H38 • Large Format 3000 x 1500mm • Year 2014 • Servo Electric - High Speed 30 Ton Punching Head • ONLY 535 HOURS!
2.The main structure and performance of the machine tool: This machine tool is designed and manufactured using the latest technology, ensuring its strength, rigidity, and safety. Its simple and elegant appearance and exquisite workmanship demonstrate meticulous machining and component assembly. The machine utilizes a single, high-quality welded steel structure, resulting in a thick, rigid frame. The machine surface is sprayed with imported rust-resistant primer and topcoat, ensuring it remains as good as new for a long time. The frame and upper working slide are machined using imported large-scale CNC floor-type boring and milling machines, ensuring the required positioning accuracy of all mounting surfaces. This machine tool primarily consists of a frame, upper slide, backgauge system, slide, synchronous control device, mold, hydraulic system, and control system. 2.1 Frame: This pa ...
Trumpf TRUBEND 5085 - WORKING INSIDE PRODUCTION WORKING HORS: PRESENT ON PHOTO OF SCREEN Year 2011 Compression force: 85 tonnes Table length: 2,200 mm Free travel speed: 220 mm/s Accessories: Increased lift height from 230 mm to 615 mm. 5-axis bending. Hydraulic tool clamping at the bottom. Hydraulic tool clamping at top. Automatic bombing. Bendguard guard ACB angle measurement FOR CLIENT WE ORGANIZE AS WELL DISMANTLING AND TRANSPORT
Stock number: 3768 CNC PRESS BRAKE Manufacturer: DONEWELL, Type: 100 x 3000 Machine NO.: 588 12 2348, Year of construction: 1988 Specifications: Size bending length 3100 mm Size Printing capacity 100 tons Stroke length 215 mm Stand passage 2600 mm Projection 265 mm Bending speed 420 mm/min Hydraulic. CNC control Cybelec EURO III Fabr. Controlled in Y1-Y2-X Achen Program-controlled backgauge. X - 500 mm Accessories: Segment-split upper tool 3100 mm Multi bottom tool 3100 mm Operating manuals Length: 1300 mm, Height: 2450 mm, Width: 3100 mm, Weight: 7000 kg
100 ton x 3000mm 3i Graphic control 8 Axis With tooling
Key data: 642 t
CNC Press Brake Manufacturer: SMD Yawei Type: PBB-630/6200 Year of construction: 2018 CNC control: CYBELEC ModEva 15 Pressure: 6,300 kN Working width approx. 6,200 mm DSP-Laser-TX Connected load: 400 V / 95 kVA
Inv. Num. : 1609 Type: CB90VZB SL 6000 Producer: DYNOBEND B.V. Created: 2013 Parameters: Control system: IGES Maximum tube diameter: 100 mm Maximum bending angle: 200 h Precise bending: 1/10 st Number of axles: 3 pieces Maximum bending length: 6300 mm Tube rotation: 360 pcs Strength: 70 kN Repeatability: 0.1 mm Programmable speed Compatible with systems: Windows. Novell and Linux Process Planning Software 3D bends Tools for bending pipes with a diameter of 76 and 70 mm
Inv. Num. : 3168 Type: SE 80.3 Producer: RASI Created: 2003 Parameters: Minimum tube diameter: 4 mm Maximum tube diameter: 82 x 2.6 mm Minimum bending radius: 34 mm Maximum bending radius: 228 mm Maximum bending angle: 195 h Total power requirement: 11 kW Maximum bending length: 3-6 m Maximum resistance torque: 12.7 cm³ Operating voltage: 400 V Control voltage: 24 V Feed speed: 0-60 m/min Machine height: 1200 mm Machine length: 7000 mm Machine width: 1300 mm Equipment: Bending tools
2000mm 66 ton Y1 Y2 R1 Z1 Z2 X1 X2 Excellent condition With tooling
