cnc automat lathe used for sale

CNC control MORI SEIKI MSX-501, 2 turrets with 16 tool positions each, driven tools, 2 spindles, bar passage 52 mm, max. speed 6000 rpm, max. turning diameter 190 mm, max. turning length 450 mm, Y-axis +/- 40 mm, machine weight 5,100 kg, chip conveyor

Key data: 800 mm, 600 mm, 500 1/min

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, coolant device, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY

consisting of: CNC lathe EMAG VL3 DSL, BJ. 2012, Ser. No. 103899 and CNC lathe EMAG VLY , BJ. 2012, Ser. No. 10390, each CNC control SIEMENS SINUMERIK, robot loading system with loading robot FANUC M10iA, BJ. 2012, each machine with WW ME-FI 600 filter system, Sermeto HENNIG 30 S chip extraction, EMAG cooling unit, coolant device, workpiece conveyor system and hand control panel

CNC control FANUC Series 31i MODEL B, spindle passage 20 mm, 8-axis incl. Y2 axis, main and counter spindle speed max. 8000 rpm, driven tools, machine weight 3,800 kg, with bar loading magazine FMB Minimag 20, with coolant system, filter system, extinguishing system KRAFT & BAUER and chip conveyor

CNC control FANUC Series 31i MODEL B, spindle passage 20 mm, 8-axis incl. Y2 axis, main and counter spindle speed max. 8000 rpm, driven tools, machine weight 3,800 kg, with bar loading magazine FMB Minimag 21, with coolant system, filter system, extinguishing system KRAFT & BAUER and chip conveyor

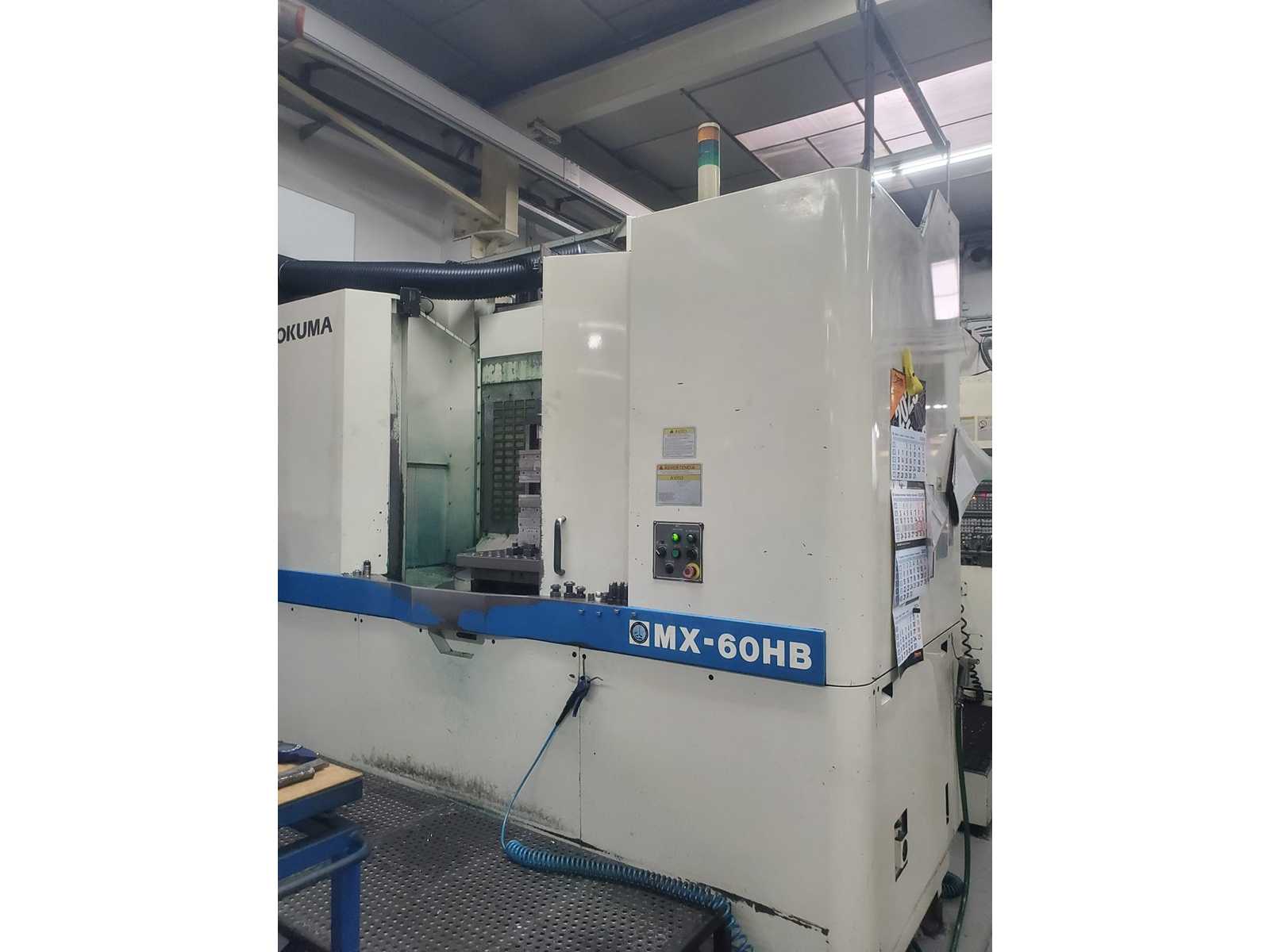

Supply voltage: 380 V Phase: 3P Frequency: 50 Hz Rated capacity: 46 kVA Full load current: 70 A Largest motor rate: 129/10 A Interrupt capacity: 15 kA Diagram No.: W6000-270/-247-6 Serial number: 0317 Made in Japan by OKUMA Corporation Maximum machining capacity: 1000 × 800 × 810 mm Maximum workpiece size: 939.37 × 810 × 810 mm X-axis travel: 1000 mm Y-axis travel: 800 mm Z-axis travel: 810 mm Spindle center to table: 200–1010 mm Spindle end to table center: 87.8–976 mm Table pallet size: 630 × 630 mm Index positions: 360 positions Maximum table load: 1200 kg Spindle speed range: 50–10000 rpm Spindle taper: NT No.50 Spindle diameter: Ø110 mm Rapid feedrate (X/Y/Z): 30000 mm/min Jog feedrate: 1–20000 mm/min 4-axis horizontal machining center Auction-ID: A7-46053-25

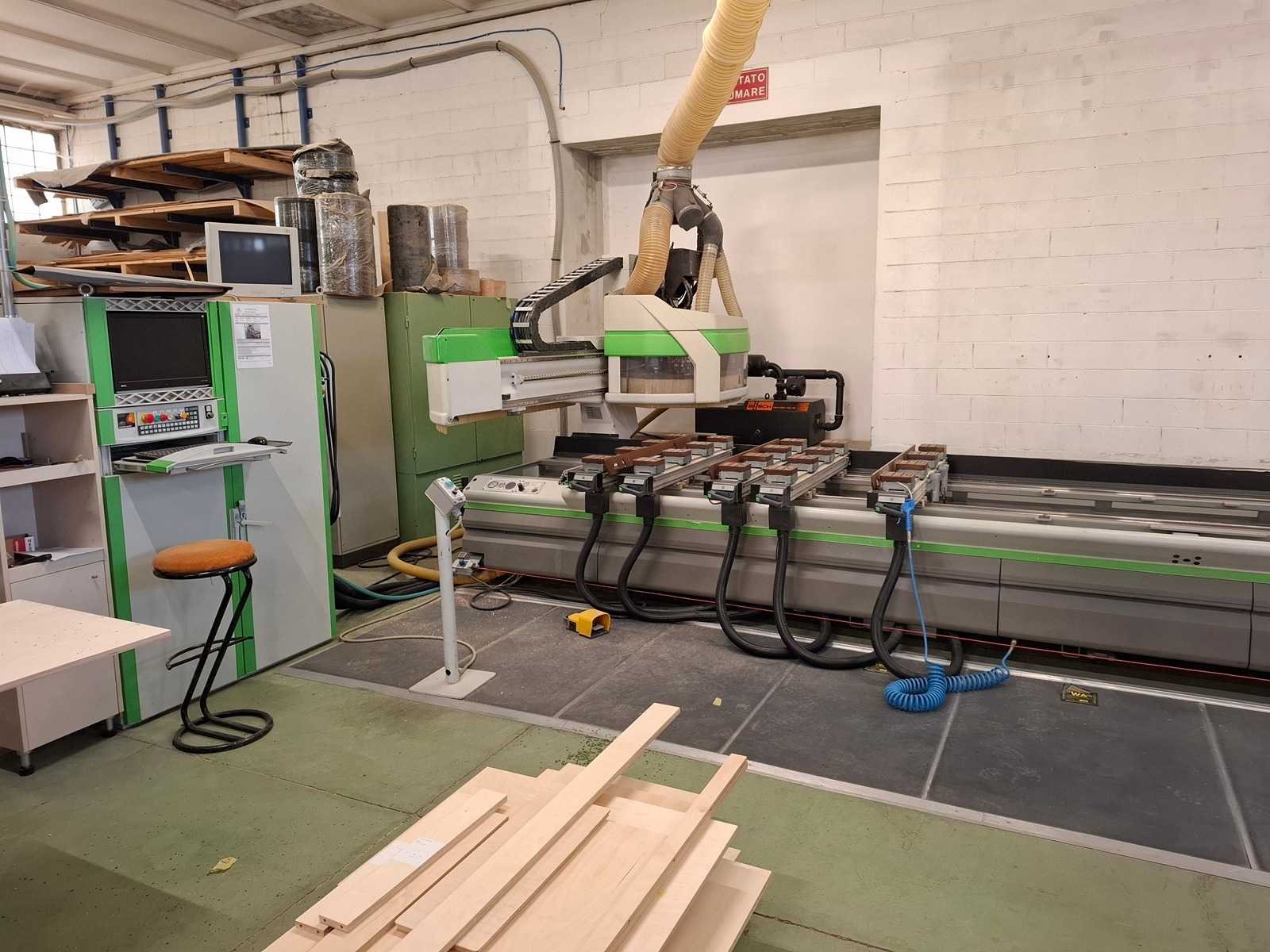

Model: Rover 24XL Serial Number: 32495 Working range X: 6170 mm Working range Y: 1380 mm Working range Z: 155 mm Main motor: 7.5 kW Max rotation speed: 24,000 rpm Tool change positions: 7 Vertical drill bits: 14 Horizontal drill bits X: 4 Horizontal drill bits Y: 2 Worktop: 10 bars, 4 trolleys per bar Suction cups: also included, in good condition, spare Plane positioning: automatic Vacuum pump: Busch MM1252 AV Chip conveyor belt Auction-ID: A7-46828-1

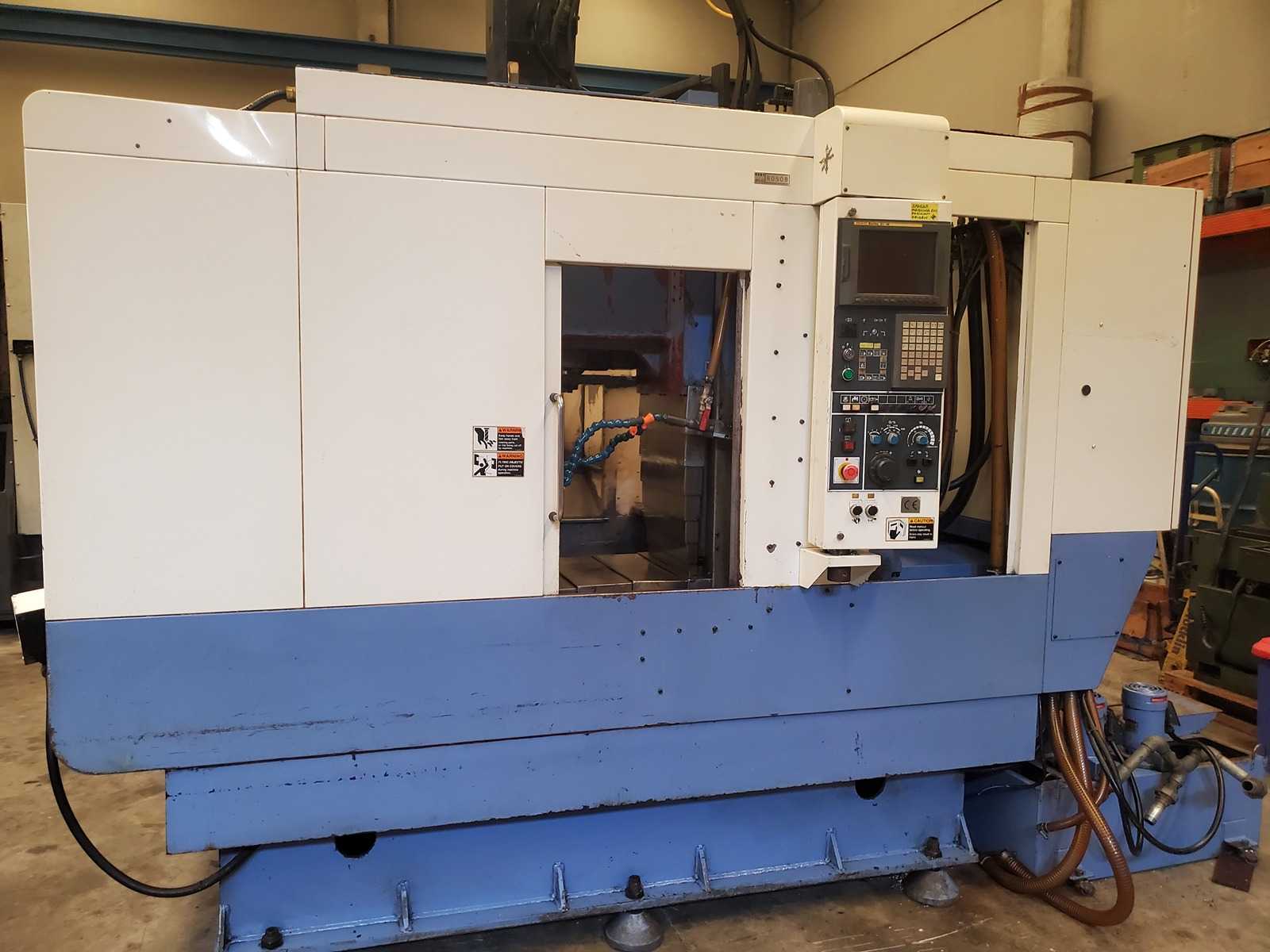

Fanuc 21i-M control, enclosed VMC Spindle taper: BT40 Spindle speed range: 72–10000 rpm Spindle motor power: 5.5/3.7 kW Pull stud bolt type: MAS-P40T-1 Number of tools: 20 Maximum tool weight: 5 kg Maximum tool diameter: 100 mm Maximum tool length: 250 mm Tool change time (T-T): 1.2 sec Tool change time (T-C): 2.8 sec Pallet change method: Turning-table method Pallet change time: 4 sec Drilling capability: Ø22 mm Tapping capability: M18 Milling capability: 20 cc/min Machine weight: 4000 kg NC device: FANUC 21i-MA Auction-ID: A7-46053-21
