cnc atc used for sale

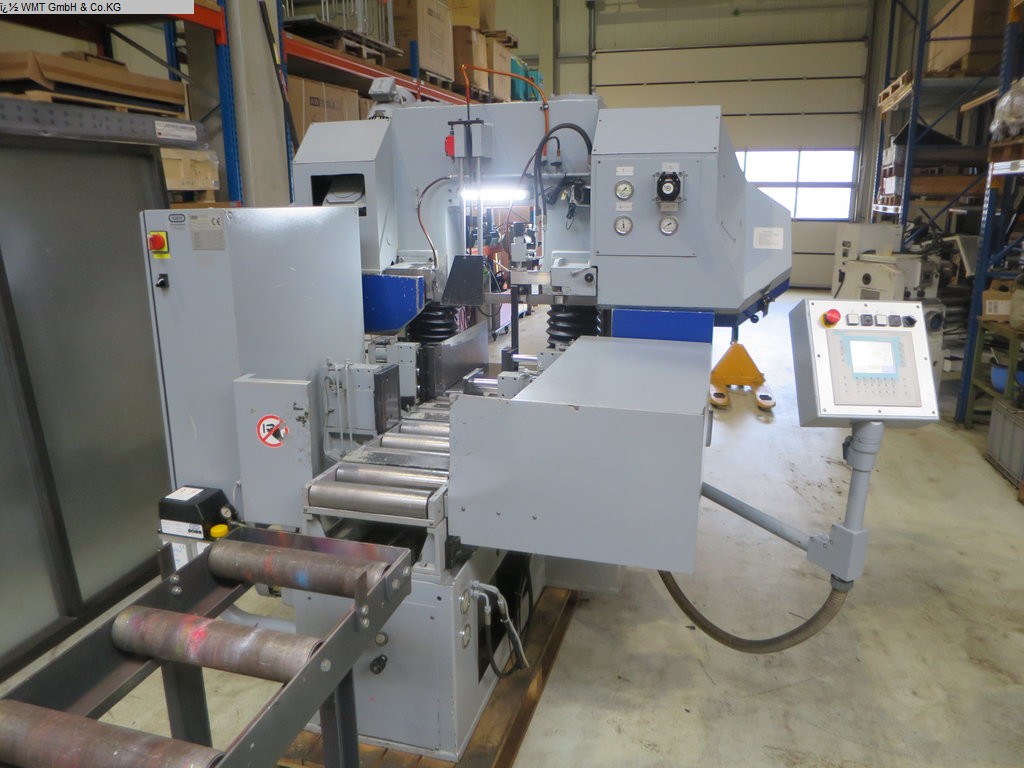

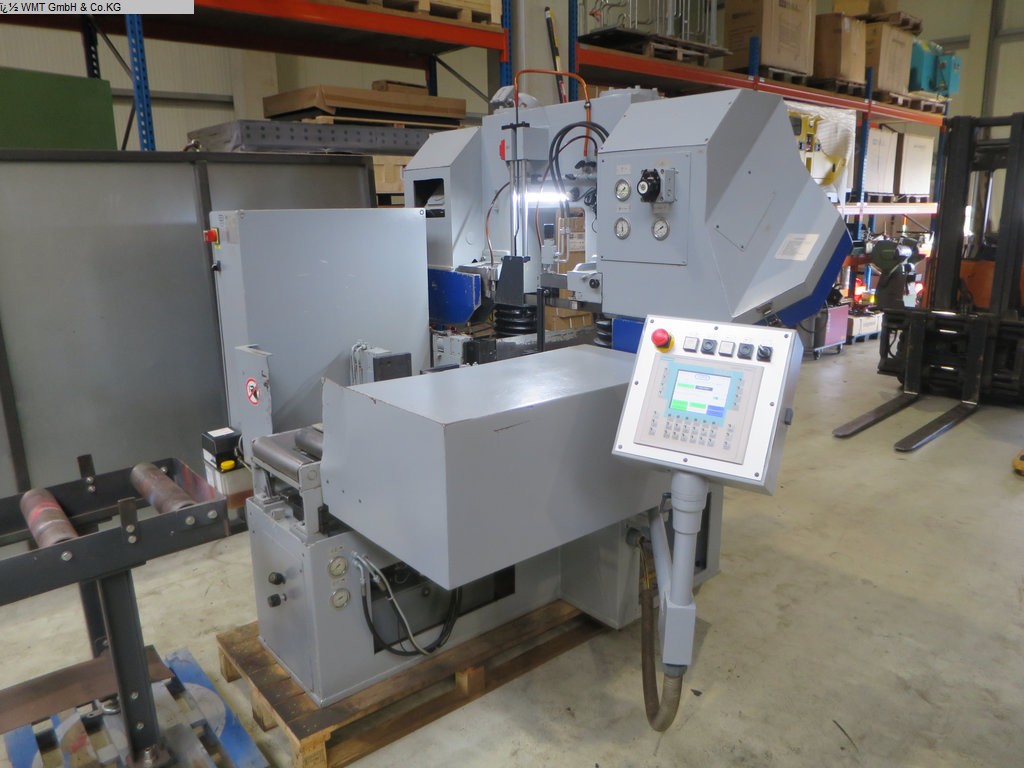

cutting diameter: Ø 255 mm capacity 90 degrees: square: 230 mm capacity 90 degrees: flat: 300 x 180 mm dimensions of saw-band: 2765 x 27 x 0,9 mm capacity 45 degrees: round: 210 mm capacity 45 degrees: square: 190 mm capacity 45 degrees: flat: 200 x 160 mm capacity 60 degrees: round: 135 mm capacity 60 degrees: square: 110 mm capacity 60 degrees: flat: 130 x 100 mm cutting speed: 18- 110 m/min power requirement: 1,5/ 1,8 kW dimensions: 1,7 x 1,95 x 1,83 m weight of the machine ca.: 0,8 t full automatic one side miter bandsaw NC- controlled - miter cut left 45° full automatic mode - miter cut left 60 half automatic mode - CNC- controll for 10 saw programms and 99 subroutine - automatic lenght movement with ballscrew - roller conveyor feed side - stepless cutting speed The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 105 mm, 1800 mm, 1250 mm

Control Heidenhain ... TNC 430 Spindle diameter ... 105mm Axis X ... 1800mm Axis Y ... 1250mm Spindle speed ... 0-3300 rpm Axis W ... 630mm Axis Z ... 1250mm ISO 50 Max. table load ... 4000kg Clamping table surface ... 1250 x 1400mm The machine is in good condition, possible to test under power.

Key data: 32 mm

Manufacturer: Spinner Type: PD-CNC IB-TMC-V3 Year of Make: 2008 Control: Siemens 840D ShopTurn Travels: X 400 mm, Z 400 mm, Q 400 mm Switch-on hours: (Information to follow) Working spindle Spindle speed: 8,000 rpm Spindle passage: 32 mm Tool/movement Tool holder: VDI 20 Tool turret: 12-speed Number of tools driven: 6 Dimensions and weight Dimensions: 2,500 mm x 1,400 mm x 1,700 mm Weight: 2,300 kg Condition Condition: Used Functional: Tested and fully functional Other equipment and accessories included: programmable tailstock Preparation for interface for bar feeders

This 3-axis STUDER S33 CNC cylindrical grinding machine was manufactured in 2005 and completely overhauled in 2026, with 0 operating hours post-overhaul. It features a center height of 175 mm and a center distance of 1000 mm. The machine is equipped with a powerful 7.5 kW motor spindle and a control system with a 10.4 color touch screen. If you are looking to get high-quality grinding capabilities, consider the STUDER S33 CNC machine we have for sale. Contact us for further details.

Gear cutting data: --> max. millable module for hobbing: 2.5 mm --> max. millable module for high-performance milling: 2.0 mm --> Number of teeth: 1 - 999 teeth Workpiece data: --> max workpiece Ø automatic loading: 60 mm --> max workpiece Ø manual loading: 100 mm --> max workpiece length automatic loading: 200 mm --> max workpiece length manual loading: 300 mm

Pehu CNC-besturing 5500 mm invoerrolband met CNC-positionering Admission in spindle (cone x): Mk4 Max drillingdepth: 180 mm Max drillingcapacity: dia 32 mm THROAT DEPTH DRILLING-SPINDLE: 550 mm Speeds: 55 > 5000 rpm Digital read-out: Pehu CNC positioning Motor power: 3 kW

CNC thread rolling machine - electronic retrofit with Siemens PLC and touchscreen Thommen PR17 CNC 2-roll Rollers rotation speed electronically managed Position and speed managed electronically Spindles diameter 54mm 2 pairs of supports (closed and open) The machine is in our warehouse in Gussago BS, under power Test run possible Mimu Machine Tools Italy, Power (Ton): 17, Number of rollers: 2, CNC: Yes

4 assen: Y1 / Y2 / X / V Capacity: 200 ton x 3650 mm Backgauge: CNC Control: Delem Passage between uprights: 3100 mm Electric motor (power): 17 kW Weight: 16,5 ton Capacity: 200 ton Bending length: 3650 mm

Darley GS 4100 x 16 mm CNC Cutting length: 4100 mm Max sheet thickness st 45: 16 mm Depth of throat: 100 mm Strokes/min: 6 > 9 str/min Backgauge: CNC Adjustable cuttingedge: 2° Electric motor (power): 33 kW Length: 4500 mm Depth: 2350 mm Height: 2200 mm Weight: 18,5 ton

axis stroke (X,Y,Z): 6175x1550x300 mm Number of spindle head vertical: 20 St. Number of spindles head horizontal: 10 St. Number of milling agregates: 1 St. Speed: 24.000 U/min. Capacity: 300 kg/h Sawing unit: ja_yes 0 Control: Homag PC85 CNC powerTouch HOMAG BMG 511 /60/12/F/K Profi ----------------------------------- Machine already professionally dismantled and stored at our warehouse in Oberkochen: - 5-axis CNC processing center - Moving gantry machine (dual-drive gantry system) - 1 HOMAG DRIVE 5 C+ routing spindle, 5-axis, HSK-F63, 15 kW, max. 24,000 rpm - 1 HOMAG Multi Processing Unit Drilling head with 30 spindles: V20 / H10 / S360° MPU MultiProcessingUnit with C-axis +/- 185° - 1 Chain tool changer, 30-position - Includes SL laser projector - Includes vacuum suction cups (as available) - Spare parts and accessories as shown in photos - Last HOMAG 5-axis service: 2024 - Last HOMA ...

Number of spindles: 6 St. Working width: 230 mm Working height: 120 mm Length of the planing table: 2500 mm Feed motor: 4 kW Feed speed: 5-30 m/min. control: Memory-Funktion Weinig Powermat 400 with HSK/Powerlock, axial/radial CNC controlled ---------------------------------------------------------------------- - The machine renovated and functionally checked ! Short summary: ---------------------------------------------------------------------- - 6 spindles with 8,000 rpm 5 x HSK/Powerlock Axial and radial CNC adjustment of the spindles via control CNC - controlled adjustment and positioning of the feed Detailed description: ---------------------------------------------------------------------- - Technical specifications: Working width: 20-230 mm Working height: 8-120 mm Number of spindles: 6 1. Tool holder - below ------------------------------------------------ Motor with brake: 5.5  ...

3 assen: Y1 / Y2 / X Capacity: 160 ton x 3100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 2550 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 300 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 10 mm/sec Returning speed: 79 mm/sec Electric motor (power): 14 kW Length: 3500 mm Depth: 2350 mm Height: 2850 mm Weight: 9 ton

Opklapbare achteraanslag Cutting length: 3100 mm Max sheet thickness st 45: 12 mm Strokes/min: 7 > 17 str/min Backgauge: CNC SP8 - 1000 mm Adjustable cuttingedge: 0,5 > 3° Electric motor (power): 22 kW Length: 4050 mm Depth: 1900 mm Height: 2200 mm Weight: 10 ton

Hermle C800U X: 800 - Y: 600 - Z:500 mm CNC X-axis: 800 mm Y-axis: 600 mm Z-axis: 500 mm Table dimensions: 800 x 700 mm Admission in spindle (ISO): SK40 Power on the spindle: 23 kW Control : Heidenhain iTNC 530 Number of axes: 5 axis Toolchanger: yes Number of toolholders: 30 tools Number of rotations: 10 0000 rpm Power principal motor : 31 kVa Weight: 9 ton

Hermle C30U X: 650 - Y: 600 - Z: 500 mm CNC X-axis: 650 mm Y-axis: 600 mm Z-axis: 500 mm Table dimensions: Ø 630 mm Admission in spindle (ISO): SK40 Power on the spindle: 26 kW Control : Heidenhain iTNC 530 Number of axes: 5 axis Toolchanger: yes Number of rotations: 18 000 rpm Length: 3500 mm Depth: 2480 mm Height: 2950 mm Weight: 9,5 ton ACCESSORIES: yes

Type: UMC-750 5-assige verticale bewerking X-axis: 762 mm Y-axis: 508 mm Z-axis: 508 mm Table dimensions: Ø 630 mm Admission in spindle (ISO): BT40 Power on the spindle: 22,4 kW Control : Haas Number of axes: 5 axis Toolchanger: yes Number of toolholders: 40 positions Number of rotations: 8100 rpm (122 Nm) Weight: 6 ton

Type: EC-1600ZT voor het bewerken van grote onderdelen met geïntegreerde draaitafel met 4e as Tafeldiameter: 760 mm X-axes: 1626 mm Y-axes: 1270 mm Z-axes: 1016 mm Table dimensions: 1626 x 914 mm Max weight on the table: 4536 kg Admission in spindle (ISO): BT50 Power on the spindle: 22,4 kW Control: Haas Toolstore: yes Tools: 50 positions Frequency : 7500 rpm (460Nm) Length: 3378 mm Depth: 4928 mm Height: 4674 mm Weight: 14 ton ACCESSORIES: yes

Type: EC-1600ZT voor het bewerken van grote onderdelen met geïntegreerde draaitafel met 4e as Tafeldiameter: 760 mm X-axes: 1626 mm Y-axes: 1270 mm Z-axes: 1016 mm Table dimensions: 1626 x 914 mm Max weight on the table: 4536 kg Admission in spindle (ISO): BT50 Power on the spindle: 22,4 kW Control: Haas Toolstore: yes Tools: 50 positions Frequency : 7500 rpm (460Nm) Length: 3378 mm Depth: 4928 mm Height: 4674 mm Weight: 14 ton ACCESSORIES: yes

LVD PPEB 320 ton x 6100 mm CNC Capacity: 320 ton x 6100 mm Backgauge: CNC Control: Cadman B Touch Passage between uprights: 5050 mm Max stroke: 300 mm Max distance between table -- ram: 570 mm Depth of throat: 400 mm Table width: 200 mm Locking speed: 120 mm/sec Working speed: 14 mm/sec Returning speed: 130 mm/sec Electric motor (power): 42 kW Length: 8000 mm Depth: 3200 mm Height: 3775 mm Weight: 36 ton Capacity: 320 ton Bending length: 6100 mm

pressure: 56.0 t chamfer lenght: 1400 mm distance between columns: 1300 mm throat: 220 mm stroke: 200 mm dayligth: 485 mm work speed: 8.0 - 10.0 m/min return speed: 35.0 mm/sec Control: CNC Boschert back stop - adjustable: 0 - 370 mm work height max.: 915 mm Cylinders :: 2 Stück voltage: 3x 400 V connected load: 8.0 kVA weight: 3700 kg very good / well-maintained condition () with lots of bending tools - in checked conditions - machine video - https://www.youtube.com/watch?v=NrpZs6Ar0Vo Equipment: - NC electro-hydraulic press brake - BOSCHERT NC control unit, front - NC electro-motorized back stop (X axis) with 2x manually adjustable stop fingers (R+Z axis) - AMADA PROMECAM (SYSTEM A) upper tool holder - AMADA PROMECAM (SYSTEM A) lower tool holder - Handwheel with analog display for adjusting the bending angle - lots of insert tools, including tool cabinet - 1x working cylinder = dou ...

Manufacturer: FERMAT Model: VMF 1000 CNC Year: 2008 Condition: Used Stock number: 9494 Control System: FANUC Series Oi-MC Switch-on hours: 25998 h Work table length: 1300 mm Work table width: 600 mm Spindle drive power: 15 kW Speed: 10000 1/min X-axis travel: 1006 mm Y-axis travel: 598 mm Z-axis travel: 600 mm Machine weight: 5000 kg

dimensions of the machine ca.: 6,2 x 3,4 x 2,6 m weight of the machine ca.: 9,6 t power requirement: 22 kW Control: FAGOR 8055i table-size: 1800x500 mm long. travel of table: 1660 mm table weight: 1700 Kg cross travel: 600 mm number of spindle speeds: 1500 U/min/rpm spindle drive: 12 kW -Usable grinding area 1,500 x 680 mm -Max. distance table – grinding wheel center 625 mm -Infinitely variable table speed 2–28 m/min -Cross-feed speed 0.02 – 5 m/min -Vertical feed speed 0.02 – 2 m/min -Infinitely variable table speed control Included -Max. grinding width (with 80 mm wheel) 680 mm -Smallest programmable CNC increment 0.001 mm -Grinding wheel dimensions Ø 400 x 80 x 127 mm -FAGOR servo motors and drives for 3 axes (X, Y, Z) Included -Electromagnetic chuck (high density) Included -Electromagnetic chuck dimensions 1,500 x 600 mm -Coolant filtration system with paper filt ...

- Max afstand tussen de punten: 7100 mm - Max bewerkingslengte: 6600 mm - Max werkstukgewicht tussen de punten: 18 ton - 2x 2 brillen worden meegeleverd met de machine - Max conische slijphoek: 10° - Max concaaf/convex slijpen: max 12,7 mm van de diameter - 1 bed met slijpkop (in twee delen over de lengte) en 1 werkstukbed met aandrijfkop en tegenpunt. - 1 filtereenheid - 1 elektrische kast Center distance: 7100 mm Max dia of the workpiece: 1100 mm Control: Num 1060 Motorpower: 90 kW Weight: 126 ton

LVD-gereedschap 4 assen: Y1 / Y2 / X / R 2 beweegbare plaatsteunen Capacity: 80 ton x 2100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 1550 mm Max stroke: 200 mm Max distance between table -- ram: 400 mm Depth of throat: 400 mm Table width: 120 mm Locking speed: 130 mm/sec Working speed: 10 mm/sec Returning speed: 113 mm/sec Electric motor (power): 12,5 kW Weight: 6 ton Capacity: 80 ton Bending length: 2100 mm

dist. between centers: 6.000 mm greates pass round over bed: 1.200 mm swing diameter over slide transversal: 1.000 mm rapid traverse feeds: X/Z 10.000 mm/min guideways: 4 St. cross travel: 530 mm centre height: 600 mm control: FAGOR 8055 TC : main spindle speeds:: 20-1.600 U/min main drive motor: 42 kW spindle passage: 150 mm transmission ratio: 2 Turret: DUPLOMATIC Revolver station: 8 tools dimension: VDI-50 tail stock: tailstock quill diameter: 180 mm total power requirement: 61 kW weight of the machine ca.: 20 t dimensions of the machine ca.: 11.210 x 3.700 mm Equipment C-axis + live tooling Ø 800 mm 4-jaw independent chuck 3-point steady rest, Ø 50 -500 mm 3-point steady rest, Ø 50 - 520 mm 3-point steady rest, Ø 480- 930 mm MORARI hydraulic self-centering steady rest, capacity 50 - 315 mm MORARI hydraulic self-centering steady rest, capacity 280 - 540 mm Motorized tailstock V- ...

Spindle diameter: 110 mm Travel: X: 1985 mm Y: 1620 mm Z: 1260 mm W: 710 mm Table surface: 1400 x 1600 mm Spindle taper: ISO 50 Control system: HEIDENHAIN TNC 426 Maximum table load: 6300 kg Feed rate: 5 m/min Working feed rate: 5 to 2500 mm/min Spindle speed: 6 to 1250 rpm Motor power: 33 kW Total power: 90 kW Table rotation: 360° Weight: 25400 kg

turning diameter: 2500 mm swing diameter over bed slide: 1400 mm turning length: 6000 mm Distance between centres: 5740 mm centre height: 1250 mm faceplate turning speed range: 4 - 400 U/min rapid traverse:: 200 mm/min faceplate: 2000 mm spindle bore: 200 mm face feeds: 700 mm upper slide-adjustment: 350 mm tailstock quill diameter: 320 mm max. workpiece weight between centres: 40 t Control: Siemens Sinumerik 8 T drive motor: 95,5 kW total power requirement: 125 kW weight of the machine ca.: 43 t dimensions of the machine ca.: 11,5 x 3,5 x 3,5 m Heavy duty high precision horizontal lathe with: - CNC Control Siemens Sinumerik 8T (CNC 6 axes) - 3-way Bed - hydraulic clamping system Rohm - Machine modified with 2000 mm face clamping plate - slide with two working positions - Sauter 4 side tool holder - circular turning unit - tailstock - chip conveyor - Rexroth Hydraulic suitable for both,  ...

grinding length: 5200 mm grinding width: 1000 mm workpiece height: 320 mm Control: Siemens 840D Passage width: 1300 mm grinding height: 320 mm grinding motor: 306 kW grinding motor turning speeds up to: 320 U/min grinding motor feed, infinitely variable: 0,5-35 m/min grinding motor adjustment in steps: 0,002-1 mm grinding motor adjustment, continuously stepless: bis/upto 5 mm/min dimensions of the machine ca.: 11,21 x 3,2 x 3,85 m CNC production surface grinding machine with segment head Equipment / Accessories: - with segment head, diameter 1400 mm segment head dimensions: 120/106 x 41 x 250 mm number of segments: 1 set = 26 pieces - with electro-magnetic table 5200 x 1300 mm - Marposs measuring control travel (Z1 axis), vertical: 420 mm - coolant flow rate 2000 l/min lifting station 2x pump for 1000 l/min The data for this ad was created with ModulMWS - the software solution of L ...

Martin T26 tilting table spindle moulder with CNC 4-ax control Manufacturer: Martin Type: T26 CNC Year: 2002 Control: 4-ax CNC Control Control panel: eye-level Remark: Special paint Martin 75 Years Ral 7035& 6004 Motor: 7.5/9.5 kW – twin-speed motor Tilting: -45 tot + 45° Spindel diam.: ø40 mm spindel SK40 – Dornfix-quick change Spindel elevation: Electric spindel elevation 150mm (2 speed) Spindel elevation Electric-pneumatic spindel lock (Tool changing) Central greasing Rotation speed: Twin-speed 3000-6000 rpm or 4.500-9000 rpm, electronic display, electric -automatic brake Spindel pick-up: Dornfix-quick change spindel Table: Table extension, infeed and outfeed 2405mm long, frontside support 3000mm long, frontside extension 700mm Control panel: 1. CNC-controlled spindel elevation, with automatic dept and height control when spindle is tilted 2. CNC-controlled spindel tilting, with ...

CNC Machining Center Kunzmann WF 600 CNC Control: Heidenhain TNC 640 Year of Make: 2015 Internal machine number: 76 Travels: X-axis 600 mm Y-axis 400 mm Z-Axis 400 mm Z-Axis 400 mm Mount: SK 40 DIN69871 Speed: 1 - 5,000 rpm

HAUSER S 50 CNC 311 ist eine CNC Koordinatenschleifmaschine, die Präzision, hohe Genauigkeit und Zuverlässigkeit für anspruchsvolle Schleifaufgaben bietet. Ausführung 2-Ständer, Tisch 1020×860 mm, Längsweg X 900 mm, Querweg Y 600 mm, Weg Vertikalschlitten 635 mm, Durchlass Spindel-Tisch 750 mm, Durchlass zwischen Ständern 950 mm; größter Schleifdurchmesser 230 mm (360 mm mit Auslegerplatte); Konusschleifen bis 16°. Technische Daten: Z-Hub 0–170 mm stufenlos, Hubgeschwindigkeit Z 1–12000 mm/min, Hubfrequenz 6 Hz, radiale Feinzustellung U max 6 mm, Planetenbewegung C 5–300 t/min, Schleifspindel 4500–80000 t/min (Luftturbine 160000 t/min); Anschluss 3×400 V 50 Hz, Gesamtleistung 9 kVA; Gewicht ~6300 kg; Abmessungen 3000×2500×2870 mm. Ausstattung: retrofizierte Steuerung, Satz Schleifstifte/Maschinenschraubstock, Schleifmotoren 45 S/45 ST, C-Achse; Maschine revidiert 20 ...

• Incl. left roller conveyor • Roller conveyor width: 240 mm

drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill

total power requirement:413 kW Induction hardening machine Rotary table Eldec: Z (servo drive 750 mm Y (electromechanical) 300 mm X (electromechanical) 200 mm Maximum part diameter 600 mm Maximum workpiece weight 500 kg High frequency generator type HFG 200 Medium frequency generator type MFG 30

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

cutting diameter: 360 mm saw band length: 4870 x 41 x 1,3 mm cutting width: 360 mm cutting speed: 11 - 110 m/min : 4,0 kW height of the workpiece: 800 mm weight of the machine ca.: 2,1 t dimensions of the machine ca.: 2,3 x 1,9 x 2,2 m Automatic hydraulic band saw with - SIMATIC OP17 NC control - Single material feed 600 mm - Max. programmable length 6000 mm - Hydraulic saw blade tensioning (36–40 bar) - Motorized chip conveyor - Emergency stop device - infeed roller conveyor 4m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Broadband Vacuum Gauge VACOM ATMION ATC25KLE Dimensions: 185 x 105 x 75 mm

Control: SIEMENS 840D Max.turning length: 450 mm Max swing diametr over bed/Slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l M

Control: Heidenhain Max.turning length: 450 mm Max swing diameter over bed/slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l Ma

OPTIMUM - OPTImill F 105 CNC Offer details Stock number 1039-8705 Machine Type Machining Center - Vertical Manufacturer: OPTIMUM Type OPTImill F 105 CNC Year of construction 2019 Control Sinumerik 808D adv. Siemens Additional Information CNC Machining Center Vertical OPTIMUM - OPTImill F 105 CNC - DEMONSTRATION MACHINE Technical details x-travel 550 mm y-travel 305 mm z-travel 460 mm Control Sinumerik 808D adv. Siemens Main spindle: Speed range - main spindle 10 - 10,000 rpm Drive power - main spindle 11 / 7.5 kW Max. torque 70 / 48 Nm Tool holder BT 40 Work table: Table clamping area 800 x 320 mm max. table load 300 kg T-slots 3x 14 x 100 mm Distance spindle / table 100 - 600 mm Tool Changer: Number of tool positions 12 pos. Tool holder BT 40 max. tool diameter 70 mm max. tool weight 6.0 kg Tool-tool changeover time 7.0 sec Feeds: Rapid traverse  ...

- Total installed power 40.40 KW. - Maximum turning length approx. 2400 mm. - Bar pitch diameter approx. 98 mm. - Turret: 12 positions, the tools that appear in the photographs are included. - 3-jaw plate with a diameter of 500 mm. - SIEMENS SINUMERIK control. - Equipped with automatic hydraulic window. - Chip extractor. - Accessories and cutting tools are included. - This machine does NOT have manuals. - Operating conditions of this machine: unchecked. Auction-ID: A7-48839-4

4 GUIDEWAYS LIVE TOOLS C AXIS CNC Siemens Sinumerik Center height mm 450 Max. swing diameter mm 800 Max. turning diameter mm 600 Center distance mm 8.290 TRAVELS X-axis travel mm Z-axis travel mm 8,400 Y-axis travel mm +/-15 mm SPINDLE Spindle nose mount ASA 11'' 4-jaw independent chuck diameter mm 700 Bar passage mm TURRET 12 positions Model Baruffaldi VDI 60 Live tools 6 positions MOTORIZED TAILSTOCK Quill diameter mm DIMENSIONS: Overall size mm 12.740x3.080xH 1.725 Weight COMPLETE WITH: Heidenhain optical scale Z axis n.1 steady rest diameter mm 320 n.1 steady rest diameter mm 600 n.1 steady rest diameter mm 740 Chip conveyor Auction-ID: A1-48745-13
