cnc 4 used for sale

x-travel: 650 mm y-travel: 450 mm workpiece height: 585 mm Control: ADCOS CNC 400 total power requirement: 15 kW weight of the machine ca.: 5000 kg dimensions of the machine ca.: m H A U S E R (Switzerland) CNC Controlled Hi Precision Double Column Jig Grinder Model S 40 – CNC 311 / ADCOS 400 CNC Year 1981 / CNC modernized in 2008 # 0126 _____________________________________________________________________ Table size approx. 630 x 770 mm Table load capacity approx. 500 kg Table travel longitudinal max. (X) 650 mm Grinding head slide cross max. (Y) 450 mm Vertical adjustment of cross rail max. (W) 500 mm Grinding spindle stroke max. (Z) 140 mm Stroke number of grinding head (4cycles) 0,5-12 m/min. Vertical distance between Table/grinding spindle 0-585 mm Dista ...

saw blade diameter: 130 mm capacity 90 degrees: round: 130 mm capacity 90 degrees: square: 120 mm capacity 90 degrees: flat: 180 x 100 mm capacity 45 degrees: round: 115 mm capacity 45 degrees: square: 100 mm capacity 45 degrees: flat: 120 x 100 mm engine: 3,3 / 4,4 KW 0: 1400 / 2800 U/min weight of the machine ca.: 1060 kg dimensions: 2,5 x 1,8 x 1,85 m TIGER 402 CNC HR, automatische elektromechanische Vertikalkreissäge für den Einsatz von Hartmetall – Sägeblättern, um Serienschnitte von 45° rechts bis 60° links auszuführen. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

capacity 90 degrees: round: 310 mm capacity 90 degrees: square: 280 mm : 400x250 saw band length: 4020x34x1,1 mm band speed: 18 - 100 m/min table height: 890 mm total power requirement: 2,2 kW weight of the machine ca.: 0,99 t dimensions of the machine ca.: 1,85 x 2,2 x 2,0 m Miter band saw, fully automatic, GBS 310/400 VA-I CNC • miter left 45° automatic operation • miter left 60° semi-automatic operation (cuts without programming) • Material height sensor (automatic cut start detection) • Frame and gear made from one piece, very quiet cut and very low vibration • Removable chip tray (disinfection) • Shockproof and ergonomic control panel with oil-resistant EPDM cover • Top access to the saw, material and feed unit • Hinged safety cover • Fine feed adjustment • Semi-auto. Cut! • Optimize work processes with CNC control Possibility to enter various parameters suc ...

- 10-STATION HORIZONTAL AXIS ROTARY TABLE, - bar max. Ø 60 mm;, - workpiece length max. 220 mm., - barr length max. 6.000 mm

Mazak VTC-41 L X: 1660 - Y: 410 - Z: 510 mm CNC X-axis: 1660 mm Y-axis: 410 mm Z-axis: 510 mm Table dimensions: 2000 x 410 mm Max weight on the table: 800 kg Depth of throat (uprights-spindlecenter): 460 mm Admission in spindle (ISO): ISO 40 Power on the spindle: 11/7,5/5,5 kW Drilling-capacity: max dia 25 mm Tapping-capacity: max M24 Control : Mazatrol Number of axes: 3 axes Toolchanger: yes Number of rotations: 7000 rpm Length: 3900 mm Depth: 3050 mm Height: 2700 mm Weight: 6 ton

LVD PPCB 150 ton x 4100 mm CNC Capacity: 150 ton x 4100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 3150 mm Max stroke: 150 mm Max distance between table -- ram: 350 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 90 mm/sec Working speed: 7,3 mm/sec Returning speed: 56 mm/sec Electric motor (power): 7,5 kW

spindle diameter: 225 mm x-travel: 8000 mm y-travel: 5600 mm z-travel: 2100 mm w-axis: 1400 mm spindle turning speed - stepless: 0-650 U/min spindle taper ISO: 60 feed stepless: 5 - 3000 mm/min rapid traverse: 5 m/min weight of the machine ca.: 150 t dimensions of the machine ca.: 12 x 5 x 8 m total power requirement: 120 kW Ram type horizontal boring machine was reconditioned and modernized in 2006, original yom was 1972. Control Siemens 840 C. Machine will come with tools and a vertical milling head. The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production li ...

CONTROLS   CNC controls SIEMENS 840 C WORKING RANGE (DOUBLE DISC GRINDER)   Grinding wheel diameter: 457 mm   grinding width max. - throughfeed grinding: 80 mm   material thickness max. - throughfeed grindin: 20 mm   grinding width max. - plunge cut grinding: 205 mm   material thickness - plunge cut grinding: 80 mm GRINDING SPINDLE 1   drive power: 23 kW GRINDING SPINDLE 2   drive power: 23 kW COMPONENT-FEEDER   Feeder Design: rotary Feeder   feeder velocity max.: 240 mm/min   feeder velocity min.: 20 mm/min Scope of delivery: - Machine - emulsion tank new in 2012 Measuring control IONIC 17A

Haco PPH 135 ton x 4100 mm CNC Capacity: 135 ton x 4100 mm Backgauge: CNC Control: Delem DA-41T Passage between uprights: 3600 mm Max stroke: 120 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 70 mm/sec Working speed: 7,2 mm/sec Returning speed: 62 mm/sec Electric motor (power): 11 kW Length: 4270 mm Depth: 1500 mm Height: 2470 mm Weight: 9,1 ton

spindle turning speed range: 170 - 18000 U/min weight of the machine ca.: 7,5 t dimensions of the machine ca.: 5,00 x 4,00 x 2,20 m --> Control conversion (2014) to Siemens Sinumerik 840D Solutionline --> Technical data Grinding diameter: 20 - 300 mm --> Oscillation diameter: 350 (500) mm --> Workpiece length: 300 (1300) mm --> Recommended grinding depth up to: 300 mm --> Grinding table stroke Z-axis (total): 650 (950) mm --> Resolution: 0.001 mm --> Rapid traverse: 12 m/min-1 --> Grinding stroke speed: 0 - 9.99 m/min-1 --> Feed rate: 0 - 99.99 m/min-1 --> Step feed value during reversal: 0 - 0.999 mm --> Grinding table stroke X-axis (total): 150 mm --> Resolution: 0.001 mm / Ø --> Rapid traverse: 5 m/min-1/R --> Grinding stroke speed: 0 - 5 m/min-1/R --> Feed rate: 0 - 99.99 m/min-1/R --> Step feed value during reversal: 0 - 0.999 mm / Ø --> Swivel capability of the workpiece headsto ...

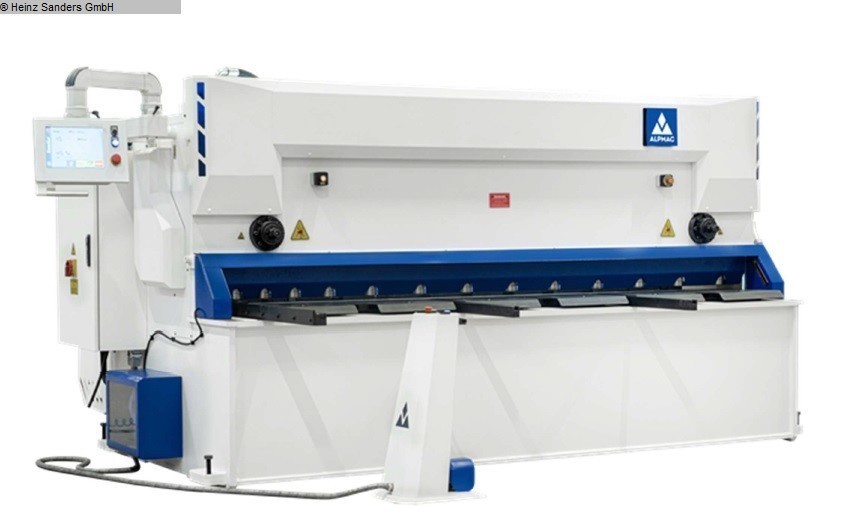

sheet width: 4100 mm plate thickness: 10,0 mm thickness at Niro-steel: 6,0 mm down holder: 28 Stück no. of strokes: 18 Hub/min oil volume: 260 ltr. cutting angle: 0,5 - 2 ° control: CYBELEC Cybtouch engine output: 22,0 kW back stop - adjustable: 1000 mm range L-W-H: 6100 x 2580 x 2460 mm weight: 15.100 kg. -------------------------------------------------- electr. / hydraulic CNC guillotine shears - guided by a backdrop with CYBELEC CNC touch screen control with electr. / hydr. Cutting gap and cutting angle adjustment -------------------------------------------------- Furnishing: - CNC guillotine guillotine shears - with electr. / hydr. Cutting gap and cutting angle adjustment - CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Number of pieces Cutting length limitation Material preselection, including sheet thickness  ...

sheet width: 4100 mm plate thickness: 6,0 mm thickness at Niro-steel: 4,0 mm down holder: 18 Stück no. of strokes: 15 Hub/min oil volume: 150 ltr. cutting angle: 1,2 ° control: CYBELEC Cybtouch back stop - adjustable: 1000 mm work height max.: 800 mm engine output: 11,0 kW weight: 8.100 kg. range L-W-H: 5000 x 2410 x 1650 mm ------------------------------------------------- electr. / hydraulic CNC swing cut shears with CYBELEC CNC touch screen control with electr. / hydr. Kerf adjustment ------------------------------------------------- Furnishing: - CNC electr. / hydraulic swing cut shears - CYBELEC CNC touch screen controller, model CybTouch 8 Backgauge preselection - X axis Cutting gap adjustment Quantity Cutting length limitation Material preselection, including sheet thickness Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) on ball screws autom. C ...

- Indexing table 400 mm hand - Set tooling included - Table bore 10 - 130 mm - Key width from 2 - 32 mm - Feed rate 0,5 - 5 M/Min

max. wheel diameter: 420 mm gear width: 120 mm max. module: 8 min. module: 0,5 control: BWO 783 no. of strokes: 32 - 800 Hub/min stroke: 0-137 mm table diameter: 400 mm table bore diameter: 125 mm total power requirement: 50 kW weight of the machine ca.: 9 t dimensions of the machine ca.: 5,3 x 3,9 x 3,5 m CNC control Heckler und Koch BWO 783 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 400 mm gear width: 250 mm max. module: 8 min. module: 0,2 dist. between centers: 640 mm spindle turning speed range: 4010 U/min number of teeth: 5 - 999 max.helical angle: +/- 45 ° root circle diameter: 10 mm slide stroke: Z-Achse 300 mm workpiece weight: 300 kg clamping length max.: 700 mm clamping length min.: 60 mm pressure angle: 14 - 30 ° Control: Siemens 840D spindle motor: 10 kW total power requirement: - kW weight of the machine ca.: 16 t dimensions of the machine ca.: 3,3 x 2,7 x 2,5 m Gear grinding machine designed for small and large series production with: - Siemens Sinumerik 840 D CNC control - Tailstock - Balancing device - Oil mist extraction - Complete cladding - Double Spindle Dresser - Hoffmann filter system, type HSF 150 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

4 assen: Y1 / Y2 / X / V Laserbeveiliging voor en achter Capacity: 250 ton x 4100 mm Backgauge: CNC Control: Cadman Touch-B Passage between uprights: 3150 mm Max stroke: 250 mm Max distance between table -- ram: 500 mm Depth of throat: 350 mm Table width: 250 mm Locking speed: 80 mm/sec Working speed: 10 mm/sec Returning speed: 80 mm/sec Electric motor (power): 30 kW Length: 5545 mm Depth: 1990 mm Height: 3380 mm Weight: 23 ton

Nikken controller 4th axe 150 CNC

This ERMAK CNC HAP 4100x400 was manufactured in 2006. It features a CYBELEC DNC 60 control system, a maximum working length of 4100 mm, and a press force of 400 t. The internal distance between columns is 3550 mm, and it includes a laser safety system. Consider the opportunity to buy this ERMAK CNC HAP 4100x400 hydraulic press. Contact us for more information about this machine.

12 assen: Y1 / Y2 / X1 / X2 / X3 / R1 / R2 / R3 / Z1 / Z2 / Z3 / V 5 plaatsteunen aan de voorkant Willa hydraulische gereedschapsadapter 3 achteraanslageenheden Achteraanslagbereik: 1250 mm Capacity: 400 ton x 7100 mm Backgauge: CNC Control: Cadman Passage between uprights: 6050 mm Max stroke: 300 mm Max distance between table -- ram: 550 mm Depth of throat: 300 mm Table width: 250 mm Locking speed: 90 mm/sec Working speed: 9,5 mm/sec Returning speed: 65 mm/sec Electric motor (power): 37kW Weight: 38 ton

This 5-axis San Rocco FMC 110/S-MMZ CNC ECS 4801 (OE) was manufactured in 2000. It features a horizontal spindle orientation, a table size of 1,300 x 1,100 mm, and a tool magazine with 30 positions. Spindle speeds range from 20 to 3,000 rpm, and it includes a continuous rotary table. Consider the opportunity to buy this San Rocco FMC 110/S-MMZ CNC ECS 4801 (OE) boring machine. Contact us for more information about this machine.

7 assen: Y1 / Y2 / X / X2 / Z1 / Z2 / R Amadabombeertafel met Digipro-optie: CNC-buighoekmeetsysteem Sick laserbeveiliging aan de voorkant Plooimessen in een gereedschapskast: • 00300 – 60° - R6.0 2x 835 • 04706 – 88° - R0.6 4x 835 • 05206 – 88° - R0.6 10, 15, 20, 40, 50, 100R, 100L, 200, 300 • Z24511 – 45° - 0,37° 4x 835 • Z24512 – 45° - 0,37° 415 • Z24513 – 45° - 0,37° 10, 15, 20, 40, 50, 100L, 200, 300 • 45308 – 88° - R0.8 10, 15, 20, 40, 50, 100R, 100L, 125, 138, 200, 270, 300, 310, 370, 835 Buigmatrijzen in een gereedschapskast: • 07900 – 88° - V20 4x 835 • 07980 – 88° - V20 10, 15, 20, 40, 50, 100, 200, 400 • 07700 – 88° - V16 4x 835 • 07780 – 88° - V16 10, 15, 20, 40, 50, 200, 400 • T12451 5x 835 • 129001 5x 835 Capacity: 130 ton x 4100 mm Backgauge: CNC Control: AMNC-PC Touch Passage between uprights: 3760 mm Max ...

Haco PPES 110 ton x 4100 mm CNC Capacity: 110 ton x 4100 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 3600 mm Max stroke: 130 mm Max distance between table -- ram: 325 mm Depth of throat: 250 mm Table width: 180 mm Locking speed: 100 mm/sec Working speed: 11 mm/sec Returning speed: 100 mm/sec Electric motor (power): 11,4 kW Length: 4210 mm Depth: 1500 mm Height: 2530 mm Weight: 11 ton

12 CNC-assen: Y1 / Y2 / Y3 / Y4 / V / X1 / X2 / X3 / X4 / R1 / R2 / R3 / R4 / X5 / X6 / Tandem kantbank: 2 x 2000 ton GWF Als je een werkstuk van 16 meter lang buigt, is de maximale keeldiepte 1250 mm. Buigvoorbeeld: 35 mm (normaal staal) over een lengte van 16 meter Capacity: 4000 ton x 16 200 mm Backgauge: CNC Control: 2D Touch Passage between uprights: 4600 mm (2x) Max stroke: 1000 mm Max distance between table -- ram: 1650 mm Depth of throat: 1250 mm Table width: 650 mm Locking speed: 70 mm/sec Working speed: 4 > 7,5 mm/sec Returning speed: 75 mm/sec Electric motor (power): 75 kW (2x) Power needed: 380V Length: 7100 mm Depth: 5000 mm Height: 6350 mm (above floor) Weight: 500 ton (2x 250 ton) Capacity: 4000 ton Bending length: 16200 mm

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

Important and distinguishing design features of the RaptorX SL steel base machine / gantry RaptorX-SL1200/S20 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method t ...

Important and outstanding design features of the RaptorX-SL with steel substructure / The range of applications of a RaptorX-SL CNC Machine is variable due to the high-adjustable working area (read-through under bridge variable : 150mm, 300mm or 400mm ) and the 300mm travel height in the Z-axis (no extra charge) extremely large. special groesmes up to 17,500 mm (at one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-parts. Use the system as a plasma cutting system or water jet cutting system, corresponding extensions are available. In the middle range of the machine (between the foottubes ) you can even process parts up to a height of 850mm (beam shrare etc. ) or 3D body up to about 400mm height ( at 400mm long Fraeser ) ...

Ø grinding wheel dimensions (od x id x width): Ø650xØ304.8x500 mm, Ø min / max to grinding: 3/200 mm, Peripheral grinding wheel speed (m / s): 35 m / s, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/225 rpm, Dressing (auto / manual): Automatic CNC the two wheels, Diamond dressing speed: infinite 10/225 rpm, Lubrication (auto / manual): automatic, Control type ((cnc / manual): CNC, Cnc axes nº: 6, Infeed (auto / manual): Automatic CNC, Regulating wheel dimensions (od x id x width): Ø355xØ203,2x500 mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Weight: 14,000 Kg machine + peripherals, Accessories included: Fairing, hydraulic work cap, hydraulic ruler / Machine casing, hydraulic cover of the grinding wheel, hydraulic workrest

Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min / max to grinding: 1.5 / 120 mm, Regulating wheel width: 254 mm, Regulating wheel speed nº: infinite, Min / max regulating wheel speed (r.p.m.): 10/250 r.p.m., Dressing (auto / manual): Manual, Lubrication (auto / manual): Automatic / Automatic, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi Mate - TD, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Power hydraulic motor: 0,55 kW, Total power: 27 kW, Voltage: 220/380 V, Long: 2.300 mm, Width: 1.885 mm, High: 1.900 mm, Weight: 6.420 kg, Accessories included:

Hydraulic clamping table, Automatic wheel balancer, Fairing, Hydraulic working wheel cover, AEROEL measuring equipment, Hydraulic table clamping, Hoist for 1,000 kg, Electric cabinet cooling, Pneumatic box, Coolant transfer tank, Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Dressing (auto / manual): Automatic - CNC, Diamond dressing speed: 255 r.p.m., Lubrication (auto / manual): Automatic, Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Power hydraulic motor: 3 Kw, Total power: 60 Kw, Voltage: 220 / 380V, Long: 2.300 mm, Width: 2.800 mm, High: 2.100 mm, Weight: 15 ...

Hydraulic ruler holder, Automatic grinding wheel balancer, Cover, Hydraulic working grinding wheel cover, Equipment AEROEL measurement, Hydraulic table locking, Hoist for 1,000 kg, Refrigeration in electrical cabinet, Panel tire, Coolant transfer tank, Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Grinding wheel dimensions (od x id x width): Ø 650 x Ø 304.8 x 500mm, Ø min / max to grinding: 3/200 mm, Ø min/max to be rectified: 3/200mm, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, No. of regulating wheel speeds: Infinitas, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Min/max speed of regulating wheel (r.p.m.): 10 / 255 rpm, Dressing (auto / manual): Automatic - CNC, Diamond cutting (auto/manual): Automatic - CNC, Diamond dressing speed: 255 r.p.m., Diamond cutting speed: 255 rpm, Lubrication (auto / manual): Automatic ...

Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min / max to grinding: 1.5 / 120 mm, Regulating wheel width: 254 mm, Regulating wheel speed nº: infinite, Min / max regulating wheel speed (r.p.m.): 10/250 r.p.m., Dressing (auto / manual): Manual, Lubrication (auto / manual): Automatic / Automatic, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi Mate - TD, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Power hydraulic motor: 0,55 kW, Total power: 27 kW, Voltage: 220/380 V, Long: 2.300 mm, Width: 1.885 mm, High: 1.900 mm, Weight: 6.420 kg, Accessories included:

Porterreglas de Plongée, Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min / max to grinding: 1.5 / 120 mm, Regulating wheel width: 254 mm, Regulating wheel speed nº: infinite, Min / max regulating wheel speed (r.p.m.): 10/250 r.p.m., Dressing (auto / manual): Manual, Lubrication (auto / manual): Automatic / Automatic, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi Mate - TD, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Power hydraulic motor: 0,55 kW, Total power: 27 kW, Voltage: 220/380 V, Long: 2.300 mm, Width: 1.885 mm, High: 1.900 mm, Weight: 6.420 kg, Accessories included: Porterreglas de Plongée

, Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min / max to grinding: 1.5 / 120 mm, Regulating wheel width: 254 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/250 r.p.m., Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi Mate - TD, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Power hydraulic motor: 0.55 Kw., Total power: 27 Kw., Voltage: 220 / 380V, Long: 1.800 mm, Width: 2.800 mm, High: 1.900 mm, Weight: 6.420 Kg., Accessories included:

Ø grinding wheel dimensions (od x id x width): 325 x 175 x 125 mm, Ø min / max to grinding: 1.5 / 50 mm, Regulating wheel width: 125 mm, Regulating wheel speed nº: infinite, Lubrication (auto / manual): Manual, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc axes nº: 2, Infeed (auto / manual): Automatic / Automatic, Regulating wheel dimensions (od x id x width): 220 x 125 x 125 mm, Grinding wheel width: 125 mm, Maximum infeed grinding length: 125 mm, Motor power grinding wheelhead: 7,5 Kw, Voltage: 220 / 380v, Long: 1.520 mm, Width: 1.020 mm, High: 1.260 mm, Weight: 1,600 Kg., Accessories included: Working wheel head with bearings, grinding wheel holder, drive wheel with frequency inverter, / grinding wheel head with bearings, infeed workrest

Intern frame clamp, 1000Kg hoist, grinding shaft repaired with ceramic, repaired drive shaft, fairing, CE / Porta rules rules, 1000 Kg hoist, shaft rectify repaired ceramics, trailing axle repaired, fairing, CE, Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Dressing (auto / manual): Automatic / Automatic, Diamond dressing speed: 255 r.p.m., Lubrication (auto / manual): Automatic / Automatic, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi Mate - TD, Infeed (auto / manual): Automatic / Automatic, Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Pow ...

Intern table clamp, 1000Kg hoist, Fairing, CE | Throughfeed work rest, block and tackle for 1.000kg, Machine casing, CE, Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Dressing (auto / manual): Automatic / Automatic, Diamond dressing speed: 255 r.p.m., Lubrication (auto / manual): Automatic / Automatic, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi - TF, Infeed (auto / manual): Automatic / Automatic, Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Power hydraulic motor: 3 Kw, Total power: 60 Kw, Voltage: 220 / 380V, Long: 2.300 mm, Width: 2.800 m ...

Portoner of plongee, Cymbals portaamuelas, CNC FANUC, Centralized automatic grease OPTIONAL: Portarrels of enfilada, Fairing, Removal of gearbox and adaptation of variator speed for drag wheel, 1 Year Warranty / Porta plongee rules, Saucers wheel holder , CNC FANUC, Automatic lubrication system. OPTION: Porta rules enfilade, protection, eliminating gearbox and variable speed adjustment for wheel drive, 1 year warranty, Ø grinding wheel dimensions (od x id x width): 325 x 175 x 125 mm, Ø min / max to grinding: 1.5 / 50 mm, Regulating wheel width: 125 mm, Regulating wheel speed nº: infinite, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi - TF, Infeed (auto / manual): Automatic / Automatic, Regulating wheel dimensions (od x id x width): 220 x 125 x 125 mm, Grinding wheel width: 125 mm, Maximum infeed grinding length: 125 mm, Motor power grinding wheelhead: 7,5 Kw, Lo ...

CNC, Ø grinding wheel dimensions (od x id x width): 508 x 304.8 x 254 mm, Ø min / max to grinding: 1.5 / 120 mm, Regulating wheel width: 254 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/250 r.p.m., Lubrication (auto / manual): Automatic / Automatic, Control type ((cnc / manual): CNC, Cnc brand: FANUC, Cnc model: Oi Mate - TD, Regulating wheel dimensions (od x id x width): 305 x 190.5 x 254 mm, Grinding wheel width: 254 mm, Maximum infeed grinding length: 254 mm, Power hydraulic motor: 0.55 Kw., Total power: 27 Kw., Voltage: 220 / 380V, Long: 1.800 mm, Width: 2.800 mm, High: 1.900 mm, Weight: 6.420 Kg., Accessories included:

Automatic wheel balancer, CNC gantry loader, electric hoist, cutting speed regulator, hydraulic lifting wheel grinder, Ø grinding wheel dimensions (od x id x width): Ø 650 x Ø 304,8 x 500mm, Ø min / max to grinding: 3/200 mm, Regulating wheel width: 500 mm, Regulating wheel speed nº: Infinite, Min / max regulating wheel speed (r.p.m.): 10/255 r.p.m., Dressing (auto / manual): Speed ​​255 r.p.m., Diamond dressing speed: 255 r.p.m., Control type ((cnc / manual): CNC, Cnc brand: SIEMENS, Cnc model: 840D, Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203,2 x 500mm, Grinding wheel width: 500 mm, Maximum infeed grinding length: 500 mm, Motor power grinding wheelhead: 55 Kw, Power hydraulic motor: 3 Kw, Total power: 60 Kw, Voltage: 220 / 380V, Long: 2.300mm, Width: 2.800mm, High: 2.100mm, Weight: 14.000 kg, Accessories included: Automatic wheel balancer, CNC gantry loader, ...

Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd

more tech. Details on request

Tischaufspannflaeche Max Tischbelastung 25 to . groove distance 180 mms table movement 1,000 mms table rotation B axis 360? Aufspannflaeche 1600 x 2,500 mms number of the grooves 9 table overtakes completely in 2012 anew SIEMENS impulses, new MOOR GROVE graduations

Important and outstanding design features of the RaptorX-SL with steel substructure / gantry design RaptorX-SL1200/S20 The range of applications of a RaptorX-SL CNC Fraesmaschine is variable due to the adjustable working area (through-lasshoehe under Bruecke: 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (at no extra charge) extremely large. special size (on one piece) x 3000 mm x 600 mm are feasible ! If you are interested please ask ! To such a way that you are able to process plate materials with the greatest stability of the Z-axis exactly as accurately as 200mm high 3D-Koerper. Use the system as a plasma cutting system or water jet cutting system, are available In the middle range of the machine (between the foottubes) you can even process parts up to a height of 850mm (beam rail etc. ) or 3D body up to about 400mm height ( at 400mm long F ...

Important and outstanding design features of the RaptorX-SL with steel substructure in gantry design RaptorX-SL1200/S15 The range of applications of a RaptorX-SL CNC Fraesmaschine is variable due to the adjustable working area (through-lasshoehe under Bruecke: 150mm, 300mm or 400mm ) and the traversing height of 300mm in the Z-axis (at no extra charge) extremely large. Special size up to 17,500 mm (on one piece) x 3000 mm x 600 mm are feasible ! If you are interested please ask ! This way you are able to process plate materials with the greatest stability of the Z-axis just as accurately as 200mm high 3D-Koerper. Use the system as a plasma cutting system or waterjet cutting system, appropriate extensions are available. In the middle range of the machine (between the foot tubes) you can even process parts up to a height of 850mm (beam rail etc. ) or 3D body up to about 400mm h ...

Important and outstanding design features of the RaptorX-SL with steel substructure /RaptorX-SL3200/S15 The application variety of a RaptorX-SL CNC Fraes machine is variable due to the high-adjustable working area (read-through he under bridge variable : 150mm, 300mm or 400mm ) and the travel height of 300mm in the Z-axis (without extra charge) extremely large. special coarseness up to 17,500 mm (on one scale) x 3000 mm x 600 mm are possible ! If you are interested, please ask ! So you are able to process plate materials with the greatest stability of the Z-axis just as precisely as 200mm high 3D-coerpers. Use the system as a plasma cutting system or waterjet cutting system, corresponding extensions are available. In the middle range of the machine (between the footpipes ) you can even process parts up to a height of 850mm (beam shroughl, etc. ) or 3D body up to about 400mm hei ...

Important and distinguishing design features of the RaptorX SL steel base machine RaptorX-SL3200/S15 The application range of the RaptorX- SL CNC milling machine is extremely wide due to the adjustable work surface height (variable bridge clearance: 150mm, 300mm or 400mm) plus the travel range of the Z axis of 300mm (at no extra cost). The Z axis stability is excellent, allowing you to work as accurately on large 3D objects as one can on flat sheet materials. Use the system as a plasma cutting system or a water jet cutting system, appropriate accessories are available. It is possible to work on work-pieces up to a height of 850mm (steel cabinets etc.) or three-dimensional objects up to a height of approx. 400mm (with 400m long milling cutter). This capability is unusual for machines of this size and mold makers usually use a layered construction method to produce large 3D objec ...

Specifications / Technical Data S-1000 CNC-Fraese and Engraving Machine The almost largest CNC machine in the High-Z series. With an external dimension of approx. 1350 x 800mm still handy enough and extremely powerful. With the High-Z CNC unit, they acquire an all-round talent in TUeV-certified quality (EMC). Whether you want to clamp complex parts on a groove table or, or to clamp factory tins into a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All CNC portal fraes machines are supplied with coloured energy chains on all axes due to the improved cable guid ...

Specifications / Technical Data S-1000 CNC-Router and CNC-Engraver This is the biggest machine of our High-Z cnc-router series. With external dimensions of approx. 1350x800mm it is still very handy. With the High-Z 3D-cnc-routers you purchase an allround talent in TÜV-certified quality. If you want to clampand fix complex workpieces on the worksurface, or, or, or clamp work-pieces in a high bench vise (the cnc-machine sits on a frame-construction, is driven by 2 motors and therefore allows to be positioned above a piece to be processed). Or if you simply want to do engraving- or drillingjobs.you can work on a flat surface, with a pieces of sheet MDF fixed to it. Plane it once and you will be able to work with a precision of +-0,02 mm depth. All cnc-machines are being delivered with black energy-chains on all axis, which allows a better cabling management. Also, all cnc-milli ...

Specifications / Technical Data S-720 CNC-Fraesmaschine With the High-Z CNC-Fraes.- and Engraving Machine you acquire an all-round talent in TUeV-certified Quality (EMV). Whether you want to clamp complex parts on a groove table or, or put factory tins in a high vice (the machine is on a frame construction, is driven in X via 2 motors and thus allows to be placed completely over a part to be machined). or simply want to do engraving or drilling then they simply work on a flat base, on which they then attach e.g. an MDF plate, which they once overfrave plan and are then able to work up to approx. +-0.02mm exactly in depth. All machines are supplied with coloured energy chains on all axes due to improved cable guidance. Furthermore, all machines are protected with a double-secured emergency exit button. Another is located directly at the controller. Basic equipment of all high- ...
