centre lathe used for sale

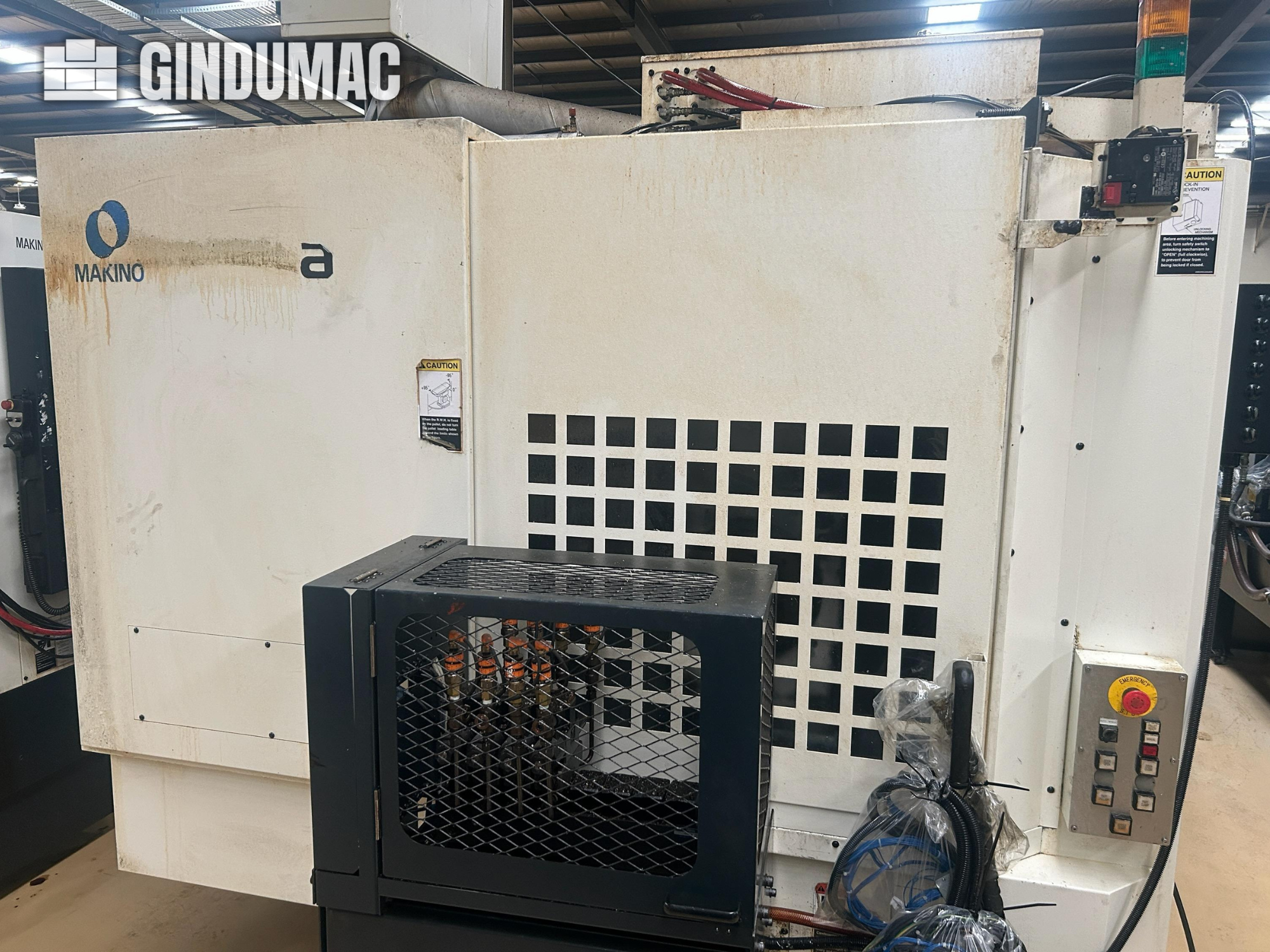

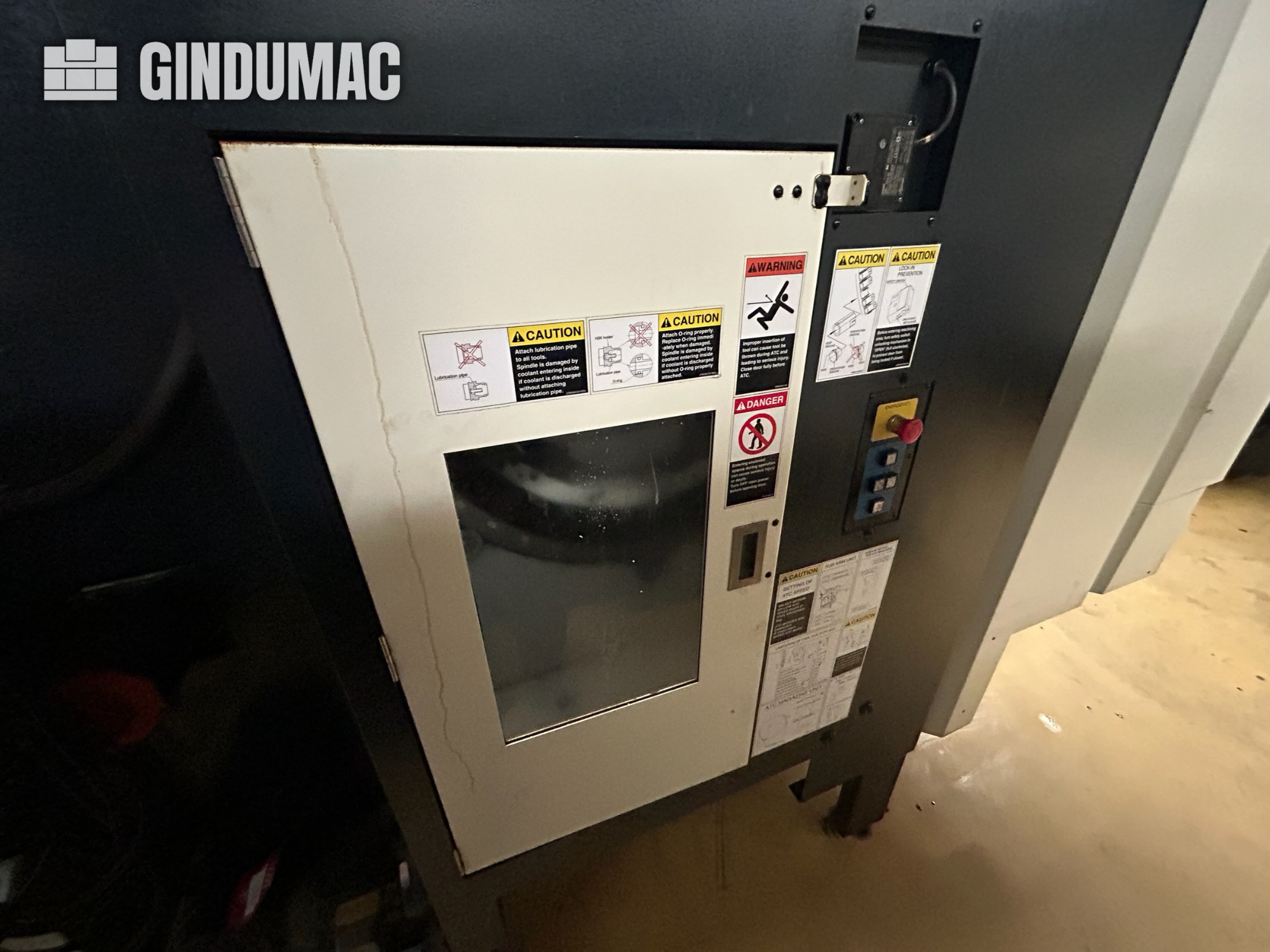

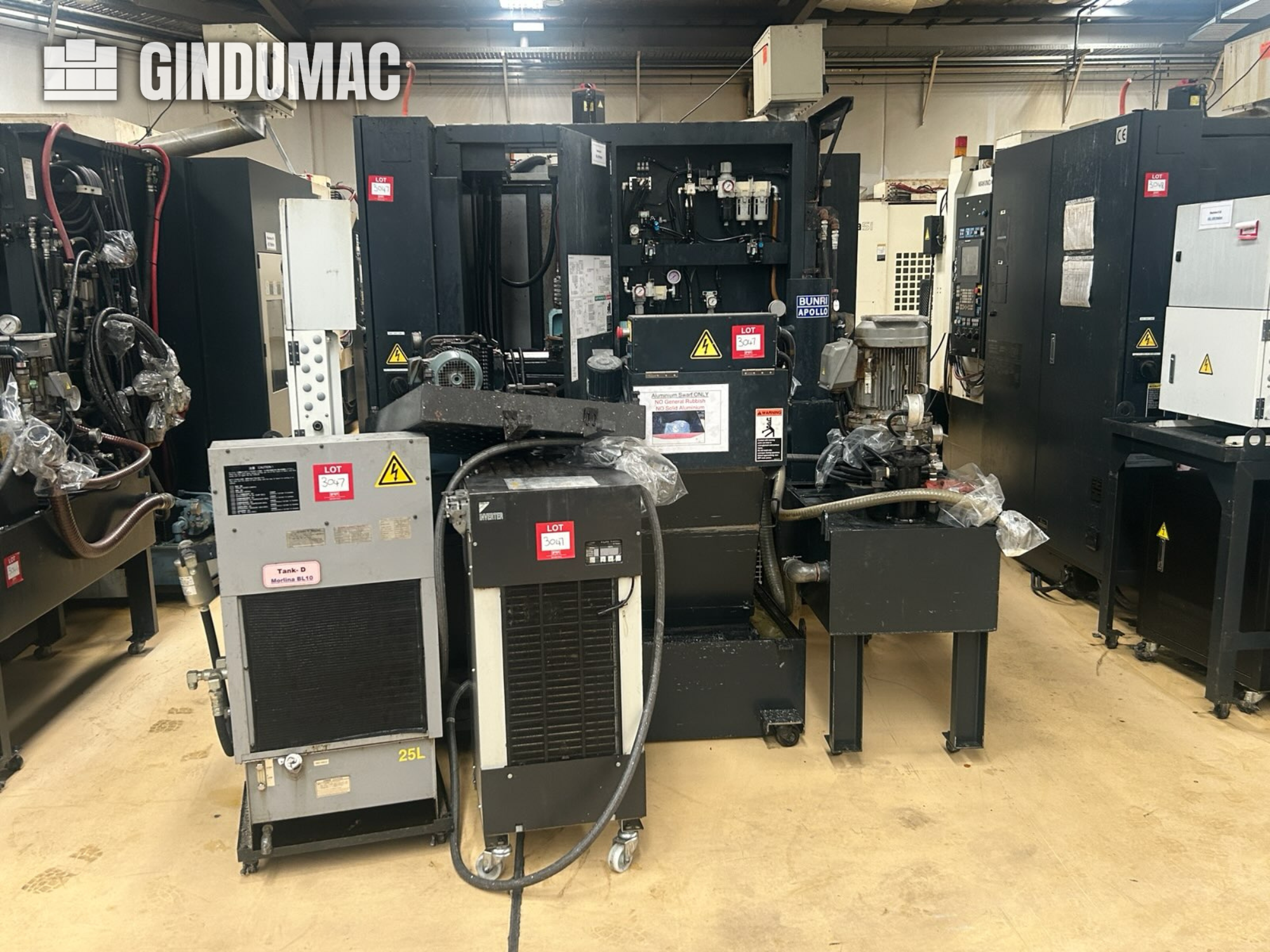

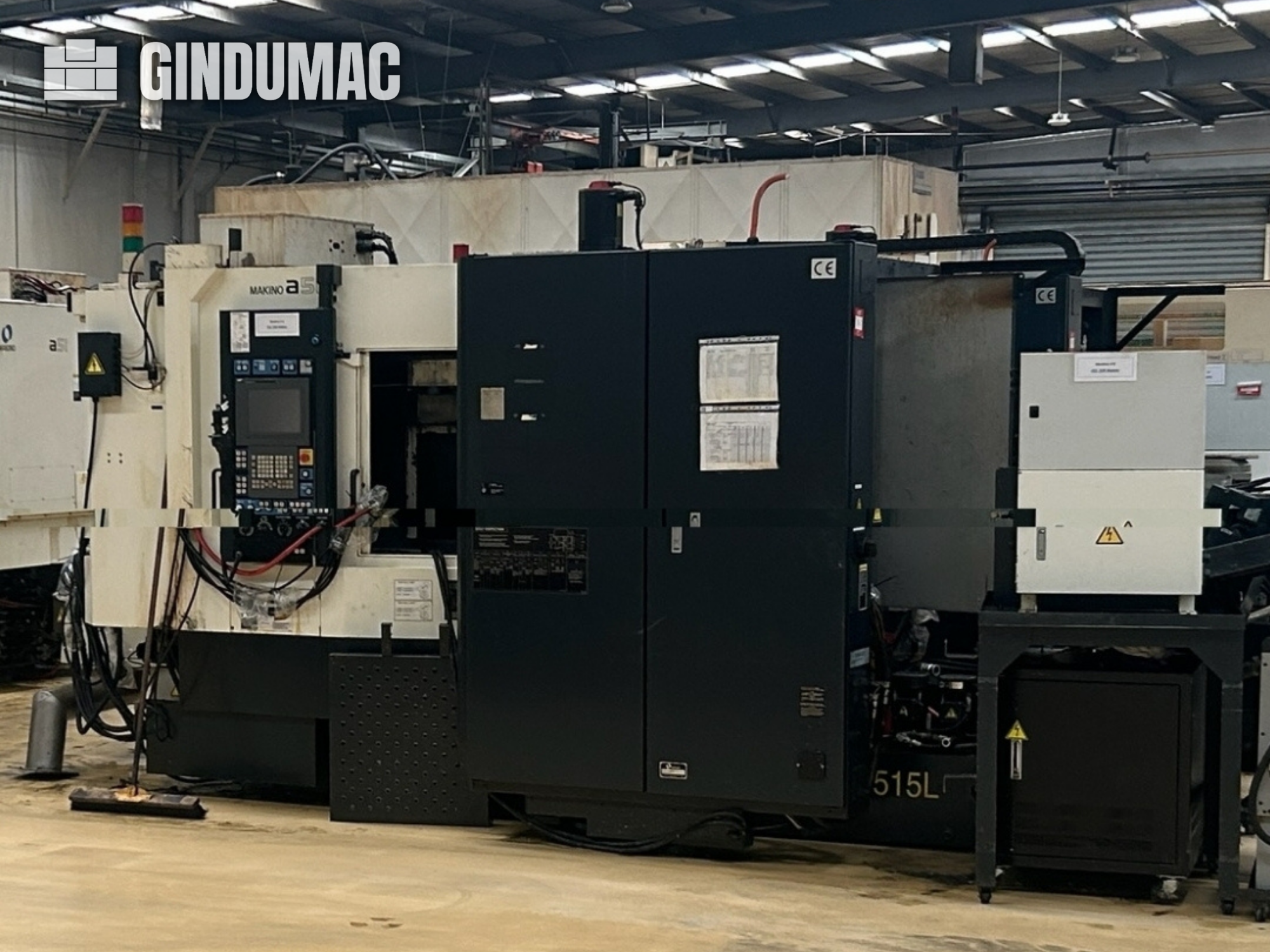

This 5-axis Makino A51-5XR HMC was manufactured in 2013. It features a generous travel of 22 x 22 x 23.6 and is equipped with a 60-tool automatic changer and a spindle speed of 14,000 RPM. If you are looking to get high-quality machining capabilities, consider the Makino A51-5XR horizontal machining centre we have for sale. Contact us for further details.

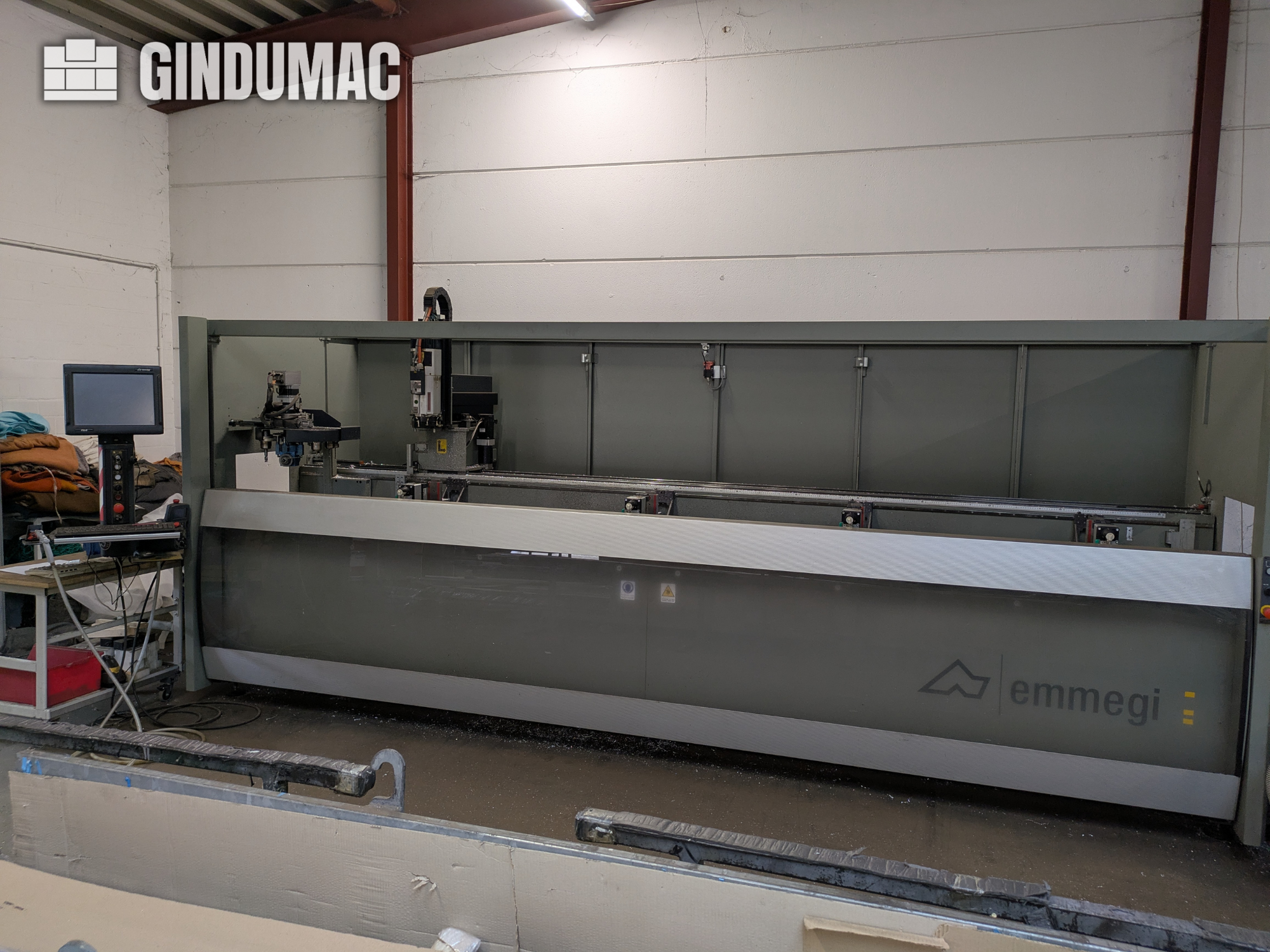

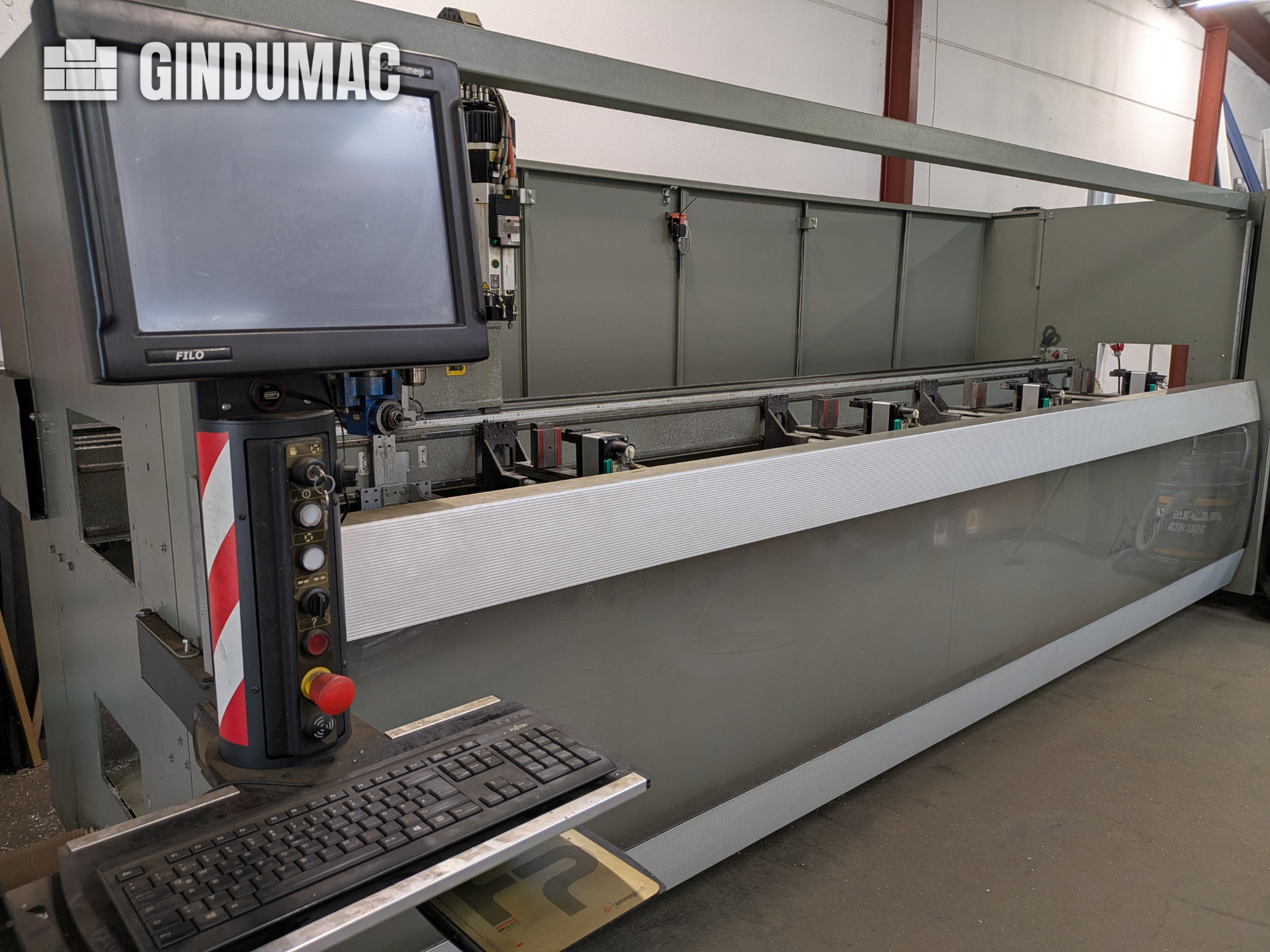

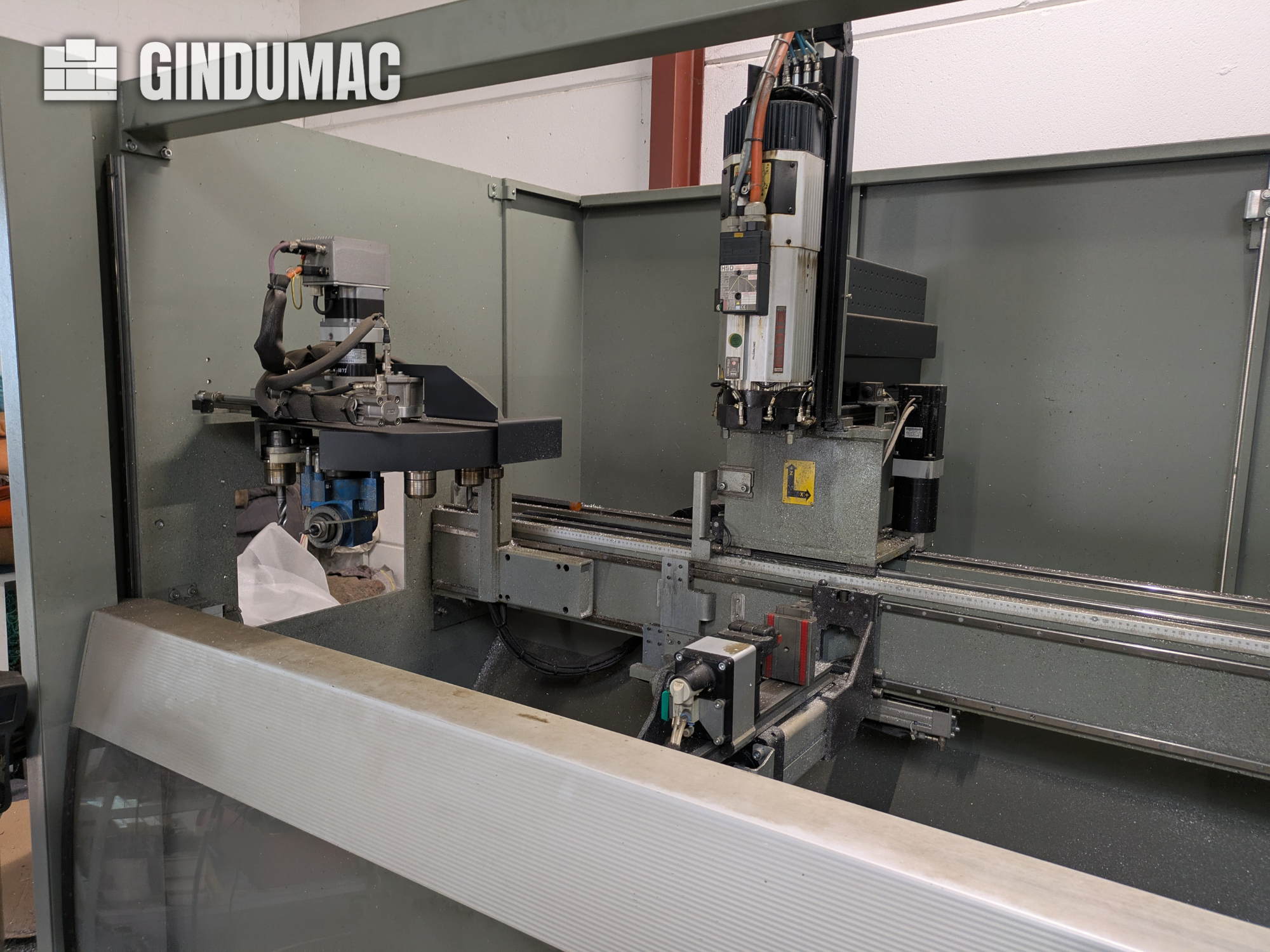

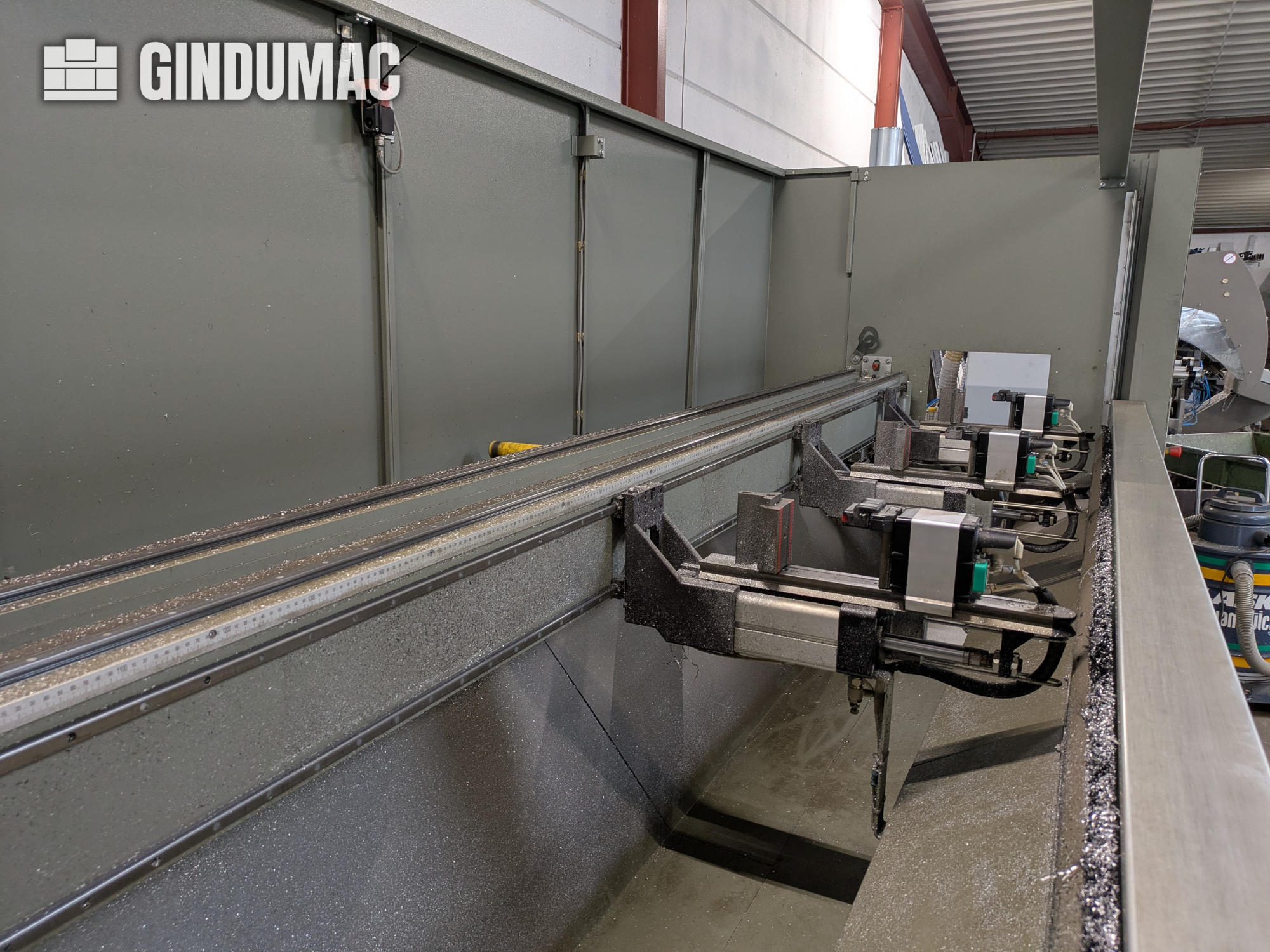

This 3-axis Emmegi Phantomatic T3 was manufactured in 2011. It features a power rating of 7.5 kW and operates at a voltage of 400/3 V. With a machine weight of 1950 kg, it is designed for durability and efficiency. If you are looking to get high-quality machining capabilities, consider the Emmegi Phantomatic T3 vertical machining centre we have for sale. Contact us for further details.

This 3-axis POSmill B 800 was manufactured in 2014. It features an X-axis travel of 800 mm, Y-axis travel of 510 mm, and Z-axis travel of 630 mm. The machine includes a table size of 950 x 510 mm and a spindle speed of 10,000 RPM. If you are looking to get high-quality machining capabilities, consider the POSmill B 800 vertical machining centre we have for sale. Contact us for further details.

This 4-axis OKK HM630 was manufactured in 2011. It features an X-axis travel of 1050 mm, Y-axis travel of 900 mm, and Z-axis travel of 900 mm. The machine is equipped with a spindle speed of 12,000 rpm and a tool magazine capacity of 60 tools. If you are looking to get high-quality machining capabilities, consider the OKK HM630 horizontal machining centre we have for sale. Contact us for further details.

Key data: 750 mm, 800 mm, 850 mm

Spindle speed (max.): 15,000 revolutions per minute Spindle speed (min.): 50 revolutions per minute Rapid traverse X-axis: 60 mm/min Rapid traverse Y-axis: 60 mm/min Rapid traverse Z-axis: 60 mm/min Weight: 16,000 kg Equipment: Documentation/Manual Subject to technical error and prior sale

Weight: 2000Kg approx., Dimensions (L x W x H): 2000x1800x1700 mm, Total power: 8kW

This 5-axis FPT DINO was manufactured in 2002. It features an impressive X-axis travel of 2800 mm, Y-axis travel of 1600 mm, and Z-axis travel of 800 mm. The machine is equipped with a HEIDENHAIN TNC 530 control unit and a spindle speed of 20000 rpm. If you are looking to get high-quality machining capabilities, consider the FPT DINO vertical machining centre we have for sale. Contact us for further details.

TECHNICAL INFORMATION:, Grinding wheel dimensions (od x id x width): Ø508xØ304.8x204 mm, Dimensions of the regulating grinding wheel (od x id x width): Ø304,8xØ152.4x204 mm, Main motor power: 20 Kw, Voltage: 380 V, Height: 1700 mm, Length: 2000 mm, Width: 1080 mm, Weight: 4230 Kg approx.

GENERAL CHARACTERISTICS, Max. grinding diameter 120 mm, Grinding wheel width 250 mm, Minimum Ø to be ground 1 mm, Ø drive grinding wheel 304 mm, Ø working wheel 508 mm, DIMENSIONS AND WEIGHT, Height 1,700 mm, Width 1,500 mm, Length 2,750 mm, Weight 4,000kg, ELECTRICAL CHARACTERISTICS, Grinding head motor power 15 Kw, Power motor power grinding head 1,8kw, Hydraulic motor power 1,1kw, Total power 20 kW, Voltage 220/380 V

CNC Machining Center Vertical DECKEL-MAHO - DMC 63 V Built in 2002 in good condition. Control Heidenhain TNC 430 Heidenhain Hours: 10985 Specifications: Main spindle Speed range - main spindle 20 - 8,000 rpm Drive power - main spindle 13 / 9 kW Max. torque 83 / 57 Nm Tool holder SK 40 Workbench: Table clamping surface 800 x 500 mm max. table load 500 kg Installation height max. 240 mm Number of T-slots 5 T-slots - width 14 H12 mm T-slots - spacing 100 mm Distance between spindle nose and table 150 - 650 mm Feeds Feed rate X, Y, Z: 30,000 mm/min Rapid traverse ( X / Y / Z ) 30 m/min Tool changer: Tool changer 24 pos. max. tool diameter 80 mm max. toolthrough. with a free neighbor's box. 140 mm max. tool length 300 mm max. tool weight 7 kg Total power requirement 30 kVA Machine weight approx. 4 t Space requirement approx. 4.0 x 3.5 x 2.7 m Accessor ...

HELLER MC16 4-axis horizontal milling center YOM 2000 4-Axis SIEMENS CNC Path Control, Model SINUMERIC 840 D Longitudinal X-axis 630 mm Vertical Y-axis 630 mm Cross Z-axis 630 mm NC rotary table Tilting B axis 360.000 x 0,001 ° Pallet size 400 x 500 mm Max. workpiece size Ø x height 720 x 800 mm Max. workpiece weight 500 kg Pallet exchange time 9 sec. Turning Speed B axis 40 rpm/min Tool holder cone HSK 63 Tool size Ø x lg. x weight 150 x 227 x 12 mm/kg Spindle speeds, infinitely variable 45 – 24,000 rpm Feeds / quick feeds XYZ: 1 – 60,000 mm/min Feed force 10.000 nm Spindel torque 48/72 nm Spindle drive 30 kW Total electrical load, approx. 60 kW - 400 V - 50 Hz Total weight 12.5 tons Accessories / Special Features : -Separate standing 80 position Rack-Type tool Magazine with tool placement door and double Swivel gripper, own SIEMENS PC-Control with screen To ...

SECOND-HAND WORKING CENTER 4 AXIS BIESSE MOD. 37 XL - working dimension X 6000 - work dimension Y 1850 - work dimension Z 180 - 1 router - power router Kw 12 - C axis interpolating - tool clamping system HSK F63 - tool changing positions 21 - vertical drilling spindles 20 - horizontal drilling spindles X 6 - horizontal drilling spindles Y 2 - pod and rail table - n. 10 consoles - vacuump pump 250 m3/h - ATS - CE RULES (YEAR 2004)

5 AXIS CNC WORKING CENTER BALESTRINI MOD. POWER 200 300 CE - USED - strokes: X-U 4000mm. Y 4000 mm. Z 700 mm. A 1000 ° C 400 ° (+/- 200 °) - n. 2 working tables 1400x3000 mm - n. 3+3 rails per each working table - n. 3+3 CSR supports per each table - head type CS 44 (n. 4 motors 7.5 kW each) - rpm 0/24000 g/min. with inverter - HSKC40/ER32 chuck - n. 2 inverters - wooden waste aspiration/cleaning device - Becker vacuum pump 100 mc - Electrical panel air conditioner - Num Axium control - T-CAS software - remote support - communication PC/CN TCP/IP - cabin + roof - CE rules - year 2010 - COMPLETELY RECONDITIONED

SECOND-HAND 5 AXIS BALESTRINI IDEA 2 – CE RULES - X axis 1800 mm - Y axis 1600 mm - Z axis 700 mm - 4 x 7.5 air cooled Colombo spindles - NUM control. - 2 Pumps 75 mc/h Rietschle - YEAR 2007 - complete with cabin

SECOND-HAND WORKING CENTER SCM MOD. RECORD 1 - CE RULES - table mm. 2000X800 - year 1996

Inv. Num. : 6849 Type: VF 2SS Producer: HAAS Created: 2019 Parameters: Duty cycle: 6825 h Hours: 2885 h Work table length: 914 mm Work table width: 356 mm Maximum table load (uniform): 680 kg Maximum spindle speed: 12000 1/min Minimum distance between the spindle axis and the table: 102 mm Maximum distance between the spindle axis and the table: 610 mm X-axis travel: 762 mm Y-axis travel: 406 mm Z-axis travel: 508 mm Spindle power: 22.4 kW Equipment: Grip SK40 (10x) Probe Renishaw

Inv. Num. : 6929 Type: S82TT Producer: BUMOTEC Created: 2002 Parameters: Control System: Fanuc OIMB CNC X-axis travel: 250 mm Y-axis travel: 120 mm Z-axis travel: 170 mm Minimum vertical spindle speed: 20000 1/min Cone: ISO 10 Machine height: 1738 mm Machine length: 2220 mm Machine width: 1236 mm Machine weight: 850 kg

Inv. Num. : 1607 Type: CB90VZB SL 6600 Producer: DYNOBEND B.V. Created: 2011 Parameters: 3 CNC-controlled axes Programmable speed Network Connection Windows Novell and Linux Software for work preparation Standard Specifications: Bending angle max: 200° Adjustment accuracy: 1/10° Tube torsion: 360° Booster power: 70kN Software IGES Centerline without marking Pipe length max. 6.3m Tube pre- and post-carriage 300mm Max. tube diameter 90mm Crushed tubes twisted 100 x 12 x 1 5 Min. radius over rolling process with or without mandrel > 1000mm Smallest radius with fixed tool not running and not torsional > 1 5D Repeat accuracy of machine 0.1mm 3-D bends

Key data: 1000 mm, 560 mm, 800 mm

Inv. Num. : 3714 Type: MH 1000 C Producer: MAHO Created: 1991 Parameters: Control system: Philips CNC 432 Hours: 62345 h Work table length: 1150 mm Work table width: 800 mm Tool magazine: 24 pieces Minimum vertical spindle speed: 20 1/min Maximum vertical spindle speed: 3400 1/min Mechanical feed length axis X: 1000 mm Mechanical feed length axis Y: 560 mm Mechanical feed length axis Z: 800 mm Cone: ISO 50 Maximum tool weight: 800 kg Machine weight: 7.3 t Equipment: 3 tool holders

Key data: 510 mm, 510 mm, 510 mm

Inv. Num. : 7409 Type: ARROW 500 Producer: CINCINNATI MILACRON Created: 1996 Parameters: Control system: ACRAMATIC A 2100 Number of stacking positions: 21 Work table length: 700 mm Work table width: 520 mm Maximum table load (uniform): 350 kg Maximum vertical spindle speed: 6000 1/min X-axis travel: 510 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Cone: CAT 40 Machine height: 2650 mm Machine length: 2700 mm Machine width: 2000 mm Machine weight: 3050 kg Equipment: Tool Holder

Key data: 1050 mm, 530 mm, 510 mm

Control Mazatrol ... MATRIX 2 Clamping table surface ... 1300x550mm Axis X ... 1050mm Axis Y ... 530mm Axis Z ... 510mm Spindle speed... 10-12000r/min. controlled axes ... 3 cooling... 15bar ISO 40 Max. table load ... 1200kg Magazine slots ... 30 Machine weight ... 7700kg The machine is in good condition, possible to test under electricity.

Max plate size 1600x3000 mm Drilling heads 1 Drilling tools per head 6 Max drilling diameter 40 mm Max drilling thickness 130 mm Spindle speed 3000 rpm Plasma torches 1

Key data: 670 mm, 830 mm, 600 mm

Control: HEIDENHAIN ITNC 530 Travel: X-axis: 670 mm Y-axis: 830 mm Z-axis: 600 mm A +120° to -120°, C 360° Workspace Turntable diameter 800 mm, 9 T-slots, Table load 1200 kg, Tool changer Tool holder: HSK-A 63 96-fold tool changer Tool length max.: 300 mm Tool diameter max.: 75 mm Tool diameter with adjacent empty station max.: 125 mm Tool weight max.: 7 kg Tool change time: 3 s Rapid traverse and feed Express feed X Y Z 60 m/min, + max. speed A-axis 50 rpm C-axis 100 rpm Acceleration X Y Z max. 7 ms², General data Repeatability/positioning accuracy for new delivery 0.004 mm/0.008 mm (VDI/DGQ 3441) incl. tool holders with tools on the tool changer, Oil mist extraction IKZ Conveyor Nominal power 90 kVA Full load current 125 A max. current load 200 A 400 V 50 Hz

Centerless cylindrical grinding machine KÖNIG & Bauer M130 MULTIMAT 130 Condition: very good, used Specifications Grinding wheel rotation speeds 35/45 (60) m/sec. Largest grinding diameter 35 mm Smallest grinding diameter 0.8 mm Maximum workpiece length for continuous grinding approx. 200 mm Maximum workpiece length for plunge grinding 130 mm The machine can be viewed by arrangement in our factory in Krefeld. – Errors, modifications and prior sale excepted –

Axes Strokes X = 3706mm Y = 2294mm Z1 = 515mm Z2 = 371mm Max rotation 24000 rpm C axis = 360 deg non-stop rotation B axis = 360 deg non-stop rotation 16 position revolver toolchanger

Simultaneous 5-axis design - Control system SIEMENS 840 D SL - Working range X= 780, Y= 600, Z= 520 mm - C-axis 360° - B-axis -50°/+110° - Table clamping surface 720 x 540 mm - Spindle speed 20 - 15,000 1/min - Tool magazine 60 places - Tool holder HSK 63A - High-pressure system IKZ 40 bar - Probe 3D Weight 8,100 kg

Matsuura Horizontal Machining Center CNC control Matsuura G-tech 16i Pallet table size 500x500 mm Number of pallets: 6 Table load 400 kg Spindle speed 15000 rpm If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail.

Demonstration-ready machine equipped with loading system. Specifications Grinding spindle motor 2.2 kW Control spindle motor 0.25 kW Coolant pump engine 0.2 kW Grinding wheels Ø max. 150 min. 120 mm Bore - Ø 50 mm Grinding wheel width up to 50 mm Control discs Ø max. 100 mm Bore - Ø 40 mm Regulating disc width up to 50 mm Workpiece Ø 0.1 mm – 10 mm Max. workpiece length for plunge grinding 50 mm Smallest regulating disc slide feed 0.001 mm Circumferential speed of the grinding wheel 25 / 35 / 50 m/s Circumferential speed of the regulating disc 6-94 m/min During dressing 143 m/min Accessories: AAG loading system "HF120" (Agathon patent), coolant basin The machine can be viewed by appointment in our factory in Krefeld. Price ACTUAL condition from stock: on request – Errors, changes and prior sale excepted –

Grinding wheel dimensions (od x id x width): 508 x 304.8 x 160mm, Ø min/max to be rectified: 1.5/75mm, Regulating wheel width: 160 mm, Regulating wheel dimensions (od x id x width): 304.8 x 190.5 x 160mm, Grinding wheel width: 160 mm, Maximum length to be rectified in plongeé: 160 mm, Grinding wheel head motor power: 11 Kw, Long: 2.015 mm, Width: 1.280 mm, Tall: 1.440 mm, Weight: 3.000 Kg

Grinding wheel dimensions (od x id x width): Ø 650 x Ø 304.8 x 500mm, Ø min/max to be rectified: 3/200mm, Regulating wheel width: 500 mm, No. of regulating wheel speeds: Infinitas, Min/max speed of regulating wheel (r.p.m.): 10 / 255 rpm, Regulating wheel dimensions (od x id x width): Ø 350 x Ø 203.2 x 500mm, Grinding wheel width: 500 mm, Maximum length to be rectified in plongeé: 500 mm, Grinding wheel head motor power: 75 Kw, Total power: 90 Kw, Voltage: 220/380V, Long: 2.300 mm, Width: 2.800 mm, Tall: 2.100 mm, Weight: 15.000 Kg

Grinding wheel dimensions (od x id x width): Ø 406 x Ø 203 x 200 mm, Ø min/max to be rectified: 1.5/100mm, Regulating wheel width: 200 mm, No. of regulating wheel speeds: infinite, Min/max speed of regulating wheel (r.p.m.): 0/450rpm, Regulating wheel dimensions (od x id x width): Ø 270 x Ø 140 x 200 mm, Grinding wheel width: 200 mm, Maximum length to be rectified in plongeé: 200 mm, Grinding wheel head motor power: 15 kW, Long: 2020 mm, Width: 1300 mm, Hight: 1420 mm, Weight: 4200 Kg

Key data: 1020 mm, 610 mm, 610 mm

Control Heidenhain ... TNC 530 Clamping table surface ... 1200x600mm Axis X ... 1020mm Axis Y ... 610mm Axis Z ... 610mm Spindle speed ... 10-12000 rpm Controlled axes... 3 cooling ... 20bar SK 40 Max. workpiece weight ... 500kg Main engine power ... 22kW Rapid traverse ... 40,40,36m/min Magazine spaces ... 30 Machine weight ... 6970kg L x W x H ... 2920x2820x2860mm The machine is in good condition, possible to test under power.

Key data: 1400 mm, 1200 mm, 1350 mm

A horizontal machining center from the manufacturer Mori Seiki NH 8000 DCG is offered here. The machine is in good condition and can be visited. Make: Mori Seiki Huzvdlw Type: NH 8000 DCG Year of Make: 2008 Control: Fanuc MSX-701III Specifications: Travel: X-axis 1400 mm Y-axis 1200 mm Z-axis 1350 mm B-axis rotary table 360x0.001° automaton. Tool changer with 60 tool positions Tool holder HSK 100 2-fold pallet changing system Pallet dimensions 800 mm x 800 mm max. tool length 800 mm max. tool weight 30 kg Spindle power 37 KW Max. spindle speed 8000rpm. IKZ cooling system

Flatbed panel and panel machining center equipped with three, four or five CNC axes. These CNC machines are suitable for the processing of solid wood panels – HPL – laminate boards such as FUNDERMAX® – chipboard – MDF boards – plastic boards (e.g. – PVC / PE) – synthetic resin boards and other boards and panels that can be tensioned by vacuum. The machines of the PLANUS series are offered with two different clamping options. - In version 1 - the material tension is done by vacuum on a synthetic resin plate - in version 2 - the material tension is also carried out by vacuum, but the suction blocks are located on tensioner bridges that can be moved lengthwise. Drilling – milling – sawing, all with one machine. The machines can be configured according to the customer's requirements. - Milling spindle drive power 11 kW to 18 kW - Tool holder in the SK30/SK40  ...

Key data: 800 , 400 , 400

CNC controller: Yasnac Axes X-axis travel mm: 800 Y-axis travel mm: 400 Z-axis travel mm: 400 Rapid traverse m/min: 36 Worktable Table dimensions mm: 800 x 400 Spindle Spindle speed rpm: 10.000 Tool system Tool holder: BT-40 Tool magazine slots: 20 Equipment Chip conveyor High pressure pump Rated power kVA: 58 Basic machine dimensions / weight Length mm: 2.355 Width mm: 3.447

Year of construction: 2009 CNC controller: Siemens 840D-Powerline Axes X-axis travel mm: 800 Y-axis travel mm: 800 Z-axis travel mm: 800 C-axis degrees: 360º (0,001) B-axis degrees: 0-190º Feed rates m/min: 60 Rapid traverse m/min: 60 Milling/turning table nc: Number of pallets: 2 Table dimensions mm: Ø800x630 Max. workpiece weight kg: 1000 Table rotation speed rpm: 8000 max. torque Nm: 980 Spindle Spindle speed rpm: 10000 Spindle drive power kW: 44/32(40%ED/cont) Spindle torque Nm: 288/187 Cooling Cooling through the Spindle Center bar: 40 Tank capacity: 980 Tool system Tool holder: HSK-A 100 Tool magazine slots: 180 Chip-to-chip time s: 4.5 Equipment Electronic Handwheel Chip conveyor Infrared probe Rinsing gun Operating mode 4 blowing air through spindle center selectable via M-function Signal lamp 3D quickSET  ...

Sheet metal splitting and cut-to-length line for processing sheet metal coil material Max. width: 1,250 mm Min. width: 250 mm Sheet thickness steel up to 400 N/mm²: 0.4 – 1.25 mm Sheet thickness stainless metals up to 550 N/mm²: 0.4 – 0.9 mm Sheet thickness aluminium and copper: 0.5 – 1.5 mm Min. sheet cutting width: 60 mm /15 mm from coil outer edge Max. cutting speed: 30 m/min adjustable Cutting accuracy: Class "m" DIN/ISO 2768 (± 0.8 mm/m) Current: 3PH 400-488V AC/n/PE-11kW/16A (300mA fuse) Compressed air: 25 l/min (short-term)-6 bar dry and filtered Dimensions: 1.6x2.5x1.3 m Weight: 1.5 t

Key data: 800 mm, 670 mm, 500 mm

High-speed milling machine for graphite machining Year of manufacture 2004 with a lot of accessories such as collets, graphite vacuum cleaners, etc.

Table clamping surface: 750 x 450 mm Travel x/y/z: 600/400/600 mm Spindle mount: SK 40 ISA small/large distance table/spindle: 90/690 mm Spindle speeds: 50 - 8000 rpm Number of tool locations: 24 pieces electr. Connection: 380 V, approx. 15 kVA kW Space requirement: 2500 x 2500 x 2800 mm Weight: 3200 kg

axis stroke (X,Y,Z): 550 x 300 x 425 mm Number of spindle head vertical: 0 St. Number of spindles head horizontal: 0 St. Number of tools: 0 St. Dust suction hood: --- mm Number of milling agregates: --- St. working dimensions: --- mm Year: 1998 Boring power: --- mm Speed of boring spindles: --- U/min. Speed: --- U/min. Required air-pressure: bar Diameter of the saw arbor: mm total power requirement: kw Weight: kg Dimensions (L/W/H): mm Motor output: kW Capacity: kg/h Sawing unit: Sawblade tiltable: ° Saw blade diameter: mm Control: Siemens Sinumerik The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Table clamping surface: 765 x 400 mm Travel x/y/z: 650/410/510 mm Spindle holder: BT 40 small/large distance table/spindle: approx. 90/690 mm Spindle speeds: 80 - 8000 rpm Number of tool positions: 20 pieces Feeds: approx. 30 m/min Rapid traverse: approx. 30 m/min electr. Connection: 380 V, approx. 15 kVA kW Space requirement: 2300 x 2100 x 2650 mm Weight: 4000 kg

Inv. Num. : 7681 Type: SABRE 1000 Producer: Cincinnati Milacron Generated: Parameters: Control system: HEIDENHAIN TNC 426CB X-axis travel: 1016 mm Y-axis travel: 508 mm Travel Z-axis: 558 mm

Key data: 450 mm, 300 mm, 270 mm

Manufacturer: Kira Type: PC-30 EA Condition: very good Year of Make: 2008 X-axis: (mm) 450 Y-axis: (mm) 300 Z-axis: (mm) 270 Spindle speed max.: (rpm) 10,000 Max. thread slitting: (rpm) 5,000

Key data: 1000 mm, 950 mm, 1000 mm

Okuma MA-600 HB Space Centre Control OSP E 100M Pallet dimensions 630 x 630 mm Number of pallets 2x X-axis travel 1000 mm Y-axis travel: 950 mm Travel of the Z-axis 1000 mm Indexation of Table 1° Spindle holder MAS BT 50 Spindle speed 12,000 rpm Spindle motor 37/26 kW Positions in Tool Magazine 60 If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other ads for a full overview of our stock.

Dear Ladies and Gentlemen, We have the following machine to offer: OKUMA EUROCENTER V50 Year of Make: 2002 Control: OSP U10M Machine hours (spindle running time): 18,074 Without vises and chuck

Dear Ladies and Gentlemen, we currently have a Mazak VTC 20 B, for sale. It is fully functional and can be visited at any time.

Robot Laser Welding and Cutting Cell / Laser cutting and welding cell Year of manufacture 2018 Wenige Arbeitsstunden / not many working hours Robot Fanuc M-710iC/70 Control CNC: Fanuc R-30iB) + MFP Payload / lifting max: 70 kg Repeatability: ± 0.04 mm Working range: 2050 mm IP54 Fiberlaser source: IPG Photonics Model YLS-4000-S2T-Y16 Power: 4kW Cooling system. Two outputs optical and permanent connections of welding and welding Laser Cutting Heads / Two outputs optical and permanent connections of welding and laser cutting heads. Source dimensions: 856 x 806 x 1206 mm; Weight / weight: 330 kg; Power supply: 400–460 V/3P + PE at 50–60 Hz; Operating current at: 4000 W and 400 VAC: 20 A Laserschneidekopf / laser cutting head: HIGHYAG BIMO-FSC Laserschweißkopf / laser welding head: IPG Photonics. FLWO-D30 Vertical Welding: Fronius 7000 Doppe ...

CNC Machining Center Manufacturer: MORI SEIKI Type: Partner M300 A-1 Year of Make: 1990 Control: FANUC O-M Travels: X/Y/Z: 400 x 300 x 495 mm Distance between spindle center and pallet table (Y-axis) 25 – 325 mm Distance between spindle nose and pallet table (Z-axis) 125 – 620 mm Rapid traverse movement: 24 m/min Feed movement up to 5 m/min Spindle: Ball screw: 36 mm diameter Feed Actuators FANUC AC X/Y-Axis Model 5 Z-Axis Model 10 Main spindle revolutions: 100 – 6000 rpm Main spindle motor: AC 5.5 kW Main spindle taper: BT 40 Pallet: Pallet size: 315 x 315 mm Pallet Indexing Angle: 7.5 degrees Indexing accuracy: +/- 2 sec. Repeatability: +/- 1 sec. Clamping force of the pallet: 3,400 kg Max. workpiece weight: 150 kg Automatic Tool Changer: Number of Tools 30 Tool change 2.5 sec. Collets Clamping Time 7 sec. Tool diameter max.: 110 mm Too ...

Key data: 1050 mm, 530 mm, 510 mm

Inv. Num. : 7734 Type: VCS 530 Producer: MAZAK Created: 2015 Parameters: Control system: MAZATROL MATRIX 2 Work table length: 1300 mm Work table width: 550 mm Number of synchronized axes: 3 Maximum table load (uniform): 1200 kg Number of stacking positions: 30 Speed: 10-1000 1/min X-axis travel: 1050 mm Y-axis travel: 530 mm Z-axis travel (spindle and pinola): 510 mm Cone: ISO 40 IKZ: 15 bar Machine weight: 7700 kg Equipment: Tool probe Workpiece Probe Oil Mist Separator IKZ Oil mist extraction Number of pallets: 2
