Code: 0480
Brand: CASADEI INDUSTRIA
Model: K 60 PM - CE Standard

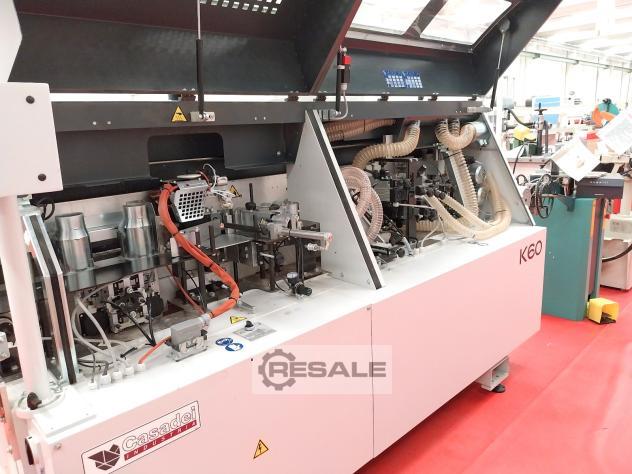

Automatic edge bander with trimming unit for panels, furniture,
furnishings, kitchens, and various - Year 2024 - CE Standard
Technical data:
Min/max panel height 8–60
Edge thickness10 mm
Min panel length 120 mm
Min panel width 110 mm
Panel feed speed 11 mt/min
Panel support roller opening 500 mm
Configuration:

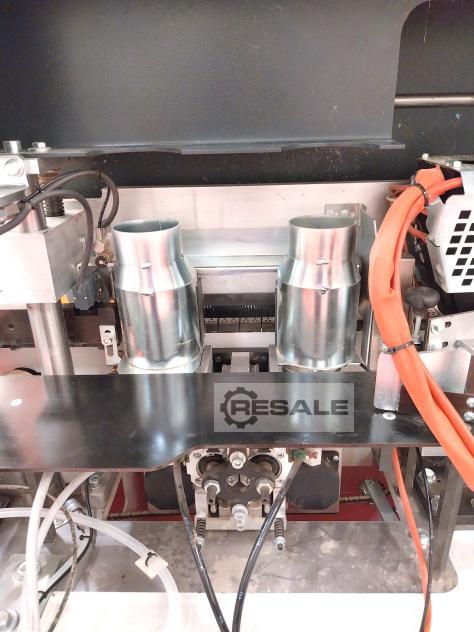

Infeed trimming unit : 2 diamond cutters diameter 60 mm 64 mm height
- PLC-controlled work cycle - Adjustable material removal from 0 to 2
mm with digital display - HF motors, 200 Hz - 12000 rpm - 1,1 Kw
each
PLC-controlled logic operation - Full machine control - Electronic
glue heating control - Automatic temperature standby
Infrared lamp for preheating the panel after pre-milling
Anti-adhesive liquid spray unit
Glue tank - Tank capacity 2 kg - n° 7 electric heating elements
Pressure rollers with digital position indicator
Automatic edge feed

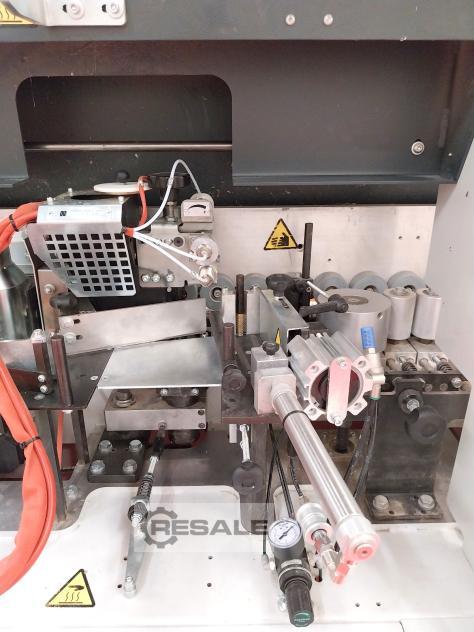

Pneumatic shear for cutting rolls up to 3 mm

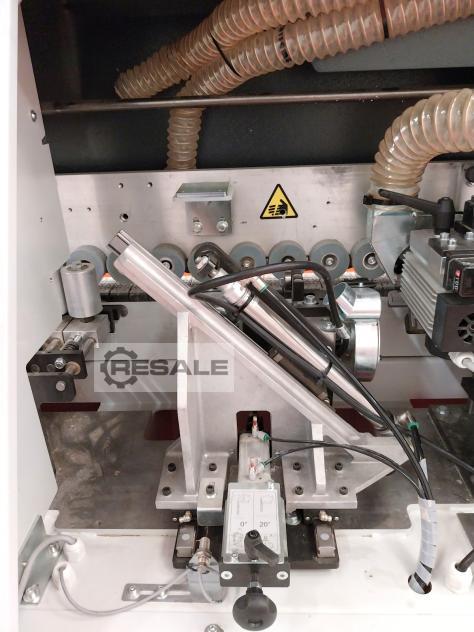

Automatic front and rear trimming unit - Motor 0,27 Kw - 12000 rpm
Tiltable trimming unit with Z4 cutters - Motor power 0,50 Kw - 12000
rpm
Edge scraper unit: Widia blades - Digital displays
Glue scraper unit: adjustable adhesive removal with Widia blades
Brush unit - Motors 0,13 Kw - 3000 rpm - Brush diameter 120 mm
Soundproof protective cabin
Operating air pressure 6,5 bar
Suction connection ports: n° 1 diameter 120 mm - n° 2 diameter 80
mm
Overall dimensions mm 3200 x 1000 x 1450 h
Weight kg 780
Italy
