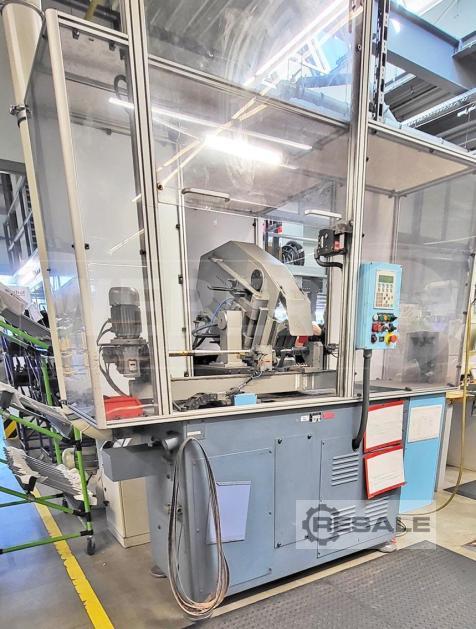

Belt grinding unit for machining the side surfaces of the workpiece
with pneumatic belt tensioner.
Specifications:

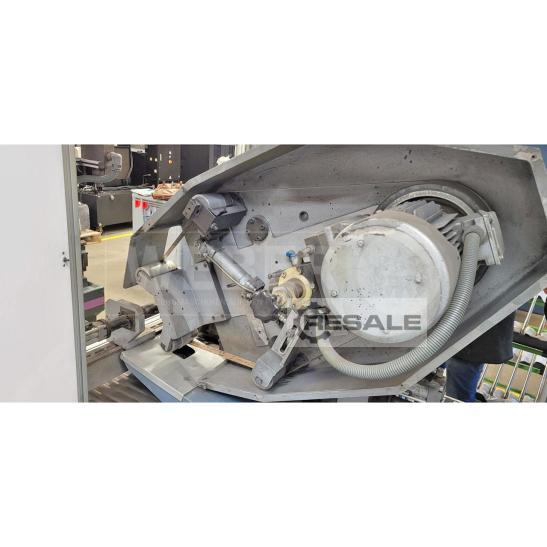

Belt grinding unit:
- Tilt device from -1° to +15°
- Strap size 2500 x 100 mm
- Cutting speed 18/36 m/s
- Motor 3.7/4.4 kW
- With protective cover and nozzle ø 120 mm for hose connection to
the dedusting system

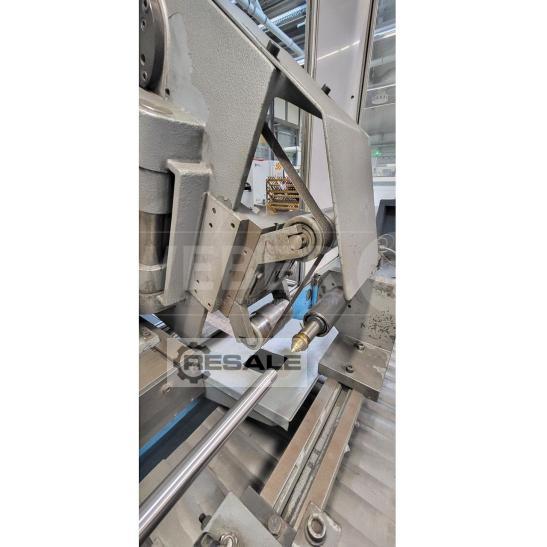

- Two-roller device for free belt grinding. Roller diameter 75 mm,
wheelbase adjustable from 225 - 320 mm
- Swivelling horizontal slide, travel 130 / 220 mm, actuated by
handwheel
- Fixed bracket for grinding unit
- Feed device, pneumatically controlled, travel 5 - 20 mm

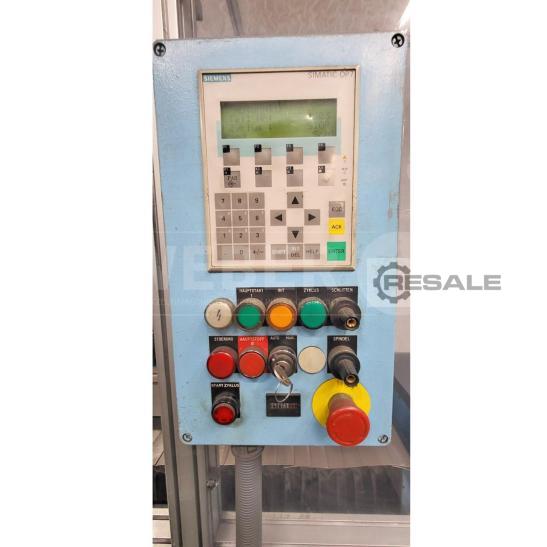

Table unit:
- Linear workpiece carrier table with autom. W51245297 Feed, travel
700 mm, clamping surface 300 x 250 mm, working speed from 15 - 150
mm/s, working path freely programmable by the automatic machine
- Track crawler for cable duct for electrical cables and pneumatic
hose
- Clamping of the workpieces via spring, relaxation via pneumatic
cylinder
