briquette press used for sale

pressure:30 t throat:110 mm stroke:50 mm no. of strokes:35 - 80 /min distance table/ram, max. stroke up, adjustment up:230 mm table surface area:410 x 260 mm table height over floor:790 mm passage to the back:170 mm ram surface:190 mm ram adjustment:35 mm weight:1,3 t dimensions (WxDxH):1,0 x 1,1 x 1,8 m German Safety: moving screen:UVV 11.062 - VBG 7n5.1 § 6

pressure:160 t distance between columns:1360 mm stroke:300 mm Distance table/ram, max. stroke up, adjustment up:620 mm table surface area:1300 x 900 mm table height over floor:950 mm side window:640 mm ram surface:1300 x 900 mm power requirement:45,0 kW weight:16,0 t Dimensions (WxDxH):2,5 x 2,1 x 4,1 m cutting impact cushioning:hydraulic

pressure:600 t distance between columns:3640 mm stroke:350 mm no. of strokes:11 - 44 /min Distance table/ram, max. stroke up, adjustment up:1550 mm table surface area:3600 x 2500 mm sliding table:3600 x 2500 mm ram surface:3600 x 2500 mm Side window:2200 mm ram adjustment:400 mm material width coil line:500 - 1950 mm Material thickness at 1200 mm material width:0,6 - 2,5 mm Material thickness at 1850 mm material width:0,6 - 2,0 mm Material thickness at 1950 mm material width:0,6 - 1,75 mm Coil weight:35,0 t coil internal diameter:610 mm coil external diameter:900 - 1900 mm no. of straightening rolls:13 straightening roll diameter:50 mm Stack height:400 mm stacking dimensions - station 1+2 (L x W):150-2000 x 250-2000 mm stations:2 power requirement:112,0 + 35,0 kW Weight:390,0 t Dimensions (WxDxH):7,3 x 5,1 x 15,0 m Height above floor:9,1 m Height below floor:5,9 m clutch-/ brake combinat ...

pressure:315 t distance between columns:1290 mm stroke:700 mm distance table/ram, max. stroke up, adjustment up:950 mm table surface area:1250 x 1100 mm pressure of drawing cushion in table:125 t stroke of drawing cushion in table:300 mm die cushion area:900 x 900 mm Capacity of ejector in ram:20 t Stroke of ejector in ram:250 mm table height over floor:800 mm ram surface:1250 x 1100 mm oil volume:1200 l power requirement:40,0 kW weight:22,0 t dimensions (WxDxH):2,6 x 1,6 x 5,2 m height over floor:4,05 m drawing cushion in table:hydraulic ejector in ram:hydraulic cutting impact cushioning:hydraulic

Pressure:40 t throat:330 mm stroke:250 mm distance table/ram, max. stroke up, adjustment up:450 mm table surface area:800 x 500 mm hole in the table:100 mm table height over floor:900 mm ram surface:100 mm Speed down:406 mm/s Speed up:393 mm/s Working speed:14 mm/s oil volume:350 l power requirement:7,5 kW weight:4,6 t dimensions (WxDxH):1,3 x 2,3 x 3,4 m German Safety: permitted for manual loading:CE-sign depth stop:mechanical

pressure:40 t throat:300 mm stroke:630 mm Distance table/ram, stroke up:900 mm Table surface area:620 x 520 mm Hole in the table:150 mm table height over floor:600 mm Ram surface:150 mm Power capacity:15,0 kW Weight:4,5 t Dimensions (WxDxH):1,0 x 1,9 x 3,0 m German Safety: permitted for manual loading:CE-sign

Pressure:080 t throat:345 mm stroke:20 - 160 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:495 mm table surface area:920 x 610 mm table height over floor:800 mm Hole in the table:280 mm passage to the back:670 mm ram surface:650 x 400 mm ram adjustment:50 mm power capacity:10,0 kW weight:7,7 t Dimensions (WxDxH):1,5 x 2,2 x 3,15 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:hydraulic ram adjustment:motoric

pressure:800 t distance between columns:1050 mm stroke:200 mm no. of strokes:8 - 25 /min distance table/ram, max. stroke up, adjustment up:1300 mm Side window:550 mm table surface area:1030 x 900 mm Capacity of ejector in table:15 t Stroke of ejector in table:85 mm ram surface:1040 x 800 mm ram adjustment:120 mm Capacity of ejector in ram:12 t ejector stroke in ram :80 mm power requirement:36,0 - 112,6 kW weight:65,0 t Dimensions (WxDxH):3,0 x 3,1 x 6,07 m ejector in table:hydraulic ejector in ram:hydraulic

pressure:315 t distance between columns:2350 mm distance table/ram, max. stroke up, adjustment up:1200 mm distance between cutting impact cushioning:1600 mm Distance table/ram, stroke up:1200 mm stroke:800 mm table surface area:2060 x 1260 mm table height over floor:750 mm Die cushion pressure in table:100 t Die cushion stroke in table:400 mm die cushion area:1250 x 1000 mm side window:780 mm ram surface:2200 x 1500 mm Capacity of ejector in ram:63 t speed down:500 mm/s speed up:310 / 410 mm/s working speed:20 - 73 mm/s quantity of oil:3900 l power requirement:80,0 + 45,0 kW weight:55,0 t Dimensions (WxDxH):4,6 x 2,7 x 7,2 m Height above floor:6,0 m Height below floor:1,2 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 die cushion in table:hydraulic ejector in ram:hydraulic ram interlocking:hydraulic cutting impact absorption:hydraulic

pressure:160 t throat:450 mm stroke:300 mm distance table/ram, max. stroke up, adjustment up:580 mm table surface area:1000 x 1000 mm die cushion capacity:20 t die cushion stroke:300 mm ram surface:700 x 750 mm feed down:400 mm/s feed up:400 mm/s table height over floor:1350 mm die cushion area:Ø 350 mm power capacity:55 + 11 kW weight:19,5 t Dimensions (WxDxH):1,5 x 3,5 x 4,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulisch depth stop:mechanisch

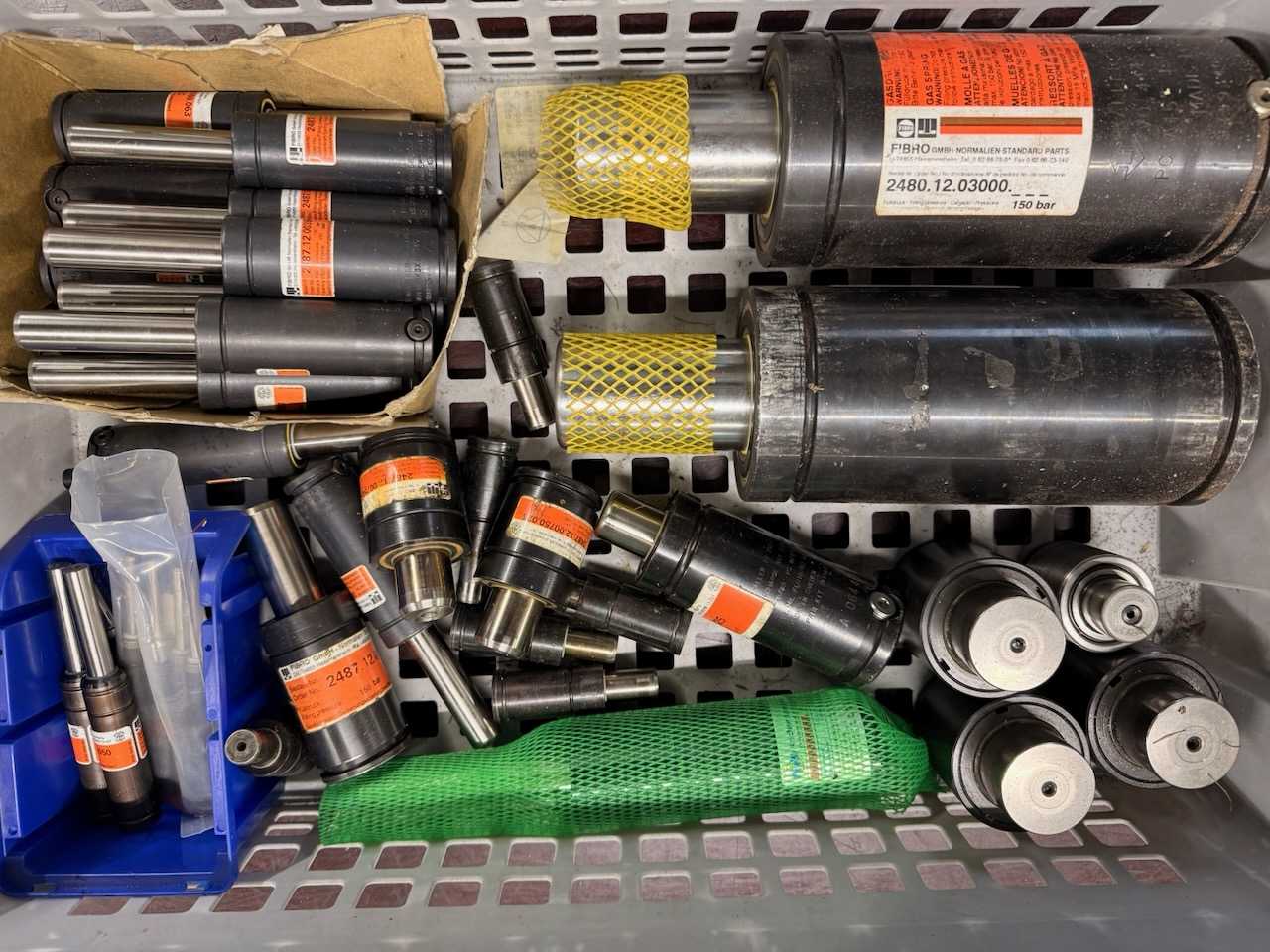

" mixed lot of gas struts / gas pressure cylinders for tool and mold making. It mainly contains branded components from FIBRO, plus Bordignon (High Performance Line) and other identical designs. The parts come from stock, mostly unused, partly with traces of storage or use. Several cylinders are still packed protected (net / bag). Scope of delivery • complete lot as shown • approx. 38 pieces of gas struts / cylinders (according to the marking) • incl. protective packaging • no individual sale • Manufacturer: FIBRO, Bordignon • Type: Gas Pressure Spring / Gas Pressure Cylinder • Filling Pressure: • 150 bar • 180 bar • Spring Forces (depending on model): • e.g. 350 daN • 550 daN • 750 daN • Versions: • Various diameters and lengths • Short and long designs • Article/order numbers include: • FIBRO 2480.12.03000 • FIBRO 2487.12.00350.063 • FIBRO 24 ...

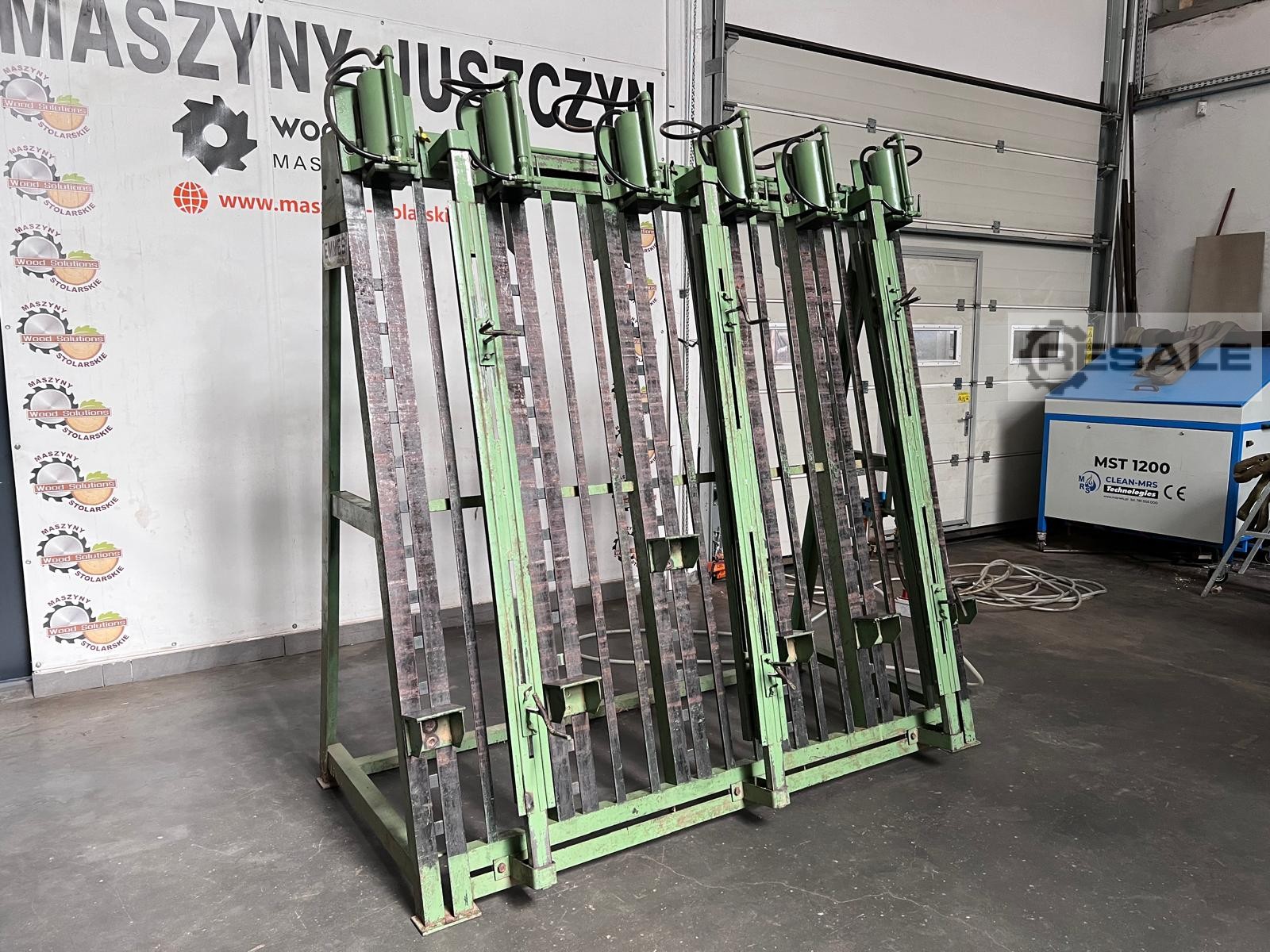

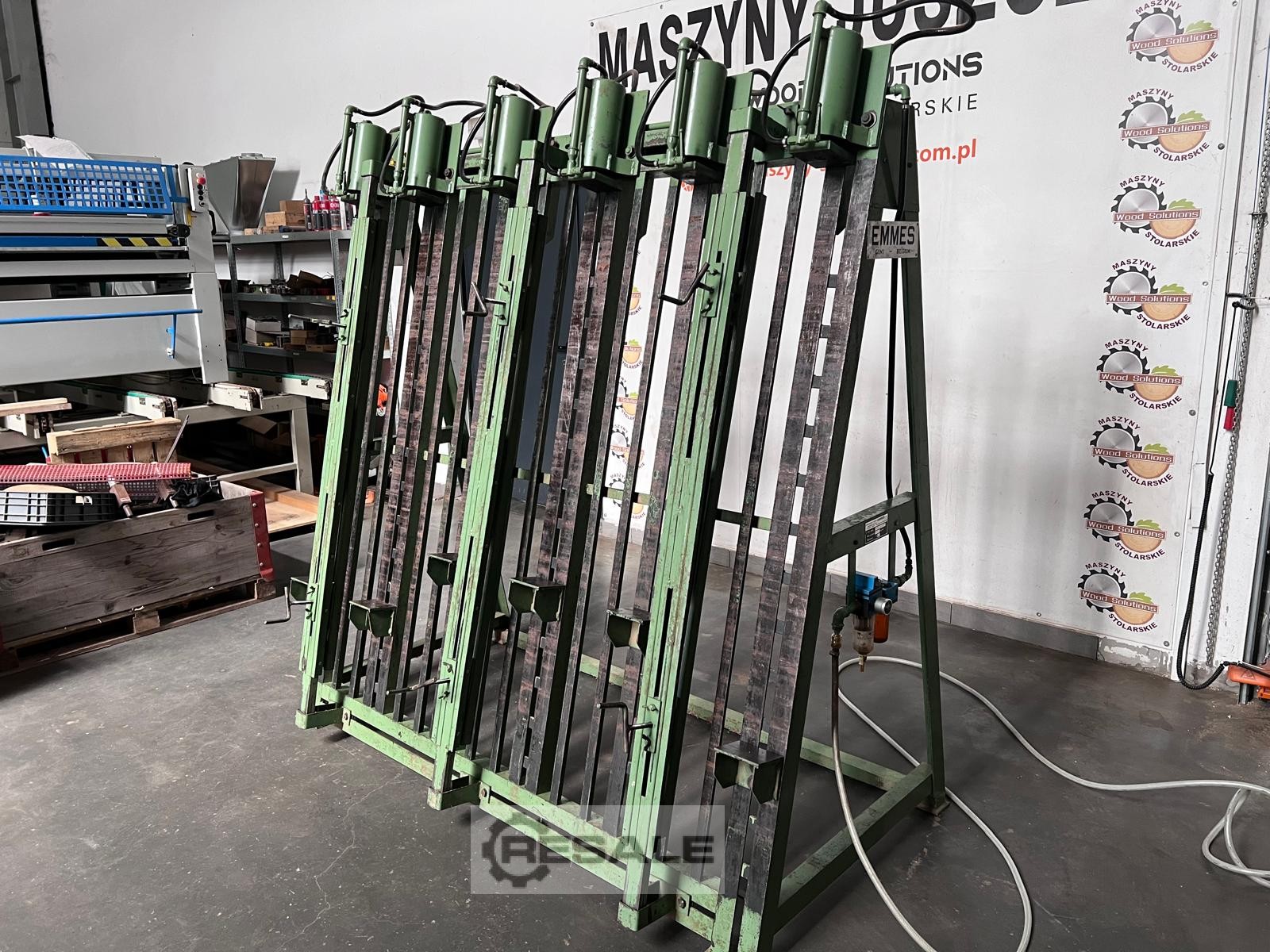

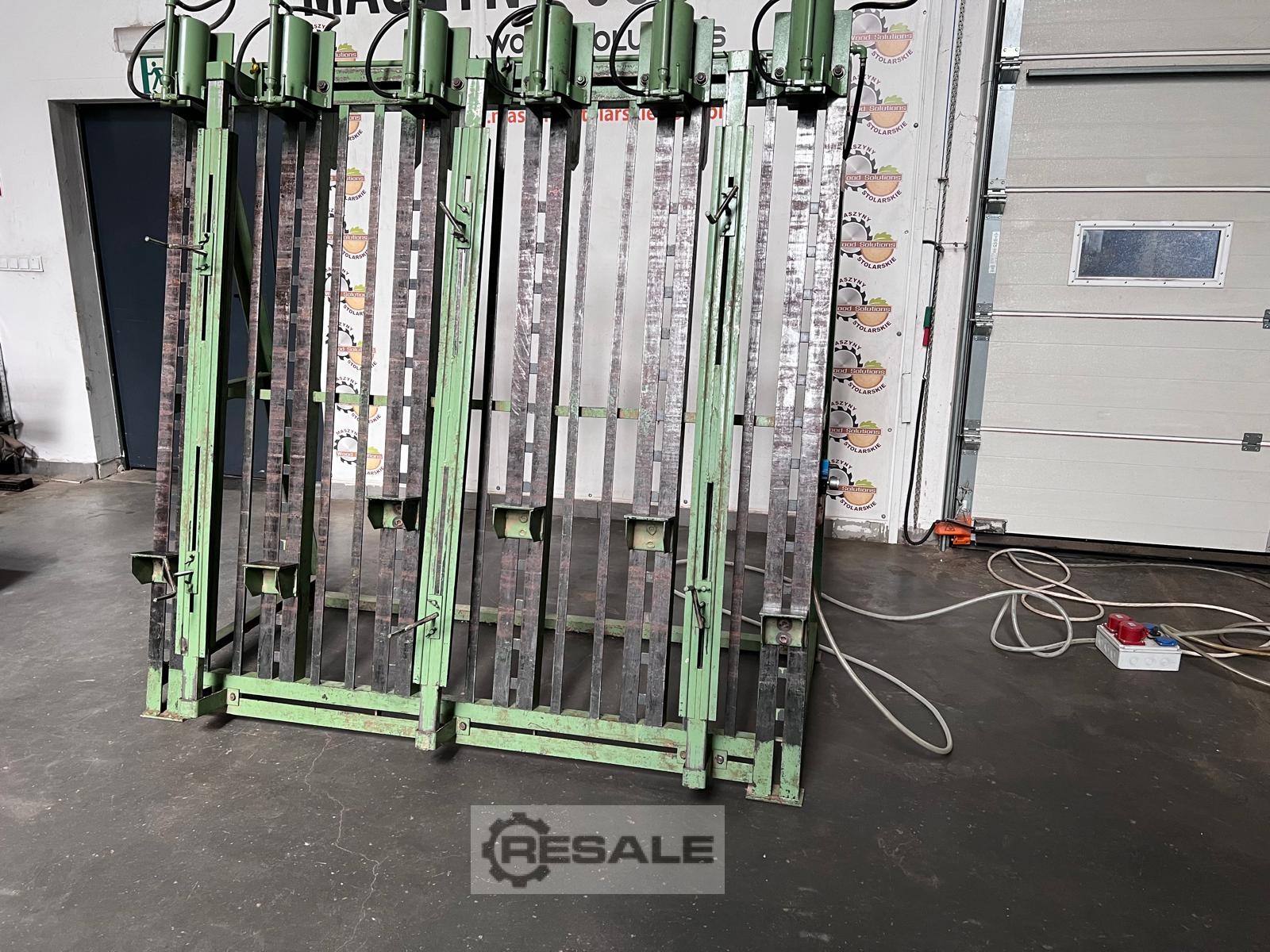

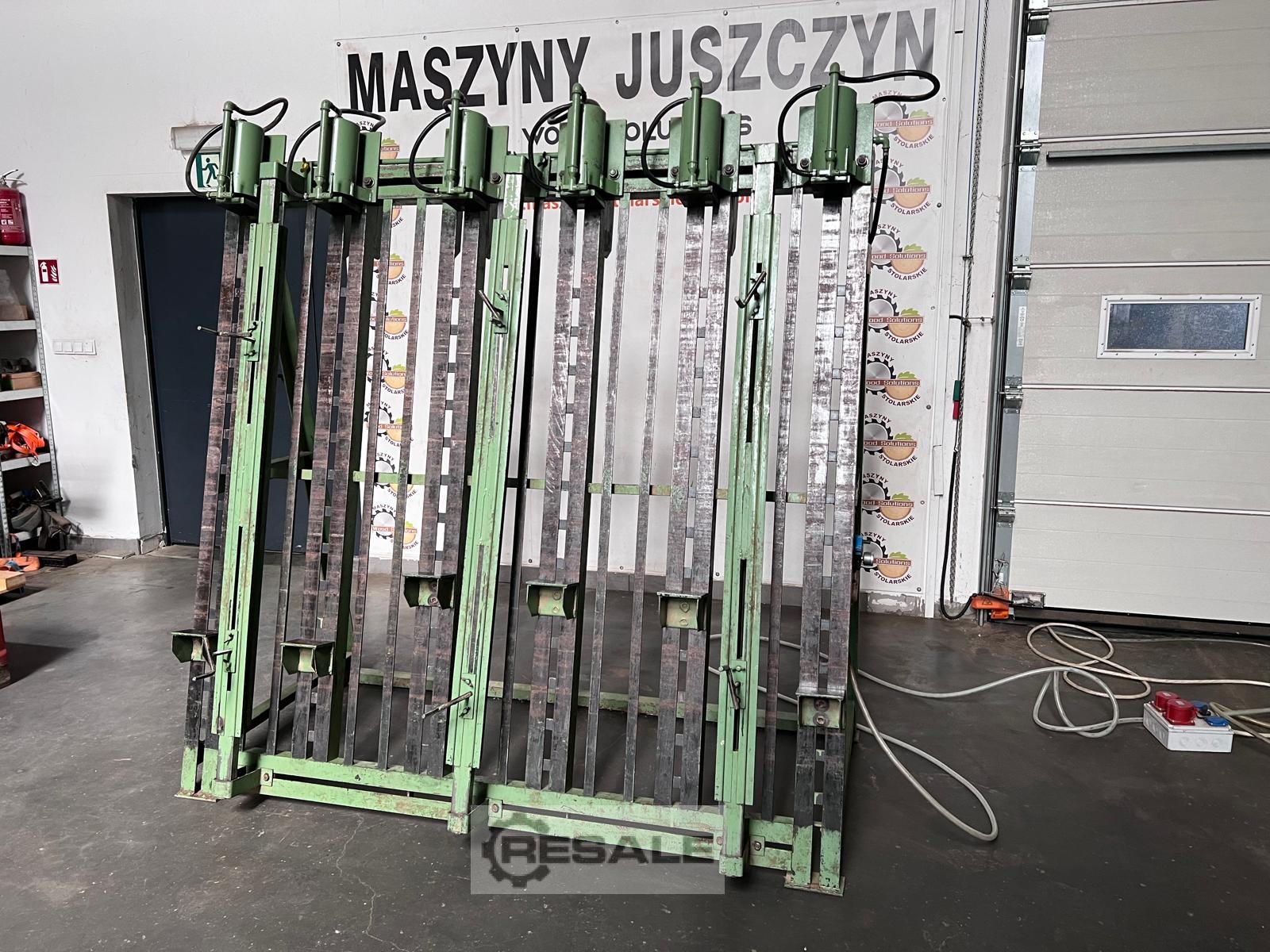

Block gluing press EMMES EPP 200 pneumatic Maximum gluing length 2000 mm Gluing height 1500mm Foot width 100mm Number of vertical clamps 6 Number of frontal clamps 3

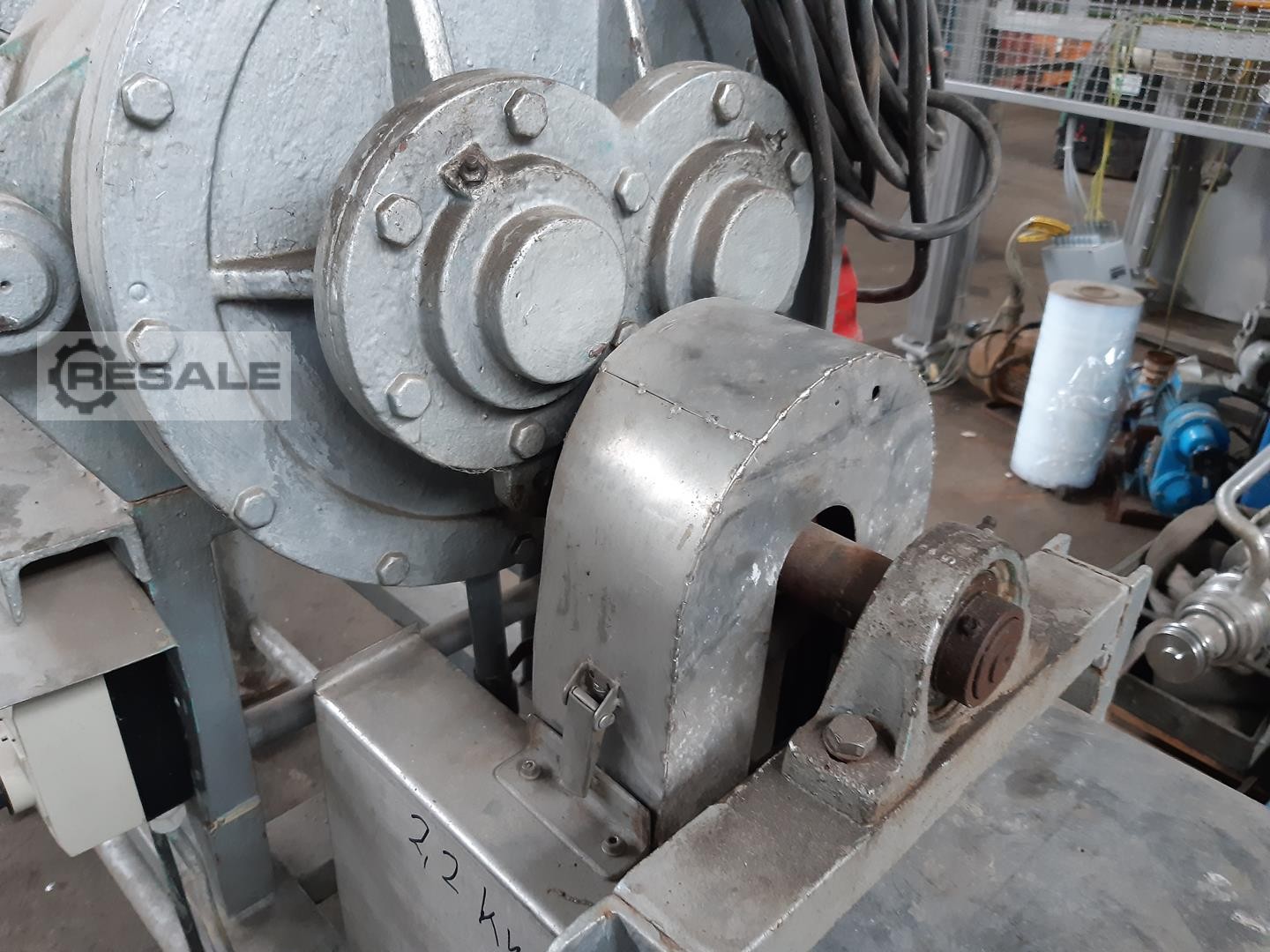

Screw Press Dewatering Press Sludge Press Screw Separator Used Manufacturer: IMC with 2 counter-rotating parallel screws Screw diameter approx. 150 mm Screws and sieves made of brass, residual steel Insertion funnel approx. 400 x 500 mm Drive via V-belt and gearbox approx. 60 rpm Engine: 2.2 kW 940 rpm 220/380 V Total dimensions: approx. 2300 x 700 x 1750 mm Changes and errors in the technical data, specifications and prices as well as prior sale reserved.
