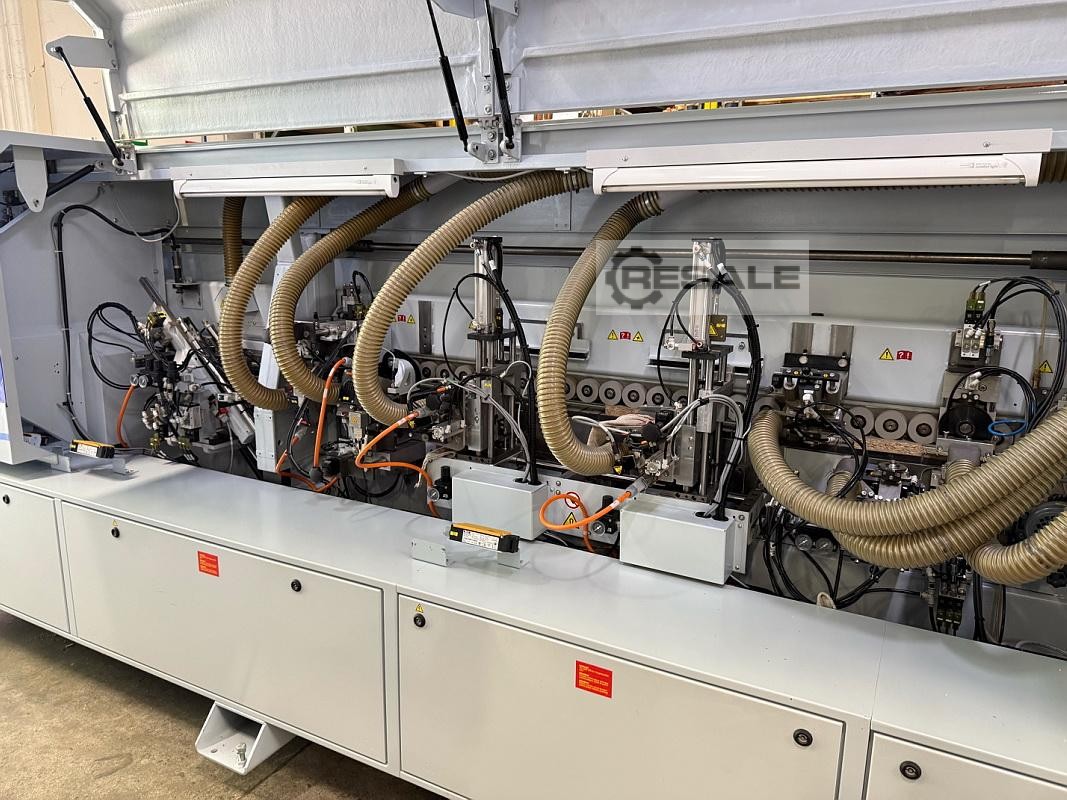

Edge gluing machines BRANDT KDF 650 HF1650

Single-sided edge banding machine for machining
of straight workpiece edges and for banding
and post-processing of various edge materials
in longitudinal and transverse passage.

OVERVIEW OF THE UNIT CONFIGURATION:
Electronic control POWER CONTROL PC 20+
PU top pressure rollers instead of rubber rollers
Optimization of workpiece spacing
Inlet ruler extension by 300mm with additional laminate overhang device
JOINING MILLING UNIT 2 X 2.2 KW 200 HZ
GLUING UNIT A12 with automatic edge retraction
– Quickmelt APPLICATION UNIT
– Standard application unit replaceable PU glue
– Pressure zone with motorized adjustment
QA 45 EVA application unit for all types of adhesives and quick changeovers
CROSS-CUT UNIT CHAMFER/STRAIGHT 2 X 0.35 KW
PNEUMATIC ADJUSTMENT CAPS CHAMFER/STRAIGHT
PNEUMATIC 2-POINT ADJUSTMENT CAPS
PRE-MILLING UNIT 2 X 0.55 KW counter-rotation
– with PNEUMATIC 2-POINT ADJUSTMENT (flush and radius/chamfer milling)
– Program adjustment side stylus rollers infinitely variable and edge thickness
– Multiple roll probing
MULTIFUNCTION MOULDING UNIT 2 X 0.4 KW with changeover device and quick-change heads
PROFILE SCRAPER BLADE WITH QUICK-CHANGE HEADS
Special button for profile scraper blade
PNEUMATIC ADJUSTMENT SCRAPER BLADE
GLUE JOINT SCRAPER BLADE
BUFFING UNIT
RELEASE AGENT SPRAY UNIT WORKPIECE
CLEANING AGENT SPRAY UNIT WORKPIECE
seller offer No. resale 170276594
