Overview This Kettner Blitzpac Junior E 3T bottle packer, manufactured in 2003, is designed for the automatic packing of PET bottles into beverage crates. The machine is configured for the 20 x 0.5 l crate format and is equipped with 4 packing units, each with 4 x 5 positions, matching the required 20-bottle crate layout. The system uses an automated gripper head / matrix gripper assembly to pick bottles from the conveyor lanes and place them into crates. The machine includes stainless steel lane guides, modular chain conveyors, SEW-Eurodrive gearmotors, pneumatic components and safety guarding with protective fencing and transparent panels. The machine is identified as Kettner Junior E 3T / Blitzpac Junior E 3T. Technical Data Manufacturer: Kettner GmbH / Krones Group Machine Type: Bottle packer / crate packer Model: Blitzpac Junior E 3T Year of Manufacture: 2003 Application: Packing of ...

Overview The GM Gera NAGEMA Arcade DS bottle washer was previously used in a brewery. There it was operated in single-shift operation. Since the sales volume has decreased, the beer of the brewery is now bottled at another location and this bottling line has become available. Due to the low number of operating hours and regular maintenance, the machine is in a very good condition. All basins and the machine body are made of stainless steel. Spare parts, such as bottle cells, are also still available. Furthermore, the main drive shaft, as well as the motor and gearbox were overhauled by SEW in 2018 and the carrier chain was replaced in 2015. The machine is still mounted and can also be demonstrated. Tech Specs: Capacity: 23,000 bph Cell pitch: 85 Bottles per row: 16 Dimensions + weights with attachments: 8640 x 4470 x 1920 mm / 17,900 kg Details: Standard drives Heating with steam Operati ...

Overview The bottle washer was previously used in a brewery. Due to the complete reconditioning in 2005 and continuously maintentance, the machine is in very good condition. All basins and the machine body are made of stainless steel. The machine is already disassembled and dry stored, so that it can be easily loaded and transported.  Tech Specs: Capacity: 6,700 bph Cell Pitch: 102 mm Bottles per row: 10 Dimensions + Weights: Housing: 7,200 x 1,300 x 2,850 mm / 13,500 kg Ready for operation with attachments: 7,790 x 3,450 x 2,950 mm / 20,000 kg YOM 1999 Formats: 0,33l 0,5l The Machine in Detail / Equipment Features: Heated by steam Pre Cleaning and removal of residual liquids by pulsed rinsing prior to washing CE certified Chemical Dosing Pumps Machine data sheet included High pressure pre rinsing Rotating Spray nozzles Single End Machine Label discharge rear right Finger discharge + ...

Overview The bottle washer was previously used in a mineral water factory. Due to the good maintenance, the machine is in good condition. All basins and the machine body are made of stainless steel. The machine is still working and will be free in early 2027, when the complete line is replaced. Tech Specs Capacity: 15,500 bph Cell Pitch: 95mm Bottles per row: 16 Dimensions + Weights: Housing: 8350 x 1,860 x 2,990 mm / 21,750kg Ready for operation with attachments: 8,700 x 3,560 x 3,330mm / 37,639kg YOM 2005 Formats: 0,5l 0,75l The Machine in Detail / Equipment Features Heated by steam Pre Cleaning and removal of residual liquids by pulsed rinsing prior to washing CE certified Chemical Dosing Pumps Machine data sheet included Rotating Spray nozzles Single End Machine Label discharge rear right Label press mounted to the machine Finger discharge + finger feed Bottle cells made of plastic C ...

OVERVIEW This Krones KES-2-4-312/25-110 bottle washing machine is designed for the industrial washing of returnable glass bottles in beverage production lines. The machine is equipped with 25 bottles per row and has a rated capacity of up to approx. 28,000 bottles per hour. The machine can process bottle formats from 300 ml up to 1,000 ml, making it suitable for breweries, mineral water producers, soft drink producers and other returnable bottle operations. The washing machine is mainly built in stainless steel, with an insulated stainless steel caustic bath and steam heating system. The machine will be delivered completely reconditioned. The reconditioning scope includes the bottle infeed and outfeed, heating system, pumps, main chain, valves, piping, spray nozzles, label removal station and electrical panel. A test run is also included. The machine is offered with Siemens S7 PLC contro ...

Manufacturer: Krones Model: Linatronic M, K735E02 Type of machine:empty bottle inspector Year of manufacture: 2015 Rated voltage: 400 / 230 V Current type and system: AC 3/N/PE Mains frequency: 50 Hz Full load current Ib max: 6 A Short-circuit strength: Icw 0.46 kA/1s Mains disconnecting device: Icw 0.46 kA/1s Backup fuse: 20 A Find more here - / Contact us at -

Overview  The bottle cleaning machine was built by the German company Krones in 2011. It was in operation at a large beverage producer until last and is still assembled.  Technical details  Capacity: 20,000 bph Formats: 0,25l and 0,75l Number of bottles per row: 22 Siemens S7 Equipment Label discharge  Rotary spraying  Continuous machine  Stainless steel body  Documentation  Software backup  Stainless steel pumps  Conductivity measurement  Finger task  Spare parts Bottle cell tips Bottle cell supports

Overview The bottle washer was manufactured by the German company Krones in 2013 and put into operation in 2014. It has been serviced annually. In addition, tenside lye cleaning and spare parts can still be purchased. DISMANTLING INCLUDED. Technical data  Capacity: 66,000 bph Maximum bottle diameter 69 mm Set up for the following formats:  Vichy 0,33l Long-Neck 0,33l Long-Neck 0,5l NRW 0,5l  Steinie 0,33l

Zummo orange press machine with bottle rack and bottles. Immediately deployable. Viewing by appointment. Auction-ID: A1-40285-147

Used KOSME rotary bottle filling machineTechnical Specifications & Performance DataThis rotary rinser-filler is engineered by KOSME for precise, reliable wine bottling within industrial packaging environments. The carousel configuration ensures consistent bottle handling and steady throughput suitable for beverage production, including second hand and used bottling line integrations.Machine type: Rotary rinser-filler (carousel)Manufacturer: KOSMEPrimary application: Still wine fillingProduction speed: Typically a few thousand bottles per hour (configuration-dependent)Bottle size range: Approx. 0.25L to 1.5L (typical 0.75L wine format)Containers: Glass bottlesFilling principle: Level-controlled gravity or light vacuum (light depression)Rinsing: Integrated rinser with three spray stagesProduct contact materials: Stainless steelEnclosure: Glazed, lockable safety guardingAdvanced Automation  ...

Manufacturer: Krones Model / Type: Linatronic 735 M2 Type of Machine: Empty bottle inspector Year of Manufacture: 2007 CAPACITY - Capacity: 39,600 bottles per hour ADDITIONAL EQUIPMENT - Glideliner, Akkutable, and some conveyor belts may be available Find more here - / Contact us at -

Left to Right uwemetzlerdingslebener.de 03687328415

Consists of: collective lot consisting of an OMFB FULCRO PMI25-S/5 hydraulic hand pump with double-acting hydraulic cylinder (stroke 400 mm) and hydraulic hoses, an AA-Lift electric wire rope hoist, an AirMe 12V air compressor and a hydraulic bottle jack, operation of the individual parts has not been tested, specifications (OMFB hydraulic hand pump, series: FULCRO Type: PMI25-S/5, code: 106-005-00046, manual hydraulic pump, stroke volume: 25 cm³ per stroke, oil tank capacity: 5 litres, maximum working pressure: 300 bar, including hydraulic hoses, hydraulic cylinder, double-acting version, stroke approx. 400 mm, including mounting eyes), (electric wire rope hoist AA-Lift, type: Ref. 78005, power supply: 230 V / 50 Hz, motor power: 530 W, lifting capacity: 125 kg (single cable), 250 kg (double cable), lifting height: 12 meters (125 kg), 6 meters (250 kg), steel cable Ø 3.18 mm, includin ...

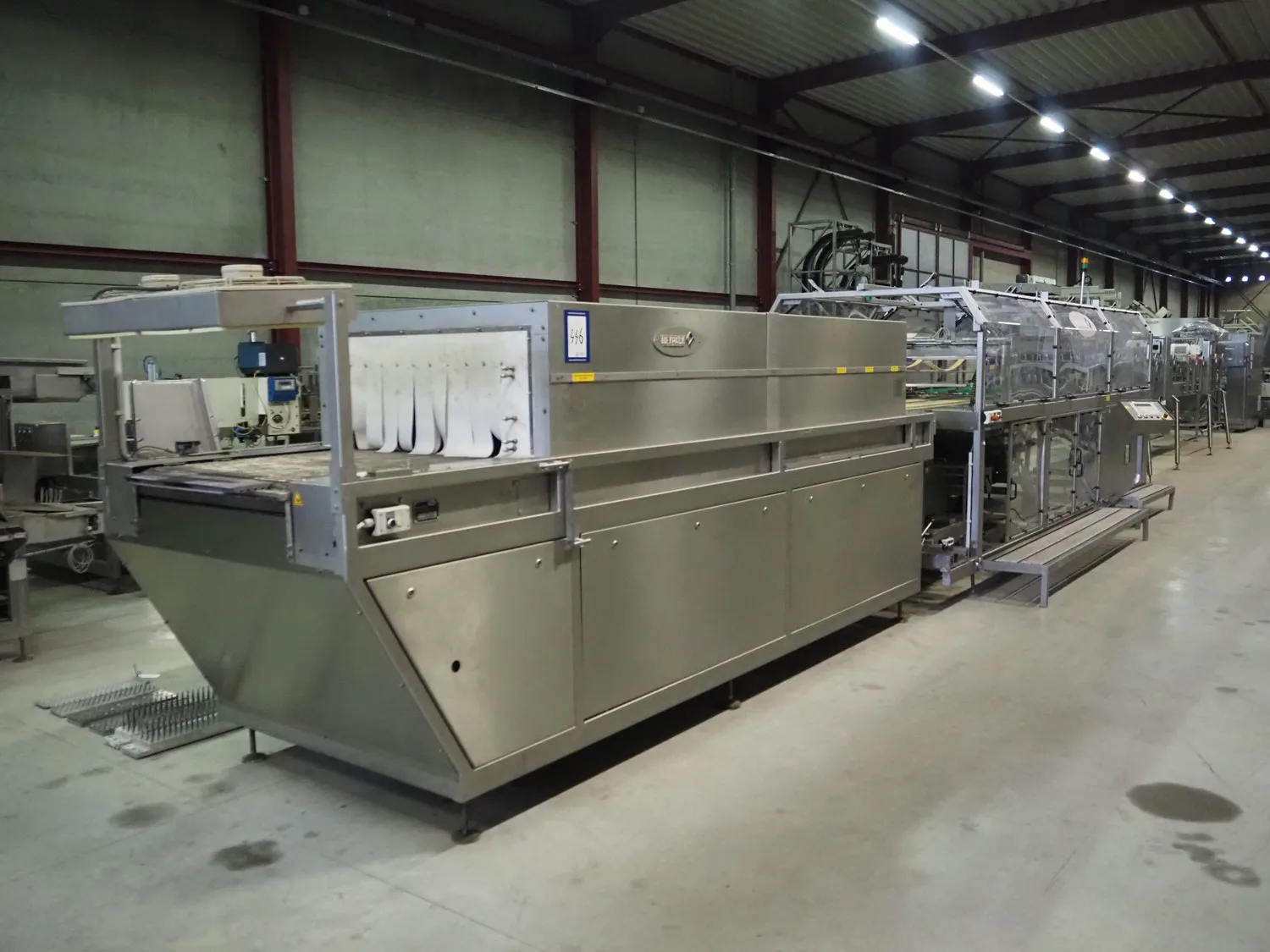

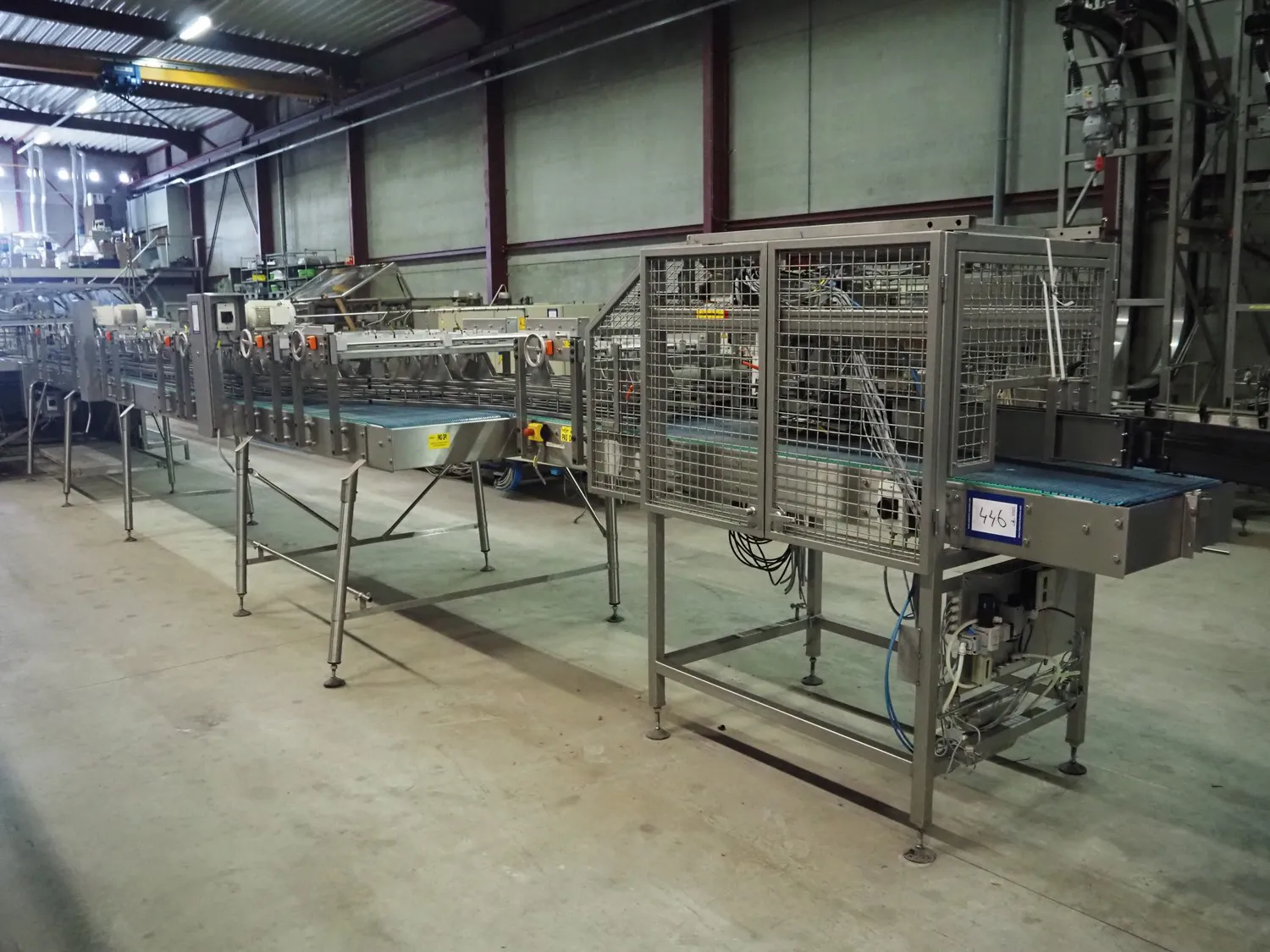

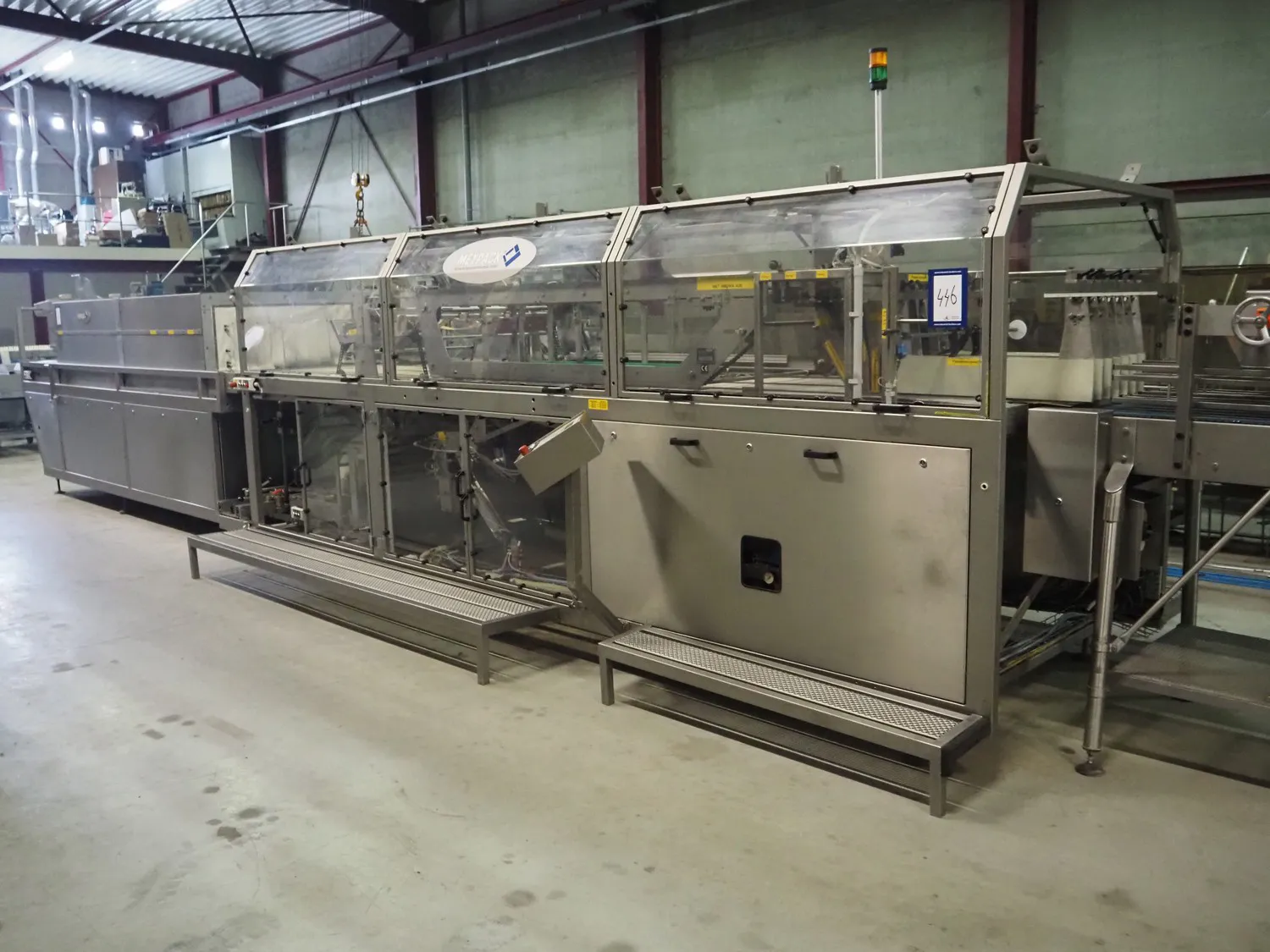

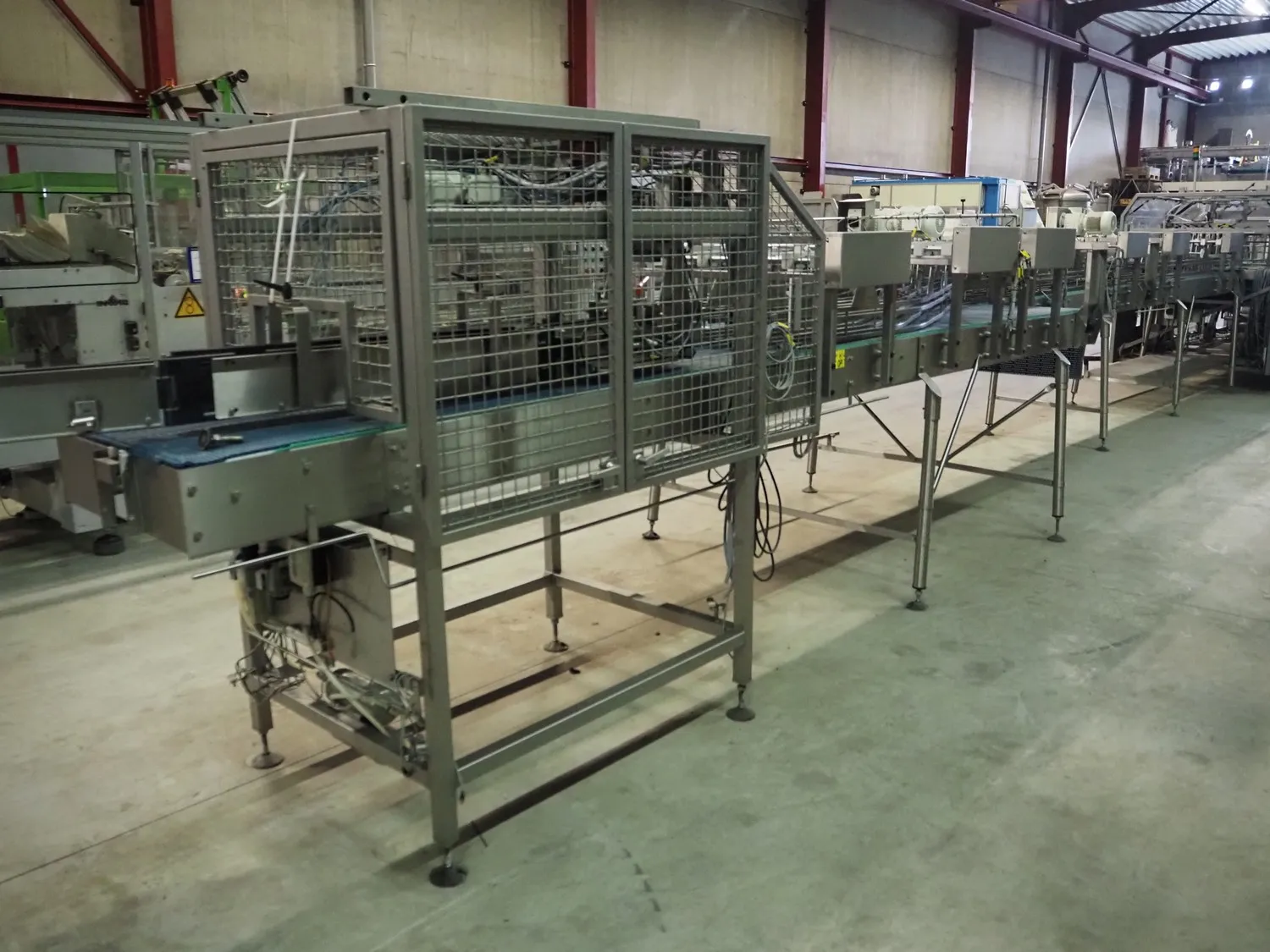

Meypack bottle packaging line consisting of divider/infeed belt, plastic mesh belt, belt width: 680 mm, 6 lanes, lane width: (6x) 85 mm, clearance: 85 mm x 280 mm, total dimensions: 1240 mm x 1600 mm x 2000 mm, Meypack shrink wrapper, model: SW90 M40-2, serial number: 858308, year of construction: 2003, s/s mesh belt, belt width: 900 mm, clearance: (6x) 65 mm x 230 mm, plastic buffer and outfeed belt, belt width: 800 mm, film width: 500 mm, total dimensions: 5700 mm x 2600 mm x 2200 mm, Meypack shrink tunnel, model: STU 10040-32, serial number: 853660, year of construction: 2003, s/s mesh belt, belt width: 950 mm, clearance: 950 mm x 350 mm, total dimensions: 4850 mm x1650 mm x 1950 mm, dimensions switch cabinet: 2400 mm x 650 mm x 2150 mm. Capacity: up to 40 cycles per minute.

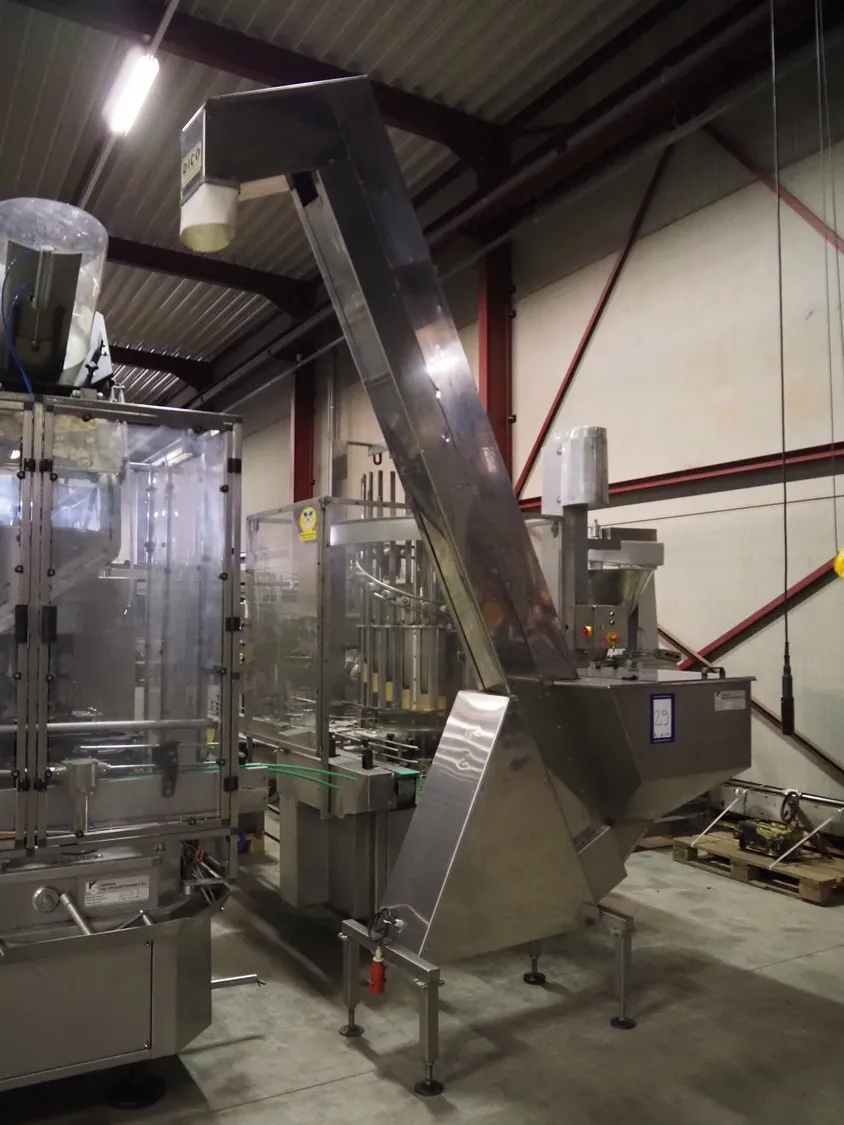

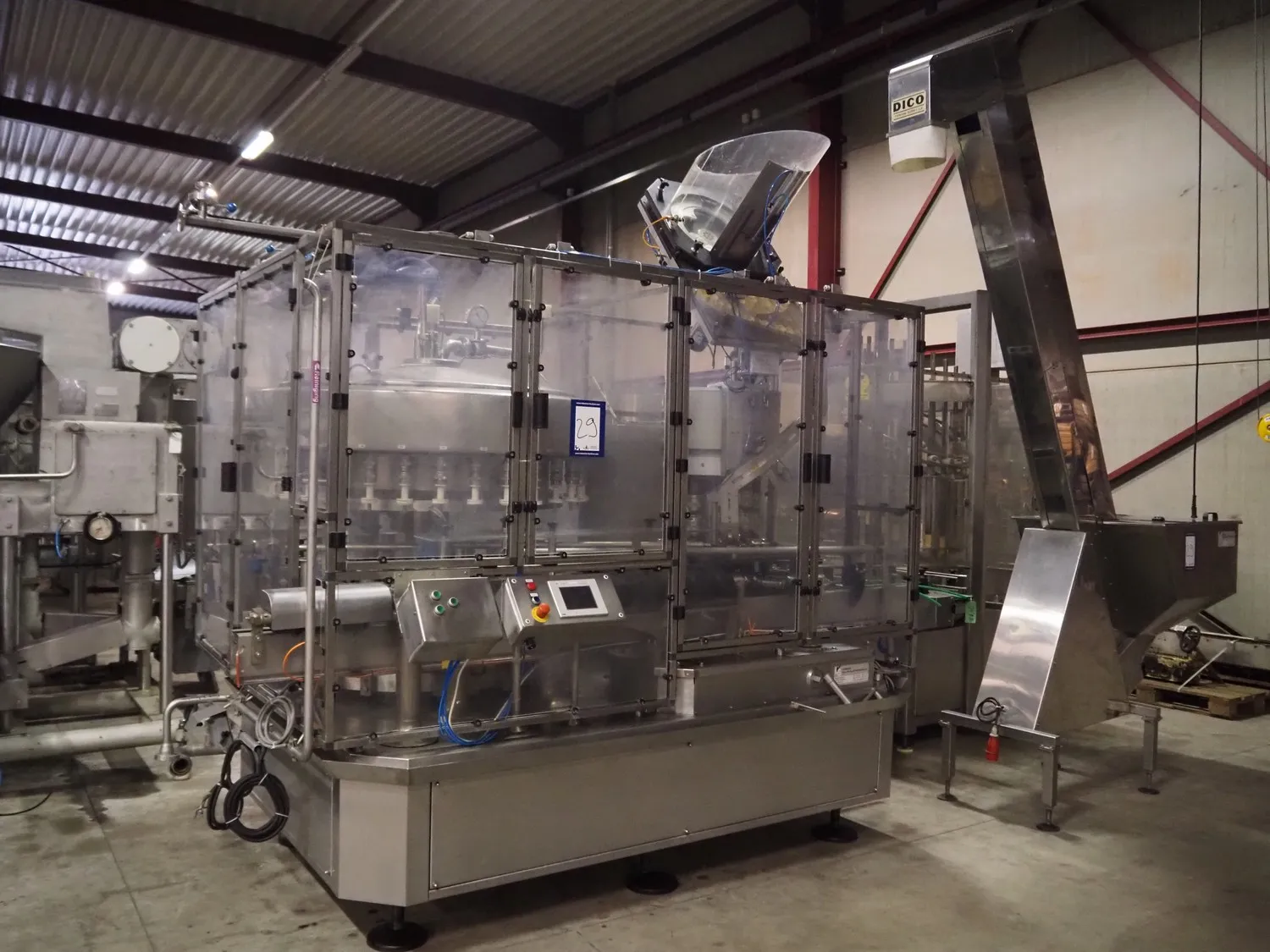

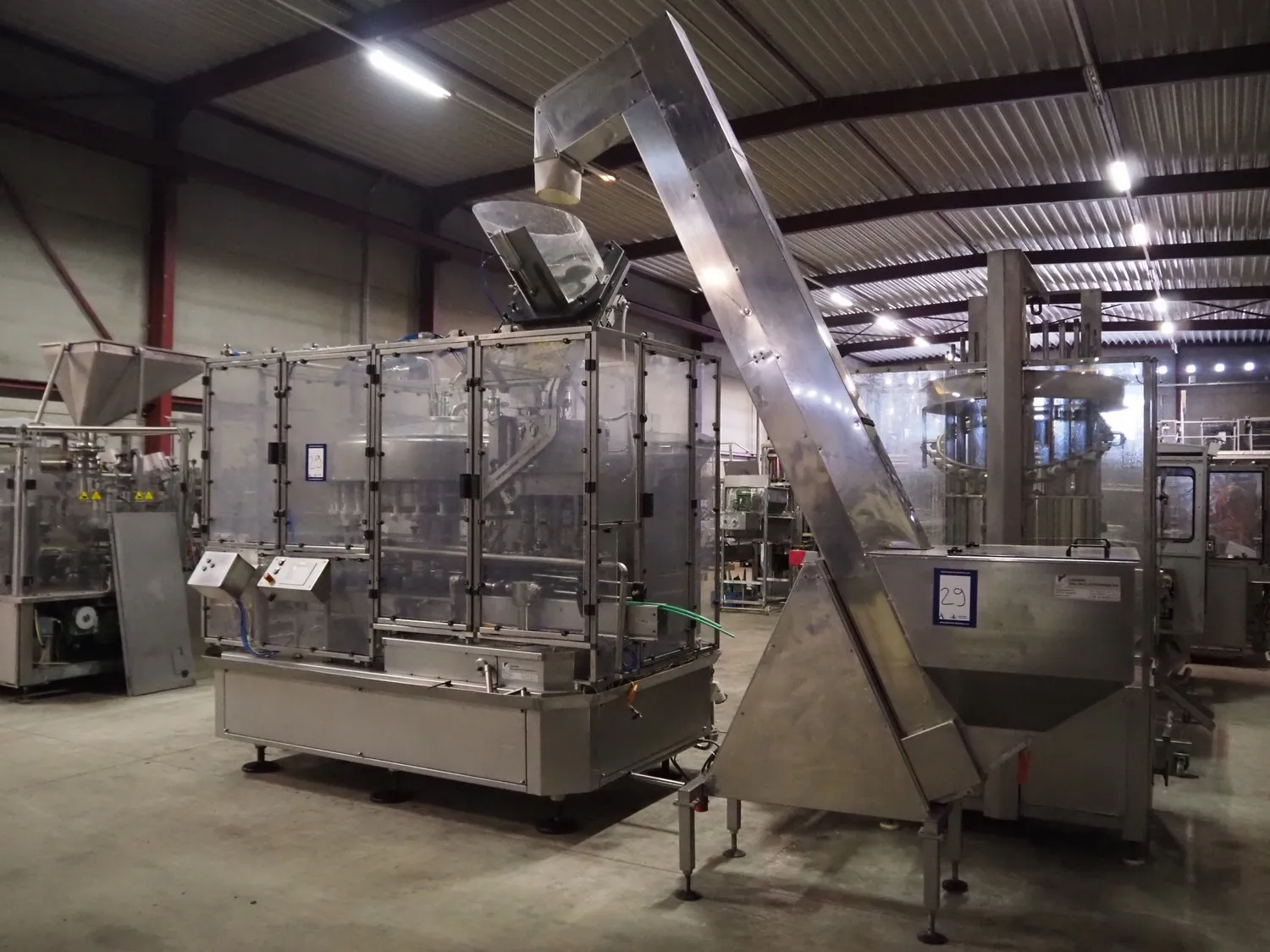

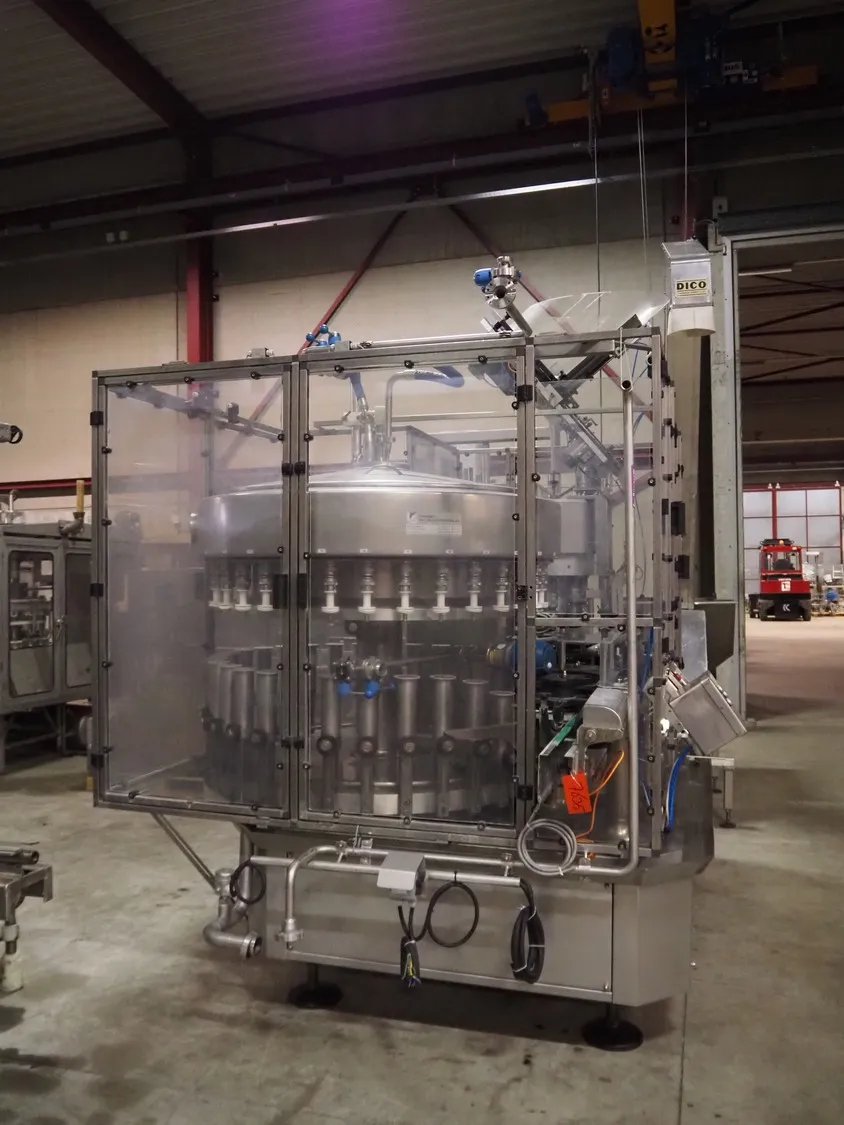

Stork/Alcoa bottle filling and closing machine with elevating belt, type filling and closing machine: 32 kops vuller + 8 kops sluiter, year of construction: 02-07-2008, dimensions: 3050 mm x 2300 mm x 3000 mm. Dico elevating belt, plastic belt, belt width: 200 mm, divider height: 55 mm, distance between dividers: 130 mm, total dimensions: 2450 mm x 800 mm x 3350 mm.
