boring used for sale

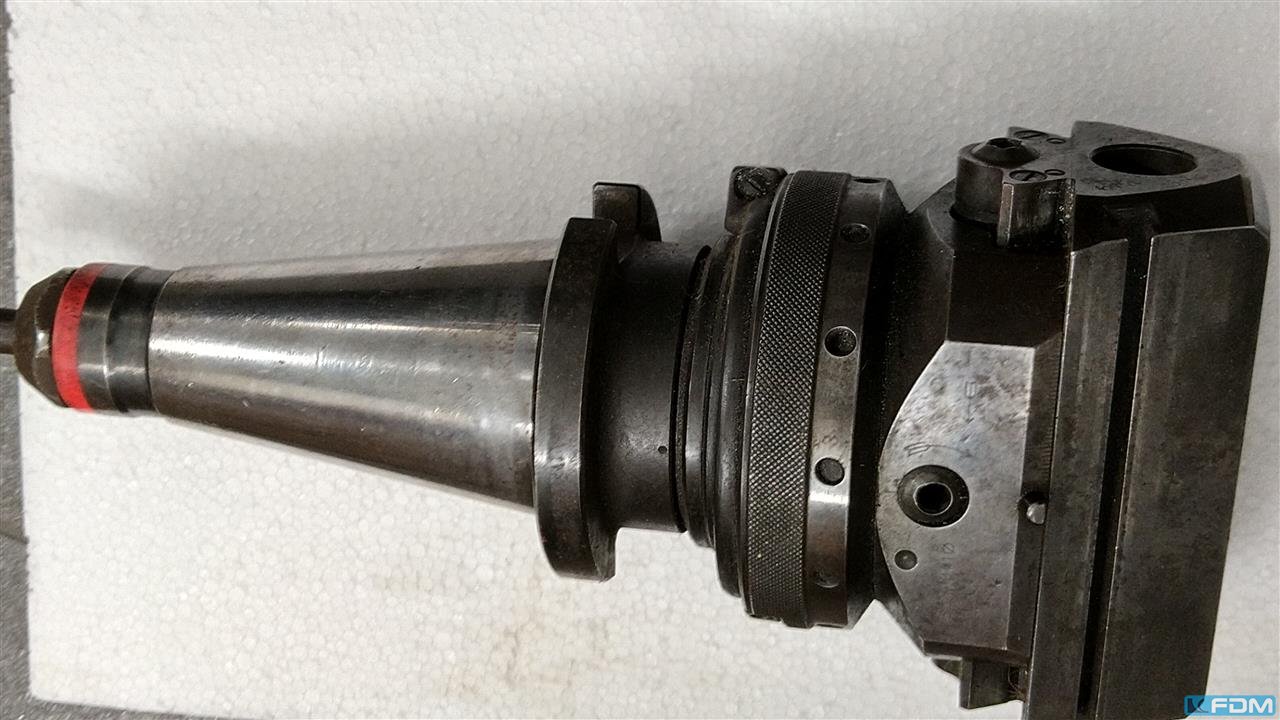

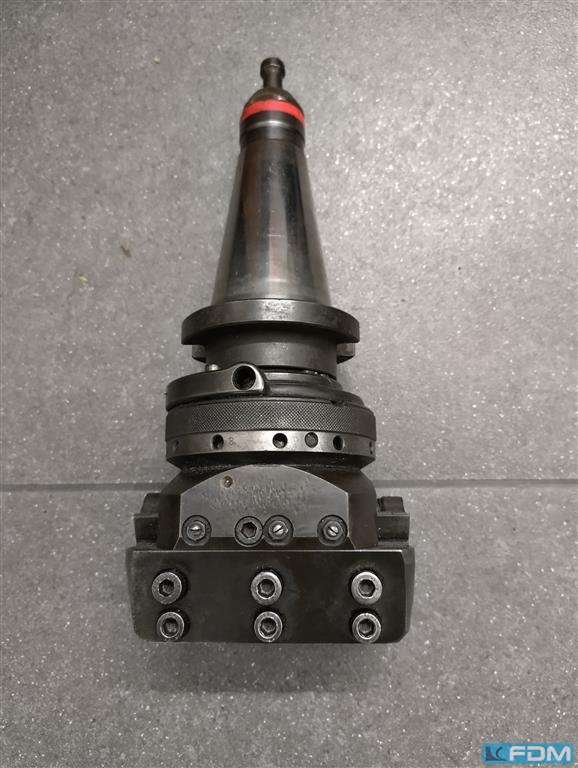

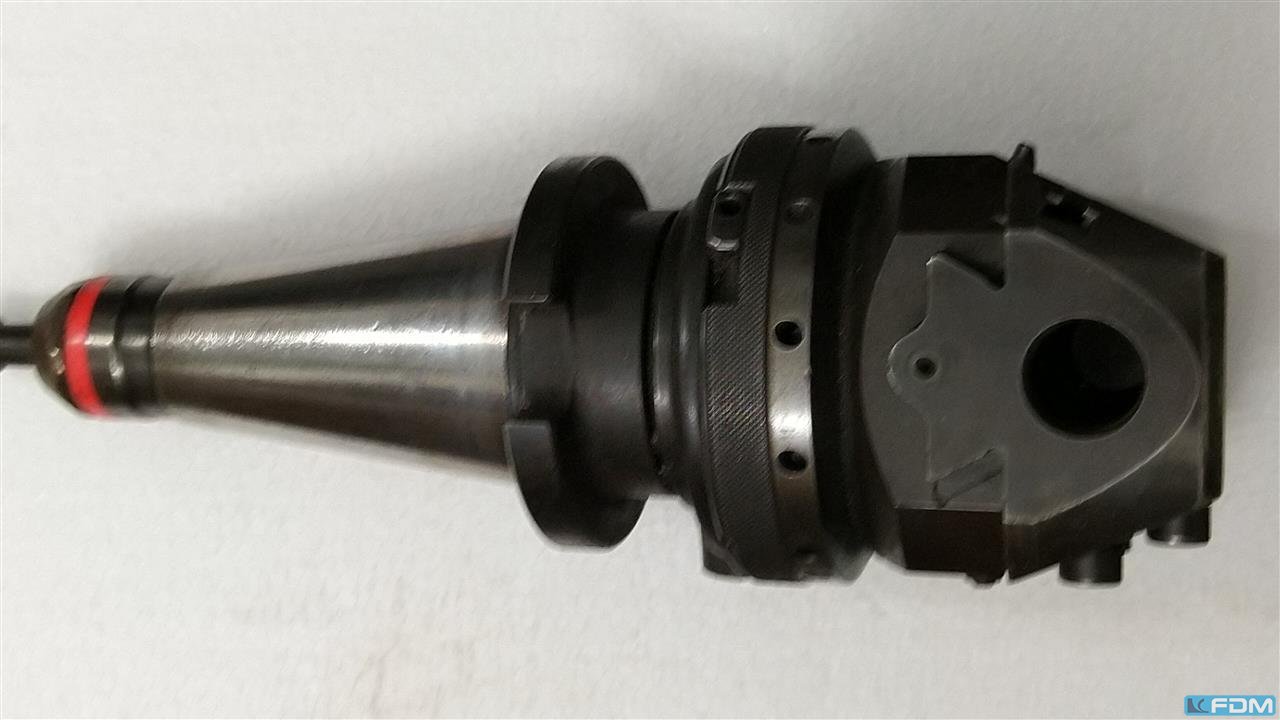

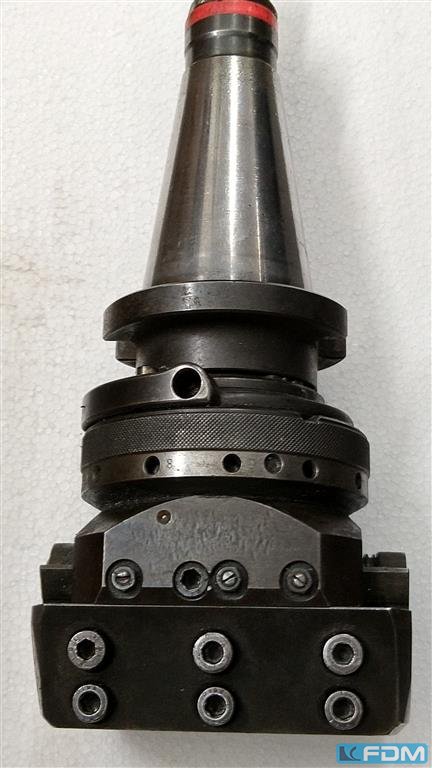

diameter:500 mm tool adaptor:50 Weight:12 kg face movement each head:82 mm feeds:0,06 mm/U

Boring power:10 mm weight:590 kg connected load:2 kW dimensions::1500 x 1300 x 2300 mm

Manafacture: Skoda Type: E25OB23941 Year: 1989 Part weight: up to 25t Dimensions: 2,000 x 2,000 mm electr. adjustable Weight: 10t

horizontal slotting machine / high-speed planer Manafacture: Klopp Model: 550 Year of construction: 1982 Planer length: 550mm Weight: approx. 1250 kg

Sr. No.: 70218 Equipment / Additional information: Various tools

Spindle speed: from 20 to 1800 rpm Table dimensions: 1600 x 1450 mm with 9 grooves, travel X-axis: approx. 1500 mm Travel Y-axis: approx. 1300 mm Travel Z-axis: approx. 1200 mm The machine is equipped with a 3-axis digital display from the manufacturer HEIDENHAIN, two clamping brackets, one dimension: 1850 x 850 mm and one 1250 x 800 mm, also various accessories

Table size: 950 mm x 950 mm incl. accessories shown on the pictures, including tools, steady rest, tool cabinets, clamping devices

Jig Boring Machine WMW BKoE 450 x 800 Travel X: 560 mm Travel Y: 400 mm Travel Z: 470 mm Spindle: Ø 90 mm Cone: CM4 Spindle exit: 150 mm Spindle speed: from 50 to 1600 RPM Table size: 450 x 800 mm Maxi loading capacity on table: 400 kg Scale3 axes HEIDENHAIN Automatic descent Voltage: 380 V Width with ends table: 2900 mm / without ends table: 1500 mm Depth:2500 mm Total height: 2600 mm Weight: 4,5 T

Machine already ready for transport, to be assessed on viewing day. Clamping block not included

CNC unit for routing and boring Brand: Atemag Type: Function Line Soft Touch One With surface copying function with fix spindle ER25 and fix bell Max. drive speed 18,000 R.P.M. Max. tool spindle speed 18,000 R.P.M. Gear ratio i = 1:1 Turning direction left/right Torque max. 10Nm Tool interface: fix ER25 Adjustment distance: 70mm

Specifications: X-axis 2,750 mm Y-axis 2,500 mm Z-axis 2,320 mm W-axis 700 mm Spindle power 50 kW Spindle diameter 130 mm Spindle speed 1.6 – 1,600 rpm. Tool holder SK 50 Control: CNC HEIDENHAIN TNC426 Table dimensions 2,000 x 1,800 mm max. table load 8 tons B-axis 360 A° Weight approx. 37,000 kg

Ref. -No.: 10022 Manufacturer: UNION Year of construction: 2001 Type of control: CNC Control: Heidenhain-Steuerung TNC 310 Storage location: Halberstadt Country of origin: Deutschland X-Travel: 2000 mm Y-Travel: 1600 mm Z-Travel: 2000 mm Machine length: 6950 mm Machine width: 4685 mm Machine Height: 3885 mm Table Height: 1050 mm Spindle Diameter: 110 mm Spindle Taper: ISO 50 Table Dimensions (Lengthxwidth): 1400 x 1600 mm Faceplate speed: 5,6 - 224 RPM Spindle Speed: 5,6 - 1120 RPM Metric thread feeds: 1,25 - 56 mm Drive Capacity - Spindle Motor: 40 kW Weight Of The Machine Ca.: 25 t Bore Depth: W 800 mm Further information: with facing slide 13 inch thread feeds 1 1/8 - 28 Gg / 1 “ YOM: 1990/ Retrofit: 2001

Technical data of used Schiess Froriep Boring Machine: CNC: Siemens 840 D Maximum transversal travel X axis: 13.770 mm Maximum vertical travel Y axis: 5.000 mm Z axis: 1.780 mm W axis: 950 mm V axis rotating support plane: 2.000 mm Rotating table dimensions: 5.000 x 3.500 mm Fixed table dimensions: 7.500 x 4.300 mm Maximum permissible load on the table: 120 ton Spindle power: 100 kW Spindle revolutions per minute: 710 rpm

Key data: 130 mm, 4000 mm, 2500 mm

TOSHIBA BP-130R22 Year 2007 SPINDLE DIAMETER 5.12" (130mm) TAPER IN SPINDLE #50 VERTICAL TRAVEL, Y-AXIS 100" (2500mm) CROSS TRAVEL, X-AXIS 160" (4000mm) SPINDLE TRAVEL, Z-AXIS 28" COLUMN TRAVEL, W-AXIS 60" TABLE SIZE (BUILT IN B-AXIS) 86.6" X 70.8" TABLE LOAD CAPACITY 44,000 LBS TABLE INDEXING B-AXIS 0.001 DEGREE SPINDLE SPEEDS (3-RANGES) 5-2500 RPM EQUIPPED WITH: TOSNUC 888 CNC CONTROL 60-STATION AUTOMATIC TOOL CHANGER THROUGH SPINDLE COOLANT CHIP & SPLASH ENCLOSURE CHIP CONVEYOR 40/30 HP SPINDLE MOTOR NOTES: INSPECT IN PLANT UNDER POWER

Ref. -No.: 10354 Manufacturer: UNION Year of construction: 1998 Retrofit: 2000 Type of control: Digitale Steuerung 2D Control: HAIDENHAIN TNC 135 Storage location: Halberstadt Country of origin: Deutschland X-Travel: 1600 mm Y-Travel: 1250 mm Z-Travel: 1475 mm Spindle stroke: 710 mm Table Dimensions (Lengthxwidth): 1250x1400 mm Spindle Speed: 1600 RPM Drive Capacity - Spindle Motor: 30 kW Total Power Requirement: 35 kW

Ref. -No.: 10353 Manufacturer: UNION Year of construction: 1986 Type of control: Konventionell Storage location: Halberstadt Country of origin: Deutschland X-Travel: 1600 mm Y-Travel: 1000 mm Z-Travel: 1200 mm W-Axis: 710 mm Spindle Taper: SK 40 Table Load: 2500 kg Max. Size Of Workpiece Lxwxh: Höhe 1400 mm Spindle Speed: 1600 RPM Rapid Traverse: 3,15 m / min Total Power Requirement: 23 kW Weight Of The Machine Ca.: 10,3 t

Longitudinal direction ''X''. 4500 mm Transverse direction ''Y''. 3000 mm Spindle stroke ''Z'' 500 mm Astand Spindle Table 160 – 660 mm Table load 2000 kg/m²

Condition: Very good condition

Key data: 8 mm, 1

Koch Drilling and Dowel Inserting Machine Sprint PTP 3/1800 Working field: 1800mm / 2x 900mm Equipment: 1x horizontal drilling station 0.9 kW, drill speed 7200 rpm Drilling depth 30 mm Drill bit holder 10 mm, total drill length 85 mm 2x glue dispensing and dowel insertion station 2x dowels 10x40mm, dowel protrusion 15-20mm Dowel spacing 96mm 2x vibrating conveyor dowel 10×40 mm 1x Glue pump 18:1 2x electronic glue monitoring ELC Workpiece support table 1700 mm 8x workpiece clamping cylinders Center fence for 4 working areas Central lubrication with hand pump for grease lubrication NC positioning of the height adjustment of the drilling and dowel station (z-axis) Axle with position control, travel speed 12m/min Koch Numeric positioning control with 1 NC axis (X) – with PC, operating system Windows XP Professional: English, 10.4" touch panel – VGA graphics + touchs ...

Heidenhain TNC 124 Year of construction 1996 Spindle holder ISO 40 Travel 310 x 170 x 340 mm 16 spindle speeds from 40 - 2500 rpm Infinitely variable feeds Weight approx. 700 kg

TOS W 75

BFT 90/3 SPINDEL 102 , ISO

Key data: 130 , 3500 , 2000

CNC SIEMENS 840D X-axis (longitudinal) 3500 mm Y-axis (transverse) 2000 mm Z-axis (vertical) 1250 mm Table length 1800 mm Table width 1800 mm Maximum workpiece weight 12000 kg Spindle diameter 130 mm Maximum spindle speed 800 rpm Magazzino utensili 52 posti Spindle motor 37 kW Year of revision 2005 ------------------- Length x width x height 7200 × 7800 × 4900mm Weight 32000 kg

Universal Milling & Drilling Machine DECKEL MAHO DMU 50 M With control Heidenhain TNC 124 Year of construction: 2001 Travels: X 500 Y 400 Z 400 Speed range: 20 – 4,500 rpm infinitely variable With the following accessories: Manual swivel – rotary table with digital display for C + B axis 700 mm x 500 mm clamping surface Electronic Handwheel for X, Y, Z Axis Splash protection booth Machine light 4 pcs. Height-adjustable machine shoes Coolant system Operating instructions THE MACHINE WAS ONLY USED FOR APPRENTICESHIP TRAINING THE MACHINE IS IN GOOD CONDITION

Universal tool milling machine KUNZMANN WF 4/3 With 3 axes Heidenhain digital display Year of construction: 1996 Travels: X 400 Y 320 Z 400 Speed range: 40 – 2550 rpm With the following accessories: Rigid angle table 800 mm x 360 mm clamping surface Mechanical handwheels for X, Y, Z axle Hydraulic tool clamping Automatic central lubrication pump for X, Y, Z axis Machine light 4-Piece Machine Shoes Coolant system Operating instructions THE MACHINE WAS ONLY USED FOR APPRENTICESHIP TRAINING THE MACHINE IS IN GOOD CONDITION

X axis travel 12.000mm Max height under head 1.800mm Y axis travel 3.200mm Z axis travel 1.000mm W axis travel 2.100mm Table dimensions 12.000 X 3.000mm Max weight on table 60 ton Spindle power 47 Kw Max spindle speed 4.000 Rpm CNC SIEMENS 840 D Head changer with nr.04 heads ATC 60 utensili Rebuilt year 2008

YOM 2009 X axis travel 28.000mm Y axis travel 6.500mm W axis travel 2.000mm Z axis travel 1.500mm Table dimensions 25.000X5.000mm Automatic head changer with Nr. 03 heads Nr.10 planos 5.000X2.500X300mm CNC SIEMENS 840 D nr.03 axes automatic head in continuos, spindle speed max 4.000rpm,56 Kw, HSK A 100 Vertical head max spindle speed 3.000rpm,56 Kw, HSK A 100 Angular head max spindle speed 3.000rpm,56 Kw, HSK A 100 High pressure refrigeration trough spindle (50 bar) ATC 120 positions

SKODA W200GNR 1978 /CNC MEFI 836 y.m. 2005 ball screws y 4150mm x 8000mm millng heads floor plates 5600x1885x400 rotary table E20 load 20tons

W160HC with ISO 50 y.m. 1987 xtravel 4000mm y travel 3150mm rotary table S35C load 35tons, 3150 x 2800mm milling heads, tools

Table capacity 80 TONS Clamping plate width mm 3550 length mm 4000 Carriage travel V mm 2000 Heidenhain scale Rotary axe B ROD 700 Table height mm 1460 Table weight kg 52000

Saw-Drill Manufacturer: Pade Model: EV 25 Built in 1995 Sawing unit Drill gear with 5 spindles

SECOND-HAND END-CUT OFF BORING AND MILLING MACHINE BACCI MOD. TTF1 - CE RULES - volt. 380/50 - S/N 333 - year 1995

Multi-spindle drilling machine from Bernhard Steinel - Machine Tool Factory Schwenningen/Neckar ran reliably until the end The machine is equipped with a foot pressure switch from Festo a drive motor from Bauknecht and a control box from Siemens Pneumatic lines should be checked/repaired before The machine can be viewed at any time. Transport via freight forwarder can be arranged at short notice -feel free to take a look at the other advertisements or visit us directly at Gerstenstraße 2, 17034 NB The price is net plus 19% VAT If you have any further questions, please call or write. Maschinenhandel Nord new & used machines for industry, trade and commerce

Key data: 80 mm, 1700 mm, 1800 mm

Spindle Diameter: 80 mm Spindle Adapter: SK50 Spindle speeds: 11 - 1000 rpm. X-axis: 1700 mm Y-axis: 1800 mm Z-axis: 1800 mm Spindle off (W-axis): 710 mm Table dimensions: 1100 x 900 mm Elbo Digital Readout: On Y-axis and Z-axis Equipped with: -Turntable - Some tool containers Spindle motor: 7.5 KW Machine LxWxH: 5100 x 2650 x 3300 mm Machine Weight: 10 Ton

In-line drilling rig with 8 height- and width-adjustable drilling spindles (optionally up to 12 drilling spindles and an extension to a drilling area of 4,000 mm x 240 mm – without moving the workpiece) VIDEO LINK on request Drive power 0.75 kW per drilling spindle (optionally, the system can be supplied with more powerful drilling spindles - 1 kW / 1.25 kW - 1.5 kW), drilling spindle speeds up to 12,000 rpm - infinitely variable via potentiometer and frequency converter - set speed can be read analogously, drill tension by collets ER25, largest drill diameter 12 mm, drilling feed speed infinitely adjustable, drilling depth of each drilling unit individually infinitely adjustable, largest drill slide stroke 80 mm - Adjustment range for angled holes +/- 30 °, smallest distance from drill center to drill center 110 mm, horizontal adjustment range of the beam of the drilling units  ...

In-line drilling rig with 8 height- and width-adjustable drilling spindles (optionally up to 12 drilling spindles and an extension to a drilling area of 4,000 mm x 240 mm – without moving the workpiece) VIDEO LINK on request Drive power 0.75 kW per drilling spindle (optionally, the system can be supplied with more powerful drilling spindles - 1 kW / 1.25 kW - 1.5 kW), drilling spindle speeds up to 12,000 rpm - infinitely variable via potentiometer and frequency converter - set speed can be read analogously, drill tension by collets ER25, largest drill diameter 12 mm, drilling feed speed infinitely adjustable, drilling depth of each drilling unit individually infinitely adjustable, largest drill slide stroke 80 mm - Adjustment range for angled holes +/- 30 °, smallest distance from drill center to drill center 110 mm, horizontal adjustment range of the beam of the drilling units  ...

In-line drilling rig with 8 height- and width-adjustable drilling spindles (optionally up to 12 drilling spindles and an extension to a drilling area of 4,000 mm x 240 mm – without moving the workpiece) VIDEO LINK on request Drive power 0.75 kW per drilling spindle (optionally, the system can be supplied with more powerful drilling spindles - 1 kW / 1.25 kW - 1.5 kW), drilling spindle speeds up to 12,000 rpm - infinitely variable via potentiometer and frequency converter - set speed can be read analogously, drill tension by collets ER25, largest drill diameter 12 mm, drilling feed speed infinitely adjustable, drilling depth of each drilling unit individually infinitely adjustable, largest drill slide stroke 80 mm - Adjustment range for angled holes +/- 30 °, smallest distance from drill center to drill center 110 mm, horizontal adjustment range of the beam of the drilling units  ...

Horizontal Boring Machine CORNAC C100 Travel X: 1000 mm Travel Y: 1000 mm Travel Z: 1260 mm ixed table Cone SA 50 Spindle: Ø 100 mm Spindle exit: 550 mm Rotation: from 10 to 1250 RPM Table size: 1550 x 980 mm Surfacing plate: Ø 520 mm Spindle motor: 9,5 kW Scale 3 axes HEIDENHAIN Automatic Feeds: X - Y - Z Supplied with a set of cones Voltage: 380 V Dimensions (L x W x H): 4500 x 2100 x 2450 mm Weight: approx 8 T

Inv. Num. : 7631 Type: F80 Produzent: Pfeifer Erzeugt: 1976 Parametern: Maximale Drehzahl der Spindel: 1000 1/min Verfahrwege X-Achse: 1700 mm Verfahrwege Y-Achse: 1800 mm Verfahrwege Z-Achse: 1800 mm Verfahrwege W-Achse: 710 mm Spindeldurchmesser: 80 mm

AUTOMATIC CUTTING , BORING and MOULDING machine model BALESTRINI FTA machine for joining parts of chairs, living rooms, furniture, etc. the FTA machine is made up of 3 automatic operating units : 1st unit : circular saw for cutting workpieces to length 2nd unit : spindle moulder for milling with hydraulic sliding carriage 3rd unit : drilling unit with multiple center distance head . there are 9 work programs that can be selected and they consist of the possible combinations of use of the 3 operating units. only 2 can be used , or 1 , or even the 3 operating units can work in different sequences . Technical data : - Cutting unit (circular saw) diam.mm.400. engine power Hp 3 - Moulding unit (spindle moulder) shaft diameter mm.30 . motor power Hp 5.5 max. tool dimensions mm.160, H=mm.120 . hydraulic sliding carriage - Boring unit . engine power Hp 3 . max. depth drilling mm. ...

Monti MCS 100 NEW boring machine :::TECHNICAL SPECIFICATIONS::: CNC Model: Siemens CNC Version: 840D Tool Mount: ISO 50 Spindle power: 24Kw Number of spindle speeds: 4000 Number of tools: 60 X-axis travel: 2500mm Y-axis travel: 1500mm Z Axis Travel: 1700mm Fast feeds linear axes X Y Z: 20m/min Spindle spindle stroke : 600mm Rotary table: yes Table size: 1300 x 1500mm Allowable load on the table: 4000Kg Other technical data: The machine is being built this year Machine equipment: Anthropomorphic robot for tool change management Heidenhain Optical Scales :::D DIMENSIONS AND WEIGHT::: Weight: 23000Kg

STANKO 2N636GF1 Horizontal boring mill MITSUBISHI controler, new 2013 Spindle 125 mm Table 1600 x 1800 mm Max. horizontal (axial) movement of the spindle (Z') - 1000 mm Max. vertical movement of the headstock (Y)- 1400 mm Max. longitudinal movement of table (Z, W) - 1600 mm Max. lateral movement of table (X) - 1400 mm The largest mass of the processed product - 8 tons Spindle speed - 8 ... 1250 rpm Spindle Drive Electric Motor - 20 kW The weight of the machine is full - 34.6 tons

Key data: 102 mm, 1530 mm, 900 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,530 mm Vertical Travel headstock (Y) 900 mm Longitudinal travel (Z) 1,500 mm Table 1,250 x 1,400 mm R.P.M. 8 – 1,600 (18x) kW 11 Volts 380 Cycles 50 Including: Digital readout

Sr. No.: 111000253 // p/n: 1364000

Key data: 102 mm, 1600 mm, 900 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,600 mm Vertical Travel headstock (Y) 900 mm Longitudinal travel (Z) 1,520 mm Table 1,250 x 1,400 mm R.P.M. 8 – 1,600 (18x) kW 11 Volts 380 Cycles 50 Including: 3-axis Digital readout with point to point control Heidenhain 310

Offer 24435 Specifications: - Table surface 1700 x 550 mm - Manual travels X / Y 1300 x 500 mm - Drill Fabr. MAXION , Type: BT 15 GL - Drilling capacity up to 18 mm - Tapping device up to M 10 - Drilling spindle holder MK 2 - Drilling spindle stroke with drilling depth fine adjustment 90 mm - PV 12 pneumatic feed unit - Projection 670 mm - 4 spindle speeds 320 + 560 + 1000 + 1600 rpm -Mot. Drilling unit stroke - Table clamping x + y - Minimum amounts of lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg - various guide cartridges

Key data: 102 mm, 1600 mm, 1250 mm

Spindle diameter Ø 102 mm Taper ISO 50 Horizontal spindle travel 710 mm Cross travel (X) 1,600 mm Vertical Travel headstock (Y) 1,250 mm Longitudinal travel (Z) 1,500 mm Table 1,250 x 1,400 mm Table load 5 ton R.P.M. 4 – 1,250 (18x) kW 23 Volts 380 Cycles 50

Offer 24331 Specifications: - Table surface 1700 x 550 mm - Manual travels X / Y 1300 x 500 mm - Drill Fabr. MAXION , Type: BT 18 STP - Drilling capacity up to 18 mm - Tapping device up to M 16 - Drilling spindle holder MK 2 - Drilling spindle stroke with drilling depth fine adjustment 76 mm - PV 12 pneumatic feed unit - Projection 670 mm - Spindle speeds 100 - 1800 rpm - 200 - 3600 rpm -Mot. Drilling unit stroke -Mot. Table clamping x + y - Minimum amounts of lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg
