boring machines used for sale

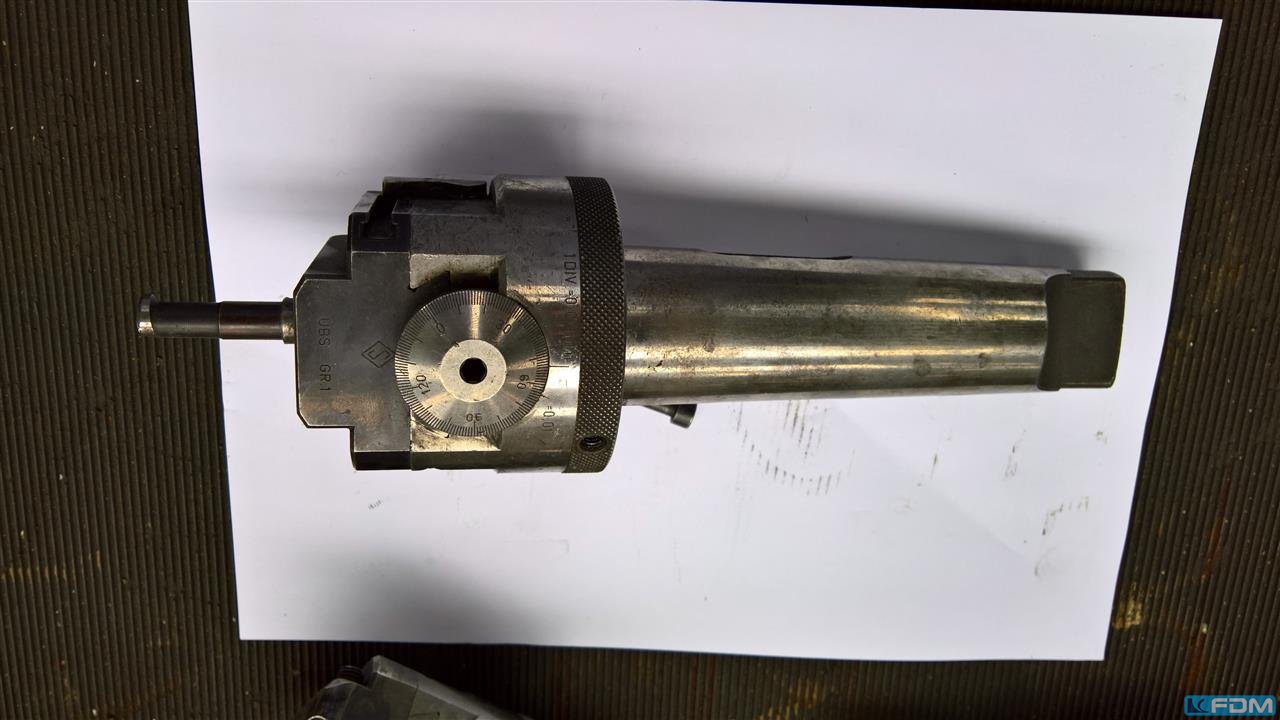

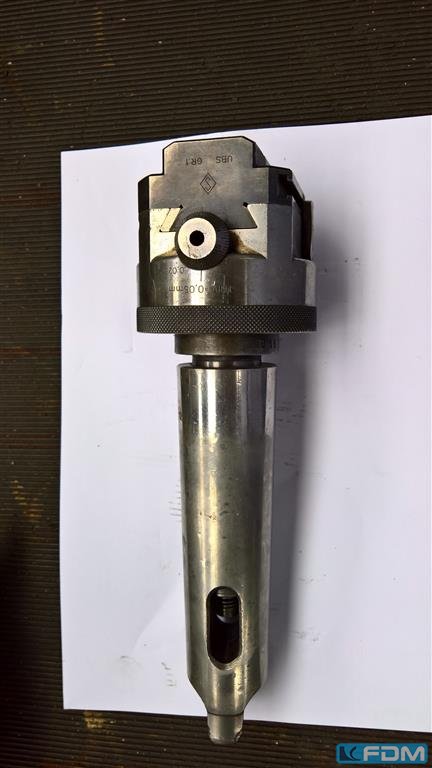

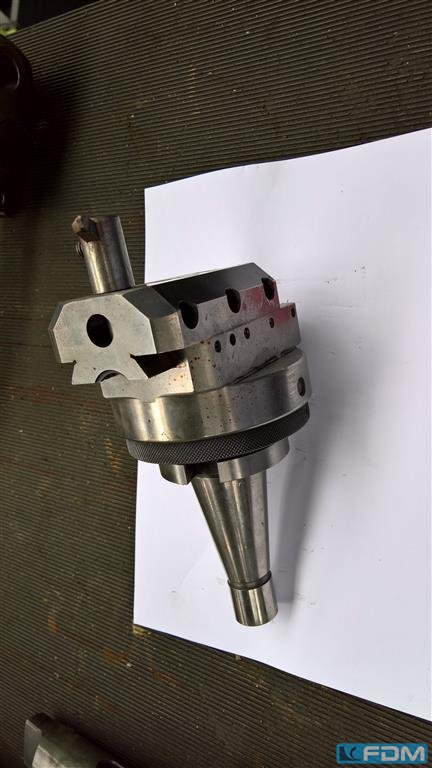

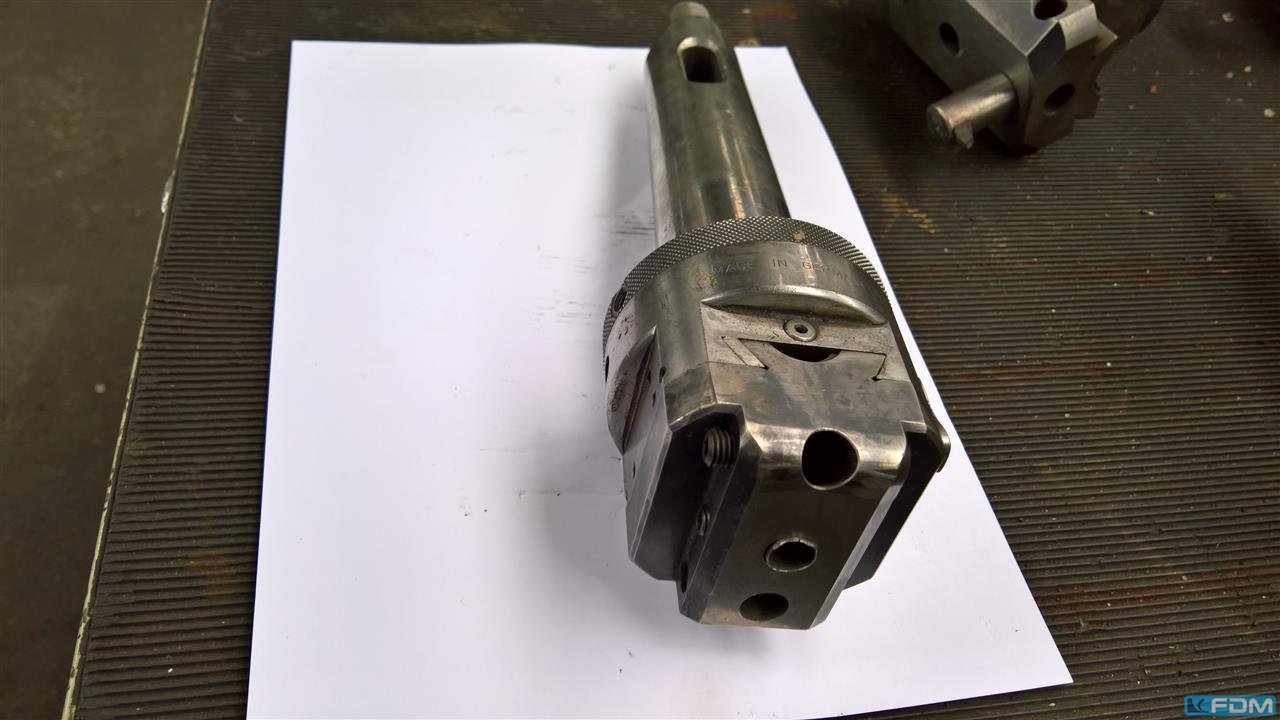

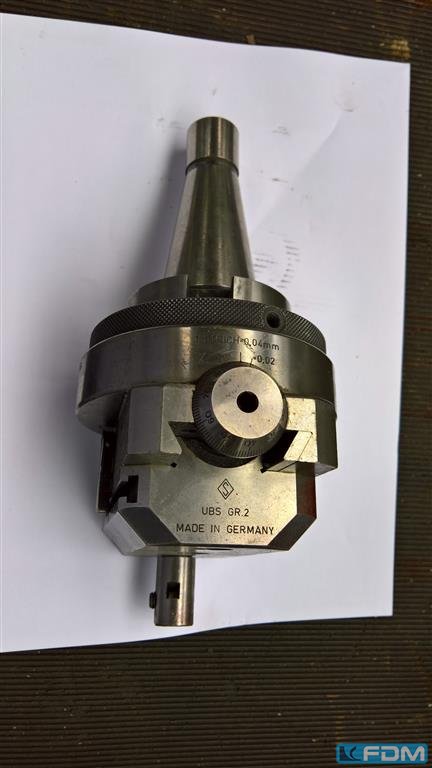

Description: Holder SK 40 weight approx.: 7 kg, Approx. Onsite Dimension. (l x w x h): 250 x 250 x 100 mm

Floor type Boring and Milling M/C PAMA Speedram SR 2000 Year 2012 Condition never installed and never used TECHNICAL DETAILS spindlediameter: 180mm x-travel: 18000mm y-travel: 5000mm table: 18000x3000mm Control: Siemens 840D spindle speed: 4 - 2.500 U/min spindle capacity: 60kW ADDITIONAL INFORMATION Equipment/ Accessories: - Hydrostaticguidefor all axes - Floorplates - Head changingstation including 8 heads plus 18tool positions - coolantsystemKnoll, Operating pressureoutside spindle 5 bar / inside tool 45 bar - chipconveyor - stroke axis X:18000 mm CONDITIONS - FOB - Packing Included  Not Included : - Trainning and Foundation; - The customer must provide the necessary equipment and structure to move the load to assemble the machine. - Machine does not have manufacturer warranty. - Any part or component that needs to be replaced must be purchased  ...

table load: max. 6 t weight of the machine ca.: 20.000 KG dimensions of the machine ca.: ca. 9000 x 8000 x 5000 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Scharmann FB 100 boring machine Slides and table in excellent condition, no dents. Stroke: X 1300 mm Y 1200 mm Z 2000 mm Equipped with digital display on 3 axes. Work feed on table rotation. Machine weight: 25 tons With 6 tool pallets, clamping cube 1000 mm x 900 mm x 900 mm, and angular head.

As good as new, see photos!

Control Heidenhain ... TNC 640 Spindle diameter ... 130mm Axis X ... 3500mm Axis Y ... 2500mm Spindle speed.. 10-3000/min. cooling ... 20bar Axis W ... 730mm Axis Z ... 1500mm SK 50 Table dimensions... 1800 x 2200mm Conveyor Workpiece touch probe TS 460 El. Handwheel HR 550 FS The machine is in good condition, possible to sample under electricity.

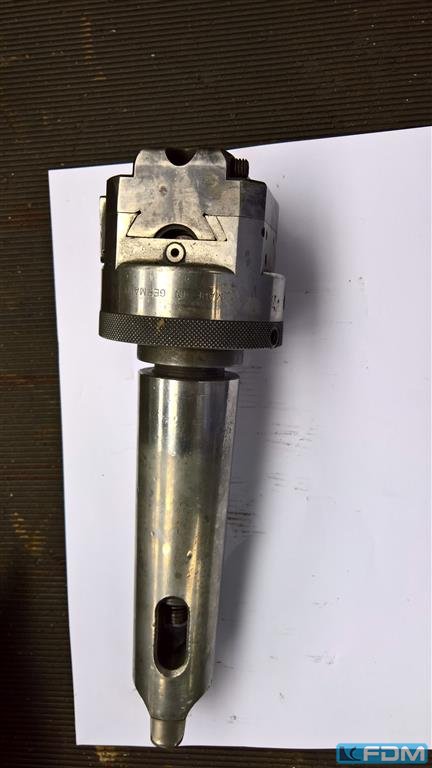

spindle diameter: 63 mm taper MK: 5 facing slide: ja digital: ja : ja weight of the machine ca.: 7 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Commissioning number 13019 With various clamping plates , Support surface each approx. 2000 x 1000 mm  , control: HEIDENHAIN, table surface area l x w : 2500x2000 mm, weight approx.: 120,000 kg, Approx. Onsite Dimension. (l x w x h): 16,000 x 10,000 x 5,500 mm

Description: Included - 3-axis digital display - Operation manual Spindle diameter 75 mm x-travel 850 mm y-travel 900 mm z-travel 950 mm Spindle holder ISO SK 40 Table size 1000 x 800 mm Total power requirement 16 kW Machine weight approx. 10.5 t Space requirement approx. 4.0 x 2.3 x 2.75 m weight approx.: 10,500 kg, Approx. Onsite Dimension. (l x w x h): 4,000 x 2,300 x 2,750 mm

Description: serial number AB00022204 Max. panel length mm 3.050 min. panel length mm 200, Max. panel width mm 900 min. panel width mm 80, Max. panel thickness mm 60 min. panel thickness mm 10 max. X axis speed m/min 40, Max.Y axis speed m/min 40 vertical spindles - drilling head F14L (vers. P/PR) no. 8 (5X-3Y) - drilling head F23L (vers.P F23/PR F23) no. 13 (7X – 6Y) horizontal spindles - drilling head F14L (vers. P/PR) no. 6 (2+2X-1+1Y) - drilling head F23L (vers.P F23/PR F23 no. 10 (3+3X-2+2Y) rotating spindles motor power kW (Hp) 2,2 (3) spindle speed rpm 4.200 fixed integrated disc cutter (direction) X max. diameter of disc cutter mm 125 disc cutter rotating speed rpm 5.500 ELECTROSPINDLE motor power KW (Hp) 5,5 min./max. speed rpm 1.000/18.000 tool changer manual max tool diameter mm 20 for futher technical detail please consult document ,PDF STARTE ...

Description: Boring and Insertion Machine Approx. Onsite Dimension. (l x w x h): 800 x 600 x 630 mm, weight approx.: 20 kg

Description: horizontal floory type boring machine Spindle diameter 125 mm x-travel 5600 mm y-travel 1600 mm z-travel 800 mm Spindle stroke 600 mm Spindle mount ISO 50 Spindle speeds 12 - 3000 rpm Spindle motor 40 kW Rapid traverse speed 15 m/min with CNC HEIDENHAIN iTNC 530 modernized in 2003 Tool changer 60 times Drilling work table RÜCKLE 2000 x 1800 mm max. 20 tons. workpiece weight Clamping plates 3500 x 2000 mm, 2500 x 2000 mm Coolant device z-motion: 800 mm, spindle diameter: 125 mm, x-motion: 5,600 mm, y-motion: 1,600 mm, control: CNC Heidenhain iTNC 530 modernisiert in 2003, table surface area l x w : 2000x1800 mm, spindle taper: ISO 50, turning speed range: 12-3000 rpm, total power requirement: 65 kW, weight approx.: 60,000 kg, Approx. Onsite Dimension. (l x w x h): 12,100 x 4,800 x 3,900 mm

Description: Serial  , ,Number: 95088 Main engine power: 37kw Spindle speed: 4 to 2000 rpm Nominal spindle speed: 177 rpm Cone : KOMET ABS 125 Outer diameter: 280 MM Strokes: 1600x3500x1500 mm Feeds: 3 to 5000 mm/min Rapid feeds: 10.000 mm/min X: 62/3000Nm Y:58/2000Nm Z: 62/3000Nm Installed power: 125 kva  , weight approx.: 30,000 kg, Approx. Onsite Dimension. (l x w x h): 14,000 x 5,000 x 4,000 mm

Description: 40 tool ATC 20 bar spindle thru coolant Full cover Chip conveyor Fanuc 31iA controller Important Note - Angle plate and tool are excluded. Includes shipping to any major seaport in the world. x-motion: 3,000 mm, y-motion: 2,000 mm, z-motion: 2,000 mm, w - axis: 700 mm, table surface area l x w : 1,800 x 2,200 mm, weight approx.: 43,000 kg, Approx. Onsite Dimension. (l x w x h): 8,970 x 7,660 x 4,910 mm

Description: Longitudinal travel of upright X 10,000 ,mm Spindle head vertical travel Y 3,300 mm RAM transverse travel Z 1,100 mm Spindle quill travel W (boring bar) 800 mm Translating travel C 2,000 mm Turntable plate positions B 360,000 n Turntable size 2,700 x 2,700 mm Drilling unit vertical travel V 2,700 mm Drilling unit transversal travel U 500 mm SELCA S4045PD control Serial number 02-021.021 Dig depth 2000 mm z-motion: 1,200 mm, table surface area l x w : 2700 x 2700 mm, control: SELCA 4045PD, power capacity - spindle: 50 kW, weight approx.: 160,000 kg, Approx. Onsite Dimension. (l x w x h): 19,000 x 10,000 x 6,000 mm

Description: main engine power: 3 HP serial number: 6S25 consisting of 5 lower drilling units with 11 + 11 spindles each. Wheelbase 32 mm drilling blocks swivelling from 0 to 90 degrees motor power 3 HP at 2800 rpm each maximum width horizontal drilling 3200 mm minimum width 260 mm 6 vertical pneumatic clamps automatic conveyor group with stop and pneumatic reference squaring device maximum speed 43 m + / min installed power 16,5 kW, 400 V, 50 Hz, 35 amp, 3 phases serial no. 6S25 dimensions in mm: approx. 5000 x 4400 x 2000 , weight in kg: approx. 5000 serial number: 6S25, working width min.: 260 mm, working width max.: 3,200 mm, total power approx: 16.5 kW, Approx. Onsite Dimension. (l x w x h): 5,000 x 4,400 x 2,000 mm, weight approx.: 5,000 kg

spindle diameter:110 mm x-travel:1800 mm y-travel:1400 mm z-travel:1400 mm W-axis (spindle longitudinal):600 mm max. table load:5 kg table-size:1250x1400 mm spindle drive:22 kW spindle taper:50 ISO spindle speed:10~3000 1/min Spindle motor torque:1000 Nm rapid speed:(X/Y/Z/W):5/5/5/3 m/min feeds:(X/Y/Z/W): 3/3/3/2 m/min positioning accuracy:0.025/1,000 mm (X/Y/Z), 0.03/600 mm (W) repeating accuracy:0.015 mm (X/Y/Z), 0.025 mm (W) mm total power requirement:50 kva weight of the machine ca.:18,5 t spindle bearing:SKF Scales:FAGOR allen Achsen CNC controller:Siemens/Fanuc/Heidenhain tabel encoder:Siemens Servo motors:in allen Achsen vom Steuerungshersteller

spindle diameter:130 mm x-travel:2000 mm y-travel:2000 mm z-axis:2500 mm w-axis:1020 mm spindle nose:50 ISO turning speed range:2-1000 U/min table surface area:2000x1800 mm max. table load:15 t weight of the machine ca.:40 t spindle drive:30 kW 4 jaw chuck:650 mm Unused table boring machine, make SMTCL, type TPX 6111B MAIN FEATURES: Powerful, flexible and productive With an optimal price / performance ratio Short and sweet üCompact, rigid cast-iron construction ü Sturdy four-pointed guides, which are hardened and precision ground, guarantee accurate working for many years üMechanical functions, which can not be operated simultaneously, are locked against each other üX, Y-axis has a DRO display with memory function üSpindle with tool holder ISO50 and automatic clamping system üSpindelstock and feed gear are equipped with an overload clutch üthe machine is equipped with a thread cut ...

:HBM-110L spindle diameter:110 mm x-travel:900 mm y-travel:900 mm z-travel:1400 mm W-axis (spindle longitudinal):600 mm U-axis:Planschieber: 180 mm B-axis (table):360x1 ° table load:5 t table-size:1100x960 mm T-slots:22 Stk. spindle speed:22 Stufen, 8-1000 1/min spindle taper:50 ISO rapid speed:(X / Y / Z / W) 2500 mm/min speed - faceplate:4-200 (18 Stufen) 1/min torqe of face plate:1960 Nm dia of faceplate:600 mm movement of facing slide:180 mm weight of the machine ca.:11500 kg main drive:7,5 kW Machine size (LxWxH):4910x 2454x2750 mm 2-Axis DRO :für X- und Z-Achse (von NEWALL)

:HBM-130XL spindle diameter:130 mm x-travel:2000 mm y-travel:1800 mm z-travel:(ohne Gegenhalter) 2000 mm U-axis:250 mm W-axis (spindle longitudinal):900 mm max. torque on the spindle:3136 Nm B-axis (table):360x1 ° rapid speed:X/Y/Z/W: 2500 mm/min table load:10 t table-size:1800 x 1600 mm T-slots:11 Stk. T-slot - width:28 mm transmission ratio:4 Stk. spindle speed:4-800 1/min spindle taper:50 ISO faceplate:Drehmoment: 4900 Nm faceplate:2.5-125 1/min faceplate:Umdrehung stufenlos einstellbar faceplate:Ø:750 mm weight of the machine ca.:29300 kg main drive:15 kW Machine size (LxWxH):7030x4665x3800 mm 2-Axis DRO :von NEWALL f. X- und Y-Achse Technical Offer of HBM-130 ? Powerful servo spindle motor and four spindle speed rang, stepless in each range. much lower maintenance and 80% failure rate reduced ? High rigidity spindle could insure the strong machining ? Worktable 4x90° position  ...

x-travel:510 mm y-travel:400 mm z-travel:350 mm table-size:600x400 mm spindle speeds:12000 (Motorspindel) 1/min. spindle drive:5,8 kw spindle taper:30 BBT oder SK rapid traverse in x-y-z axis:60 m/min Tool changer:16 fach weight of the machine ca.:2,8 t CNC controller:SIEMENS 828D (10.4" LCD+SHOPMILL) high speed directl spindle motor:12000 1/min inner coolant:20 bar chip conveyor - auger:im Bett Brandnew machine with: 1. CONTROL SYSTEM SIEMENS 828D (10.4" LCD+SHOPMILL) 2. WORKING TABLE SIZE: 600 X 400 MM 3. MAX. TABLE LOAD CAPACITY: 250 KGS 4. SPINDLE SPEED 12.000RPM (DIRECT DRIVEN TYP) 5. SPINDLE MOTOR 5.8 KW (1PH8087) 6. SPINDLE NOSE BBT 30 7. X/Y/Z STROKE 510/400/300 MM 8. X/Y/Z STROKE RAPID TRAVERSE: 60/60/60 M/MIN 9. ATC CAPACITY 16 TOOLS (DISC TYPE) 10. STANDARD SPLASH GUARD 11. ELECTRICAL CABINET WITH HEAT EXCHANGER 12. COOLANT UNIT 13. MANUAL PULSE GENERATOR 14. RIDGID TAPPING  ...

spindle diameter:110 mm x-travel:1600 mm y-travel:1000 mm z-travel:1250 mm w-axis:Ausfahren der Spindel: 400 mm B-axis (table):360 x 1° mm Distance table/spindle center:0-1000 mm table load:2,5 t table-size:1000x800 mm T-slot (width-distance-quantity):22H8 x 7 x 100 mm tool taper:50 ISO spindle turning speed - stepless:2 Stufen: 20-1000 1/min feeds:X/Y/Z-Achse: 3-950 mm/min feeds:W-Achse: 3-400 mm/min rapid speed:X/Y/Z-Achse: 2,8 m/min rapid speed:W-Achse: 2 m/min main drive:15 kw (drehzahlgeregelt) feed motors:X/Y/Z-Achse-Servomotoren: 2,9 kW Feed motor:W-Achse-Servomotor: 1,3 kW range L-W-H:3.874 x 4.317x3.715 mm weight of the machine ca.:12 t total power requirement:20 KVA Automatic tool clamping:pneumatisch ball screw in axes:X/Z/W CNC controls from:Siemens/Fanuc/Fagor

:HBM-110 | HBM-110L | HBM-110XL spindle diameter:110 mm x-travel:900|1250|1600 mm y-travel:900|900|1200 mm z-travel:1400|1400|1400 mm W-axis (spindle longitudinal):600 mm B-axis (table):360x1 ° table load:5 t table-size:1100 x 960|1250 x 1100|1250 x 1100 mm T-slots:22 mm spindle speed:22 Stufen, 8-1000 1/min spindle taper:50 ISO rapid speed:(X / Y / Z / W) 2500 mm/min speed - faceplate:4-200 1/min torqe of face plate:1960 Nm dia of faceplate:630 mm movement of facing slide:180 mm weight of the machine ca.:11,5|18|20 t main drive:7,5 kW Machine size (LxWxH):5120x3380x3100 mm 2-Axis DRO :für X- und Y-Achse (von NEWALL) CE-design:von TÜV Süd servo motors:von Siemens/Fanuc/Fagor CNC controls from:Siemens/Fanuc/Fagor

:HBM-130 | HBM-130L | HBM-130XL spindle diameter:130|130|130 mm x-travel:1600|2000|2000 mm y-travel:1400|1800|1800 mm z-travel:2000 mm U-axis:250 mm W-axis (spindle longitudinal):900 mm max. torque on the spindle:3200 Nm B-axis (table):360x1 ° rapid speed:X/Y/Z/W: 2500 mm/min table load:8|10|10 t table-size:1600 x 1400|1800 x 1600|2200 x 2000 mm T-slots:9/11/12 Stk. T-slot - width:28 mm transmission ratio:4 Stk. spindle speed:4-800 1/min spindle taper:50 ISO faceplate:Drehmoment: 4900 Nm faceplate:2.5-125 1/min faceplate:Umdrehung stufenlos einstellbar faceplate:Ø:750 mm weight of the machine ca.:22,5|24,5|25,5 t main drive:22 kW Machine size (LxWxH):6995/3647/342|7030/4665/3800|7030/4665/3800 mm PLC control:Siemens S7 servo motors:von Siemens/Fanuc/Fagor Technical Offer of HBM-130 ? Powerful servo spindle motor and four spindle speed rang, stepless in each range. much lower mainten ...

:FB-160 spindle diameter:160 mm x-travel:4000/6000/8000/10000/12000/14000/16000 mm y-travel:2000/2500/3000/3500/4000 mm z-axis:1200 mm w-axis:700 mm spindle cone:50 SK/BT spindle speed max.:3000 U/min spindle drive:37/51 kW feeds:X/Y/Z/W: 10 / 10 / 10 / 8 / 5 m/min rapid speed:X/Y/Z/W: 20 / 20 / 20 / 10 / 5 m/min max. torque on the spindle:3.300 Nm cross section of ram:460x520 mm table load:30 t table-size:2500x2500 mm table travel:1500 mm weight of the machine ca.:FBM-160 mit X=4m: 80 t positioning accuracy:0.032/1000 mm repeating accuracy:0.018/1000 mm CNC controller:Siemens/Fanuc/Heidenhain CNC controls from:Siemens/Fanuc/Heidenhain Factory-new CNC controlled panel drilling machine with CNC control from Siemens / Fanuc / Heidenhain. All essential components from well-known manufacturers such as Siemens, SKF, FAG, Heidenhain, Igus and many more. Newly developed FB series Convenient fo ...

x-axis:16000 mm y-axis:1250 mm z-axis:3200 mm total power requirement:37 kW speeds:2000 U/min Soraluce milling machine FR 16000 Angle head pivotable: 2.5° Drive power: 37 KW The machine was completely overhauled in 2009: new cables, new controls. Can be viewed under power at any time - without machine table, without rotary table, without chip conveyor -- is in good condition (inspection under power is possible)

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW weight of the machine ca.:130 mit Zubehör t z-travel:1.250 Ram mm w-axis:1000 Spindel mm ram stroke:1250 mm dimension of the ram:450 x 450 mm bore spindle stroke:1000 mm bore spindle turning speed range:1600 U/min powered rotary table: IOS 40 CNC 2 Achsen B u.V Rotary-table:3000 x 3500 mm Rotary-table: CNC-IOS 40 NC mm stepless adjustable, relative to diameter:Index 4x 90° -360000 Winkel =0,001 Grad mm travel - cross:Längs 1230 mm table load of rotary table max.:40 Tonnen clamping plate:3 x 8000 x 2000 mm CNC Ram-Type Floor Boring and Milling machine, dismantled and stored

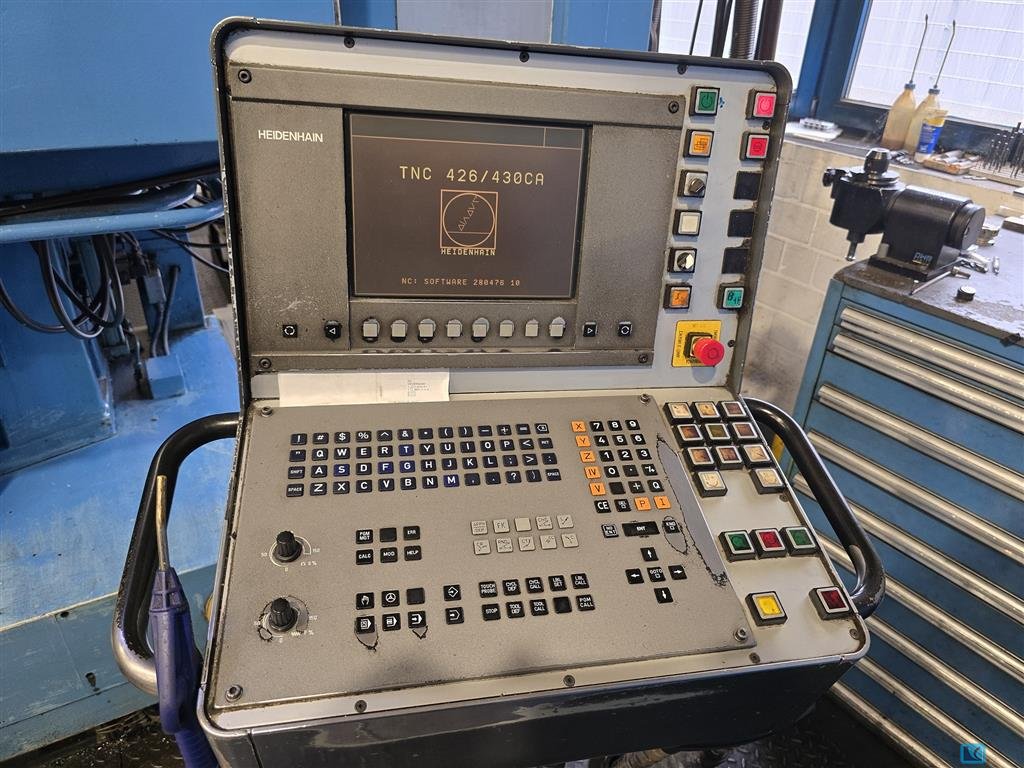

x-travel:875 / 630 mm y-travel:500 mm z-travel:500 mm table-size:900 x 528 mm table load:0,4 t control:Heidenhain TNC 426 tool adaptor:SK 40 turning speed range:20 - 7000 U/min rapid speed:15 m/min feed speeds:1 - 12.000 mm/min power requirement:7,5 / 12 kW quill stroke:75 mm no. of tools in the magazine:16 Pos. dimensions:2,40 x 2,03 x 2,11 m weight of the machine ca.:4,8 t Universal machining center / universal milling machine, ATC can be removed, then is x-travel 875mm, el. handwheel, 3D touchprobe, manuals, video per whatsApp possible

table length:2200 mm table width:2500 mm table load:16 t total power requirement:6,5 kW feed speeds:1,25 - 160 mm/min rapid traverse speed:2000 mm/min longitudinal adjustment:1500 mm weight of the machine ca.:12 t dimensions of the machine ca.:4,1 x 2,65 x 0,95 m

spindle diameter:160 mm x-travel:6000 mm y-travel:5000 mm z-axis:1500 mm dimension of the ram:470 x 500 mm w-axis:900 mm spindle taper ISO:50 spindle turning speed range:1 -3000 U/min spindle motor:71 kW feed speeds:1 - 5000 mm/min rapid speed:25 m/min total power requirement:187,6 kW dimensions of the machine ca.:14,1 x 13,4 x ü.F.7,8 m Machine in mint condition ! with CNC control HEIDENHAIN iTNC 530 autom. toolchanger 80 - pockets CNC Rotary Table 4000 x 4000 mm max. table load 75 to. longitudinal movement V-axis 1500 mm autom. head changer with universal Milling Head universal high speed milling head 5-axis 18000 rpm RENISHAW measuring probe belt filtering unit and through spindle coolant chip conveyor

spindle diameter:130 mm x-travel:10000 mm y-travel:2500 mm z-axis:800 mm w-axis:750 mm spindle taper ISO:50 spindle turning speed range:1 - 3000 U/min power maindrive:37 kW feed speeds:1 - 6000 mm/min rapid speed:15 m/min total power requirement:90 kW with CNC control HEIDENHAIN TNC 430 - automatic toolchanger 60-pockets - NC rotary table 2500 x 2000 mm max table load 20 to. - longitudinal movement table 1500 mm - floor plate 5000 x 2000 mm, angle clamping plate, chip conveyor - coolant attachment with through spindle coolant 30 l/min. 20 bar

spindle diameter:105 mm x-travel:2000 mm y-travel:1600 mm z-travel:1600 mm W-axis (spindle longitudinal):700 mm spindle taper: ISO:50 Speed of boring spindles:5 - 2000 U/min. b-axis:360 ° Table area:1200 x 1500 mm workpiece weight:5000 kg feed speeds:2 - 4000 mm/min rapid traverse:6 m/min total power requirement:65 kW weight of the machine ca.:17 t dimensions of the machine ca.:6,5 x 4,6 x 3,9 m CNC HEIDENHAIN TNC 426 working area protection coolant attachment

table diameter:1400 mm x-travel:2200 mm y-travel:1200 mm z-travel:1100 mm c-axis:360.000 x 0,001 b-axis:+/- 60 ° w-axis:350 mm distance spindle center to column::1100 mm table load:6 t spindle drive:15 kW Torque:4600 nM spindle turning speed range:10 - 1600 U/min spindle taper ISO:50 no. of tools in the magazine:20 Stück total power requirement:45 kW weight of the machine ca.:30 t dimensions of the machine ca.:5,8 x 5,8 x 4,9 m Machine complete overhould and retrofit in 2001 with SIEMENS 840 D control for 6 axis - tool changer for 20 tools - spindle quill 350 mm as W-axis - rotary table as C-axis - angualar milling head indexable - oil cooler, chip conveyor, hand operating panel.

spindle diameter:150 mm x-travel:5100 mm y-travel:3600 mm w-axis:1950 mm z-axis:1000 mm spindle drive:52 kW spindle turning speed range:5 - 1600 U/min spindle taper ISO:50 B-axis (table):0,001 ° table surface area:2500 x 2500 mm table load:30 to workpiece swing dia.:~6000 mm weight of the machine ca.:58 t total power requirement:85 kW dimensions of the machine ca.:10,5 x 8,6 x 6,9 m Machine retrofit and overhouled in 2007 with HEIDENHAIN TNC 530 control - angular milling head - exhauster - coolant device

X / Y / Z / W = 8000/3200/1600/1250 Working spindle diameter 160 mm Spindle taper M 100 Maximum spindle drilling depth 1,600 mm Largest quill extension 1,250 mm Spindle speed in the range of 2 - 800 min-1 Displacements in the range: drilling 0.5 - 1,600 mm / min milling 0.5 - 3,200 mm / min Power consumption of the spindle electric motor 6 - 55 kW Threads: metric Whitworth 0.5 - 12 mm 1 - 28 thread / 1 VERTICAL HEADBOARD TRAVEL ON STAND 2,500 mm TRAVEL OF THE STAND ON THE BED 6,000 mm MOTHERBOARD DIMENSIONS 8,000 x 5,500

Working spindle diameter 200 mm Spindle taper M 120 Maximum spindle drilling depth 2,000 mm Largest quill extension 1,600 mm Spindle speed in the range 0.8 - 630 min-1 Displacements in the range: drilling 0.63 - 2,500 mm / min milling 0.63 - 4,000 mm / min Power consumption of the spindle electric motor 77 kW Threads: metric 0.5 - 12 mm Whitworth 1 - 28 threads / 1 VERTICAL HEADREST TRAVEL ON STAND 3 150 mm TRAVEL OF THE STAND ON THE BED 6,000 mm BASE PLATE DIMENSIONS 12,800 x 5,665 mm

Work spindle diameter 200 mm Spindle taper M 120 Maximum spindle drilling depth 2,000 mm Largest spring extension 1,600 mm Spindle speed in the range of 0.8 - 630 min-1 Displacements in the range: drilling 0.63 - 2,500 mm / min Milling 0.63 - 4,000 mm / min Power consumption of the spindle electric motor 77 kW Thread: metric 0.5 - 12 mm Whitworth 1 - 28 threads / 1 VERTICAL HEADREST TRAVEL TO STAND 4,000 mm TRAVEL OF THE STAND ON THE BED 5,000 mm BASE PLATE DIMENSIONS 6,400 x 5,100 mm

Type: WHN 13A Parameters: 130 mm, 2000 mm Manufacturer: Tos Čelákovice Year of production / SO / GO: 1979 / - / - Description: Heidenhain control system Cross arrangement of beds Four axes + rotary table Retractable working spindle Machine designed for universal engineering production Heidenhain control system Axis strengthening hydraulically Machine parameters: X-axis 3510 Y axis 2040 Z axis 1200 W 800 axis incl. reinforcement, 600 without reinforcement Clamping surface of the table 1800 x 1800. The machine is connected, with the possibility to test. Bearings and damaged wheels must be replaced in the headstock.

CNC boring machine Brand: VITAP Type: POINT 2 New machine Vitaps smart solution for throughfeed drilling and grooving with autom. panel return to operator 3 controlled axis - Axe X Uninterrupted movement of the panel due to a ?New patented belt transport system?. - Axe Y Movement of the drilling head - Axe Z latest generation motor and ball screw. - No limit in panel length Perfect for batch 1: - Setup time = 0 - High productivity and flexibility Easy TPA programming - Monitor LCD TFT 19 5/4 Usb port for loading programs run on a station in each office - Cutting optimization Software - Graphics programming CAD TPA, base version - Saving all files with all data - Macro Programming - Import DXF files - Control: Full Parametric - Office programming software TPA Technical data: - 9 vertical independent spindles - 2+2 horizontal spindles on X ax ...

Troughfeed boring machine Make: VITAP Type: ACOUSTIC For creation of acoustic panels for noise reduction Boring machine with through feed panel, boring from the bottom and automatic panel return to the operator. Three controlled axes: - X Axis - Panel movement by means of a strong pneumatic clamp - Y Axis - Boring head movement - Z Axis - Panel boring - Newly patented, high rigidity boring head movement on Y and Z axis. - Constant Side pusher: Side pusher with constant preload for perfect positioning of the panel on the machine zero point. - New frontal and more user friendly tool change system No limit in panel length High productivity and flexibility - The drilling head processes several holes at the same time - Different grids are possible also drilling grids with shift - Different drilling heads are optional available Easy TPA programming - Control: F ...

Semi-automatic boring machine Brand: VITAP Typ: ALFA 35 T New machine Technical data: - One boring head 35 spindles - QUICK CHANGE SPINDLES - Pneumatic cylinder for horizontal/vertical positioning of the boring group (45 degreese and any intermediate angles) - Frontal/top 51aliper to obtain the same boring measure between horizontal and vertical position - Tilting side stops adjustable by metric scale and nonius and magnifying lens on each stop - 2 safety clamps inclined 4 degrees - Height regulation of the boring group by mechanical digital position indicator - Stroke regulation by means of 6 positions revolver (turret) (0-80 mm) - Automatic vertical-horizontal depth difference device (10 mm) - Speed regulation of the boring group command by control board - Strengthened steel structures for tilting of the boring group - 1 motor HP. 3 (Kw 2,2) - Sta ...

CNC boring- routering machine Brand: Vitap Type: K3 New machine Throughfeed process from the bottom and automatic panel return to the operator. Develop a new individual class: - With this machine you can do grooves and drill processings as well as different milling works, from simple edge milling to the milling of forms and letters. - There are no limits for your creativity Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position or just via click on the virtual workpiece Vitap Bar Nesting - efficient and time saving - This patent ...

X-travel: 1200mm, y-travel: 1100mm, z-travel: 1100mm, max. rotational spindle speed: 12,000/min, connected load: 34kW, controls: SIEMENS SINUMERIK 840 D with Shop Mill package, including documentation, B-axis, 70bar high-pressure internal coolant supply, tool holder SK50, BIG PLUS according to ISO 7388/2-A standard, tool changer with 100 tools, pallet changer APC, two pallets 800x800mm with T-slots and reference hole, air filter Losma, chip conveyor and cooling unit. Air filter Losma, chip conveyor and cooling unit, retrofit 2016.

unknow A9020411 (12-14)-

Operator Panel

unknow GE.570205.0002.00, part of the set-

Main Rack

BARCO HULPFUNCTIE 16 DIG OUTP

BARCO FLOPamp;KBRD INTF MNC95

Gear testing machine with chart recorder and electric drive manufacturer: unknown machine is designed for the inspection of gears accessories various module pins and mandrels has various hand cranks and adjustable settings and also an electric drive, with chart recorder you can see various rashes. in the camp under current vorfuehrbar, unfortunately no manual available. Are sold without any warranty
