boring machines used for sale

ISO 50 tool holder Spindle power 20 Kw Number of spindle revolutions 6000 Number of tools 40 X Axis Travel 1800 mm Y Axis travel 920 mm Z Axis travel 700 mm XYZ linear axis rapid feeds 15 m/min Table dimensions 2000 x 920 mm Table capacity 3000 kg Flat guides High refrigerant pressure yes Belt chip conveyor

Strokes: x 5500 z 2400 y 1100. Machine retrofitted in 2019 ECS 901 Predisposition for networking. New spindle drive. Overhauled recirculation screws. 2000x1000 cubes n ° 2. Machine in operation.

Table mm. 1250 x 920 Spindle diameter mm. 80 Tool holder ISO 40 Travel X mm. 1430 Travel Y mm. 985 Stroke Z mm. 850 Spindle speed 1500 rpm Quill stroke mm. 530 ECS CNC accessories

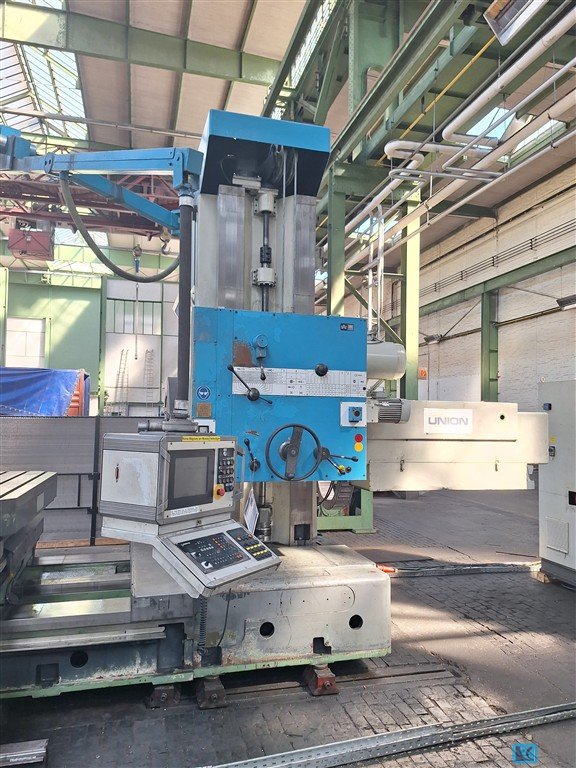

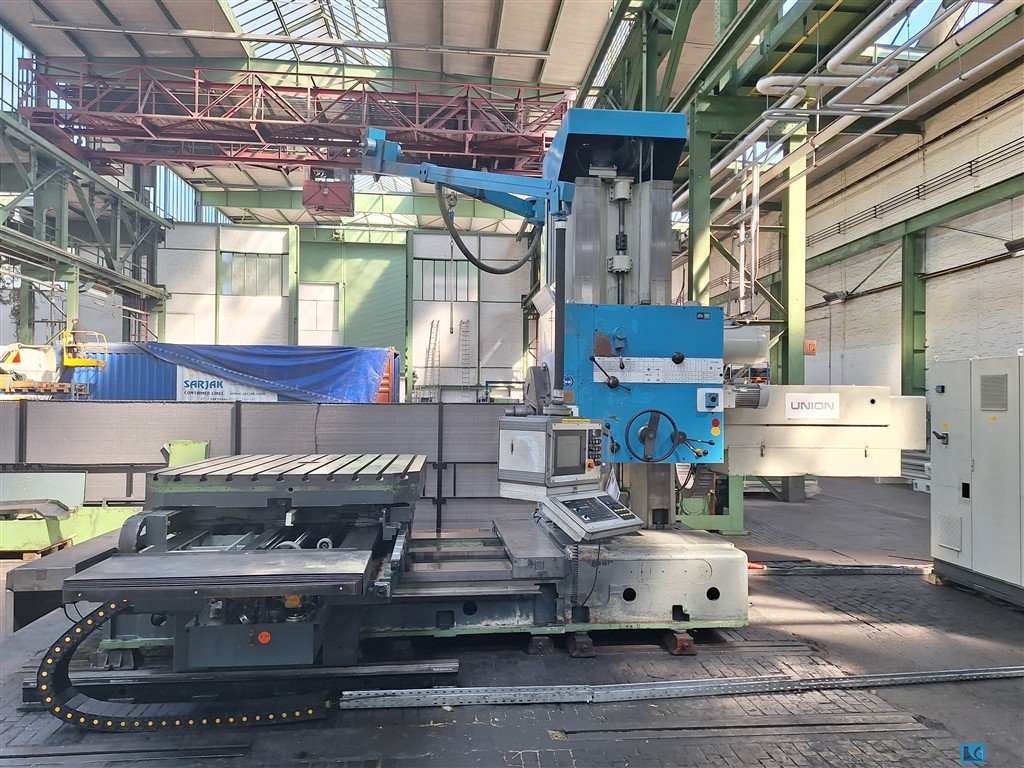

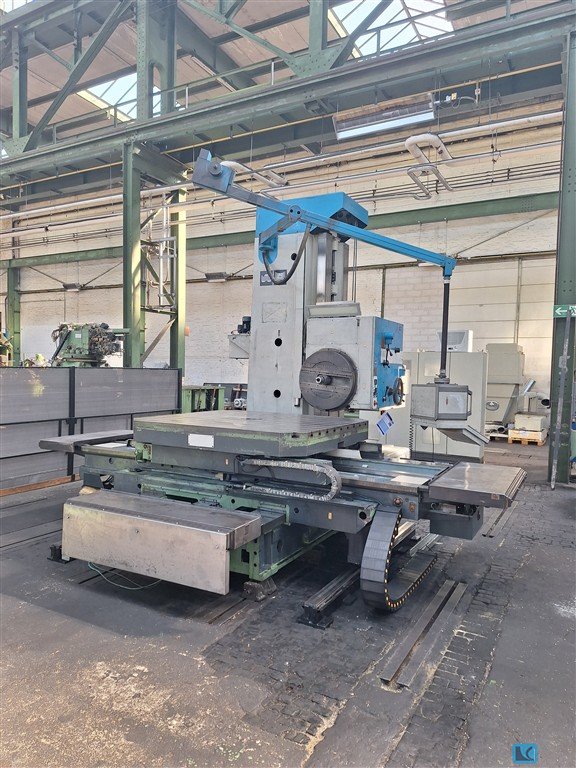

Sale of a second-hand horizontal boring machine UNION model BFT-80/2, year of manufacture 2003: axis travel: 1000 x 1000 x 1600 mm - spindle diameter: 80 mm -cone: ISO 40 - max. diameter of boring faceplate: 800 mm - diameter of the hole to be machined without faceplate: 450 mm - spindle extension: 500 mm - faceplate diameter: 500 mm - turntable height: 915 mm - size of the table clamping surface: 1120 x 1000 mm - table load: 2500 kg Delivery time - ready for shipment

Machine available visible in working order Table Size: X:2500mm Y:700mm Z:700mm X Axis Runs: 2500 Y Axis Strokes: 700 Z Axis Strokes: 700 Maximum Spindle Rotation Speed: 3,000 rpm Head Indexing: 2.5º Spindle power kW: 22 Government Unit: Selca 3045 Spindle connection: DIN 69871

Travel X-axis 1200 mm Travel Y-axis 1600 mm Travel Z-axis 2000 mm Table length: 1245 mm Table width: 1115 mm Main shaft cone: Morse 6 Spindle travel - W axis 680 mm Year of manufacture: 1960 Tool with accessories: 45° milling cutter, small turning head, cartridge holder, 8 different knife holders, table can be rotated. With additional water cooling. Drilling from the spindle is perfect, feeds work, stable machine!

HBM W 160 H, CNC Heidenhain iTNC 530, new 1982, after repairs 2009, spindle taper Morse 100, are reductions from M 100/HSK80

HBM WI 130 CNC Heidenhain iTNC 530, new 1969, after repairs 2008, spindle taper M 80/HSK 80

The machine is a group of two machines on the same bed. The main difference between them are the travel on Y axis. There are a fixed table and a rotary table in the front of them. The rotary table is used only by one of the machine. Boring spindle diameter 221 mm Boring spindle taper ISO 60 Headstock section 1145 x 860 mm Power of main drive motor 100 Kw Gearbox steps 2 Main spindle speed 2,7-600 rpm Column horizontal travel (X axis) (machine 1) 18000 mm Column horizontal travel (X axis) (machine 2) 22500 mm Headstock vertical travel (Y axis) (machine 1) 5000 mm Headstock vertical travel (Y axis) (machine 2) 6000 mm Headstock horizontal travel ( W axis) 1500 mm Boring spindle travel (Z axi ...

Main technical details: - Spindle diameter: 100 mm - Table size: 1100 x 1300 mm - Travels: 1250 x 1250 x 700 mm - Main motor power: 11 kW - Machine weight 14,5 to - Functional - With faceplate - With tail stock - With technical documentation

The machine is a group of two machines on the same bed. The main difference between them are the travel on Y axis. There are a fixed table and a rotary table in the front of them. The rotary table is used only by one of the machine. Boring spindle diameter 221 mm Boring spindle taper ISO 60 Headstock section 1145 x 860 mm Power of main drive motor 100 Kw Gearbox steps 2 Main spindle speed 2,7-600 rpm Column horizontal travel (X axis) (machine 1) 18000 mm Column horizontal travel (X axis) (machine 2) 22500 mm Headstock vertical travel (Y axis) (machine 1) 5000 mm Headstock vertical travel (Y axis) (machine 2) 6000 mm Headstock horizontal travel ( W axis) 1500 mm Boring spindle travel (Z axis) 1500 mm 5 CNC axes – Siemens 840D Able to work with face plate (U axis) (machi ...

Rotary table size: 2000x2000 mm Max. load on table: 20 tons Spindle diameter: 160 mm Inner cone of spindle: 100 metrical Max. spindle torque: 250000 kgcm Bed height: 550 mm Width of bed guides: 2000 mm Max. drilling depth with boring spindle: 1600 mm Max. move-out of quill: 1250 mm Normal travel of spindle headstock on the column: 2500 mm X-axis: 3000 mm Min. height of spindle axis over bed surface: 1400 mm Range of steplessly adjustable spindle speeds: 2-800 rpm Range of steplessly adjustable drilling feeds (spindle and quill): 0,5-1600 mm/min Range of steplessly adjustable milling feeds (spindle headstock and column): 1-3200 mm/min Speed of rapid travel at drilling (spindle, quill): 1600 mm/min Speed of rapid travel at milling (spindle headstock in vertical direction, column): 3200 mm/min Power of adjustable electric motor of direct current of spindle drive: 6-55 kW R ...

Main technical characteristics: Processing control digital indication; Spindle diameter mm, 200; Cone mm, 60; Quill size mm, 5205200; Maximum spindle torque: Cutter diameter 160mm. – 8600 Kn. Maximum depth of boring by spindle in mm., 2000; The maximum extension depth of the quill in mm., 1600; Movement of the headstock on the rack in mm., 3000/4000; Moving the rack along the frame in mm., 4000/20000; Dimensions and weight: -Height of a bed in mm., 500; Width of bed guides in mm., 2000; Width of rack guides in mm., 1700; Total machine power 180kVA Power of the main drive in kW, 77. The machine is equipped with a rotary table weighing 49000 kg. Machine weight 102000 kg. We are ready to discuss the price and all terms, please contact us for further discussion.

Capacities: Main Table: 560 x 405mm Top Table: 455 x 455mm Long Traverse: 610mm Cross Traverse: 320mm Vertical Traverse: 285mm Spindle Speeds: 50 – 2000rpm Infinately Variable Spindle Taper: 40 Int Feeds: 4- 106mm per min Infinetley Variable   Electrics: 415v, 3ph, 50 cycles Motor: 3HP   Complete with: Coolant   DRO can be added at extra cost   Approximate Dimensions: 3200 x 1200 x 2100mm Approximate Weight: 1750kg

Description: The machine is in good technical condition. Working spindle diameter: 110mm Table clamping surface: 1250 x 1250mm Machine dimensions lxwxh, 5290x4063 mm. Machine weight, 27000 kg By prior arrangement, the possibility of a tour in progress.

The machine is in good technical condition. Table working area: 950 x 950 mm Maximum table load: 3000 kg Maximum tool speed: 1800 rpm X-axis travel: 1250 mm Y-axis travel: 900 mm Z-axis travel: 1000 mm Spindle extension W: 560 mm Po by prior arrangement, the possibility of a tour in progress.

Type: VSP 50 CNC Parameters: 11750 mm, 2000 mm Manufacturer: Tos Description: The machine is in good technical condition, after agreement the possibility of testing. Main dimensions maximum and smallest distance of the spindle axis from the stand guide: -version without tool magazine 2500/500 mm -version with tool magazine 2500/600 mm maximum and smallest spindle end distance: -from bed guide 1480/380 mm -from the base of the machine 1860/760 mm headstock adjustment 2000 mm adjustment of the headstock on a machine with a tool magazine 1900 mm arm adjustment 800 mm Sleigh adjustment: -version with one bed 1000 mm -version with two beds 4500 mm -version with three beds 8000 mm -version with four beds 11500 mm Maximum drilling diameters: diameter of drilling fully into steel with a strength of 600 MPa 50 mm diameter of drilling completely into cast iron with a strength o ...

Location: Czech Republic Description: Working spindle diameter 100 mm X-axis travel 1250 mm Travel of the Y axis 1100 mm Spindle speed 10 - 1200 /min. Central cooling does not Spindle extension (W) 630 mm Z axis travel 970 mm The toolbox does not Spindle clamping cone ISO 50. Power of the main electric motor 22 kW Table clamping surface 1000 x 1120 mm Max. workpiece weight 3000 kg Dimensions L x W x H 4746 x 3000 x 3340 mm Machine weight 13700 kg

Working spindle diameter 200 mm Spindle taper M 120 Maximum spindle drilling depth 2,000 mm Maximum quill extension 1,600 mm Spindle revolutions in the range 0.8 – 630 min-1 Feeds in the range: drilling and milling 0.63 – 2,500 mm/min 0.63 – 4,000 mm/min Spindle electric motor power 77 kW Threads: metric Whitworth 0.5 – 12 mm 1 – 28 turns/1 SPINDLE VERTICAL TRAVEL ON STAND 3,150 mm STAND TRAVEL ON BED 6,000 mm DIMENSION BASE PLATES 12,800 x 5,665 mm DELIVERY TERMS The machine is currently in operation. Delivery date as agreed.

Working spindle diameter: 75mm Table clamping surface: 950x950mm Digital measuring X-axis travel 1,250 mm Y-axis travel 900 mm Z-axis travel 1,060 mm Spindle speed 18 - 1800 /min. Spindle extension (W) 560 mm Power of the main electric motor 11 kW Max. table load 3,000 kg Dimensions LxWxH 4500 x 3400 x2800 mm Machine weight 10t Inspection possible upon agreement. Accessories: support column

Machine weight: 38000 kg Working spindle diameter: 130 mm Spindle taper: ISO 50 Spindle speed: 1800 rpm Table clamping surface: 1800 x 1600 mm Transverse table movement - x axis: 3500 mm Longitudinal table movement - z axis: 2000 mm Vertical table movement - y axis: 2500 mm

The machine is in good technical condition. Table working area: 950 x 950 mm Maximum table load: 3000 kg Maximum tool speed: 1800 rpm X-axis travel: 1250 mm Y-axis travel: 900 mm Z-axis travel: 1000 mm Spindle extension W: 560 mm Po by prior arrangement, the possibility of a tour in progress.

The machine is in good technical condition, control system HEIDENHAIN 310. With circular interpolation. A tour is possible upon agreement. Basic parameters 100 mm; 1000 x 1120 mm Machine weight: 13400 kg Total power of the machine:: 20 kW Diameter of the working spindle: 100 mm Spindle taper: ISO 50 Spindle speed: 4 - 1400 rpm Table clamping surface: 1000 x 1120 mm

Type: H 100A Parameters: 100 mm, 1250 mm Manufacturer: Tos Year of production / SO / GO: 1970 / - / 2004 Description: Machine in good technical condition. Possibility of testing after agreement. Working Spindle Diameter 100 Mm Iso 50 Spindle Taper Table Clamping Area 1250 X 1250 Mm Max. Workpiece weight 3000 Kg Longitudinal Table Movement - X Axis 1250 Mm Transverse Table Movement - Z Axis 1250 Mm Vertical Table Movement - Y Axis 1120 Mm

Weight of the machine: 32000 kg Total power of the machine:: 37 kW Working spindle diameter: 130 mm Cross table movement - x axis: 2000 mm Vertical table movement - y axis: 2500 mm Machine dimensions LxWxH: 7480x6300x4800 mm

Working spindle diameter: 160 mm Spindle taper: clamping 100 metric Spindle speed: 800 rpm Clamping surface of the table: 4000x9000 mm Working transverse feed - x-axis: 9000 mm/min Working longitudinal feed - axis z: and W 1500 mm/min Working vertical feed - y-axis: 3050 mm/min Turntable area:: 2000x2000 mm Rotary table y/zw axis: : 2800x1000 mm Rotary table max workpiece weight:: 20,000 kg

The WHN 13.8B CNC boring machine is in good technical condition, HEIDENHAIN control system. The year of GO 2001 Total machine input:: 37 kW Working spindle diameter: 130 mm Spindle taper: ISO 50 Spindle speed: 2500 rpm Clamping surface of the table: 1800x2200 mm Transverse movement of the table - x-axis: 3500 mm Longitudinal movement of the table - z axis: 1200 mm Vertical table movement - y axis: 2500 mm

WH 105 CNC with Heidenhain iTNC 530 control system is in good technical condition. By agreement, it is possible to see it in operation. AME brand belt filter system with PS50 belt filter attachment, belt skimmer with conveyor belt, micro aerator type 300, lifting system, pump for feeding the machine, external cooling 3 bar, 40 l/min and internal cooling 20 bar with container for coolant 1000 l. Standard chip conveyor for x 1800mm with stepped grate from AME. Spindle speed: max 3300 rpm Transverse movement of the table - x-axis: 1800 mm Longitudinal movement of the table - z axis: 1250 mm Vertical table movement - y axis: 1600 mm Turntable: : 1400x1600 mm B: 360°

Year of Manufacture/SO/GO: 1987/-/2001 Description: The machine is in very good technical condition, dismantled, stored in storage. 5 persons X (table lift) 5000 mm Y (vertical lift of headstock) 2000 mm Z (longitudinal displacement of the column) 1250 mm W (spindle travel) 800 mm Engine power: 37 kW Spindle speed range: 1.25-900 rpm Rapid feed: 4000 mm/min Spindle diameter: 130 mm Table: 1800 x 1800 mm Machine weight: 12000 kg Spindle taper: ISO 50. control system HEIDENHAIN

SECOND-HAND END-CUT OFF BORING AND MILLING MACHINE BACCI MOD. TTF1 - CE RULES - volt. 380/50 - S/N 333 - year 1995

Category bench boring mill Make Stankoimport Type 2 A 635 Year of construction 1974 Spindle diameter 125 mm x-travel 1600 mm y-way 1400 mm z-travel 1600 mm Table size 1800 x 1600 mm Spindle mount MK 6 Drilling depth in one go 1000 mm Quill stroke 1000 mm Speed range - spindle 8 - 1250 rpm Speed range - facing slide 5 - 315 rpm Feeds - longitudinal / transverse / vertical 1 - 800 mm / min Table can be rotated 360 ° Table load 4000 kg Division 0.5 ° Distance table - spindle center 50 - 1350 mm Face slide feeds: 1 - 800 mm / min Cross slide diameter 800 mm Spindle drive 17 kW Machine weight approx. 32.5 t Space requirement approx. 7.50 x 3.50 x 3.93 m Accessories facing slide, stick, 2 support sleeves

The machine is in good technical condition. Spindle bore: 80 mm Taper: Morse 5 Equipment: Own crane Digital measurement 1000 x 500 console It was used once a year for light drilling or milling. By prior arrangement, the possibility of a tour in progress.

Description: Consisting of various indexable unscrewing heads Approx. Onsite Dimension. (l x w x h): 400 x 300 x 100 mm, weight approx.: 40 kg

Horizontal boring mill W200H, TOS Axis: X- 8000mm Y- 3150mm Z- 2000mm W- 1600mm

horizontal boring - glue injection - dowel inserting Single drill and inserter which can be freely programmed Drilling depth manually adjustable Z-axis with manual setting Workpiece sizes: Length min/max: 20 / 1250 mm Width min/max: 50 / 800 mm Thickness min/max: 10 / 60 mm max. workpiecewidth with middle fence on 2 fields: 600 mm, on 1 field: 1200 mm Middle fence with pneumatic rise/fall 6 vertical pressure units Double membrane glue pump 1:1 Glue viscosity 350 mPas diameter dowels: 6 mm, length of 40 mm. Controlls: Powercontrol PC85 with Woodwop software

Description: Table: 15-ton load/0.001 degree indexing/Full C axis 18.5/22kw spindle motor 60 tool ATC Scales Spindle thru coolant Chip conveyor Fanuc 31iA control Includes shipping to any major seaport in the world. x-motion: 3,000 mm, y-motion: 2,000 mm, z-motion: 1,600 mm, w - axis: 700 mm, table surface area l x w : 2,000 x 1,800 mm, turning speed range: 2,500 rpm, weight approx.: 37,200 kg, Approx. Onsite Dimension. (l x w x h): 6,320 × 6,900 x 5,049 mm

Machine in good technical condition, possibility of testing after agreement. Weight: 12000 kg Control: TNC 360. X axis (longitudinal) 1250 mm Y-axis (pricna) 1000 mm Z axis (vertical) 900 mm Table length 1000 mm Table width 1120 mm Workpiece weight 3000 kg Spindle diameter 90 mm Max. shaft speed 1120 rpm Shaft motor power 20 kW

Horizontal boring milling machine AYCE model AC100-K4 with continuous variation of advances and cnc Heidenhain TNC124 - Automatic positioning of the table rotation 4 x 90º. - Vertical course 1200mm (Instead of 1000mm that the standard model has) - Refrigeration equipment - Face plate and clamping arm - Universal vertical apparatus, Huron type with hydraulic tool clamping - Rest for vertical course of 1200mm - Table rotation display 4th AXIS (B) Principal axis: - Shaft diameter: 100mm - Inner cone: ISO 50 with quick tool clamping (Instead of Morse 5) - Drill mounting diameter: 171.45mm - Horizontal course of the main axis: 700mm - Vertical course of the main axis: 1200mm - Number of turning speeds: 18 - Speed ​​range: 12-1200 rpm - Maximum distance between plate and steady rest: 2250mm Advances: - Number of work advances in all directions: INFINITE - Min/ma ...

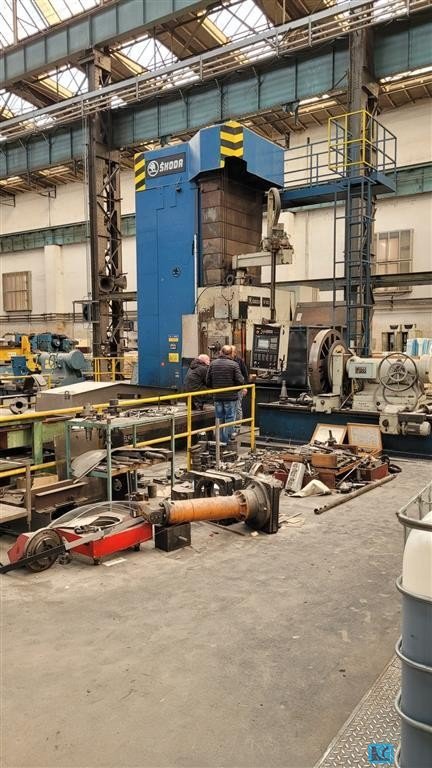

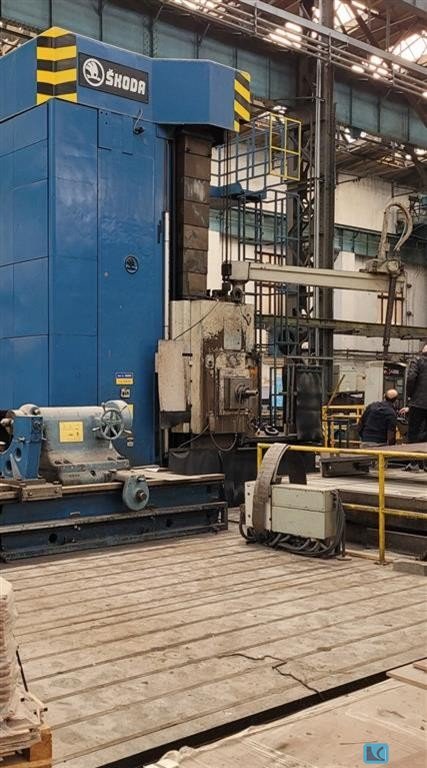

Drilling and milling machine Skoda HCW2 Machine type: HCW 2-180 5/16m Year of construction: 2009 Manufacturer: Skoda Plzen, CZ Control: CNC840D-Powerline Country of manufacture: Czech Republic Freight basis: from storage location + VAT incl. Dismatling and loading Technical data Control Siemens 840 D Powerline Travel distances X-axis 15,000 mm cross-column Y-axis 5,000 mm headstock vertical Z-axis 1,300 mm support beam (RAM) - horizontal W-axis 1,000 mm quill stroke horizontal Machine table rotary table plate field: Length 3,500mm 3,780mm Width 3,000mm 8,000mm max. table load: 60 t Travel 2500mm (V-axis) Drilling/milling spindle Tool taper: ISO 50 Quill Ø 180 mm RAM cross section 450 x 450 mm Power 100KW max torque 11,000 Nm (up to 85 rpm) max. speed 2500 rpm Rapid traverses: X; Y axis: 15 m/min W; Z - axis: 10 m/min Attachment ...

Key data: 80 mm, 1700 mm, 1800 mm

Spindle Diameter: 80 mm Spindle Adapter: SK50 Spindle speeds: 11 - 1000 rpm. X-axis: 1700 mm Y-axis: 1800 mm Z-axis: 1800 mm Spindle off (W-axis): 710 mm Table dimensions: 1100 x 900 mm Elbo Digital Readout: On Y-axis and Z-axis Equipped with: -Turntable - Some tool containers Spindle motor: 7.5 KW Machine LxWxH: 5100 x 2650 x 3300 mm Machine Weight: 10 Ton

Technical features: X axis travel: 3.000mm Y axis travel: 2.250mm W axis travel: 2.500mm Z axis travel: 700mm B axis table rotation in continuos B axis positioning 0,001° Table dimensions 1.400X1.600mm Table max loading 8 ton head dimensions 410X505mm spindle diameter 130mm Spindle taper ISO 50 Spindle speed 4-3.000rpm table with pallet top (automatic clamping) 1.800X1.800mm

Boring head, spindle head, drilling head, plunge drilling head, grooving head, spindle drilling head, boring head, universal boring head, boring tool, facing head -Manufacturer: Schmid, plan and boring head -Type: UBS Gr.1 -Intake: SK40 -Setting accuracy: 0.02 and 0.01 mm -Accessories: see photos -Dimensions of the case: 240/125/H100 mm -Total weight: 4.0 kg

Description: SPECIFICATIONS Character: Sacem Type: MSPC 110 Year of construction: 1976 X: 2,500 mm Y: 2,000 mm Z: 500 mm B: 1,250 mm Top name spindle: ISO 50 Spindle: ø110 mm Digital readout: SONY Panel length: 2x 3,000 mm Panel width: 2x 1,500 mm Flat turning support: 400 mm slag (including various tools) Lunettes included 2x Spindle support 1x Angled freewheel (Huron type ISO 50) Mantle freewheel: 320 + ø400 mm Angle plate: (2x) 500 x 1,330 mm / (2x) 650 x 1,700 mm / (2x) 800 x 2,800 mm Approx. Onsite Dimension. (l x w x h): 8,000 x 3,700 x 5,000 mm, weight approx.: 25,000 kg

Description: SPECIFICATIONS Character: Femco Type: WBT-100SR2 CNC Brand: Mitsubishi CNC Type: Meldas CNC Model: C3 Year built: 1995, overhauled in 2005 W: 700 mm X: 2,000 mm Y: 1,700 mm Z: 1,700 mm Table length: 1,440 mm Panel width: 1,600 mm Table load: 6,300 kg Angled milling head Spindle diameter: 100 mm ø Incl. right-angle milling head type Huron Approx. Onsite Dimension. (l x w x h): 5,680 x 3,400 x 3,700 mm, weight approx.: 20,000 kg

Description: Tool holder: SK 40 Incl. various boring tools Approx. Onsite Dimension. (l x w x h): 500 x 400 x 200 mm, weight approx.: 20 kg

Description: Tool holder: SK 40 Approx. Onsite Dimension. (l x w x h): 400 x 400 x 200 mm, weight approx.: 20 kg

Description: Tool holder: SK 40 Incl. boring tool Approx. Onsite Dimension. (l x w x h): 400 x 300 x 70 mm, weight approx.: 20 kg

Description: Tool holder: SK 40 Incl. boring tool Approx. Onsite Dimension. (l x w x h): 400 x 300 x 70 mm, weight approx.: 20 kg

Description: Consisting of 4 pieces Tool holder: SK 40 Approx. Onsite Dimension. (l x w x h): 500 x 400 x 50 mm, weight approx.: 30 kg

Description: working table dimensions 880 x 425 mm number of spindles 21 distance between spindles 32 mm distance between the first and the last spindles 640 mm spindles revolutions 2850 min-1 motor power 1,1kW maximal air pressure 6 Bar dimensions without rip fence 1320 x 1220 x 1400 mm required area 3500 x 3500 mm Approx. Onsite Dimension. (l x w x h): 1,320 x 1,220 x 1,400 mm, weight approx.: 2,754 kg
