boring machines used for sale

SIP 600 ist eine Koordinatenbohrmaschine hoher Präzision, genau und zuverlässig. Kapazitäten: Tisch 1100×842 mm (T16), max. Gewicht 1500 kg; Wege X1000 Y700 Z300 mm; Ø Spindel 135 mm; Durchgang Ständer 1100 mm; Spindel-Tisch 1000 mm. Daten: MK4; 40–2000 t/min; Vorschub 1–6000 mm/min; Schlitten 0,04–0,35 mm/t; 3x380V 50Hz; Spindelmotor 8 CV (5,9 kW); 12 kVA; Gewicht ~10000 kg; Maße 2930×3480×3235 mm. Zubehör: Satz Werkzeughalter. Für enge Toleranzen in Automotive, Uhrmacherei, Werkzeugmaschinen, Luftfahrt, Medizintechnik. Technische Daten ohne Gewähr

x-travel: 600 mm y-travel: 400 mm z-travel: 320 mm table-size: 900 x 420 mm control: konventionell tool adaptor: SK40 turning speed range: 35,5 - 1800 U/min quill stroke: ja mm total power requirement: 5,0 kW weight of the machine ca.: 1,45 t dimensions: 1,6 x 1,2 x 1,9 m Features: - Digital display - Coolant system - Milling head with quill The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 600 mm y-travel: 400 mm z-travel: 400 mm table surface area: 720 x 410 mm spindle turning speed range: 40 - 2000 U/min : mm/min feeds Z-axis: mm/min tool taper: SK 40 total power requirement: 3,0 kW weight of the machine ca.: 1,4 t dimensions: 1,8 x 1,6 x 1,9 m Milling machine with - Toolmakers table - Heidenhain digital readout - Rapid traverse - Coolant system - Central lubrication - Machine feet - incl. drawer unit with contents The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 760 mm y-travel: 381 mm z-travel: 450 mm quill stroke: 152 mm table-size: 1300 x 305 mm control: Heidenhain TNC 360 tool adaptor: SK40 turning speed range: 100- 4.000 U/min rapid speed: 5000 / 7000 m/min feed speeds: 2,5 bis 3000 mm/min power requirement: 2.2 kW diameter of quill: 101 mm total power requirement: 15,0 kW weight of the machine ca.: 2,4 t dimensions: 2,4 x 2,3 x 2,2 m Equipment: - Heidenhain TNC 360 - Coolant system - Hydraulic tool clamping - Milling head with quill - Machine light - Chip tray - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 620 mm y-travel: 420 mm z-travel: 400 mm turning speeds: 50- 4000 U/min total power requirement: 17,5 kW weight of the machine ca.: 1,9 t dimensions of the machine ca.: 2,0 x 2,7 x 2 m Description: - excellent condition - Heidenhain ND780 digital readout - infinitely variable speed control - infinitely variable feed drives - hydraulic tool clamping - mechanical handwheels - electronic handwheel - drilling quill - horizontal milling spindle - coolant system X-travel 620 mm Y-travel 420 mm Z-travel 400 mm Spindle taper ISO 40 DIN 69871A Spindle speeds 50 - 4000 rpm Table size 800 x 400 mm Table load 400 kg Feed rates infinitely variable, max. 2000 mm/min Rapid traverse 5 / 4 m/min Drive power - milling spindle (S1) 10.5 kW Quill stroke 80 mm Coolant system Operating voltage 400 V Total power requirement 17.5 kW Machine weight approx. 1.9 t Space requirement approx. 2.00 x 2.76 x  ...

x-travel: 300 mm y-travel: 160 mm z-travel: 290 mm table surface area: 600 x 210 mm tool taper: SK 40 spindle turning speed range: (16) 40 - 2000 U/min feeds -stepless-: 5 - 500 mm/min rapid traverse: 1,2 m/min spindle motor: 1,5 / 1,9 kW total power requirement: 9,5 kVA weight of the machine ca.: 830 kg dimensions of the machine ca.: 2000 x 2200 x 1655 mm The machine is in very good condition and comes from a training workshop. Equipment: 3-axis positioning control with active digital display Heidenhain TNC 123 - Manual mode: Manual operation and positioning with manual input - Automatic mode: Single-block programme run, programme storage Fixed angle table Movable vertical milling head, swivel range +/- 90 degr., quill stroke 60 mm Coolant equipment Central lubrication Tailstock with counter bearing Manual The data for this ad was created with ModulMWS - the software solution o ...

x-travel: 300 mm y-travel: 160 mm z-travel: 290 mm table surface area: 600 x 210 mm tool taper: SK 40 spindle turning speed range: (16) 40 - 2000 U/min feeds -stepless-: 5 - 500 mm/min rapid traverse: 1,2 m/min spindle motor: 1,5 / 1,9 kW total power requirement: 9,5 kVA weight of the machine ca.: 950 kg dimensions of the machine ca.: 2000 x 2200 x 1655 mm The machine comes from a training center. Equipment: 3-axis active digital readout made by Heidenhain Infinitely variable feeds and rapid traverse in all 3 axes Fixed angle table Coolant equipment Tailstock with counter bearing Several toolholders The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 800 mm, 700 mm, 600 mm

CNC Universal – Milling & Drilling Machine DECKEL MAHO DMU 80 P hi-dyn With track control Heidenhain iTNC 530 Year of Make: 2004 Travel: X 800 Y 700 Z 600 Speed range: 0 – 8,000 rpm infinitely variable ( SK 50 ) With the following accessories: NC rotary table 900 mm x 700 mm clamping surface Automatic Swivel Milling Head ( HORIZONTAL + VERTICAL ) Universal tool changer with 30 magazine positions as double gripper ( SK 50 ) Full protection cabin with sliding doors and interior lighting Electronic handwheel IKZ – 40 bar Chip conveyor Rotoclear Operating mode 3 + 4 3-Piece Height Adjustable Machine Shoes Swarf Spray Gun Operating Instructions

Key data: 400 mm, 250 mm, 400 mm

Jig boring/Milling machine HAUSER OP3 Travel X: 400 mm Travel Y: 250 mm Travel Z: 400 mm Cone: CM2 Spindle exit: 130 mm Spindle speedfrom 60 to 3000 RPM Table size: 590 x 320 mm Maxi distance spindle/table: 570 mm Drilling capacity in steel: 20 mm Scale 2 axes MITUTOYO Auto descent: 0,03 mm/min - 0,06 mm/min Variable speed drive at the spindle Voltage: 220 V Tri Width: 1600 mm Depth: 1600 mm Total height: 1600 mm Weight: approx 1,4 T Machine supplied with many accessories (see photos)

Control Heidenhain TNC 124 Travel X/Y/Z: 500 x 400 x 400 mm Spindle speed 4,500 min-1 Tool holder SK 40 Manual rotary table with swivel axis 700 x 500 mm

CNC universal milling machine HERMLE U 630 T With track control Heidenhain TNC 426 Year of Make: 1998 Travel: X 630 (875) Y 500 Z 500 Speed range: 20 – 7,000 rpm infinitely variable With the following accessories: Rigid angle table 900 mm x 528 mm clamping surface Vertical tool changer with 16 magazine positions Full protection cabin with sliding doors and interior lighting Electronic handwheel 3 D Probe Heidenhain Coolant Setup 4 Height Adjustable M

Pitch: 32 mm Motor output: 1,8 kW Clamping height max.: mm Overall size: mm Weight: 240 kg Number of boring spindles: 21 St. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bluthardt, VRB 6/20 Drilling machine with coordinate table, with digital display DRO- 3 axis , Year of manufacture: 1980, very good condition, can be viewed under power Mounts SK40, quick-change system, incl. mounts MK2, MK3, MK4 , Spindle : 45 - 900 rpm , 3,4KW, right - counterclockwise rotation, Stroke: 200mm, upper part adjustment electr. 500mm Radius : 500, Coordinate table: Clamping surface 600x400m, X-660, Y-450mm To be visited under power!

automatic CUTTING BORING and MOULDING machine BACCI TTF1 2TM . second hand machine working conditions : Excellent hydraulic drive of all the movements volt. 380/50 CE mark : YES Machine suitable for assembling part of chairs, tables, frames, furniture, wheelchair frames, etc. The BACCI TTF1 2TM performs the operations of cutting , milling and drilling at the end of the piece, either singularly or differently combined . the milling unit is composed of n.02 spindle moulders ( anti-splinter system ) machine composed by 3 working units : 1- Cutting unit : circular saw max.diam. mm.400 motor power Hp 3 2- Boring unit : boring head with 5 mandrins motor power Hp 3 3- Moulding unit . with automatic movement of the carriage on recirculating ball bearings n.02 spindle moulders (anti-splinter) motor power Hp 7,5 spindle diam. mm.35 hydraulic unit motor power Hp 2

Aufspannflaeche 3,000 x 2,000 mms table height 1,150 mms

AUTOMATIC BORING machine 35 spindles SCM TOP 35 second hand machine electric movement of boring head 0° / 90° technical details : n. 35 spindles center distance between spindles mm 32 center distance between first and last spindle of the drill head mm.1088 max. stroke of boring unit mm. 140 n.02 motors Hp 3 each one operating pressure atm 6-8 weight kg.800 volt. 380/50

conventional ´ traditional Tischbohrwerk, work spindle diameter 85 mm Traverse paths x 1000 mm, y 1000 mm, z 900 mm, ISO 40,. Clamping area table 1000 x 1120 mm with position indicator

Control: Heidenhain TNC 360 (1992) Table size: 1000 x 1000 mm Table size with front extension: 1345 x 1000 mm Table load max.: 2000 kg Distance spindle centre to column min/max.: 270 ~ 1270 mm Distance spindle nose to table min/max.: 0 - 1100 mm Distance between the upright columns: 1855 mm Table longitudinal travel : 1400 mm Boring ram carriage cross travel: 900 mm Crossrail vertical travel: 850 mm Boring spindle travel: 370 mm Spindle motor rating: 6 KW Spindle speed range: 30 - 1500 rpm Boring spindle diameter: 82 mm Spindle taper: MK 5 Borer diameter: 2 - 70 mm Boring tool diameter: 17 - 450 mm Boring diameter in solid ST 60: 45 mm Boring diameter in solid Cast iron: 70 mm Equipped with: Tooling; Accessories Machine overhauled and retrofitted in 1992 !; Very good

AUTOMATIC CUTTING , BORING and MOULDING machine type PADE 1000 N Machine suitable for assembling part of chairs, tables, frames, small furniture, wheelchair frames, etc. The PADE 1000 N performs the operations of Cutting , milling and drilling at the end of the piece, either singularly or differently combined. All movements of the machine are controlled by pneumatic devices. composed by 3 working units : 1- Cutting unit circular saw diam. mm.350 motor power hp 3 2- Boring unit boring head with 5 / 7 mandrins motor power Hp 3 max. working stroke of boring unit mm. 130 3- Moulding unit vertical spindle for moulder motor power Hp 5,5 spindle diam. mm.30 pneumatic sliding carriage volt. 380/50

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

M. No.: 2277

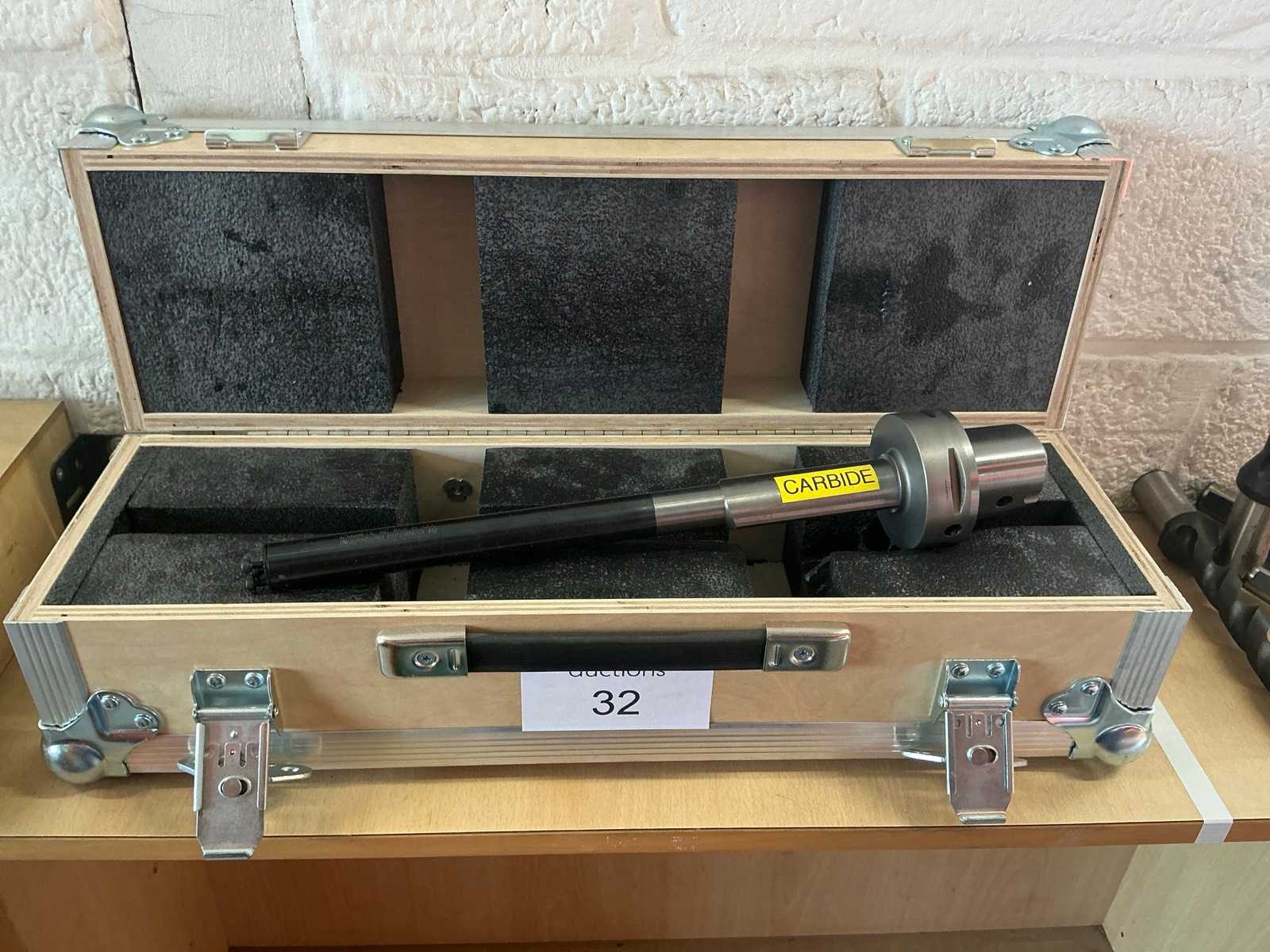

in cassette

in cassette

Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition

Code 61080 Description Horizontal table borer Make UNION Model BFT 90/3 at Serial number 25 742 Year 1979 ( 1980 in use ) Control Heidenhain TNC 121 Spindle 102 mm Spindle taper ISO 50 Spindle out (W) 710 mm Table 1400 x 1250 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm Weight on table 3000 kg 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 3000 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Accessoiries 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead with 600 mm gap

Number of boring units // Diameter boring units (mm) 9x 3.0 5x 3.5 1x 4.0 3x 4.5 6x 5.0 9x 5.5 31x 6.0 2x 6.5 19x 7.0 18x 8.0 1x 8.5 9x 9.0 5x 10.0 9x 11.0 2x 13.0 3x 14.0 1x 15.0 1x 16.0 2x 18.0 1x 19.0

M. No.: PB 04 02.01/1070

CNC Double column Coordinate Boring Machine with Deep Hole Drilling Support Kolb KBN G 120 Year of manufacture 1984 / Retrofitted with Heidenhain TNC 426 in 2006 Table size 4250 x 2200 mm Table load max. 14 t Table longitudinal travel X 3000 mm Main spindle cross travel Y 2180 mm Deep hole drilling support cross travel A - 2000 mm Spindle vertical travel Z 500 mm Distance between the columns 2640 mm; Spindle to table 100 - 1300 mm; Spindle diameter 224 mm Spindle drive motor rating 46 KW Spindle speeds 14 - 1400 rpm Spindle taper ISO 50 Drilling in steel ST60 : 100 mm diameter; Boring to 300 mm; Threading to M 125 x 3; Milling capacity 730 cm³/min.; Second support for Deep Hole Drilling Spindle speeds for BTA and ELB boring 315 - 3150 rpm High pressure cutting oil delivery to spindle Chip- and oil collection and separation via Centrifuge. Very good condition P ...

Sr. No.: 801831

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently

M. No.: 1767

3-spindle line boring machine

Condition: Very good condition Available: Immediately

Key data: 100 mm, 1600 mm, 1250 mm

DRO , TABLE 1250 X 1250

Paper boring machine Dürselen Corta PB 04; Cleaned and tested; 4 drill heads (up to 6 stick.usable); Drill cooling and lubrication; Sliding table; Endless drilling tape; Inlay depth behind the holes 65mm; Max. Stack height 50mm; Sliding table size before the drills 300mm; Max. Drilling distance over sliding table 420mm. Paper drilling machine Dürselen Corta PB 04; The cleaned and checked; Four heads (up to 6 heads); Driller cooling and lubrication; Sliding table; endless drilling band; size behind drillers 65mm; Max.pile hight 50mm; Seft of table in front of the drillers 300mm; max.drilling distance over the table 420mm.

Control system Heidenhain TNC 415 Spindle diameter 130 mm Tapered hollow spindle ISO 50 Spindle speed range 10 to 1500 rpm Table transverse (X): 3500 mm Rolling headstock stand for (Y): 2000 mm Longitudinal displacement rack (W): 1250 mm Eject working spindle (Z): 800 mm Table load 12 000 kg Machine weight: 36 000 kg

TOS WHN 130 MC used machine Specifications System Heidenhain TNC 426 Working range Spindle diameter 140 [mm] Taper in the spindle ISO 50 Table transverse adjustment (X) 3000 [mm] Vertical headstock adjustment (Y) 2000 [mm] Vertical travel (Z) 1250 [mm] Spindle stroke (W) 560 [mm] 2X Clamping surface 1800 x 1600 [mm] Speed range 10 - 2500 [rpm] Main motor output 37,0 [kW] Max. workpiece weightƒ 8000 [kg] Accessories Tool changer for 60pcs Tool cooling Chip conveyor

Technical data Spindle dia 125mm ISA 50 taper stroke of the spindle 800 mm cross travel of table X 1200 mm vert. travel of headstock Y 1400 mm longit. ztravel of the table Z 1620 mm spindle speed infinitely variable 3,5-700 rpm table size 1200 x 1400 mm table load 6000 kg main motor DC 19 kw total input 22,79 kW spindle feed inf. variable 0 - 1,25 mm/rot working feeds inf. variable 0,3 - 1700 mm/min rapid traverse 2250 mm/min fine feed 3mm/min dimension LxWxH 7,4 x 4,8 x 3,6 m weight of the machine 21000 kg DRO Heidenhain

Skoda W 160 H/NR CNC Travel x= 14.500mm (bed is for the travel 18,500mm) Travel Y= 3.150mm Travel Z= 1.600mm Travel W= 1.250mm Spindle diameter 160mm Machine with ball screw Many accessories available: CNC control Siemens SINUMERIC 850 Rotary table ISO 16 2.200 x 2.200mm, capacity 16 ton included Chip conweyor : 19.000 mm + 12.000 mm Floor plates

W 200G with Siemens AC main motor. modernized the main drive by instalation of Siemens AC motor with SIMODRIVE 611. Original built ISO 60 taper and 630 rpm Main data: X=8000 mm Y=4150 mm Z =1600 mm W=2000 mm Spindle dia 200mm ISO 60 spindle speed max 800 rpm Accessories: DRO Philips available as original rotary table E 20 extra cost milling head IFH 1 and IV25, IFW 1, IFW2 IFW 3 NO floor plates

HBM STANKO 2A622 CNC

W100A Parameters 100mm, 1600mm Diameter of working spindle 100 mm Taper in spindle morse 6. Longitudinal adjustment of table (z) 1450 mm Cross adjustment of table (x) 1600 mm Motion of work head on frame (y) 1120 mm Slip out of working spindle (w) 900 mm Clamping area of table 1250 x 1250 mm Dimensions l x w x h 6710 x 3450 x 3000 mm Machine weight 14 000 kg Accessories: face plate, tail stock

Spindle diameter 203.2 mm x-travel 9,000 mm y-travel 4,000 mm Grinding spindle diameter 335 mm Spindle holder ISO 60 Spindle speeds 1-350 / 5-1,200 rpm w-axis 800 mm z-axis 1,200 mm Rapid x-axis 8,000 m/min Rapid y-axis 6,000 m/min RAM Dimensions 530 x 600 mm Main drive 75 kW Total power requirement 165 kW Machine weight approx. 130 t Space requirements approx. 16 x 5.5 x 8.1 m Addition: - hydrostatic guides in x-, y- and w-axis - Telescopic cover for the X-axis of the bed - cumulative Z and W axes - Leveling shoes - Platform Y axis

Travel X-axis 19,000 mm Y-axis 3,500 mm Z-axis 1,000 mm W-axis 1,000 mm V-axis 2,500 mm B-axis 360°/ 0.001 Table size 4,000 x 3,500 mm Maximum permissible weight on the table 65 t Spindle diameter 160 mm Mounting cone in spindle 2079 DIN/ ISO 50 Spindle speed 2.5 - 1,000 rpm Spindle motor power 90 kW RAM cross section 400 x 400 mm Automatic tool changer 60 positions Feed in all axes 1 - 6,000 mm/min Rapid response in all axes 10,000 mm/min Automatic indexing 360,000° Plate field 12,750 x 6,000 mm CNC, electrical and mechanical overhaul by Siemens in 2003

Travel X-axis 9,500 mm Y-axis 4,100 mm Z-axis 950 mm W-axis 900 mm Main spindle speeds (infinitely adjustable): 3.15 - 1000 rpm Spindle motor power 58 kW Feed speed (infinitely adjustable): X-axis 0.1 - 9600 mm/min Y-axis 0.1 - 5600 mm/min Z-axis 0.1 - 5600 mm/min W-axis 0.1 - 5600 mm/min Accessories: Plate field: 6 x 4 m (CNC-controlled B- and V-axis) Table: 2 x 2 m (CNC-controlled B- and V-axis)

Union boring mill CBFK 150/2 from 1990 for sale. Is currently still in use,. Technical details / accessories / addition: x-travel 3000 mm y-travel 2000 mm z-travel 1600 mm Spindle diameter 150 mm Spindle holder ISO 50 Spindle stroke 700 mm Spindle speeds - infinitely variable 5 - 2500 rpm Rapid traverses 10000 mm/min Table clamping area 1600 x 2000 mm Workpiece weight approx. 20 t Spindle drive motor 50 kW Feeds x/y/z - infinitely variable 1 - 9999 mm/min Table positioning 360,000 ° Total power requirement approx. 70 kW Machine weight approx. 40 t Dimensions approx. 6.0 x 8.0 x 4.5 m In 2005: new 5-axis CNC control Dr. Heidenhain TNC 430 - electron. Handwheel HR 410 for all axles with V24 interface, punched tape reader, new electrics, new hydraulics, new servo motors, 60-speed chain tool change magazine model WM III k02 B-axis (round table adjustment) 360,000  ...

DEFUM WFM-100 boring machine was built in 1984 in Poland by the Dąbrowska Fabryka Obrabiarek DEFUM. The machine is designed for precision machining of workpieces with complex geometry and high weight. All machining processes, i.e. drilling, milling, boring and thread cutting, are performed on a stable work table by means of a powerful spindle with a diameter of 100 mm. The WFM 100 horizontal boring machine weighs 11000 kg. Technical specifications of the DEFUM WFM-100 drilling and milling machine - feed in the X/Y/Z axis: 1200/1000/600 mm - work table dimensions (L x W): 1100 x 1100 mm - maximum workpiece weight: 3000 kg - maximum spindle rotational speed: 1600 rpm - spindle diameter: 100 mm - spindle drive power: 18.5 kW - dimensions (L x W x H): 4610 x 3620 x 3110 mm - weight of the DEFUM machine: 11000 kg
