boring and drilling used for sale

Machine already ready for transport, to be assessed on viewing day. Clamping block not included Auction-ID: A1-44905-95

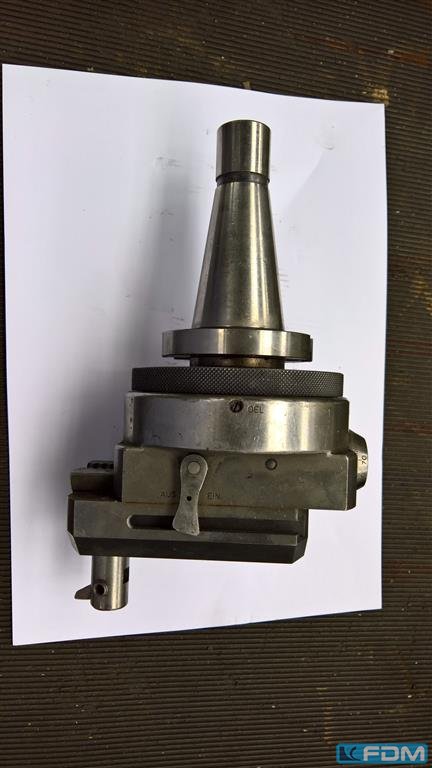

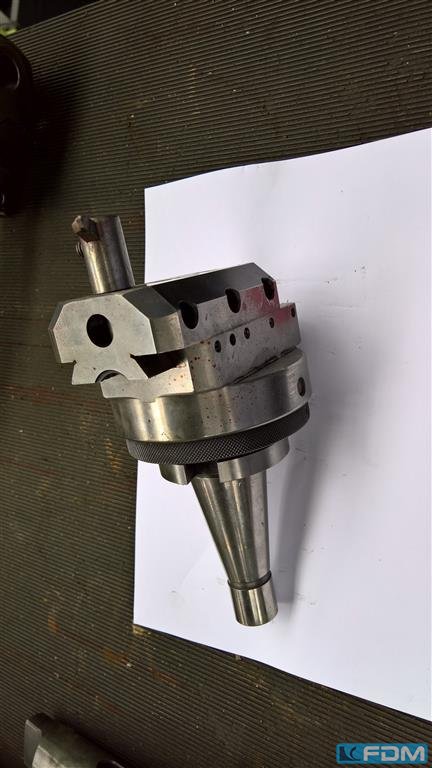

boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: SK50 holder 2 pieces -Tool holder: see photos -Shaft size: Ø 35 x 250 mm / Ø 49 x 250 mm -Price/Delivery: complete -Transport dimensions: 410/200/H100 mm -Total weight: 10.8 kg

boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: SK50 holder 2 pieces -Tool holder: see photos -Shaft size: Ø 99 x 150 mm / Ø 79 x 130 mm -Price/Delivery: complete -Transport dimensions: 300/210/H100 mm -Total weight: 19.1 kg

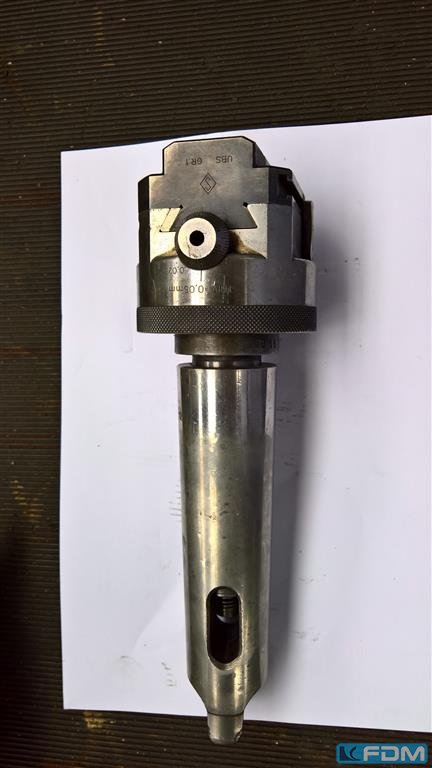

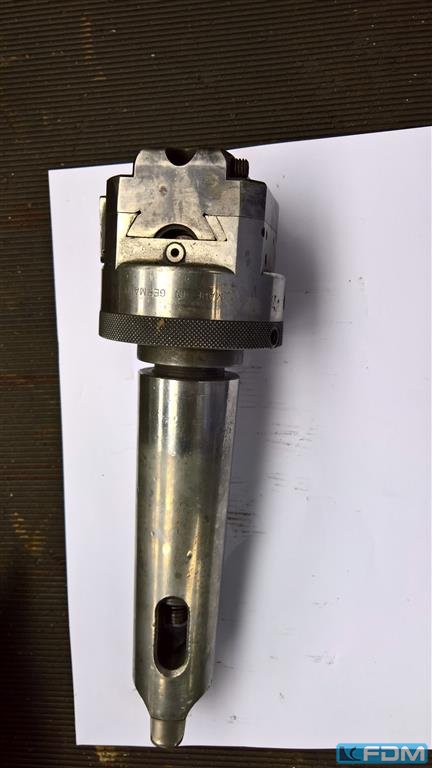

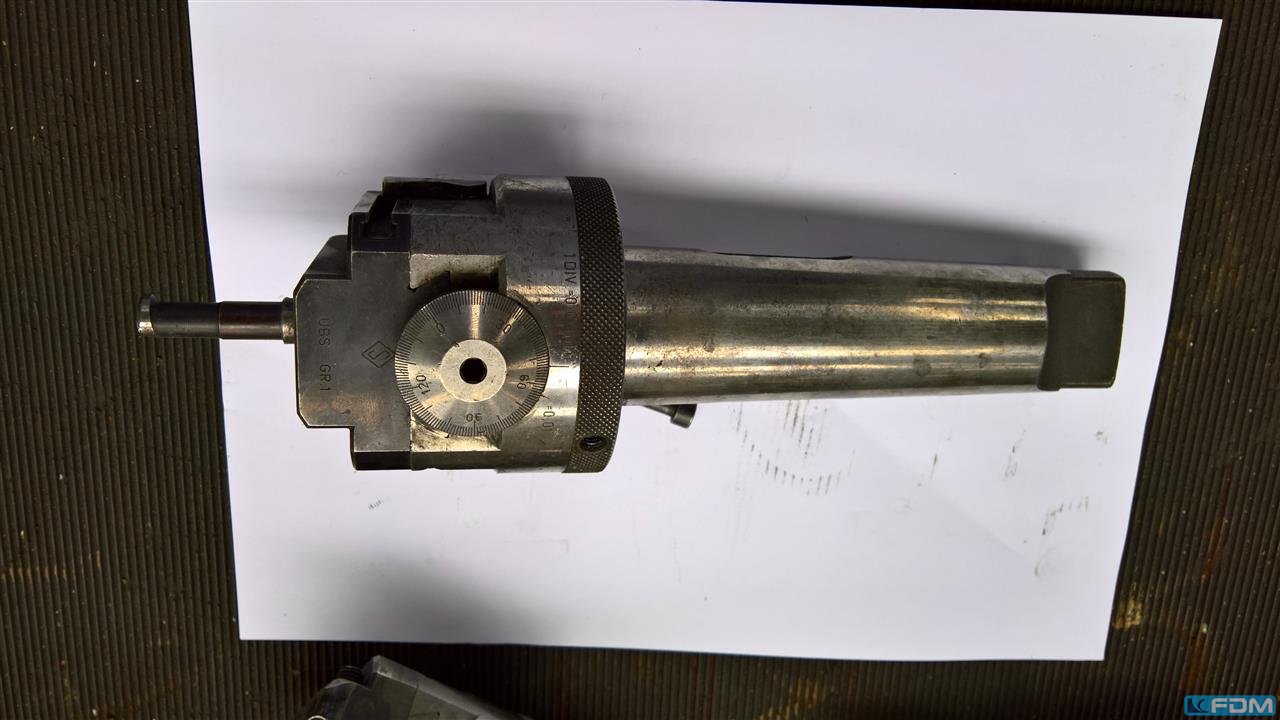

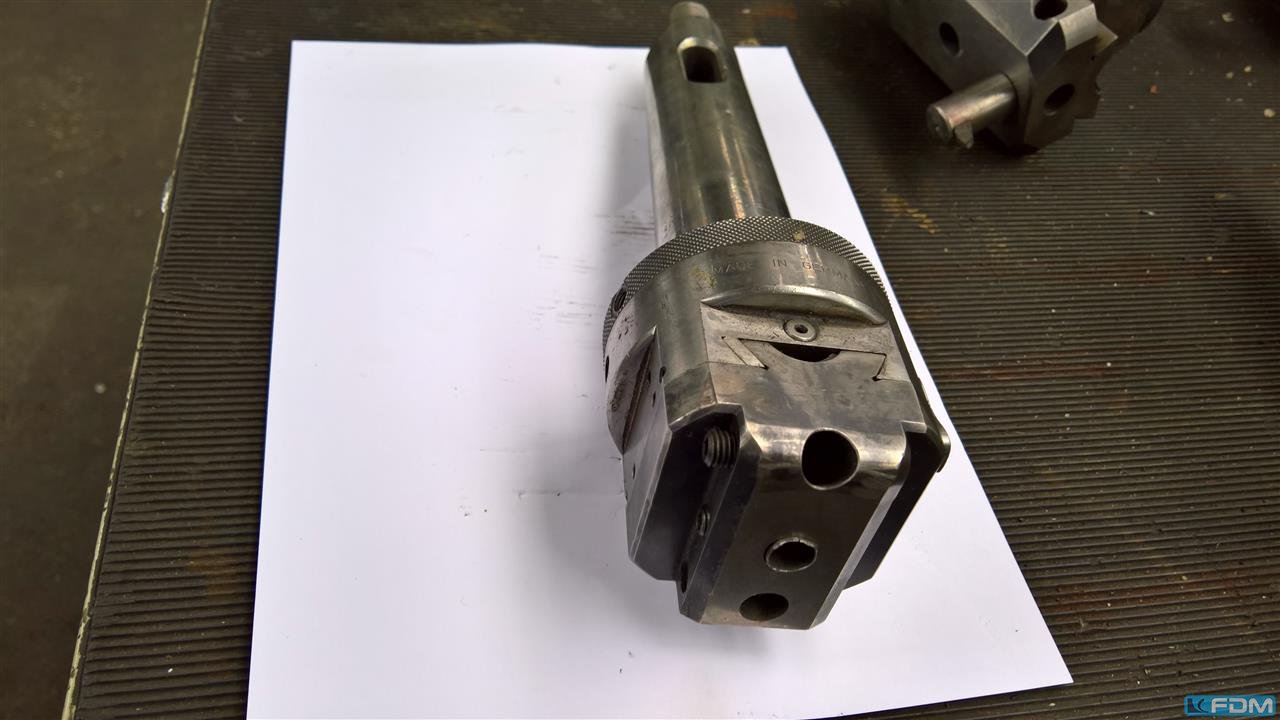

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: MK6 holder 4 pieces -Tool holder: 16x16 mm / 11x11 mm Dimensions see photos -Shipping/Price: complete -Transport dimensions: 570/270/H65 mm -Total weight: 28.2 kg

Make: SCHIESS Model: HBM (Horizontal Boring & Milling Machine) Year of manufacture: 1980 Overhaul: Revised in 2023 Control: CNC NUM with side PC for file upload Condition: Fully revised, excellent Technical specifications: - X-axis travel: 5,900 mm - Y-axis travel: 3,400 mm - Z-axis travel: 1,350 mm - W-axis travel: 900 mm (combined with Z or milling head) - Spindle diameter: 180 mm Rotary table: - Table size: 2,500 × 2,000 mm - Load capacity: 30 tons - Type: For positioning Accessories: - Floor plates for large workpiece clamping (10 m) - Chip conveyor - Extended angle head ISO 40 - Extended angle head ISO 50 - Universal angle head ISO 100 Machine dimensions: - Footprint: 13 × 11 m - Height: 2 + 5 m - Total machine weight: 96,000 kg (96 t) Auction-ID: A7-45257-5

GeneralTraveling column machine; Control: CELOS X with HEIDENHAIN TNC7 Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Longitudinal2000 mmCross800 mmVertical850 mmTool changerType of magazineChain Number of tools50 Max. tool weight6 KgMax. tool length300 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmSwivelhead, B-axisControlled NC swivel milling head 12,000 rpm (B-axis) with clamping in position Continuously positioning NC- swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel speed: 50 rpm Swivel range: ±12Clamping System HSK-A 100Spindle taper HSK-A 100Speed range 20 -12000 rpmTorque (40% DC) 288 NmTorque (100% DC) 187 NmDrive power (40% DC) 44 kWDrive power (100%  ...

Including: ONLY the content of the single span photographed. The contents placed on the OTHER shelves have been placed in another batch. Shelf NOT included Various internal/external turning tools, hubs, various tools, inserts, boring bars Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-45181-16

Various salt marsh holders, from various manufacturers. Auction-ID: A7-45181-38

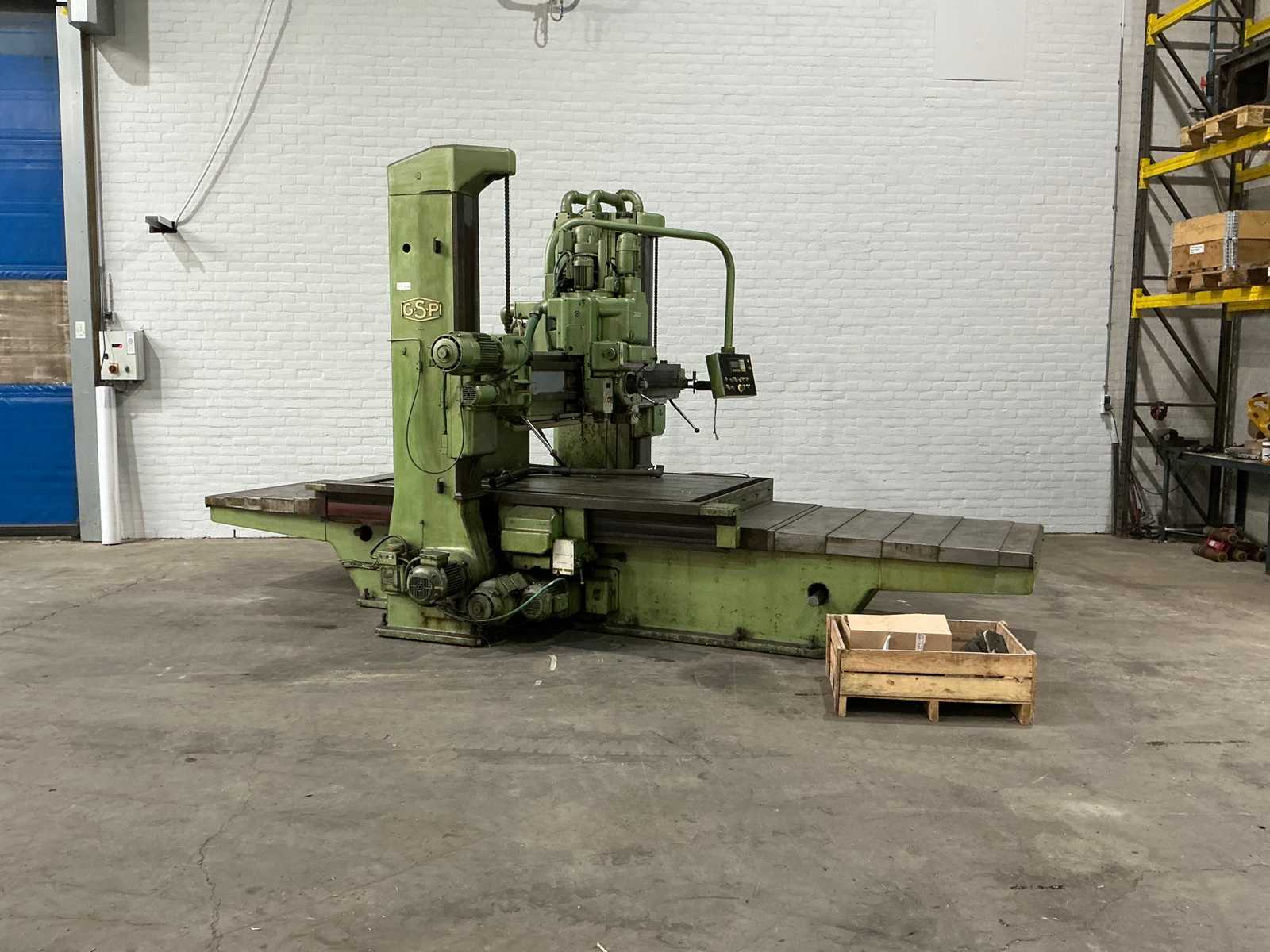

Stokvis SP50 Horizontal Boring Mill Type: Horizontal boring mill Manufacturer: Stokvis Model: SP50 X-axis travel: 750 mm Y-axis travel: 500 mm Z-axis travel: 500 mm T-slot table size: 800 x 300 mm Spindle: 40 Taper ISO: 40 Milling head included Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-45225-15

Key data: 90 mm, 1000 mm, 1000 mm

Retrofit built in 2009 Spindle running time - control: 3093 h Switch-on hours: 10585 h - Control HdT TNC 320 - Displacement measurement system in all axes - New drives in all axles - New table, new clamping - New media aggregates Equipment: - Manual control unit - Coolant device - Hydraulic power unit Accessories: - 3D touch probe - Security fence

Control Fanuc Spindle diameter ... 100mm Axis X ... 1270mm Axis Y ... 910mm Spindle speed ... 0-2000 rpm. Axis W ... 730mm Axis Z ... 900mm ISO 50 Max. table load ... 3000kg Clamping table surface ... 1000x1120mm Machine weight ... 11500kg L x W x H ... 5000 x 3000 x 2800mm Main engine power... 18.5kW Total power requirement ... 31kVA More info on request. The machine is ready for the viewings.

Auction-ID: A1-45239-2143

Spindle speed: from 20 to 1800 rpm Table dimensions: 1600 x 1450 mm with 9 grooves, travel X-axis: approx. 1500 mm Travel Y-axis: approx. 1300 mm Travel Z-axis: approx. 1200 mm The machine is equipped with a 3-axis digital display from the manufacturer HEIDENHAIN, two clamping brackets, one dimension: 1850 x 850 mm and one 1250 x 800 mm, also various accessories Auction-ID: A7-45703-147

table length:2200 mm table width:2500 mm table load:16 t total power requirement:6,5 kW feed speeds:1,25 - 160 mm/min rapid traverse speed:2000 mm/min longitudinal adjustment:1500 mm weight of the machine ca.:12 t dimensions of the machine ca.:4,1 x 2,65 x 0,95 m Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

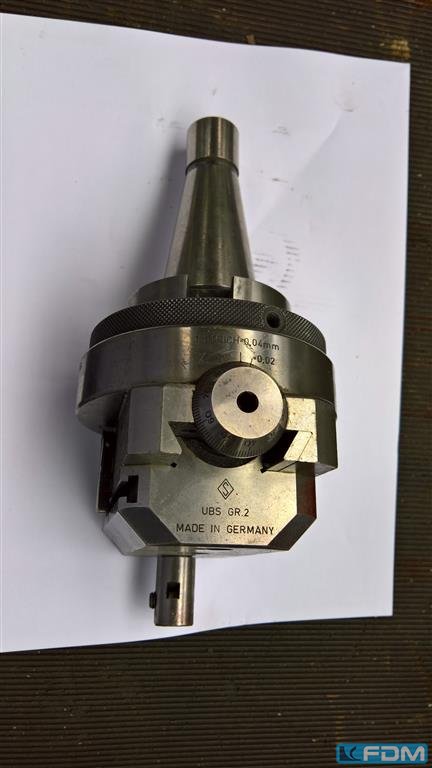

diameter:300 mm tool adaptor:40 Weight:5 kg Taper ISO 40 Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

diameter:200 mm Weight:4 kg Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

CNC boring machine Brand: VITAP Type: POINT 2 New machine Vitaps smart solution for throughfeed drilling and grooving with autom. panel return to operator 3 controlled axis - Axe X Uninterrupted movement of the panel due to a ?New patented belt transport system?. - Axe Y Movement of the drilling head - Axe Z latest generation motor and ball screw. - No limit in panel length Perfect for batch 1: - Setup time = 0 - High productivity and flexibility Easy TPA programming - Monitor LCD TFT 19 5/4 Usb port for loading programs run on a station in each office - Cutting optimization Software - Graphics programming CAD TPA, base version - Saving all files with all data - Macro Programming - Import DXF files - Control: Full Parametric - Office programming software TPA Technical data: - 9 vertical independent spindles - 2+2 horizontal spindles on X ax ...

Troughfeed boring machine Make: VITAP Type: ACOUSTIC For creation of acoustic panels for noise reduction Boring machine with through feed panel, boring from the bottom and automatic panel return to the operator. Three controlled axes: - X Axis - Panel movement by means of a strong pneumatic clamp - Y Axis - Boring head movement - Z Axis - Panel boring - Newly patented, high rigidity boring head movement on Y and Z axis. - Constant Side pusher: Side pusher with constant preload for perfect positioning of the panel on the machine zero point. - New frontal and more user friendly tool change system No limit in panel length High productivity and flexibility - The drilling head processes several holes at the same time - Different grids are possible also drilling grids with shift - Different drilling heads are optional available Easy TPA programming - Control: F ...

CNC boring- routering machine Brand: Vitap Type: K3 New machine Throughfeed process from the bottom and automatic panel return to the operator. Develop a new individual class: - With this machine you can do grooves and drill processings as well as different milling works, from simple edge milling to the milling of forms and letters. - There are no limits for your creativity Easy beginn with CNC programming: - TPA makes it easy: drillings, grooves, linear millings, form millings or the millings of letters - The CAD Software shows the processings on a virtual workpiece - Good overview about all processings on the single sides of the workpieces - Mirror function for parallel processings on other positions - Choose reference points via entering the exact position or just via click on the virtual workpiece Vitap Bar Nesting - efficient and time saving - This patent ...

Manufacturer Heckler & Koch Model AM 444 A Power consumption: 5.5 KW Voltage: 380/400 Volts Spindle holders for vertical and horizontal spindles: 40 Slide movement x = 410nn y = 350mm z = 400mm Vertical clamping table 850 x 255 mm Feed range 0-1500 mm/min Sliding gearbox 12-stage Speed: 63-2800 rpm Step jump 1.4 CNC control CNC 783/m Dimensions (HxWxD) 1.800x2.400x1.700mm Weight 1,500 kg Ref.Nr PLW18 Mistakes reserved!

Drilling capacity in steel: 32 mm Drilling capacity in cast: 40 mm Cutter head milling max.: 80 mm Projection: 220 mm Spindle speed: (12) 75-3200 RPM Spindle retainer: MK 4 Quill stroke: 125 mm Table size: 800 x 240 mm Travel (x / y): 555 / 225 mm Milling head swiveling: - 90 ° to + 90 ° Distance from spindle / table: 60-485 mm Head height: 425 mm T - slot size: 14 mm S1 motor power output 100%: 1,1 / 1,5 kW (400 V) Motor power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H) : 1140 x 770 x 1500 mm Approximate weight: 287 kg without stand Features: Quick and easy change of speed using the gear selector switch Versatile application possibilities such as drilling, milling, thread cutting, … High running smoothness by polished, running in an oil bath gear gears Right - and the link run device for thread cutting Quill adjustment by means of ...

Standard ALB ear performance: 30 mm Thread cutting performance: M 20 (option) Thread: M 12 Spindle: MK 3 or SK 30 (option) Quill stroke: 100 mm Longitudinal / cross travel: 350/160 mm Distance spindle/cross table: 80 to 450 mm Table area: 600 x 240 mm Column diameter: 110 mm Total height: Max 1,920 mm Weight: 340 kg Motor pole shift bar: 0.8/1.5 kW Spindle speeds, continuous, selectable: 10 spindle speeds: 80-1,400 rpm 10 spindle speeds: 120-2,160 rpm 10 spindle speeds: 160-2,800 RPM Facilities: A versatile, accurate and handy drilling milling machine. The quiet-running drive and a perfect clamping of Quill guarantee good surfaces when milling. The headstock can be swung out. The stage is precise and precisely adjustable. Pitch 0.05 mm. clamping device for both axes. Full motor protection. Machine incl. Cabinet.

Working length: 3.200 mm Machine is equipped with: -3 drilling units from below with 3 spindle-head - 2 holders from above -1 pressure cylinder on the side The control was by the customer through a control, serial: Siemens,. newer built; replaced.

Special price for stock goods! Only while stocks last! Drilling-milling machine: Bernardo Type/Model: FM 45 HSV with digital display Condition: new Drilling capacity in steel: 32 mm Drilling capacity in cast iron: 40 mm Knife head milling cutter max.: 80 mm Projection: 220 mm Spindle speed: (12) 75 – 3200 rpm Spindle holder: MK 4 Pinole stroke: 120 mm Pinole feed: (3) 0.10 / 0.18 / 0.26 mm/U Table size: 800 x 240 mm Travel (x / y): 555 / 205 mm Milling head swivel: -60° to +60° Distance spindle / table: 60 – 485 mm Height adjustment milling head: 425 mm T-slot size: 14 mm Motor output power S1 100%: 1.1 / 1.5 kW (400 V) Motor input power S6 40%: 1.5 / 2.2 kW (400 V) Machine dimensions (W x D x H): 1140 x 770 x 1500 Weight approx.: 308 kg without base Characteristics: - High-torque 2-stage motor, speed range 75 - 3200 rpm - Double-sided swivelling m ...

Mikron WF31D Precision Milling and Drilling Machine Machine with chips and splash guard cabin Equipped with a Heidenhain TNC355 controller Technical Specification The WF 31 D is a precision milling and drilling machine for series production and CNC training. Driven by an automatically shifting step gearbox and Poly-V belts. Vertical spindle can be extended by 90 mm; Conversion from vertical to horizontal machining possible. Ball screws with DC drives allow simultaneous feed movements. Guides are protected against dust, chips and coolant. Specifications Manufacturer: Mikron Type WF31D Control: Heidenhain TNC 355 Longitudinal movement (X): 560 mm Transverse movement (Y): 500 mm Perpendicular movement (Z): 400 mm. Drive power: 3.3/4.0 kW Speed range: 40-4000 rpm Feed speed: 2-3000 mm/min Rapid traverse speed X/Y: 6000 mm/min, Z: 5000 mm/min. Electrical equip ...

Auction-ID: A1-45188-262

Number of boring spindles: 1 St. Boring depth max.: 150 mm Motor output: 1,5 kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bore diameter: variabel mm Number of heads horizontal: 3 St. Number of heads vertical: 4 St. Dimensions (length / width): 4800 x 1600 x 2400 mm weight: 1500 kg Götzinger Power Drill Type BF 297 With the Götzinger PowerDrill you can, depending on the type and design: Griffoliven drill on the loose frame part or for finished wings, with multi-spindle drilling head, quick-change, also for milling of the lock case for WK 2 or intermediate gear Ecklager drill on loose frame part, with Mehrspindelbohrkopf, quick-change, corner-oriented over stop or custom made (tilt window) Drill vertically from above for fitting, pre-drill for clip on loose frame part Milling vertically from above for pushers, profile cylinders, 3-D hinges Horizontal drilling with 2 drilling units, different drilling diameters, Dowel drill front and long side, plywood / fighter, sprouts, Corner connection, front door etc. M ...

Bore diameter: , Number of heads horizontal: , Number of heads vertical: , The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bore diameter: variabel mm Number of heads horizontal: 3 St. Number of heads vertical: 4 St. Götzinger Power Drill in special version with dübelleim and press-in station With the Götzinger PowerDrill, you can choose: - Drill the front and long sides - Doweling of doors, seatings, fighters - The drilling patterns are freely programmable - You can: Grip handle and corner bearing, with quick-change Multi-spindle drilling heads - You can: lock casings, pusher and PZ as well as 3D tapes and drill - The machine has a horizontal and a vertical milling unit - A simple control lets you create drilling and milling programs, Save and recall POWER DRILL - drilling and milling machine Universal drilling machine for drilling olives, corner bearings, dowel work On the front and the front, milling, lock boxes, tapes, etc. Base in stable design, covered with sheet metal Table top 1800 x 200 mm  ...

Number of boring motors: 1 St. boring of corner bearing 1=yes, 0=no: 0 nein boring of olive 1=yes, 0=no: 1 ja The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Number of boring motors: 1 St. boring of corner bearing 1=yes, 0=no: 1 boring of olive 1=yes, 0=no: 1 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Bore diameter: , mm Number of heads horizontal: , St. Number of heads vertical: , St. SPINAMATIC mod. GLF-HP Dübeleintreibgerät mit Leimangabe für Fensterfertigung ---------------------------------------------------------------- komplett wie folgt : - Fahrbare Ausführung - Dübelzuführung zur Pistole wird durch SPS-Steuerung gesteuert. - 1 Wendelförderer zur Aufnahme von Dübeln mit 1 Zuführung - Leimanlage ist mit Hoch-Druckpumpe 10:1 und Sonderleimspritzdüse für Dickleim (Typ D3 oder D4-Einkomponent) augerüstet - pneumatische Pistole für Dickleim- und Dübeleinsetzen mit Ausrüstungen für nur einen Dübeldurchmesser nach Wahl zwischen : 6 - 8 – 10 oder 12 mm. Dübellänge : min. 25 mm. – max. 60 mm. Tiefeinsetzen = 30 mm. Der Leim wird durch eine Sonderleimspritzdüse, die mit SPS-Steuerung für elektronische Dosierung in Verbindung ist, gespritzt . - Flexibler Arm mit  ...

Number of boring spindles: 1 St. Boring depth max.: 150 mm Motor output: 1,8 kW The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 16 mm throat: 170 mm bore stroke: 50 mm : 16 mm spindle taper: MK2 spindle turning speed range: 50 - 2250 U/min : 320 mm : 145 mm table surface area: 500 x 140 mm connected load frequency: 230 V total power requirement: 0,5 kW weight of the machine ca.: 90 Kg dimensions of the machine ca.: 0,5 x 0,45 x 0,84 m Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank - Tool case with content but without digital display The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

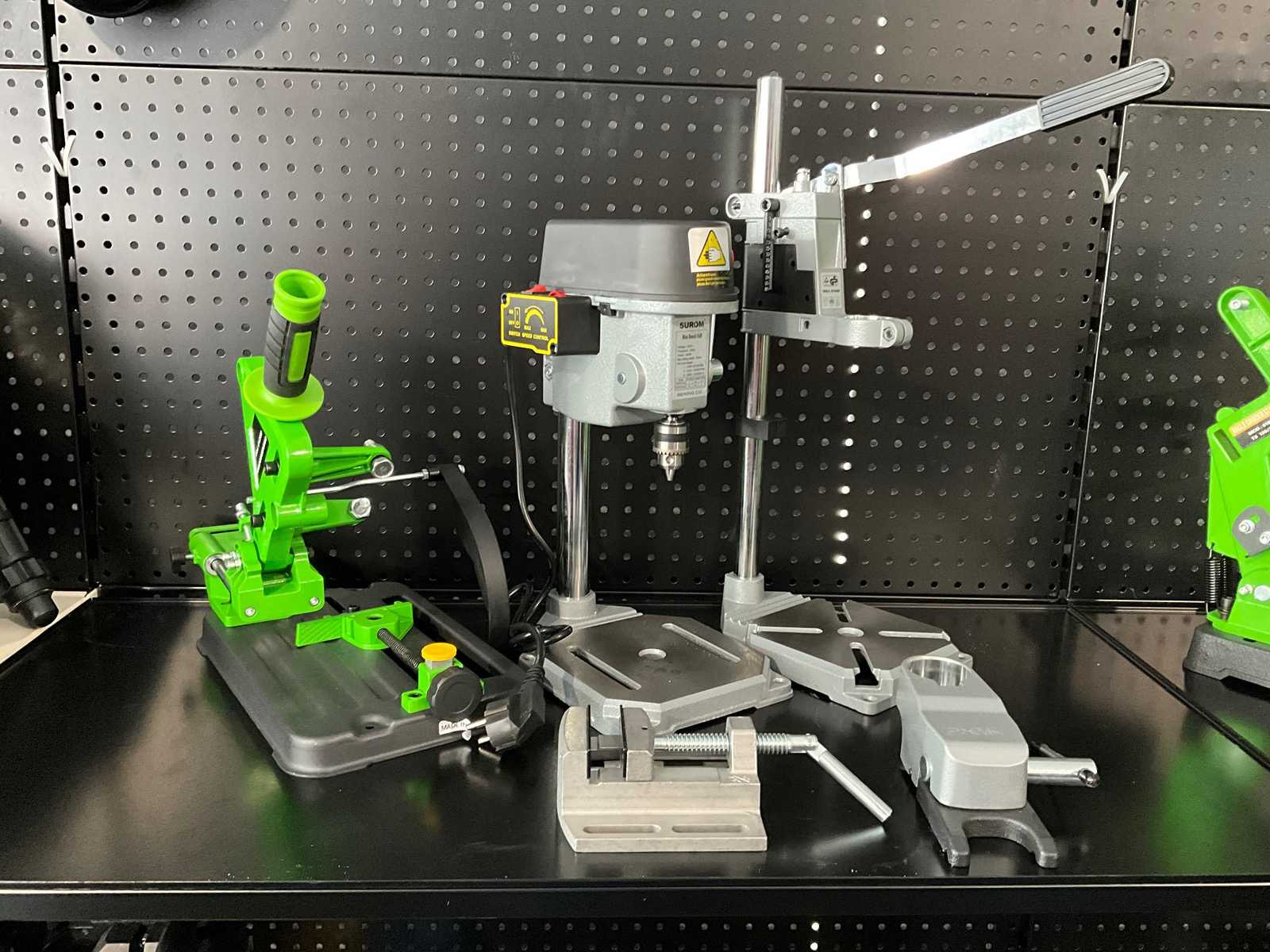

Precision Column drilling machine with additional attachments, for precision metal and wood processing and model making. From the same manufacturer as proxxon. New but without packaging

1 Milling machine CB Ferrari S70

Precision Column drilling machine with additional attachments, for precision metal and wood processing and model making. From the same manufacturer as proxxon. New but without packaging

I sell an Angular drill with hanging insert suitable for tur production. MARZANI MACCHINE CHEAP WORK Year of construction: 1993 Number of drilling spindle 1 (drill head fully -7 to +90° adjustable) Number of insert heads 1 (magazine suitable for turret hanging) Insert head mechanical, screw insert Very good condition. Available the same.

Radial drilling machine used for drilling and milling Manufacturer: COLLET & ENGELHARD GmbH Type: BUV 1600 Year of construction: 1976 horizontally and vertically swivelling head Drilling capacity: 50 mm Travel arm: approx. 800 mm max column travel: 1000 mm Speed: 14 to 710 rpm Spindle stroke approx. 300 mm 380 V Dimensions: approx. 2600 x 1300 x 3000 mm Changes and errors in the technical data, information and prices as well as prior sale reserved.

Bore diameter: variabel mm Number of heads horizontal: 3 St. Number of heads vertical: 4 St. Dimensions (L/W/H): 6100x1500x2300 mm Weight: 950 kg 1 NEW drilling and milling center Götzinger Power Drill 300 With the Götzinger PowerDrill you can, depending on the type and design: - Drill on the front and on the long side - Dowels of front doors, pegs, fighters - The drilling patterns are freely programmable - You can drill: handle slides and corner bearings, with quick-change multiple spindle - You can: Milling lock case, pusher and PZ as well as 3D belts and drill - The machine has a horizontal and a vertical milling unit - A simple control lets you create drilling and milling programs, save and call again Base frame in sturdy design, covered with sheet metal Table top 1800 x 200 mm Processing unit: X-axis - 500 mm working travel Y-axis - 0-120 mm Z-axis - 0-105 mm (above table) Hori ...

bore capacity in steel (diameter): 25 mm throat: 175 mm bore stroke: 50 mm : 16 mm spindle taper: ISO 30 spindle turning speed range: 50 - 3000 U/min : 380 mm : 175 mm table surface area: 700 x 180 mm connected load frequency: 230 V max. distance between table and spindle-nose: max. 320 mm total power requirement: 0,75 kW weight of the machine ca.: 150 Kg dimensions of the machine ca.: 670 x 550 x 910 m Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. 2 speed levels. Left/Right switch Pan head left/right 90° spindle protection. incl. tool box with various tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 30 mm throat: 200 mm bore stroke: 70 mm : 16 mm spindle taper: MK3 spindle turning speed range: 50 - 3000 U/min : 565 mm : 220 mm table surface area: 840 x 210 mm connected load frequency: 400 V max. distance between table and spindle-nose: max. 470 mm total power requirement: 1,1 kW weight of the machine ca.: 230 Kg dimensions of the machine ca.: 0,75 x 1,05 x 1,3 m Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. 2 speed levels. Left/Right switch Pan head left/right 90° Recording MC 3 - B16. Drill chuck 3 - 16 mm. spindle protection. Machine stand. incl. tool box with various tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

SPECIFICATIONS: Automatic drilling and dowel insertion machine with horizontal loading and unloading system, consisting of: Loader: ESSEDUE CNC transverse drilling machine: Biesse FTT Year of construction 2003 4 upper drill heads with automatic change of vertical drills 2 X-axes 4 Y-axes 4 electrospindles with automatic tool change A total of 12 slots for tool changes Inline transverse plate turner for double-sided drilling CNC transverse drilling machine: Biesse FTT Year of construction 2004 2 upper drill heads with automatic change of vertical drills 1 X-axis 2 Y-axes Biesse FHT Transversal Drilling and Dowel Insertion Machine Year of construction 2004 High pressure bonding system: Csnpgoz93 5 + 5 injectors Large vibrating baskets with dowels ESSEDUE unloader with additional transverse outlet for individual panels

BALESTRINI TEAM automatic CUTTING , END MILLING and DRILLING MACHINE machine for joining parts of chairs, living rooms, furniture, etc. the TEAM machine is made up of 3 operating units: 1st unit: circular saw for cutting workpieces to length 2nd unit: spindle moulder for milling 3rd unit: drilling unit with multiple center distance head . there are 9 work programs that can be choiceed and they consist of the possible combinations of use of the 3 operating units. only 2 can be used , or 1 , or even the 3 operating units can work in different sequences . all units are operated by a hydraulic pump to obtain adjustable and smooth movements Technical data : - Cutting unit (circular saw) diam.mm.400. engine power Hp 3 - Moulding unit (spindle moulder) shaft diameter mm.30 . motor power Hp 5.5 max. tool dimensions mm.160, H=mm.120 - Boring unit . engine power Hp 3 . max. depth ...

x-travel: 3.000 mm y-travel: 2.500 mm z-travel: 2.475 mm w-axis: 800 mm rotary table: Juaristi MG-12 Rotary table surface: 2.000 x 2.500 mm T-slots: 11 T-slot - width: 170 mm table weight: 8.000 Kg table rotation: B- Achse – 0,001 ° Control: HEIDENHAIN i TNC-530 diameter of quill: 130 mm speed: 3.000 U/min tool taper: ISO 50 DIN 69871/1-B milling head: swivelling +/-: 2,5/2,5 Grad spindle drive: 30 kW transmission ratio: 2 speeds:: 0-2.500 U/min boring spindle: D`ANDREA UT5-800-S mm/min diameter: 800 mm cross travel: 250 mm Tools changer: 30 pos. Internal cooling system: 20 bar Chip coveyor: Inkl. handwheel: HEIDENHAIN HR-420 weight of the machine ca.: 45 t dimensions of the machine ca.: 9800 x 7320 x 5500 m -TS-3 head, TS-5 column and longitudinal bed INCLUDED: - Part touch probe RENISHAW RMP-60 - External coolant - 20 bar Internal coolan - protecting guards - mobile operator platfo ...

Ref. -No.: 10361 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens, Heidenhain, Fanuc - Configurable as required Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Support sleeve diameter: 130 mm X-Travel: 3000 mm Y-Travel: 2000 mm Z-Travel: 1600 mm Spindle stroke: 800 mm B-Axis: 360 ° W-Axis: 800 mm Spindle Taper: SK50 Max. Tool Weight: 25 kg Clamping Area: 1250 x 1250 (or configurable as required) mm T - groove width: 22 mm T - slot spacing: 160 mm Swivelling: Configurable as required ° Numbers Of Tools In Magazin: 40, 60, 120, 200, 240 Spindle Speed: 2900 RPM Max. Torque: 2500 Nm Drive Capacity - Spindle Motor: 41 kW

SPECIFICATIONS: Workpiece length mm: 200 - 3000 Width of the workpiece mm: 20 - 200 Workpiece thickness mm: 30 - 120 Fence length right mm: 1500 HORIZONTAL DRILLING: Drill bit diameter mm: 8 Drilling depth mm: 60 Dowel size mm: 8 x 80 with glue addition Installed power kW: 6 Uses HN - HSS Drill Bits

Type MX5116T+ V-380 Work table dimensions 1100x700 mm Sliding table 1085х250 mm Diameter of spindle 35 mm Spindle rotation speed 6000-8000-8000-10000 rpm Max. working thickness 120 mm Motor power 4 kW Dust exhaust outlets Ø90, 200x80 mm Number of wheels(pcs)-3 Wheels diameter-120 mm Wheels width-60 mm Feeding rate-3.5/5/7/10/12.5/16/25/32 m/min Motor power-750w/550w Machine frame - Cast aluminum Feeding direction:Forward/Reverse Transport dimensions 1650x700x1600mm Weight 466 kg Price 3060 Eur (EXW Jonava, Lithuania)

bore capacity in steel (diameter): 32 mm throat: 200 mm bore stroke: 70 mm : 16 mm spindle taper: MK3 spindle turning speed range: 50 - 3000 U/min : 220 mm : 425 mm table surface area: 700 x 210 mm connected load frequency: V max. distance between table and spindle-nose: 470 mm total power requirement: 1,5 kW weight of the machine ca.: 230 Kg dimensions of the machine ca.: 0,75 x 1,05 x 1,2 m Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank - Tool case with content The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
