boring and drilling used for sale

Various types, sizes and applications Auction-ID: A1-49758-87

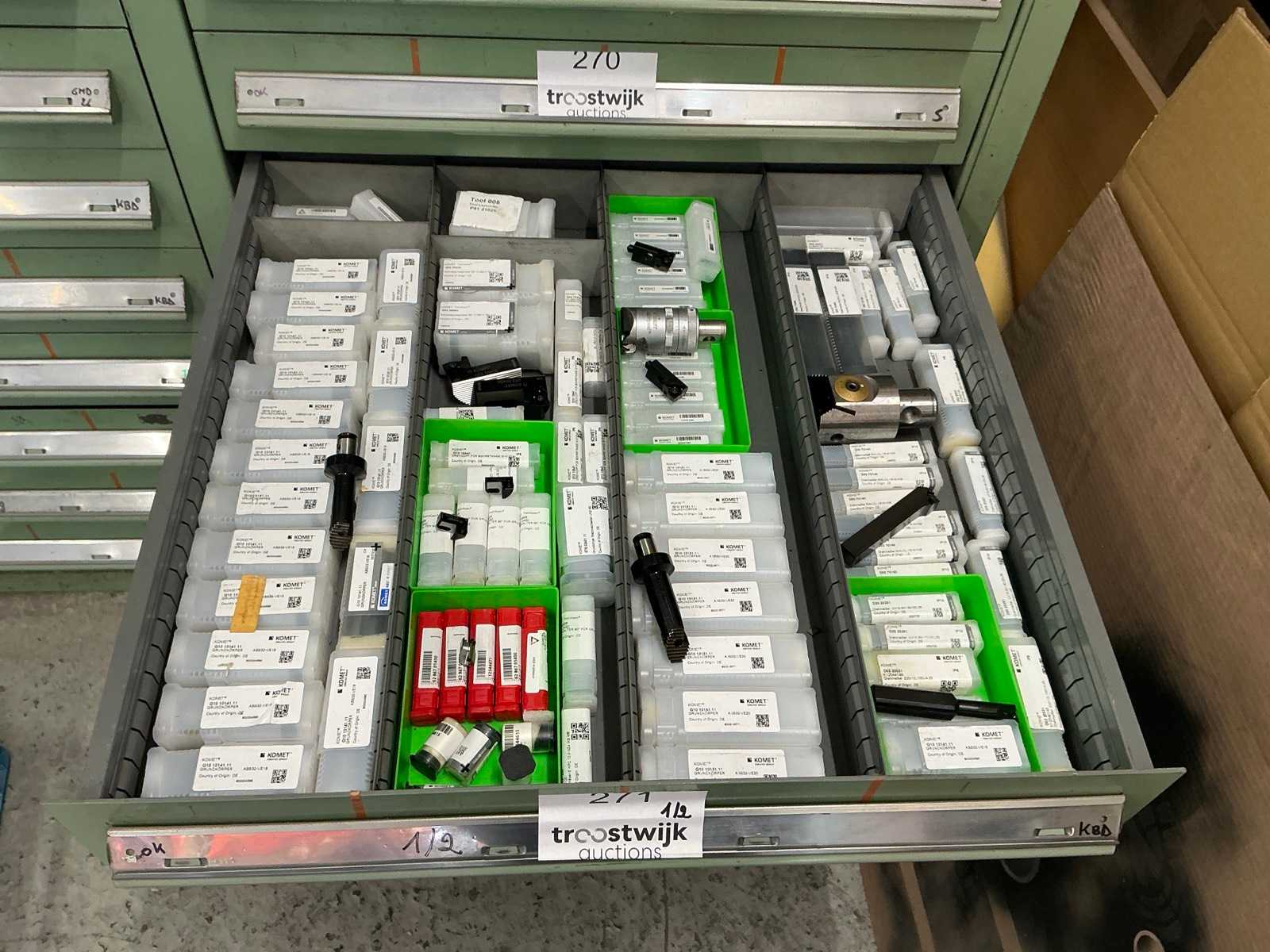

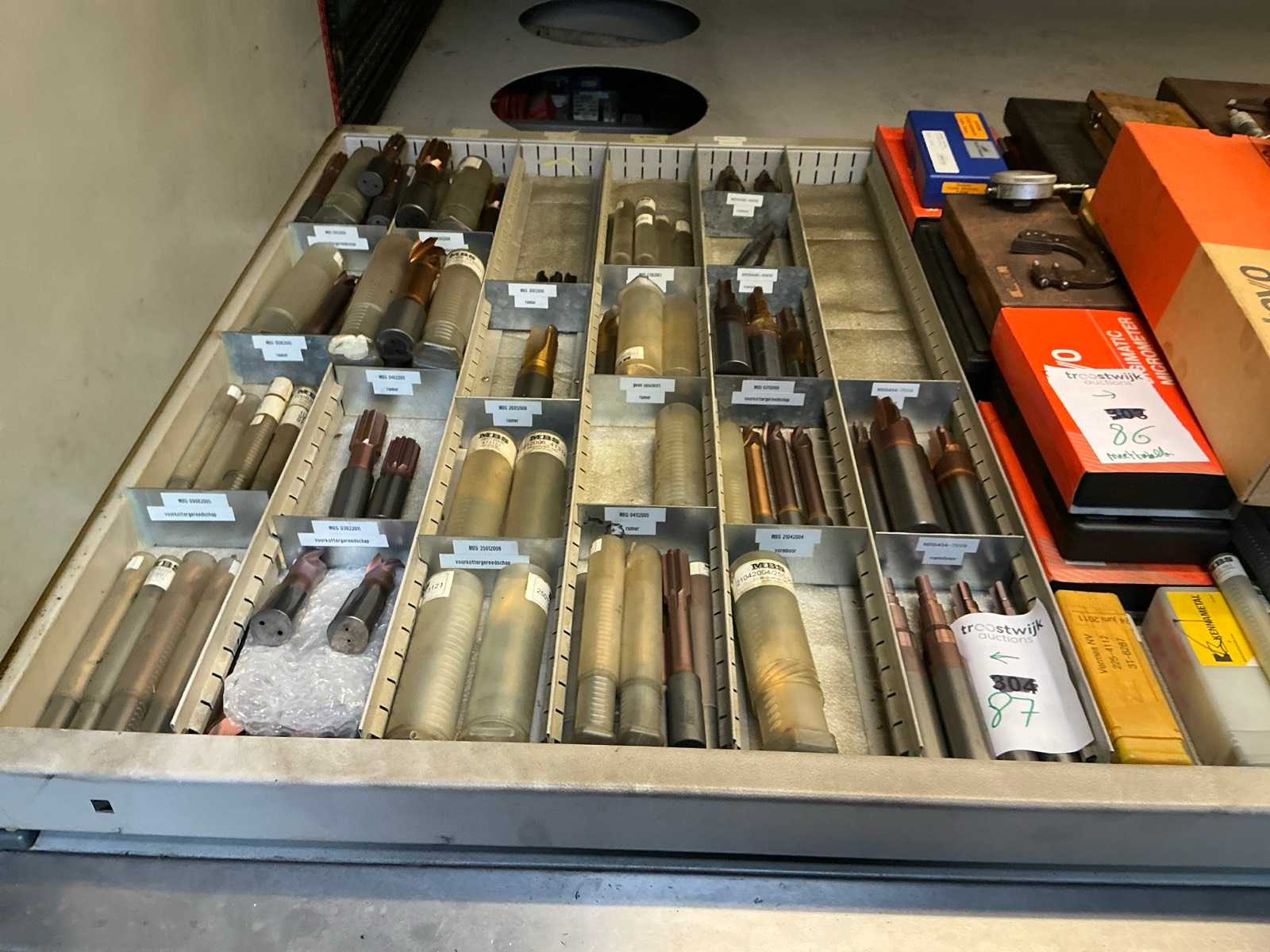

Including accessories, turning chisels and replacement cassettes/ lying in 2 drawers Auction-ID: A1-49785-271

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW Machine Technical Data ·Machine weight: approx. 130 t including accessories ·Z travel (ram): 1250 mm ·W axis (spindle): 1000 mm ·Sleeve extension: 1250 mm ·Sleeve dimensions: 450 x 450 mm ·Boring spindle stroke: 1000 mm ·Boring spindle speed: 920 rpm Rotary Table: ·Motor driven rotary table ·IOS 40 ·CNC control ·2 axes B and V ·Rotary table size: 3000 x 3500 mm ·Rotary table CNC IOS 40 NC Indexing and Accuracy: ·Infinitely adjustable ·Diameter related ·Indexing: 4 x 90 degrees up to 360000 ·Angular resolution: 0.001 degrees Travel Ranges: ·Longitudinal cross travel: 1230 mm Load Capacity: ·Maximum rotary table load: 40 t Clamping Plate: ·Clamping plate: 3 x 8000 x 2000 mm

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...

spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ

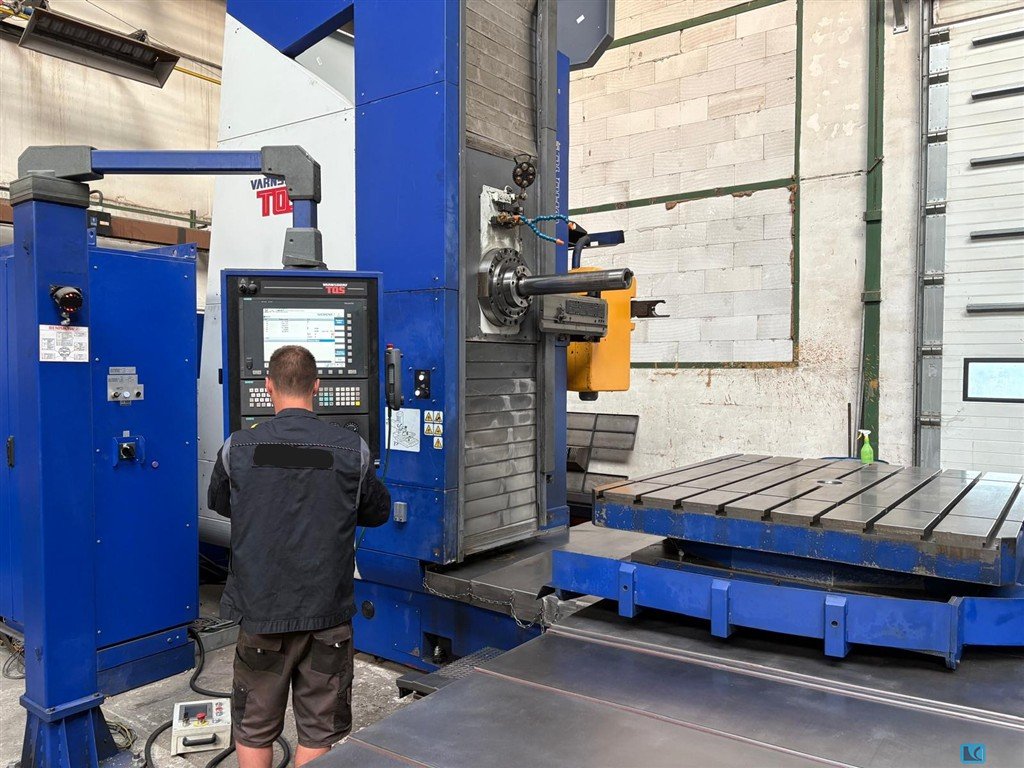

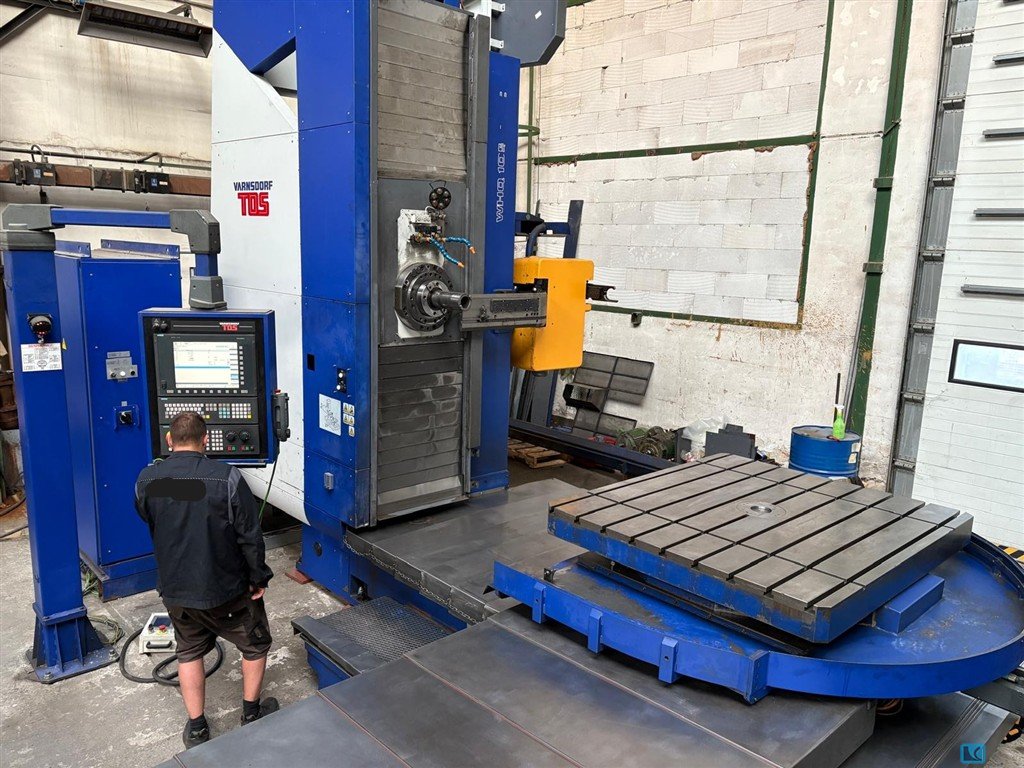

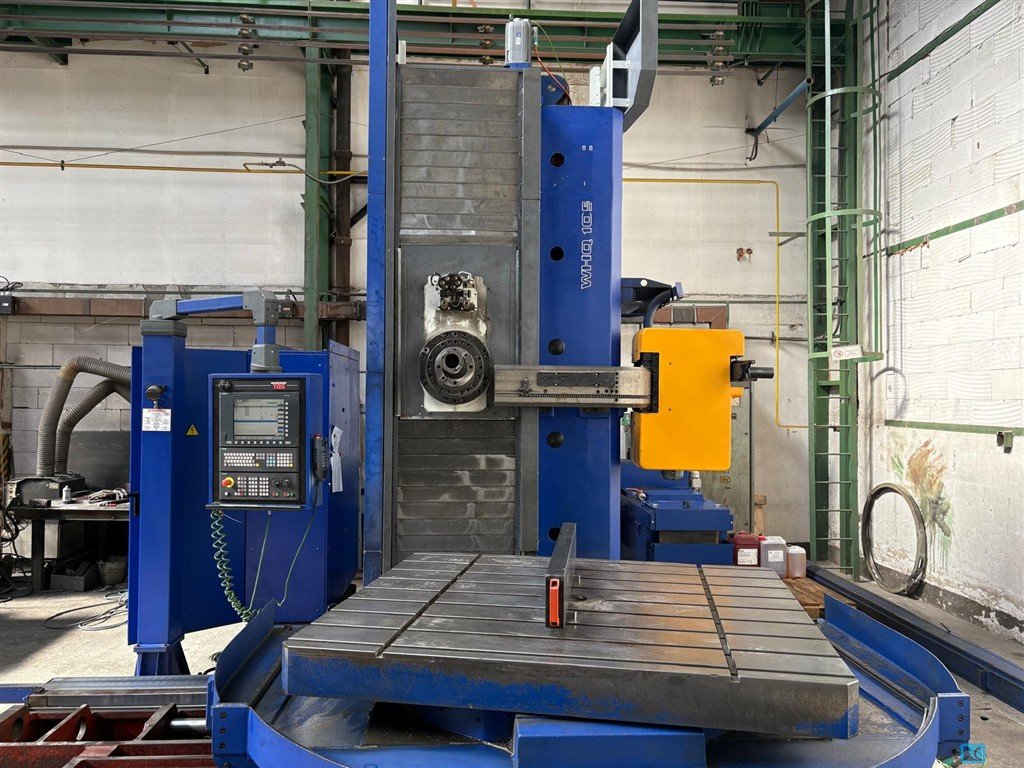

spindle diameter:130 mm x-travel:5000 mm y-travel:3000 mm z-travel:2000 mm The TOS Varnsdorf WHQ 13 CNC is a high-performance CNC-controlled horizontal table drill press fitted with a Siemens Sinumerik 840D CNC control system, designed for the precise machining of large and heavy workpieces. The machine is suitable for drilling, boring and milling complex components and is typically used in heavy machinery manufacturing, plant engineering, toolmaking, and in the energy and heavy industries. With generous travel ranges of 5,000 mm on the X-axis, 3,000 mm on the Y-axis and 2,000 mm on the Z-axis, the machine offers an extensive working area. The worktable, measuring 2,500 × 1,800 mm, can accommodate workpieces weighing up to 20 tonnes. The horizontal spindle achieves a speed of up to 3,000 rpm. In combination with the supplied milling head, even demanding milling operations and various ma ...

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

Aufspannflaeche 3,000 x 2,000 mms table height 1,150 mms

conventional ´ traditional Tischbohrwerk, work spindle diameter 85 mm Traverse paths x 1000 mm, y 1000 mm, z 900 mm, ISO 40,. Clamping area table 1000 x 1120 mm with position indicator

Control: Heidenhain TNC 360 (1992) Table size: 1000 x 1000 mm Table size with front extension: 1345 x 1000 mm Table load max.: 2000 kg Distance spindle centre to column min/max.: 270 ~ 1270 mm Distance spindle nose to table min/max.: 0 - 1100 mm Distance between the upright columns: 1855 mm Table longitudinal travel : 1400 mm Boring ram carriage cross travel: 900 mm Crossrail vertical travel: 850 mm Boring spindle travel: 370 mm Spindle motor rating: 6 KW Spindle speed range: 30 - 1500 rpm Boring spindle diameter: 82 mm Spindle taper: MK 5 Borer diameter: 2 - 70 mm Boring tool diameter: 17 - 450 mm Boring diameter in solid ST 60: 45 mm Boring diameter in solid Cast iron: 70 mm Equipped with: Tooling; Accessories Machine overhauled and retrofitted in 1992 !; Very good

AUTOMATIC BORING machine 35 spindles SCM TOP 35 second hand machine electric movement of boring head 0° / 90° technical details : n. 35 spindles center distance between spindles mm 32 center distance between first and last spindle of the drill head mm.1088 max. stroke of boring unit mm. 140 n.02 motors Hp 3 each one operating pressure atm 6-8 weight kg.800 volt. 380/50

AUTOMATIC CUTTING , BORING and MOULDING machine type PADE 1000 N Machine suitable for assembling part of chairs, tables, frames, small furniture, wheelchair frames, etc. The PADE 1000 N performs the operations of Cutting , milling and drilling at the end of the piece, either singularly or differently combined. All movements of the machine are controlled by pneumatic devices. composed by 3 working units : 1- Cutting unit circular saw diam. mm.350 motor power hp 3 2- Boring unit boring head with 5 / 7 mandrins motor power Hp 3 max. working stroke of boring unit mm. 130 3- Moulding unit vertical spindle for moulder motor power Hp 5,5 spindle diam. mm.30 pneumatic sliding carriage volt. 380/50

Retrofitted in 2005 electrical / CNC control Siemens 840 d Retrofitted in 2012 and 2019 mechanical what made. Technical datas: Rotary spindle speed: 1.25-600 tr/min Spindle maximum power: 55 kW 215 tr/min Horizontal run of the upright on the bench - X 15,000/30,000 mm . X travel 30,000 mm is for both machine Vertical stroke of carriage on upright - Y (mm) 5,600 mm Spindle stroke - 1,100 mm Z: Flowing stroke - w: 1,100 mm Advance - X: 3-5000 mm / min Feed - Y: 3-5000 mm / min Feedrate - Z: 1.5 2,500 mm / min Total weight: 100,000 kg Foundation pit OSTEO. for both machine Length x width x height: 40,000 x 5,000 x 1,800 mm all accessories are available and can be sold at extra costs. For both machines are the following attachments available: â?¢ Chip conveyor For both machines including lubrication and coolend unit for the cutting operation &aci ...

M. No.: 2277

in cassette

in cassette

Code 71145 Description Horizontal table borer Make UNION Model BFT 80 / 3-1 Serial number 18301 / 34 Year 1986 Spindle 80 mm Spindle taper ISO 40 Spindle out (W) 710 mm Table 1120 x 1000 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 2500 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Size L x W x H 5500 x 3200 x 2800 mm Weigth 9 ton Accessoiries Facing head Ø 460 mm with 180 mm stroke 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead Condition Machine is in good condition

Code 61080 Description Horizontal table borer Make UNION Model BFT 90/3 at Serial number 25 742 Year 1979 ( 1980 in use ) Control Heidenhain TNC 121 Spindle 102 mm Spindle taper ISO 50 Spindle out (W) 710 mm Table 1400 x 1250 mm Cross (X) 1000 mm Longitudinal (Z) 1600 mm Vertical (Y) 1000 mm Distance table-spindle 0 – 1000 mm Weight on table 3000 kg 24 Spindlespeeds 8 - 1600 rpm Feeds 1 - 3000 mm/min Rapids 3 m/min. Motor 11 kW 380 Volts Accessoiries 3 x DRO Heidenhain ( X-Y-Z ) Tool clamping Guideway protection Pendel control Cooling equipment Option ( extra price ) Universal millinghead with 600 mm gap

M. No.: PB 04 02.01/1070

Sr. No.: 801831

Number of boring units // Diameter boring units (mm) 9x 3.0 5x 3.5 1x 4.0 3x 4.5 6x 5.0 9x 5.5 31x 6.0 2x 6.5 19x 7.0 18x 8.0 1x 8.5 9x 9.0 5x 10.0 9x 11.0 2x 13.0 3x 14.0 1x 15.0 1x 16.0 2x 18.0 1x 19.0

SCHARMANN HEAVYCUT 2 WFT 150 CNC Floor type Boring Mill Year 1978 Spindle Diameter: 5.9" (150mm) Milling Spindle Diameter: 11.02 (280mm) Spindle Taper: CAT 50 Ram Cross Section: 11.81" x 11.81" (300x300mm) Vertical Head Travel, Y-Axis: 137.79" (3500mm) Column Travel, X-Axis: 712.59" (18000mm) Quill Travel, Z-Axis: 23.43 (595mm) Ram Travel, W-Axis: 27.6" (700mm) Z & W Axis, Combined: 51.03" (1296mm) Spindle Speeds: 5.5-1000 RPM Spindle Feed Range: 0.003-240 IPM Rapid Traverse: 396 IPM Spindle Motor: 70 HP/ 105 HP EQUIPPED WITH: Heidenhain TNC 407 CNC Controls Ram and Spindle Travel Sliding Way Covers On X-Axis Bed Right Angle Head With 1 Degree Manual Indexing Hardened Ways Re-pained recently

M. No.: 1767

Key data: 100 mm, 1600 mm, 1250 mm

DRO , TABLE 1250 X 1250

CNC Double column Coordinate Boring Machine with Deep Hole Drilling Support Kolb KBN G 120 Year of manufacture 1984 / Retrofitted with Heidenhain TNC 426 in 2006 Table size 4250 x 2200 mm Table load max. 14 t Table longitudinal travel X 3000 mm Main spindle cross travel Y 2180 mm Deep hole drilling support cross travel A - 2000 mm Spindle vertical travel Z 500 mm Distance between the columns 2640 mm; Spindle to table 100 - 1300 mm; Spindle diameter 224 mm Spindle drive motor rating 46 KW Spindle speeds 14 - 1400 rpm Spindle taper ISO 50 Drilling in steel ST60 : 100 mm diameter; Boring to 300 mm; Threading to M 125 x 3; Milling capacity 730 cm³/min.; Second support for Deep Hole Drilling Spindle speeds for BTA and ELB boring 315 - 3150 rpm High pressure cutting oil delivery to spindle Chip- and oil collection and separation via Centrifuge. Very good condition P ...

HBM STANKO 2A622 CNC

Union boring mill CBFK 150/2 from 1990 for sale. Is currently still in use,. Technical details / accessories / addition: x-travel 3000 mm y-travel 2000 mm z-travel 1600 mm Spindle diameter 150 mm Spindle holder ISO 50 Spindle stroke 700 mm Spindle speeds - infinitely variable 5 - 2500 rpm Rapid traverses 10000 mm/min Table clamping area 1600 x 2000 mm Workpiece weight approx. 20 t Spindle drive motor 50 kW Feeds x/y/z - infinitely variable 1 - 9999 mm/min Table positioning 360,000 ° Total power requirement approx. 70 kW Machine weight approx. 40 t Dimensions approx. 6.0 x 8.0 x 4.5 m In 2005: new 5-axis CNC control Dr. Heidenhain TNC 430 - electron. Handwheel HR 410 for all axles with V24 interface, punched tape reader, new electrics, new hydraulics, new servo motors, 60-speed chain tool change magazine model WM III k02 B-axis (round table adjustment) 360,000  ...

DEFUM WFM-100 boring machine was built in 1984 in Poland by the Dąbrowska Fabryka Obrabiarek DEFUM. The machine is designed for precision machining of workpieces with complex geometry and high weight. All machining processes, i.e. drilling, milling, boring and thread cutting, are performed on a stable work table by means of a powerful spindle with a diameter of 100 mm. The WFM 100 horizontal boring machine weighs 11000 kg. Technical specifications of the DEFUM WFM-100 drilling and milling machine - feed in the X/Y/Z axis: 1200/1000/600 mm - work table dimensions (L x W): 1100 x 1100 mm - maximum workpiece weight: 3000 kg - maximum spindle rotational speed: 1600 rpm - spindle diameter: 100 mm - spindle drive power: 18.5 kW - dimensions (L x W x H): 4610 x 3620 x 3110 mm - weight of the DEFUM machine: 11000 kg

Quill for jig boring mill, fine boring mill, plate boring mill, table boring mill, boring mill, milling machine, -Stroke: 60 mm -in: a wooden box -Dimensions: 390/340/H170 mm -Weight: 15.8 kg

Spindle for plate boring mill, table boring mill, boring mill, milling machine, quill, boring head, Replacement spindle -SK50 holder for: screwing onto the faceplate -Adjustment: SK50 -Dimensions: 220/220/H160 mm -Weight: 20 kg

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -spindle tool -Recording: SK50 -suitable for tool changers -spindle dimension -Dimensions: 290/120/H320 mm -Weight: 12 kg

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -spindle tool -Recording: SK50 -suitable for tool changers -spindle dimension -Dimensions: 240/120/H320 mm -Weight: 10 kg

3-spindle line boring machine

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: MK5 mount -Spindle size: Ø 120-140 mm -Dimensions: Ø 124 x 253 mm -Weight: 8.4 kg

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: MK4 mount -Spindle size: Ø -93 mm -Dimensions: 93/64/H200 mm -Weight: 2.2 kg

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, facing and boring head -Boring head: SK40 holder -Tool holder: 16 x 16 mm see photos -Dimensions total: Ø 63 x 250 mm -Weight: 2.8 kg

Boring head, spindle head, drilling head, grooving drilling head, grooving head, spindle drilling head, boring head, spindle tool, cutter, circle cutter -Manufacturer: Marchner, die cutter, boring head, circle cutter -Recording: MK3 -Diameter range: 33 - 85 mm -Transport dimensions: 340/165/H100 mm -Weight: 5.3 kg

CNC vertical jig boring machine WMW MIKROMAT Type BKoZ 900x1400/5NC Travel X 1120 mm Travel Y 710 mm Spindle travel Z 315 mm Travel W 630 mm Numerical Command CNC NUM 1060 Spindle Ø 125 mm Cone SA40 Rotation from 36 to 2240 RPM Table size 1400 x 900 mm Distance between colums 1080 mm Maxi distance spindle nose/table from 0 to 900 mm max Maxi eligible load on table 1000 kg max Separate electrical panel Machine renewed in 2000 with CN NUM1060 Voltage 380 V Dimensions (L x W x H) 4000 x 2460 x 3030 mm Weight approx. 9 T MACHINE IN OUR STOCK IN FRANCE.

Paper boring machine Dürselen Corta PB 04; Cleaned and tested; 4 drill heads (up to 6 stick.usable); Drill cooling and lubrication; Sliding table; Endless drilling tape; Inlay depth behind the holes 65mm; Max. Stack height 50mm; Sliding table size before the drills 300mm; Max. Drilling distance over sliding table 420mm. Paper drilling machine Dürselen Corta PB 04; The cleaned and checked; Four heads (up to 6 heads); Driller cooling and lubrication; Sliding table; endless drilling band; size behind drillers 65mm; Max.pile hight 50mm; Seft of table in front of the drillers 300mm; max.drilling distance over the table 420mm.

Boring head, spindle head, drill head, plunge drill head, plunge head, spindle drill head, boring head, spindle tool -Recording: SK50 -Adjustment range: 20 mm -Tool shaft: Ø 30 mm -Weight: 10 kg

Control system Heidenhain TNC 415 Spindle diameter 130 mm Tapered hollow spindle ISO 50 Spindle speed range 10 to 1500 rpm Table transverse (X): 3500 mm Rolling headstock stand for (Y): 2000 mm Longitudinal displacement rack (W): 1250 mm Eject working spindle (Z): 800 mm Table load 12 000 kg Machine weight: 36 000 kg
