blow mould used for sale

Manufacturer: Michael Weinig K.G. Machine Number: 59711002 Country of origin: Germany Recommended grease: Shell Alvania Grease R.3 Approval: No 7941 7051 D 568 Auction-ID: A1-50215-51

Capacities : Thickness × width: 120 × 230 mm Minimum / maximum width: 20 – 230 mm Minimum / maximum height: 8 – 120 mm Minimum length single piece: 750 mm Speeds: Variable feed: 5 to 24 m/min Spindle rotation speed: 6,000 rpm Composition and equipment: 2,500 mm Input table 2,500 mm Motorised adjustment of machining width and height Adjustments accessible on the front panel with the hood closed SIKO digital meters on each setting Wrap-around and sound-absorbing enclosure with panoramic bay Tool shafts Ø 40 mm Shaft configuration (7 shafts): Lower horizontal shaft: 5.5 kW (7.5 hp) Right rotor: 11 kW (15 hp) Left rotor: 11 kW (15 hp) Vertical shaft: 5.5 kW (7.5 hp) Upper horizontal shaft: 7.5 kW (10 hp) Lower horizontal shaft: 7.5 kW (10 hp) Universal shaft: 5.5 kW (7.5 hp) Dimensions (estimated)Approx . 5,800 × 2,100 × 1,900 mm (to be confirmed) Weight (estimate): Approx. 4 ...

TECHNICAL DATA: Usable dimensions (E1/L): 4600 x 1500 mm Usable dimensions (A6-D): 4500 x 2200 mm

Shaft 16/ 20 mm; in sorting tray Auction-ID: A1-49785-312

Capacity: 230 x 130 mm. Spindles: 7 Bottom 7,5 kW, right 7,5 kW, left 11 kW, right 7,5 kW, top 11 kW, bottom 11 kW, universal 11kW spindles 2, 3, 4 and 5 are 8000 tr/min straight jointer on 2nd bottom spindle Cardan shaft drive Pneumatic pressures Intermediate driven feedroller for short pieces 0,8 m infeed straightening table manual bed lubrication Spindle diameter: 50 mm. 5 driven rollers in table Feed: 6 - 36 m/min, motor 7,5 kW motor height adjustment

Capacity 230 x 120 mm 5 spindles: Bottom 7,5 kW? Fence / Near 11 kW ? Top 7,5 kW ? Bottom 5,5 kW Spindle speed 6000 rpm Variable feed speed 6 to 24 m/min, motor 4 kW Straightening table 2000 mm Driven table roller Mechanical/digital read-out Centralised lubrication CE sound/safety hood Interior light Hopperfeed EM 11, upt to 60 cycles/min Workpiece length: 350 to 3000 mm Workpiece width: 20 to 230 mm Workpiece thickness: 12 to 70 mm Air requirement: 8 bar, connection DN8 Extraction requirement: 840 - 9600 m3/h, air speed 30 - 34 m/s Tooling not included

Capacity: 230 x 130 mm. Number of shafts: 9 Bottom 7.5 kW, right 7.5 kW, left 7.5 kW, right 7.5 kW, left 7.5 kW , top 7.5 kW, bottom 7.5 kW, top 7.5 kW, bottom 7.5 kW Kardan drive Pneumatic pushers Front surface table Feed rollers for short workpieces Manually operated pump for bed lubrication Shaft diameter: 50 mm. Powered rollers in the table Feed: 6 - 36 m/min Motorized height adjustment

Short infeed table (700 mm) with 2 driven feedrollers above and 1 driven feedroller in the infeed table In the machine 4 driven feedrollers Hardened table (with exception of the infeed table) Separate controll cabinet and electrical cabinet Automatic bed lubrication Pneumatic pressures Outfeed table with height adjustment 0/0,5/1 mm Sound enclosure with electromagnetic security Capacity: width 20 - 230 mm x height 8 - 160 mm (with cutting circles resp. 140 and 163 mm) Feedspeed: 6 - 36 m/min, motor 7,5 kW Number of spindles: 8 Spindle diameter: 50 mm Spindle speed: 6000 rpm Bottom 7,5 kW, outboard bearing Fence 7,5 kW Near 11 kW Fence 11 kW Top 15 kW, outboard bearing, straight jointer Bottom 22 kW, table prepared to take wooden inserts in case of ripping (tool diameter up to 250 mm) Top 11 kW, table prepared to take wooden inserts Bottom 11 kW, outboard bearing, straight jointer

including accessories Auction-ID: A1-44050-19

Arburg Allrounder CENTEX 520 C 2000-675, year of manufacture 04/2003, serial number including 2× Arburg Thermolift 100-2 + Koch granulate conveyor Auction-ID: A1-50370-5

Used dough weigher and long moulder MERAND, type: RheoPan / -In very good condition- RheoPan Precision Dough Weigher with Double Dough Weighing - Very precise and gentle dough processing - Suitable for highly hydrated and fermented, but also for firmer doughs - 50 recipes can be stored - Program setting for easier cleaning Connection with other modules, such as circular knitters, etc. Visits and test runs are possible.

Various metal formwork moulds / Clamping material in various sizes Of which largest approx. 90x40 cm Auction-ID: A1-50251-223

Machine is dismantled and stored (see photos). May show traces of storage with including 2× Arburg Thermolift 100-2: and a Koch conveyor see photos Auction-ID: A1-50370-6

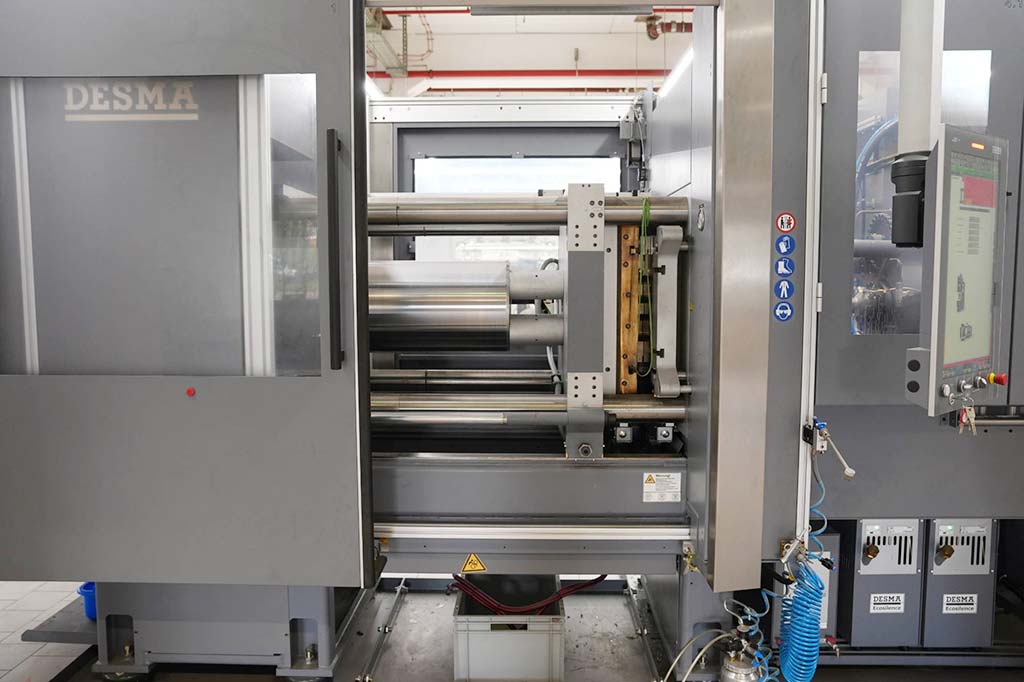

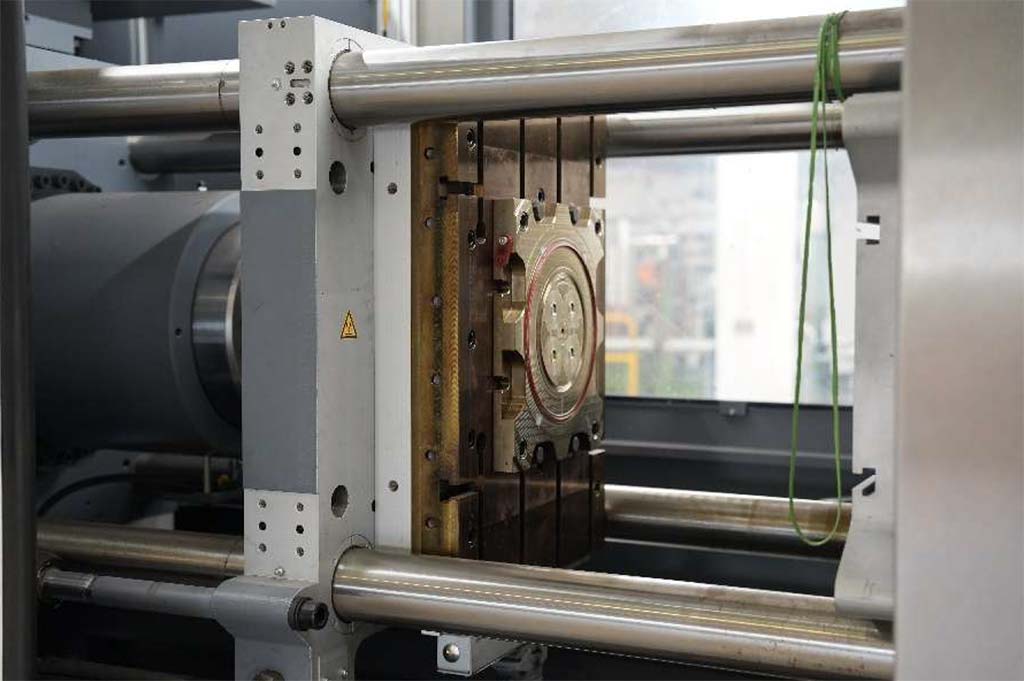

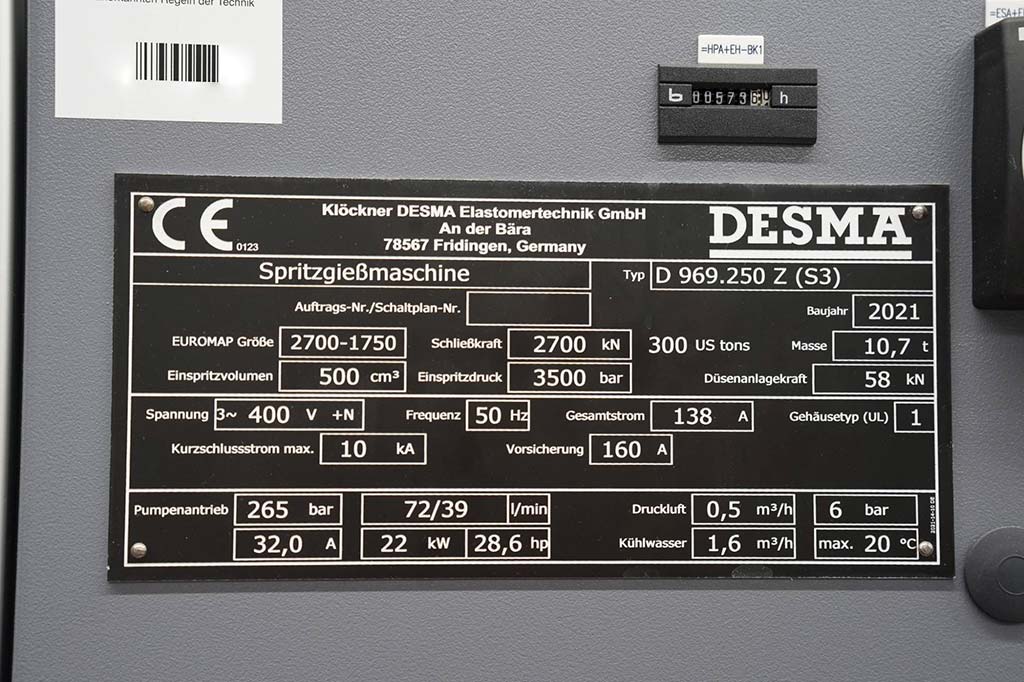

Clamping force: 2700kN, injection volume: 500cm³, injection pressure: 3500bar, EUROMAP size: 2700-1750, rated power: 22kW, weight: approx. 10.7t, nozzle contact force: 58kN, total current: 138A, upstream fuse: 160A, max. short-circuit current: 10kA, enclosure type (UL): 1, hydraulic motor operating hours: 730h, hydraulic pump (clamping force): 65h, operating system active: 3,360h, was regularly maintained, is in well-maintained condition, an on-site inspection is possible.

Technical details Configuration: 5-spindle machine Spindle layout: - Bottom spindle (jointing) - Right spindle - Left spindle - Top spindle - Bottom spindle Working capacity: - Working width: 20–230 mm - Working height: 10–160 mm Feed system: - Feed speed: 5–40 m/min - Feed motor power: 5 kW - Electronic infinitely variable feed adjustment - Pneumatic lifting/lowering of feed roller before first spindle - Quick-change feed rollers - Serrated feed roller Electrical specifications: - Supply voltage: 400 V - Frequency: 50 Hz - IE3 Premium Efficiency motors Control system: - Memory Plus touchscreen control - Storage of axial and radial spindle positions - Electrically adjustable pressure elements - Guided machine setup Right spindle: - Motor power: 11 kW - Spindle diameter: 40 mm - Speed: 7000 rpm - Axial movement: 80 mm - Maximum profiling depth: 35 mm Left spindle:  ...
