pressure:600 t distance between columns:3640 mm stroke:350 mm no. of strokes:11 - 44 /min Distance table/ram, max. stroke up, adjustment up:1550 mm table surface area:3600 x 2500 mm sliding table:3600 x 2500 mm ram surface:3600 x 2500 mm Side window:2200 mm ram adjustment:400 mm material width coil line:500 - 1950 mm Material thickness at 1200 mm material width:0,6 - 2,5 mm Material thickness at 1850 mm material width:0,6 - 2,0 mm Material thickness at 1950 mm material width:0,6 - 1,75 mm Coil weight:35,0 t coil internal diameter:610 mm coil external diameter:900 - 1900 mm no. of straightening rolls:13 straightening roll diameter:50 mm Stack height:400 mm stacking dimensions - station 1+2 (L x W):150-2000 x 250-2000 mm stations:2 power requirement:112,0 + 35,0 kW Weight:390,0 t Dimensions (WxDxH):7,3 x 5,1 x 15,0 m Height above floor:9,1 m Height below floor:5,9 m clutch-/ brake combinat ...
A roll punching press for stamping is available up to A3. The die is pulled under the roll.
Make: RIJVA Model: 502/1 S/N: 405 Cap: 12 tons
FEINTOOL GKP F 160 hydraulic press was built in Switzerland. The automatic fine blanking press combines several workpiece machining stages into one precise process and significantly saves time and effort. As a result of fine blanking, parts with a maximum thickness of 6 mm obtain a characteristic even surface and accurately defined edges that cannot be achieved with other machines. The FEINTOOL GKP-F hydraulic punching press features a robust, stable construction and a total force of 160 tonnes. Offered with the machine a sheet metal feeder with a maximum thickness of 6 mm and a width of 210 mm allows for completely automatic machining. The automatic punching press underwent extensive modernisation in 1999. The total weight of the GKP-F 160 press is 9000 kg. Technical data of the FEINTOOL GKP F 160 fine blanking press - maximum sheet metal thickness: 6 mm - maximum sheet metal wi ...
FEINTOOL GKP F 100T fine blanking press was manufactured in Switzerland in 1974. The machine, distinguished by its robust, stable design, can perform several demanding machining steps in one precise process, saving time and labour. Workpieces with a maximum thickness of 6 mm thus achieve an extremely even surface and precisely defined edges that are impossible to achieve on other machines. The machining process can be fully automated when the FEINTOOL GKP F 100/160 hydraulic blanking press is retrofitted with a sheet metal feeder. The total weight of the machine is approximately 9 tonnes. Technical data of the FEINTOOL GKP F 100T hydraulic press - maximum workpiece thickness: 6 mm - maximum sheet metal width: 210 mm - total force including auxiliary functions: 160 t - shearing force: 100 t - hydraulic counterweight force (upper table): 1-40 t - hydraulic force of ring jaw (lower ...
Used Feintool HFA 4000 equipped with Feeder Line Saronni total force 2500-4000 kN blank holder force 200-2000 kN back pressure force 100-1000 kN shearing force 1000-3700 kN safety distance 14 mm FEEDER LINE brand SARONNI year 2006 - completely overhauled in 2012
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: knuckle-joint SLIDE total force (nominal): 250 to stroke: 61 mm stroke rate (max.): 60 /min COUNTER RAM nominal force: 75 to stroke: 15 mm V-RING nominal force: 75 to stroke: 13 mm TOOL DIMENSIONS lower table (left-right): 540 mm lower table (front-back): 540 mm upper table (left-right): 540 mm upper table (front-back): 540 mm shut height max.: 320 mm ram adjustment: 145 mm distance between columns (H-frame): 560 mm passline opening (free passage in side columns): 270 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 250 mm sheet thickness max.: 10 mm feeding step max.: 9 ...

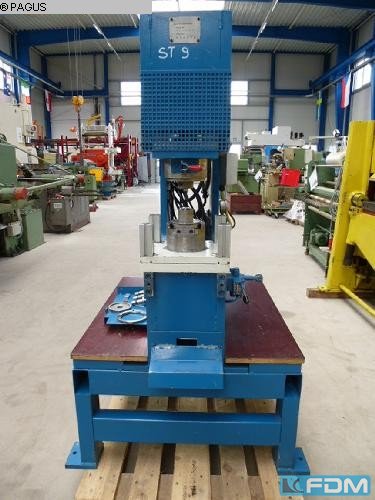

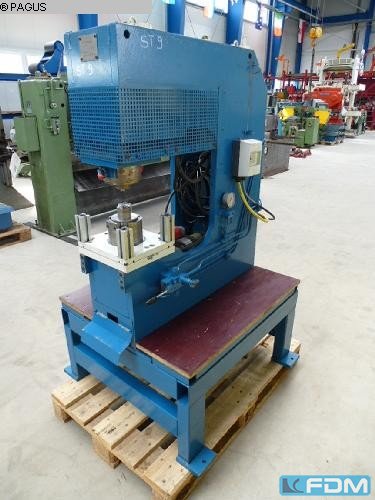

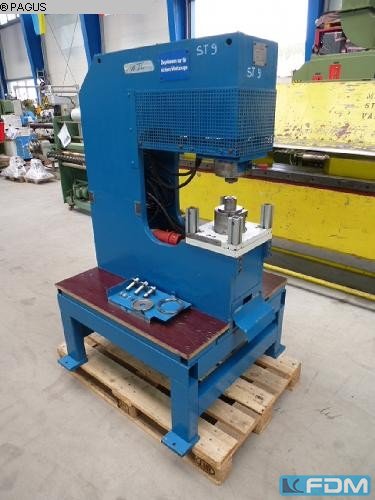

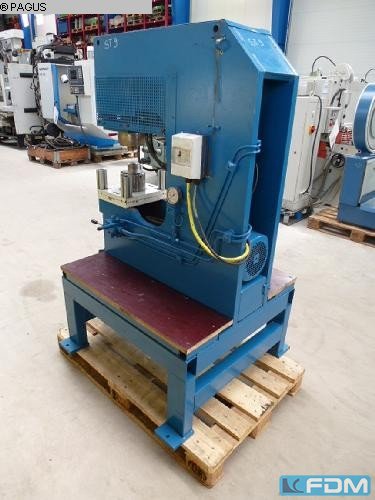

weight of the machine ca.:620 kg dimensions of the machine ca.:1000 x 920 x 1550 mm
Capacity: 250 ton V ? Ring nominal force: 30 - 125 ton Counter ram nominal force: 30 - 125 ton Ram stroke: 67 mm Table surface area : 560 x 600 mm Slide area: 560 x 560 Number of strokes: 80 s.p.m. Weight of machine approx.: 14.000 kg
PRESS DESIGN drive system: knuckle-joint frame design: H-frame, monoblock SLIDE total force (nominal): 160 to stroke: 60 mm stroke rate (max.): 72 /min COUNTER RAM nominal force: 40 to stroke: 60 mm V-RING nominal force: 50 to stroke: 13 mm TOOL DIMENSIONS lower table (left-right): 470 mm lower table (front-back): 470 mm upper table (left-right): 500 mm upper table (front-back): 470 mm shut height max.: 277 mm ram adjustment: 80 mm distance between columns (H-frame): 500 mm passline opening (free passage in side columns): 220 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 210 mm sheet thickness max.: 6 mm feeding step max.: 180 ...
CONTROLS PLC SIEMENS S5 SLIDE total force (nominal): 160 to stroke: 60 mm COUNTER RAM nominal force: 80 to V-RING nominal force: 80 to TOOL DIMENSIONS lower table (left-right): 560 mm lower table (front-back): 600 mm upper table (left-right): 560 mm upper table (front-back): 600 mm shut height max.: 335 mm ram adjustment: 125 mm distance between columns (H-frame): 630 mm passline opening (free passage in side columns): 270 mm CROP SHEAR cutting force: 150 kN DIMENSIONS / WEIGHTS total weight approx.: 11000 kg ATTACHMENTS -FINEBLANKING PRESS- autom. tool clamping device: yes decoiler: optional waste cutter: yes slug separator: optional very well maintained machi ...
CONTROLS PLC BECKHOFF PRESS DESIGN drive system: knuckle-joint feedstock transport direction: left to right SLIDE total force (nominal): 250 to stroke: 67 mm stroke rate (max.): 80 /min COUNTER RAM nominal force: 125 to V-RING nominal force: 125 to TOOL DIMENSIONS lower table (left-right): 560 mm lower table (front-back): 600 mm upper table (left-right): 560 mm upper table (front-back): 560 mm STRIP-FEEDER feeder type: roll feeder DIMENSIONS / WEIGHTS total weight approx.: 14000 kg ATTACHMENTS -FINEBLANKING PRESS- decoiler: optional waste cutter: yes + Control system completely renewed in 2015
Capacity: 250 - 400 ton V ? Ring nominal force: 20 - 200 ton Counter ram nominal force: 10 - 100 ton Ram stroke: 30 - 200 mm V-Ring stroke: 40 mm Counter ram stroke: 40 mm Max. die size: 765 x 760 x 610 mm Number of strokes: 40 s.p.m. Approach speed: 120 mm / sec Return speed: 135 mm / sec Working speed: 5 - 50 mm / sec Die Weight total: 2400 kg
CONTROLS PC controller BECKHOFF C 6140 PRESS DESIGN drive system: hydraulic frame design: H-frame, monoblock quick die change system: yes feedstock transport direction: left to right SLIDE total force (nominal): 410 to stroke: 200 mm SLIDE (HYDR. PRESS) approximation velocity max.: 200 mm/s working velocity min.: 8 mm/s working velocity max.: 80 mm/s return velocity max.: 150 mm/s COUNTER RAM nominal force: 120 to stroke: 40 mm V-RING nominal force: 250 to stroke: 40 mm TOOL DIMENSIONS lower table (left-right): 820 mm lower table (front-back): 1250 mm upper table (left-right): 820 mm upper table (front-back): 1250 mm shut height max.: 410 mm STRIP-FE ...
CONTROLS PLC SIEMENS S7 PRESS DESIGN drive system: link drive feedstock transport direction: left to right SLIDE total force (nominal): 80 to stroke: 50 mm stroke rate (max.): 80 /min COUNTER RAM nominal force: 22 to stroke: 8 mm V-RING nominal force: 25 to stroke: 15 mm TOOL DIMENSIONS lower table (left-right): 420 mm lower table (front-back): 420 mm upper table (left-right): 420 mm upper table (front-back): 420 mm shut height max.: 220 mm ram adjustment: 80 mm distance between columns (H-frame): 450 mm passline opening (free passage in side columns): 200 mm OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 180 mm sheet thickness max.: 5 mm &nbs ...
CONTROLS conventional PRESS FORCES total force (nominal): 75 to PRESS TABLE table surface (left-right): 1250 mm table surface (front-back): 1110 mm SLIDE table surface (left-right): 960 mm table surface (front-back): 750 mm SLIDE (MECHAN. PRESS) slide adjustment: 80 mm stroke adjustment: yes stroke min.: 10 mm stroke max.: 50 mm stroke rate (min.): 120 /min stroke rate (max.): 600 /min STRIP-FEEDER feeder type: roll feeder sheet width max.: 300 mm ELECTRICAL SPECIFICATIONS total power consumption: 15.5 kW DIMENSIONS / WEIGHTS total weight approx.: 13500 kg ATTACHMENTS (PRESSES) strip feeder: yes feeder type: roll feeder
SLIDE total force (nominal): 880 to stroke: 305 mm cutting velocity min.: 5 mm/s cutting velocity max.: 70 mm/s closing velocity: 200 mm/s returning velocity: 200 mm/s V-RING nominal force: 400 to stroke: 40 mm COUNTER RAM nominal force: 200 to stroke: 40 mm TOOL DIMENSIONS lower table (left-right): 1010 mm lower table (front-back): 1600 mm upper table (left-right): 1000 mm upper table (front-back): 1000 mm shut height max.: 460 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 450 mm sheet thickness max.: 16 mm feeding step min.: 1 mm feeding step max.: 999.9 mm sheet length min: 3950 mm speed max.: 48 m/min &nbs ...
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: servohydraulic frame design: H-frame, tie rod quick die change system: yes feedstock transport direction: left to right SLIDE total force (nominal): 1100 to stroke: 130 mm stroke rate (max.): 60 /min COUNTER RAM nominal force: 330 to stroke: 40 mm V-RING nominal force: 500 to stroke: 40 mm TOOL DIMENSIONS lower table (left-right): 960 mm lower table (front-back): 960 mm upper table (left-right): 960 mm upper table (front-back): 960 mm shut height max.: 470 mm OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 16 mm coil weight max.: 8 to feedstock t ...
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: knuckle-joint SLIDE total force (nominal): 160 to stroke: 60 mm stroke rate (max.): 70 /min COUNTER RAM nominal force: 40 to stroke: 14 mm V-RING nominal force: 50 to stroke: 10 mm TOOL DIMENSIONS lower table (left-right): 480 mm lower table (front-back): 520 mm upper table (left-right): 480 mm upper table (front-back): 520 mm shut height max.: 314 mm ram adjustment: 80 mm distance between columns (H-frame): 500 mm passline opening (free passage in side columns): 220 mm STRIP-FEEDER feeder type: roll feeder sheet width max.: 210 mm sheet thickness max.: 6 mm feeding step max.: 999 ...
CONTROLS PC controller BECKHOFF PRESS DESIGN drive system: servomechanic quick die change system: yes feedstock transport direction: left to right SLIDE total force (nominal): 250 to stroke: 70 mm stroke rate (max.): 140 /min COUNTER RAM nominal force: 80 to stroke: 25 mm V-RING nominal force: 125 to stroke: 25 mm TOOL DIMENSIONS lower table (left-right): 600 mm lower table (front-back): 600 mm upper table (left-right): 600 mm upper table (front-back): 600 mm shut height max.: 386 mm ram adjustment: 125 mm COIL CHAIR coil weight max.: 5 to DECOILER design: single reel sheet width max.: 500 mm coil weight max.: 5 to LEVELLER UNIT &nb ...
CONTROLS PC controller BECKHOFF Offer for services of complete Overhaul of a Customer-Supplied Fineblanking Press FEINTOOL GKP 160Scope of Overhaul• Complete disassembly into individual components• Inspection of all parts, including crack testing of critical components• Overhaul of the drive system, new motors• Reworking and precise alignment of all guideways• Complete overhaul of the hydraulic cylinders• Overhaul of the clamping tables• Installation of a new hydraulic unit• Renewal of the pneumatic system• Renewal of the electrical systemModernisation / Retrofit• Combined table • Servo feed systems• Central lubrication system • RAZIOL band lubrication• New brake/clutch unit• BECKHOFF PC-based control system with touch panel• PILZ safety control system• Implementation of CE ...
SLIDE total force (nominal): 250 to stroke: 61 mm stroke rate (max.): 60 /min stroke rate (min.): 15 /min COUNTER RAM nominal force: 75 to V-RING nominal force: 75 to TOOL DIMENSIONS lower table (left-right): 540 mm lower table (front-back): 540 mm upper table (left-right): 540 mm upper table (front-back): 540 mm STRIP-FEEDER sheet width max.: 250 mm sheet thickness max.: 10 mm sheet length min: 1500 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 3150 mm space requirements -front/back-: 2120 mm total height: 3000 mm total weight approx.: 14000 kg Located in Barcelona - Spain Installation space of the tools Front passage between the columns: Movable: 560 mm Fixed: 560 mm Side p ...
IBERICA JRK 105 with Blanking year 2000 A DIE-Cutting press of size 75 x 105 cm (29 517 Hours) Including : Stripping and Blanking Station, NON-Stop Feeder, Control and Pull Lay System, Mini. Paper thickness 90 g/m2, Max. Cardboard thickness 1,5 mm, Max. corrugated 3 mm, Chases and Frames, 300 Tons Cutting Pressure, Speed 8 500 S/Hours. In good Condition, Immediately available
CONTROLS PLC SIEMENS S7 PRESS DESIGN drive system: hydraulic quick die change system: yes feedstock transport direction: right to left SLIDE total force (nominal): 400 to stroke: 200 mm COUNTER RAM nominal force: 100 to stroke: 30 mm V-RING nominal force: 200 to stroke: 30 mm TOOL DIMENSIONS lower table (left-right): 650 mm lower table (front-back): 650 mm shut height max.: 420 mm passline opening (free passage in side columns): 420 mm OVERALL SPECIFICATIONS (COIL LINES) sheet width max.: 500 mm sheet thickness max.: 12 mm feed velocity max.: 30 m/min feedstock transport direction: right to left LEVELLER UNIT sheet width max.: 500 mm sheet width (mi ...
CONTROLS PLC PRESS DESIGN drive system: hydraulic quick die change system: yes SLIDE total force (nominal): 450 to stroke: 230 mm SLIDE (HYDR. PRESS) working velocity min.: 5 mm/s working velocity max.: 70 mm/s return velocity max.: 200 mm/s return force: 200 to V-RING nominal force: 200 to TOOL DIMENSIONS lower table (left-right): 790 mm lower table (front-back): 760 mm OVERALL SPECIFICATIONS (COIL LINES) coil weight max.: 3 to COIL CHAIR coil weight max.: 3 to STRIP-FEEDER feeder type: roll feeder band lubrication system: yes ELECTRICAL SPECIFICATIONS total power consumption: 150 kW mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS ...
CONTROLS PLC SIEMENS PRESS DESIGN drive system: hydraulic SLIDE total force (nominal): 500 to stroke: 225 mm stroke rate (max.): 60 /min SLIDE (HYDR. PRESS) approximation velocity max.: 200 mm/s working velocity min.: 15 mm/s working velocity max.: 44 mm/s return velocity max.: 200 mm/s COUNTER RAM nominal force: 100 to stroke: 30 mm V-RING nominal force: 200 to TOOL DIMENSIONS shut height max.: 420 mm ram adjustment: 100 mm distance between columns (H-frame): 880 mm passline opening (free passage in side columns): 470 mm range of transfer pins - in strip direction: 394 mm DECOILER design: cradle sheet width max.: 300 mm LEVELLER UNIT sheet thickness ...
The machine is in good technical condition, testing is possible after prior agreement. Working area 2000x500mm Nominal forming force of the press 30t Ram dimensions 500x500mm Machine weight 3000 kg Condition of the machine A
PRESS DESIGN drive system: hydraulic SLIDE total force (nominal): 400 to SLIDE (HYDR. PRESS) working velocity max.: 120 mm/s COUNTER RAM nominal force: 100 to V-RING nominal force: 200 to
PRESS DESIGN quick die change system: yes SLIDE total force (nominal): 100 to stroke: 20 mm stroke rate (max.): 80 /min TOOL DIMENSIONS lower table (left-right): 430 mm shut height max.: 220 mm Approx. 79 million strokes
SLIDE total force (nominal): 80 to stroke rate (max.): 120 /min V-RING stroke: 90 mm TOOL DIMENSIONS lower table (left-right): 420 mm lower table (front-back): 420 mm upper table (left-right): 420 mm upper table (front-back): 420 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 2970 mm space requirements -front/back-: 1665 mm total height: 242 mm total weight approx.: 6000 kg
PRESS DESIGN drive system: hydraulic SLIDE total force (nominal): 40 to stroke: 45 mm stroke rate (max.): 110 /min TOOL DIMENSIONS lower table (left-right): 300 mm lower table (front-back): 280 mm shut height max.: 90 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 1835 mm space requirements -front/back-: 1500 mm total height: 1800 mm total weight approx.: 2500 kg
SLIDE total force (nominal): 80 to stroke rate (max.): 72 /min TOOL DIMENSIONS lower table (left-right): 470 mm lower table (front-back): 420 mm upper table (left-right): 400 mm upper table (front-back): 400 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 1600 mm space requirements -front/back-: 1400 mm total height: 2500 mm total weight approx.: 6000 kg
SLIDE total force (nominal): 40 to stroke rate (max.): 110 /min TOOL DIMENSIONS lower table (left-right): 300 mm lower table (front-back): 280 mm shut height max.: 180 mm DIMENSIONS / WEIGHTS space requirements -left/right-: 1835 mm space requirements -front/back-: 1500 mm total height: 1800 mm total weight approx.: 2500 kg
pressure:630 t plate thickness:16 mm Total force (nominal):630 to stroke:30 - 150 mm knife-edged ring capacity:320 t Nominal force:160 t :910 x 1050 mm :900 x 900 mm dayligth:410 mm ram adjustment:120 mm plate width:40 - 450 mm plate thickness:0,5 - 16 mm :1 - 1000 mm total power requirement:100 kW weight of the machine ca.:28 t dimensions of the machine ca.:4.50x2.20x2.80 m Press Feintool + feeding unit
CONTROLS PLC HONEYWELL IPC 620-20 PRESS DESIGN drive system: hydraulic quick die change system: yes SLIDE total force (nominal): 630 to stroke: 155 mm COUNTER RAM nominal force: 160 to V-RING nominal force: 320 to TOOL DIMENSIONS lower table (left-right): 650 mm lower table (front-back): 650 mm upper table (left-right): 870 mm upper table (front-back): 950 mm distance between columns (H-frame): 872 mm passline opening (free passage in side columns): 470 mm STRIP-FEEDER feeder type: grip feeder sheet width max.: 450 mm sheet thickness max.: 30 mm feeding step max.: 400 mm CROP SHEAR working width max.: 450 mm DIMENSIONS / WEIGHTS total weight approx.: 28000 kg AT ...
