bed type mill used for sale

groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

x-travel:1020 mm y-travel:510 mm z-travel:510 mm Table 1,200 x 530 mm Max. table load 800 kg Spindle mount ISO 40 Spindle speeds 10,000 rpm Drive power 14.5 kW Tool changer 20-position Coolant system External cooling Chip conveyor Yes The Y-cover is leaking (see photos)

x-travel:800 mm y-travel:300 mm z-travel:400 mm total power requirement:ca. 4,0 kW weight of the machine ca.:ca. 1,7 t dimensions of the machine ca.:ca. 2,10 × 1,90 × 2,00 m The Klopp FWUE 8 is a conventional universal tool milling machine designed for precise milling, drilling and threading operations in toolmaking, mechanical engineering, maintenance, and single-part and small-batch production. Thanks to its horizontal and vertical milling capabilities, the machine offers versatile machining options for a wide variety of workpieces. The robust cast iron construction ensures high rigidity and machining accuracy, even during demanding milling operations. The machine is fitted with a 3-axis digital readout (DRO) and features automatic feeds along the X, Y and Z axes, selectable feed rates and a rapid traverse function. This enables convenient operation and precise positioning of the axe ...

automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze

x-travel:60 mm The RIMAC BETAMATIK is a specialised collector mica milling machine for the manufacture and repair of electric armatures and commutators. It is used for the precise milling or undercutting of the mica insulation between the individual copper lamellae of a collector. The mica joints are detected by a laser optical system. A stepper motor then automatically positions the armature from lamella to lamella. The milling cutter is automatically raised during the return stroke. According to the data sheet, the machining time is approximately 0.8 to 1.3 seconds per lamella. The machine can process armatures up to a diameter of 100 mm, collectors up to 70 mm in diameter and shafts up to 500 mm in length. The maximum milling length is 60 mm. The milling spindle reaches 8,000 rpm. The machine, originally purchased around 1983/1984, was extensively modernised and mechanically overhaule ...

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:700 mm y-travel:450 mm z-travel:500 mm total power requirement:23,4 kW weight of the machine ca.:3100 kg dimensions of the machine ca.:3200 x 4000 x 2500 mm tool taper:ISO 40 feeds:0,2 - 0,6 - 0,12 mm/U spindle speeds::20 - 3150 , direkt programmierbar /min feed range:1 - 3000, in B=0,01 - 3 U/min rapid traverse in x-y-z axis:6m/ min, B = 7,6 U/min work table::NC Rundtisch(B-Achse) D=630 mm, 9T-nuten control:CNC432

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:400 x 710 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 table load:180 kg no. of flutes:8 groove width:14/45 mm tool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Documents:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden

total power requirement:2,4 kW weight of the machine ca.:1150 kg dimensions of the machine ca.:1550 x 1615 x 1630 mm table clamping surface LxW:315 x 710 mm max. tool weight:200 kg T - slots distance:63 mm T - slots - width:12 mm taper bore:Spindel SK 40 spindle turning speed range:56 - 1800 U/min feed speeds:11,2 -355 mm/min Documents:vorhanden

x-travel:600 mm y-travel:400 mm z-travel:380 mm total power requirement:6 kW weight of the machine ca.:1700 t dimensions of the machine ca.:1800 x 2130 x 1980 mm Table dimensions:400 x 800 mm T-slots:7 St.,14 x50 table load:300 kg spindle:SK40 turning speed range:63-250 U/min speed steps work spindle:18 spindle speeds::50- 2500 n/min feeds:10-500 mn/min Documents:vorhanden

x-travel:500 mm y-travel:400 mm z-travel:340 mm work table::800 x 400 mm control:Numerik CNC - H 646 spindle turning speed - stepless:20 - 3000 U/min total power requirement:14 kW weight of the machine ca.:2400 kg dimensions of the machine ca.:2100 x 1800 x 2400 mm

x-travel:600 mm y-travel:500 mm z-travel:400 mm spindle diameter:90 mm spindle turning speed range:45 - 2000 U/min table length:1250 mm table width:200 mm groove width:14 mm table rotating:45 ° total power requirement:4,2 kW weight of the machine ca.:2000 kg dimensions of the machine ca.:2000 x 1800 x 1550 mm Year:ca.1957 Documents:vorhanden

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor

Mori Seiki NT 5400 DCG - 1800 SZYear of manuf. : 2009 Control : Fanuc 30i (MSX-711) Turning diam. : 920 mmTurning length : 1800 mm____________Description:In General:Year of manufacture:2009Control system:Fanuc 30i (MSX-711)Max. turning diameter:920 (470) mmTurning length:1,800 mmBar capacity:103 mmMilling spindle:8,000 rpm, HSK 100Main spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Sub spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Tool carrier I (X/Y/Z/B):Technology:Traveling column with milling spindleMilling spindle:8,000 rpmPower:30 kWTorque:302 NmTool holder:HSK 100X-axis:1,040 mmY-axis:510 (+/- 255 mm) mmZ-axis:1,940 mmB-axis:+/- 120°, index 1°Tool carrier II (X/Z):Technology:Cross slide with tool turretTool drive:6,000 rpm, 40 NmNumber of stations:10X-axis:267 mmZ-axis:1,8 ...

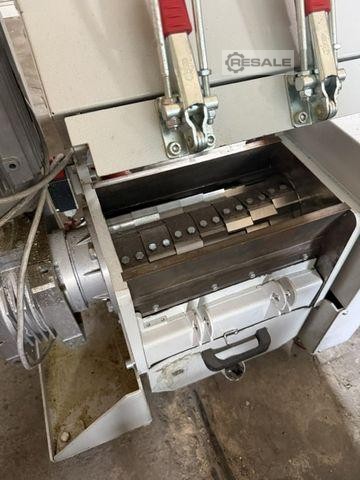

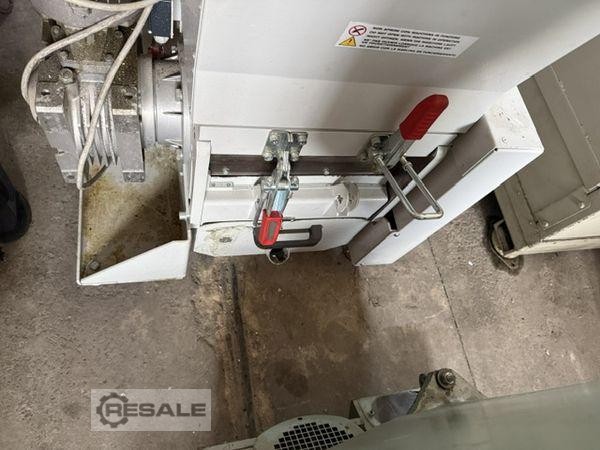

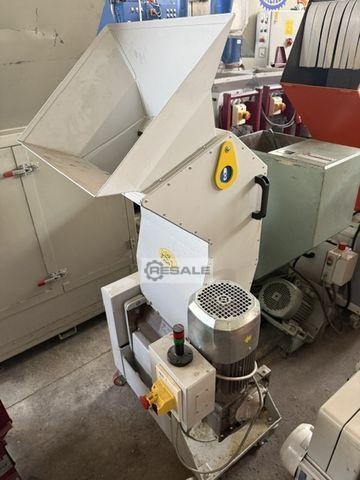

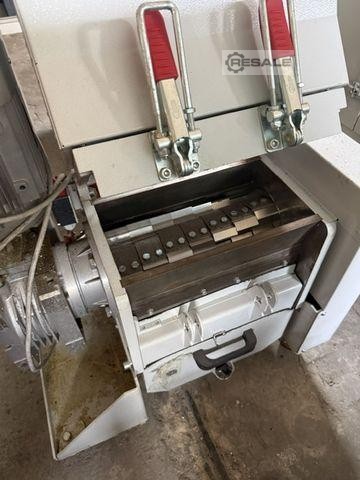

Granulator - MSM FW 35 Description: Slow-moving granulator with gearbox Power: 2.2 kW 2 stator blades, 21 rotor knives, the sieve - interchangeable Hopper inlet: 350x210 mm Grinding chamber opening: 350x180 mm Hole for material case is prepared for connection with suction conveyor All offered devices are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź. Price: On request

HURON VX8 CNC Machining Center – Year 2015 For sale is a CNC vertical machining center HURON VX8, built in 2015, with Heidenhain TNC 620 control. The machine is in very good general condition, has been tested in the workshop and is energized. With a spindle speed of up to 12,000 rpm, a 24-fold tool changer and a wide range of accessories, the machine offers solid equipment for demanding milling operations. Technical data Manufacturer: HURON Model: VX8 Year of Make:2015 Control: Heidenhain TNC 620 Engine hours ON: 22,873 h Program running time: 6,968 h Travel X: approx. 820 mm Travel Y: approx. 510 mm Travel Z:approx. 510 mm Rapid traverse:approx. 24 m/min Usable table surface: approx. 1,000 × 530 mm Permissible table load: approx. 500 kg Spindle speed: up to 12,000 rpm Tool holder:ISO 40 Tool changer:24 places Dimensions (L × W × H): approx. 2, ...
