bed type mill used for sale

Including inserts, weight 8 kg Auction-ID: A7-51245-10

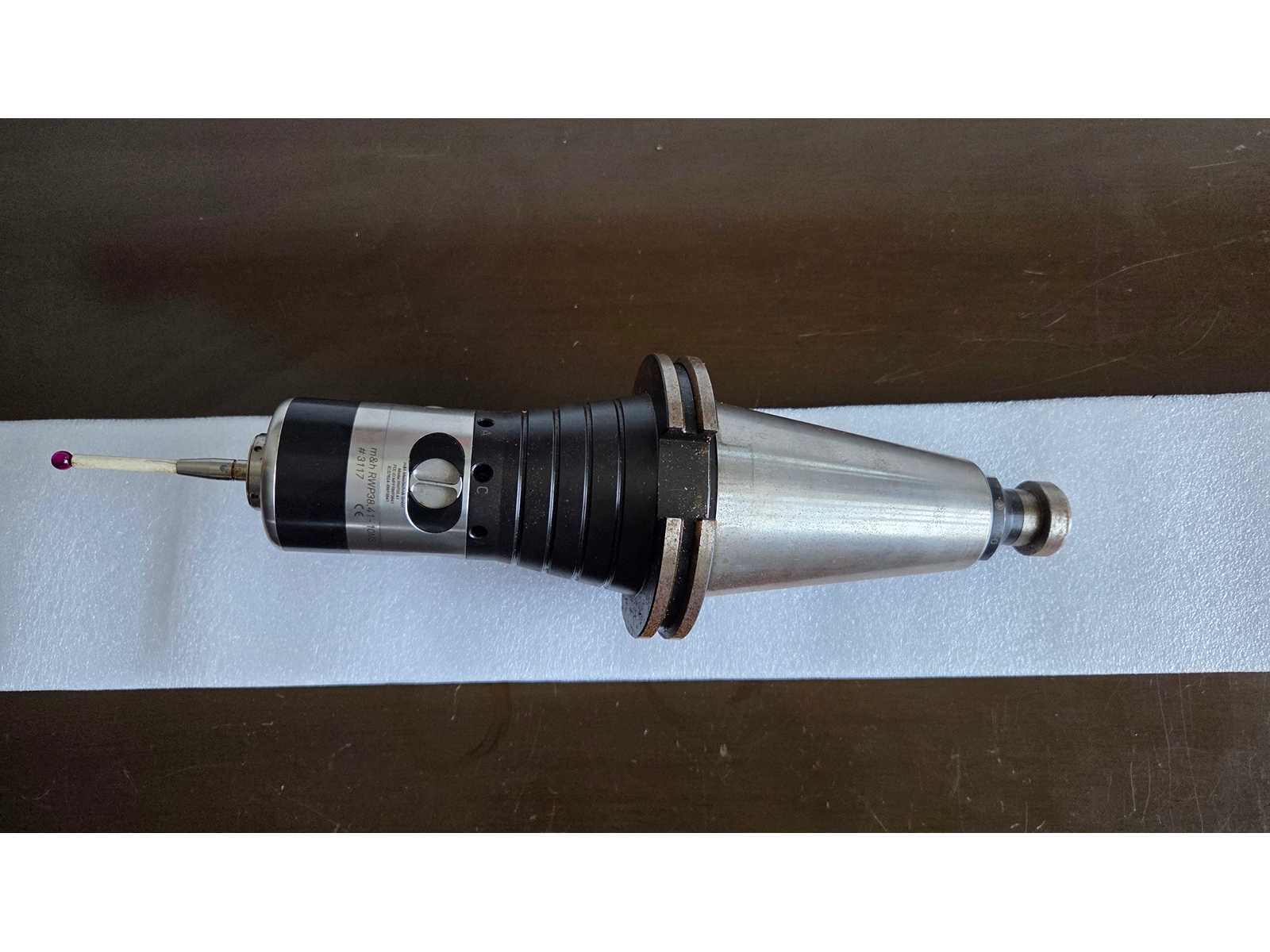

Hexagon M&H RWP38 – Tool Setting Probe 3D ISO50 Auction-ID: A1-51153-67

Also by Georg Noll, weight 27kg Auction-ID: A7-51245-42

Auction-ID: A7-51245-89

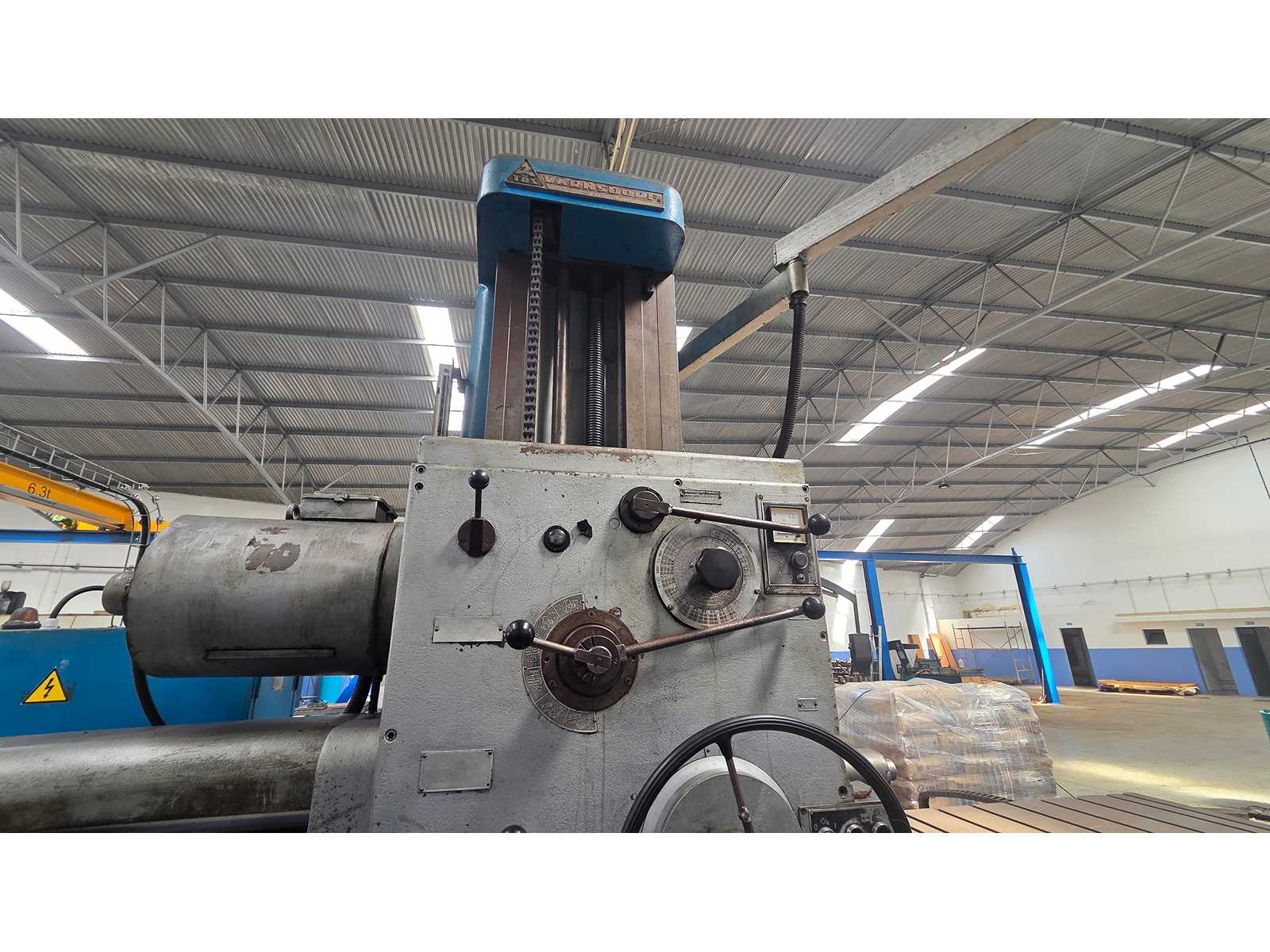

Machine Type Horizontal Table Type Boring Mill Manufacturer TOS Varnsdorf Model W100A Country of Origin Czech Republic Control Type Conventional / Manual (with optional DRO) Machine Structure Fixed column, moving table Spindle Diameter 100 mm Spindle Taper ISO 50 Spindle Travel (W-axis) 900 mm Max. Facing Diameter 900 mm Facing Head Diameter 600 mm X-axis (Table Longitudinal) 1600 mm Y-axis (Head Vertical) 1120 mm Z-axis (Saddle Cross) 1250 mm W-axis (Spindle) 900 mm Table Size 1250 × 1250 mm Table Type Rotary (4 × 90° positioning) Max. Table Load 3000 kg Feed Rates Item Specification Working Feed approx. 18 – 900 mm/min Rapid Traverse approx. 2800 mm/min Machine Dimensions & Weight Item Specification Machine Dimensions (L × W × H) approx. 6000 × 3000 × 3000 mm Machine Weight approx. 14,000 kg This item is delivered loaded on truck or containe ...

Partly new, from Garant, Fraisa, Holex, Carbide etc. Auction-ID: A7-51245-87

D=20x36 / 59x111 and D= 16/15,5 x 45 / 71 x 118 KD1410, weight 1kg Auction-ID: A7-51245-116

Mitutoyo LH-600 digital height measuring instrument with QM-Data 100 control/display unit. Measuring range 600 mm, powered on and display visible in the photos. Suitable for quality control and workshop inspection. Auction-ID: A1-51153-58

Manufacturer Nicolás Correa SA, Spain Door Design A-10 Year of manufacture 1989 Registration/machine identification 9562807 Machine type CNC bed-type milling machine X-axis travel 1,300 mm Transverse travel 630 mm Vertical travel 630 mm Table size 1,700 × 630 mm Spindle taper ISO 50 Spindle speed range 80-3,150rpm Spindle motor power 16 kW Table load capacity 3,000 kg machine weight 9,000 kg Auction-ID: A1-51153-77

Incl. WSP, weight 5kg Auction-ID: A7-51245-85

Schlicht/Schrough, NC tapper up to D=20, partly long, from Garant/Fette/Gühring/Atorn, weight 8 kg Auction-ID: A7-51245-24

Bridgeport by Adcock-Shipley vertical turret milling machine with swivelling head and manual table. Classic workshop milling machine, used condition as shown. Tooling/accessories to be confirmed. Auction-ID: A1-51153-66

Hydraulic die spotting press for assembly, adjustment, inspection, maintenance and testing of large moulds and dies. Year 1991. Serial no. 635/2036. Useful platen dimensions approx. 2,000 × 1,500 mm. Distance between columns 2,130 × 1,630 mm. Vertical stroke 1,200 mm. Maximum closing force 1,500 kN (approx. 150 t). Maximum opening force 350 kN (approx. 35 t). Adjustable hydraulic pressure 0–250 bar. Maximum load on lower platen 30,000 kg and upper platen 15,000 kg. Upper platen rotation 100° and lower platen rotation 70°. T-slots 22 mm, DIN 650. Lower platen height from floor 770 mm. Rapid approach speed 65–80 mm/s, working speed 8 mm/s and return speed 35–50 mm/s. Main motor power 11 kW, auxiliary motor 1.1 kW, total installed power 12.1 kW. Electrical supply 380 V / 50 Hz. Approx. overall dimensions 6,150 × 2,130 × 4,700 mm. Approx. machine weight 27,000 kg. Equipped with o ...

Deckel FP3LB Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP3LB Serial number: 0554 X-axis travel: 500 mm Y-axis travel: 300 mm Z-axis travel: 400 mm T-slot table size: 300 x 1000 mm Taper: SK40 Speed range: up to 2000 rpm Engine power: 4 kW Machine weight: approx. 1100 kg Dimensions (L x W x H): 2000 x 1200 x 1800 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-65

Also from Ceratizit and Zürn, all unused, weight 5Kg Auction-ID: A7-51245-125

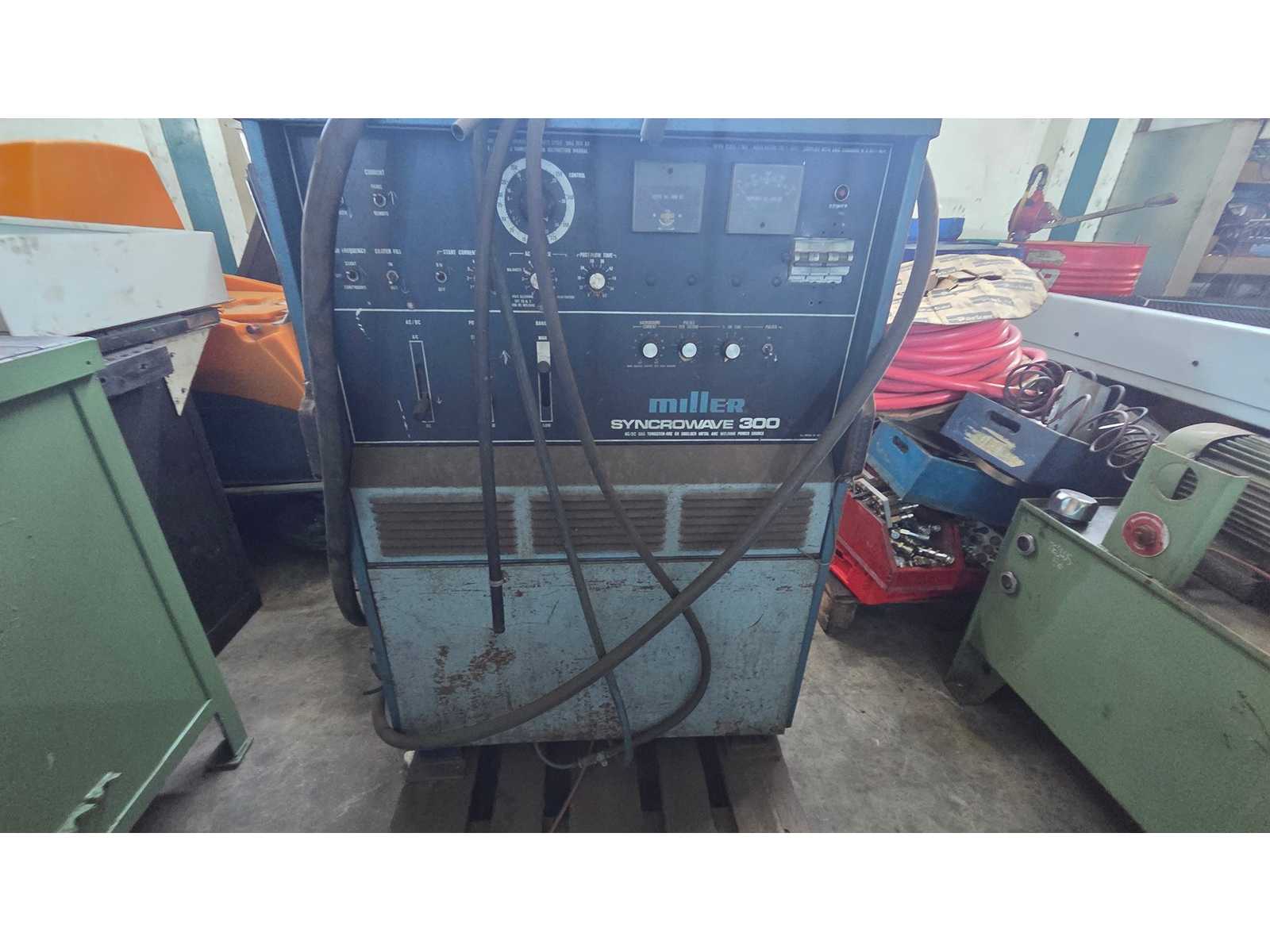

MILLER SYNCROWAVE 300 – AC/DC TIG Welding Machine Manufacturer: Miller Electric Model: Syncrowave 300 Machine Type: Industrial TIG / Stick Welding Power Source Condition: Used Technical Specifications Description Specification Brand Miller Model Syncrowave 300 Welding Processes TIG (GTAW) / Stick (SMAW) Welding Current Type AC / DC Maximum Welding Current 375 A indicated on control scale Current Adjustment Continuously Adjustable AC Balance Control Adjustable Pulse Welding Integrated Pulser Pulse Frequency Adjustable Background Current Adjustable Pulse On-Time Adjustable Post-Flow Gas Timer Adjustable, up to 60 seconds Crater Fill Control Integrated Arc Starting High-Frequency Start Amperage Control Panel / Remote Polarity Selection AC / DC / DC Reverse Current Display Analog Ammeter Voltage Display Analog Voltmeter Cooling Ventilated Power Source Main Features - AC/DC TIG welding - S ...

From Botek/Orion/Jongen, weight 1Kg Auction-ID: A7-51245-15

Diameter 2/3/4/5/6/8/10/12/16/20 mm, also from Gühring et al., weight 2kg Auction-ID: A7-51245-43

Deckel FP33 Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP33 T-slot table size: 430 x 1000 mm Approx. dimensions (L x W x H): 2150 x 1800 x 2200 mm 5 horizontal T-slots 2 vertical T-slots Tension clamp: 90 x 90 mm x 4 T-slot width: 20 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-25

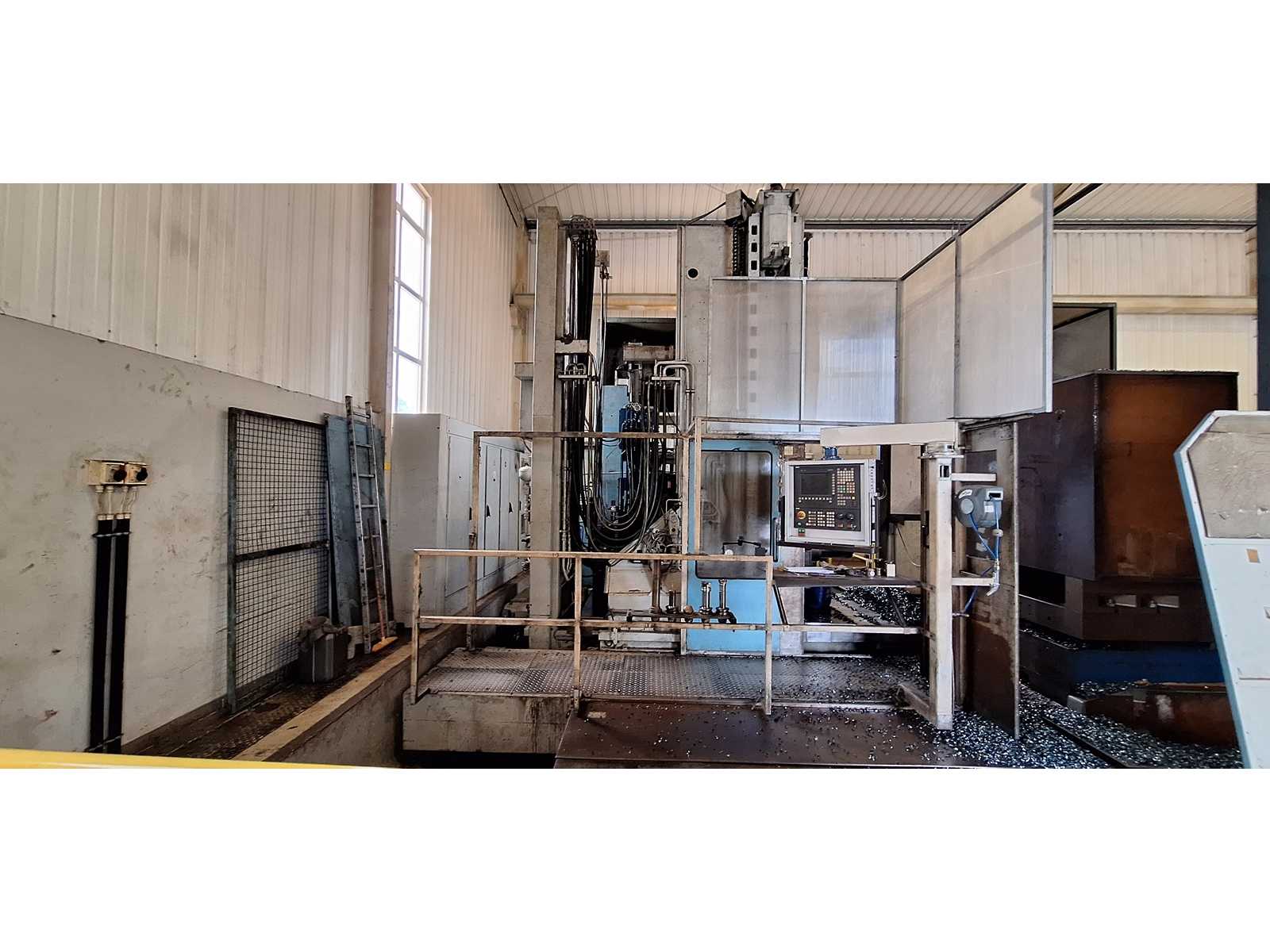

Manufacturer: BURKHARDT + WEBER GmbH Model (Typ): MC 100 S0 Machine Type: CNC Horizontal Machining / Boring Center (floor-type) Country: Germany Delivery Date: July 1992 Series: MC Series (Modular Machining Centers) Travels X (Column travel): ~3,000 – 5,000 mm Y (Vertical): ~2,000 – 2,500 mm Z (Ram): ~800 – 1,200 mm W (Spindle quill): ~500 – 800 mm Spindle Diameter: 100 mm (this is what MC 100” refers to) Spindle Taper: ISO 50 / SK50 Spindle Speed: ~2,000 – 3,000 rpm Main Motor Power: ~30 – 50 kW Auction-ID: A1-51153-37

Mostly new, also from Sandvik Auction-ID: A7-51245-99

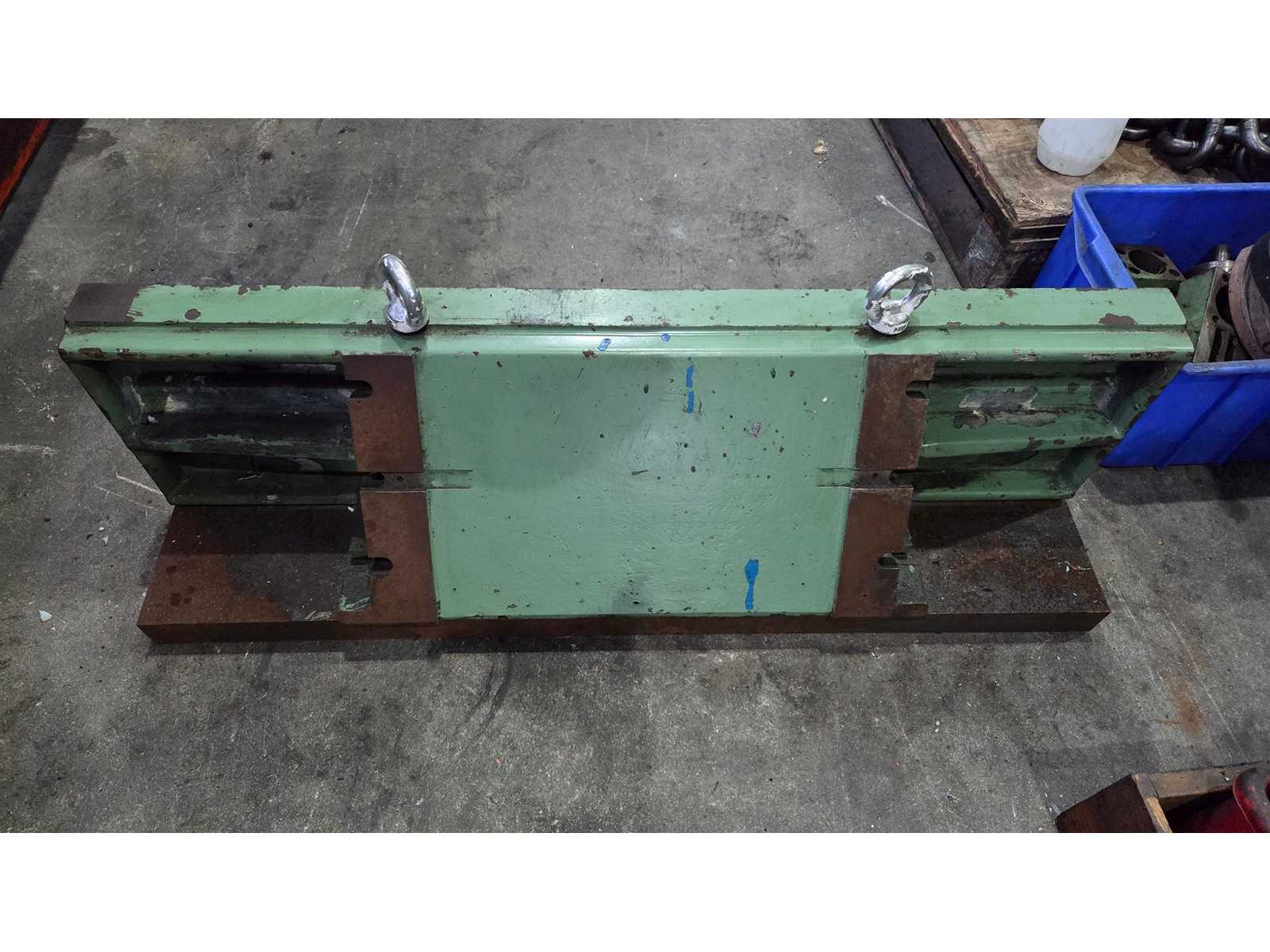

Deckel FP2 Milling Machine Component Type: Milling machine component Manufacturer: Deckel Model: FP2 Length: approx. 100 cm Height: approx. 31 cm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-59

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-20000 rpmDrive power (100% DC)25 kWDrive power (40% DC)42 kWTable size400x400 mmSwivelling range360x1 degreeMaximum load (table centre)400 KgMax. work piece diameter630 mmMax. work piece height900 mmPalett changer with2 PalletMovement X / Y / Z560/560/660 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperHSK-A 63 Max. tool length450 mmDimensions (L x W x H)2,68 x 4,19 x 2,54 mWeight approx.8500 KgPreparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining point and prolonging a tool life. Spindle Taper HSK-A63Spindle Taper HSK-A63 This specification uses ...

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-15000 rpmDrive power (100% DC)30 kWDrive power (40% DC)46 kWTable size400x400 mmSwivelling range360x1 degreeMaximum load (table centre)400 KgMax. work piece diameter630 mmMax. work piece height900 mmPalett changer with2 PalletMovement X / Y / Z560/560/660 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperHSK-A 63 Max. tool length450 mmDimensions (L x W x H)2,68 x 4,19 x 2,54 mWeight approx.8500 KgHigh-torque spindle 46 /30 kW, 15,000 min-1High-torque spindle 46 /30 kW, 15,000 min-1 (SIEMENS) Preparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining poin ...

GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmDrive power (100% DC)30 kWTable size630 x 630 mmSwivelling range360 x 1 degreeMaximum load (table centre)1500 KgMax. work piece diameter1050 mmMax. work piece height1300 mmPalett changer with2 PalletMovement X / Y / Z1050/900/1030 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperBT 50 Weight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with m ...

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmDrive power (100% DC)30 kWTable size630 x 630 mmSwivelling range360 x 1 degreeMaximum load (table centre)1500 KgMax. work piece diameter1050 mmMax. work piece height1300 mmPalett changer with2 PalletMovement X / Y / Z1050/900/1030 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with120 PositionsSpindle taperHSK-A 100 Weight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control w ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading. Stäubli Robot for shaft loading can be supplied. Machine was running with oil, not coolant. A fire extinguisher system is installed

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package
