bed milling used for sale

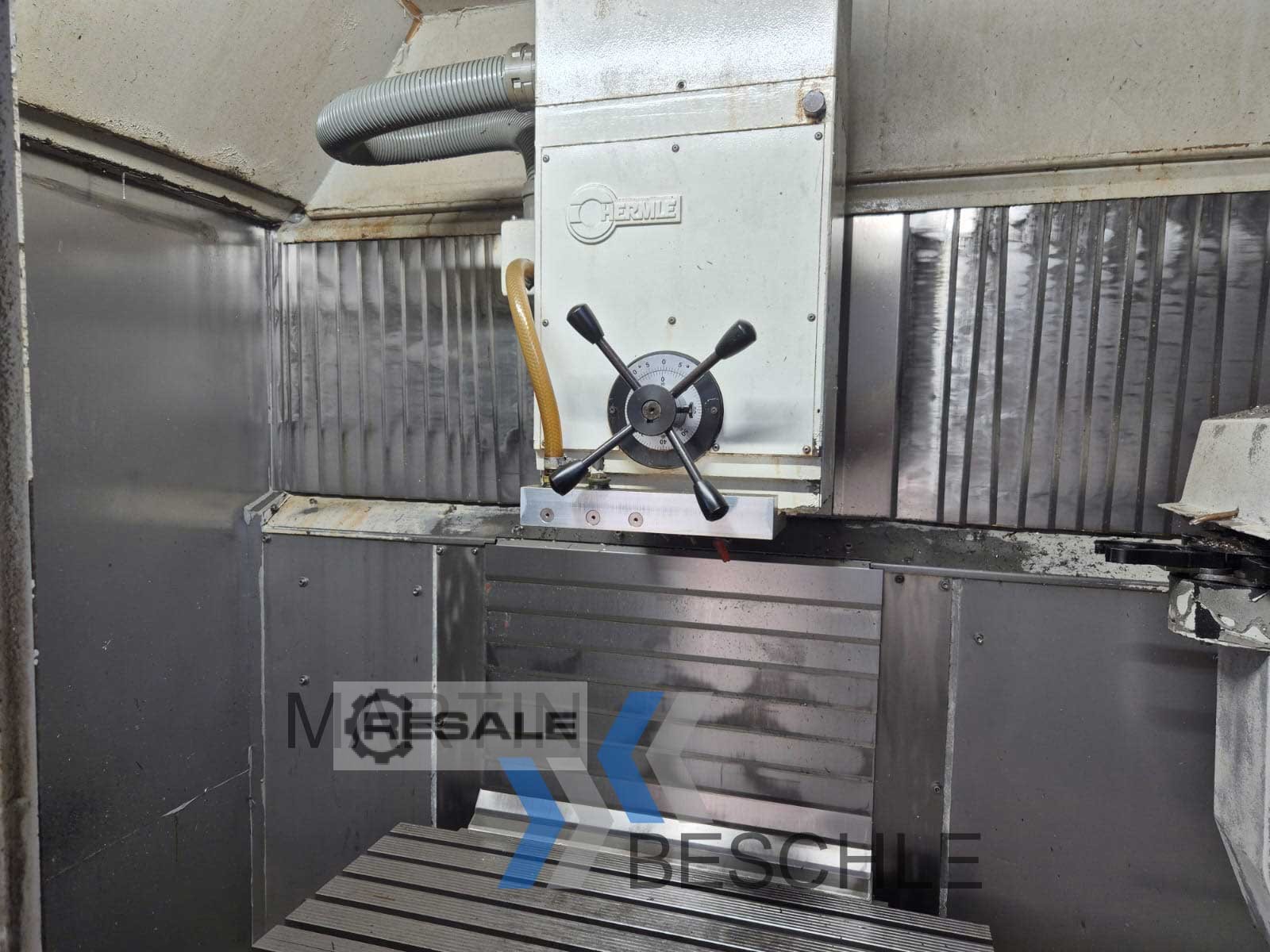

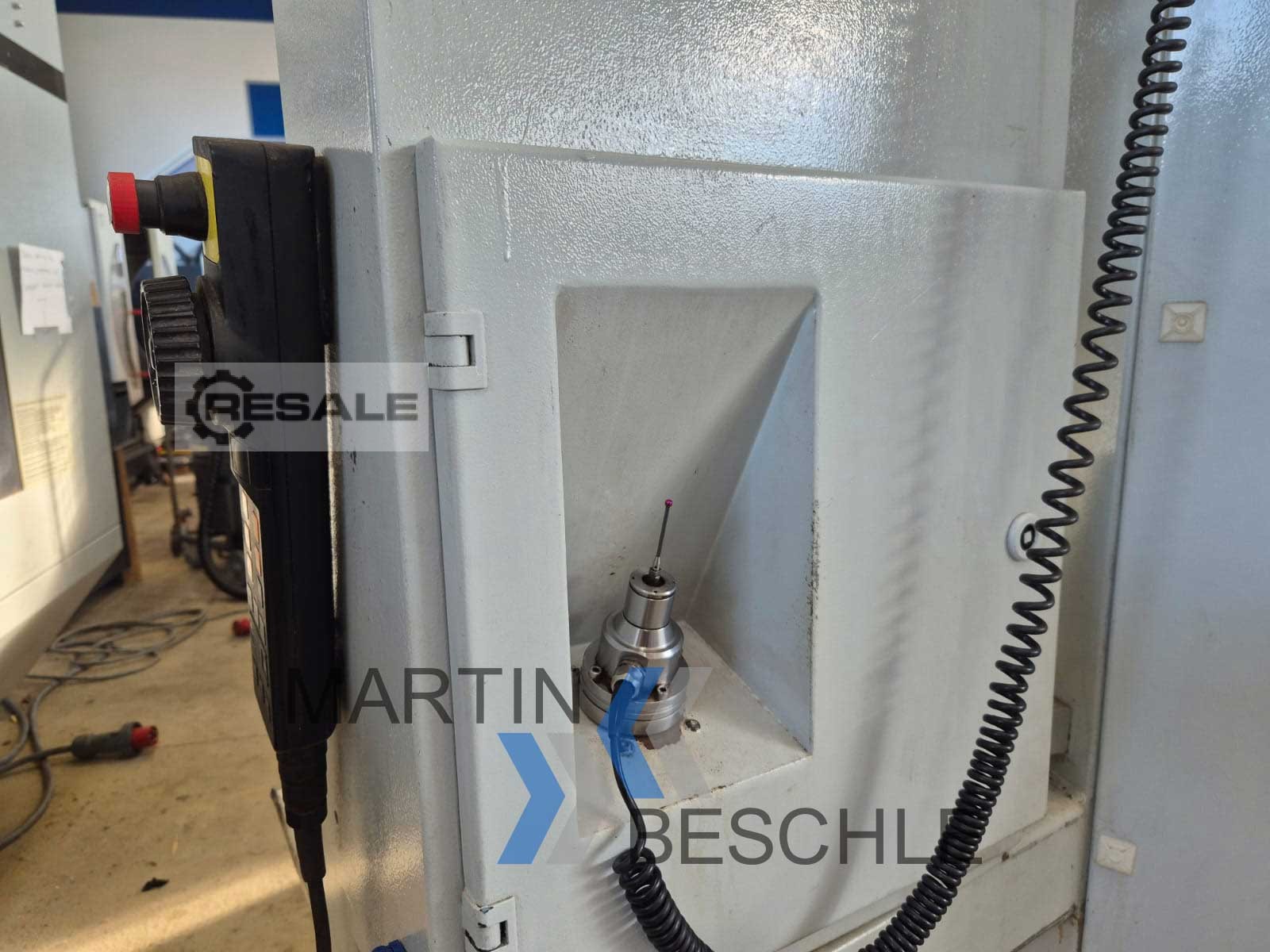

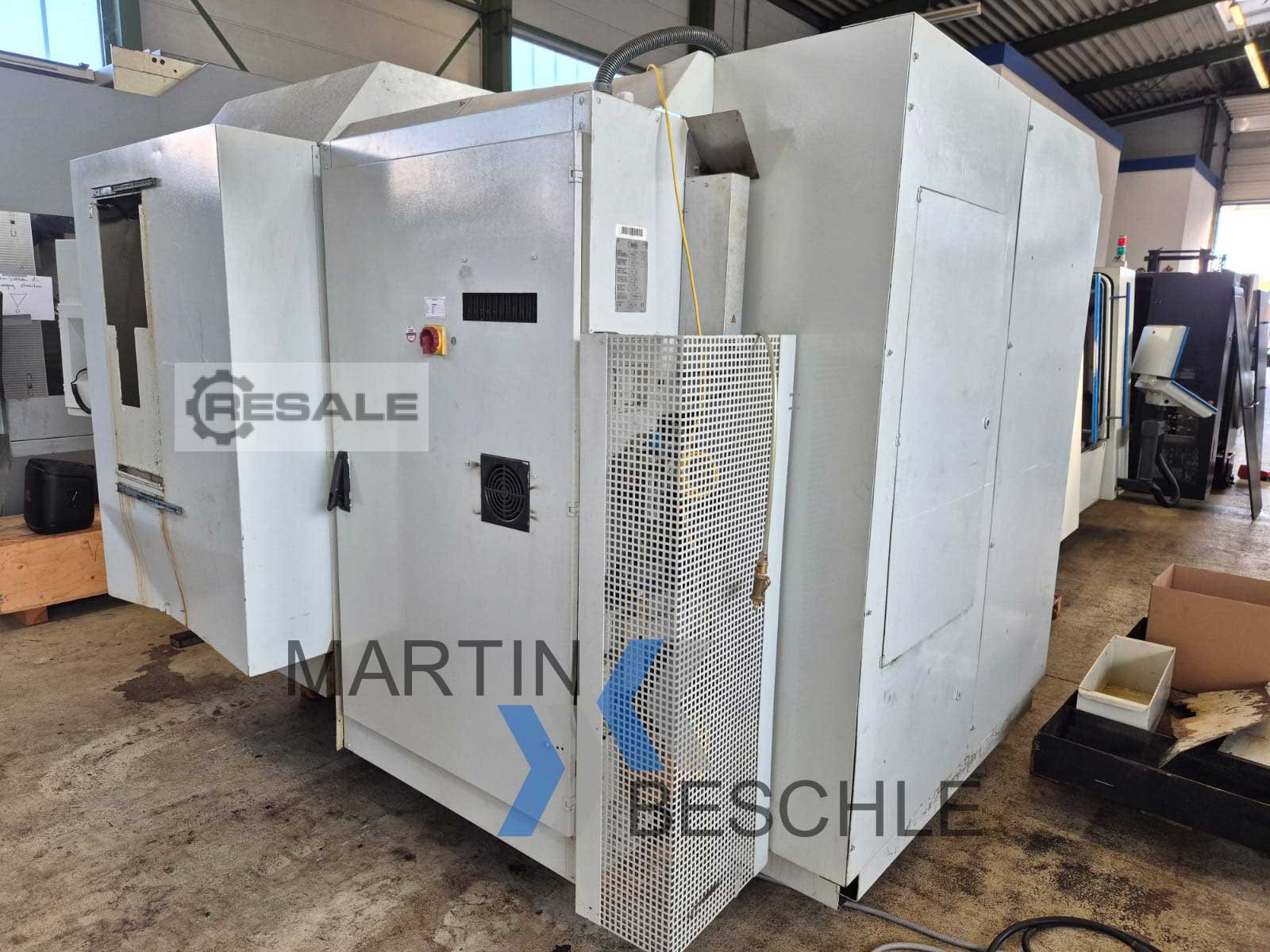

5-axis universal machining centre, Hermle Siemens CNC control (control panel with TFT screen) Round/swivel table integrated Tool magazine available Full protection cab Electronic handwheel Coolant Setup Machine Light CE marking Auction-ID: A1-51071-7

x-travel: 800 mm y-travel: 600 mm z-travel: 500 mm Control: Dialog 11 total power requirement: 15 kW weight of the machine ca.: 5 t dimensions of the machine ca.: 3 x 4 x 2,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Reckermann FW 1300 S - Vertical milling machine - 3-axis - Heidenhain position display - Vertical head - Year of construction 1983 Technical data - X-travel: 1175 mm - Y-travel: 430 mm - Z-travel: 430 mm - Table size: 1500 x 400 mm - Milling carriage horizontally adjustable: 430 mm - Distance from spindle center to stand: 670 mm - Quill stroke vertical: 80 mm - Spindle taper: ISO 50 - Milling speed: 33 - 1800 rpm - Feeds longitudinal and transverse: 10 - 1000 mm/min - Feeds vertical: 4 - 400 mm/min - Rapid traverse longitudinal & transverse: 4.0 m/min - Rapid traverse vertical: 1.6 m/min - Feed motor: 3.2 kW - Coolant pump: 0.1 kW - Drive power: 14.8 W - Dimensions: approx. 3000 x 2200 x 2000 mm - Machine weight: approx. 4000 kg

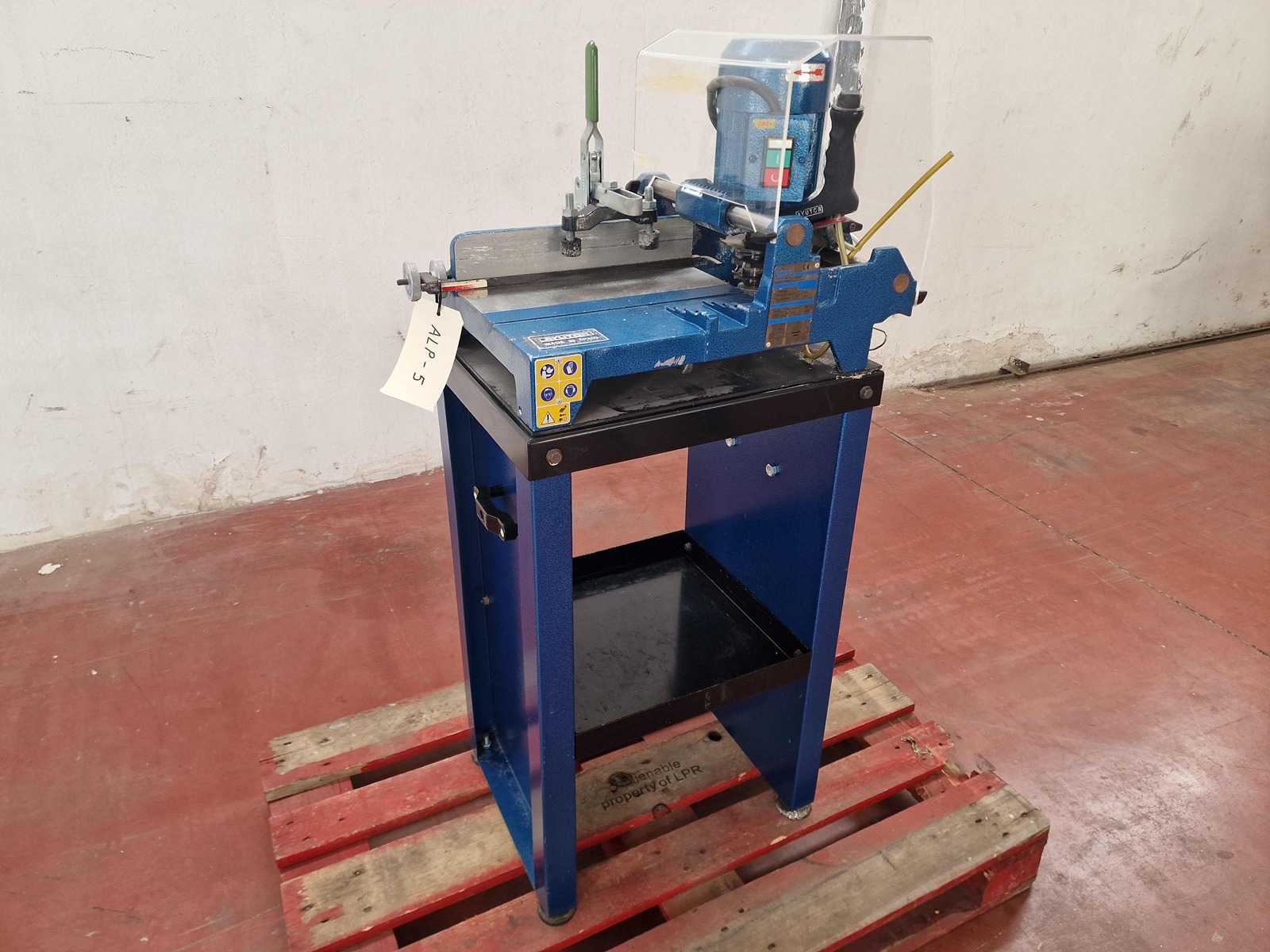

- Engine power 0.94 KW-2690 rpm. - Maximum part capacity 150 x 75 mm. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of disassembly and loading are those specified as additional costs. Auction-ID: A7-50834-605

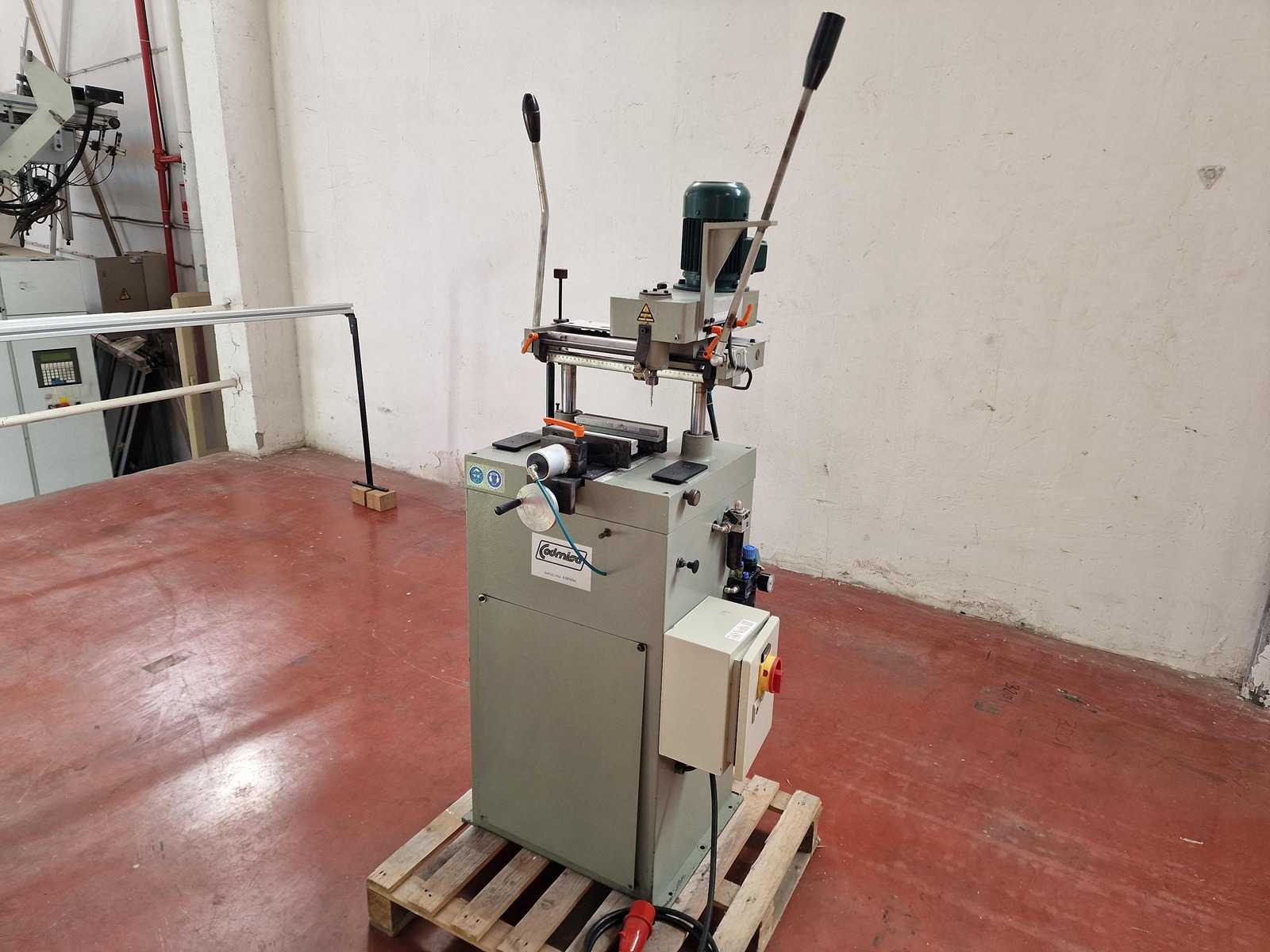

- Motor power 0.75 KW. - Maximum rotational speed 3400 rpm. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of disassembly and loading are those specified as additional costs. Auction-ID: A7-50834-606

Machine Type: Milling Machine Manufacturer: Hermle Type: FW 801 Condition: used Offer will only be sent if a complete imprint is provided! Price 3.450 Euro incl. 19% VAT Location Warstein , Germany Reference number M-HER-1026 DESCRIPTION We offer you a used milling machine from the manufacturer Hermle. Incl. machine vise, Counter bearing for horizontal milling and mounted cutter head. Availability: immediately Our offer is aimed at tradespeople who are registered in the sense of the Trade Regulation Act according to §14 GewO. The offer is subject to change, subject to prior sale. Please provide your complete contact details in order to receive an offer with our terms and conditions of payment. Errors in the descriptions and offers are reserved

CNC universal milling machine HERMLE U 630 T With track control Heidenhain TNC 426 Year of Make: 1998 Travel: X 630 (875) Y 500 Z 500 Speed range: 20 – 7,000 rpm infinitely variable With the following accessories: Rigid angle table 900 mm x 528 mm clamping surface Vertical tool changer with 16 magazine positions Full protection cabin with sliding doors and interior lighting Electronic handwheel 3 D Probe Heidenhain Coolant Setup 4 Height Adjustable M

For sale is a workshop-overhauled notching milling machine from the renowned manufacturer Elumatec, type AF223, built in 1998. As part of the workshop overhaul, the machine was dismantled, cleaned and reassembled. It was almost completely repainted. The bearings on the spindle and motor were replaced. The plate was professionally sanded and galvanized. Other galvanized parts were also largely re-galvanized. The following new parts have been installed: - Pneumatic cylinders - Guide rails and linear layers - Clamping cylinders and rubber buffers - Protective cover - Hinged lid - Mudguard - Protective sliders on the right and left - Protective slider on the side with brush - Lever at the stop - Lever on the front spindle - Bearings on the spindle - Protective hose - Scale on the plate - Scale at the stop - Regulator - Oiler - Small parts (bearing sleeve, spindle sl ...

New and used milling cutters and drills. Various manufacturers Approx. 300-350 pieces The table is not part of the auction. Auction-ID: A7-51143-1

Cegonheira conventional centre lathe with chuck, toolpost, tailstock and screwcutting gearbox. Used industrial lathe; centre distance, spindle bore and operation to be confirmed. Auction-ID: A1-51153-7

Bridgeport Interact 1 CNC Milling Machine Type: CNC milling machine Manufacturer: Bridgeport Model: Interact 1 X-axis travel: 457 mm Y-axis travel: 305 mm Z-axis travel: 365 mm T-slot table size: 410 x 1065 mm Speed range: up to 4000 rpm Machine weight: 1600 kg Dimensions (L x W x H): approx 1700 x 1300 x 2300 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-19

Hexagon M&H RWP38 – Tool Setting Probe 3D ISO50 Auction-ID: A1-51153-67

Mitutoyo LH-600 digital height measuring instrument with QM-Data 100 control/display unit. Measuring range 600 mm, powered on and display visible in the photos. Suitable for quality control and workshop inspection. Auction-ID: A1-51153-58

DROOP & REIN FS 130 G – CNC Vertical Milling Machine Manufacturer: Droop & Rein (Germany) Model: FS 130 G Year: 1978 Machine Type: Heavy-Duty CNC Vertical Milling Machine CNC Control: Fagor Manufacturer Droop & Rein Model FS 130 G Year of Manufacture 1978 Machine Type CNC Vertical Milling Machine CNC Control Fagor Number of Controlled Axes 3 (X, Y, Z) Spindle Orientation Vertical Table Type T-Slotted Milling Table Spindle Head Vertical Milling Head Electrical Supply 380 V / 50 Hz Control Voltage 42–60 V Rated Current 120 A Order Number 04790 Country of Manufacture Germany Equipment and Features - Fagor CNC control panel - Fagor servo drive modules - Heavy-duty vertical milling head - Large T-slotted worktable - Automatic axis feed system - Centralised lubrication system - Electrical cabinet with technical documentation - Industrial steel and cast-iron construction Specification Refe ...

FOOKE ENDURA 83.1 Portal milling machine The FOOKE ENDURA 83.1 is a 5-axis CNC portal milling machine with three linear axes X, Y, Z and two rotary axes A and C. The clamping surface consists of two machine tables of 3,200 mm x 1,000 mm each. An additional, brand-new spindle unit from the manufacturer SPL is included in the scope of delivery. Year of construction 2003 Control SIEMENS SINUMERIK 840D Travel X - 3,500 mm / Y - 2,500 mm / Z - 1,200 mm / A - ± 120° / C - 365° Rapid traverse X/Y/Z axis up to 20 m/min Rotation speed A/C axis up to 15 rpm Equipment: Spindle HSK 63A make SPL, type/DRF-FO-180M-W-16-34 with 34 kW up to 16,000 rpm. Tool changer for 20 tools / diameter up to 100 mm Internal cooling IKZ up to 30 bar Spindle cooling Paper belt filter system KNOLL Hinged belt chip conveyor KNOLL Automatic doors Full enclosure Electronic handwheel Machin ...

Deckel FP2LB Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP2LB Year of manufacture: 1977 X-axis travel: 800 mm Y-axis travel: 300 mm Z-axis travel: 400 mm Approx. dimensions (L x W x H): 1750 x 1700 x 1750 mm Includes various accessories and documentation Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-21

Manufacturer Nicolás Correa SA, Spain Door Design A-10 Year of manufacture 1989 Registration/machine identification 9562807 Machine type CNC bed-type milling machine X-axis travel 1,300 mm Transverse travel 630 mm Vertical travel 630 mm Table size 1,700 × 630 mm Spindle taper ISO 50 Spindle speed range 80-3,150rpm Spindle motor power 16 kW Table load capacity 3,000 kg machine weight 9,000 kg Auction-ID: A1-51153-77

Model: VP-2016 Machine Type: CNC Vertical Machining Center (likely gantry/portal style based on earlier photo) Origin: Plate suggests Asian manufacture (likely Taiwan/China OEM) Electrical Specifications Voltage (A.C.): 380 V ±10% Phase: 3-phase Frequency: 50 Hz Installed Power: 55 kVA Hydraulic & Pneumatic Hydraulic Pressure: 75 kg/cm² (~73 bar) Air Pressure: 5 kg/cm² (~5 bar) Tool clamping ATC operation Counterbalance / auxiliaries Machine Weight: ~25,000 kg (25 tons) Heavy-duty structure Likely gantry / bridge-type machining center Travels X: ~2000 mm Y: ~1600 mm Z: ~1000 mm Spindle Taper: ISO 50 Speed: 6,000 rpm Power: ~15 – 30 kW Tooling Automatic tool changer (ATC) Magazine: typically 40 tools Structure Fixed table, moving gantry or column Designed for: Molds & dies Medium-large plates Structural parts Auction-ID: A1-51153-35

Deckel FP3LB Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP3LB Serial number: 0554 X-axis travel: 500 mm Y-axis travel: 300 mm Z-axis travel: 400 mm T-slot table size: 300 x 1000 mm Taper: SK40 Speed range: up to 2000 rpm Engine power: 4 kW Machine weight: approx. 1100 kg Dimensions (L x W x H): 2000 x 1200 x 1800 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-65

Deckel FP2 Milling Machine Component Type: Milling machine component Manufacturer: Deckel Model: FP2 Length: approx. 100 cm Height: approx. 31 cm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-59

GeneralHigh dynamic Vertical Drill-Tap centre with best milling performance; Control: 3D-control Siemens 840D sl Operate Working area 1Longitudinal350 mmCross420 mmVertical380 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minIntegrated swivel rotary table simultaneousIntegated swivel rotary table DMP 35 version 5-Axis simultaneous mode! Torque drives incl. direct measuring in A- and C-Axis Swivel range A-Axis -120 / + 100 degrees Max. load C-axis 100kg Table diameter C-Axis d290mm Rotary joint, 6-channels Inclusive So Tool magazine 25 placesTool magazine 25 places (suitable for inclusion in the tool spindle) Max. tool length 150 mm Chip-to-chip time 1.6 sec Note: machine width increases to 1410 mm! Spindle speed 24,000 rpmSpindle 24,000rpm with tool taper ISO 7388-2 - J30 BT30 / BBT 30 (BIG PLUS ...

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

Deckel FP33 Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP33 T-slot table size: 430 x 1000 mm Approx. dimensions (L x W x H): 2150 x 1800 x 2200 mm 5 horizontal T-slots 2 vertical T-slots Tension clamp: 90 x 90 mm x 4 T-slot width: 20 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-25

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

GeneralTraveling column machine; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical50000/50000/50000 mm/minRapid traverse longitudinal/transverse/vertical50/50/50 m/minWorking area 1Longitudinal2000 mmCross800 mmVertical850 mmTool changerType of magazineChain Number of tools40 Max. tool weight8 KgMax. tool length400 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets130 mmSwivelhead, B-axisControlled NC swivel milling head 15,000 rpm (B-axis) with clamping in position Continuously positioning NC- swivel milling head with integrated motor spindle for 4/5 axes positioning and simultaneous machining. Swivel speed: 50 rpm Swivel range: ±12 Drive power (100% DC) 16 kWDrive power (40% DC) 21 kWTorque (100% DC) 85 NmTorque (40% DC) 111 NmSpeed range 20 - 15000 rpmSpindle taper SK40 Tool holder D ...

GeneralUniversal Milling Machine Stealth Design; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal550 mmCross450 mmVertical420 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/mininlineMASTER® spindlespeed range 20 - 15.000 min-1 SK40 suitable for BIG-PLUS® tools Drive power (100% DC) 14,5 kWDrive power (40% DC) 20,3 kWTorque (100% DC) 84 NmTorque (40% DC) 121 NmSpeed range 20 - 15000 rpmSpindle taper HSK-A 63 Clamping System HSK-A 63 Toolchanger with set up station for tool loadingNumber of tools 30

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading. Stäubli Robot for shaft loading can be supplied. Machine was running with oil, not coolant. A fire extinguisher system is installed

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides
