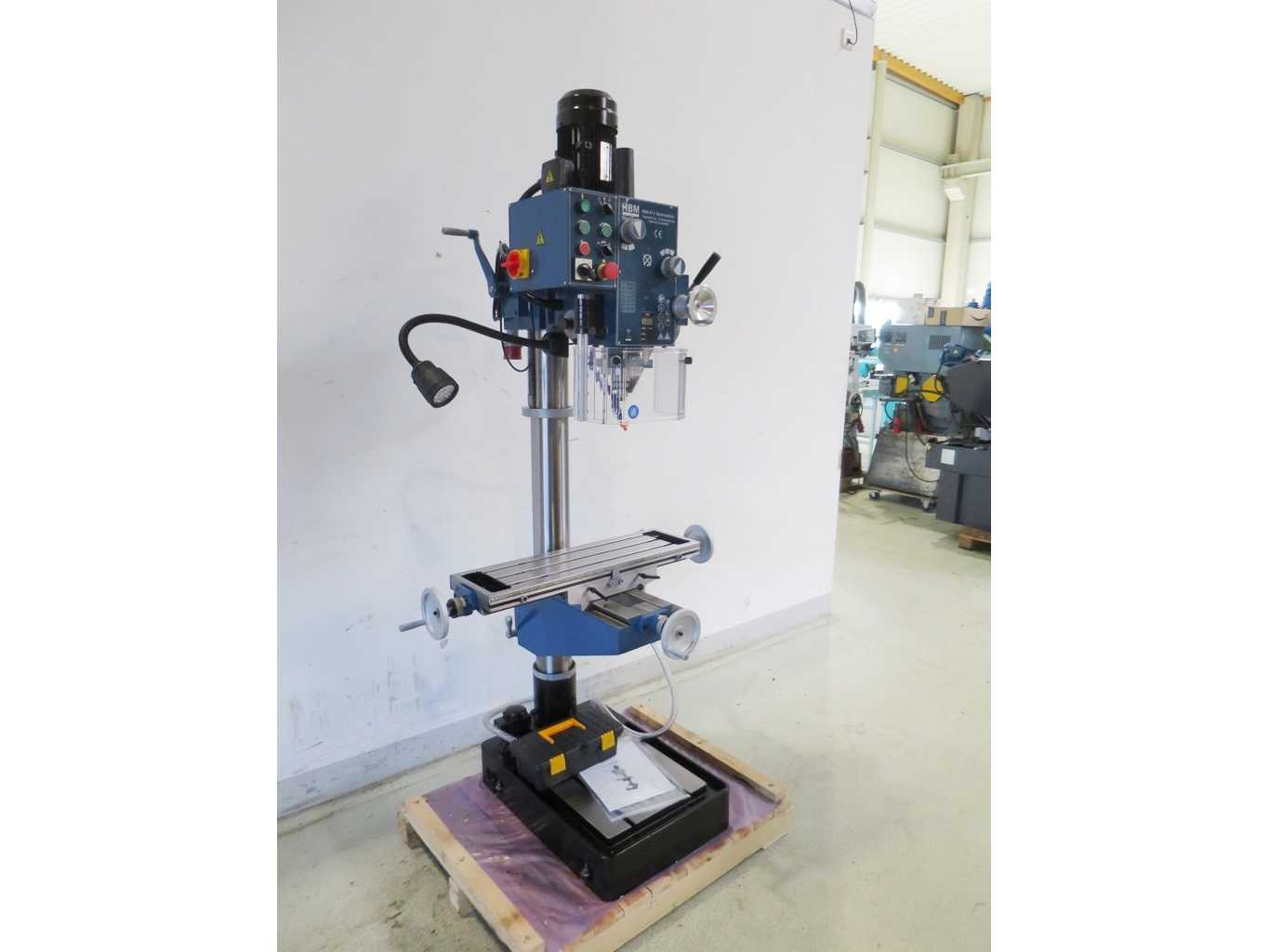

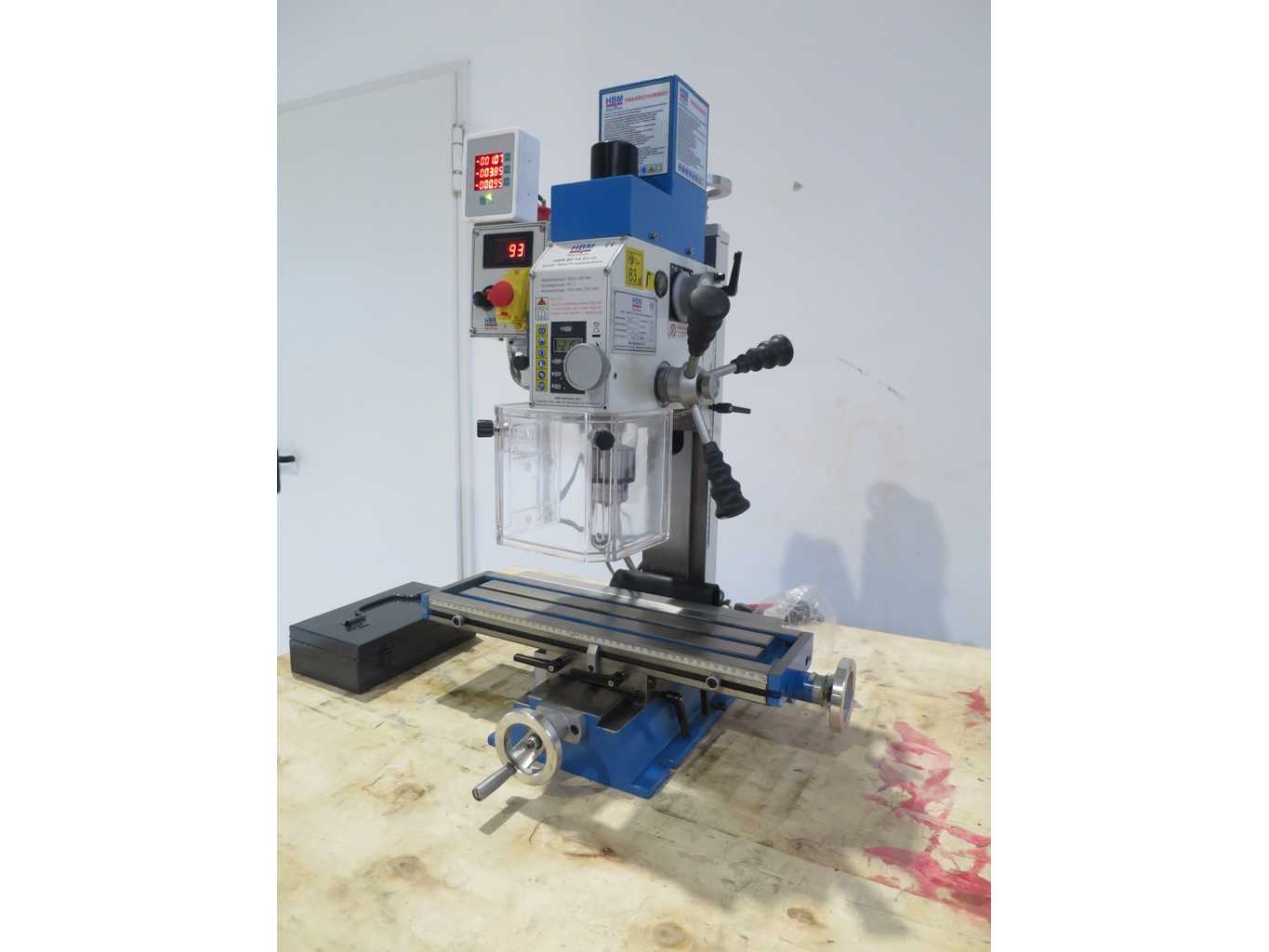

Offer 26215 Technical data: - Drilling capacity 28 mm - Drilling spindle holder MK 3 - Tightening thread M 12 - Drilling spindle speeds - level 1 120 / 215 / 360 / 600 / 1080 rpm - Level 2 240 / 430 / 720 / 1200 / 2150 rpm - Drilling unit height-adjustable by hand crank - Smallest / largest distance table / boring spindle 60 / 390 mm - Drilling spindle stroke 100 mm - Spindle fine stroke adjustment by handwheel - Drilling spindle projection 260 mm - Coordinate table with 3 T-slots 600 x 240 mm - Table travel X-axis 350 mm - Y-axis 160 mm - Drive 400 V / 0.7 / 1.3 kW - Space requirement approx. W 800 x H 1800 x D 900 mm - Weight approx. 300 kg

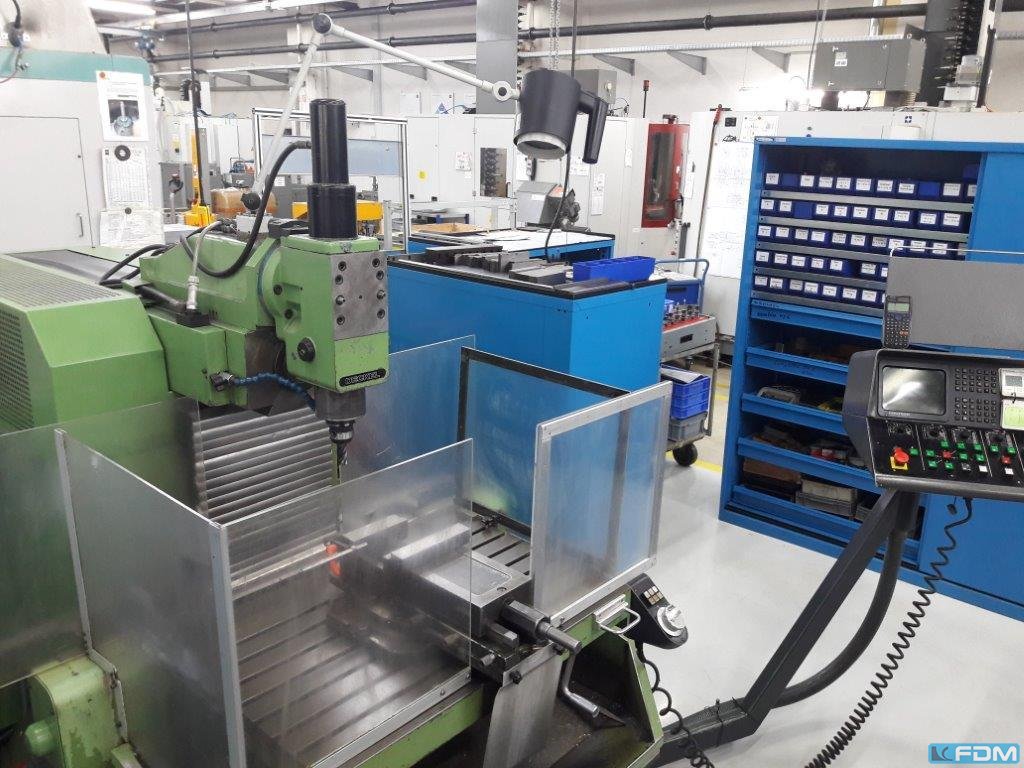

for sale is a MAHO600E which is currently not running because the emergency committee reports an error (ERR 0 23,M 02).
Key data: 880 mm, 630 mm, 630 mm
CNC Universal – Milling & Drilling Machine DECKEL MAHO DMU 80 T With track control Heidenhain iTNC 530 Year of Make: 2002 Travel: X 880 Y 630 Z 630 Speed range: 0 – 18,000 rpm infinitely variable ( SK 40 ) With the following accessories: NC Rotary Table 0 700 mm integrated into Rigid Angle Table 1250 mm x 700 mm Clamping surface Vertical tool changer with 32 magazine positions (SK 40) Full protection cabin with sliding doors and interior lighting Electronic handwheel Operating mode 3 + 4 Spiral Screw Conveyor Coolant Setup 3-Piece Height Adjustable Machine Shoes Spindle Oil Cooler Control cabinet cooling unit (Rittal) Operating Instructions

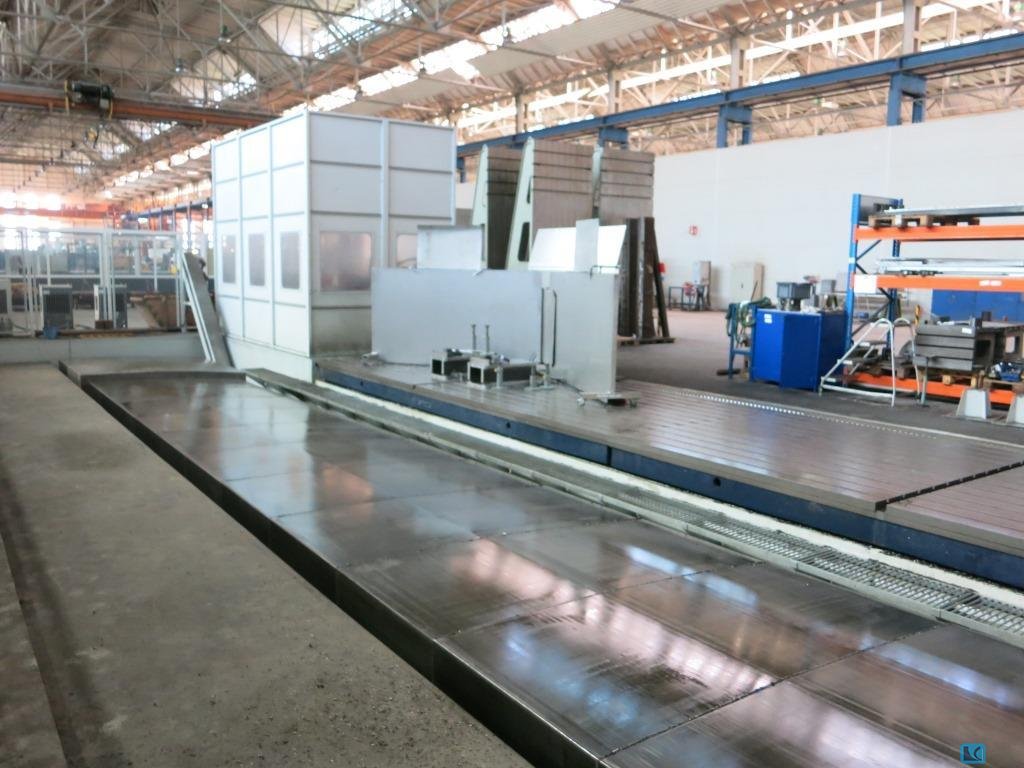

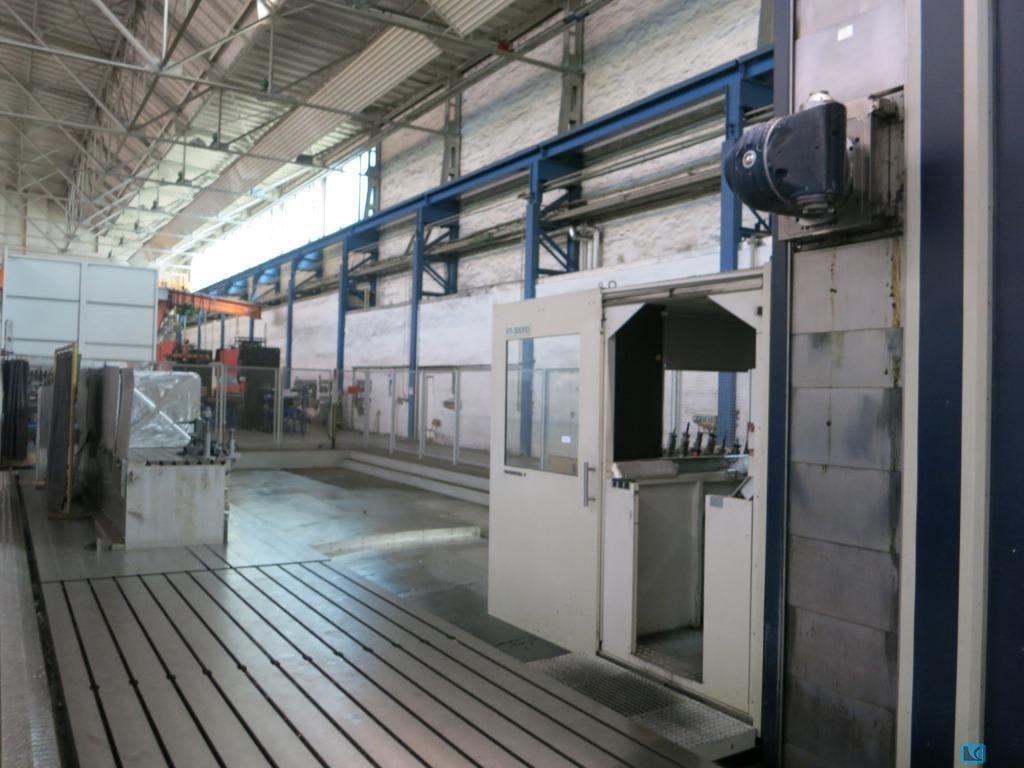

x-travel: 3500 mm y-travel: 2500 mm z-travel: 1000 mm Control: HEIDENHAIN iTNC-530 table-size: 4.500 x 1.500 mm distance between columns: 2300 mm rapid travel x/y/z: 15/12.000 mm/min feeds: 5.000 mm/min tool taper: ISO 50 number of spindle speeds: 5000 U/min/rpm Spindle power: 30 kW table weight: 10 t handwheel: HR- 410 weight of the machine ca.: 31 t dimensions of the machine ca.: 11 x 3,44 x 4,9 m - CNC control Heidenhain iTNC 530 - Tool changer 30-fold (ISO 50) - Milling head CH -45 - Coolant through spindle - Chip conveyor The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
This 5-axis Weingartner Pick Up 400 machining center for screw manufacturing was manufactured in 2023. It features a maximum workpiece length of 4,000 mm and a maximum workpiece diameter for milling of 180 mm. The machine is equipped with a Siemens 840D control system and offers advanced simultaneous machining capabilities. If you are looking to get high-quality screw manufacturing capabilities, consider the Weingartner Pick Up 400 machine we have for sale. Contact us for further details.
The machine is in good technical condition; it can be tested by prior arrangement.
CONTROLS conventional BASIC DESIGN basic design: cross bed WORKING RANGE -CUBIC- number of processing axes (excl parallel axes): 3 X-axis travel: 1120 mm Y-axis travel: 350 mm Z-axis travel: 400 mm distance spindle nose - table surface (max.): 420 mm TABLE table surface (left-right): 1600 mm table surface (front-back): 400 mm workpiece load (max): 1500 kg SPINDLE / HEAD spindle type: tilting head - mode of operation: manual - mode of operation: manual spindle revolutions (max): 28 /min number of gears: 1400 tool fixture: ISO SK 40 AXIS DRIVES feed velocity (min): 16 mm/min feed velocity (max): 800 mm/min ELECTRICAL SPECIFICATIONS total power consumption: 14.5 kW DIMENSIONS / WEIGHTS space requirements -left/right-: 2700 mm space requirements -front/back-: 2350 mm total height: 2150 mm total wei ...
CONTROLS Point-to-point control (NC) HEIDENHAIN TNC 124 WORKING RANGE -CUBIC- X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 400 mm TABLE table surface (left-right): 800 mm table surface (front-back): 425 mm workpiece load (max): 250 kg SPINDLE / HEAD spindle revolutions (max): 4500 /min tool fixture: ISO SK 40 drive power: 7.5 kW ELECTRICAL SPECIFICATIONS mains power supply: 13 kVA DIMENSIONS / WEIGHTS space requirements -left/right-: 2720 mm space requirements -front/back-: 1850 mm total height: 2300 mm total weight approx.: 2025 kg ca 2000 h
x-travel: 400 mm y-travel: 400 mm z-travel: 400 mm table surface area: 700 x 460 mm spindle taper: SK 40 spindle turning speed range: 31,5 -5000 U/min spindle drive: 5,5 kW quill stroke: 80 mm vertical head swivelling: +/- 90 ° control: DIALOG 11 feeds x/y/z -stepless: 3000 mm/min rapid traverse: 6 m/min total power requirement: 13,8 kVA weight of the machine ca.: 2 t dimensions of machine L x W x H: 2,73 x 2,0 x 2,0 m Accessories: solid table, vertical head with hydr. tool clamping and quil retraction, dividing unit HOFFMANN, RW/NC 125 L, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
: neu : ca. 6 Monate ab Auftragse : Taiwan : 41800 € : 798.38 € : 65 - 2600 U/min : ISO 40 : 420 x 220 x 380 mm : 840 x 390 mm : 2.2 kW : 1600 mm : 1700 mm : 2000 mm : 1145 kg : 840 x 390 mm : 1000 mm/min : 5 : 14 x 63 mm : 200 kg : 420 mm : 220 mm : 380 mm : 0 - 600 mm/min. : 0 - 600 mm/min. : 65 - 2600 : 90 - 310 mm : 65 - 2600 : +/- 90° ° : 100 mm : manuell : 2,2 kW : 950 x 250 mm : 90 - 310 mm : 100 - 480 mm swiveling operating panel 3 axes digital read out Fagor 40i Innova motor for horizontal- and vertical spindle: 2,2 kW feed motors with inverter for X/Y/Z: 0,35 / 0,35 / 0,75 kW ball screw spindles for X/Y/Z axes manual gear box for spindle speeds 1 pc. long milling arbor 27 mm 3 pcs. recustion sleeves (MK1, MK2, MK3) 1 pc. drawing bar ISO40 for horizontal or vertical spindle spindle protection with switch table safety guard with doors with switches outer arbor support for h ...
x-travel: 600 mm y-travel: 400 mm z-travel: 320 mm table-size: 900 x 420 mm control: konventionell tool adaptor: SK40 turning speed range: 35,5 - 1800 U/min quill stroke: ja mm total power requirement: 5,0 kW weight of the machine ca.: 1,45 t dimensions: 1,6 x 1,2 x 1,9 m Features: - Digital display - Coolant system - Milling head with quill The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 600 mm y-travel: 400 mm z-travel: 400 mm table surface area: 720 x 410 mm spindle turning speed range: 40 - 2000 U/min : mm/min feeds Z-axis: mm/min tool taper: SK 40 total power requirement: 3,0 kW weight of the machine ca.: 1,4 t dimensions: 1,8 x 1,6 x 1,9 m Milling machine with - Toolmakers table - Heidenhain digital readout - Rapid traverse - Coolant system - Central lubrication - Machine feet - incl. drawer unit with contents The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 760 mm y-travel: 381 mm z-travel: 450 mm quill stroke: 152 mm table-size: 1300 x 305 mm control: Heidenhain TNC 360 tool adaptor: SK40 turning speed range: 100- 4.000 U/min rapid speed: 5000 / 7000 m/min feed speeds: 2,5 bis 3000 mm/min power requirement: 2.2 kW diameter of quill: 101 mm total power requirement: 15,0 kW weight of the machine ca.: 2,4 t dimensions: 2,4 x 2,3 x 2,2 m Equipment: - Heidenhain TNC 360 - Coolant system - Hydraulic tool clamping - Milling head with quill - Machine light - Chip tray - Documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Stock No.: 4053 MACHINING CENTER Manufacturer: EMCO, Type: MMV 2000 Serial No.: M-20906019, Year of manufacture: 2017 Specifications: Table size 2400 x 950 mm Large table load 2200 kg Longitudinal movement (X) 2000 mm Transverse movement (Y) 800 mm Vertical movement (Z) 750 mm Spindle taper SK 40 ISO Spindle speeds 50-15000 rpm Spindle motor 46 B-axis angle +/- 120 angular degrees Tool Changer 40 Control Siemens 840 D SL Controlled in axles 4 Operating hours spindle 4488 hours Accessories: Cooling by spindle 20 bar Chip conveyance. Tool Measuring Dimensions: Length: 2886 mm, Height: 3277 mm, Width: 4450 mm, Weight: 22 kg

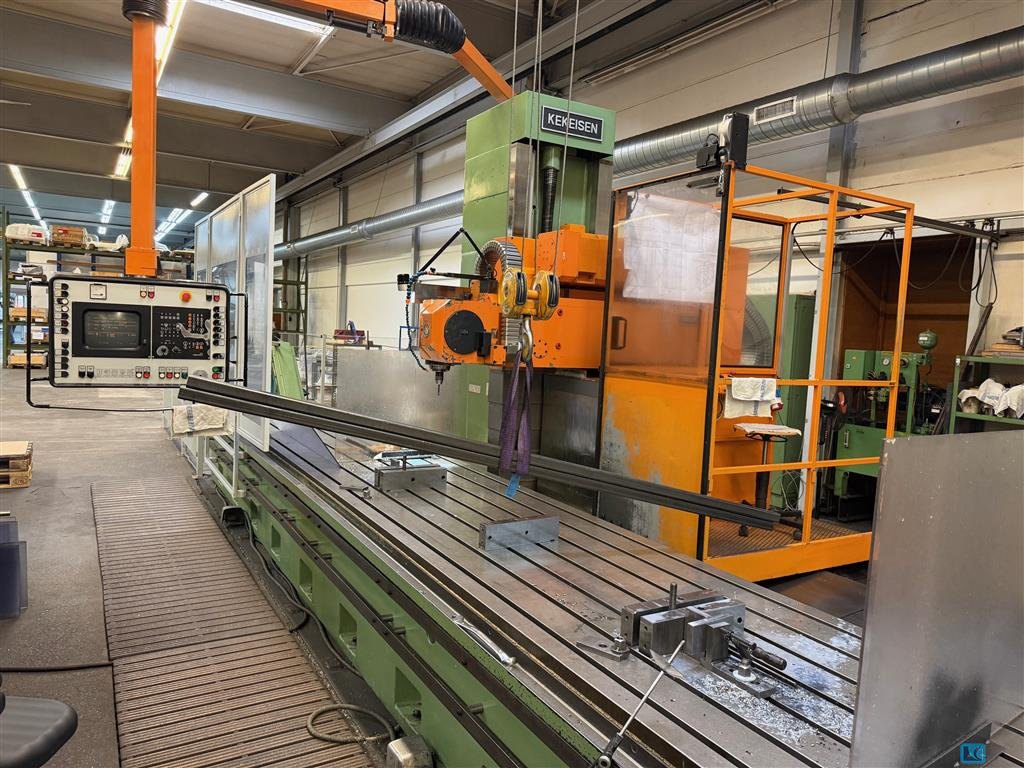

x-travel: 4500 mm y-travel: 1700 mm z-travel: 1000 mm TABLE: - table surface (left-right): 6100 mm - table surface (front-back): 1000 mm - workpiece load (max): 8000 kg WORKING SPINDLE / HEAD: - spindle type: Schwenkkopf - tilting range: 1 / 3 ° - spindle revolutions (min): 15 U/min - spindle revolutions (max): 3000 U/min - tool fixture: ISO SK 50 - drive power (max): 30 kW AXIS DRIVES: - feed velocity (min): - mm/min - feed velocity (max): 20000 mm/min Control: NUM 750 total power requirement: - kW weight of the machine ca.: 28 t equipped with: - CNC Control NUM 750 - Universal indexing head 1°x 3° - ATC 61-fold - CE Sign The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Key data: 6000 mm, 1250 mm, 2500 mm

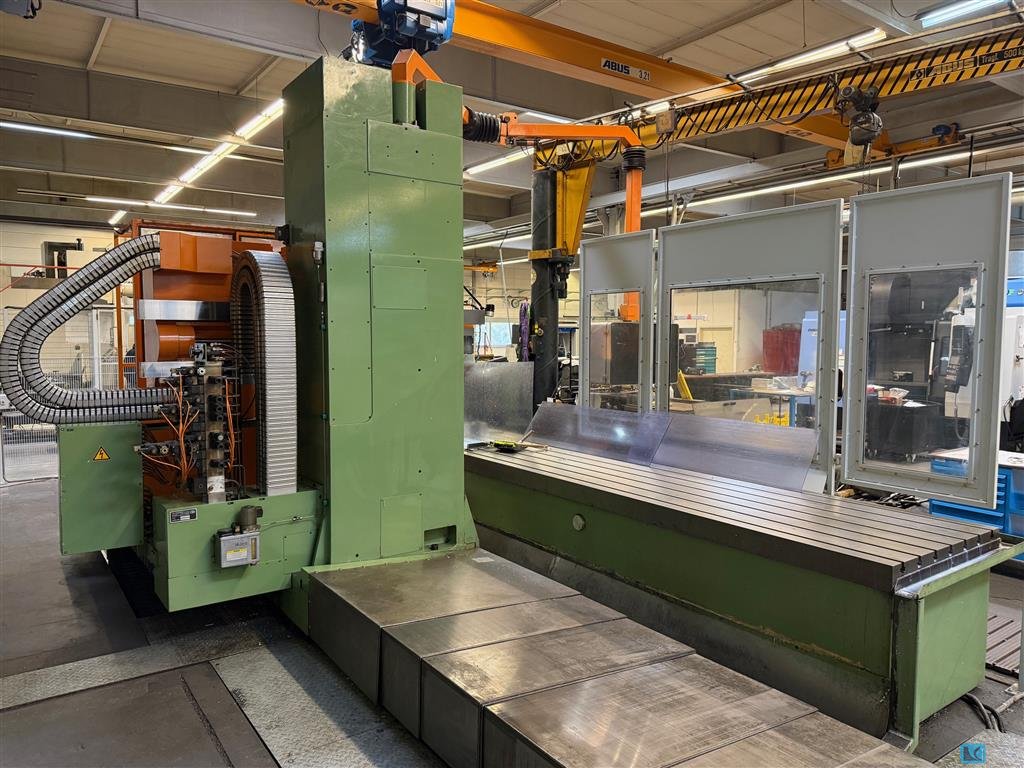

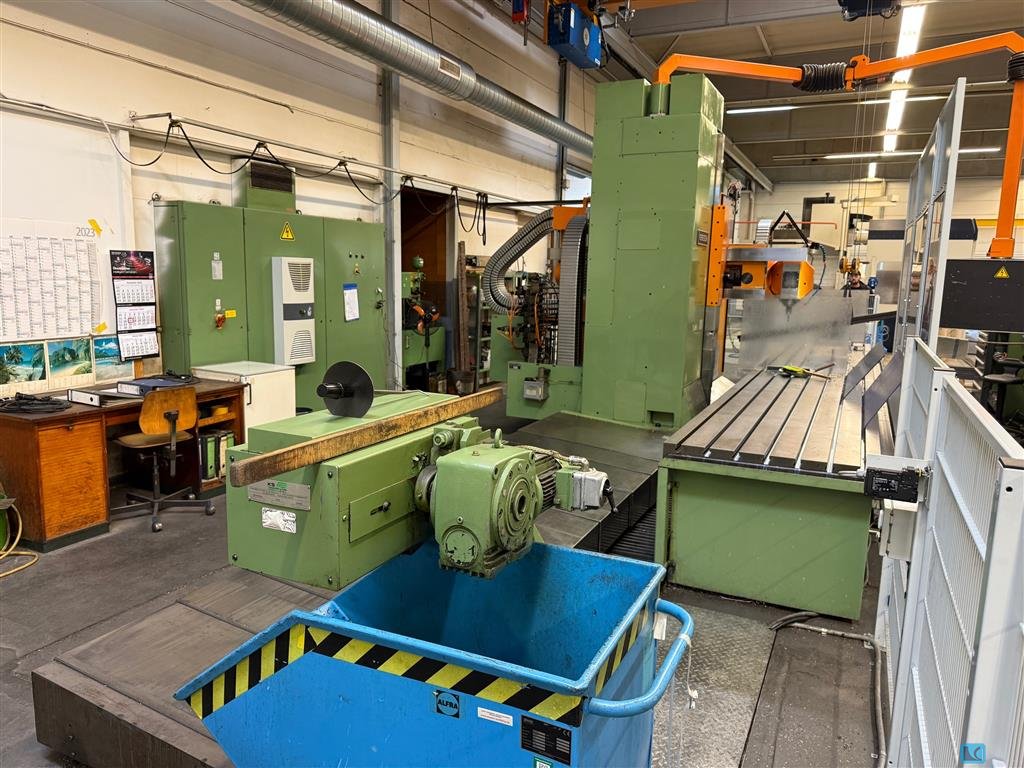

Travelling column milling machine Manufacturer: Zayer Type 30KCU6000 AR Year of manufacture 2005 Control Heidenhain iTNC530 Travel X 6000 Z 2500 Y 1250 40 Compartment Tool Changer Tool holder SK50 Electronic Handwheel HR 510 Machine is in a used 100% working condition. It is sold from the Homburg Saar site, and a 20t overhead crane is available for dismantling.
Additional technical specifications: • Stop length left and right: 1600 mm
2x Chiron FZ 08 S, built in 1999/ 2000. Fully functional and ready for operation.
used
GeneralHorizontal machining center; Control: Control F31iB with CELOS CharacteristicsSpeed max.-20000 rpmDrive power (100% DC)18,5 kWDrive power (40% DC)26 kWTable size500x500 mmSwivelling range360x1 degreeMaximum load (table centre)500 KgMax. work piece diameter800 mmMax. work piece height1000 mmPalett changer with2 PalletMovement X / Y / Z730/730/880 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperBT 40 Max. tool length550 mmDimensions (L x W x H)3,08 x 4,79 x 2,86 mWeight approx.12000 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and p High-speed spindle 20,000 min-1, 37/ 26/ 18.5 kWHigh-Speed Spindle 20,000 min-1, 37/26/18.5 ...
Pellet mill for straw / hay / alfalfa and much more ! Plant is about 500 hours. Running . Flat die 8mm and Koller head are included '
used
GeneralUniversal Milling Centre; Control: DMG MORI SLIMline® Multi-Touch control Working area 1Longitudinal750 mmCross600 mmVertical520 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightWeight approx.8000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only! Type of Measuring system Direct measuring system Table surface Ø 800 x 620 mmMaximum load (table centre) 350 KgSlot width 14 mmNumber of Slots 9 Distance between T-Slots 63 mm4. Axes (swivelling range) 360 x 0,001 degree5. Axes (swivelling range) -10/+95 x 0,001 degreeMode for positioning only Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge ...
used
GeneralUniversal Milling Centre; Control: DMG MORI SLIMline® Multi-Touch control Working area 1Longitudinal750 mmCross600 mmVertical520 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightWeight approx.8000 KgSwivel Rotary Table Powered B/C AxesSwivel Rotary Table Powered B/C Axes with automatic hydraulic clamping Electronic angle indication (B&C Axes) and Working Plane transformation For positioning only! Type of Measuring system Direct measuring system Table surface Ø 800 x 620 mmMaximum load (table centre) 350 KgSlot width 14 mmNumber of Slots 9 Distance between T-Slots 63 mm4. Axes (swivelling range) 360 x 0,001 degree5. Axes (swivelling range) -10/+95 x 0,001 degreeMode for positioning only Direct measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge ...
used
GeneralUniversal milling machine, with compound Guideway construction; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal500 mmCross450 mmVertical400 mmTechnical DataType of main driveAC Drive power (100% DC)14,5 kWDrive power (40% DC)20,3 kWSpeed range20 - 14000 rpmSpindle taperBT 40 Clamping SystemDIN ISO 7388-3-A, AD Feed rate longitudinal/transverse/vertical-30000/-30000/-30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/minFloor space/WeightDimensions (L x W x H)4,15 x 3,98 x 2,75 mWeight approx.4500 KgSwivel Rotary Table, simultaneousSwivel Rotary Table for simultaneous machining swivel range -5 to +110°, rotary axis 360° including direct measuring system for B- and C-axis and working plane transformation Not available with NC-Divider EA 410! Table surface 630 x 500 mmCentre bore 30H6 mmMaximum load (table centre) 300 KgSlot width 14 mmNumb ...
used
GeneralUniversal Milling Machine; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal650 mmCross520 mmVertical475 mmTechnical DataType of main driveAC Drive power (100% DC)16 kWDrive power (40% DC)21 kWSpeed range20 - 15000 rpmSpindle taperSK40 Tool holder DIN ISO 7388-1-A Clamping SystemDIN ISO 7388-3-A, AD Feed rate longitudinal/transverse/vertical-42000/-42000/-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minFloor space/WeightDimensions (L x W x H)2,85 x 2,35 x 2,75 mWeight approx.7500 KgDirect measuring systemDirect path measuring system Toolchangertoolchanger Type of magazine Chain Type of gripper Double gripper Number of tools 30 Max. tool weight 8 KgMax. tool length 300 mmMax. tool diameter with occupied adjacent pockets 80 mmMax. tool dia. with free neighbouring pockets 130 mmNC swivel rotary tableSwivel Rotary Table for simultaneous ma ...
used
GeneralUniversal Milling Machine Stealth Design; Control: CELOS X with Siemens SINUMERIK ONE Working area 1Longitudinal550 mmCross450 mmVertical420 mmTechnical DataFeed rate longitudinal/transverse/vertical30000/30000/30000 mm/minRapid traverse longitudinal/transverse/vertical30/30/30 m/mininlineMASTER® spindlespeed range 20 - 15.000 min-1 SK40 suitable for BIG-PLUS® tools Drive power (100% DC) 16 kWDrive power (40% DC) 21 kWTorque (100% DC) 85 NmTorque (40% DC) 111 NmSpeed range 20 - 15000 rpmSpindle taper HSK-A 63 Clamping System HSK-A 63 Toolchanger with set up station for tool loadingNumber of tools 60 Tool clamping for HSK-A63Tool clamping HSK-A63 according DIN 69893 (incl. adaptation working spindle and tool magazine) NC swivel rotary tableSwivel Rotary Table for simultaneous machining Clamping surface dia. 505 x 500mm / 19.9 x 19.6 in swivel range -35 to +110°, rotary axis 360 ...
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsTable surface850 x 650 mmSpeed max.10000 rpmDrive power (100% DC)9 kWDrive power (40% DC)13 kWTorque (100% DC)43 NmMax. torque64 NmTool Magazine with24 PositionsSpindle taperSK 40 DIN 69871 Movement X / Y / Z550/550/510 mmRapid feed X / Y / Z24/24/24 m/minDimensions (L x W x H)3,07 x 2,67 x 2,84 mWeight approx.5600 KgSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872
The machine is in good technical condition; it can be tested by prior arrangement.
used
GeneralVertical-Machining centre Direct Measuring system X,Y,Z; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minWorking area 1Longitudinal1450 mmCross700 mmVertical550 mmTool changerType of magazineWheel Type of gripperDouble gripper Number of tools30 TableTable surface 1760 x 750 mmMaximum load (table centre) 2000 KgSlot width 14 mmNumber of Slots 7 Distance between T-Slots 100 mmSpindle speed 20.000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle) Tool magazine 30 pockets HSK-A63Tool magazine 30 pockets HSK-A63 Chain magazine with pockets and with double gripper, incl. manually direct tool loading into the tool magazin ...
used
GeneralHigh dynamic Vertical Drill-Tap centre with best milling performance; Control: 3D-control Siemens 840D sl Operate Working area 1Longitudinal700 mmCross420 mmVertical380 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minSpindle speed 24,000 rpmSpindle 24,000rpm with tool taper ISO 7388-2 - J30 BT30 / BBT 30 (BIG PLUS) possible for pull-studs ISO 7388-3 - JD30 (MAS 403-45°) at spindlespeed higher than 20.000 rpm BBT 30 (BIG PLUS) stipulated! AC-Motor 20 / 4 KW (max. / 100% ED) Watercooling Spin Integrated swivel rotary table simultaneousIntegated swivel rotary table 5-Axis simultaneous mode! Torque drives incl. direct measuring in A- and C-Axis Swivel range A-Axis -120 / + 100 degrees Max. load C-axis 100kg Table diameter C-Axis d290mm Inclusive Software package Sinumerik Mdynamics 5-ax Rot ...
used
GeneralVertical Machining Center; Control: Control SIEMENS 828D CharacteristicsTable surface850 x 650 mmSpeed max.12000 rpmDrive power (100% DC)9 kWDrive power (40% DC)13 kWTorque (100% DC)57 NmMax. torque83 NmTool Magazine with24 PositionsSpindle taperSK 40 DIN 69871 Movement X / Y / Z550/550/510 mmRapid feed X / Y / Z24/24/24 m/minDimensions (L x W x H)3,07 x 2,67 x 2,84 mWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D150 mm) SK40 interfaceTool clamping SK 40 for pull-studs DIN 69872 Tropical PackageTropical Package Option includes: - Active cooling unit for electrical cabinet - Additional ventilator for control panel Recommended from 35°C to max. 45°C environmental temperature Electronic HandwheelExternal electronic Handwheel
used
General2-Axes Universal Turning Center with driven tools, C-axis and Y-axis - Direct measuring system for X / Y axis; Control: DMG MORI SLIMline® Multi-Touch control Working areaSwing diameter over guide ways580 mmClamping chuck diameter max.250 mmWork spindle (left)Spindle bore73 mmBar diametre65 mmSpindle diametre on front bearing120 mmMain drive 1Drive power (100% DC)11 kWDrive power (40% DC)16,5 kWSpeed range- 5000 rpmTorque (100% DC)112 NmMax. torque (40% DC)168 NmC-Axis Speed-100 rpmTorque of C-Axis (holding torque)168 NmSlide 1Longitudinal stroke540 mmTransverse stroke242 mmY axis, vertical+/- 40 mmTool holder 1Number of tool stations12 Shank diametre according to DIN 6988030 mmNumber of driven tools12 Speed max.-5000 rpmPower max. (40% DC)5,65 kWFloor space/WeightDimensions (L x W x H)2,8 x 2,3 x 1,85 (3,95 x 2,3 x 1,85) m mWeight approx.4400 KgAlternative Speed TurningTechnolog ...
used
GeneralCNC Turning Centre with C axis and tool drive; Control: CNC control SIEMENS 840D ERGOLine Working areaSwing diameter over guide ways700 mmTurning diameter410 mmTransverse stroke300 mmLongitudinal stroke800 mmMax. Turning Length800 mmClamping chuck diameter max.250 mmBar diameter max.65 mmWork spindle (left)Spindle noseFlat flange Diametre of spindle nose170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)25 kWSpeed range25 - 5000 rpmTorque (100% DC)280 NmC-Axis Speed-200 rpmTorque of C-Axis (holding torque)225 NmAccuracy at point stopping0,01 degreeTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.-4000 rpmPower max. (40% DC)11,3 kWFloor space/WeightDimensions (L x W x H)4,17 x 2,69 x 1,99 mWeight approx.6500 KgChuck rinsing device, outsidechuck rinsing device, outside (m ...
used
GeneralUniversal turning-/milling center; Control: SLIMline® Control SIEMENS 840D sl, w/o CELOS Working areaSwing diameter over guide ways500 mmTurning diameter400 mmMax. Turning Length1100 mmBar diameter max.65 mmWork spindle (left)Spindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (100% DC)14 kWDrive power (40% DC)17 kWSpeed range- 5000 rpmBench speed485 rpmTorque (100% DC)275 NmMax. torque (40% DC)345 NmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 Spindle speed-12000 rpmDrive power (100% DC)8,8 kWDrive power (40% DC)10,5 kWTorque (100% DC)73 NmTorque (40% DC)90 Nmlocking moment850 NmSwivelling range+/- 120 degreeTool magazineType of magazineChain Number of tools60 Max. tool diameter78 mmMax. tool-Ø with free adjacent pockets125 mmFloor space/WeightDimensions (L x W x H)5,19 x 2,11 x 2,47 mWeight approx.11200 KgBASICBasic, consisting of: - Basic ...
used
General2-axes universal turning center with driven tools and C-axis; Control: Control SIEMENS SINUMERIK ONE Working areaSwing diameter over bed650 mmSwing diameter over X linear guideways520 mmMax machining diameter460 mmClamping chuck Ø254 mmX travel300 mmZ travel730 mmMain drive 1Type of main driveAC Drive power (100% DC)15 kWDrive power (40% DC)19,5 kWSpeed range-3500 rpmTorque (100% DC)246 NmMax. torque (40% DC)319 NmWork spindleSpindle noseA2-8 Spindle diametre on front bearing140 mmSpindle bore91 mmBar diameter max.80 mmTool holder 1Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.4000 rpmPower max. (40% DC)5,44 kWSignal lamp with 4 colours standardSignal lamp with 4 colours Red: general error Yellow: intervention necessary Green: automatic mode Blue: setup mode
used
General2-axes universal turning center with driven tools and C-axis; Control: Control SIEMENS SINUMERIK ONE Working areaSwing diameter over bed550 mmSwing diameter over X linear guideways320 mmMax machining diameter300 mmClamping chuck Ø210 mmX travel232,5 mmZ travel410 mmMain drive 1Type of main driveAC Drive power (100% DC)9 kWDrive power (40% DC)11,7 kWSpeed range-4500 rpmTorque (100% DC)108 NmMax. torque (40% DC)140,4 NmWork spindleSpindle noseA2-6 Spindle diametre on front bearing120 mmSpindle bore73 mmBar diameter max.65 mmTool holder 1Number of tool stations12 Number of driven tools12 Speed max.5500 rpmPower max. (40% DC)5,44 kWTropical PackageTropenpaket für Maschine Option beinhaltet: - aktives Kühlaggregat für Schaltschrank - zusätzlicher Ventilator im Bedienpult Empfohlen ab 35°C bis max. 40°C Umgebungstemperatur. Mechanical oil mist extractor type AFS 600Mechanical oil ...
Arboga UM 3008 Drilling-Milling Machine -Drive: Gear (gear head) -Motor: 2-stage motor (3-phase / 380 V or 400 V) -Spindle speeds: 8 steps, 105–3,020 rpm -Tool holder: MK 3 (Morse taper 3) -Drilling capacity (steel): approx. 30 mm -Drilling depth (quill stroke): max. 130 mm (adjustable) -Max. distance spindle-table: 600 mm -Cross table dimensions: 585 × 245 mm -Adjustability head: height-adjustable and swivel in angle Dimensions: LxWxH 0.9x0.8x1.9 meters / Weight 600Kg
MTRent MTCut V110TH - CNC milling machine - Mount: SK40 - X/Y/Z: 1100 / 610 / 610 mm - Heidenhain CNC control - Incl. milling tools, technical documents and operating instructions - Switch-on time: 21295 h - Spindle time: 6661 h - Year of construction 2015 Technical data Axles: - Travel X: 1100 mm - Travel Y: 610 mm - Travel Z: 610 mm - Rapid traverse X/Y/Z: 32 m/min - Feed: 1 - 12000 mm/min - Positioning accuracy: ± 0.005 mm - Repeatability: ± 0.003 mm - Spindle nose table: 120 - 730 mm - Guides X/Y/Z: Linear 45 / 45 / 45 mm - Machine bed: cast iron Machine table: - Dimensions: 1250 x 610 mm - Max. table load: 900 kg - T-slots in the table: 5 - T-slots width: 18 mm H8 - T-slot spacing: 100 mm Spindle: - Speed: 10000 rpm - Torque (40% ED): 256 Nm - Power (40% ED): 24 kW - Spindle cooling: Oil - Tool holder: SK40 - Tightening bolts: DIN 69871/72 ...
Quadro Comil 196S Cone Mill Stainless milling machine designed for efficient size reduction and particle size control, capacity 3600Kg per hour, 11Kw motor, on stainless mobile stand, comes with four different size cone meshs, 3Ph
Copy milling machine with a template-equipped workpiece table and overhead pneumatic clamping cylinder. Vertical cutter spindle with extraction hood, electric motor, belt-drive guard and pneumatic cylinder assembly. Equipped with extraction ducts and hoses, electrical controls and emergency stop button. Auction-ID: A1-50699-42
Copy milling machine with a circular rotary worktable, profiling template and overhead clamping cylinder. Equipped with a vertical milling spindle, electric motor, belt drive with protective guard, cutter extraction hood and flexible extraction hose. Front control panel with push buttons and selector switch. Serial number: 54286. Machine number: 55394. Manufacturer location: Hannover-Hainholz, Germany. Auction-ID: A1-50699-43
Wood milling machine equipped with two disc-type cutter heads with replaceable cutting inserts, mounted on a common horizontal shaft with spacer sleeves. Belt-driven shaft powered by a rear-mounted electric motor. Vertically guided worktable with pneumatic lifting cylinder, overhead pneumatic clamping assembly and foot pedal. Front and rear extraction hoods with flexible hoses, side belt-drive guard and emergency stop button. Auction-ID: A1-50699-41
CONTROLS CNC controls SIEMENS BASIC FUNCTIONS number of spindles: 4 number of turrets: 2 live positions: yes number of c-axes: 4 WORKING RANGE TURNING turning diameter (max): 100 mm bar diameter (max): 20 mm MAIN SPINDLE spindle revolutions (max): 5000 /min COUNTER SPINDLE spindle revolutions (max): 5000 /min TOOL MAGAZINE number of positions: 48 ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 9600 mm space requirements -front/back-: 1500 mm total height: 2200 mm total weight approx.: 2600 kg ATTACHMENTS (TURNING) bar magazine: optional - bar length (max): 3000 mm chip conveyor: yes coolant unit: yes hydraulic system: yes Features: - various tool holders - various collets in every millimeter increment - bar feeder (dual channe ...
with 3-axis digital display, Fabr. HEIDENHAIN, with coolant device and machine light
