bed mil used for sale

Equipment: 3-axis digital display. Quill path has separate digi display. Automatic feed in X-axis and quill. Motorized Z-axis. Tapping device. Coolant system. Machine base. Collet set, Sk-tool holder. Other machine accessories in box. Drilling capacity in steel45 mm quill stroke 125 mm Table adjustment transverse 560 mm Table adjustment longitudinal 230 mm Table clamping surface 800 x 240 mm Spindle speeds 75 - 3200 rpm Max. milling cutter diameter 80 mm Spindle holder ISO 30 Max. distance between work table and spindle nose 460 mm Projection 230 mm Connection voltage 230 V Total power requirement 1.5 kW Machine weight approx. 580 Kg Dimensions approx. 1.2 x 1.0 x 2.1 m Condition: never used / new (5) Auction-ID: A7-51438-554

2-spindle copy milling machine connection voltage 400Volt motors 2 x 0.75KW speed 12000rpm See pictures Condition: untested Auction-ID: A7-51438-638

Equipment: - New TFT screen - Coolant system - Hydraulic tool clamping - Milling head with quill - Documentation x-travel 410 mm y-travel 310 mm z-travel 400 mm Table size 700 x 280 mm Control Heidenhain TNC 145 Mounting SK40 Speed range 40- 2,000 rpm Rapid traverse speed 1.5 m/min Feed speed 1500 mm/min Drive power 2.2 kW Quill stroke 63 mm Weight 1.3 t Total power requirement 2.2 kW Machine weight approx. 1.5 t Dimensions L x W x H 1.4 x 2.1 x 2.0 m Condition: functional Auction-ID: A7-51438-469

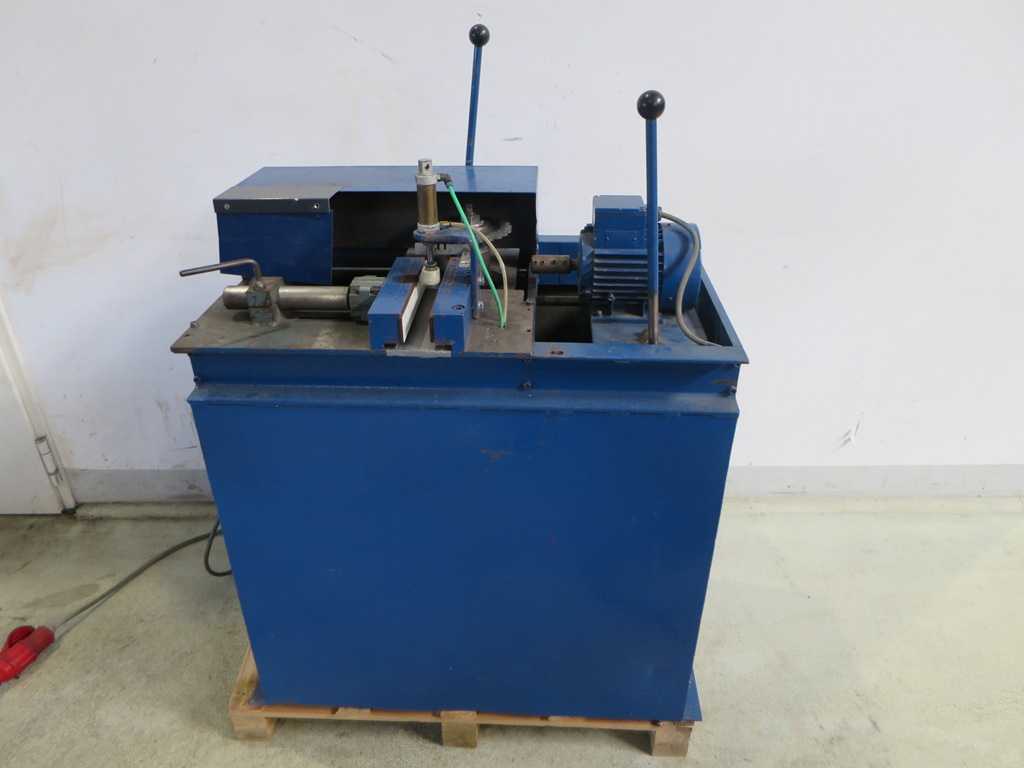

Milling unit with holder for disc cutter sepatae drilling unit Dehzahlen 1750rpm 1.5 KW pneumatic clamping unit see pictures Condition: functional Auction-ID: A7-51438-573

Equipment: - ELESTA digital display - Feed infinitely adjustable - Coolant system - Horizotale milling device - Chip protection - Chip tray - hydr. Vice - Machine light - Documentation x-travel 1200 mm y-travel 400 mm z-travel 460 mm Table size 1500 x 400 mm Control conventional Mounting SK40 Speed range 45 - 2000 rpm Quill stroke yes mm Total power requirement kW Machine weight approx. 3.2 t Dimensions L x W x H 2.8 x 2.5 x 2.1 m Condition: functional Auction-ID: A7-51438-441

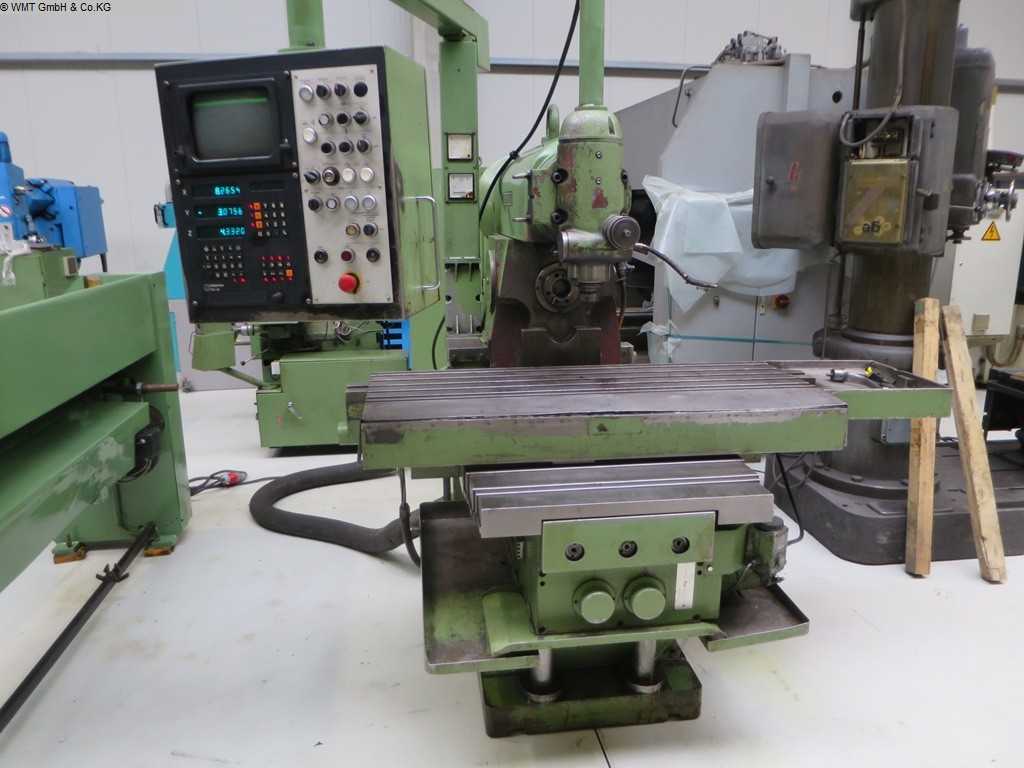

Milling machine with - Heidenhain TNC 135 - Rapid traverse - Milling head with hydr. Tool spacing - Coolant system - Central lubrication x-travel 1000 mm y-travel 450 mm z-travel 450 mm Table clamping surface 1370 x 400 mm Number of T-slots 5 pcs.Spindle speeds 32 - 1500 rpm Tool holder SK 50 Total power requirement 7.0 kW Machine weight approx. 3.1 t Dimensions L x W x H 2.1 x 1.7 x 1.9 m Condition: functional Auction-ID: A7-51438-409

Drilling and milling machines: digital depth and speed display,2 gear stages with fine adjustment and variable speed,including left-right switch left and right swivel head Supplied with associated tools Drilling capacity in steel 25 mm projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 16 mm Spindle holder MK 2 Spindle speeds 50 - 3000 rpm Table adjustment transverse 280 mm Table adjustment longitudinal 155 mm Table clamping area 500 x 180 mm Connection voltage 230 V max. distance between work table and spindle nose max. 320 mm Total power requirement 0.8 kW Machine weight approx. 150 kg Dimensions approx. 670 x 550 x 910 m Condition: never used / new (5) Auction-ID: A7-51438-414

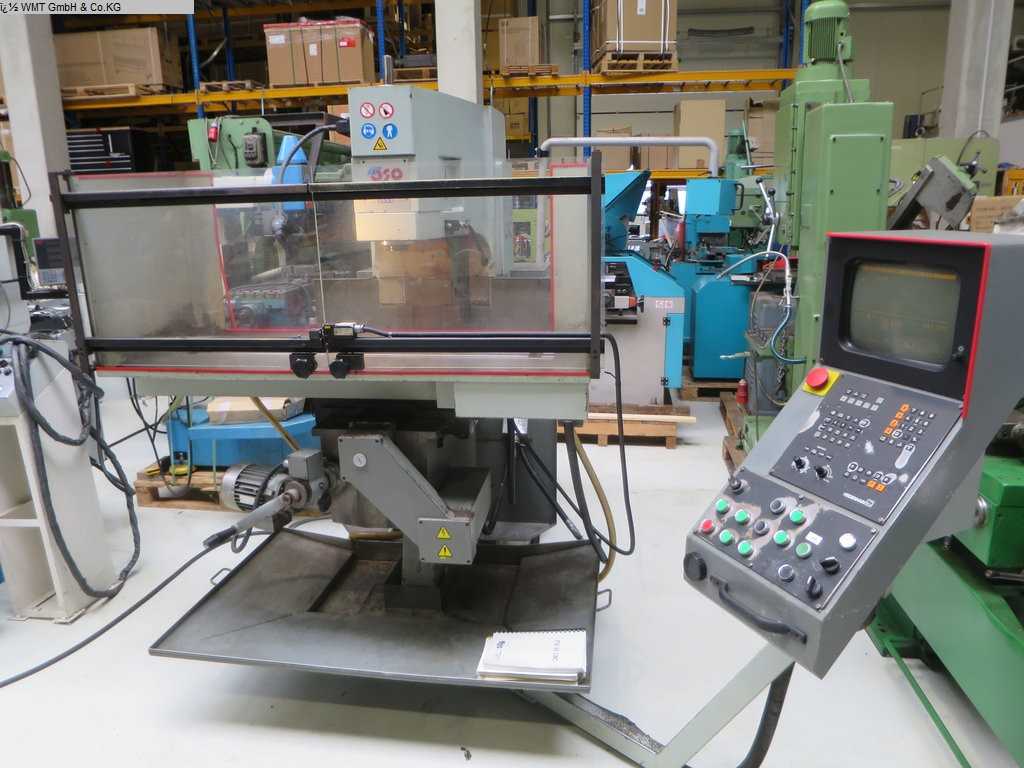

Equipment: - Heidenhain TNC 360 - Coolant system - Hydraulic tool clamping - Milling head with quill - Machine light - Chip pan - Documentation x-travel 760 mm y-travel 381 mm z-travel 450 mm Quill stroke 152 mm Table size 1300 x 305 mm Control Heidenhain TNC 360 Mounting SK40 Speed range 100- 4,000 rpm Rapid traverse speed 5000 / 7000 m/min Feed speed 2.5 to 3000 mm/min Drive power 2.2 kW Quill diameter 101 mm Total power requirement 15.0 kW Machine weight approx. 2.4 t Dimensions L x W x H 2.4 x 2.3 x 2.2 m Auction-ID: A7-51438-587

Universal milling machine - Huron head - Assembly device for Huron head - horizontal counter holder - Documentation - Coolant system - Machine feet x-way 700 mm y-travel 250 mm z-travel 300 mm Table size 1000 x 230 mm Spindle holder ISO 40 Spindle speeds 35- 1500 rpm Total power requirement 3.0 kW Machine weight approx. 1.4 t Dimensions L x W x H 1.55 x 1.4 x 1.65 m Condition: untested Auction-ID: A7-51438-457

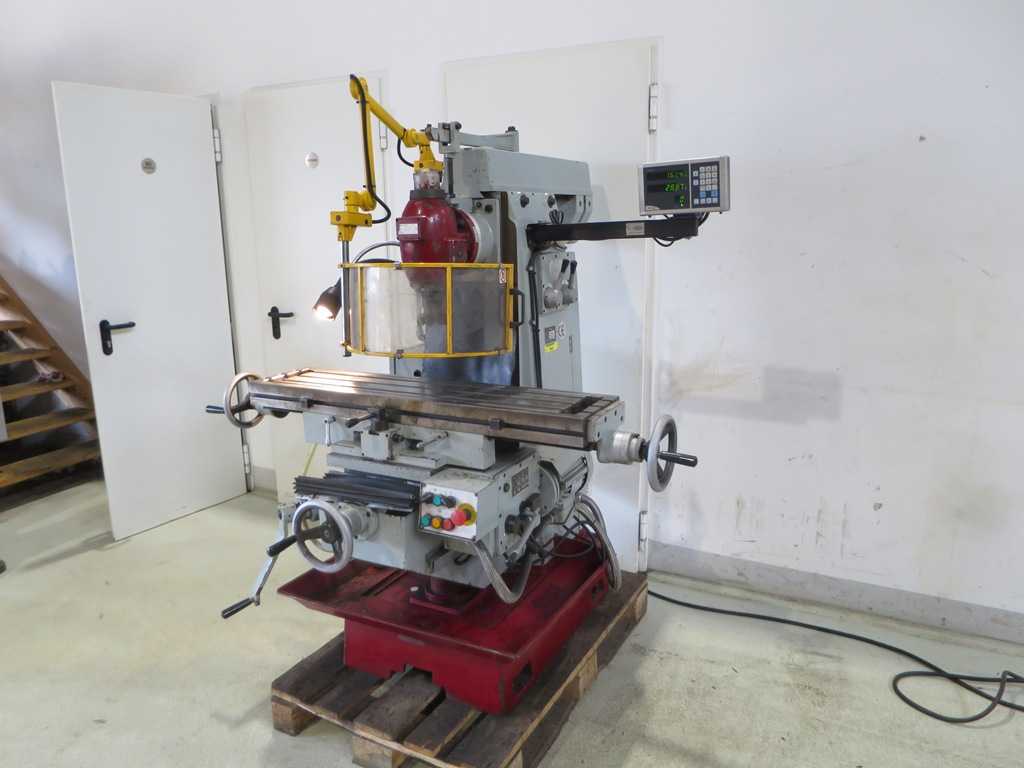

Universal milling machine - Digital display - Chip protection - Coolant system - Machine light - Chip tray x-travel 560 mm y-travel 300 mm z-travel 420 mm Table size 1055 x 240 mm Spindle holder ISO Sk 40 Spindle speeds 40 - 1550 rpm Total power requirement 5.5 kW Machine weight approx. 1.3 t Dimensions L x W x H 1.6 x 1.5 x 1.85 m Condition: functional Auction-ID: A7-51438-401

Drilling and milling machine - Digital display - Left/right rotation - 2 electr. Speed stages- Drilling spindle with automatic rotation Feed and manual feed with machine base Drilling capacity in steel 40 mm Projection 250 mm Drilling stroke 125 mm Spindle holder MK 4 Spindle speeds 50 - 2500 rpm Table adjustment transverse 550 mm Table adjustment longitudinal 230 mm Table clamping surface 820 x 240 mm Connection voltage 400 V Total power requirement 0.8 kW Machine weight approx. 0.7 t Dimensions approx. 1.2 x 1.0 x 1.85 m Condition: untested Auction-ID: A7-51438-657

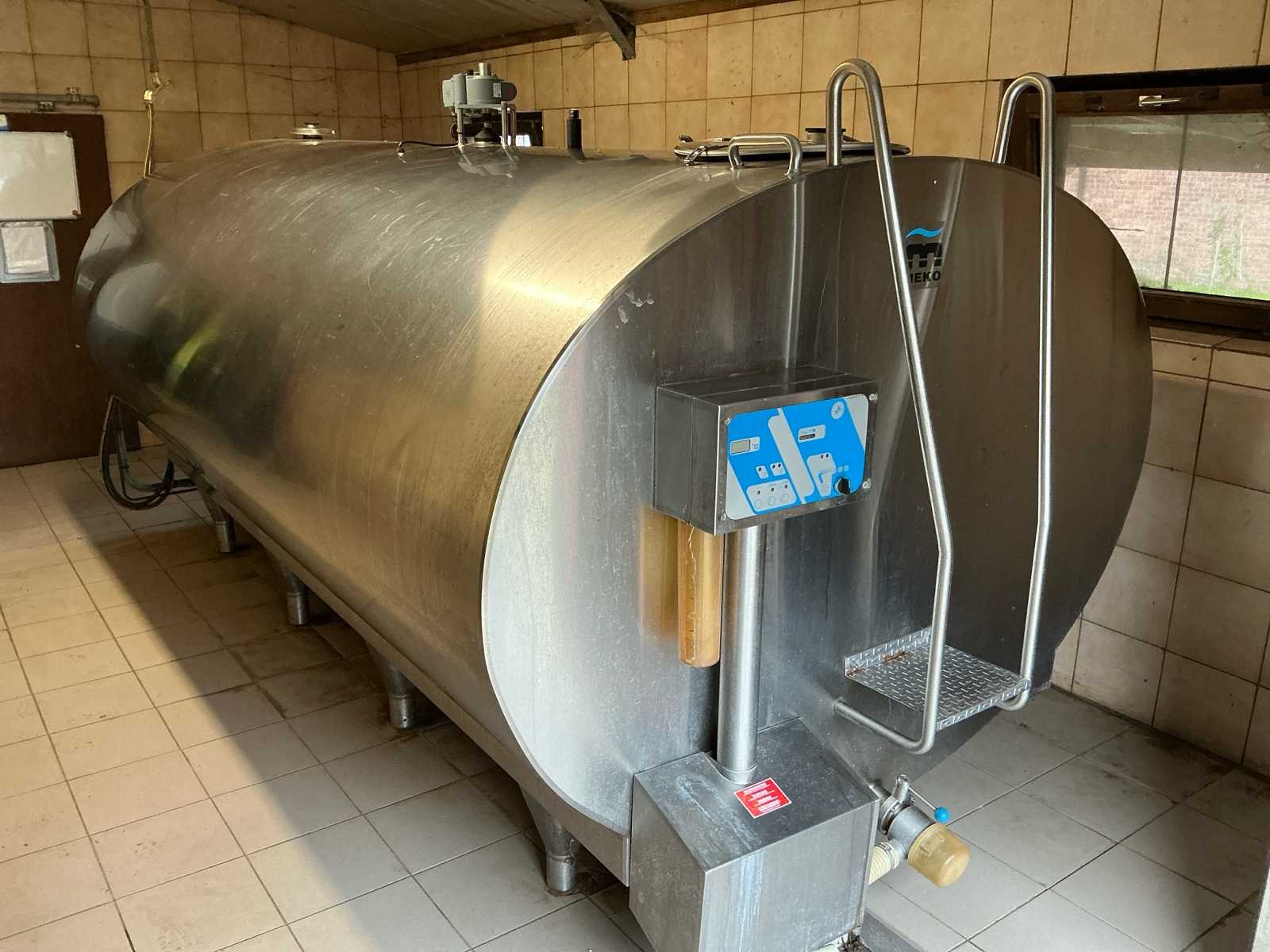

7200 liters. Cooling motor included. In working order. Replaced the mixer motor a year and a half ago. Charging options available on site. Auction-ID: A3-46111-21525

Equipment: - Heidenhain Digital display - Coolant system x-way 700 mm y-way 400 mm z-travel 350 mm Table size 920 x 300 mm Control conventional Mounting SK40 Speed range 40 - 2000 rpm Quill stroke 50 mm Total power requirement 2.4 kW Machine weight approx. 1.1 t Dimensions L x W x H 1.4 x 1.6 x 2.1 m Condition: functional Auction-ID: A7-51438-544

3-axis digital display - rapid traverse documentation x-way 100 mm y-travel 200 mm z-travel 450 mm recording ISO SK 40 speed 22 - 1400 rpm total power requirement 7.5 kW machine weight approx. 2.6 t space requirement approx. 1.8 x 2 x 1.85 m Auction-ID: A7-51438-642

Schüco LKF 2600 3-axis CNC milling machine Features: Brand: Schüco Model: LKF 2600 Year: 2004 3-axis CNC milling machine CNC Mach3 CNC control software Work table with several clamping systems Swivel spindle Power supply: 400 V – 50 Hz Compressed air pressure: 0.7 MPa Separate control panel with computer and display Separate electrical cabinet Safety controls with emergency stop The machine has recently benefited from various improvements and works perfectly. Sold with a large set of accessories and tools, including: many strawberries Set of collet in different diameters Tool holders and accessories different clamping elements Complete, clean and directly functional machine. Professional equipment ideal for CNC milling and machining work. Condition: Good overall condition, works perfectly. Auction-ID: A3-46110-36620

Drilling/milling machine with: • Drilling capacity 40mm • Milling capacity 32mm • Tapping device • Cross table with adjustable guides• Drilling quill feed • Manual gearbox • SK 40 Mounting drilling capacity in steel 40 mm Throat depth 275 mm Drilling stroke 120 mm Spindle holder MK 4 Speed range 75 - 3200 rpm Table adjustment transverse 190 mm Table adjustment longitudinal 490 mm Table clamping surface 730 x 210 mm Connection voltage 400 V Drill feeds: 0.1 - 0.18 - 0.26 mm/rev Total power requirement 1.1/1.5 kW Machine weight approx. 0.35 t Dimensions approx. 0.8 x 0.75 x 1.85 m Condition: never used / new (5) Auction-ID: A7-51438-536

Drilling/milling machine with: • Tapping device • Cross table with adjustable guides • Drilling quill feed• Manual gearbox • SK 40 Drilling capacity in steel 40 mm Throat depth 275 mm Drilling stroke 120 mm Spindle holder MK 4 Speed range 75 - 3200 rpm Table adjustment transverse 190 mm Table adjustment longitudinal 490 mm Table clamping surface 700 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1/1.5 kW Condition: never used / new Auction-ID: A7-51438-404

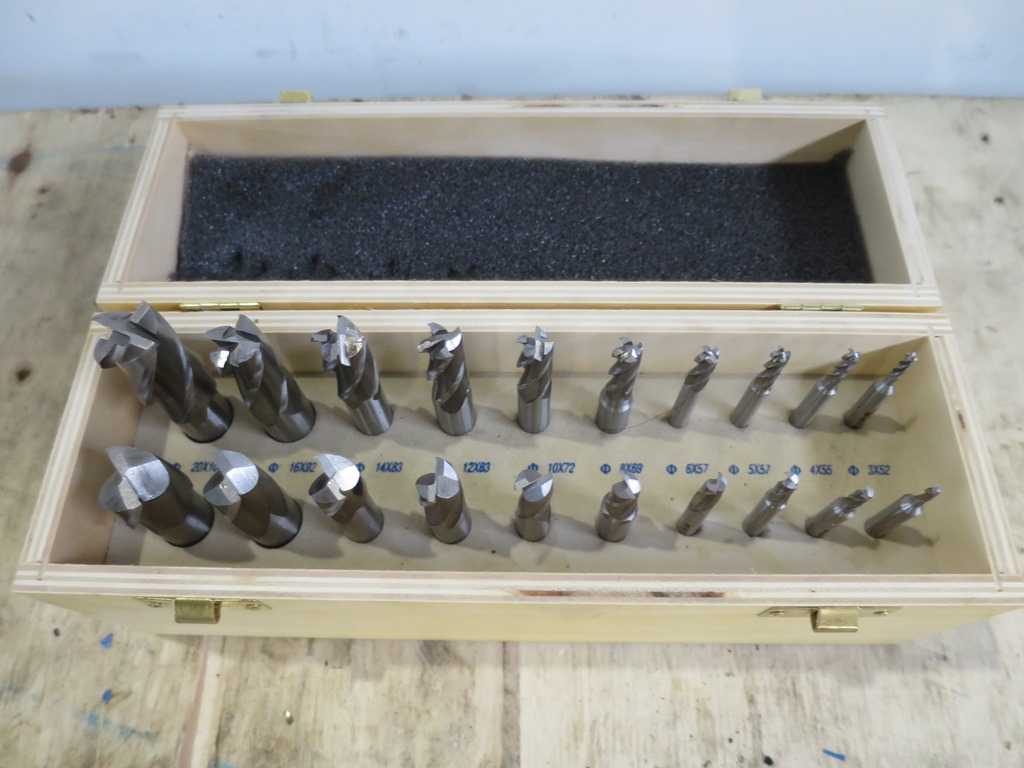

Cobalt milling cutter set, 20 pieces High quality HSS M42 - 8% cobalt milling cutters. Supplied in a beautiful wooden storage box. Technical specifications of the HBM 20 piece HSS - 8% cobalt milling cutter set. The set consists of the following keyway milling cutters: 3 - 4 - 5 - 6 - 8 - 10 - 12 - 14 - 16 - 20 mm.The set consists of the following end mills 3 - 4 - 5 - 6 - 8 - 10 - 12 - 14 - 16 - 20 mm.Condition : never used / new (5) Auction-ID: A7-51438-613

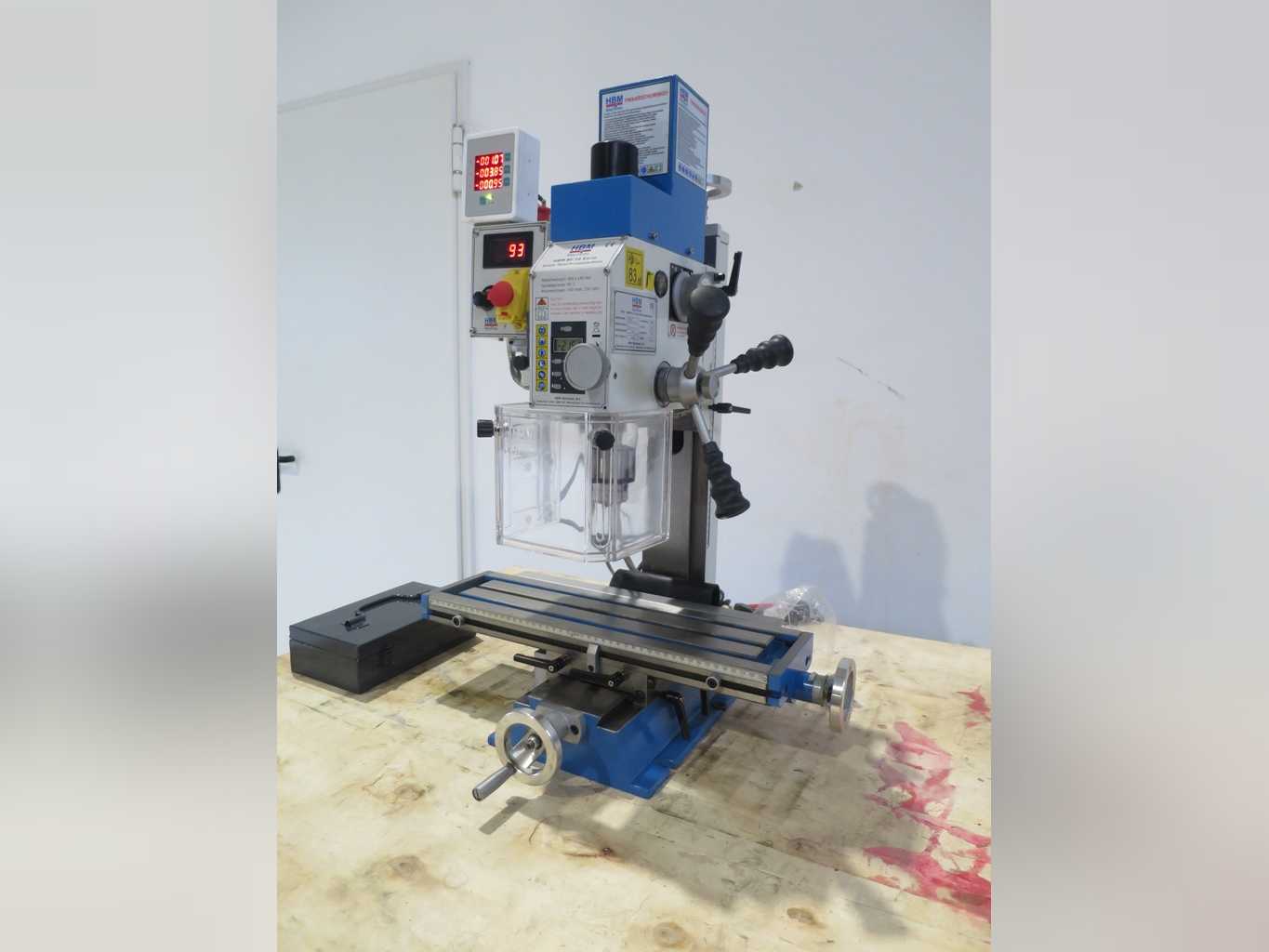

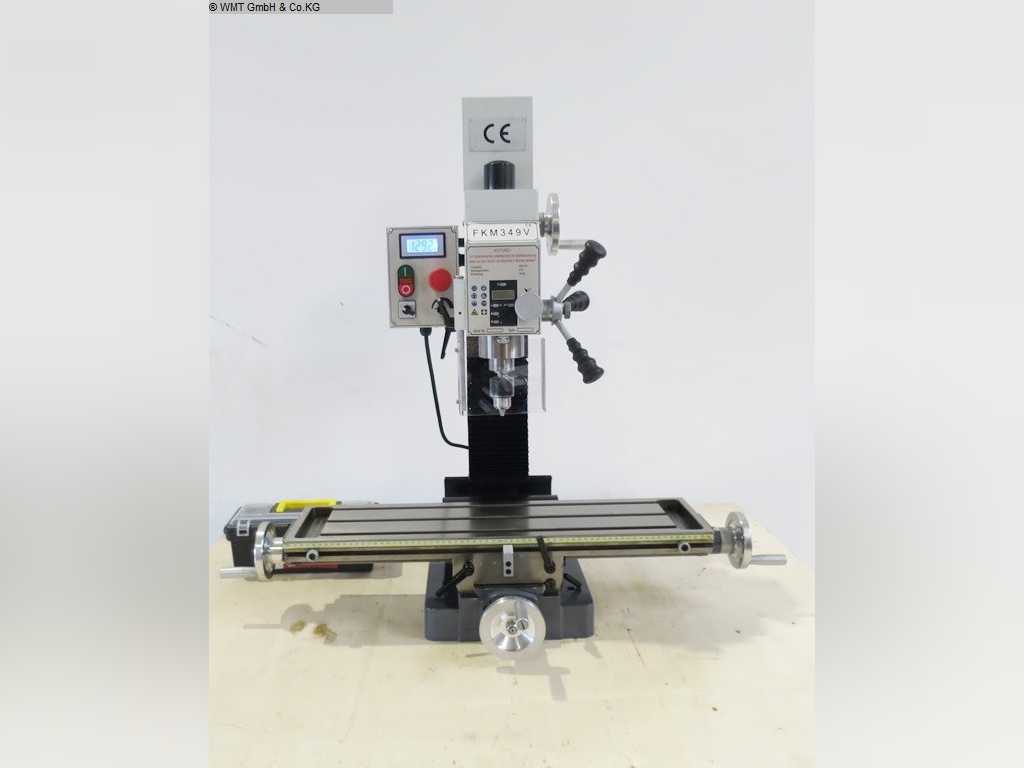

Drilling and milling machine (demonstration machine) with - Cross support - Feed via hand crank- Chip protection - 16mm Drill chuck - Mechanical MK tool clamping Drilling capacity in steel 16 mm Projection 180 mm Drilling stroke 85 mm Spindle holder MK 2 Spindle diameter 47 mm Spindle speeds 320 - 3300 rpm Table adjustment transverse 230 mm Table adjustment longitudinal 100 mm Table clamping surface 420 x 155 mm Connection voltage 230 V Total power requirement 0.75 kW Condition: never used / new (5) Auction-ID: A7-51438-563

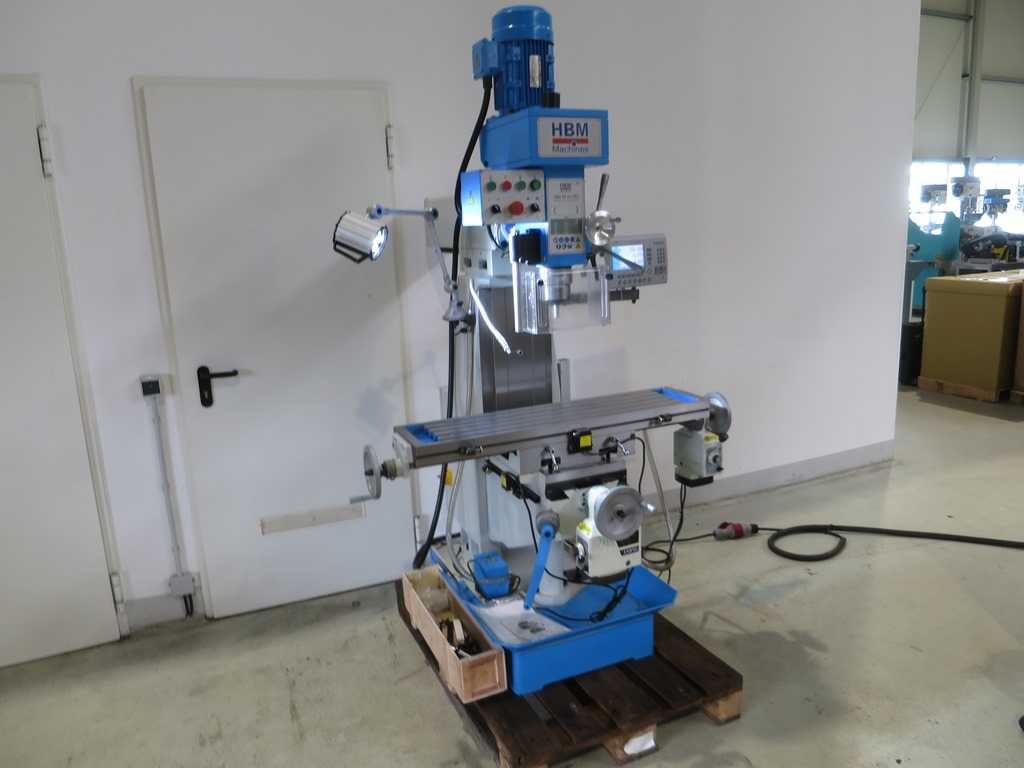

Equipment: 3-axis digital display Digital depth indicator Motorized feed for X and Y Left/right run Emergency stop drill head swivel Spindle protection. Machine light Tool case with contents Drilling capacity in steel 35 mm Projection 230 mm Drilling stroke 125 mm Spindle holder ISO 40 Spindle speeds 115 - 1750 rpm Table adjustment transverse 375 mm Table adjustment longitudinal 175 mm Table clamping surface 1000 x 240 mm Max. distance between work table and spindle nose 120 - 375 mm Connection voltage 400 V Total power requirement 0.85 / 1.5 kW Machine weight approx. 0.95 t Space requirement approx. 1.3 x 1.2 x 2.1 m Condition: never used / new (5) Auction-ID: A7-51438-525

Universal milling machine - Digital display - hydr. Tool clamp- Central lubrication - Coolant system - Machine light - Machine feet - Counter bearings - Chip tray x-way 400 mm y-travel 320 mm z-travel 440 mm Table size 80 x 325 mm Spindle holder ISO Sk 40 Spindle speeds 63 - 3150 rpm Quill stroke 60 mm Total power requirement kW Machine weight approx. 1.5 t Dimensions L x W x H 1.8 x 1.8 x 1.9 m Condition: functional Auction-ID: A7-51438-540

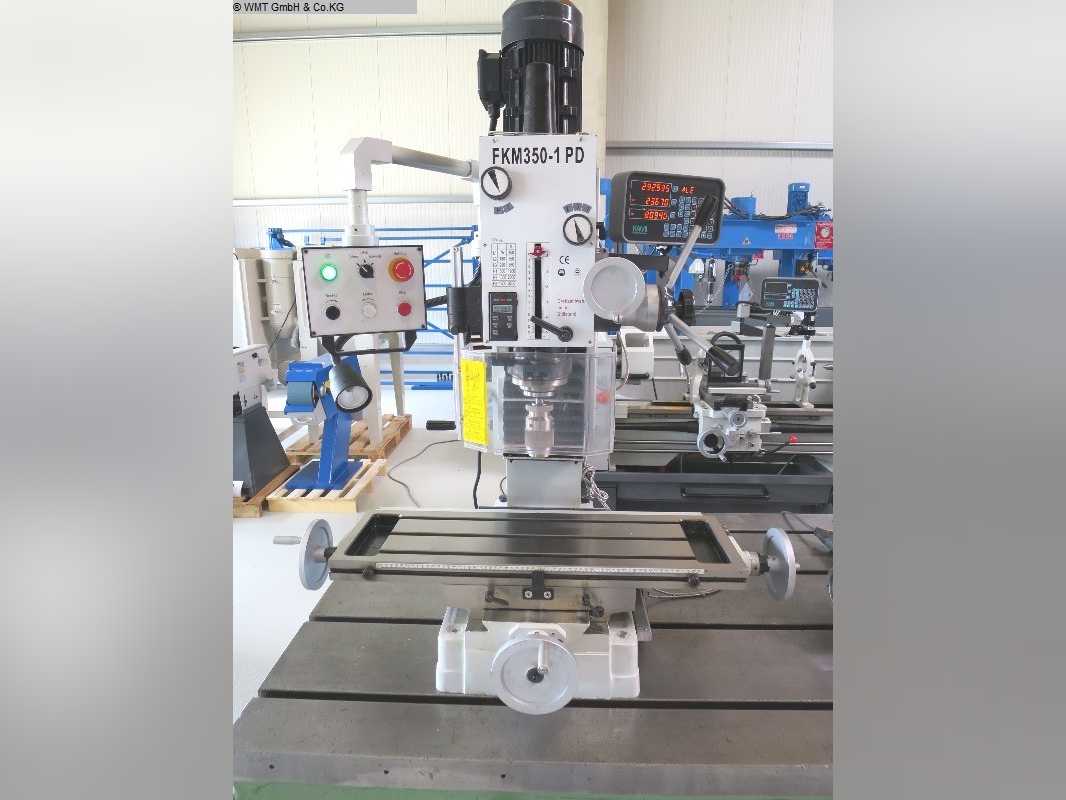

Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - Swivelling spindle head - Feeds via hand crank- Tool case with contents Drilling capacity in steel 13 mm Throat depth 170 mm Drilling stroke 50 mm Capacity finger milling machine 13 mm Spindle holder MK 2 Spindle speeds 50 - 3000 rpm Table adjustment transverse 220 mm Table adjustment longitudinal 160 mm Table clamping area 500 x 140 mm Connection voltage 230 V Total power requirement 0.5 kW Machine weight approx. 0.06 t Space requirement approx. 0.6 x 0.45 x 0.76 m Attention: Machine is without digital display! Condition: never used / new (5) Auction-ID: A7-51438-488

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

Drilling/milling machine with: • Digital display• Digital depth gauge for quills• Adjustable guides through wedge strips • Large 12-step speed range from 75 - 3200 rpm • Extremely smooth running due to hardened and ground gears running in oil bath • Clockwise-counterclockwise rotation • Prism guides in all axes • Gear head can be swivelled 90° • Chip protection with safety circuit Machine base frame optional. Not included. Drilling capacity in steel 40 mm Projection 290 mm Drilling stroke 130 mm Spindle holder SK 40 Spindle speeds 75 - 3200 rpm Table adjustment transverse 500 mm Table adjustment longitudinal 230 mm Table clamping surface 720 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1 kW Machine weight approx. 0.35 t Dimensions approx. 1.1 x 0.9 x 1.2 m Condition: never used / new (5) Auction-ID: A7-51438-534

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

Equipment: Two-stage gearbox via flat belts (no longer plastic gears) Infinitely variable speed range Quill fine feed via switchable handwheel Digital quill depth indicator Right-counterclockwise rotation Robust dovetail guides with adjustable V-bars Bellows covers for the guideways Adjustable control panel Chip protection with safety circuit Machine base frame optional. Drilling capacity in steel 25 mm Projection 185 mm Drilling stroke 50 mm Spindle holder MK 3 Spindle speeds 50 - 2500 rpm Table adjustment transverse 178 mm Table adjustment longitudinal 480 mm Table clamping surface 700 x 180 mm Connection voltage 230 V Total power requirement 0.75 kW Machine weight approx. 160 kg Dimensions approx. 0.75 x 0.8 x 0.9 m Condition: never used / new (5) Auction-ID: A7-51438-495

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis. Machine was running with oil, not coolant. A fire extinguisher system is installed.

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

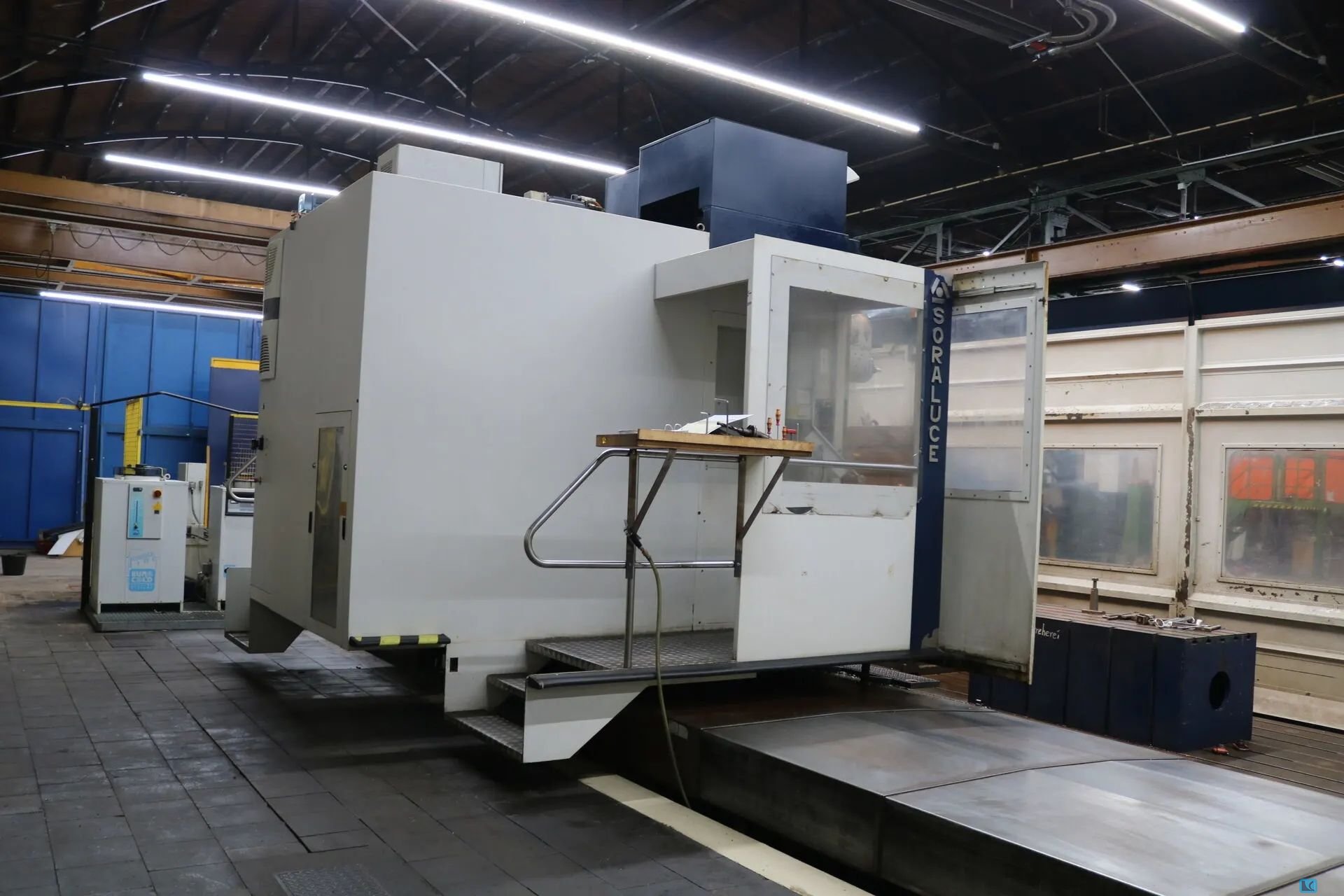

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:200 mm turning length:600 mm capacity X-axis:190 mm capacity Z-axis:555 mm double spindle units: spindle distance:800 mm spindle drive:Links (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min spindle drive:Rechts (40/100%ED): 18/14 kW spindle turning speed range:31-6300 U/min speeds of tool:2x12 Werkzeuge: 7/5 KW, 40-4200 U/min dimensions of the machine ca.:5,032 x 3,048 x 2,445 m weight of the machine ca.:6500 Kg Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides
