barnaul stanko used for sale

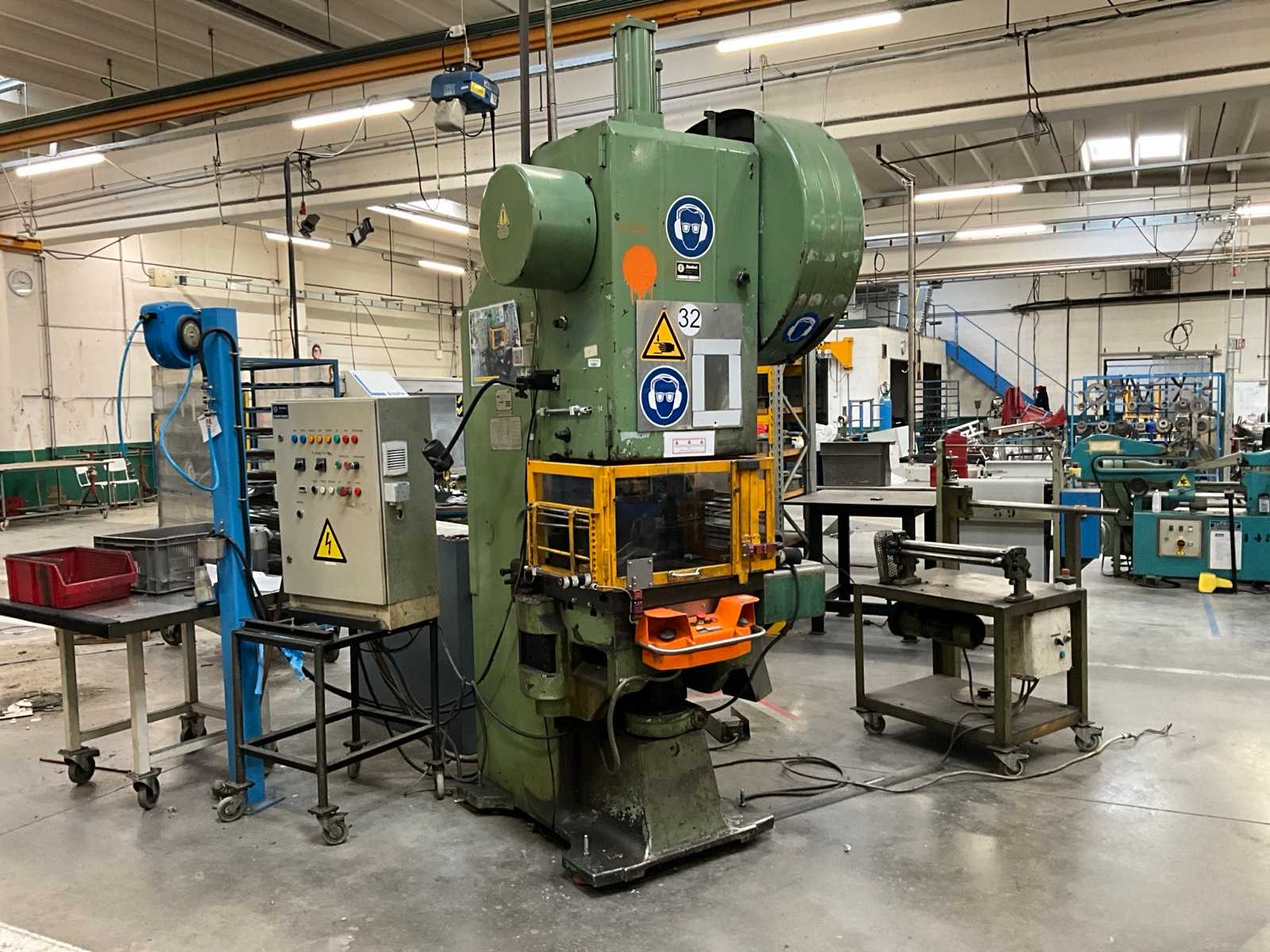

pressure: 100 t throat: 355 mm stroke: mm total power requirement: 11,5 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

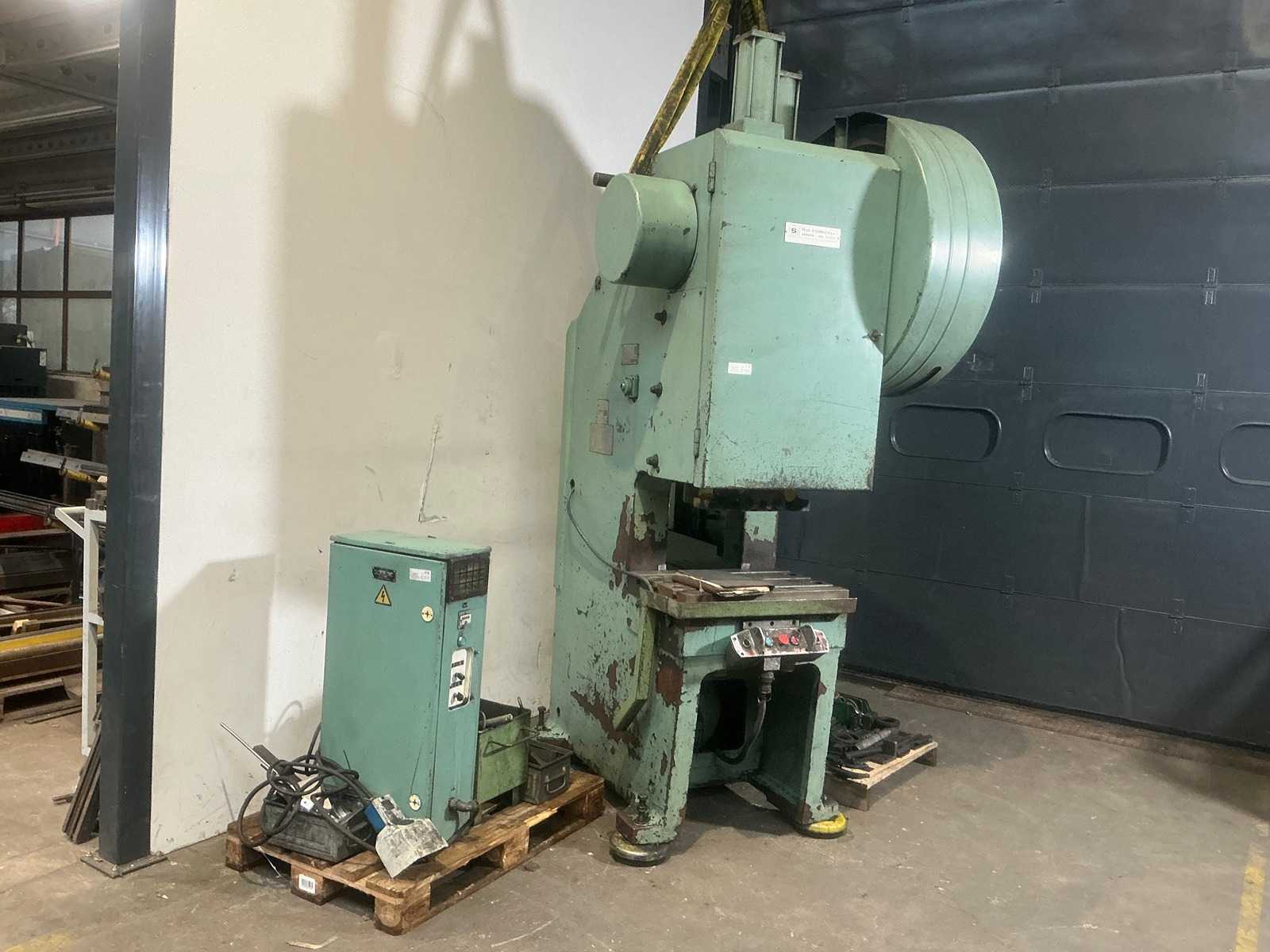

pressure: 40 t throat: 225 mm stroke: 100 mm total power requirement: 4,7 kW weight of the machine ca.: 3,45 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

STANKO 2N 150 ist eine Ständerbohrmaschine ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Arbeitskapazität: Tisch 570 x 500 mm, 3 T-Nuten (Abstand 110 mm, Breite 22 mm), Ausladung 300 mm, Bohrtiefe (Pinolenhub) 300 mm, Pinolendurchmesser 100 mm, 3-Backenfutter Ø 315 mm. Technische Daten: Spindelaufnahme MK 5, 12 Stufen 22–1000 t/min, 12 Vorschübe 0,05–2,24 mm/t, Spindelmotor 3 CV, Anschluss 3x380 V 50 Hz, Maschinengewicht ca. 1200 kg, Abmessungen 1200 x 1200 x 2500 mm. Zubehör: Tiefenanschlag, Teilapparat mit motorischem Antrieb, Fusspedal. Ermöglicht enge Toleranzen; typische Einsatzzwecke: Automotive, Werkzeugbau, Luftfahrt, Medizintechnik, Feinmechanik. Technische Daten ohne Gewähr

snelle verplaatsing voor langsbeweging Distance between centers: 3000 mm Swing over bed: 630 mm Swing over cross-slide: 350 mm Diametre of main spindle bore: 80 mm Power on main spindle: 13 kW Number of speeds: 10 > 1250 rpm Digital screen: Heidenhain Length: 4950 mm Width : 1780 mm Height: 1490 mm Weight: 5,6 ton

grinding diameter: 700 mm grinding length: 4000 mm centre height: 375 mm workpiece weight: 3000 kg grinding wheel size: 750 x 75 mm grinding wheel turining speeds: 375 - 1190 U/min cross adjustment of grinding head: 470 turning speed range - workpiece: 12 - 120 U/min main drive motor: 43 kW workpiece drive: 4,5 kW total power requirement: ca. 50 kW manufactured 1975/ overhauled 1995 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Stanko milling machine

Dreh-Øüber Bett: 400 mm Dreh-Øüber Support: 220 mm turning length: 1000 mm spindle turning speed range: 12,5 - 2000 U/min spindle taper: Bajonett 55022 spindle bore: 47 mm feeds - longitudinal: 0,07 - 4,16 mm/U feeds - cross: 0.035 - 2,08 mm/U thread - mm pitch: 0,87 - 192 mm thread - inch: 2 - 24 Gang/ inch. rapid travel - longitudinal/face: 3,4 / 1,7 m/min spindle drive: 11 kW power capacity: 13 kW weight of the machine ca.: 2,8 t dimensions of the machine ca.: 2,8 x 1,2 x 1,5 m • 3-jaw chuck Ø 250 mm, • 4-jaw chuck Ø 200 mm, • 2-axis- digital display, ANILAM WIZARD LATHE - retrofitted in 1992 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

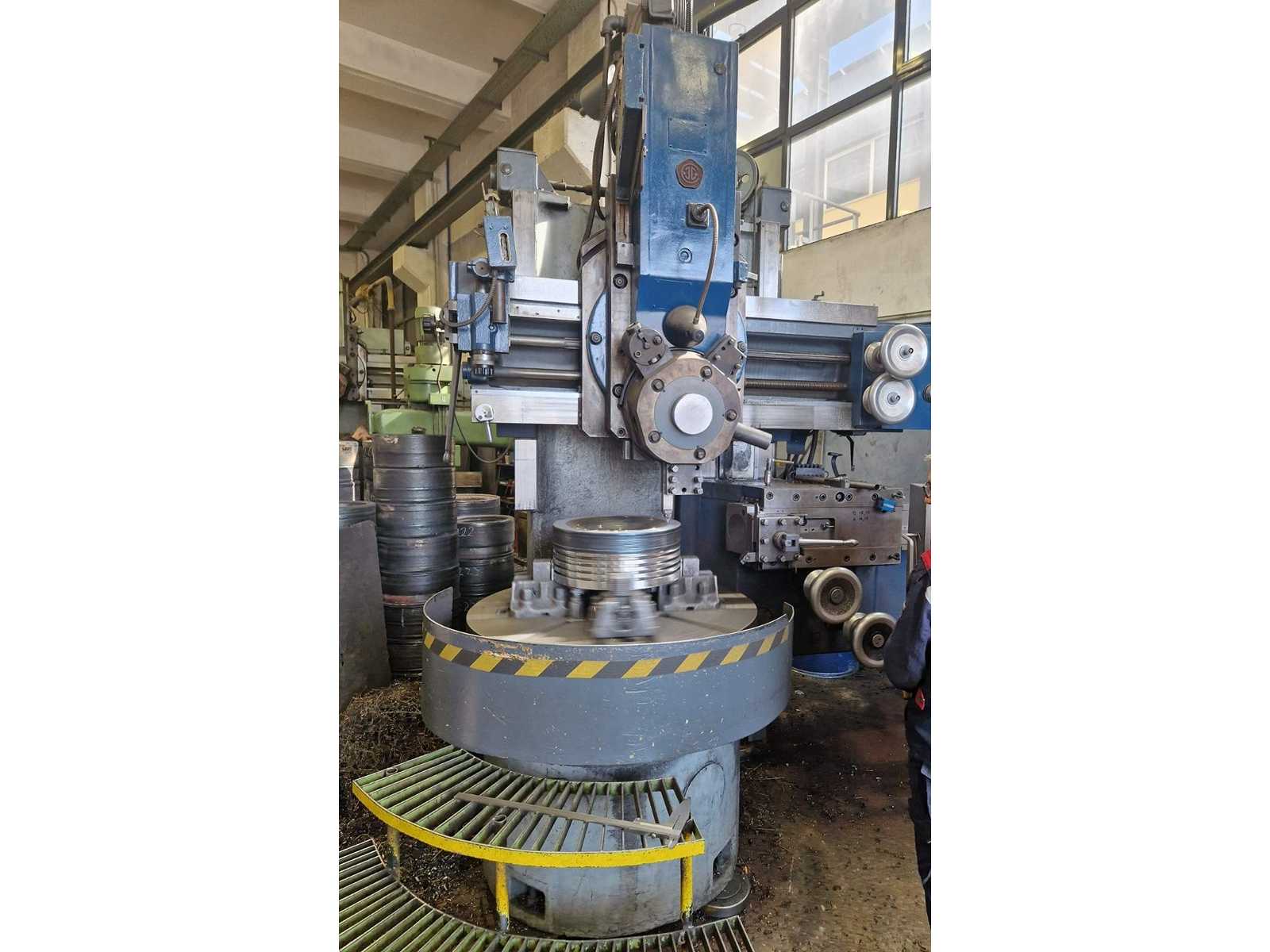

faceplate diameter: 7100 mm swing diameter: 8000 mm turning height: 4700 mm distance between table and cross rail: 5495 mm workpiece weight: 150 t faceplate turning speed range: 0,3 - 19 U/min main drive motor: 125 kW cross travel: 4400 mm swivel range of slides - vertical: +30 / -15 ° Control: FANUC 18i-T total power requirement: ca. 155 kW weight of the machine ca.: 291 t dimensions of the machine ca.: 8,6 x 17,6 x 8,3 m - CNC Control Fanuc 18i-T --2-Axis simultanous (X- & Z) - Z-Axe with hydraulic balance - Digital Scale in X and Z Axis - 2 rams on crossrail The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max.working dia. 550mm. max. working length 2500mm. P motor 15Kw, weight of lathe 15 ton

Orschaner / Stanko 3G71 - Surface Grinding Machine - Sinusoidal magnetic clamping plate - Various accessories - Year of construction 1973 Technical data Basic data: - Accuracy class (GOST 8-71 / 8-82): В (high) - Max. workpiece size L×W×H: 630 × 200 × 320 mm - Max. workpiece weight (incl. magnetic plate): 100 kg - Table surface (magnetic clamping plate): 500 × 200 mm - Distance spindle axis – table: 80 - 445 mm Table movements: - Longitudinal movement (X): max. 710 mm - Transverse adjustment (Z): max. 235 mm - Table speed longitudinal: 5 - 20 m/min (infinitely variable) - Automatic cross feed per stroke: 0.3 - 4.2 mm - Hand feed longitudinal (1 turn handwheel): 15.3 mm - Manual feed transverse (pitch): 0.05 mm Grinding spindle / grinding wheel: - Grinding wheel dimensions: Ø 250 × 32 × 20 mm - Grinding wheel speed: approx. 2680 – 2740 rpm - Vert ...

General Description Heavy-duty horizontal spindle rotary table surface grinder of Soviet manufacture, exported by Stankoimport, Moscow, USSR . Designed for precision grinding of flat surfaces on large workpieces. The machine is equipped with two rotary work tables and a horizontal grinding spindle, making it suitable for grinding rings, discs and other circular components. Technical Details Manufacturer: Unknown (exported by Stankoimport, USSR) Model: Not identified Machine type: Horizontal spindle rotary table surface grinder Year: Not confirmed Origin: USSR Two independent rotary work tables Horizontal grinding spindle Manual longitudinal table movement Mechanical/manual cross feed Manual feed controls Coolant system Hydraulic/mechanical feed system Condition Used industrial condition. The machine appears mechanically complete with both rotary tables, grinding spin ...

General Description Horizontal milling machine, exported by Stankoimport . Designed for milling, slotting and general machining operations. The machine is equipped with a horizontal arbor spindle and supplied with installed milling tooling and a table-mounted clamping fixture. Technical Details Machine type: Horizontal milling machine Exporter: Stankoimport Horizontal arbor spindle T-slotted work table Multiple milling cutters mounted on the arbor Table-mounted clamping fixture included Manual X/Y/Z table feeds Mechanical feed gearbox with feed and spindle speed selectors Condition Used industrial condition. The machine appears complete with horizontal spindle, arbor, milling cutters, T-slotted table and clamping fixture installed. Operational status, spindle condition and machining accuracy have not been tested. Auction-ID: A7-50745-24

General Description Universal cylindrical grinding machine of Soviet manufacture, exported by Stankoimport, Moscow, USSR . Designed for precision external cylindrical, tapered and thread grinding of shafts, mandrels and other rotational components. The machine is equipped with a universal workhead, tailstock, wheel dresser and coolant system. Technical Details Machine type: Universal cylindrical grinding machine Origin: USSR Exporter: Stankoimport, Moscow Grinding wheel speeds: 1,440 / 1,680 / 2,010 / 2,360 rpm Grinding wheel peripheral speeds: Approx. 30 / 35 / 42 / 50 m/s (400 mm wheel) Universal workhead Tailstock Grinding wheel dresser Coolant system Automatic and manual operating modes Metric, inch and module thread grinding capability Thread grinding/change gear chart Condition Good used industrial condition. The machine appears mechanically complete with workh ...

Stankoimport 3Y131 Cylindrical Grinding Machine Type: Cylindrical grinding machine Manufacturer: Stankoimport Model: 3Y131 Grinding length: 2000 mm Grinding stone wheel: 500 mm Main Motor Power: from 3 kW to 15 kW Dimensions (L x W x H): approx. 4150 x 2350 x 2150 mm Grinding wheel speed: Adjustable, normally between 1000 and 3000 RPM Weight: Between 3000 kg and 8000 kg Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-11

Lathes with: - 4-fold steel holder - 3-jaw chuck 315mm - Centering tip Turning diameter over bed 500 mm Turning diameter over support 320 mm Turning length 2100 mm Center height 250 mm Spindle bore 60 mm Spindle speeds 11 - 2000 rpm Total power requirement 7.0 kW Machine weight approx. 2.9 t Space requirement approx. 4.3 x 1.2 x 1.3 mm Condition: functional Auction-ID: A7-51438-438

Band saw with - saw blade welding machine - grindstone - saw blades - documentation Roller diameter 440 mm Projection 420 mm Workpiece height 200 mm Cutting speed 20 - 1550 m/min Table clamping area 560 x 560 mm Saw blade length 3250 mm Total power requirement 1.5 kW Machine weight approx. 0.8 t Space requirement approx. 1.2 x 0.8 x 2.1 m Condition: functional Auction-ID: A7-51438-470
