bar turning used for sale

Key data: 190 mm

Stock No: 3764 CNC LATHE Manufacturer: Mori Seiki, Type: ZT 1000Y Machine NO.: ZT101CB0056, Year of manufacture: 2003 Specifications: Max. circumferential diameter 190 mm dia. Max. turn. About BED 250 mm DIA. Main motor power 22/18.5 kw Main spindle speed range 6000 rpm Hole through drawing tube 46 mm dia. C axles 0.001 Y axis 40+/- mm Z Aksen Rapid Traverse 1/2 - 24 m/min Tool turret 1 with 16 stations Motor power driven tools 5.5 / 3.7 / 2.2 kW Kw Tool turret 2 with 16 stations Powered tools. 6000 rpm Sub-spindle Sub-spindle speeds 6000 rpm Control MSX-501 Fabr. Power on 15088 hours Operating hours spindle 5080 hours Controlled in 5+2 axes Accessories: Load and Unload device Hydr. Chuck main spindle 169 mm dia Hydr. Chuck Subspindle 169 mm dia Tool setter Weight: 5000 kg

new corpus turning up machine - fixed elements Brand: Formetal Type: RT.90F technical data: - fixed elements Transport input length 2.500 mm Transport output length 1.000 mm Transport width 600 mm Working height infeed conveyor 700 mm working height outfeed conveyor 250 mm Transport speed 10 - 25 m/min. (with inverter control) Different speed for load and unload max. weight 100 kg - corpus turning up machine RT.90F without electric equipment OPTIONAL: - Safety light barrier (infeed and outfeed) - electric box with SIEMENS PLC S71200 - Safety fence

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

weight of the machine ca.:18 t centre distance:700 mm max. swing diameter:200 mm Lathe with 4 tools only for 3-cylinder crank shaft

The machine could also be used as a transport belt conveyor. Transport input length 2.000 mm Transport output length 1.000 mm Transport width 600 mm Working height 500 - 700 mm Transport speed 7 - 35 m/min.

propulsion: 0,75 kw motor wihtout brake 1380 r/min description: with pusher and modular belt availability: immediatelly Installation dimension: 1405 x 1120 x 200 mm Usable width: 500 mm transport size: 1550 x 1200 x 1300 mm weight (m) [kg]: ca. 250 kg Besides buying and selling of conveyors and machines our strength lies particularly in services and project planning, as for example in rebuilding and adapting of your installation as well as in overhaul and relocation of machines. You have a first idea or even a concrete plan? It does not matter how far your project is, we support you in every phase! Or do you want to sell or market your machine? We also buy machines or provide you with a marketing concept. Ask for your individual offer or visit us in Knetzgau. Concerning bigger projects we can of course also visit you in your company to do an on-si ...

turning diameter:200 mm turning height:120 mm weight of the machine ca.:18 t Available from 01.08.2024

with UniRobot FMB Control: SIEMENS 828D Circulation over bed: Ø 540 mm Circulation via face slide: Ø 360 mm Spindle – tailstock: 680 mm Max. turning diameter: Ø 310 mm Max. part length: 520 mm Max. bar diameter: Ø 65 mm Travel distances: X= 210, Z= 610 mm Max. chuck size: Ø 254 mm Main spindle: 15/18 kW (100%, 60% ED) Speed range: 60 – 4200 rpm infinitely variable Max. torque: 192 NM C-axis Rapid Traverse: 1000 rpm TOOL TURRET 12 stations all powered Recording: VDI 30 Speed range: 0-5000 rpm Max. drive power: 5 kW Max. torque: 20 Nm Automatic tailstock, hydraulic Travel: 500 mm Inner cone: MK 4 Robot Cell FMB MH5L-XP With robot Yaskawa Motoman MH 5 L Max. load capacity: 5 kg Max. working radius: 895 mm Weight: 27 kg Workspace: S-axis (rotation): -170° ~ +170° L-axis (forearm): -65° ~ +150° U-axis (upper arm): -138° ~ +255° R-axis (ha ...

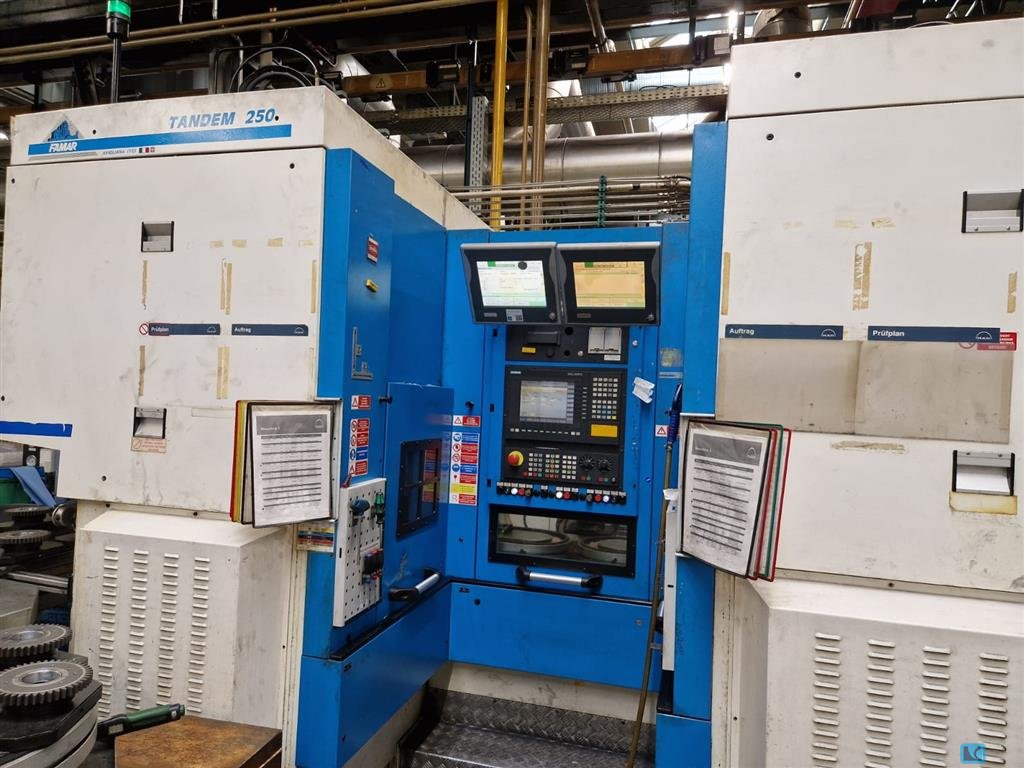

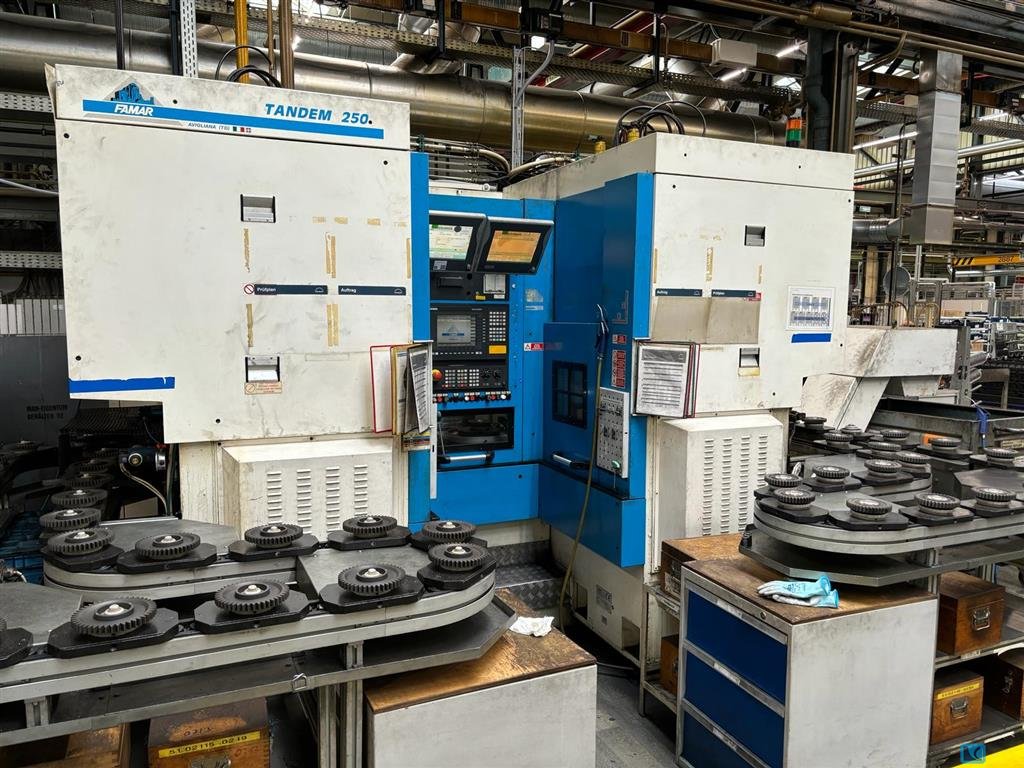

turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!

turning diameter:250 mm swing diameter:260 mm Available from October 10, 2025 The system consists of two individual systems that are linked together. No driven tools!

turning diameter:150 mm

weight max. in kg:3000 kg weight:330 kg Dimensions (L/W/H):800x320x430 mm

weight max.:ca. 30 t gear diameter:320 mm weight of the machine ca.:3 x 950 kg dimensions of the machine ca.:3 x 2020 x 870 x 1100 mm

GENERAL Project No.: 905722 Quantity: 1 pcs. Manufacturer: MORI SEIKI Type: SL 2500 Y/650 Control: MSG-805 L MAPPS Year of Make: 2003 Condition: Used machine DESCRIPTION TURN Max. turning diameter 356 mm Max. turning length 655 mm Max. circumferential diameter over bed 520 mm Max. rotation diameter over face slide 250 mm Max. circumferential diameter over bed cover 755 mm Max. speed main spindle 4500 1/min Max. power main spindle at ED 10-40/100% 18 kW Spindle passage main spindle 75 mm Spindle Flange Size Main Spindle A2-8 Axes on the main spindle unit C Hollow clamping cylinder on the main spindle Tailstock NC-controlled 1 turret on top Number of stations/powered by 12/12 Speed tool drive 6000 1/min Axles in the turret X/Y/Z Travel in X/Y/Z 160/120/590 mm Max. rapid traverse speed in X/Y/Z 18/-/24 m/min OTHER EQUIPMENT Tool life monitoring Spla ...

BIGLIA B658 CNC turning center was built in 2008 in Italy by OFFICINE E. BIGLIA & C. S.p.A. The machine, designed for precision machining of workpieces with a maximum diameter of 380 mm, has, among others, a 12-position turret, a reliable spindle and an automatic tailstock. All process parameters, in turn, are programmed in an intuitive FANUC CNC control with many useful functions that facilitate the daily operation of the machine. The BIGLIA B 658 CNC lathe weighs 6000 kg. Technical specifications of the BIGLIA B658 lathe - maximum turning diameter: 380 mm - maximum bar diameter: 80 mm - maximum passage: 620 mm - maximum turning length: 650 mm - feed in the X/Z/B axis: 220/650/660 mm - rapid traverse in the X/Z/B axis: 20/24/12 m/min - spindle rotational speed: 30-3000 rpm - spindle bore diameter: 90 mm - spindle centre height: 1055 mm - front bearing inner diameter: 130 mm ...

BIGLIA B658/B CNC turning center was built in 2009 in Italy by OFFICINE E. BIGLIA & C. S.p.A. The machine, designed for machining workpieces with a maximum diameter of 380 mm, offers excellent precision and repeatability of the produced parts. The machining process is performed inside a large workspace which includes, among others, a powerful spindle, a 12-position turret and an automatic tailstock. All parameters are, in turn, entered in an intuitive FANUC CNC control with many useful functions. The BIGLIA B 658/B CNC lathe weighs 5700 kg. Technical specifications of the BIGLIA B658/B lathe - CNC controller: FANUC Series 21i-TB - maximum turning diameter: 380 mm - maximum bar diameter: 80 mm - maximum passage: 620 mm - maximum turning length: 650 mm - feed in the X/Z/B axis: 220/650/660 mm - rapid traverse in the X/Z/B axis: 20/24/12 m/min - spindle rotational speed: 30-3000  ...

Key data: 2000 mm, 2400 mm, 1500 mm

Stock number: 3988 CNC CAROUSEL LATHE Manufacturer: ALEX TECH VIPER, Type: VTL 20/24 M Machines NO.: 7640901011, Year of manufacture: 2008 Specifications: Face plate diameter 2000 mm Large turning diameter 2400 mm Face plate speeds ( ) 1-73 / 1-200 2 step rpm Large workpiece height 1500 mm Gr. face plate load 20000 kg X- Movement 1800 mm Y- Movement ( Cross Beam ) 800 mm - 5 Sep each 200 mm Z- Movement 1000 mm C-Axis 0.001 degree Ram size 230 x 230 Power 11/15 Driven tool revolutions 30-2000 rpm Tool Changer 18 (9 Turning 9 Milling ) ISO 50 Stations Main motor 45 Voltage 400 volts Einständer. CNC Control: Fanuc Oi-TD Spindle Hours 10453 Accessories: Chip conveyance. New 2025 Cooling water system. Various accessories. Cooling in the Spindle Delivery time August 2025  ...

STAR ECAS 32T CNC lathe was built in 2005 in Japan by STAR MICRONICS CO., LTD. The machine, designed for the precise machining of complex workpieces, is used in many industries, such as automotive and aerospace. Its extensive machining capabilities facilitate complex machining processes, such as turning, drilling and threading, both on the front and back of the workpiece. Compared to other lathes available on the market, the offered STAR ECAS-32T swiss-type lathe stands out with the use of 11 axes, two 10-position turrets and two spindles (main spindle and sub-spindle). The extremely rigid design, in turn, provides the incredible process stability which is necessary to achieve excellent precision and quality of the produced parts. All this is complemented by intelligent CNC control, in which even the most advanced work programs are created in just a few steps. The STAR MICRONICS ECAS  ...

STAR ECAS 32T CNC lathe was built in 2007 in Japan by STAR MICRONICS CO.,LTD. The machine, which combines high performance and precision, has been designed to improve the machining of even the most complex workpieces. Its extensive machining capabilities facilitate complex machining processes such as turning, drilling and threading, both on the front and back of the workpiece. This makes the STAR MICRONICS ECAS 32T CNC lathe indispensable in many industries, such as the automotive and aerospace. The STAR ECAS-32T swiss-type lathe is equipped with, among others, 11 axes, two spindles (main spindle and sub-spindle) and capacious turrets that can accommodate many tools for any type of machining. The maximally rigid design additionally ensures incredible process stability, which is essential to achieve excellent precision and quality of the produced parts. The total weight of the machine  ...

CITIZEN CINCOM M32 CNC lathe was built in 2003 in Japan by CITIZEN WATCH CO., LTD. The machine, which is a combination of high performance and precision, enables to perform even the most complex machining of workpieces in 8 axes. All machining processes, i.e. precise drilling, threading and turning are performed inside a fully illuminated work area by means of cutting tools taken from 3 tool stations. The high thermal stability bed inside effectively reduces the influence of heat, increasing the service life of all components and tools. The CITIZEN CINCOM M-32 CNC lathe is offered with an extensive range of equipment, which includes, among others, two spindles (main spindle and sub-spindle) and an FMB bar feeder. All this is complemented by an intelligent CNC control, which allows, for example, self-diagnosis of the machine or program backup. The CITIZEN M32 swiss-type lathe weighs 32 ...

Turning diameter 350 mm Turning lenght 550 mm Spindle speed 5000 rpm Bar work diameter 65 mm Controller MAZATROL smart

Max. workpiece diameter 400 mm Max. workpiece length 800 mm Max. bar capacity diameter 80 mm Max. X-axis stroke276 mm Max. Z-axis stroke 755 mm Controller Siemens Spindle speed 4000 rpm With C axis

With C and Y axis Max. workpiece diameter 366 mm Max. workpiece length 708 mm Max. bar capacity diameter 105 mm Max. X-axis stroke 260 mm Max. Y-axis stroke 120 mm Max. Z-axis stroke 795 mm Controller Siemens

Bar diameter 26 mm 12 live tools Turning lenght 180 mm Controller FANUC 16i-TB Spindle speed 12.000 rpm With barfeeder

7 axes Max. spindle passage: Ø 16 mm Max. headstock stroke: 205 mm MAIN SPINDLE Spindle speed: 10000 1/min Spindle drive power: 3.7 kW Minimum C-axis resolution : 0.001 [degrees] SUB-SPINDLE - Max. rod end Ø: 16 mm - Spindle speed : 9000 1/min - Minimum resolution C-axis : 0.001 [degrees] TOOLS 5x Turning tool holder on linear slide 4x drilling unit incl. drilling holders (front/rear) 3x driven tools for transverse machining on linear slides 4x tools incl. drill holders for reverse side machining Driven Tools Speed : 7500 1/min Conveyor Bar Feeder FMB minimag 18/3200

Control: OSP-P 300S-H Travel: X-axis: 695 mm Y-axis with stroke: +150/ -150 = 300 mm Z-axis: 1,600 mm B-axis: 240°, positioning in 0.001° C-axis: 360°, positioning in 0.001° W-axis: 1,524 mm Turning diameter: 650 mm Turning length: 1,500 mm Mount: HSK 63 Total tool positions: 40 Accessories: XA and YA axis with direct absolute measuring system (Okuma ABSO-Scale) In-Process Measuring with Renishaw X/Z Axis Probes Measurement in Y-axis incl. measurement in oblique axis mode KitagawaB215A11 max. 2,800 rpm KitagawaB210A8 max. 4,200 rpm Hollow Clamping Cylinder Kitagawa F 2596-H01 Ø96 mm One-Touch IGF Software Multi-Tool Harmonic speed oscillation Software package simultaneous 5-axis machining Conveyor Coolant tank with high-pressure pump 70bar

CNC Model: Fanuc - CNC Version: 18i - TB - Main Spindle Nose: ASA 8 - Main Spindle Power: 26Kw Main spindle bar passage: 81mm - Turning diameter: 300mm - Turning length: 350mm - Main spindle speed: 3500 Number of tool turrets: 2 Number of tool positions for the first turret: 12 Number of Motorized First Turret: 12 First turret X-axis travel: 255mm Y-axis travel first turret: +- 60mm First turret Z-axis travel: 800mm Number of second turret tool positions: 12 Number of motorized second turret: 12 Second turret X-axis travel: 190mm Second turret Z-axis travel: 900mm Fast feeds for linear axes X Y Z: 24m/min Sub-spindle: yes Spindle nose: ASA 8 Number of counter-spindle speeds: 3500 Counter spindle power: 26Kw Bar Passage: 81mm Z stroke sub-spindle : 810mm Chip conveyor: belt Presetting: yes Machine equipment: Machine supplied wit ...

CNC Model: Fanuc Main spindle power: 3.7Kw Main spindle bar passage: 20mm Headstock Stroke (Z1): 210mm Number of main spindle speeds: 8000 Number of linear axes: 6 Number of fixed tool slots for tool plate: 7 Number of live tool slots for tool plate: 3 Fast feeds linear axes X Y Z: 20m/min Sub-spindle: yes Number of counter-spindle speeds: 7000 Bar Passage: 20mm Counter-spindle motorized face tools: 4 Number of motorized rear tools: 8 Refrigerant used: neat oil Model and brand bar loader: Iemca Boss 432 :::D DIMENSIONS AND WEIGHT::: Length: 2150mm Width: 1450mm Height: 1825mm Weight: 2800Kg

Key data: 400 mm, 800 mm

Machine Details Stock-No. 1105-03588 Type of machine CNC Lathe - Inclined Bed Type Make HAAS Type DS 30 Y Year of manufacture 2018 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Delivery time short-term Freight basis ex works Technical details turning diameter 762 mm turning length 800 mm control Haas Chucking diameter 254 mm Hollow 76 mm swing diameter 762 mm turning speeds 3400 rpm output 407 Nm Power 22 KW Tool changer 12 VDI 40 transmission ratio 2 weight of the machine approx. 7.3 T t dimensions of the machine approx. 3.3 X 2 X 1.9 H m Additional information with manual guide (HAAS control) WIT C AXIS AND Y AXIS +LIVE TOOLS CHIP CONVOYER SUP SPINDLE

MAZAK QUICK TURN NEXUS 100MS CNC lathe was built in 2005 in Japan by YAMAZAKI MAZAK CORP. The machine, designed for precision machining of workpieces with a maximum diameter of 280 mm, is distinguished by the use of reliable components with excellent technical parameters, such as two spindles (main spindle and sub-spindle) and a 12-position turret. The machining process is performed inside a large, fully illuminated workspace by means of a powerful spindle with an integrated motor design that minimises vibrations at high speeds. This is all complemented by an intelligent CNC control that simplifies daily work by allowing even the most advanced machining programmes to be created in just a few steps. The MAZAK QTN-100MS CNC turning center weighs 4100 kg. Technical specifications of the MAZAK QUICK TURN NEXUS 100MS metal lathe - CNC control: MAZATROL 640T NEXUS - maximum turning diamet ...

KOVOSVIT MAS S80i CNC turning center was built by KOVOSVIT MAS a.s. in the Czech Republic. This extremely powerful machine is used for precision hole drilling, threading and turning of cylindrical, conical and spherical surfaces. The offer also includes a wide range of equipment in the form of components from renowned brands, which guarantee excellent repeatability of the manufactured parts over many years of intensive operation. These include, among others, a new tool measuring probe, a hydraulic tailstock and a HEIDENHAIN intelligent CNC control. All this makes the S80i CNC CNC lathe the perfect choice for both unit and small batch production. The total weight of the machine is 6700 kg. Technical specifications of the KOVOSVIT MAS S80i universal lathe - maximum turning diameter above the bed: 680 mm - maximum turning diameter over the slide: 430 mm - maximum bar diameter: 80 mm  ...

Max Turning diameter 480 mm Max Turning lenght 790 mm Main spindle speed 2800 rpm Sub spindle speed 4500 rpm Main spindle power 22 kw With 4 pieces life tool

Star SR 32 J III Type B Year of Make: 2022 Machine is not yet for sale, but you are welcome to send us your offer today.

Key data: 1000 mm, 3000 mm

achine details Stock-No. 1105-04069 Type of machine CNC Turning- and Milling Center Make DOOSAN DAEWOO Type PUMA 700 LM b Year of manufacture 2006 Type of control CNC Storage location FRANCE Country of origin KORREA Delivery time IMMEDIATELY Freight basis EX WORK Price Technical details turning diameter 900 mm turning length 3050 mm control FANUC 21 i TB swing dia. 1030 mm Standard Turning Diameter 750 mm Bar Material Dia. 165 mm Spindle bore 110 mm Travel -X Axis 471 mm Travel -Z AXIS 2100 mm Rapid Travel - Longitudinal/Face 15/ 20 m/min Spindle RPM 3000 1/min spindle drive 45 kW turret stations / rotary tool stations 12 / 6 BMT 85 speed of driven tools 3000 1/min total power requirement 62.2 kVA Weight of the machine approx. 22.2 t dimensions of the machine approx. 6.1 x 2.2 x 2.2 m Accessories Chip conveyor YES Parts and total counter Tool holders  ...

Lathe chisel PAGUS 315 x 40 x 40 mm ( 315x40x40mm) length hardened area: 70 mm tip length: 55 mm depth tip: 15 mm New ! Dimensions: 315 x 40 x 40 mm

Inv. Num. : 8139 Type: QTN-200M Producer: MAZAK Created: 2005 Parameters: Control system: Mazatrol Fusion 640 T Nexus Maximum turning length: 538 mm Maximum turning diameter: 210 mm Maximum Spindle Speed: 35-5000 1/min Tool magazine: 12 pieces Maximum length of travel in the X-axis: 230 mm Maximum feed in the Z-axis: 575 mm Number of axes: 3 pieces Chuck Size: 8 (Kitagawa BB208) Power consumption: 37 kW Length: 2485 mm Width: 1780 mm Height: 1840 mm Weight: 4380 kg

Key data: 350 mm, 1250 mm, 2500 1/min

Stock number: 3954 CNC LATHE Manufacturer: Dainichi, Type: F35 - 1250 Machines NO.: 24350 , Year of manufacture: 1990 Specifications: Max. circumferential diameter 350 mm dia. Max. turn. About Bed 550 mm Dia. Turning length 1250 mm Turning over planing slides 400 mm dia. Main motor power 22 kw Main spindle speed range 25-2500 rpm Spindle bore 90 mm dia. Tool turret with 12 stations Accessories: Hydr. Chuck main spindle mm dia Various tool holders. Chip conveyance. Length: 3750 mm, Height: 1800 mm, Width: 1700 mm, Weight: 6500 kg

CNC controller: Mitsubishi M-720BM (MAPPS 2) Capacity X-axis travel mm: 260 Z-axis travel mm: 590 Turning length mm: 510 Max. turning diameter mm: ø: Ø356 Upper turret Tool holder: 12 Main spindle Speed spindle rpm: 5000 Drive power spindle kW: 15/11 Spindle bore mm: 73 Manufacturer: KITAGAWA Equipment Chip conveyor Signal lamp Tool measuring arm High pressure pump Workarea light 4th axis Interface for Bar feeder Rated power kVA Working time hours Under power: 7456 Spnidle: 5423 Basic machine dimensions / weight Length mm: 3495 Width mm: 2050 Height mm: 2230 Weight kg: 5800

2001 & 2002 HYUNDAI HIT 15 2X HYUNDAI HIT 15 turning machines equipped with QUICK LOAD portal and two stockers (loading and unloading) Both machines are currently working. Ordinary maintenance can be proved by invoices. Turning machine G1 Hyundai HIT-15 (single spindle with tailstock, no axis C) Year of manufacture: 2001 Turning machine G2 Hyundai HIT-15 (single spindle with tailstock, no axis C) Year of manufacture: 2002 Quick Load portal Year: 2003 Find more here - / Contact us at -

- Manufacturer: DMG MORI - Model: CLX 450 - Type of machine: Horizontal Turning Machine - Year: 2020 - Max Spindle Speed: 4000 RPM - Weight: 6400 kg - Power Requirements: - Power: 39 kVA - Max Current: 56 A - Max Voltage: 440 V ±10% - Frequency: 50/60 Hz - AC Voltage: 400 V - DC Voltage: 24 V Including the following equipment: - 13 rotary tool holders (coolant through, 5 radial and 8 face) by ALGRA/MT Marchetti - more than 20 steady tool holders for turning and boring tools by ALGRA - 4 bolted tool holders by SAUTER/ALGRA - a mechanically operated bar puller toolholder by KINTEK - a live center - balanced pressure clamping (able to grip thin walled parts) - sets plastic drawtubes for bar working in different diametrers - more than 50 sets of soft machined jaws - 5 sets of hard jaws for different range of diameters and inside/outside clamping by SMW - SMW special ring for soft jaw turn ...

Key data: 1350 mm, 11000 mm

CNC Lathe Make Swift CNC Fanuc 21i-MB Inspection Under Power Year 1978 Between centers .. 11,000 mm Swing over Bed .. 1,350 mm Swing over Carriage .. 1,000 mm Chuck dia .. 1 ,200 mm Max. Workpiece weight …….. 20 ton Motor power ………………………… 40 kW RPM …………………………………………….150 c/w 2 steadies

:::TECHNICAL SPECIFICATIONS::: CNC Model: Fanuc - CNC Version: 18-T - Spindle Nose: ASA 6 - Spindle Power: 18.5Kw - Turning Diameter: 310mm Turning length: 200mm - Main spindle speed: 3500 - Sub spindle speed: 3500 Number of tool positions for the first turret: 12 Number of fixed tool positions for the first turret: 12 Number of second turret tool positions: 12 Number of fixed tool positions for the second turret: 12 :::D DIMENSIONS AND WEIGHT::: Length: 2800mm Width: 2240mm Weight: 7000Kg

:::TECHNICAL SPECIFICATIONS::: CNC model: Fanuc - CNC version: 21 TB - Spindle nose: ASA 6 - Spindle power: 11Kw - Turning diameter: 240mm Self-centering diameter: 160mm - Turning length: 130mm - Main spindle speed: 4000 - Sub spindle speed: 4000 Number of tool positions for the first turret: 10 Number of second turret tool positions: 10 Fast feeds for linear axes X Y Z: 24m/min Gantry loader: yes Chip conveyor: belt

Key data: 275 mm, 4000 1/min

Mori Seiki NL 2500 SY / 1250 CNC lathe with Y-axis, driven tools and 2nd spindle CNC control MSX-850-lll (mitsubishi 720 BM) Turning diameter 275 /366 mm Spindle bore diameter 80 mm Spindle speed 4000 rpm Spindle motor 18.5/15 Kw X-axis travel 260 mm Y-axis travel +50 / -50 mm Travel Z-axis: 1345 mm Travel of the W-axis (sub-spindle to main spindle) 1275 mm Min. indexing C-axis main spindle 0.001° Number of tools on the turret 12x Number of driven tools 12 x Tool cone BMT Bar Feeder LNS Quick Load Servo lll Spindle-motor-driven tools 6000 U/ If you have any questions about the machine, as well as an appointment for a viewing, please contact us by phone or e-mail. Feel free to check out our other ads for a full overview of our stock.

Control Siemens Sinumerik 840D Bar passage 65 mm Speeds 5,000 min-1 2 x 12-speed revolver with attached revolver Competition. Turret 1 with Y-axis Parts collection facility Belt filter system Conveyor Bar loading magazine IRCO Profimat

Tsugami BU20 Swiss-type lathe :::TECHNICAL SPECIFICATIONS::: CNC Model: Fanuc CNC Version: 16i - TB Main spindle power: 3.7Kw Main spindle bar passage: 20mm Headstock Stroke (Z1): 170mm Number of main spindle speeds: 8000 Number of linear axes: 7 Number of fixed tool slots for tool plate: 4 Number of live tool slots for tool plate: 3 Sub-spindle: yes Number of counter-spindle revolutions: 8000 Bar Passage: 20mm Number of fixed rear tools: 6 + 6 Refrigerant used: neat oil Chip conveyor: belt Machine equipment: the machine is supplied without bar loader :::D DIMENSIONS AND WEIGHT::: Length: 2712mm Width: 1401mm Height: 1728mm Weight: 3500Kg

Inv. Num. : 8196 Type: SRM 125 CNC Producer: ŠKODA Created: 1974, GO 2010 Parameters: Control system: Heidenhain Manual Plus 4110 Maximum turning length: 3000 mm Maximum turning diameter over bed: 1250 mm Maximum turning diameter over support: 900 mm Maximum workpiece weight: 14000 kg Length: 8000 mm Width: 3000 mm Height: 2100 mm Weight: 16350 t Equipment: Fixed bezel Technical documentation Front panel Cutter head Universal chuck

CNC Lathe REALMECA type T400 Travel X: 200 mm Travel Z: 600 mm Numerical Command: NUM 750 Between points distance: 700 mm Max machining diameter: Ø 210 mm Spindle speed: from 100 to 4000 RPM 12 tools Turret VDI 20 3-jaws chuck Ø 140 mm Year of construction: 1993 Spindle motor: FANUC Tailstock: CM4 Hydraulic Tailstock + Chuck Lubrification Voltage: 380 V Dimensions (L x W x H): 2500 x 1500 x 1700 mm Weight: approx 3 T

Inv. Num. : 8203 Type: ALPHA 2800 XS Producer: Harrison Created: 2011 Parameters: Control system: FANUC Maximum turning length: 2000 mm Maximum turning diameter over bed: 800 mm Maximum turning diameter over support: 710 mm Maximum spindle speed: 1400 1/min Spindle bore: 125 mm Weight: 7500 kg
