total power requirement:2,4 kW weight of the machine ca.:1150 kg dimensions of the machine ca.:1550 x 1615 x 1630 mm table clamping surface LxW:315 x 710 mm max. tool weight:200 kg T - slots distance:63 mm T - slots - width:12 mm taper bore:Spindel SK 40 spindle turning speed range:56 - 1800 U/min feed speeds:11,2 -355 mm/min Documents:vorhanden

x-travel:600 mm y-travel:400 mm z-travel:380 mm total power requirement:6 kW weight of the machine ca.:1700 t dimensions of the machine ca.:1800 x 2130 x 1980 mm Table dimensions:400 x 800 mm T-slots:7 St.,14 x50 table load:300 kg spindle:SK40 turning speed range:63-250 U/min speed steps work spindle:18 spindle speeds::50- 2500 n/min feeds:10-500 mn/min Documents:vorhanden

x-travel:500 mm y-travel:400 mm z-travel:340 mm work table::800 x 400 mm control:Numerik CNC - H 646 spindle turning speed - stepless:20 - 3000 U/min total power requirement:14 kW weight of the machine ca.:2400 kg dimensions of the machine ca.:2100 x 1800 x 2400 mm

x-travel:600 mm y-travel:500 mm z-travel:400 mm spindle diameter:90 mm spindle turning speed range:45 - 2000 U/min table length:1250 mm table width:200 mm groove width:14 mm table rotating:45 ° total power requirement:4,2 kW weight of the machine ca.:2000 kg dimensions of the machine ca.:2000 x 1800 x 1550 mm Year:ca.1957 Documents:vorhanden

spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply

x-travel:2500 mm y-travel:935 mm z-travel:1000 mm table surface area:I 1615 x 800 mm table surface area:II 800 x 800 mm spindle taper ISO:50 milling head speed:60 - 3000 U/min feed speeds:1 - 3000 mm/min rapid speed:10 m/min total power requirement:45 kW weight of the machine ca.:18,5 t dimensions of the machine ca.:5 x 5 x 4 m with CNC HEIDENHAIN TNC 426 Universa Milling Head -C-axis automatic Horiz-Vertical - Intermediate angles manual table II 800 x 800 mm as B-axis ( rotary table ) coolant attachment diverse accessories

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment

x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head diverses accessories

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

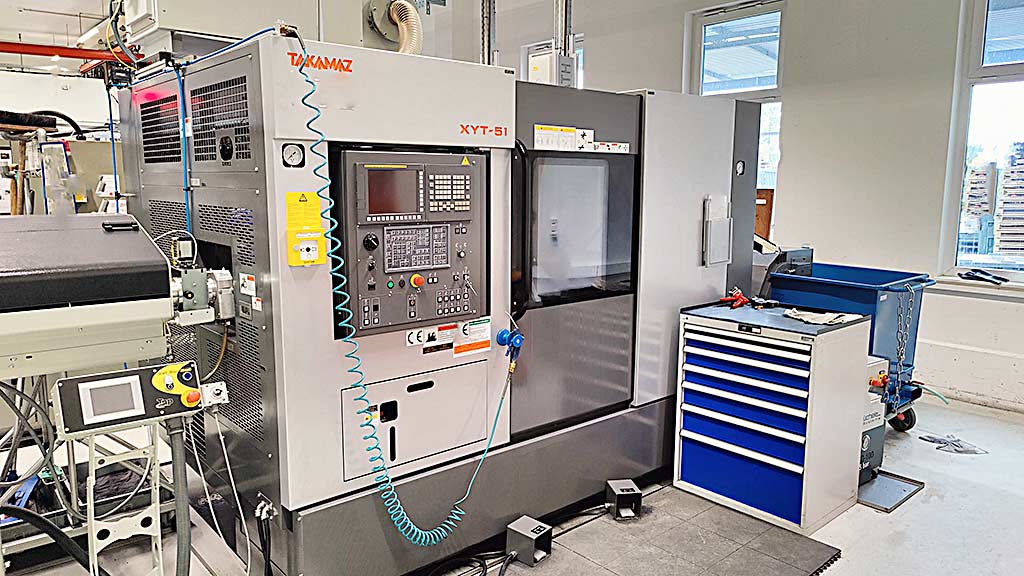

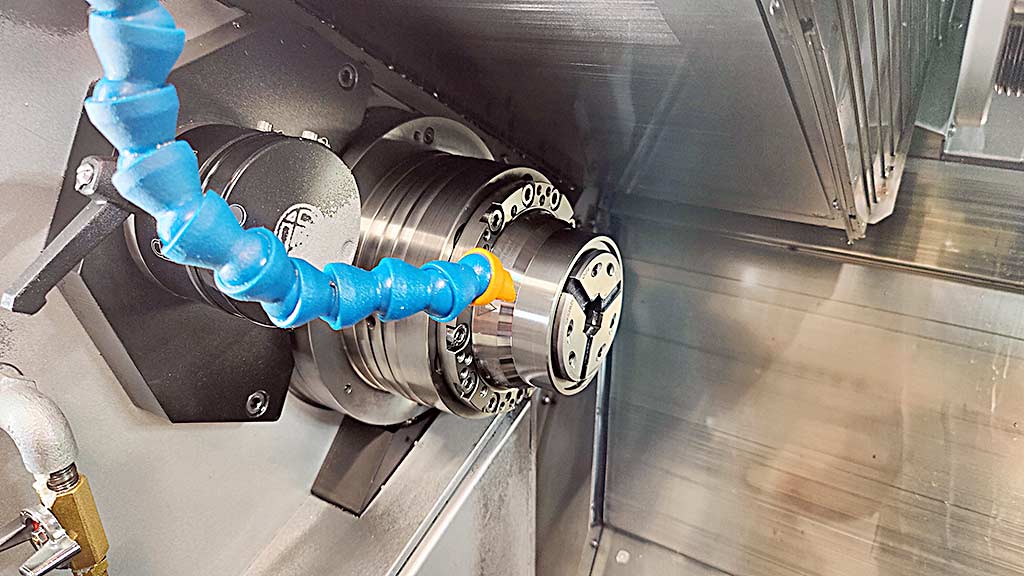

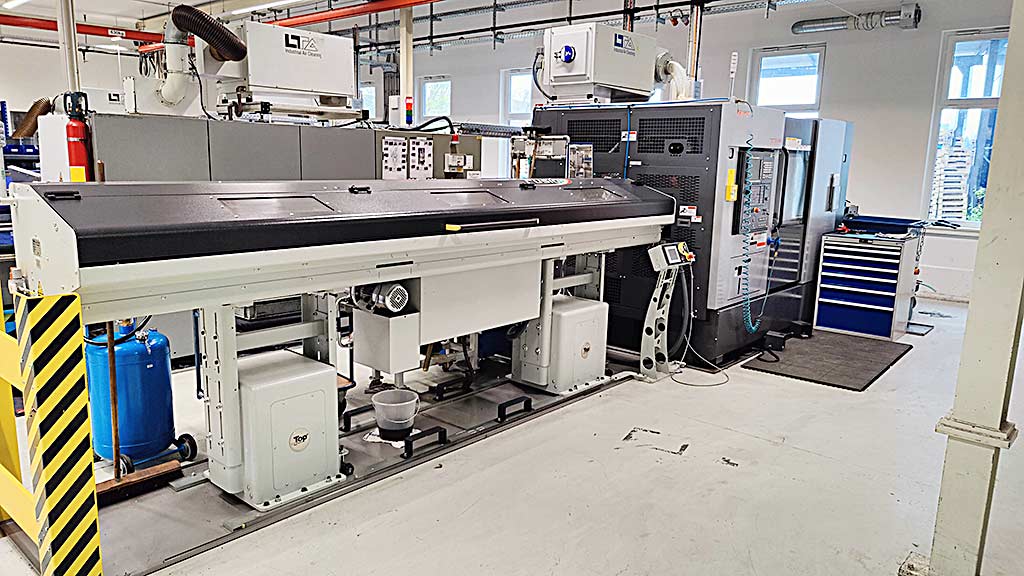

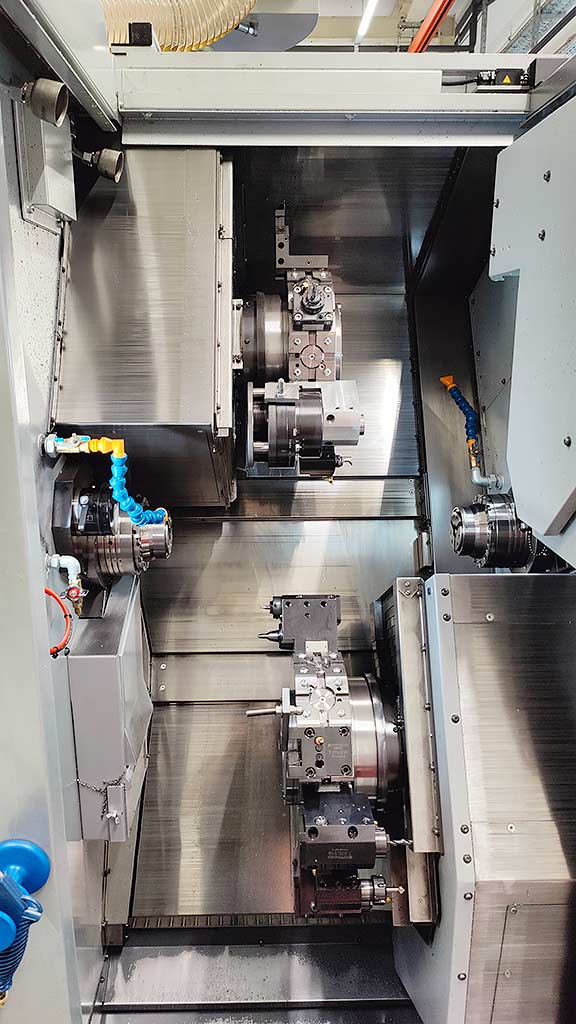

A Takamatsu CNC twin-spindle turning and milling center is available. 1) Turning diameter: 190mm, turning length: 150mm, max. one-sided machining length: 440mm, max. bar diameter main spindle/counter spindle: 51mm/42mm, spindle nose 1/2: A2-6/A2-5, spindle bearing 1/2: 100mm/85mm, main spindle bore 1/2: 52mm/43mm, spindle speed: 5000rpm, tool stations: 2×12, travel X1/X2: 162.5mm/170mm, travel Z1/Z2: 500mm/500mm, travel Y: +/-35mm, travel A: 550mm, machine dimensions X/Y/Z: approx. 3000mm/2250mm/2100mm, weight: approx. 7400kg, control: Fanuc 32i-B. 2) TOP Automazioni FU350SX bar feeder, max. bar capacity: 52mm, max. bar length: 3200mm, max. remnant length: 300mm, max. feed rate: 30m/min, max. bundle weight: 2000kg, machine dimensions X/Y/Z: approx. 4300mm/1400mm/1200mm, weight: approx. 1200kg. 3) LTA E 120-X-2-H filtration system, year of manufacture: 2022, filter stages: 2, extraction  ...

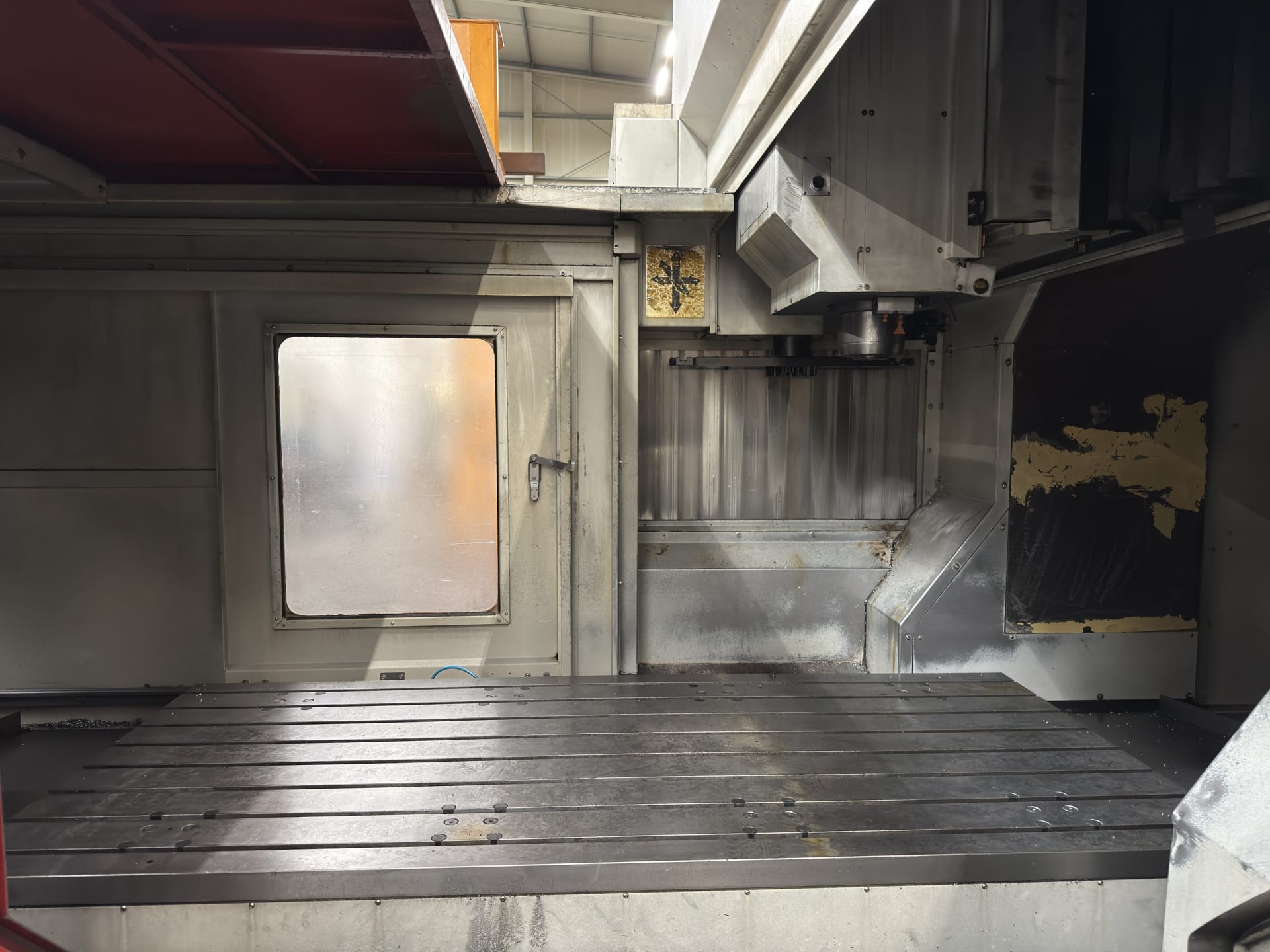

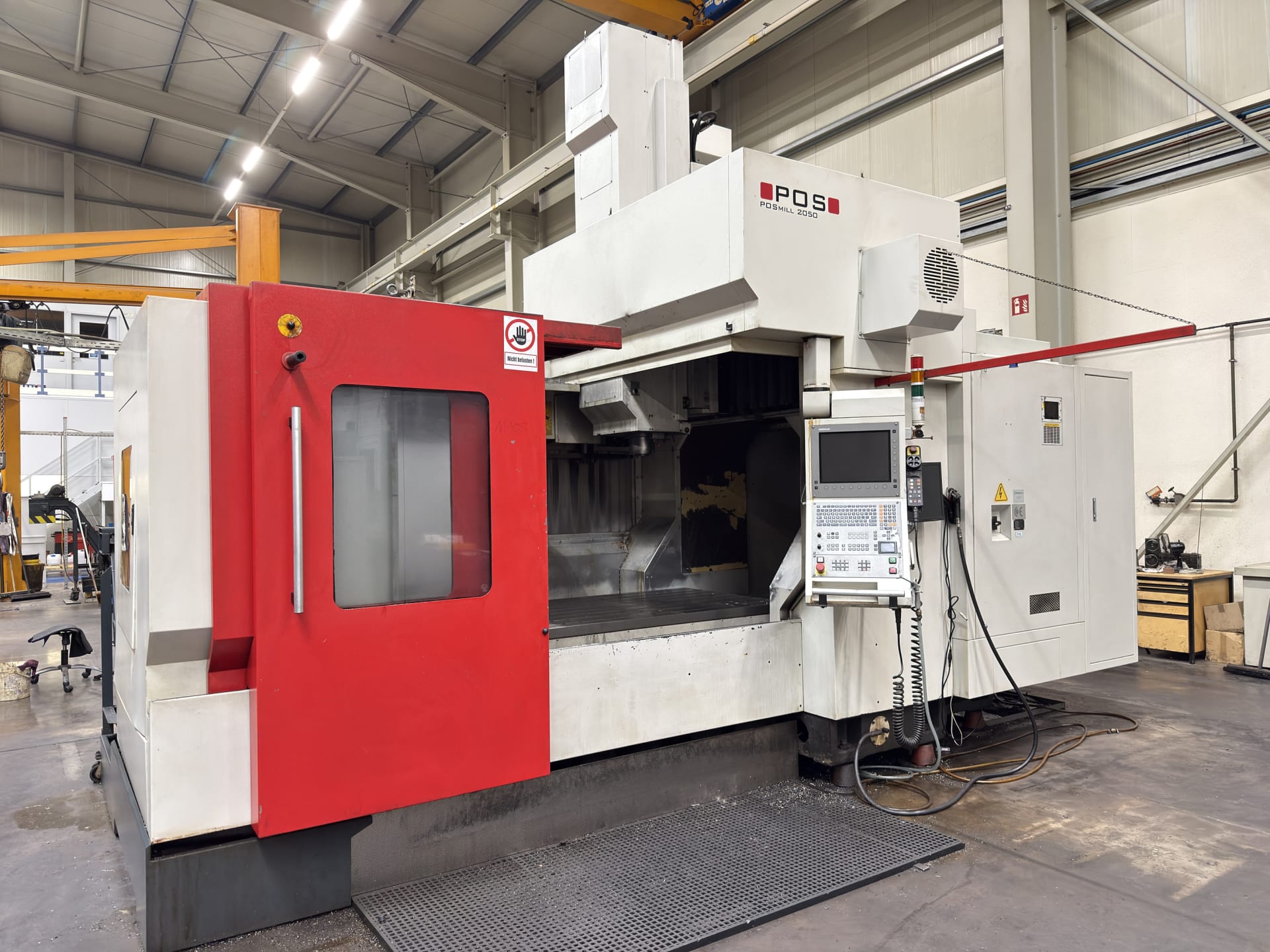

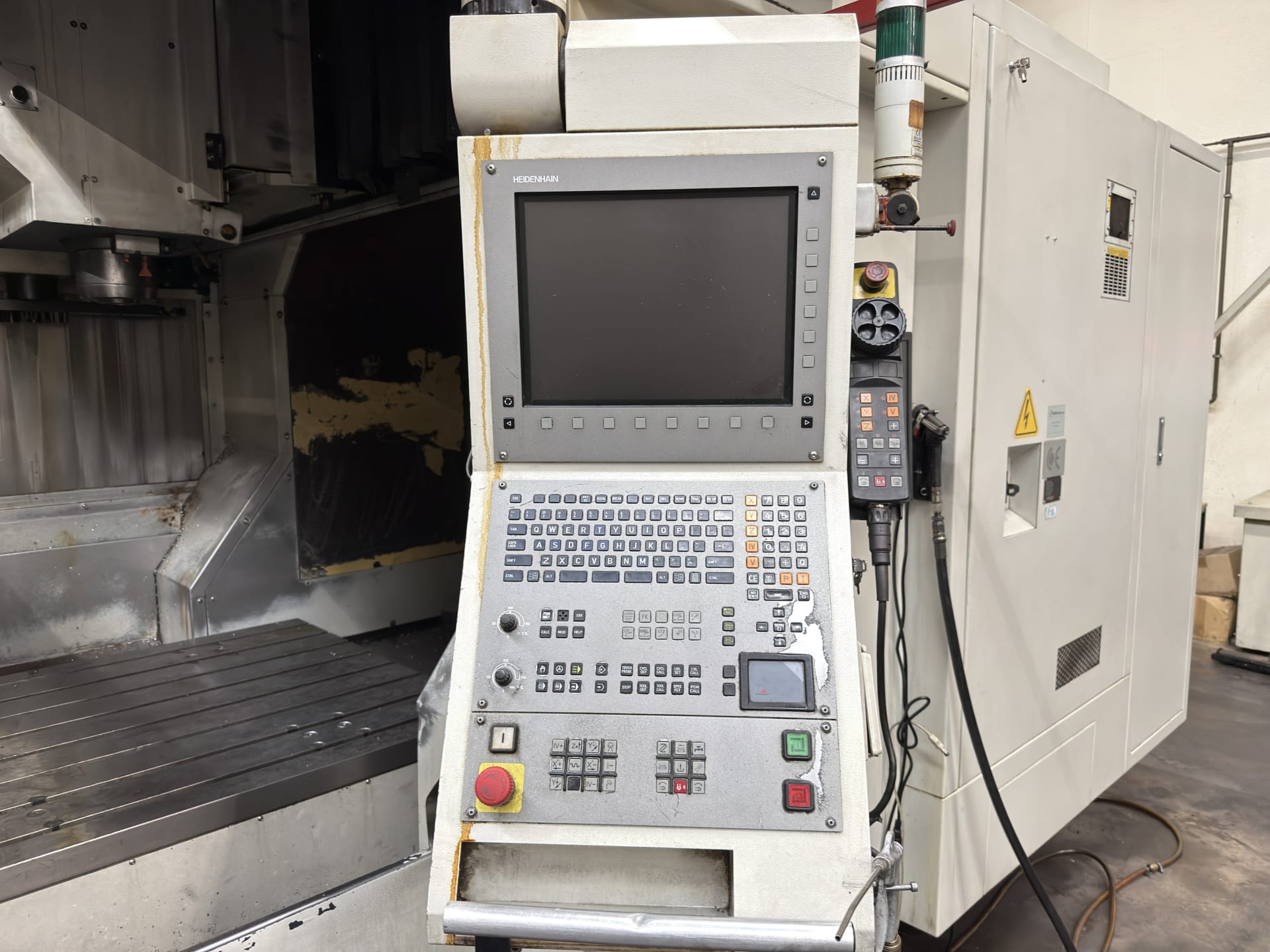

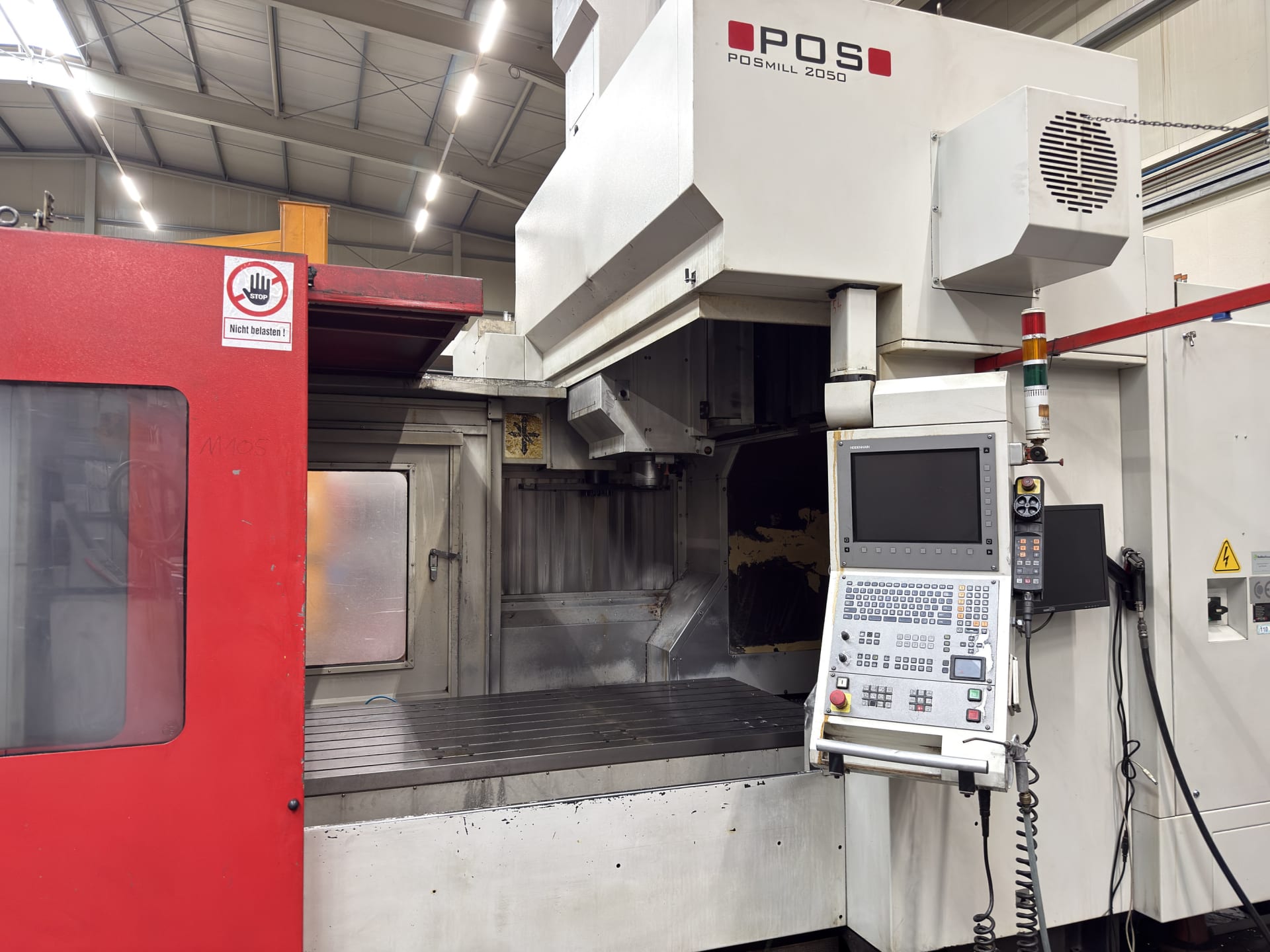

POS POSmill E 2050 Vertical Machining Center Technical Data: Manufacturer: POS Type: POSmill E 2050 Year of Manufacture: 2011 Machine No.: 20110407 Control System: Heidenhain iTNC 530 Working Area: Travel Path X-Axis: 2,050 mm Travel Path Y-Axis: 1,150 mm Travel Path Z-Axis: 700 mm Table Clamping Surface: 2,200 × 1,000 mm Main Spindle and Tool Changer: Spindle Speed: 10,000 rpm Tool Holder: HSK 63 Tool Changer: 40 positions Internal Coolant Supply: 20 bar Electrical Data and Weight: Rated Power: 38 kVA Operating Voltage: 400 V / 50 Hz Fuse Protection: 64 A Machine Weight: approx. 20,000

x-travel: 5000 mm y-travel: 1000 mm z-travel: 1400 mm tool taper: ISO 50 spindle turning speed - stepless: 18 - 4000 U/min spindle motor: 22 kW table surface area: 5000 x 1000 mm table load: 10,5 t Control: Heidenhain TNC 530 A-Axis: +177,5 / - 180 ° rapid traverse: 1 - 5000 mm/min distance spindle /table: 125 - 1525 mm total power requirement: 50 kVA weight of the machine ca.: 29 t dimensions of the machine ca.: 13,1 x 5,4 x 3,86 mm medium overhaul in 2023/24, the spindle head and the mechanical components of the machine were refurbished. 5-axis machine - CNC control Heidenhain TNC 530 - MILLING HEAD O - FSQ 4000/750 -- 4000 rpm -- single spindle head with automatically adjustable spindle In a vertical or horizontal position the head can swivel around the cross axis from +177,5° to –180° by 2,5°. Swiveling around cross axis and H/V positioning comes from a regulatory servodrive o ...

number of aggregates: 2 St. working width: 2000-3500 mm work height max.: 2450-3200 mm Wintech M9Cb Sealing Machine Automatic sealing system for wooden windows and doors with 2 processing units. For a detailed description, see the PDF document. ----------------------------------- Manufacturer’s technical description: M9Cb robotic sealing system The machine comprises a robust structure made from aluminium profiles, fitted with motorised conveyor belts on which the window units are transported. The silicone is distributed evenly into the joint by means of two automatically controlled nozzles. The electronic control system, which is in constant communication with the sensor, determines the movement of the guns and the operating parameters. Technical data: Standard Optional Max. window width 2000 mm 3500 mm Max. window height 2450 mm 3200 mm  ...

x-travel: 2.600 mm y-travel: 700 mm z-travel: 700 mm control: Celos 840 D SL Operate Siemens Main spindle:: turning speed range - main spindle: 20 - 20.000 min/-1 power capacity - main spindel: 35 / 25 kW Torque: 130 / 86 Nm tool taper: HSK-A63 b - axis: +-100 ° work table:: table surface area: 2.900 x 700 mm max. table load: 2.150 kg tool magazin:: number of toolpositions: 120 pos. tool taper: HSK-A63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool length: 300 mm max. tool weight: 6,0 kg feeds:: rapid traverse ( X / Y / Z ): 40 m/min feed speeds: max. 40.000 mm/min feed power: max. 8 kN total power requirement: 67 kVA weight of the machine ca.: 16,24 t dimensions of the machine ca.: 8,0 x 5,6 x 2,9 m Chip conveyor: Coolantsystem: 980 L high pressure coolant: 80 bar through spindle coolant: Rotary screen: 2x Signal-Light: paper band filter: test probe ...
