automatic lathe used for sale

TSUGAMI B0385L Swiss-Type CNC Sliding Headstock Lathe Year: 2014 Condition: Tooling included (as shown in photos) Specifications subject to buyer verification Machining Capacity • Max barstock diameter: 32 mm • Max machining length: 100 mm • Max main spindle drilling diameter: 13 mm • Max main spindle tapping: M12 • Max back spindle chucking diameter: 38 mm • Max back spindle drilling diameter: 12 mm • Max back spindle tapping: M12 • Max cross drilling diameter: 10 mm • Max cross tapping: M8 • Max tool spindle slotting cutter diameter: 45 mm Spindle Speeds • Main spindle speed: 200 – 6,000 RPM • Back spindle speed: 200 – 7,000 RPM • Tool spindle speed: 200 – 5,000 RPM Tooling & Axes • Total tool capacity (standard): 20 tools • Tool size: 20 × 20 × 125 mm • Controlled linear axes: 5-axis Ra ...

Code 93024 Description Chucking lathe Make Warner & Swaswy Model 0 - AC Serial No. 2083651 Year 1972 Swing over bed 200 mm Swing over gap 200 mm Swing over crossslide 200 mm Spindle bore --- mm Longitude: 140 mm Cross: 100 mm Chuck : 160 mm Bore: 20 mm Number of spindle speeds 32 Spindle speeds 58 - 2507 rpm Feeds Longitude and cross Motor power 5,5 kW – 380 Volts Accessoiries hydraulic 3 chuck coolant Condition Machine is in good condition.

turning diameter: 720 mm turning length: 2000 mm control: Siemens 805 greates pass round over bed: 720 mm bed width: 480 mm spindle diameter in front bearing: 150 mm spindle bore: 106 mm swing diameter over face slide: 430 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

number of spindles:8

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:4,5 t spindle drive motor:11 kW

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:8,6 t spindle drive motor:11 kW

CNC SPINNING LATHE MANUFACTURER: M+M MODEL: HF450TT/2S SERIAL NUMBER: 26-2453-00 YEAR: 2000 CONTROL MANUFACTURER AND MODEL: Tracktronic Z-AXIS CENTER HEIGHT: 419mm DISTANCE BETWEEN CENTERS: 1200mm Z -AXIS TOOLING ADAPTER: DIN 55027/ Size 15 Z-AXIS DRIVE POWER: 80kW Z -AXIS DRIVE ZF REDUCTION RATE: 1:4 Z-AXIS DRIVE SPEED: 0-1000 RPM step less variable X - SLIDE TRAVEL: 500mm X - SLIDE FORCE: 100kN X - SLIDE VELOCITY: 400mm/min Y - SLIDE TRAVEL: 275mm Y - SLIDE FORCE: 100kN Y - SLIDE VELOCITY: 400mm/min TAILSTOCK TRAVEL: 600mm TAILSTOCK CLAMPING FORCE: 80kN EJECTOR TRAVEL: 450mm COOLANT: yes POWER 3PHASE / 50-60 Hz / 200 - 500 Volts: 3PH/60Hz/480V existing SPECIAL FEATURES OR ADDITIONAL ITEMS: POWER RATING 204 HP (152 Kw), CONTROL VOLTAGE 110VOLT / 24 VOLT DC MACHINE WEIGHT: 22000 kg CONDITION: EXCELLENT - VERY LIMITED USE

SMT Lathe 80001350 The machine was designed and manufactured to produce rotor shafts for power tools. The machine is designed and manufactured to perform the following operations automatically. - Load/unload parts automatically from/to tool carrier line with a pick-up & placement unit between the shaft ends. - Rotate ring seat + flat rotate commutator + rotate commutator. - Ring mounting - Commutator side - Ring mounting - Drive wheel side The machine has several production programs to produce different parts. Each program uniquely corresponds to a wave type Specifications Anchor wavelength from up to 92.5 - 163.1 mm Bearing pin diameter commutator side 8; 10; 12.5 mm Drive side 12; 8 mm Min. Available length bearing position 3.6 mm Package diameter 52; 55; 59 mm Ring dimensions Outer diameter 40 - 57.4 mm Inner diameter 37.4 - 56 mm Ring width 4 - 8 mm R ...

Designation: Bar feeder Manufacturer: SAMECA Type: Quick Sam 45 Year of construction 1996 Condition: used, functional Delivery: ex site, including truck loading Operating instructions are available

spindle passage: 12 mm Control: Fanuc type: LB 2 bar loader: FMB total power requirement: kW weight of the machine ca.: 1,4 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

TRAUB Sonim TND 200 CNC Lathe YOM 1994 CNC Lathe – Inclined Bed Type TRAUB TX8F CNC control Turning diameter 350 mm Turning length 200 mm Total power requirement 20 kW Turning diameter over bed slide 200 mm X-axis 180 mm Z-axis 300 mm Spindle bore 42 mm Spindle motor 12 kW Spindle turning speed range 10 – 5000 rpm Feed speed X:155, Z:250 mm/min Rapid Travel Speed X-Axis 15 m/min Rapid Travel Speed Z-Axis 25 m/min Weight of the machine ca. 4 t Dimensions of the machine ca. 6.5 × 1.5 × 1.75 m 12-fold revolving head Traub Bar loader 3-fold power chuck Chip conveyer

Inv. Num. : 7877 Type: TH 4010 Producer: OPTIMUM Created: 2018 Parameters: Maximum turning length: 1000 mm Maximum turning diameter over bed: 410 mm Minimum spindle speed: 45 1/min Maximum spindle speed: 1800 1/min Cone: MK 3 Rotary spindle pass-through diameter: 52 mm Power consumption: 1.5/2.4 kW Length: 1920 mm Width: 740 mm Height: 1222 mm

turning diameter over bed: mm spindle passage: 23 mm turning length: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manufacturer: Microcut, Type: Fagor CNC 800T, Year: 2010, Control: Programm, Year :2010

Manufacturer: Scheppach, Type: DMT 8108, Peak width in mm: ca.1000 mm, Peak height in mm: ca.150, FREE TEXT: kw Leistung 0,75/6 Geschwindigkeiten 370/600/1000/1700/2700 ,

turning diameter over bed: 50 mm spindle passage: 26 mm turning length: 275 mm total power requirement: 12 kW weight of the machine ca.: 4500 kg CNC-Sliding Headstock Lathe, Opposite Headstock The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max stock diameter 20 mm Number of tool stations 30 Spindle speed 10.000 rpm Main Spindle Axes 4 Back Spindle Axes 4

Specification: Automatic plate

Inv. Num. : 8570 Type: SU 50 A/2000 Producer: TOS Generated: Parameters: Maximum turning length: 2000 mm Maximum turning diameter over bed: 500 mm Maximum turning diameter via support: 250 mm Weight: 3260 kg Equipment: Digital measurement

Inv. Num. : 8986 Type: DH-250/4 Producer: WMW Created: 1983 Parameters: Length: 3400 mm Width: 2100 mm Height: 1600 mm Weight: 4800 kg

Heavy-duty lathe, lathe, lathe, lead and tension spindle lathe, lead and tension spindle lathe, automatic lathe -Manufacturer: WMW, automatic lathe type DRT 50m -Turning length: 550 mm -Turning Ø over bed: 530 mm -Spindle bore: Ø 63 mm -Spindle speeds: 9 - 450 rpm -Three jaw chuck: Ø 200 mm -Turret: with accessories, see photos -Drive motor: 5.3 / 6.8 kW -Dimensions: 2420/1040 / H1460 mm -Weight: 2200 kg

Automatic straightener, shaft straightener , MAE -25RH, 1996, used Manufacturer: Maschinen- & Apparatebau Götzen GmbH, Germany Connected load: 14.5kva , Dim.: 2.5 x 1.5 x 1.8m, Weight : 5000kg

turning diameter over bed: Ø16 mm mm weight of the machine ca.: 2,3 t dimensions of the machine ca.: 2045 x 900 x 1685 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offered is a cam-controlled automatic lathe. Bar capacity: 29mm, speed range: max. 3750rpm, main drive: incrementally adjustable via change gears, number of tool slides: 4, control: cam control. Equipped with bar loading magazine, coolant device, tool turret, various tool holders, change gear set. Note: Sale is without extraction system. Weight: approx. 2200kg incl. magazine, overall dimensions X/Y/Z: approx. 5500mm/1300mm/1750mm. Inspection possible by arrangement.

three pcs. available

HEMPEL CKE semi-auto lathe 20 Long. max 2000 mm, max Ø 250 mm. Manual/auto controls, longitudinal carriage, 3-jaw chuck. Robust construction for wood or metal turning, suitable for prod. average. Reliable and versatile machine. Auction-ID: A1-47835-35

Key data: 700 mm, 7000 mm

Inv. Num. : 9290 Type: LHDS Producer: LIEBER Created: 1992 Parameters: Maximum turning length: 7000 mm Maximum turning diameter over bed: 700 mm Lathe chuck diameter: 400 mm Equipment: 3x self-centering bezel Milling head Support Tip Tool Holder

number of spindles:6 spindle passage:22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. The complete energy supply of all 6 main spindles was replaced in April 25. No socket for powered tools!

number of spindles:8 spindle passage:67 mm Cam controlled multi spindle automatic lathe, used 8 main spindles pick up in pos. 8 threading attachment CNC compound slide in pos. 5, also 2. speed in pos. 2 Hydraulic spindle brake in pos. 4 Incl. length measurement, incl. Brankamp cutting force monitoring tooling: could be different like pictures Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control ?Balluff? clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2016 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 3 x Y-axis, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot, manufacturer HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2019 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot make HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures.

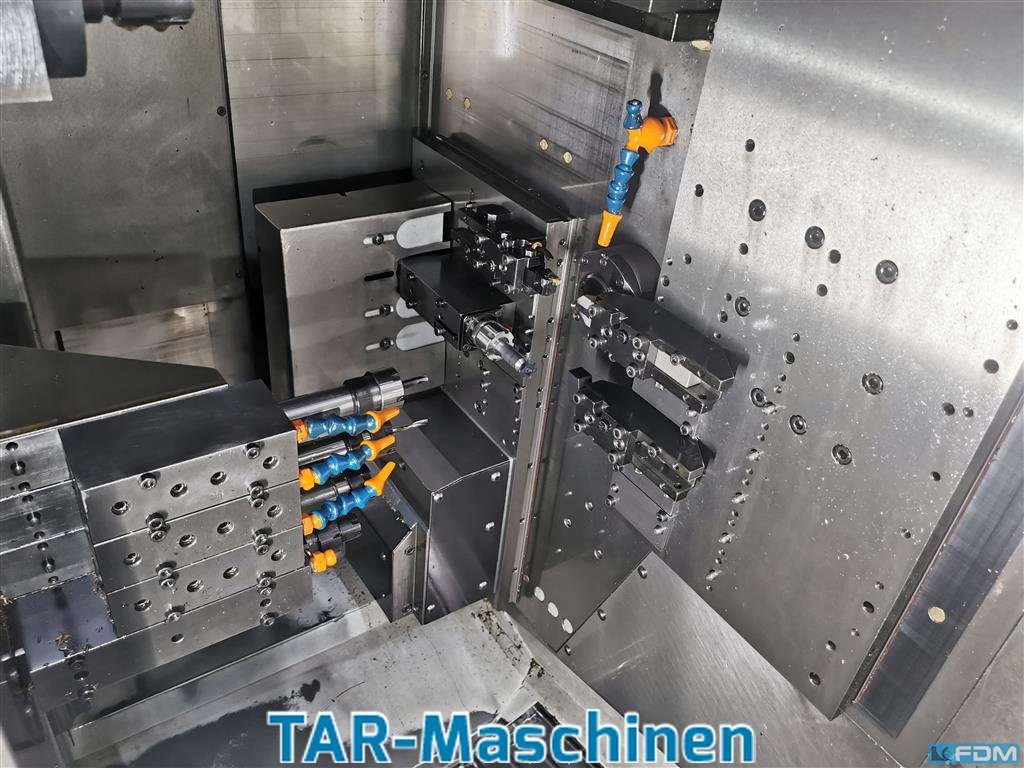

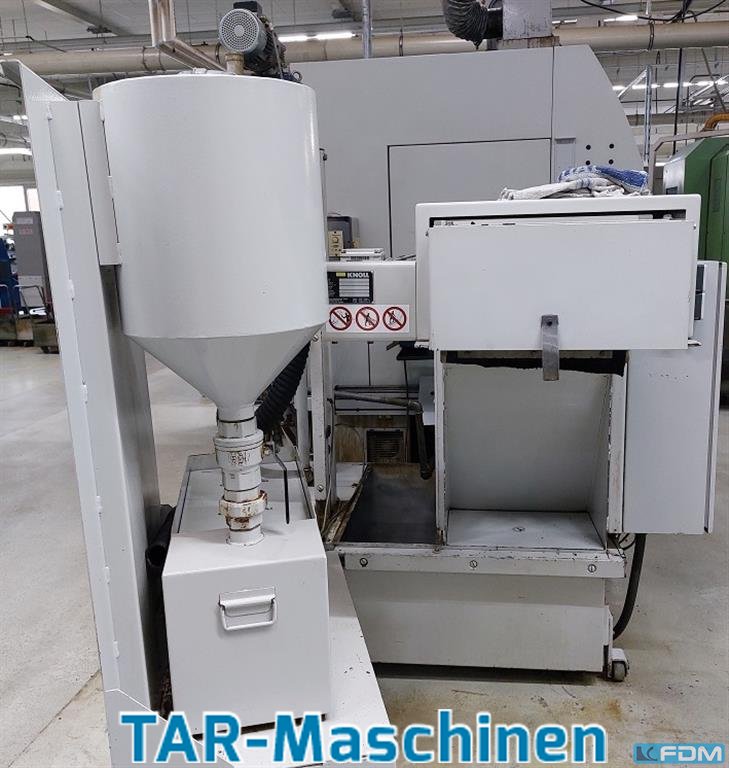

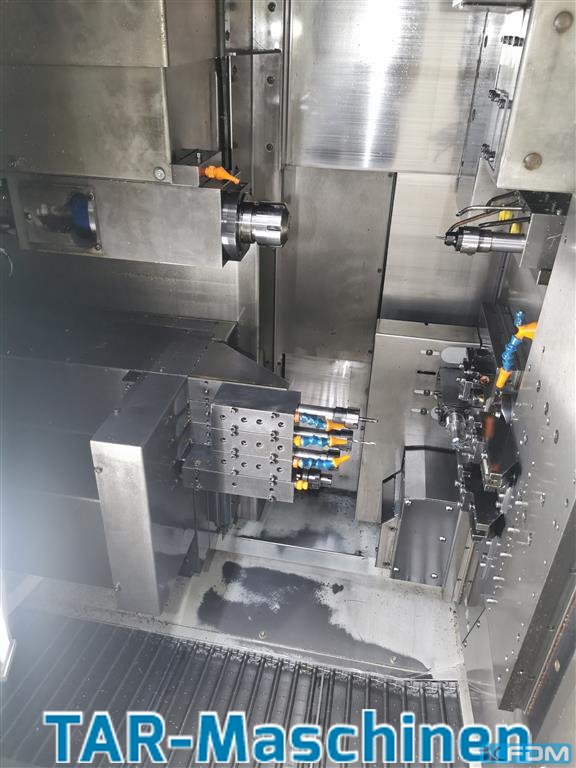

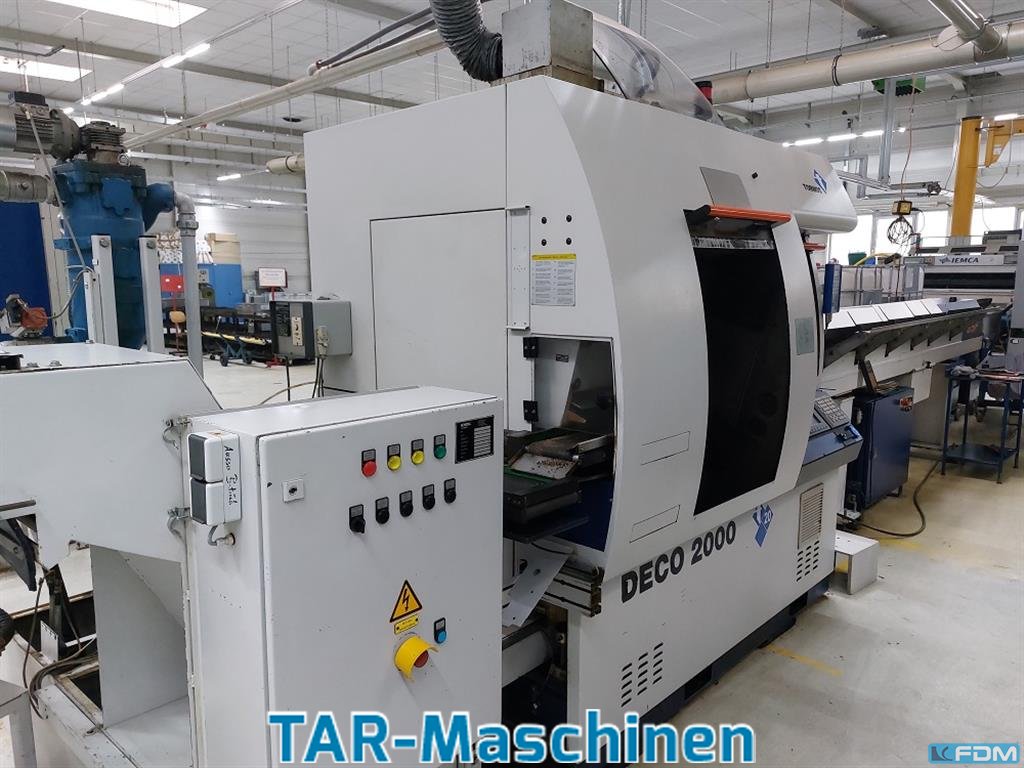

spindle passage:25 mm Article: CNC sliding headstock automatic lathe Manufacturer: Tornos Type: Deco 2000/20 Year of construction: 2001 Control: Fanuc spindle diameter: D25 mm max. speed: 7000 rpm comb: 2 (X,Z,Y-axis) Front attachment: 1 (X,Z,S-axis) Loading magazine: Tornos Robobar SSF Chip conveyor: Hinged belt conveyor other: various accessories such as polygonal impact device, HF spindle Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SC9-46 Yob: 2016 Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm Cross slide units, transverse: 6 units, in positions I to VI, Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V, Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm Cross slide units, transverse: 2 units, in positions VIII and IX, Control: Siemens SINUMERIK 840SL with double NCU Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted, Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion) Synchronous action package ?Level? 2, incl. cross-mode actio ...

number of spindles:8 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, con ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2001 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Package of 3 Schütte S32PC Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: S32PC Yob: 1998 One machine is operational; the other two can be used for spare parts Includes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader) Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader) Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine) tooling included in delivery may differ from the pictures Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

spindle passage:36 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: A36PC Yob: 2005 Loading magazine by Pietro Cucchi Knoll unit 7 radial cross-type carriages 2 additional speed motors in 4th and 5th positions 2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle) 1 polygon cutter 1 motorized front spindle 1 radial motorized in position IV for cross-type carriage 1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage) 1 straight head for motorized position IV 1 90-degree tilted head for motorized position IV 1 tilt-adjustable head for motorized position IV Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Capacity: 125 ton, Strokes per minute: 85-500 / min, Slide: 870 x 550 mm, Plate width: 260 mm, Year of manufacturing: 1980

automatic CUTTING BORING and MOULDING machine BACCI TTF1 2TM . second hand machine working conditions : Excellent hydraulic drive of all the movements volt. 380/50 CE mark : YES Machine suitable for assembling part of chairs, tables, frames, furniture, wheelchair frames, etc. The BACCI TTF1 2TM performs the operations of cutting , milling and drilling at the end of the piece, either singularly or differently combined . the milling unit is composed of n.02 spindle moulders ( anti-splinter system ) machine composed by 3 working units : 1- Cutting unit : circular saw max.diam. mm.400 motor power Hp 3 2- Boring unit : boring head with 5 mandrins motor power Hp 3 3- Moulding unit . with automatic movement of the carriage on recirculating ball bearings n.02 spindle moulders (anti-splinter) motor power Hp 7,5 spindle diam. mm.35 hydraulic unit motor power Hp 2

Precast - Wall - Filigree - factory. Good as new circulation system: 60 pallets with 3.5 mx 8 m, 3 x lateral transport of pallets - Facilities, 1 x vibrated concrete station, new control - Beckhoff. Concrete distributor Crane 1.4 m³. Friction wheels. Roller blocks. Planning and installation as required. Formwork on request. Is dependend on the application. For low cost housing, cmodul austria low cost housing Affordable housing Low-cost housing Mixing system 1 m³ at extra charge. Tilting device if needed for concrete slabs vertical-tansport at extra charge. Cran for stock handling at extra charge. Projects for social housing are our daily work. Civil work plans, drawings and calculations, we can create for you. Similarly, profitability calculations.

Poly-clip PDC 600 Semi Automatic Double Clipper, for fibrous, plastic, natural and collagen casings, calibres up to 90 mm, on a trolley, Suitable for following clip sizes: S 625 / 628 / 632 / 638, upon request with separator, in good condition!
