automatic bar turning used for sale

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mm swing diameter:550|650|1000|1250 mm turning height:450|500|750/950|1000 mm spindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/min Travel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mm Travel of ram (horiz.):300|340|500|700 mm rapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/min Tool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kW Machine height:2600|2910|4020|4605 mm weight of the machine ca.:4500|6000|13000|18000 kg hydraulic motor:2,2 kW servo motor X-axis:1,6|1,6|4|7 kw servo motor Z-axis:3|3|7|7 kw coolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW :35|40|50|70 kva CNC controller:Siemens/Fanuc/Fagor CNC controls from:Si ...

turning diameter:200 mm swing diameter:260 mm turning height:200 mm Tool table:1054 x 400 mm Dimensions (L/W/H):2200 x 2300 x 2300 mm weight:3300 kg slide travel radial ( X-axis ):520 mm slide travel axial ( Z-axis ):200 mm no pallet circulating belt, no C-axis, no driven tools

turning diameter:250 mm swing diameter:250 mm turning height:200 mm total power requirement:37,7 kW chuck diameter:315 mm spindle speed max.:5500 1/min travel -x axis:625 mm travel -y axis:+100/-80 mm travel -z axis:250 mm worktool system:VDI 30+40 weight of the machine ca.:8 t The synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm. Typical components are ball cages, ball hubs, gear wheels, sliding sleeves, pump wheels, flanges, synchronizer rings, bearing rings and pivot pins. The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

turning diameter:1000 mm swing diameter:1000 mm Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed range I: 5 - 350 rpm. Speed range II: 30 - 1000 rpm. Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urh ...

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

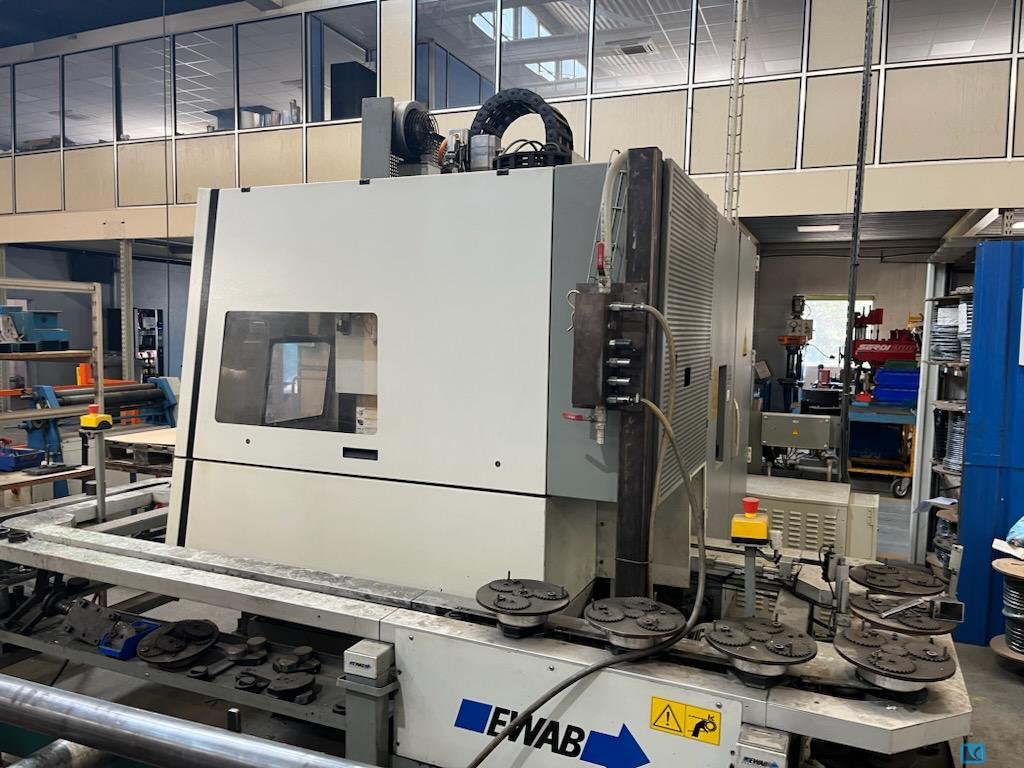

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included

turning length:630 mm total power requirement:16 kW weight of the machine ca.:5 t dimensions of the machine ca.:3400 x 1500 x 1600 mm swing diameter over slide rest:Hinterdrehschlitten 250 mm centre height:über Hinterdrehschlitten 150 mm center height over bed:300 mm turning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mm accessories::2 Schränke Wechselräder

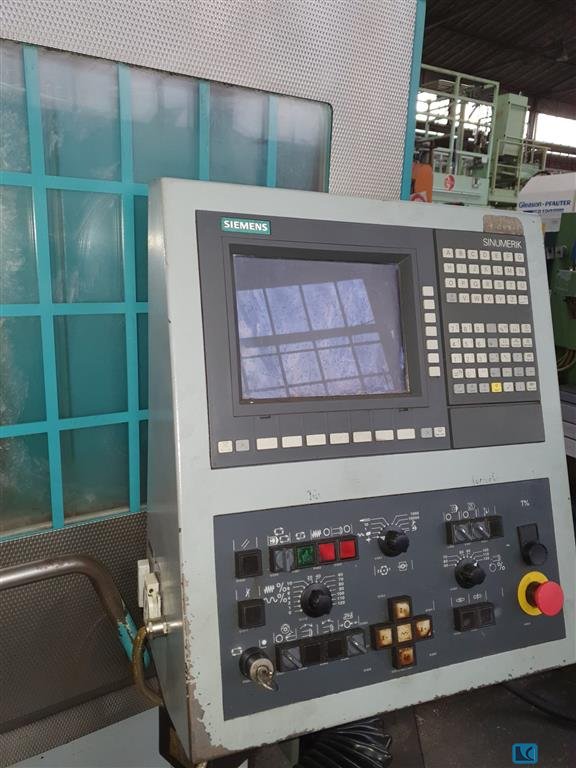

swing diameter:320 mm control:840 D SIEMENS turning speeds:5000 1/min spindle drive:20 / 27 kW chucking diameter:250 mm travel -x axis:650 mm travel -z axis:300 mm turret head:12 Pos. tool holder:VDI 40 toolpiece turning speed range:4000 1/min work piece power:max. 11,7 kW weight of the machine ca.:8 t CNC vertical lathe, live tools, C-axis, high pressure pump 20 bar, 500l, filter, flush gun, 3-jaw chuc, EWAB loading station right, chipconveyor, approx. 23.500h "machine on", approx. 8.000h "spindle on" (in total) MACHINE WILL GET NEW (OVERHAULED) SPINDLE (0 hours)

swing diameter:260 mm control:840 D SIEMENS turning speeds:3.500 1/min spindle drive:36 / 28 kW chucking diameter:260 mm travel -x axis:900 mm travel -z axis:400 mm turret head:12 Pos. tool holder:VDI 40 rapid power traverse in X-and Z direction:100 / 30 m/min dimensions of the machine ca.:5,3 x 2,4 x 3,31 m CNC vertical lathe with 2 spindles, 2x RÖHM power chucks dia. 315mm,

turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Serial number: 07510001241 operating hours read: 72,899 Spindle hours read: 39,361 Control: SIEMENS SINUMERIK 840 D Rotation diameter: 640 mm Turning diameter: max. 640 mm Turning diameter Sub-spindle: 400 mm Spindle distance: 1500 mm Turning length: 1185 mm Max. workpiece weight: 150 kg Slide path X1: 550 mm Slide path Y1: 180 mm Slide path Z1: 1185 mm Slide path B1: 240 ° Slide path X2: 180 mm Slide path Z2: 1050 mm Slide path Z3: 1150 mm Spindle speed range: 3200/4000 rpm Rapid traverse speed of slide 1 (X/Y/Z): 40/24/70 m/min Rapid traverse speed of slide 2 (X/Z): 24/36 m/min Rapid traverse speed of slide 3 (Z): 36 m/min Tool holder: HSK 63 Spindle speed: 12,000 rpm incl. the tool holders on the turret incl. bar feeder, manufacturer: COCCHE GIOVANNI, type: CNC-DB 110, Year of manufacture: 2008, Serial number: CNCDB-08.306, Weight: 1500 kg Number of tool positions in the chain magazi ...
