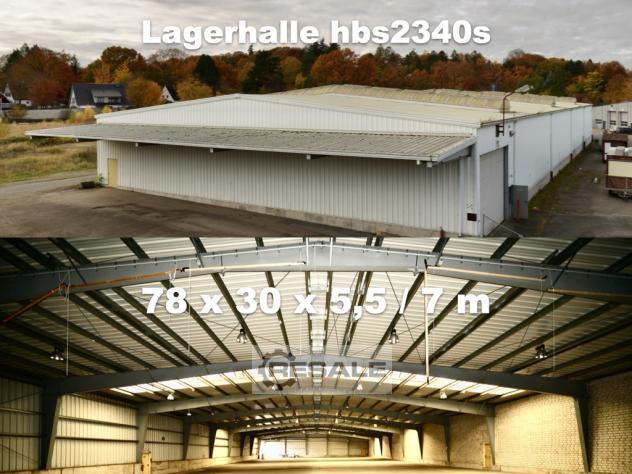

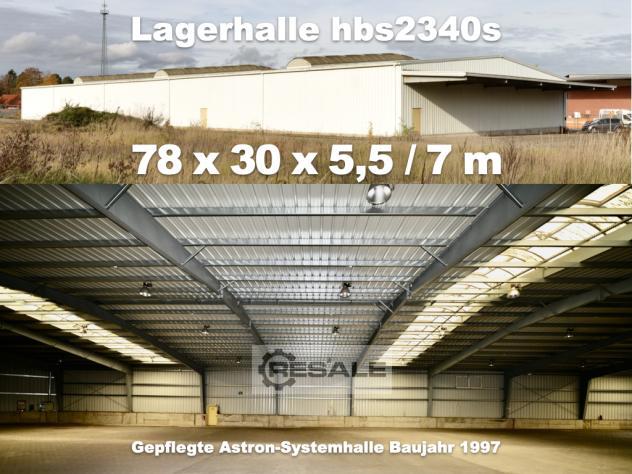

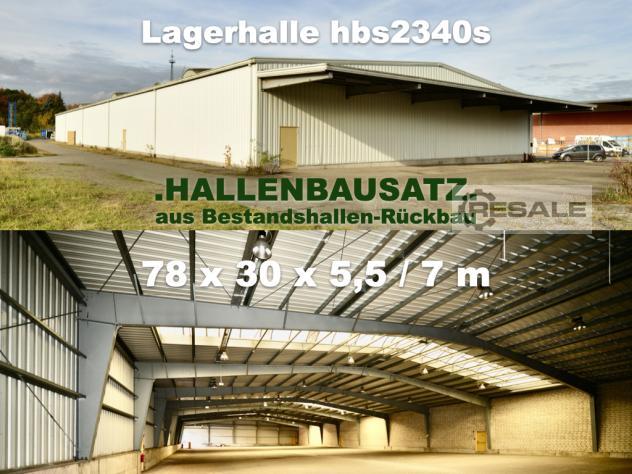

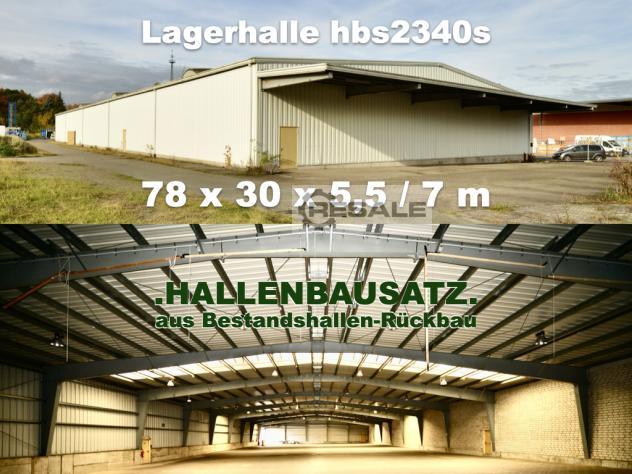

️ Astron steel hall 30 × 78 × 5.5 m (approx. 2,340 m²) –
cantilevered, insulated, for dismantling
Used industrial steel hall from Astron – self-supporting without
internal supports, with insulated roof, complete SHEV continuous roofs
and large door systems.
Ideal for reuse as a warehouse, production or logistics hall.
Technical data at a glance
• Type: Astron AZM 1.
• Dimensions: 30.00 m × 78.00 m × 5.50 m → approx. 2,340 m².
• Frame spacing: 10 × 7.80 m.
• Roof pitch: 10% (≈ 5.71°).
• Snow load: 0.75 kN/m² – Wind load: 0.50 kN/m².
• Supporting structure: steel St 52 – self-supporting, coated
(similar. RAL 7040 grey).
• Purlins/latches: galvanized, Z and C profiles.
• Roof: double-skinned with 100 mm insulation (WOF), plastisol 100
μm on the outside.
• Walls: trapezoidal sheet metal cream white (RAL 9001 / 1015),
south side brick (KS 17.5 cm),
• Colour concept: Roof pebble white – walls cream white – aisles
/ gutters matching.
Gates & Arrivals

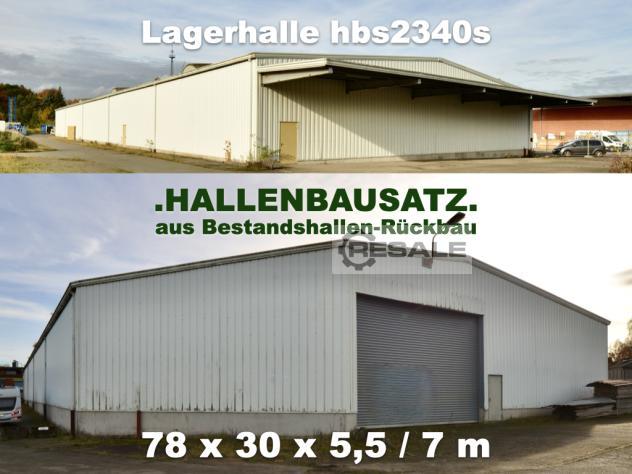

• 1 × roller shutter: W 8.00 m × H 5.00 m – electrically
operated,
• 1 × sectional door (Hörmann STE 30): W 6.00 m × H 4.50 m,
• 6 × emergency exit doors (each 1.00 × 2.00 m with overhead door
closer),

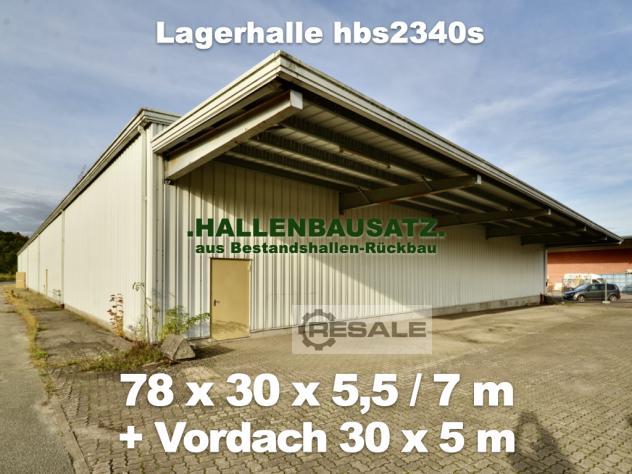

• Canopy: approx. 30 m long, 5 m projection – ideal as a covered
loading zone.
Lighting / Ventilation / Safety
• 3 × continuous rooflights of 30 m each, width 3 m (make GRILLO,
type GO-PC),
• 10 SHEV flaps per continuous rooflight, with automatic and manual
CO₂ triggering,
• 3 CO₂ alarm boxes incl. piping and control,
• Wind and rain sensor for automatic control,
• 15 electric motors for the use of SHEV as a ventilation system,
• Additional skylights (GRILLO RA) opal, thermally insulated,
opening.
→ Excellent daylight conditions + fire protection included!
Foundation / Substructure
• Single foundations + circumferential strip foundation,
• Base upstand approx. 0.40 – 1.33 m (depending on the terrain),
→ reconstruction on new point or strip foundations is possible
without any problems.
Special features & advantages
✅ Cantilever 30 m span – no internal supports,
✅ Insulated roof (100 mm),
✅ Top luminous efficacy through continuous rooflights + skylights,
✅ SHEV and ventilation system fully integrated,
✅ Canopy over full gable length (30 m) – ideal for truck access,
✅ Brand quality from Astron, GRILLO and Hörmann,
✅ Ideal for rebuilding at a new location.
Uses
• Warehouses and logistics halls,
• Production / workshop halls,
• Agricultural and machine halls,
• Sales / exhibition halls,
• Interim storage facilities or temporary construction halls.
Status / Availability
The hall is currently at the site and is intended for professional
dismantling. Sale from location.
Location & price on request
✨ Sustainable construction – reuse used steel halls!
This Astron hall offers high-quality industrial quality with great
value retention and a wide range of possible uses.
