Joiners circular saws ALTENDORF F45 ELMO IV-plus

Swivelling sliding table saw Altendorf F45 with ELMO IV-plus package with 2-axis scorer, 3m table and Control-Plus control

Sliding table length 3000mm
Saw blade swivel from 0 to 45 degrees
3000, 4000, 5000 and 6000 rpm speeds with electric speed display
Drive motor 5.5kW with automatic motor brake

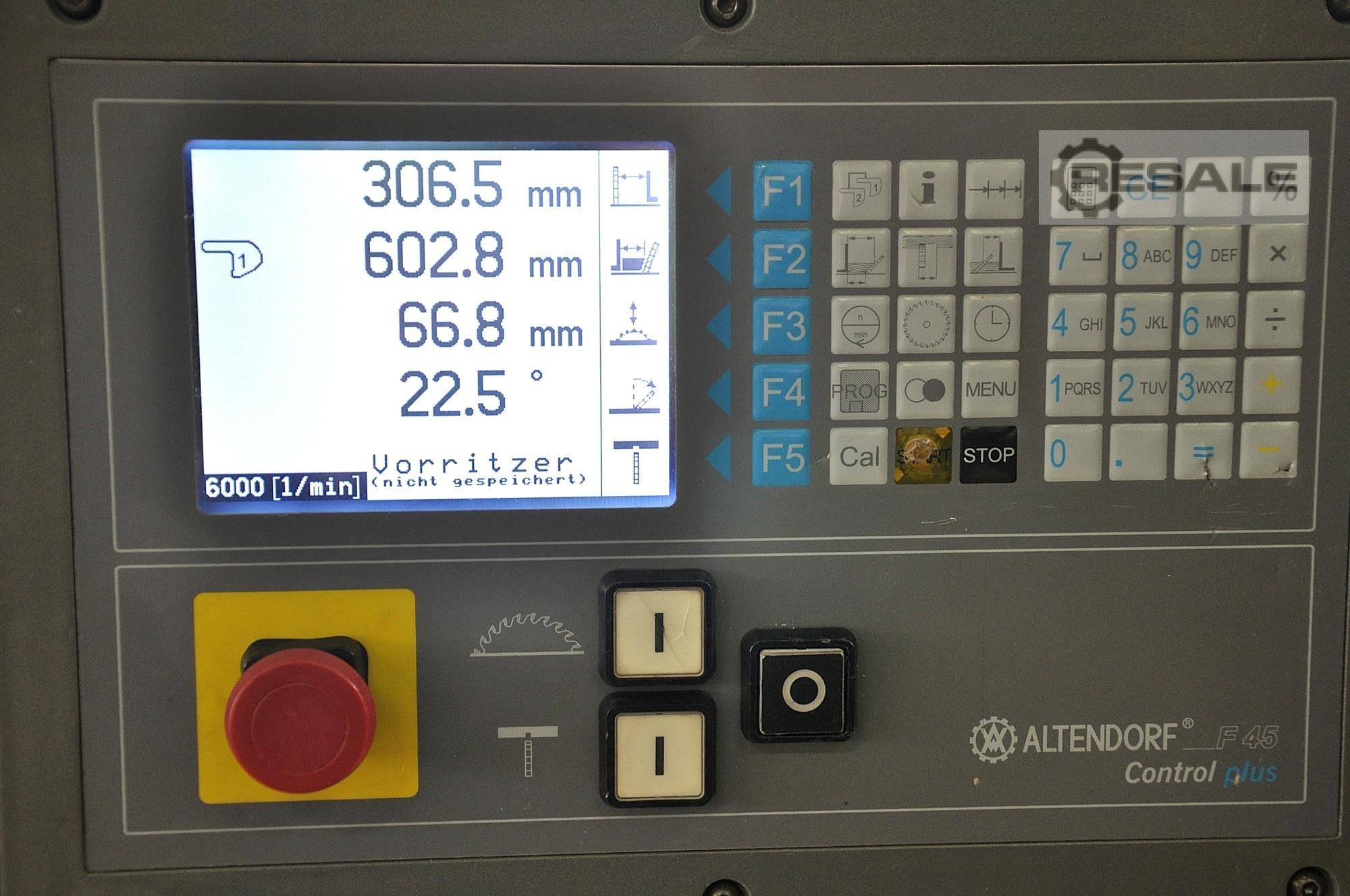

Control panel at eye level with Control-Plus control
4-axis CNC-controlled
Cutting of chain dimensions and grooves on the rip fence and length stop
Cutting width correction at the rip fence and length stop when the saw blade is swivelled
600 editing programs
Calculator function with result transfer to the corresponding axis.
Tool management

Saw blade diameter up to 450mm
Cutting height max. 150mm
Cutting width up to 1040mm electrically adjustable
Swivel angle and height adjustment electrically adjustable
Cut-to-length stop ruler electrically adjustable up to approx. 3210mm, automatic coupling of the second stop flaps with large cutting dimensions
Width stop can be folded down
Suction nozzle 120 + 80mm
Sliding carriage lockable
Additional angle stop ruler
2 used sawmills and a scoring machine
2 splitting wedges

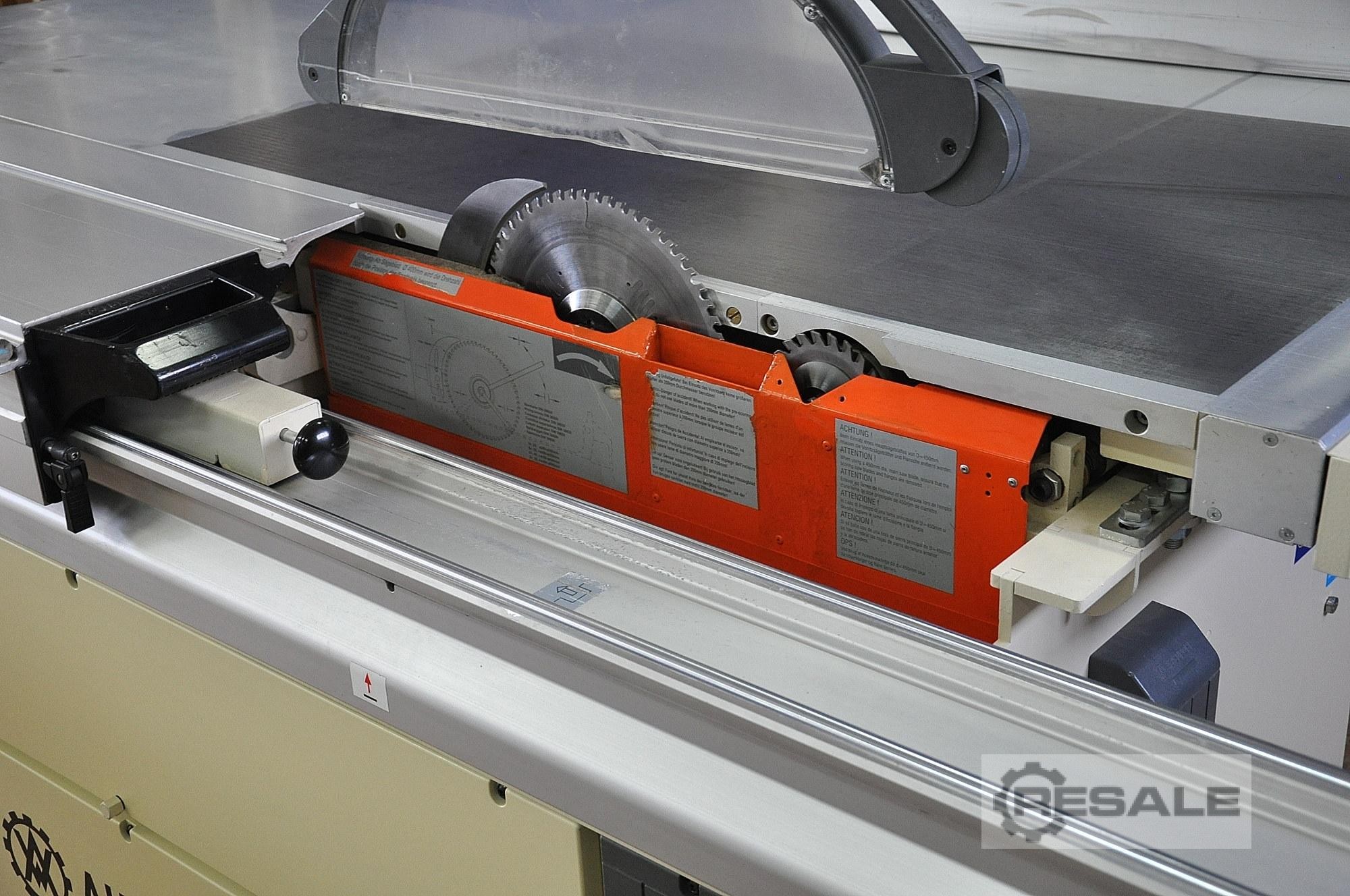

2-axis scoring unit, electrically adjustable while the machine is running
2 protective hoods
3 Emergency Stop Switch
Clipboard on the control panel
CE mark

Machine with signs T6111082 of use. No incisions in T6111082 the sliding table.
Original paint (special paint), repainted in places.
Engine has 18985 operating hours. It comes from a furniture factory and has obviously been regularly maintained and well cared for.
Condition see original photos.

A video of the running machine can be sent on request.

Dimensions approx. 3150 x 3750 x 1900mm (LxWxH). Weight approx. 1400kg.

The machine can be demonstrated on site by appointment. We offer
only machines that are ready for demonstration in our warehouse, see "other offers of this year".
provider".
seller offer No. resale 168250501
