a f used for sale

General SKU070A368 MakeR.V.H. Machinefabriek Born No.04336 / 179180 Year of construction1990 LocationBarneveld Pressure Working pressure3 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialStainless steel Volume6200 Ltr. Motor11 KW Specified Features - Stainless Steel Reactor MaterialStainless steel 1.4571 (316Ti) Stainless Steel Reactors Reactor(1x) Capacity6200 Ltr Vessel sizesdia. 1900x1640mm Conical bottomcheck Dished top sidecheck Manhole/hand hole dia. 240mm Top connectionsdia.250mm+6xdia.40mm+2xdia.50mm+2xdia.80mm Outletdia. 125mm With jacket(3x 70 Ltr) Max. temperature-20/+155 Degr. C. With gate type stirrermake Ekato, type EM-100 Motor11,0 KW, 380 Volt (Ex) Speed mixing shaft± 45 Rpm Information Floorspace2,4x2,4 M Total height4,7 MCatalysts & fillersSolventsStainless Steel ReactorsDiscountDetergent & surf.Other pharmace ...

General SKUR0900 MakeTechnoglass spa (Ita) LocationBarneveld TypeAE 6300 Pressure Working pressure6 Bar Vacuum possiblecheck Working pressure jacket6 Bar Vacuum possible jacketcheck Main Features MaterialGlass Volume6300 Ltr. Motor15 KW Specified Features - Glass-lined Reactor Reactorcheck Capacity7250 ltr (6300 ltr Nett) Vessel sizesDia 1800x 3100mm Dished bottomcheck Dished top sidecheck ManholeDia 500mm Top connectionsDN150 (4x), 250 (2x) OutletDN100 With jacket(710 ltr) Max. temperature-30/200 degr.C With paddle stirrerHastelloy C22 Motor15 kW, 400V (Ex) Speed mixing shaft20-80 rpm Glass Reactors MaterialGlass Information No.5744 Year of construction1996 Floorspace2.3x 2.3 M Total height5.8 M Weight8500 kg ATEX compatiblecheck Extra SpecificationsBottom part make Technoglass (1996) Cover part make Tycon (1985) : Catalysts & fillersSolventsDeterg ...

General SKU245P288 LocationBarneveld MakeAsca Metallwarenfabrik Behälter- und Apparatebau (DE) No.2015 Pressure Working pressure3 Bar Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume10000 Ltr. Motor33 KW Specified Features - Stainless Steel Reactor Reactorcheck Capacity10.000 ltr Vessel sizesdia.2200mm x3000mm Dished bottomcheck Dished top sidecheck ManholeDN600 Top connections(2x)DN300, (3x)DN100, (3x)DN80 OutletDN100, with valve With jacket900 ltr Max. temperature160 degr C With propellor stirrercheck With dissolver stirrercheck Motor8/33 KW,400 Volt Speed mixing shaft160/320 rpm Stainless Steel Reactors MaterialStainless steel 1.4571 (316Ti) Information Year of construction1997 Floorspace3,0x3,0 M Total height6,0 M Weight6500 KG Extra Specificationswith Ekato EM 2100 agitatorCatalysts & fillersSolventsS ...

General SKU035B239 LocationBarneveld MakeCoti SRL Almè (BG) No.0163 Pressure Working pressure3 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialStainless steel Volume10000 Ltr. Motor1.5 KW Specified Features - Stainless Steel Reactor Reactorcheck Capacity12.303 Ltr ( netto 10.000Ltr) Vessel sizesdia. 2200x2400mm Dished bottomcheck Dished top sidecheck Manholedia. 450mm Top connections(11x) Outletdia. 100mm Half coil jacketed(508 Ltr) Max. temperature210 Degr. C. With gate type stirrerequipped with scrapers Motor1,5 KW, 220/380 Volt (Ex) Speed mixing shaft± 2 Rpm Stainless Steel Reactors MaterialStainless steel 1.4301 (304) Information Year of construction1996 Mounted on legscheck Floorspace2,8x2,8 M Total height6,3 M ATEX compatiblecheck Extra Specifications- Stirrer make Mariotti & Pecini, type ART 20/34.8/2 (= 2 Rpm) Cata ...

General SKU012Y113 MakeAPV Chimie Equipement S.A. TypeM-40 SL No.3734 Year of construction1991, Reconditioned in 2003 by RPA Process LocationBarneveld Pressure Working pressure0 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialMild steel Volume250 Ltr. Motor45 KW Specified Features - Z-blade mixer Z-blade mixer(1x) Capacity400 Ltr, Useful capacity 250 Ltr Trough sizes840x700mm With covercheck With jacketcheck Max. temperature100 Degr. C. Single gearedcheck With adjustable packing glandscheck Motor45,0 KW, 380 Volt (Ex) Arm speed± 15/20 Rpm Hydraulic tiltingcheck With hydraulic unitcheck MaterialMild steel Information Floorspace2,2 x 2,8 M Total height1,8 M Weight4700 KG ATEX compatiblecheckCatalysts & fillersFeed additivesZ-blade mixersPaper & otherDiscountDetergent & surf.Other pharmaceuticsCosmeticsSugarLubricants & oleoAnim ...

General SKU104X560 MakeAmbau Kiel No.2986/11/11 Year of construction1970 Mounted on legscheck Pressure Working pressure3.5 Bar Vacuum possiblecheck Working pressure jacket3.5 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume925 Ltr. Motor2.2 KW Specified Features - Stainless Steel Reactor Reactor(1x) Capacity925 Ltr Vessel sizesdia. 1100x800mm Dished bottomcheck Dished top sidecheck Outletdia. 60mm With jacket(100 Ltr) Max. temperature150 Degr. C. With propellor stirrercheck Motor2,2 KW, 220/380 Volt Speed mixing shaft± 240-1200 Rpm Stainless Steel Reactors MaterialStainless steel 1.4541 (321) Information LocationBarneveld Floorspace2,2x1,4 M Total height2,0 M Weight1100 KGCatalysts & fillersSolventsStainless Steel ReactorsDiscountDetergent & surf.Other pharmaceuticsCosmeticsOrganicsLubricants & oleoSolid pharmaceuticsDyes & p ...

General SKU012Y116 MakeAPV Chimie Equipement S.A. TypeM-40 SL No.3714 Year of construction1990, Reconditioned in 2003 by RPA Process LocationBarneveld Pressure Working pressure0 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialMild steel Volume250 Ltr. Motor45 KW Specified Features - Z-blade mixer MaterialMild steel Z-blade mixer(1x) Capacity400 Ltr, Useful capacity 250 Ltr Trough sizes845x700mm With covercheck With jacketcheck Single gearedcheck Motor45,0 KW, 380 Volt (Ex) Arm speed± 15,5/20,0 Rpm Hydraulic tiltingcheck With hydraulic unitcheck Motor1,5 KW, 220-240/380-415 Volt (Ex) Information Floorspace2,2 x 2,8 M Total height1,8 M Weight4600 KG ATEX compatiblecheckCatalysts & fillersFeed additivesZ-blade mixersPaper & otherDiscountDetergent & surf.Other pharmaceuticsCosmeticsSugarLubricants & oleoAnimal feedOther feedSolid  ...

General SKU235K162 LocationBarneveld MakeAZO GmbH + Co. Osterburken TypeTrogschnecke TFS-315 G B A21 Main Features Motor2.2 KW Length2000 mm Inlet diameter315 mm Specified Features - Horizontal screw conveyor MaterialStainless steel Horizontal conveyor screw(1x) Trough-typecheck Diameter315mm Length2000mm Between inlet and outlet± 1450mm Shaft diameter90mm Pitch145/290mm Inletdia. 250mm Outlet2x dia. 300mm Motor2,2 KW, 230/400 Volt Screw speed± 76 Rpm With coverscheck Information Mach.No.408691 Year of construction2004 Floorspace2,9x0,5 M Total height0,6 M Weight260 KGCatalysts & fillersFeed additivesPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBeveragesDyes & pigmentsBiopharmaceuticalRubberAPIPlastic & rubberMinerals & i ...

General SKU213T157 MakeAlbi Alois Binderberger LocationBarneveld Pressure Working pressure1.5 Bar Vacuum possiblecheck Working pressure jacket6 Bar Main Features MaterialStainless steel Volume8000 Ltr. Motor7.5 KW Specified Features - Stainless Steel Reactor MaterialStainless steel 1.4571 (316Ti) Stainless Steel Reactors Reactorcheck Capacity8.000 Ltr. (max. 10.000 Ltr.) Vessel sizesdia. 2200x3562 mm Conical bottomcheck Dished top sidecheck Manholecheck Top connectionsDN40 (4x), DN65, DN100 OutletDN65 With jacketcheck Half coil jacketedcheck Max. temperature-25/150 °C With paddle stirrercheck (Stelzer: Vortex) Motor7.5 kW (Ex) Speed mixing shaft5,6-56 Rpm Information No.625 Year of construction1983 Mounted on legscheck Floorspace2,6x2,6 m Total height4,8 m ATEX compatiblecheck Extra SpecificationsINCLUDING NEW MECHANICAL SEAL Catalysts & fillersSolve ...

General SKU360U980 MakeApplikon No.0298 7682B Year of construction1998 Mounted on legscheck Pressure Working pressure3 Bar Vacuum possiblecheck Working pressure jacket3 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume750 Ltr. Motor0.25 KW Specified Features - Stainless Steel Reactor MaterialStainless steel 1.4404 (316L) Stainless Steel Reactors Reactorcheck Capacity750Ltr. (bruto 940Ltr) Vessel sizesDia: 1134x1094 Dished bottomcheck Dished top sidecheck Manholecheck Top connectionscheck Outletcheck With jacketcheck 69Ltr. Max. temperature140°C With propellor stirrercheck Motor0,25kW, 220-240/390-414Volt, 1300/94rpm Speed mixing shaft94rpm Information LocationBarneveld With switchcheck With switchgearcheck(as is)Catalysts & fillersSolventsStainless Steel ReactorsDetergent & surf.Other pharmaceuticsCosmeticsOrganicsLubricants  ...

Overview  The Gruber AFD6 is a filling machine for bottles and party KEGs that was produced by the German manufacturer Gruber in 2018 and has an operating time of 725 hours. The machine is available immediately. Technical details Output 800 bph (at 0.33l) 750 bph (at 0.5l) 600 bph (with 1.0l) 400 bph (for 2.0l) 240 bph (with 5.0l party KEG) Output varies depending on CO2 content and beer temperature (in practice, 1,000 bph could be achieved at 0.33l) Long tube filler with 6 filling points Fully automated filling process Single or double CO2 flushing Siemens S7 control system with touch panel Operating hours: 725 hours

Overview  This cap feeding system consists of a vertical cap elevator, a centrifugal distributor, and a horizontal flat top air conveyor. The system was used for feeding 38 mm flat plastic caps in PET bottling applications. It has been dismantled, stored in a warehouse, and is immediately available. Technical data  Formats: Flat 38 mm plastic caps Dimensions: L 210 cm × W 75 cm × H 300 cm Power supply: 0.2 kW Application: PET bottles Scope of Delivery Vertical cap elevator | Marmoinox | AML-ZVE1 | 2016 Centrifugal distributor | Sacmi | - | 1997 Horizontal flat top air conveyor, 2 m | Sacmi | - | 1997

Overview The ABE GLASSPAK 66 is an isobaric filler that is currently in operation and can be viewed. The machine was manufactured by American Beer Equipment (ABE) in the USA in 2018. It has a maximum output of 4,000 bottles per hour for 0.33-liter bottles. The system is designed for 26 mm crown corks and has 18 filling stations. Technical details  Output: 4,000 bottles/hour (for 0.33-liter bottles) Type of closure: 26 mm crown cork Formats: 0.33L Filling stations: 18 Electrical specifications: Max. Voltage: 208-240 V Total current draw: 38.5 A Maximum motor current: 10.6 A Phase: 3-phase Frequency: 60 Hz

General SKU345S802 MakeEnco Energie Componenten (AT) No.T7201/1 Year of construction2011 LocationBarneveld Pressure Working pressure shell16 Bar Vacuum possible shellcheck Working pressure tubes16 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface13.5 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4571 (316Ti) Heat exchangercheck Horizontalcheck Notified body(TuV) Heating surface13,5 m2 Tube capacity50 Ltr Number of tubes:73 Tube diameter20mm Tube length3000mm Wall thickness tubes1.5mm Max. temperature-15/150 degr.C. Shell capacity90 Ltr. Cover connections(2x) DN50 Information Floorspace3,1x0,5 < Total height0,5 M Weight350 KG CEcheckCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmace ...

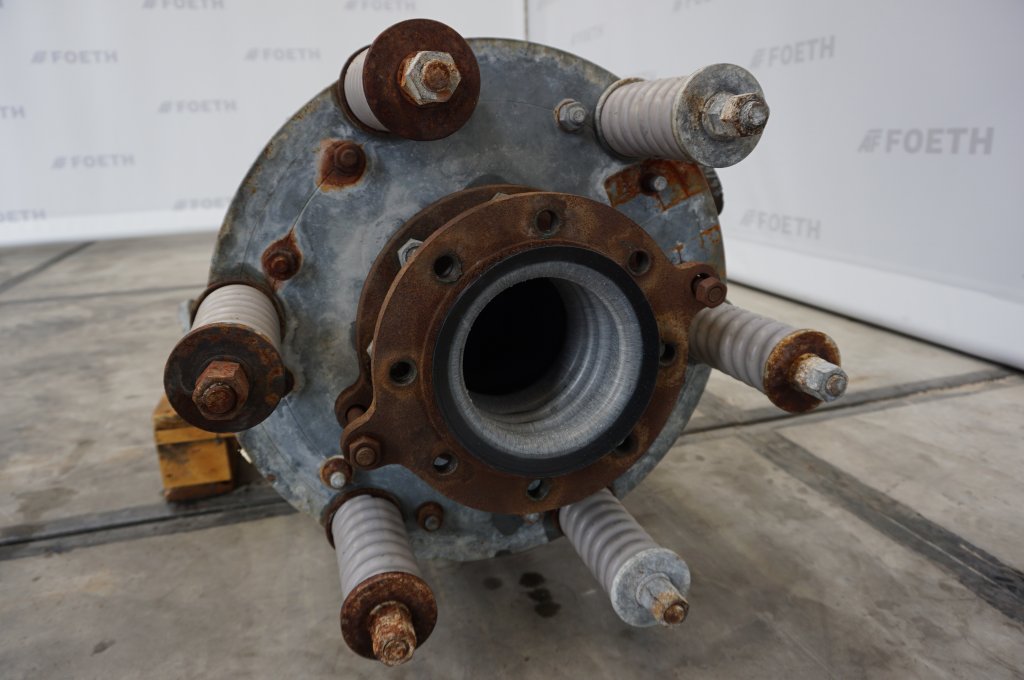

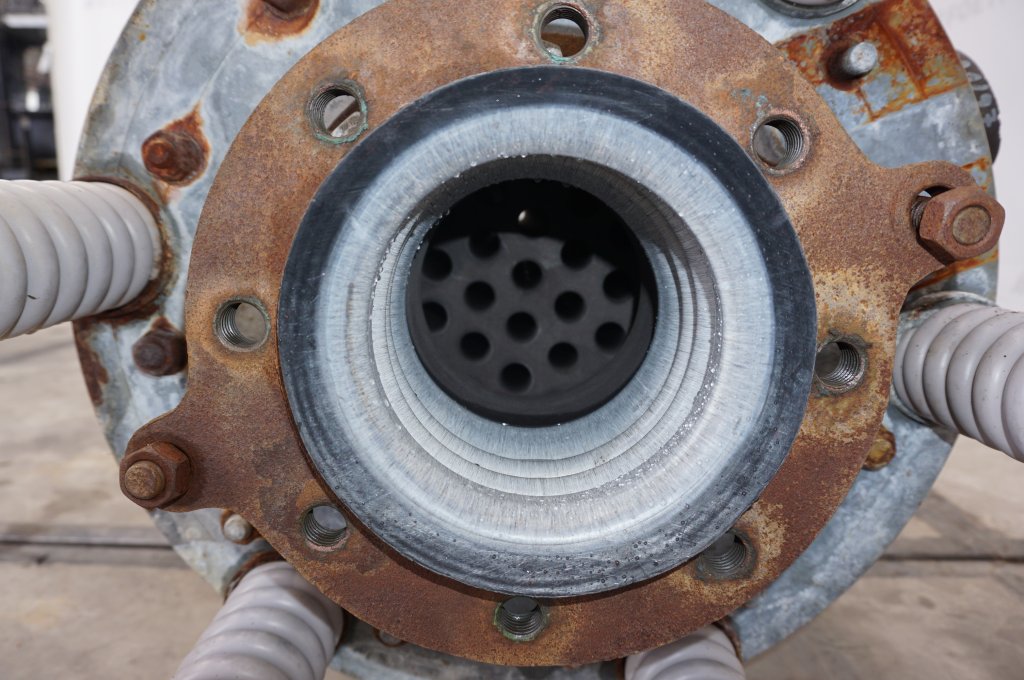

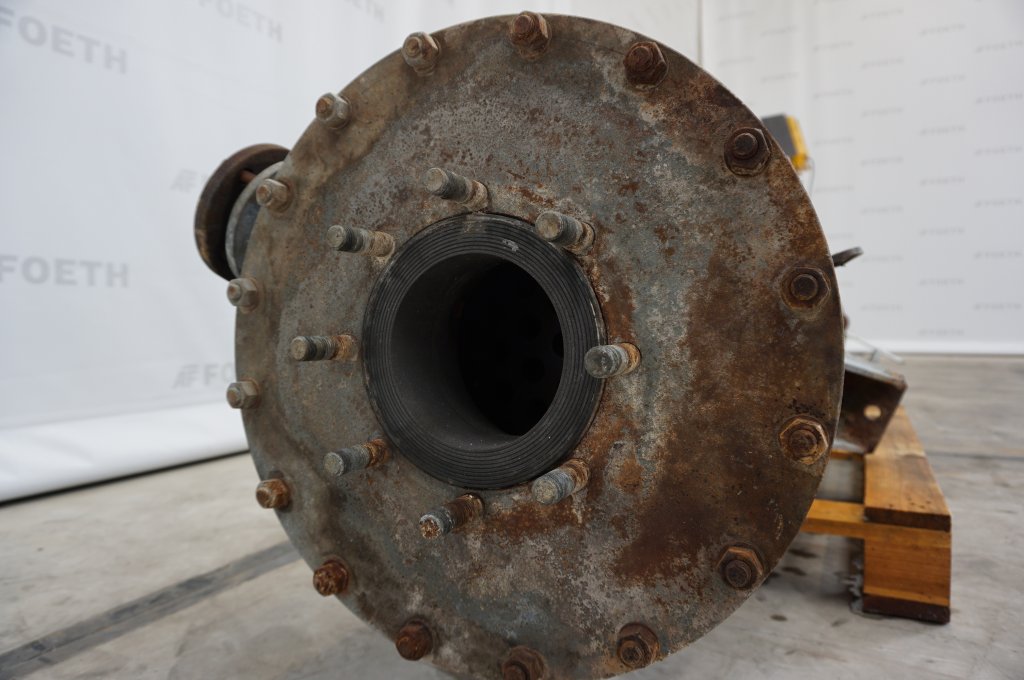

General SKU201P093 MakeSGL Technik Gmbh Meitingen (DE) TypeRS-77-2-5515.1 LocationBarneveld Material Tube materialGraphite Diabon-NS1 G20-3-170 Pressure Working pressure shell6 Bar Working pressure tubes6 Bar Main Features Shell (Material)Graphite Tube (Material)Graphite Surface8 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Diabon-NS1 G20-3-170 Heat exchangercheck Verticalcheck Notified bodyTÜV Heating surface8m2 Tube capacity62 Ltr Number of tubes:55 Tube diameter37mm Tube length1500mm Wall thickness tubes5mm Max. temperature170 Degr.C. Shell capacity100 Ltr Shell diameter406mm Shell length1380mm Wall thickness shell6mm Max. temperature170 Degr.C. Shell connections(2x)DN80, DN40 Cover connections(2x)DN150 Information Floorspace0,7x0,7 M Total height2.2M Weight600 KGCatalysts & fillersFeed additivesShell and tube heat exchan ...

General SKUR0892 MakeLe Carbone-Lorraine AG (FRA) LocationBarneveld CEcheck TypePolyblock NC610G Pressure Working pressure shell6 Bar Working pressure tubes6 Bar Main Features Shell (Material)Mild steel Tube (Material)Graphilor Surface24 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Graphilor XBS Heat exchangercheck Heating surface24 m2 Tube capacity92 Ltr Max. temperature165 degr.C. Shell capacity136 Ltr Shell diameter640mm Shell length1934mm Wall thickness shell10mm Max. temperature165 degr.C. Shell connections2x DN150 Cover connections2x DN200 Information No.22613 Year of construction2008 Floorspace1.0x1.0 M Total height2.3 M Weight1800 KGCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairy ...

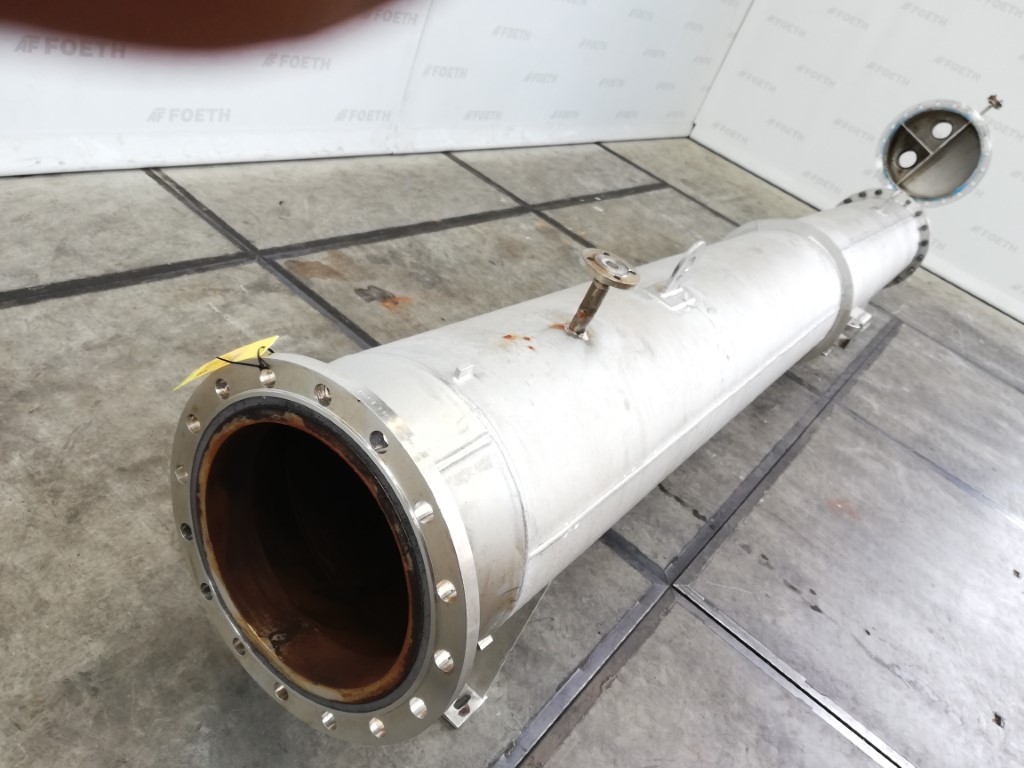

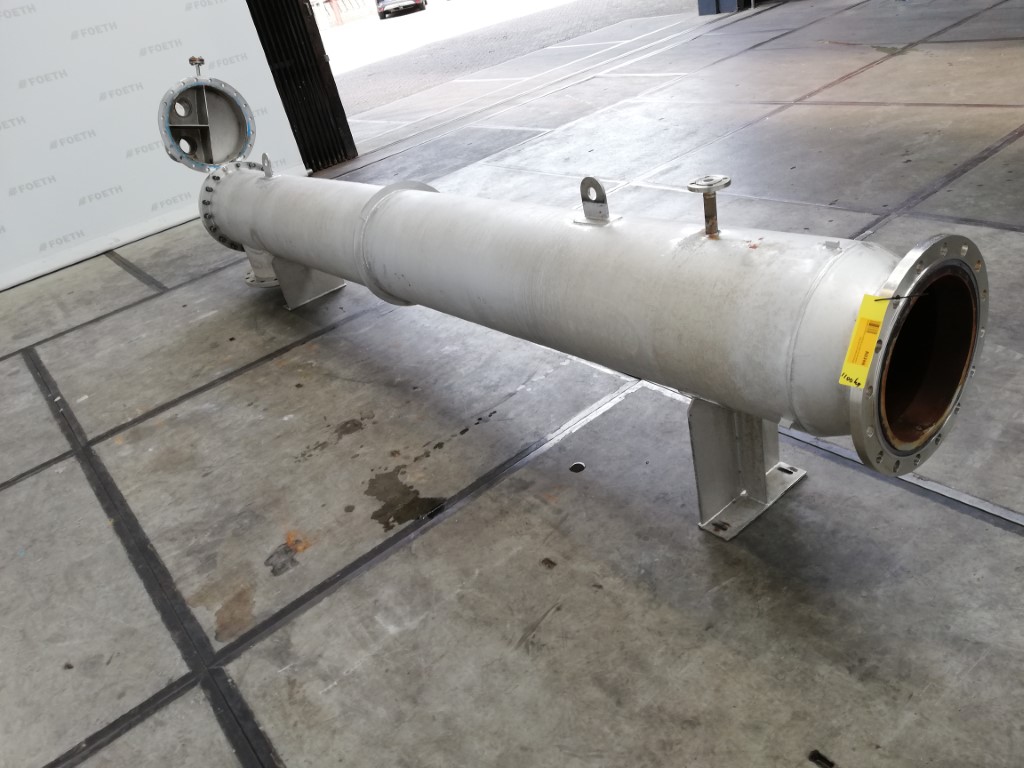

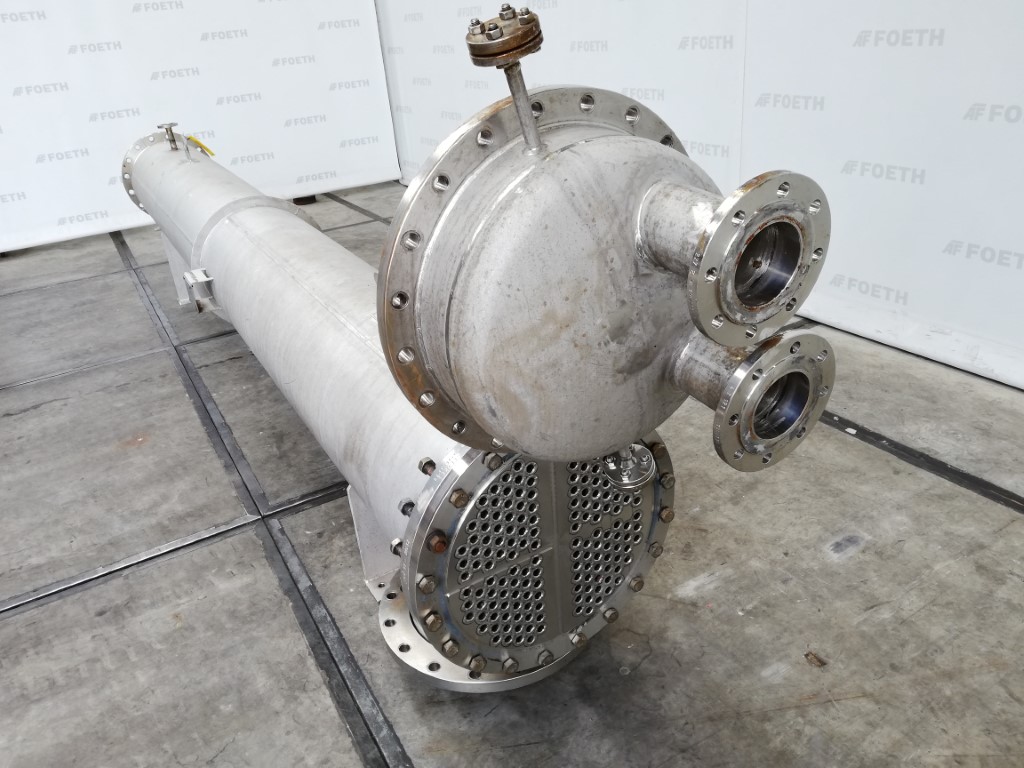

General SKUR0366 LocationBarneveld MakeBuss SMS TypeKondensator Pressure Working pressure shell0.5 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface41.5 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4541 (321) Heat exchangercheck Horizontalcheck Heating surface41,5 m2 Tube capacity175 ltr. U-typecheck Number of tubes:40 Tube diameter20x1,5mm Tube length16500mm Wall thickness tubes1,5 Max. temperature100 degr. C Shell capacity700 ltr. Shell diameterdia. 500mm Shell length4660mm Max. temperature200 degr. C Shell connectionsdia. 400mm (2x) Cover connectionsdia. 100mm (2x) Information No.22.11.6351/4 Year of construction1994 Mounted on legscheck Floorspace5,2x0,7 M Total height1,1 M Weight1200 KgCatalysts & fillersFeed additives ...

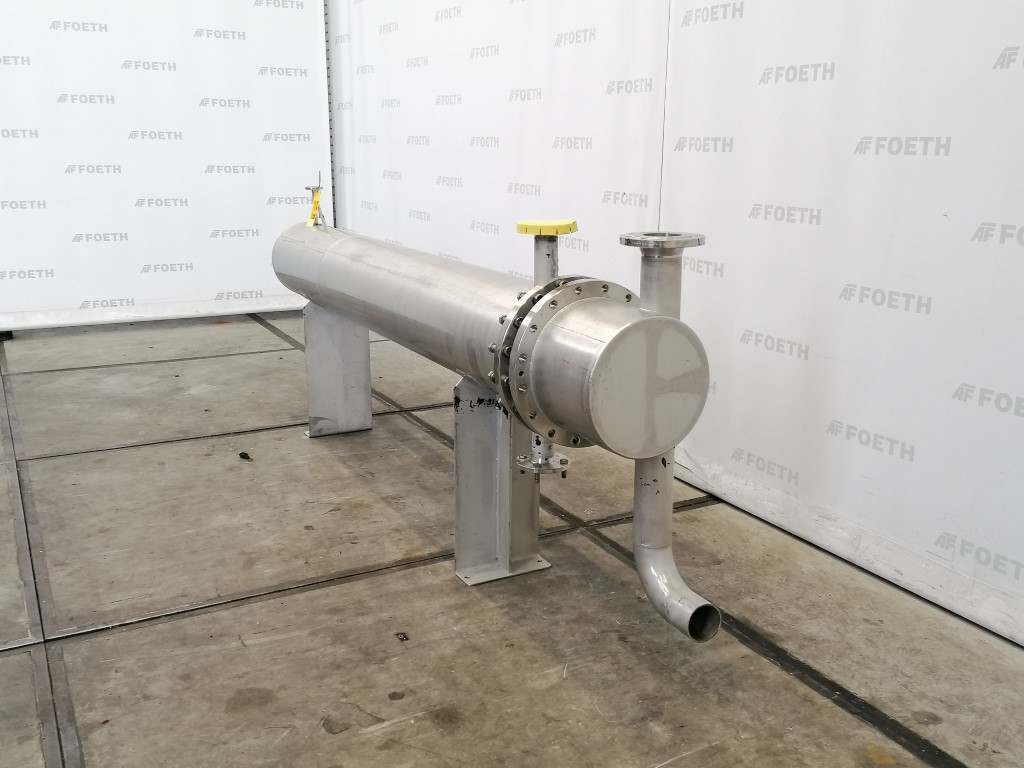

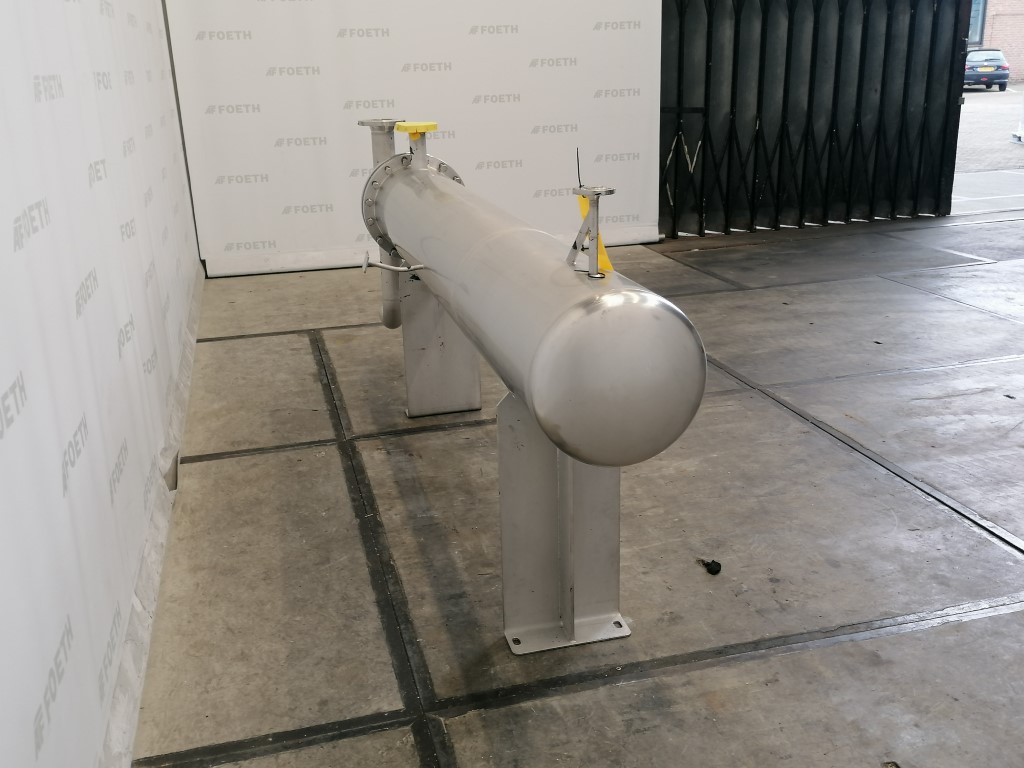

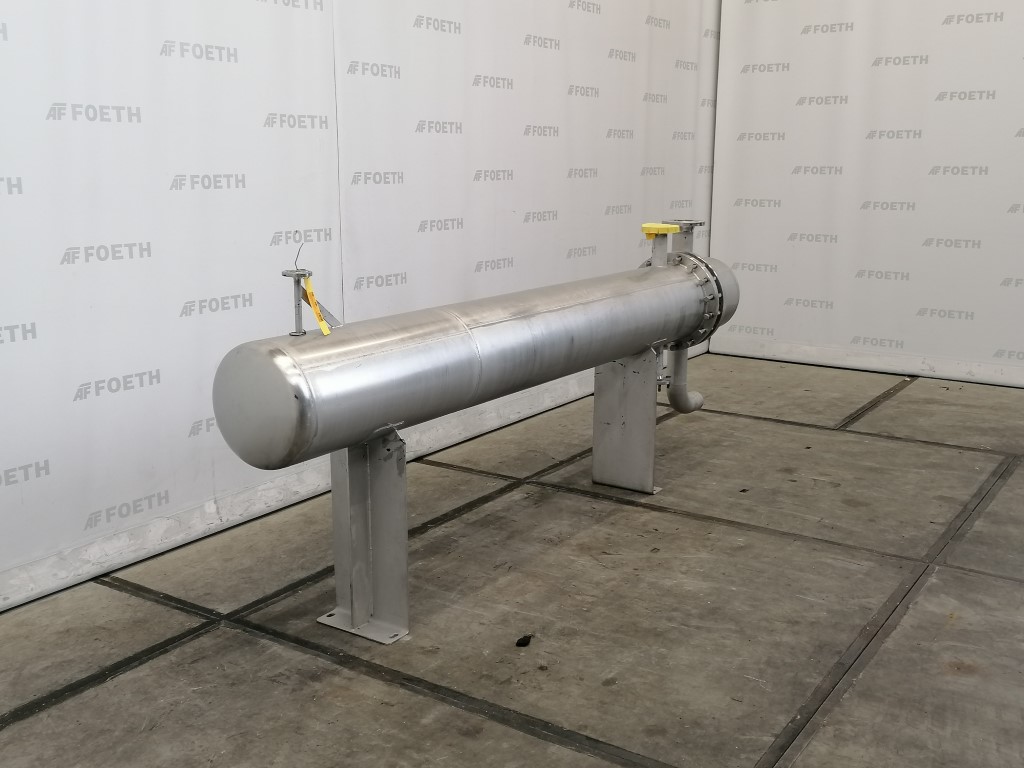

General SKUR0854 MakeZürcher AG (CH) LocationBarneveld Type35 m2 Pressure Working pressure shell6 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface35 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4404 Heat exchangercheck Horizontalcheck Heating surface35 m2 Tube capacity164 ltr U-typecheck Number of tubes:122 Tube diameter16mm Tube lengthca 5400mm Wall thickness tubes1,0mm Max. temperature-30/200 degr.C Shell capacity206 ltr Shell diameter406mm Shell length3312mm Wall thickness shell4mm Max. temperature-30/200 degr. C Shell connectionsDN65 (2x), DN15 (1x) Cover connectionsDN100 (1x), dia. 100mm (1x) Information No.1886 Year of construction2002 Mounted on legscheck Floorspace3,7x0,6 M Total height1,3 M Weight750 KGCatalysts & fillersFeed additivesShe ...

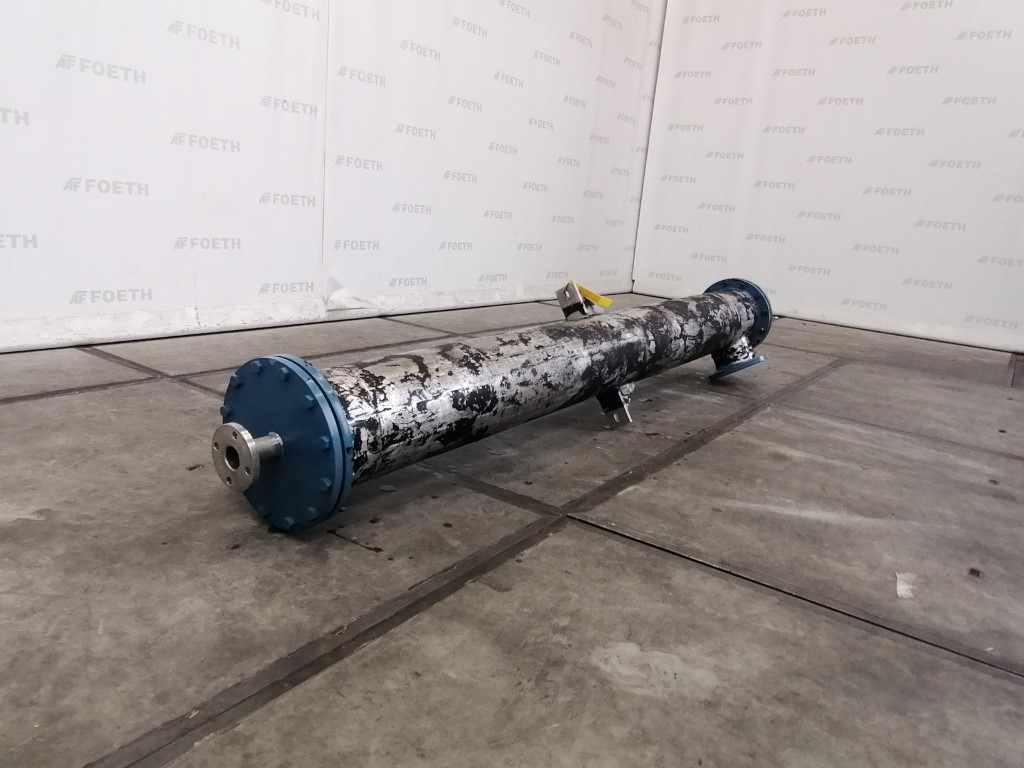

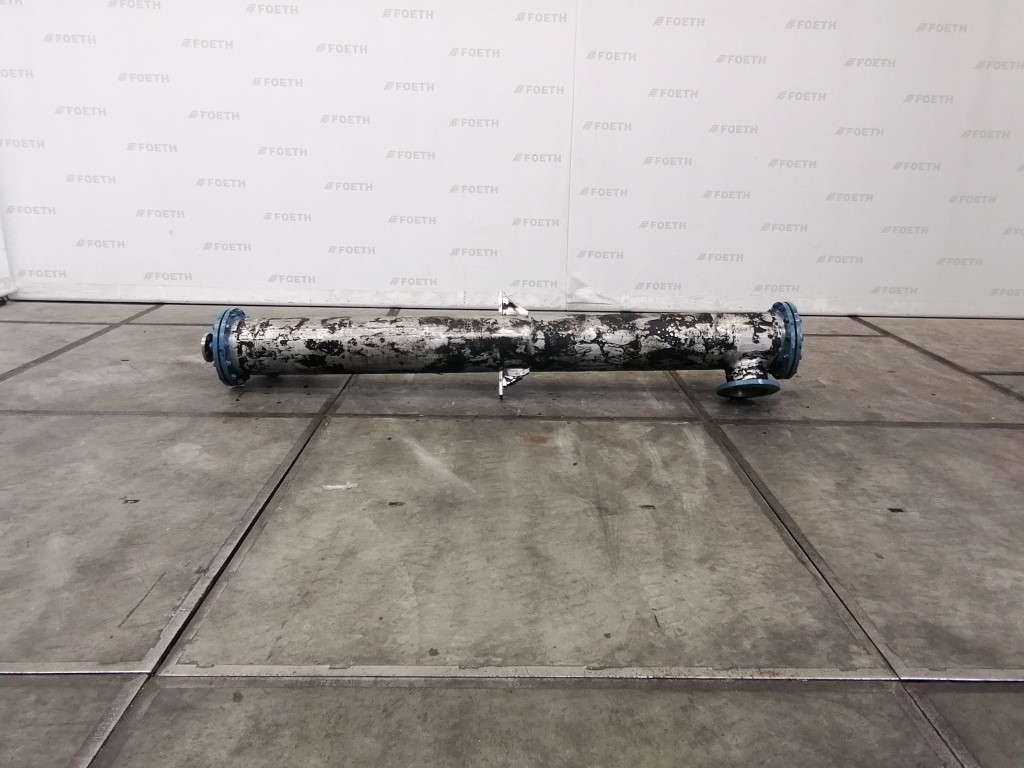

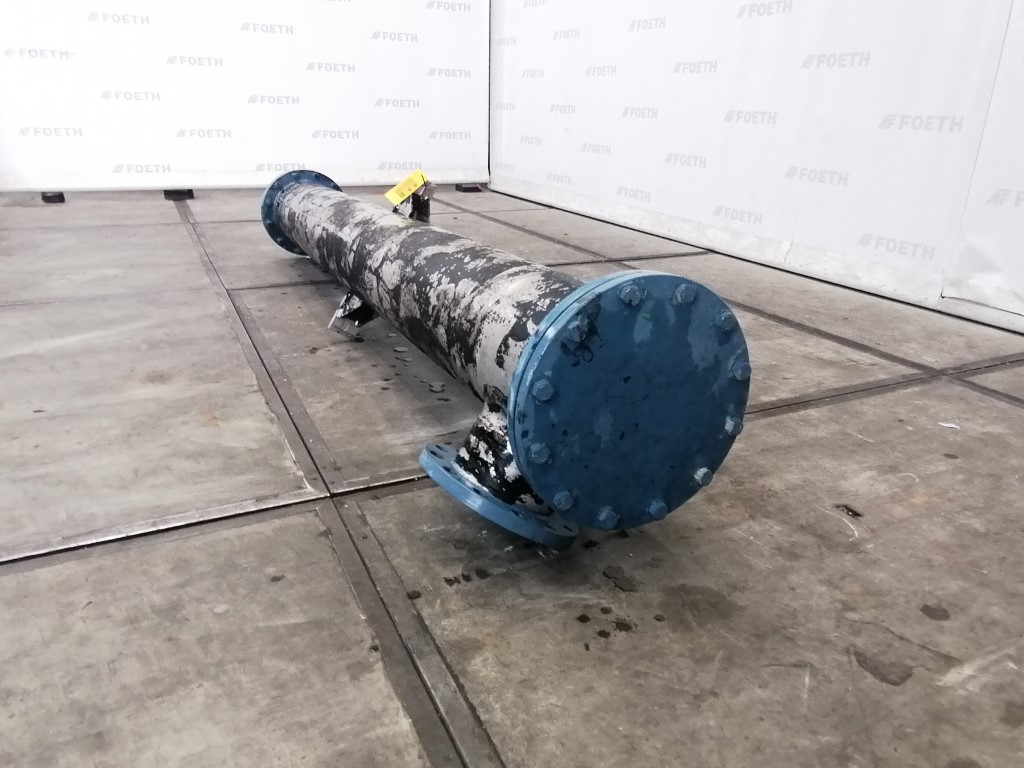

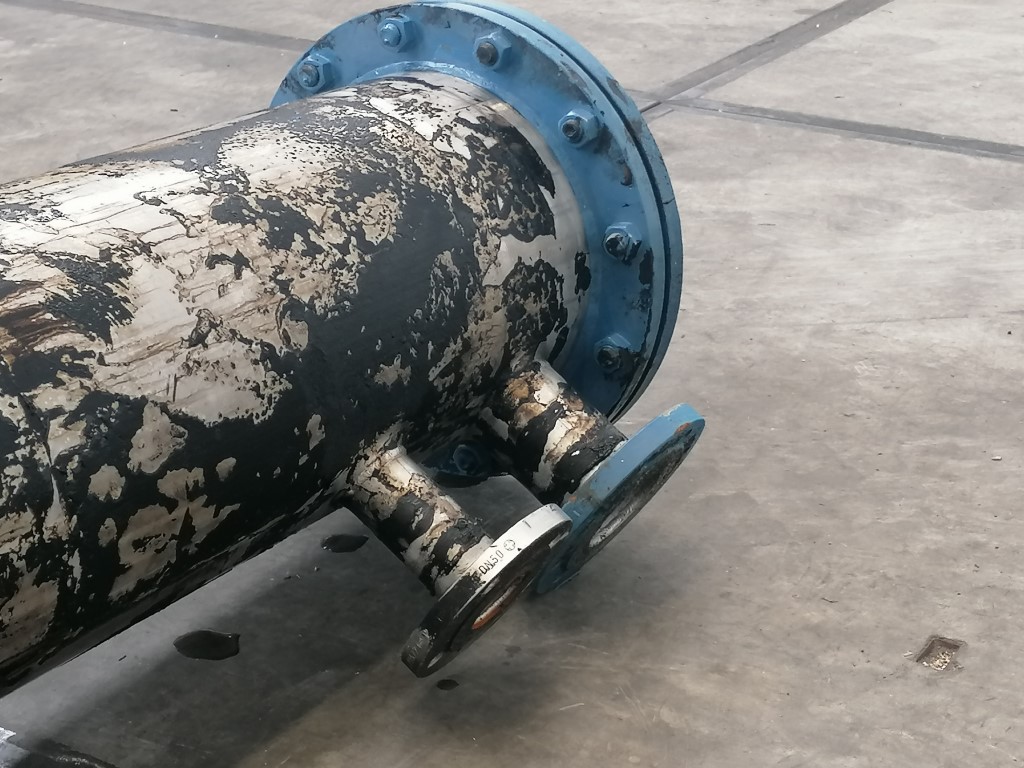

General SKUR0875 MakeApaco AG (CH) LocationBarneveld TypeAW300-2600/20-98 Pressure Vacuum possiblecheck Working pressure shell6 Bar Working pressure tubes3.2 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface16 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface16 m2 Tube capacity105 Ltr U-typecheck Tube length2500mm Max. temperature165 degr.C. Shell capacity140 Ltr Shell diameter323,9mm Shell length3200mm Wall thickness shell3,2mm Max. temperature5 / 165 degr.C. Shell connectionsDN200 (1x), DN80 (1), DN50 (2x) Cover connectionsDN 50 MaterialStainless steel 1.4435 (316L) Information No.503532/3 Year of construction1985 Floorspace0,6x0,6 M Total height3,4 M Weight420 KgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper ...

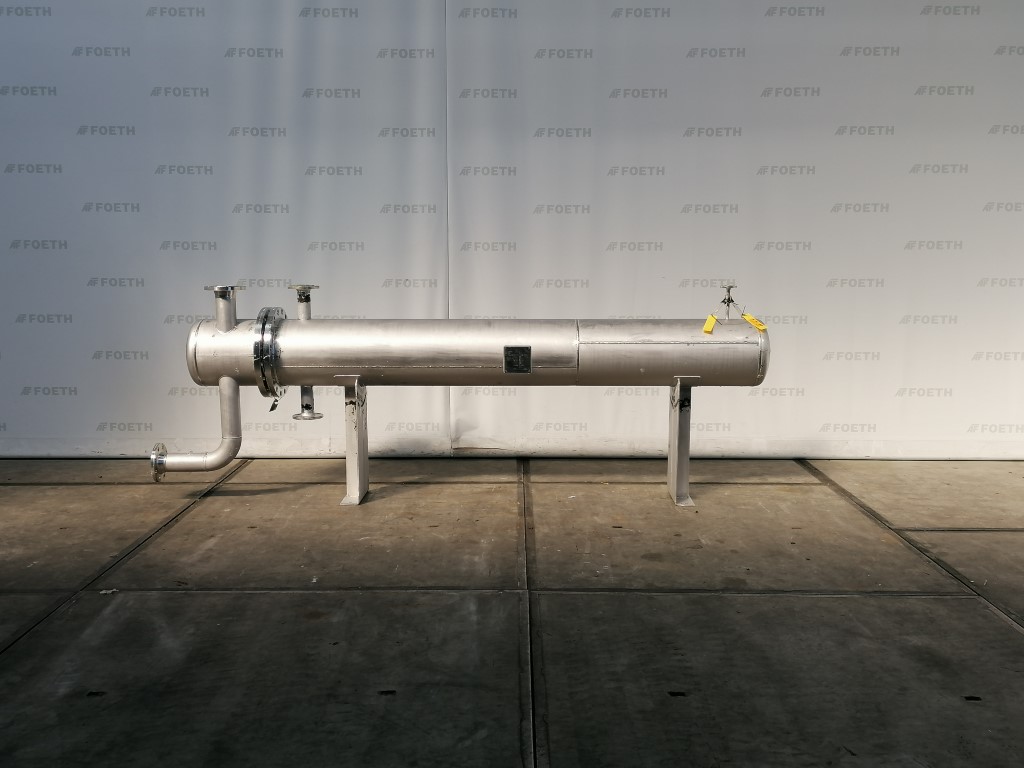

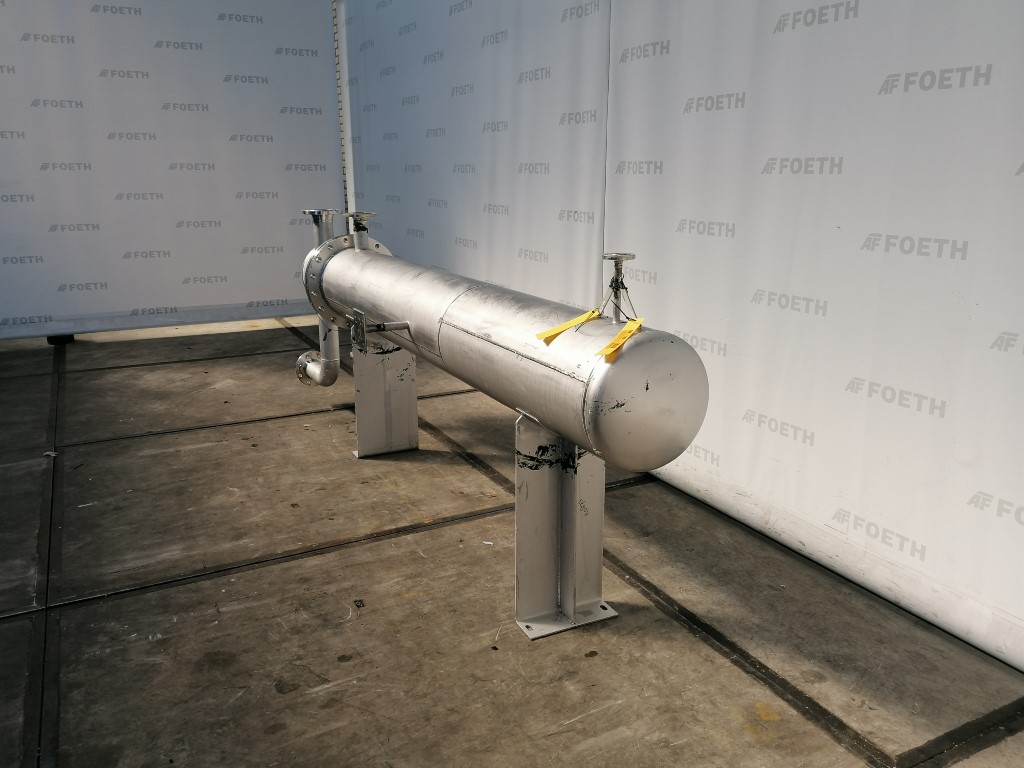

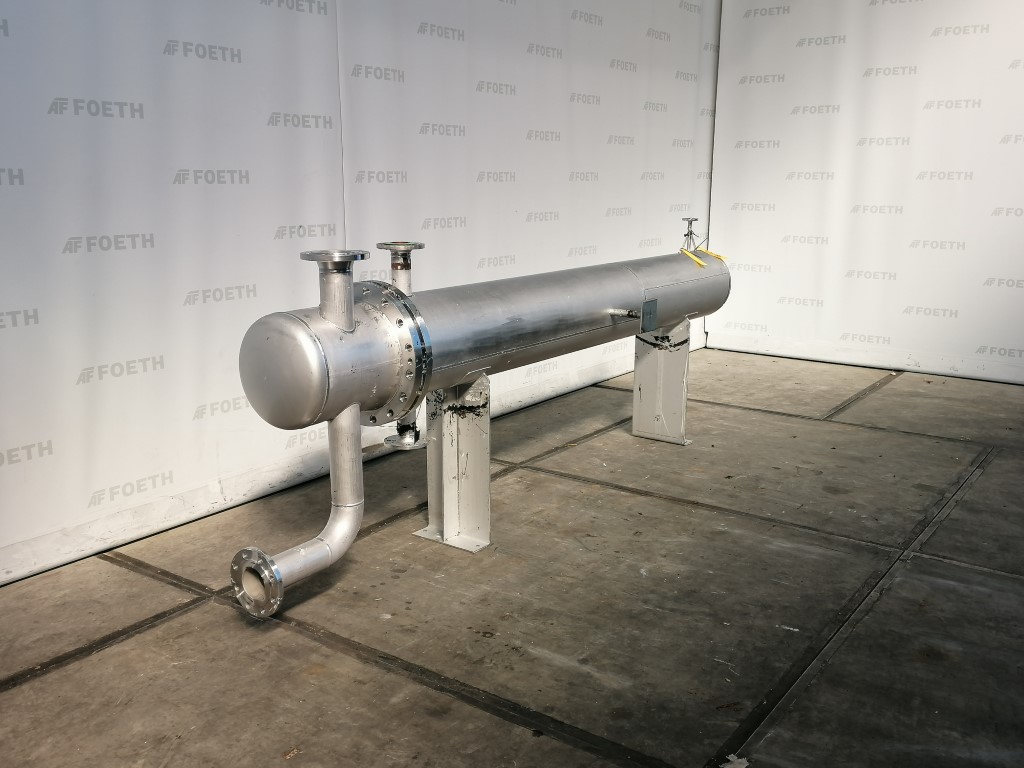

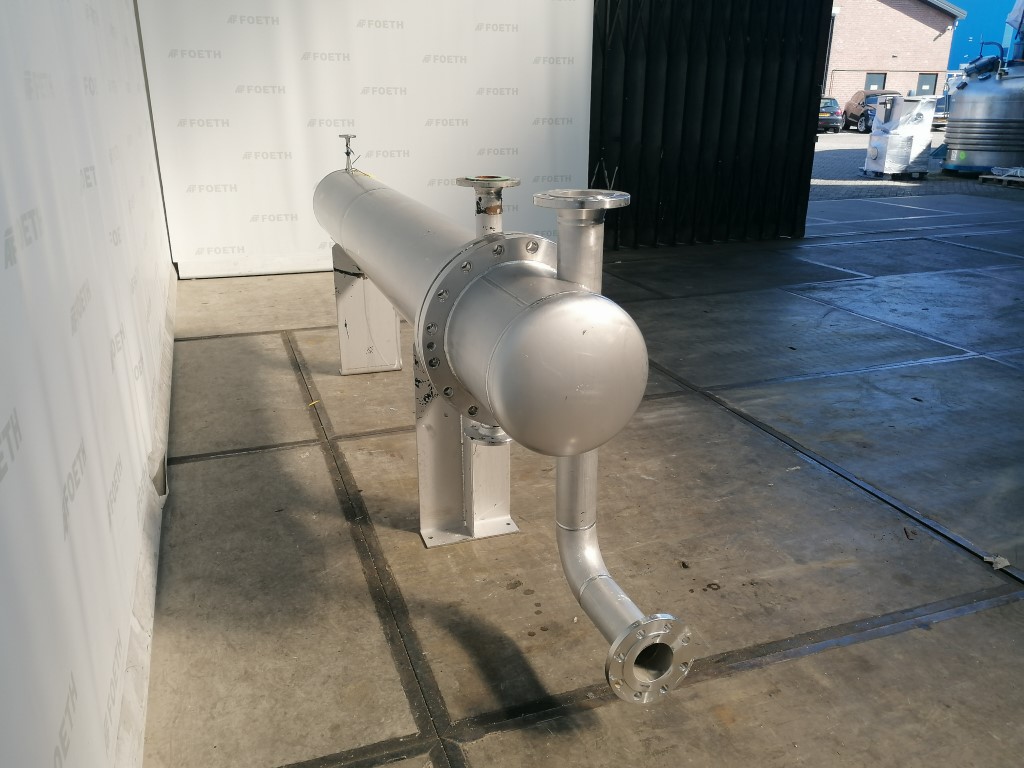

General SKUR0873 MakeJaeggi Guentner AG (CH) LocationBarneveld Type36,2 m2 Pressure Working pressure shell6 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface36.2 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4435 (316L) Heat exchangercheck Horizontalcheck Heating surface36.2 m2 Tube capacity164 ltr U-typecheck Number of tubes:120 Tube diameter16 Tube length3300 mm Wall thickness tubes1mm Max. temperature-30/200 Degr.C Shell capacity206 ltr Shell diameter406,4 mm Shell length2964 mm Wall thickness shell4 mm Max. temperature-30/200 Degr.C Shell connectionsDN656 (2x), DN15 (1x) Cover connectionsDN100 (2x) Information No.2613 Year of construction1996 Mounted on legscheck Floorspace3,7x0,6 m Total height1,3 m Weight750 kg Catalysts & fillersFeed additives ...

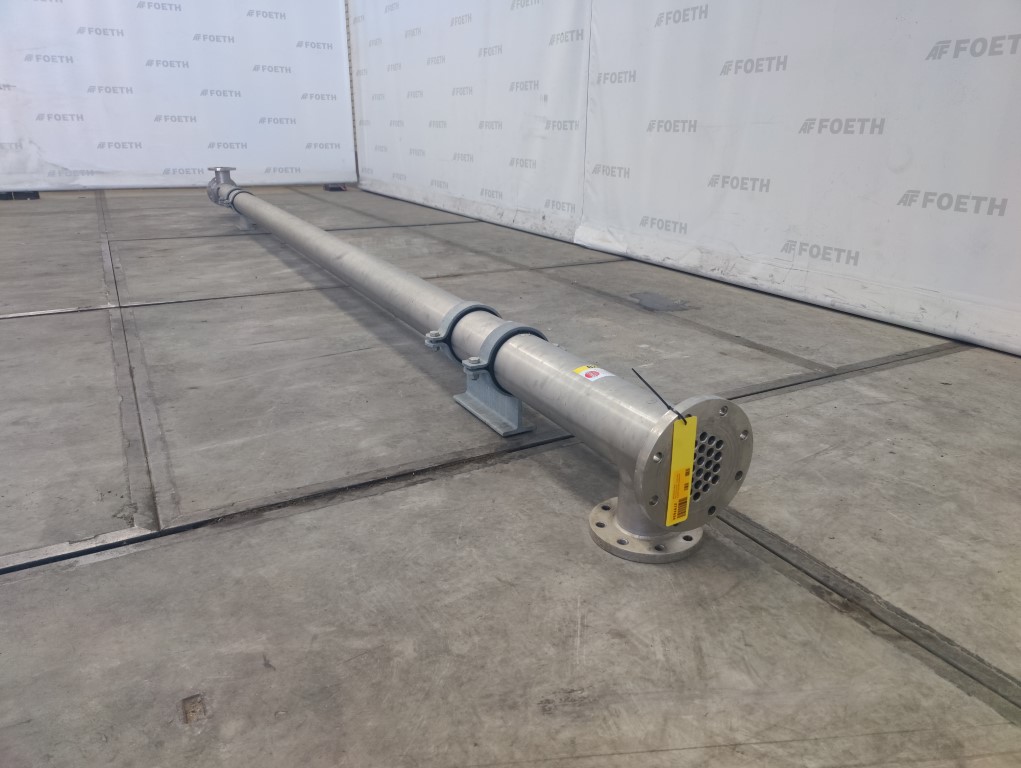

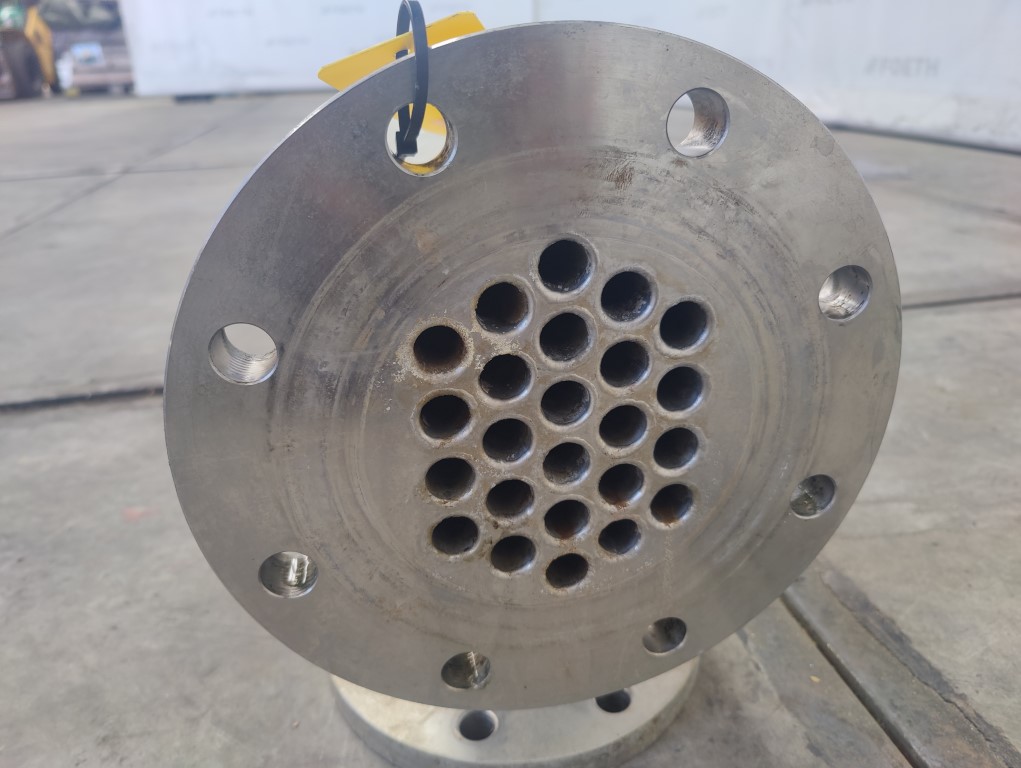

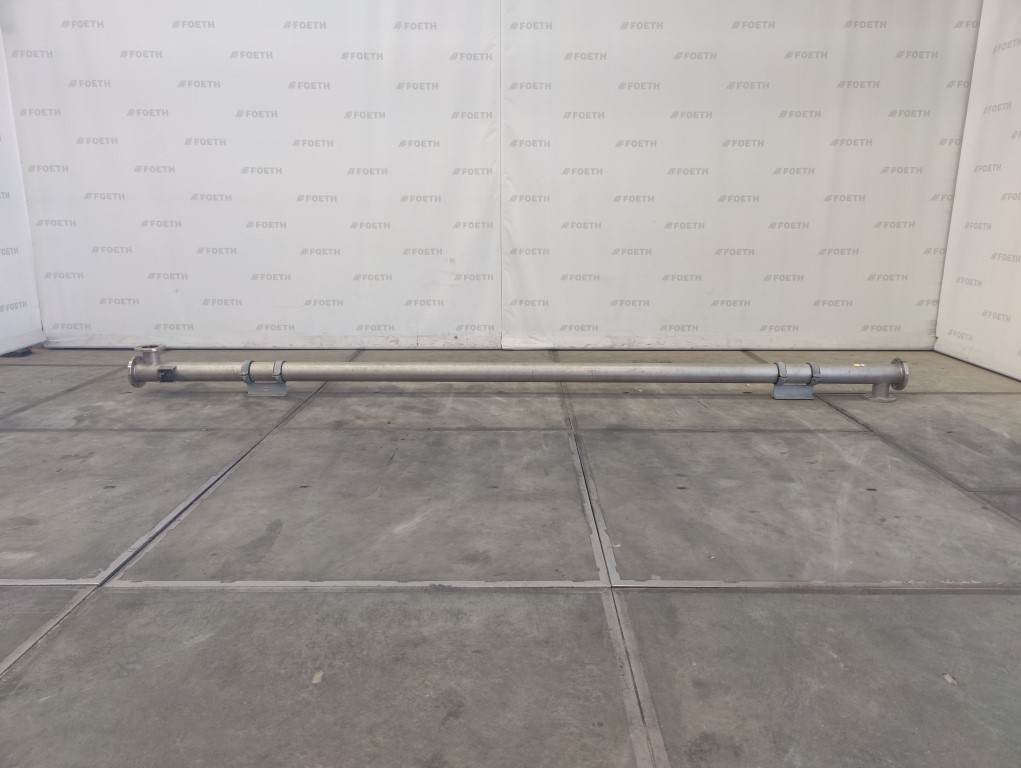

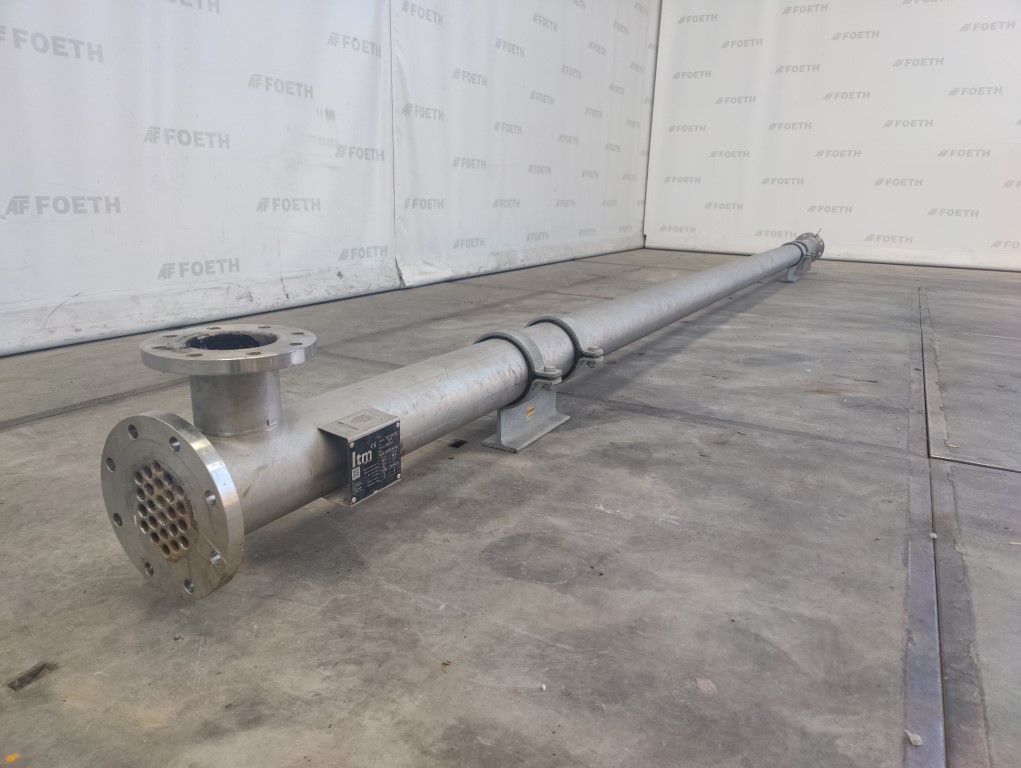

General SKU279T634 MakeItm TypeTPO No.2016032.1 Year of construction2016 LocationBarneveld Pressure Working pressure shell10 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface6.5 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel Heat exchangercheck Horizontalcheck Heating surface6,5 m² Number of tubes:24 Tube diameter14,5 mm Tube length5900 mm Max. temperature5/99 °C Shell capacity72 Ltr. Shell length5900 mm Max. temperature5/99 °C Shell connections DN125 Cover connectionsDN100 Capacity51 Ltr. Information Floorspace5,9x0,3 m Total height0,4 m Weight180 kg CEcheckCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal ...

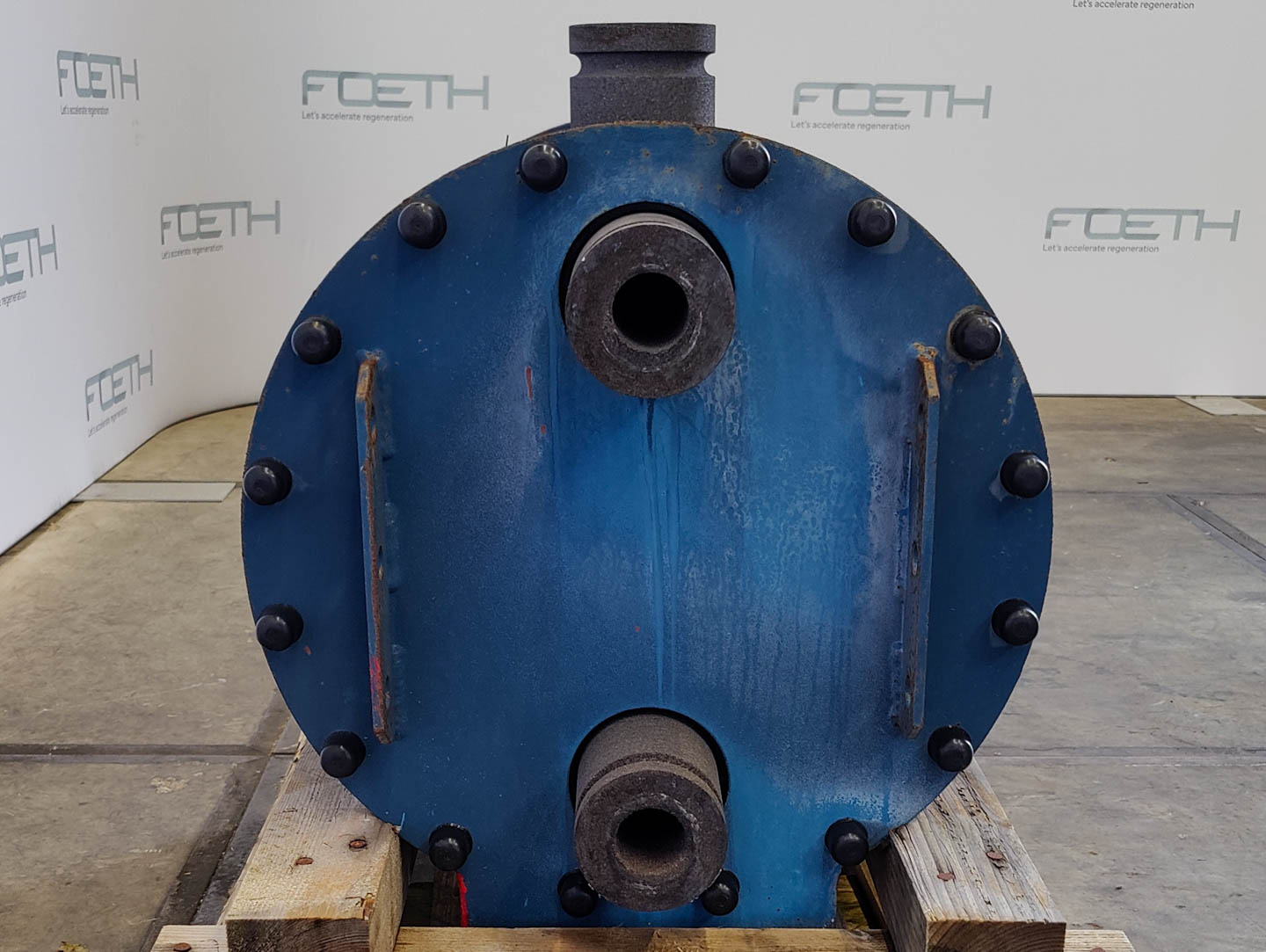

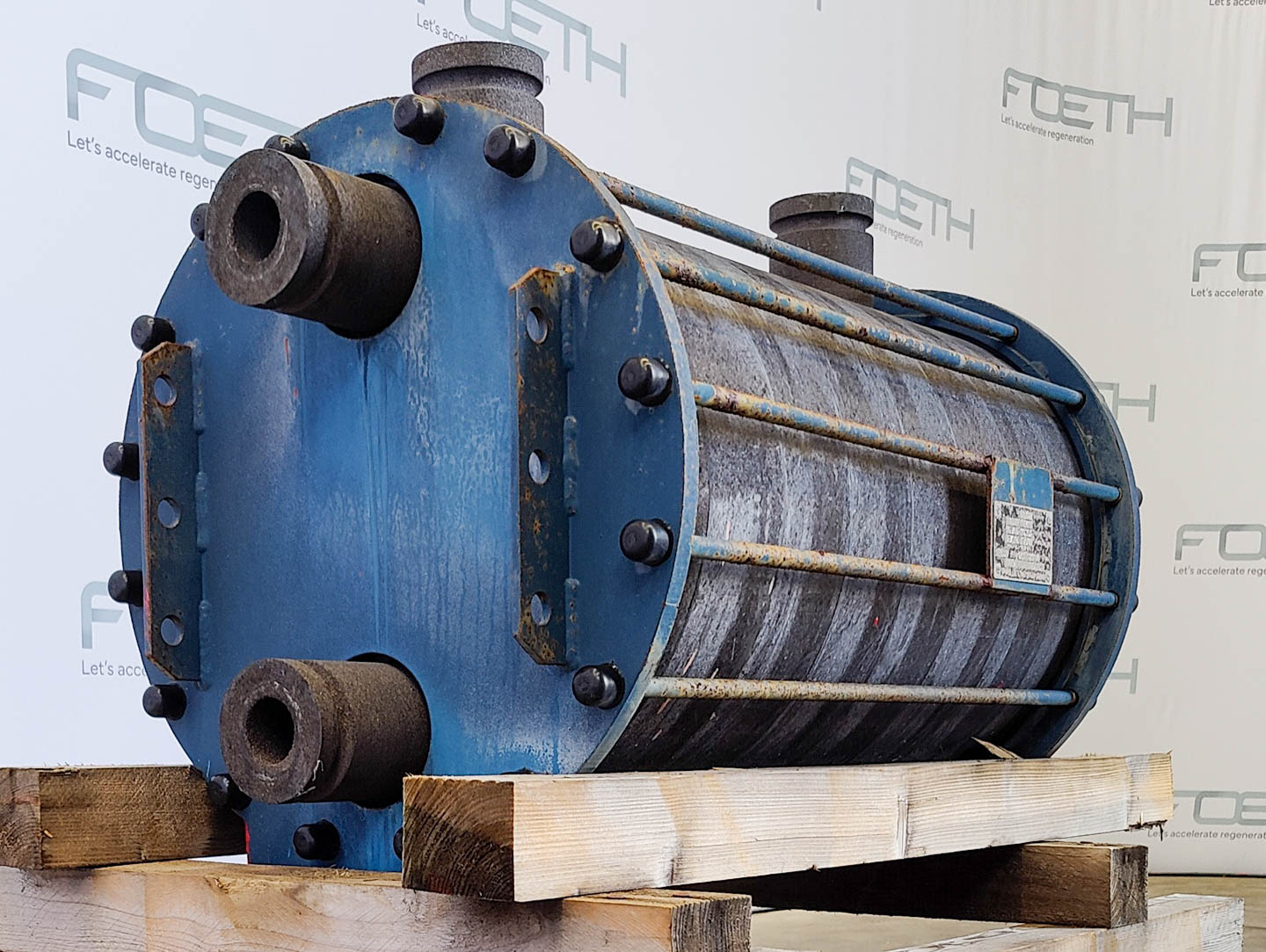

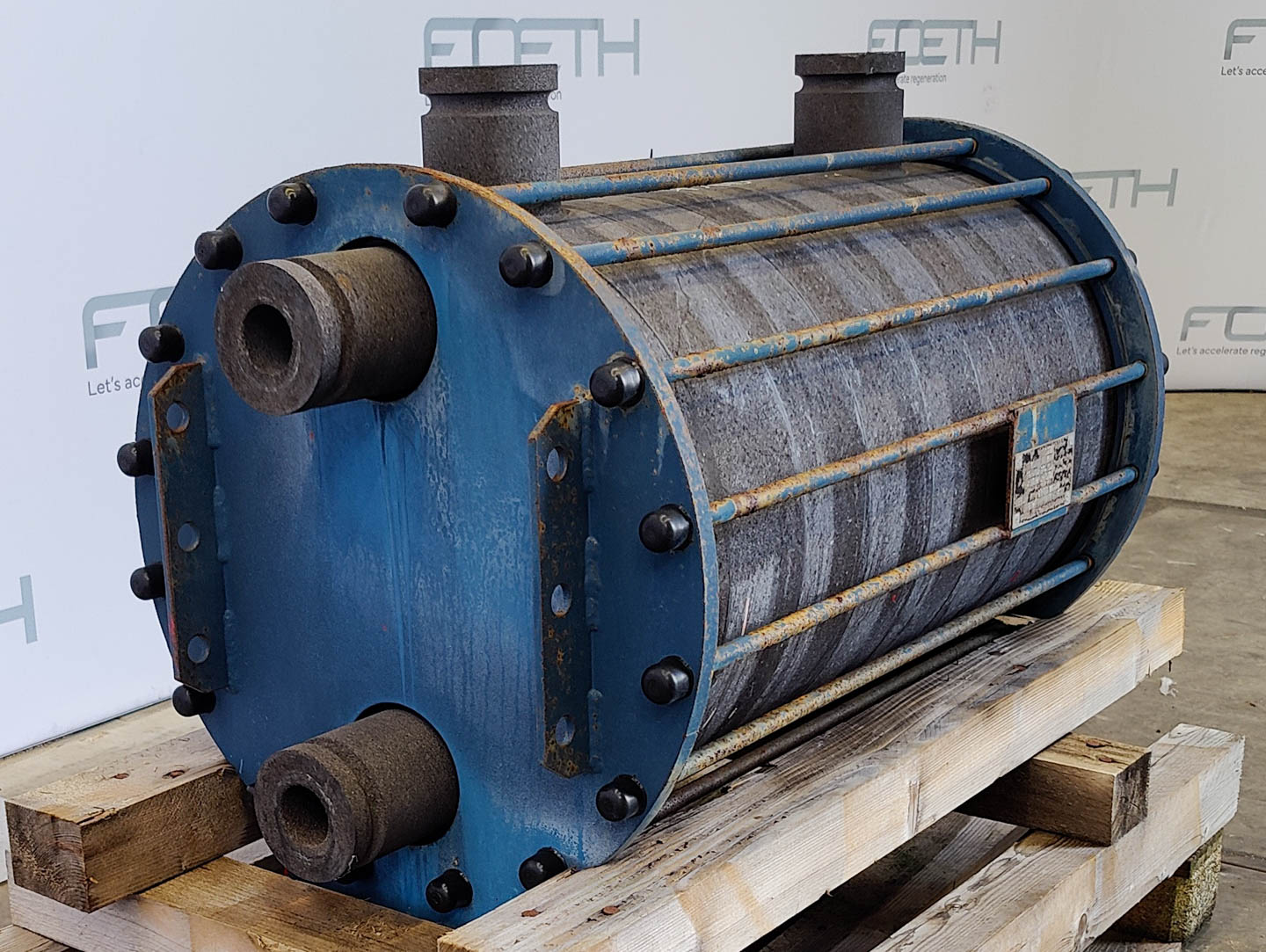

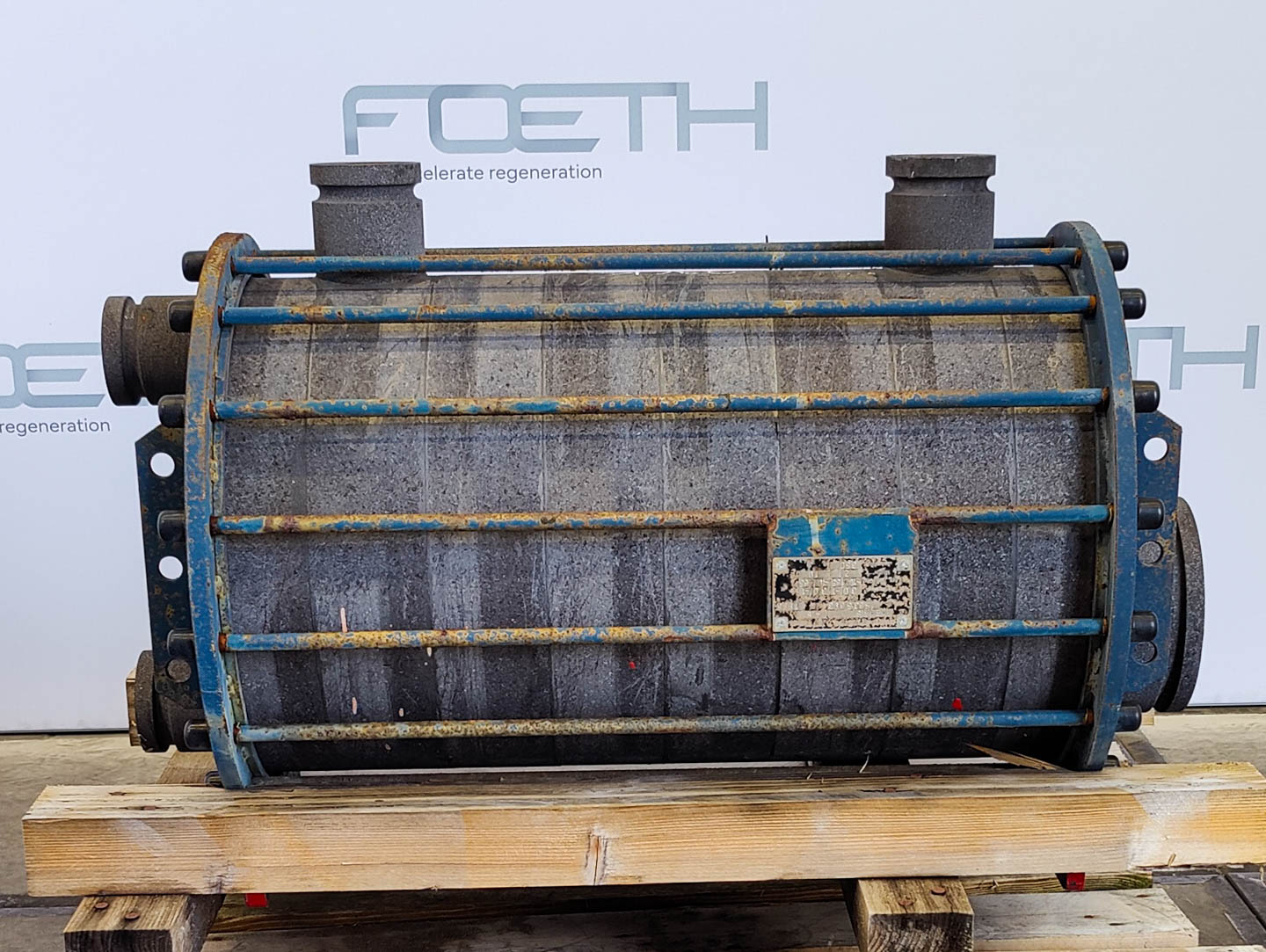

General SKU356T1072 MakeGab Neumann LocationBarneveld TypeH-B-4,8 Pressure Vacuum possiblecheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface4.8 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Horizontalcheck Heating surface4.8m² Tube capacity21ltr. Tube length830mm Max. temperature-10/+165°C Shell capacity19ltr. Shell diameter480mm Shell length830mm Max. temperature-10/+165°C Shell connectionsDia: 50mm (2x) Cover connectionsDia: 150, 50mm(2x) Information No.7563-5693 Year of construction1985 Floorspace1,1x0,6m Total height0,8m Weight400kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganics ...

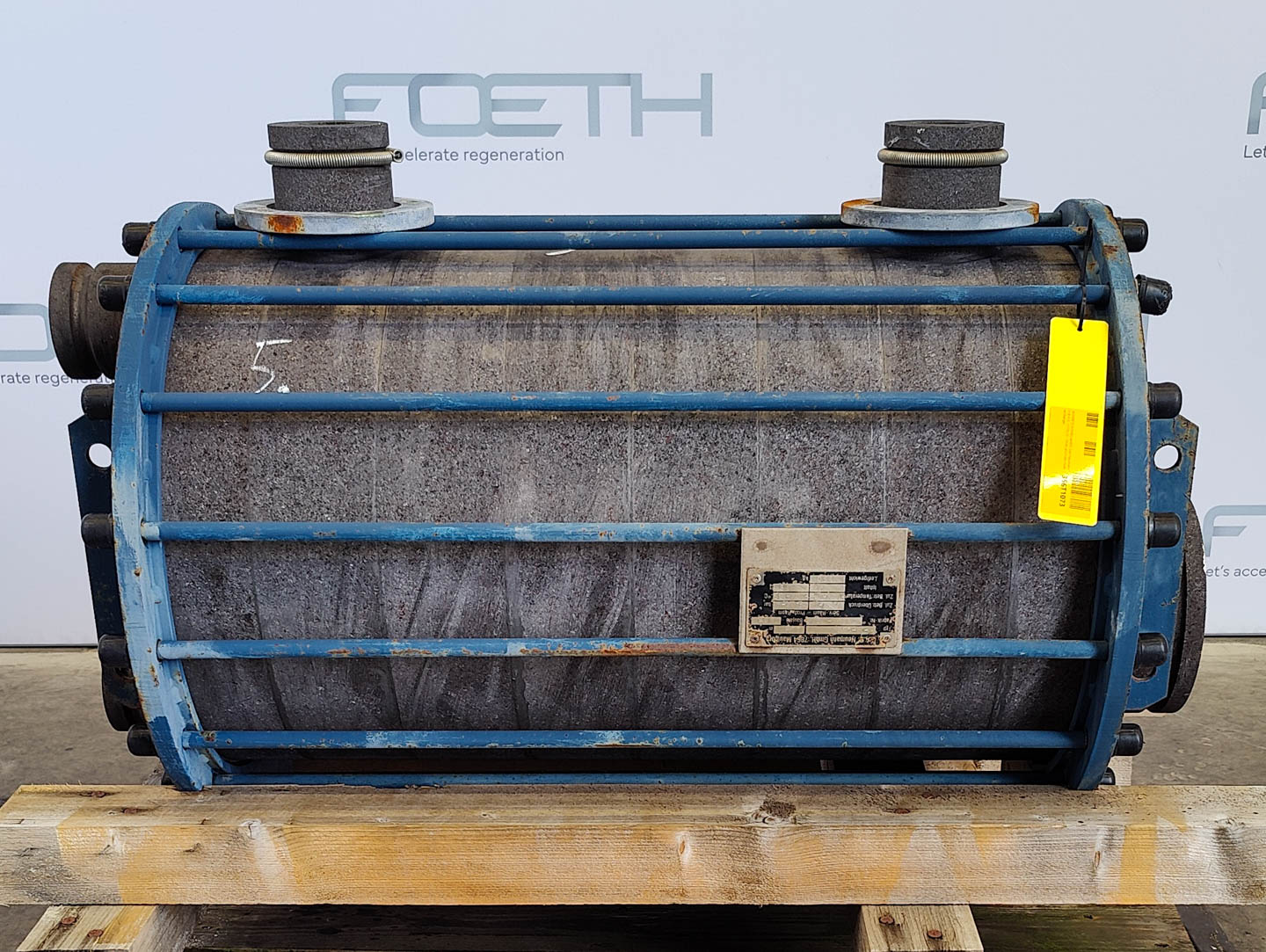

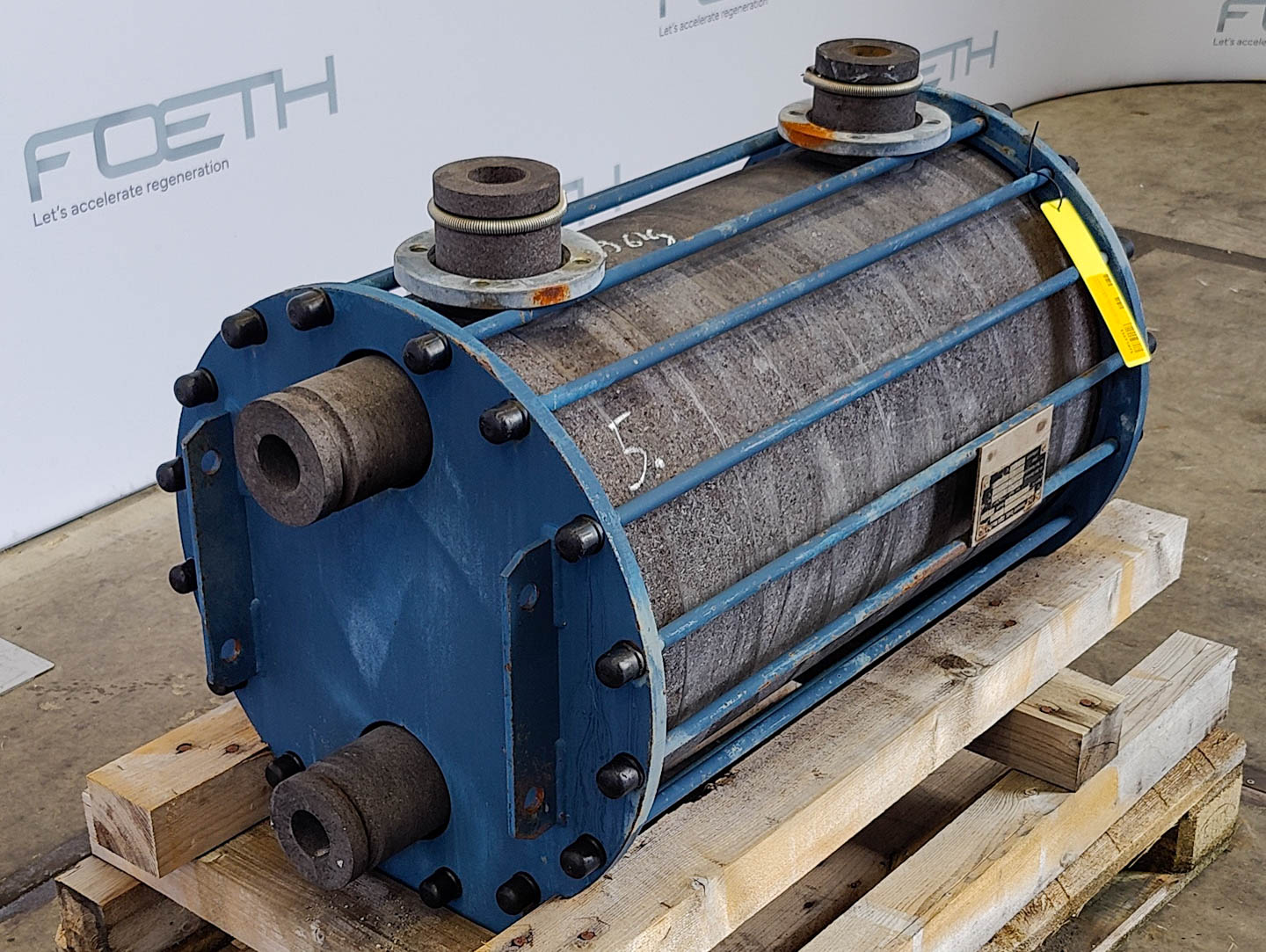

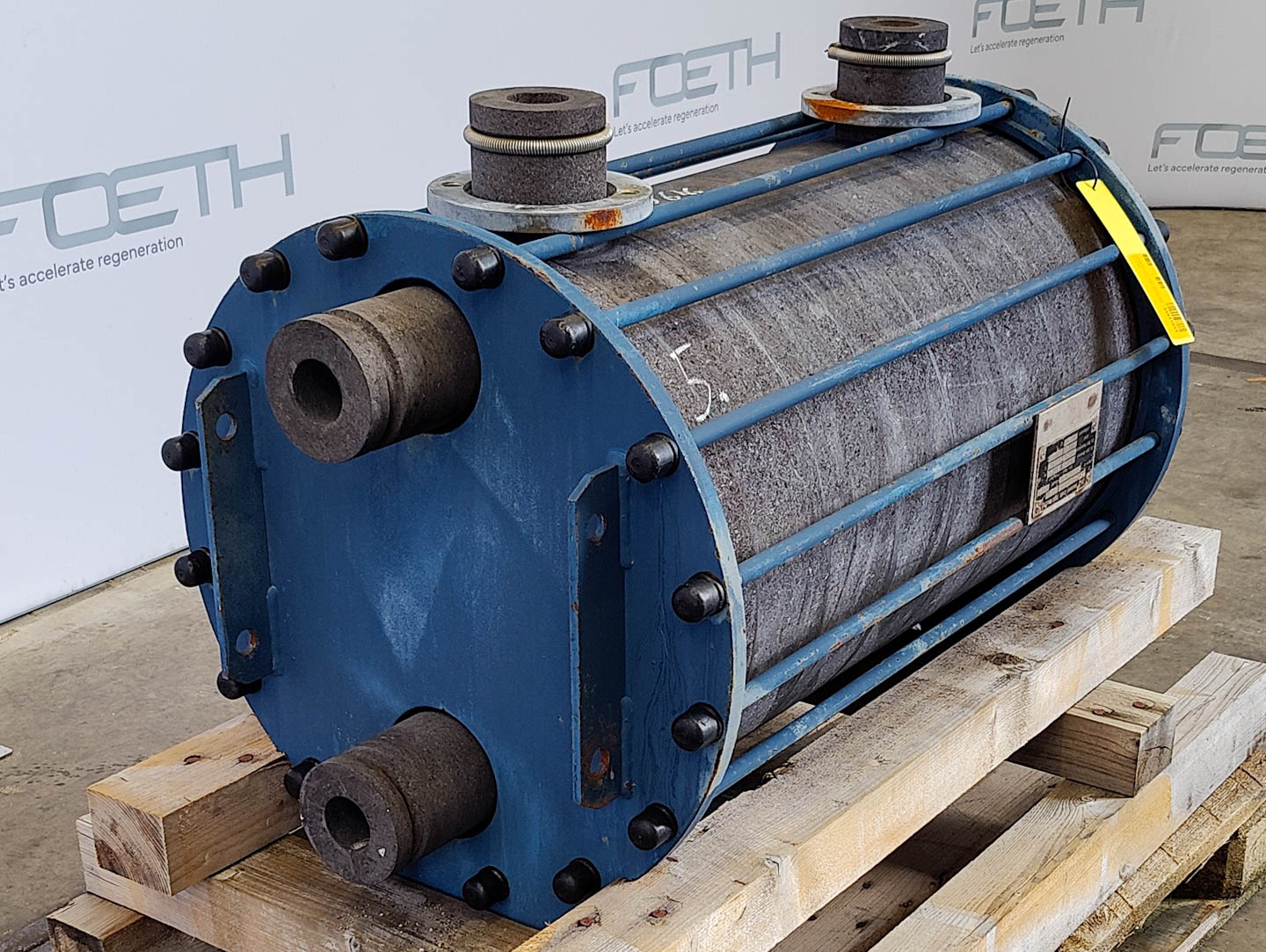

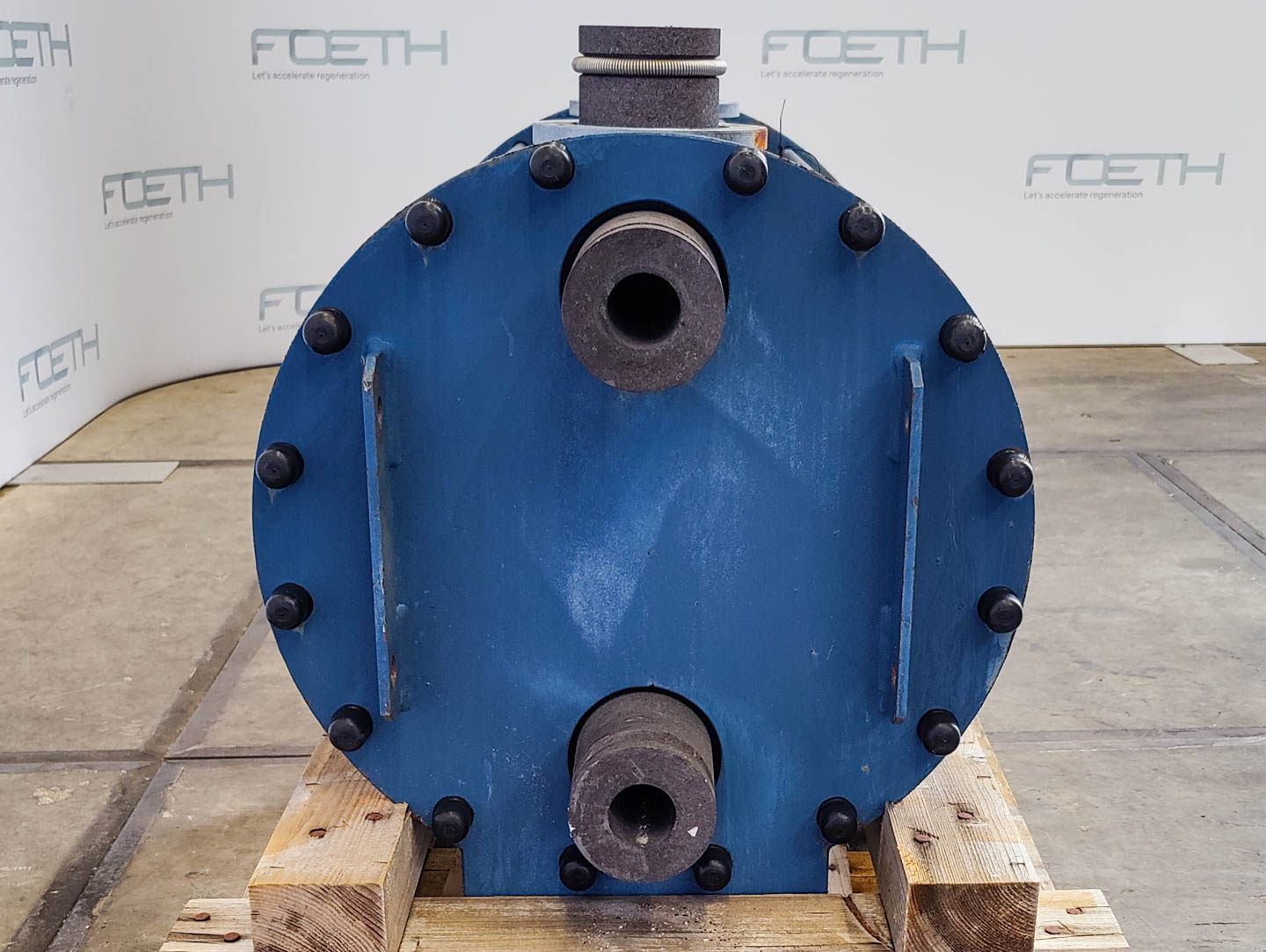

General SKU356T1073 MakeGab Neumann LocationBarneveld TypeH-B-4,8 Pressure Vacuum possiblecheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface4.8 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Horizontalcheck Heating surface4.8m² Tube capacity21ltr. Tube length830mm Max. temperature-10/+165°C Shell capacity19ltr. Shell diameter480mm Shell length830mm Max. temperature-10/+165°C Shell connectionsDia: 50mm (2x) Cover connectionsDia: 150, 50mm(2x) Information No.9391-7211 Year of construction1988 Floorspace1,1x0,6m Total height0,8m Weight400kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganics ...

General SKU212T507 LocationBarneveld MakeLe Carbone-Lorraine TypeNC210 S Pressure Vacuum possible jacketcheck Working pressure shell10 Bar Main Features Shell (Material)Graphite Tube (Material)Graphite Surface4.3 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Notified bodyTÜVÖ Heating surface4.3 m² Max. temperature-10/110 °C Shell capacity45,6 Ltr. Shell diameter273 mm Wall thickness shell6,3 mm Max. temperature-10/110 °C Shell connectionsDN40 (2x) Cover connectionsDN80 (2x) Information No.20146 Year of construction2001 Floorspace0,5x0,5 m Total height1,87 m Weight310 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuti ...

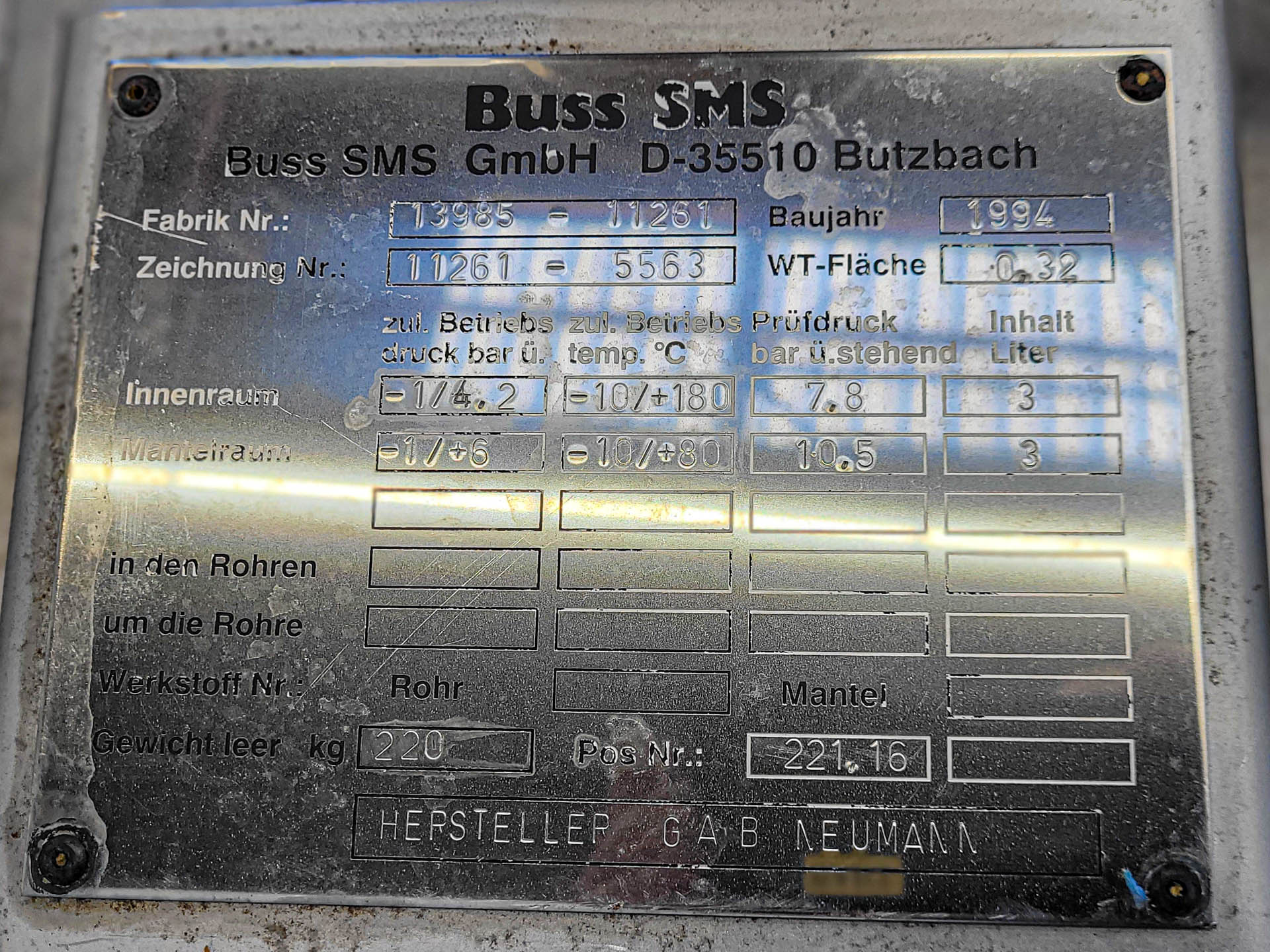

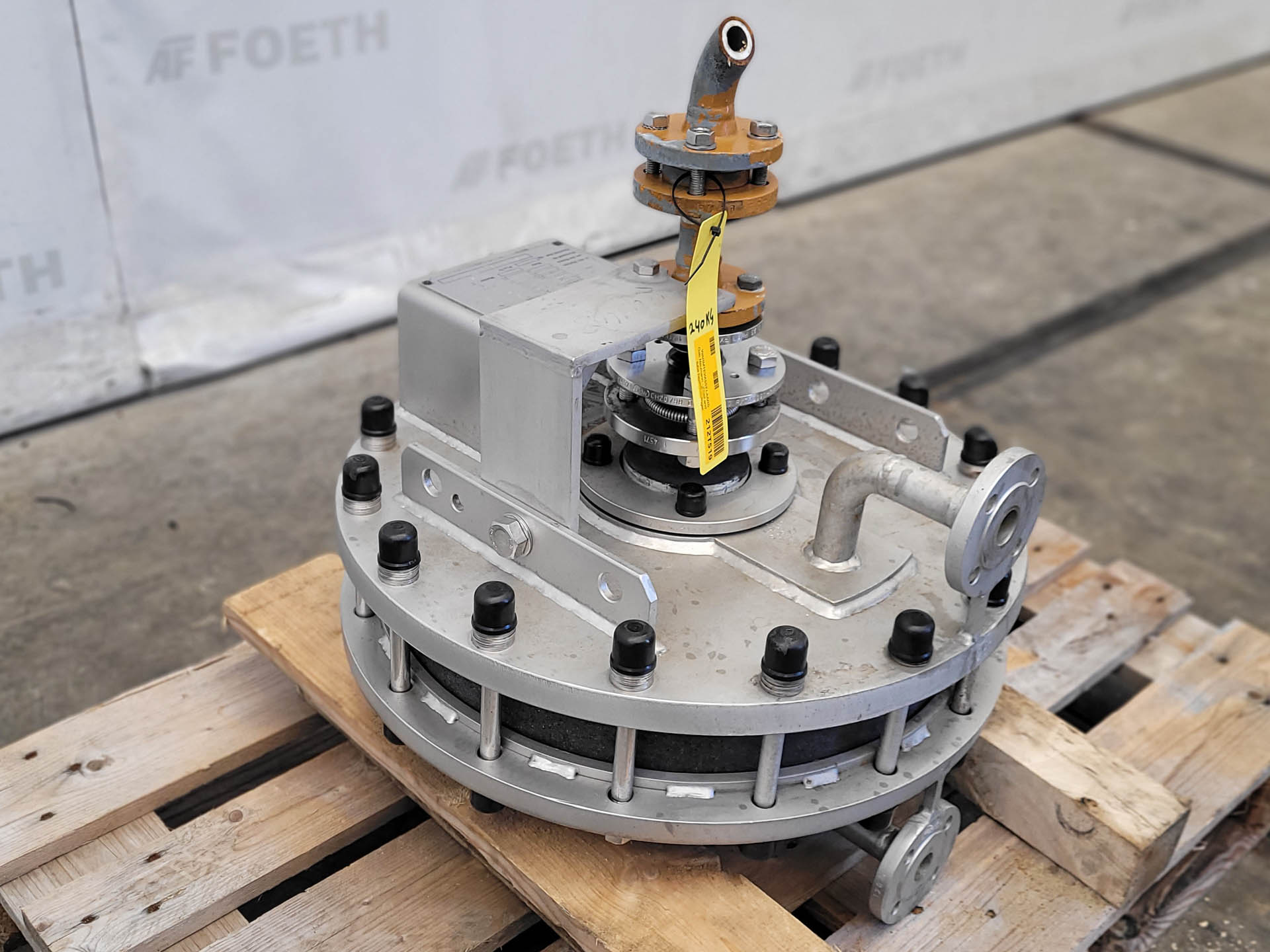

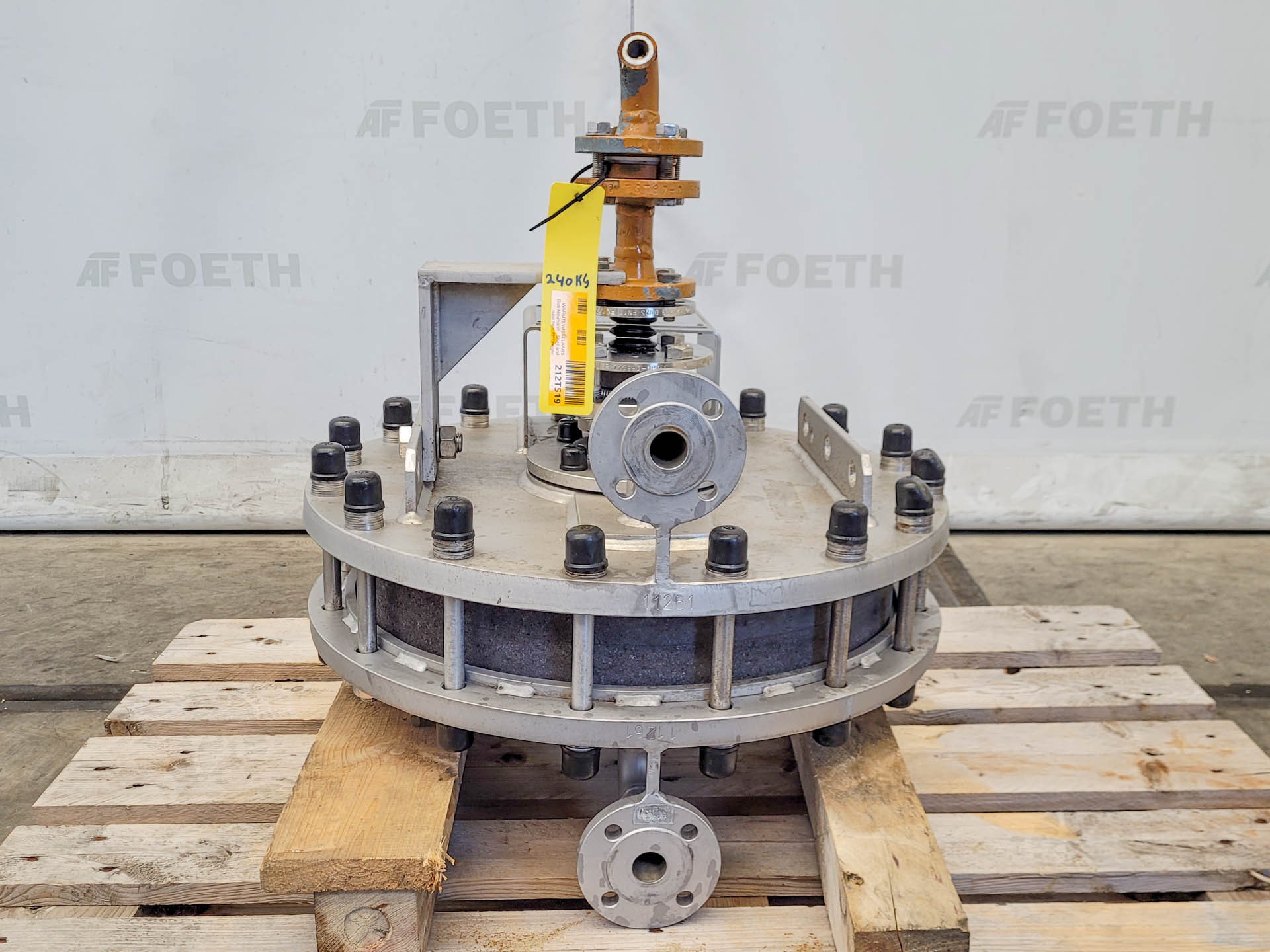

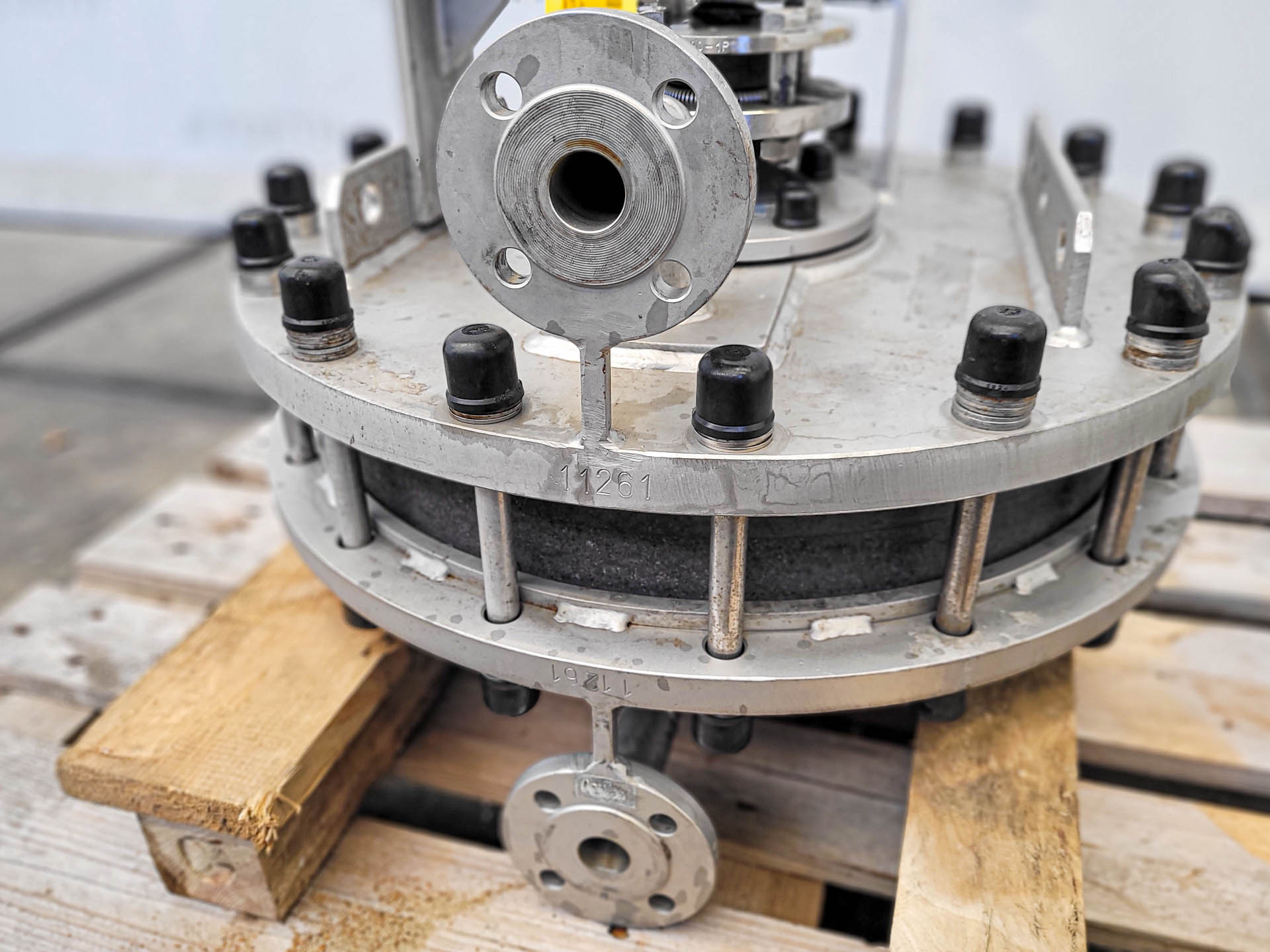

General SKU212T519 LocationBarneveld MakeBuss SMS/ GAB Neumann Pressure Vacuum possiblecheck Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes4.2 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface0.32 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Heating surface0,32 m² Tube capacity3 Ltr. Max. temperature-10/180 °C Shell capacity3 Ltr. Max. temperature-10/80 °C Information No.13985-11261 Year of construction1994 Floorspace0,6x0,6 m Total height0,7 m Weight240 KgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBeveragesDyes & pigmentsBiophar ...

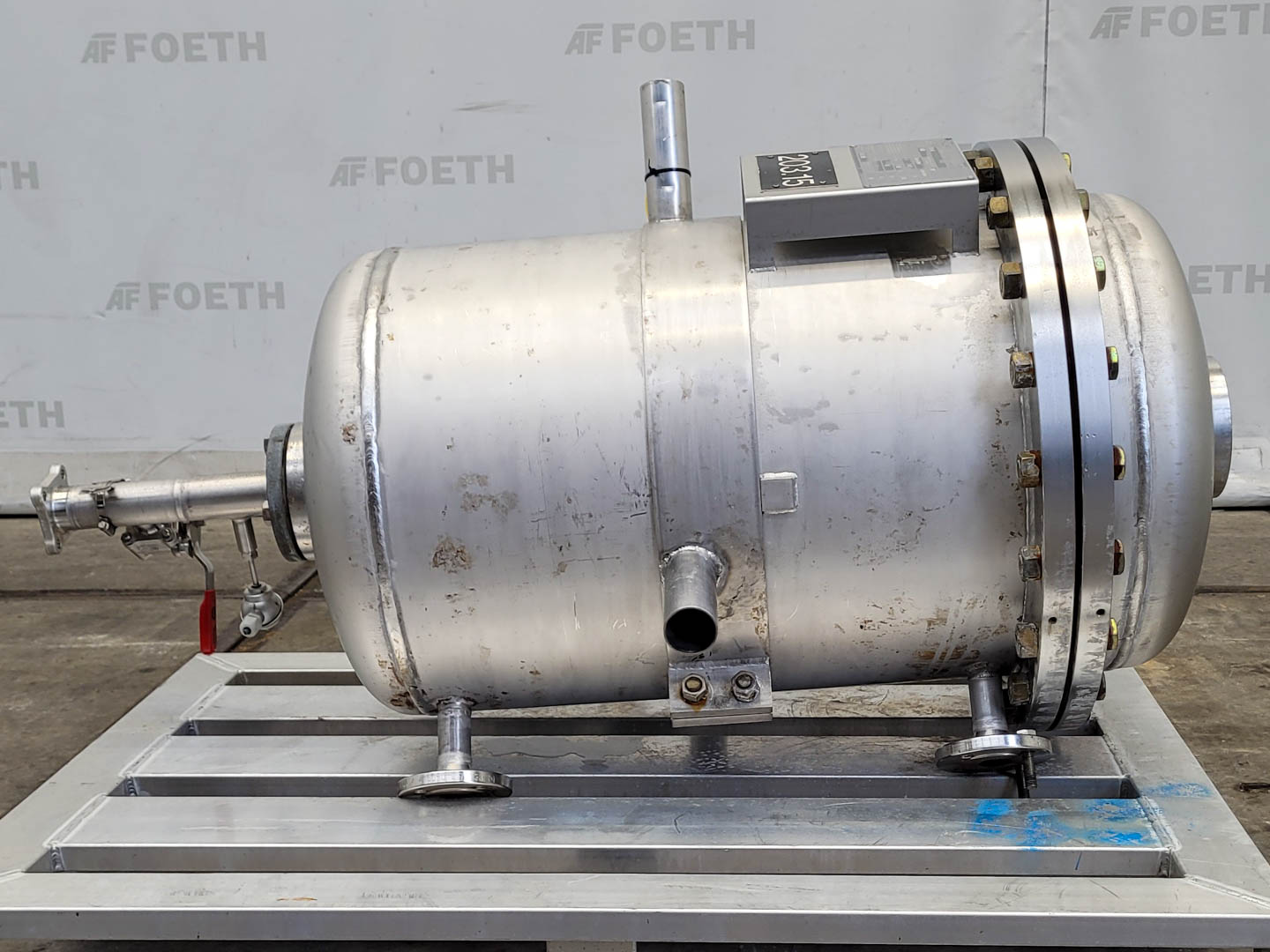

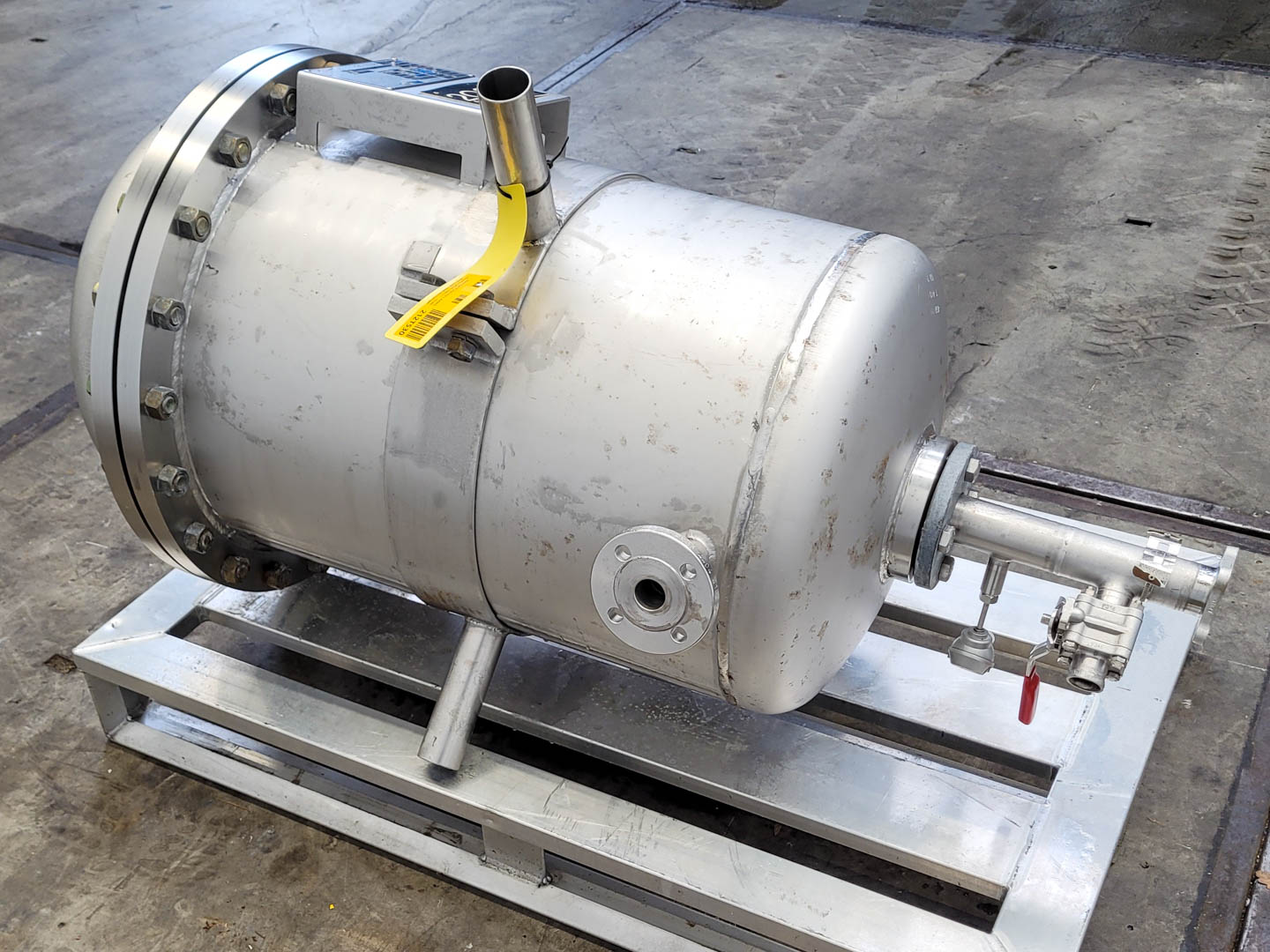

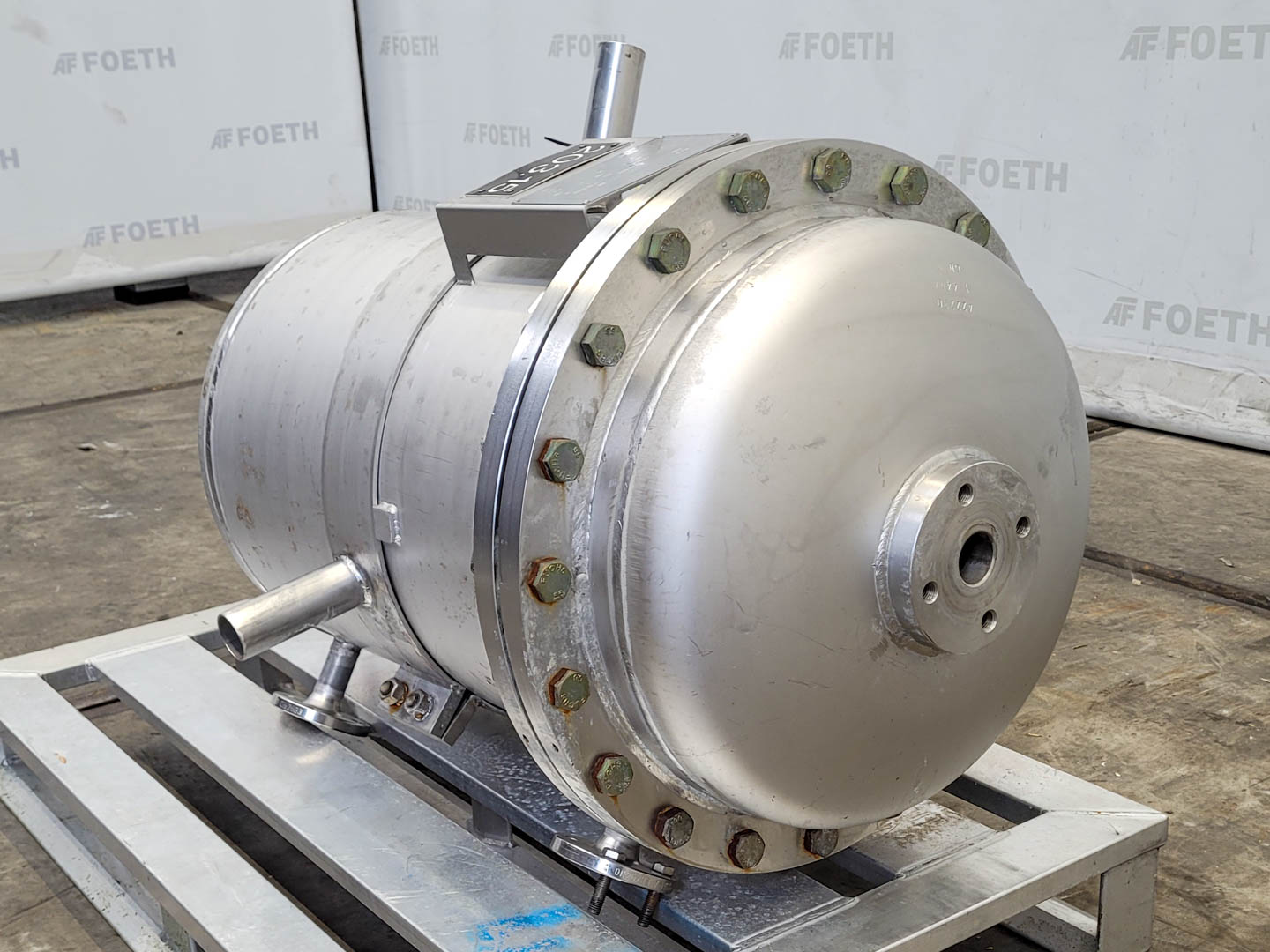

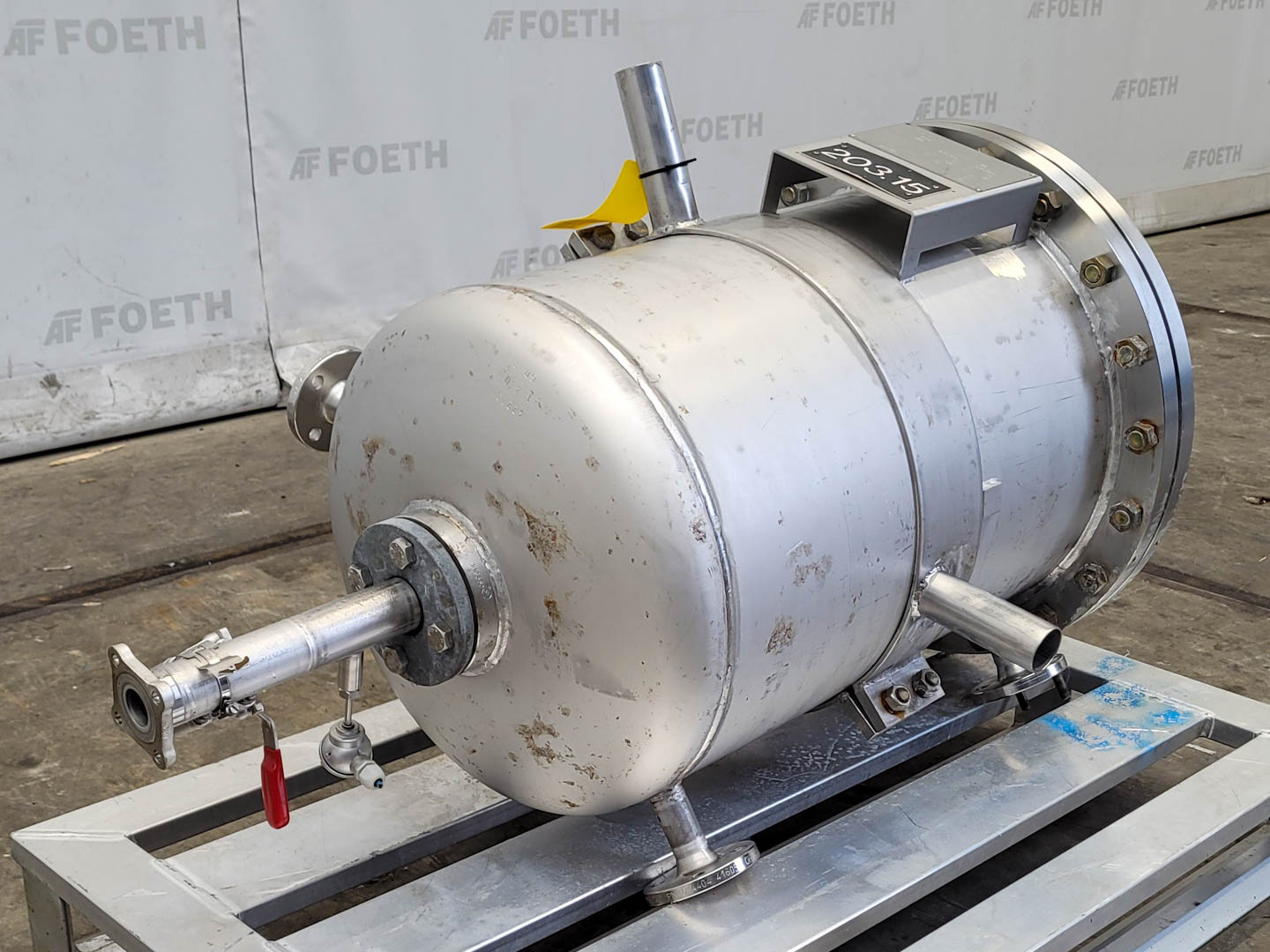

General SKU212T530 LocationBarneveld CEcheck MakeKuehni TypeSR 4 m² Pressure Vacuum possiblecheck Working pressure shell0.5 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface4 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4571 (316Ti) Heat exchangercheck Verticalcheck Heating surface4 m2 Tube capacity24,5 Ltr. Number of tubes:1 Tube diameter25 mm Tube length± 5000 mm Wall thickness tubes1,5 mm Max. temperature0/200 °C Shell capacity175 Ltr. Shell diameter492 mm Shell length629 mm Wall thickness shell4 mm Max. temperature0/200 °C Shell connectionsDN50 (2x) Cover connectionsDN25 (2x) Information No.43608 Year of construction2002 Floorspace0,7x0,5 m Total height1 m Weight180 KgCatalysts & fille ...

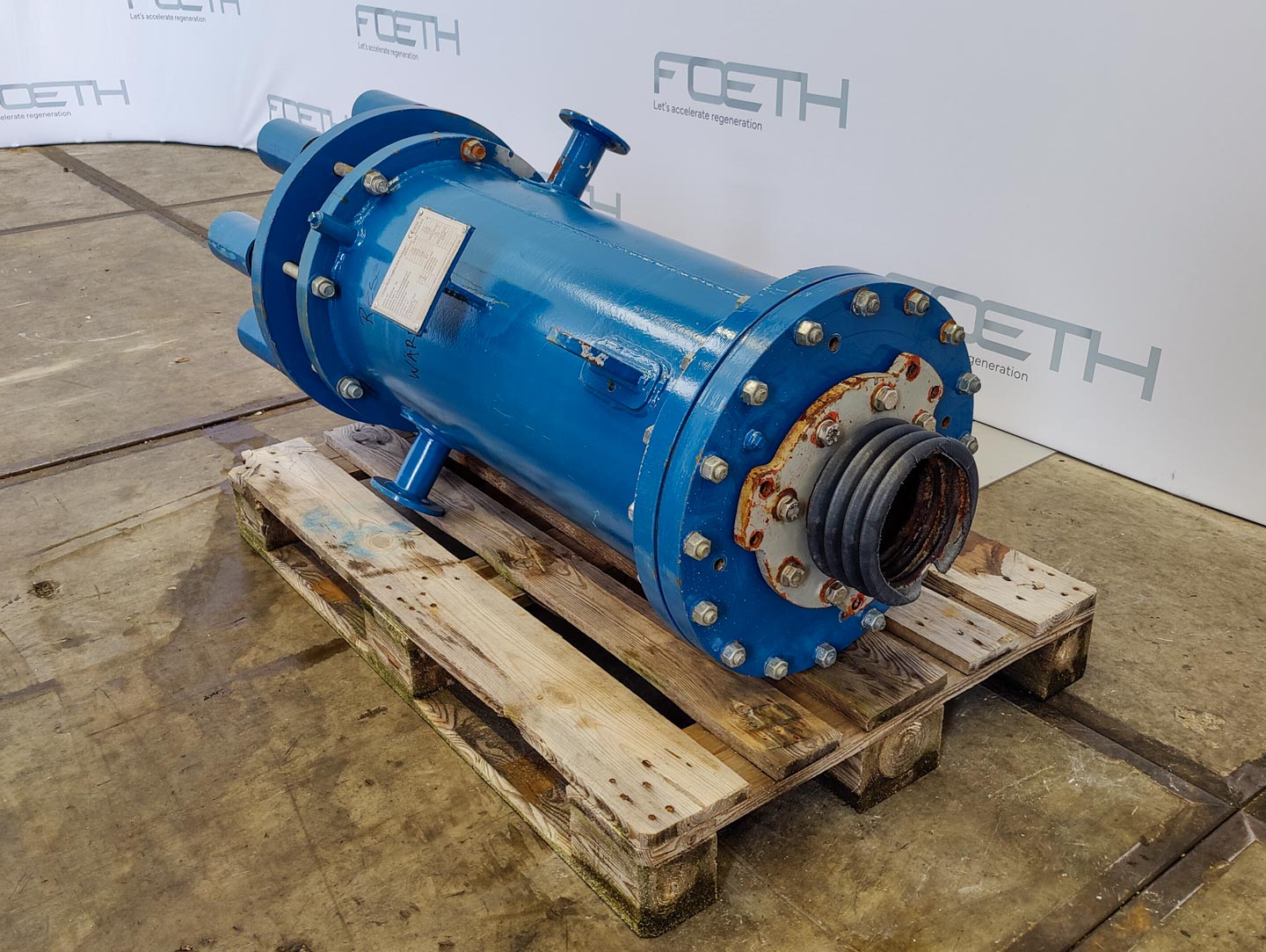

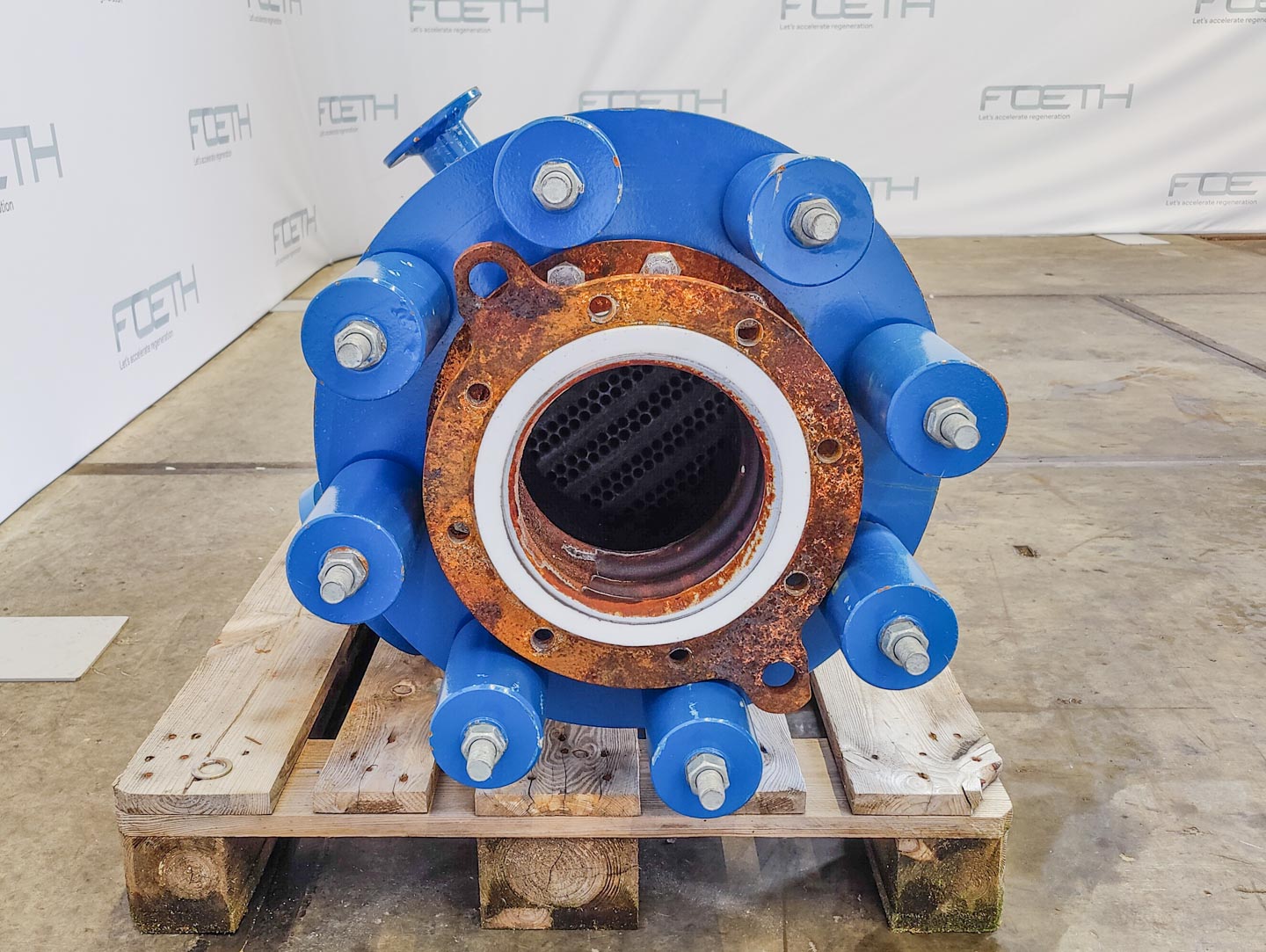

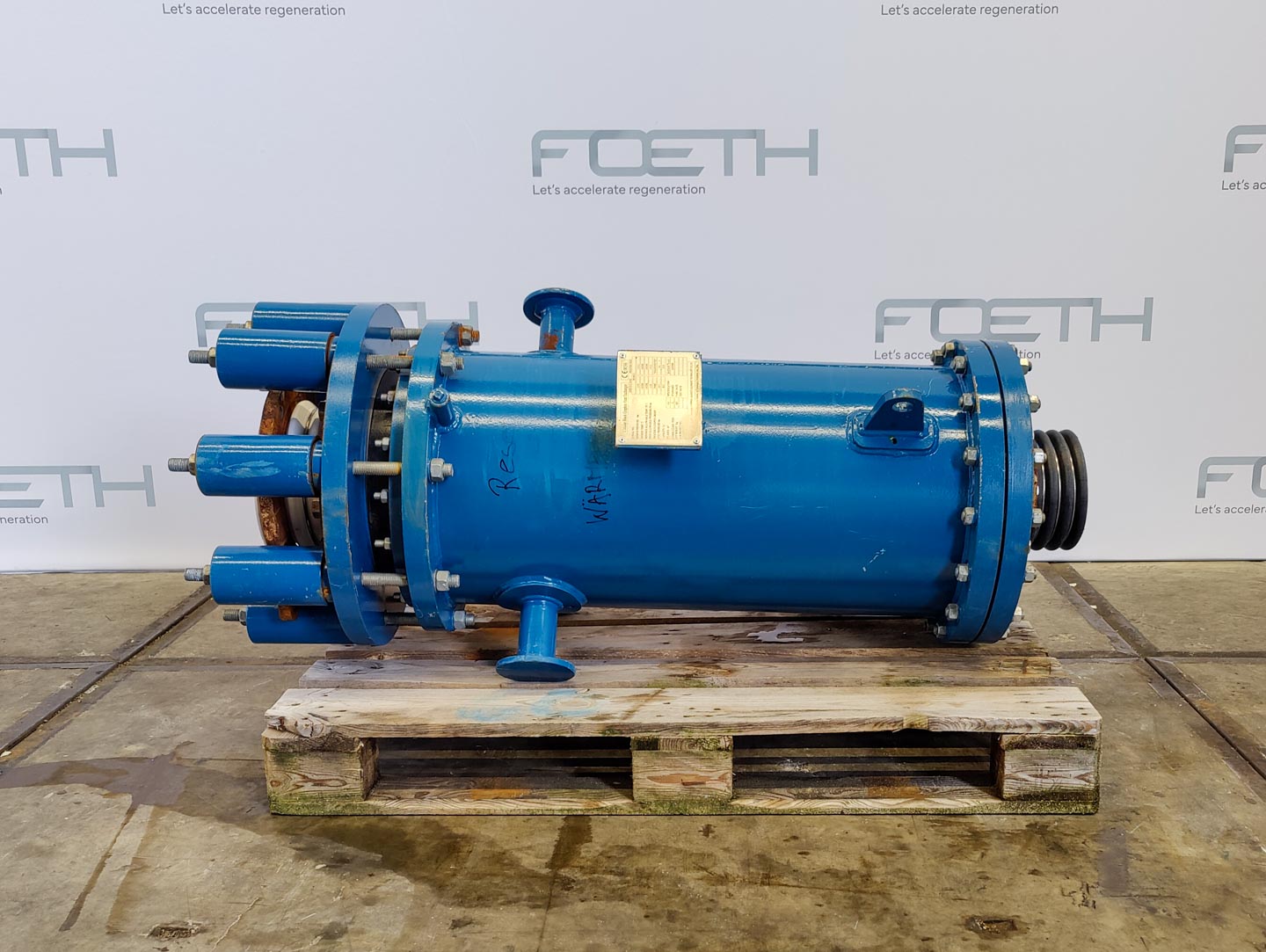

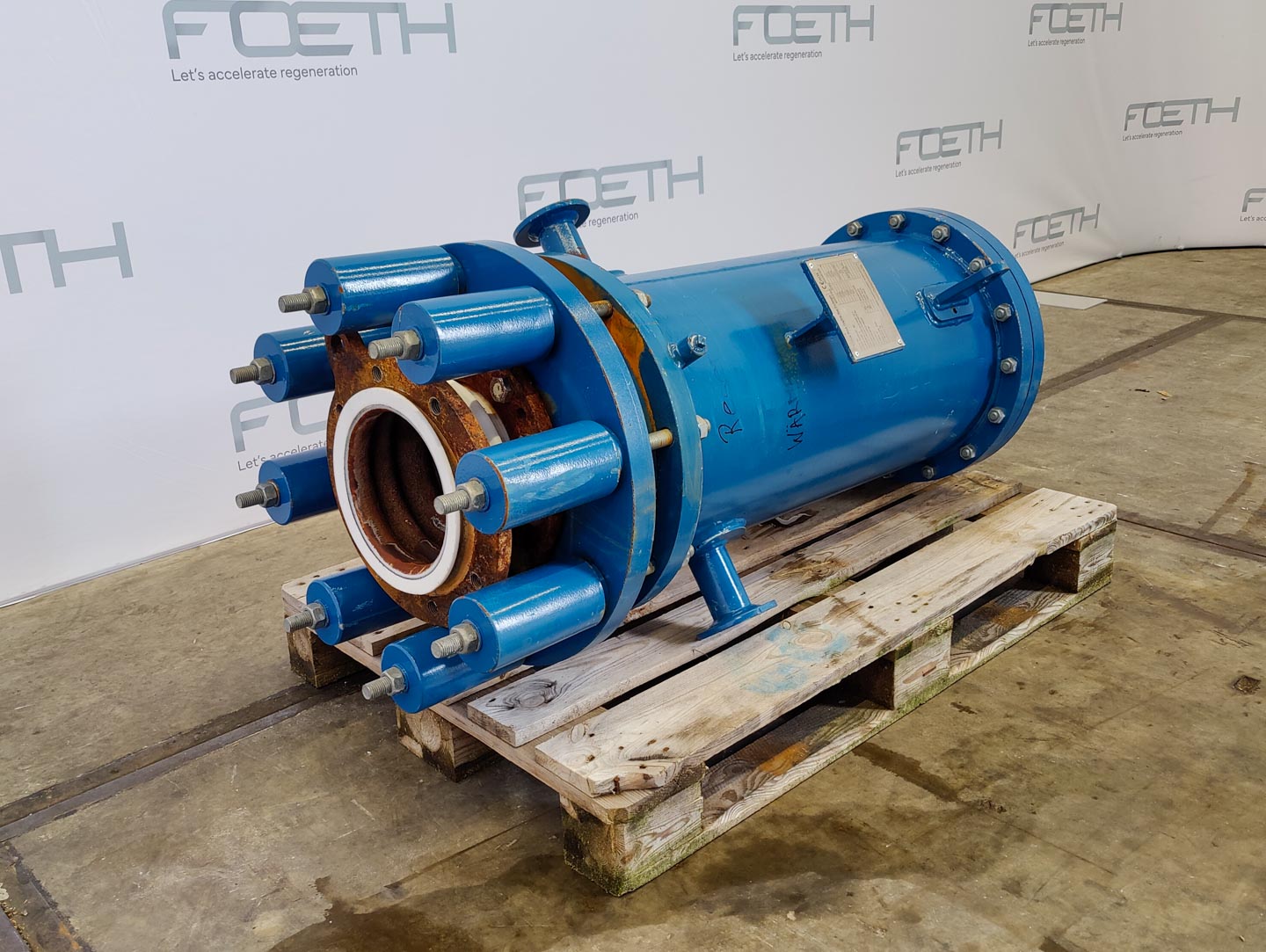

General SKU212T533 MakeNantong Sunshine LocationBarneveld CEcheck TypeSS-XYK347 10/8-6.4 Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes3.2 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface6.4 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Verticalcheck Heating surface6.4 m² Tube capacity25,9 Ltr. Max. temperature-10/200°C Shell capacity25,5 Ltr. Shell diameter388 mm Shell length1026 mm Max. temperature-10/200°C Shell with expansion jointcheck Shell connectionsDN 100, DN 50 Cover connectionsDN 200, DN 125 Information No.2016812 Year of construction2016 Floorspace0,7x0,65 m Total height1,25 m Weight450 kgCatalysts & fillersFeed additivesShell and tube heat exchanger ...

General SKU345S781 MakeLe Carbone-Lorraine TypeNK22/42-L-F-XBS-1PP/10PS No.10684 Year of construction2000 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell3.2 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphilor Tube (Material)Graphilor Surface22.62 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Graphilor XBS Heat exchangercheck Verticalcheck Notified bodyTÜV Heating surface22,26 m² Tube capacity44 Ltr. Number of tubes:700 Tube diameter9,5 mm Tube length1066 mm Max. temperature-30/200 °C Shell capacity53 Ltr. Shell diameterdia. 9,5x540 mm (x700 st. tubes) Shell length540 mm Max. temperature-30/200 °C Shell connections(2x) DN450 Cover connections(2x)DN80, (2x)DN25 Information Floorspace0,65x0,85 m Total height1,3 m Weight1145 kgC ...

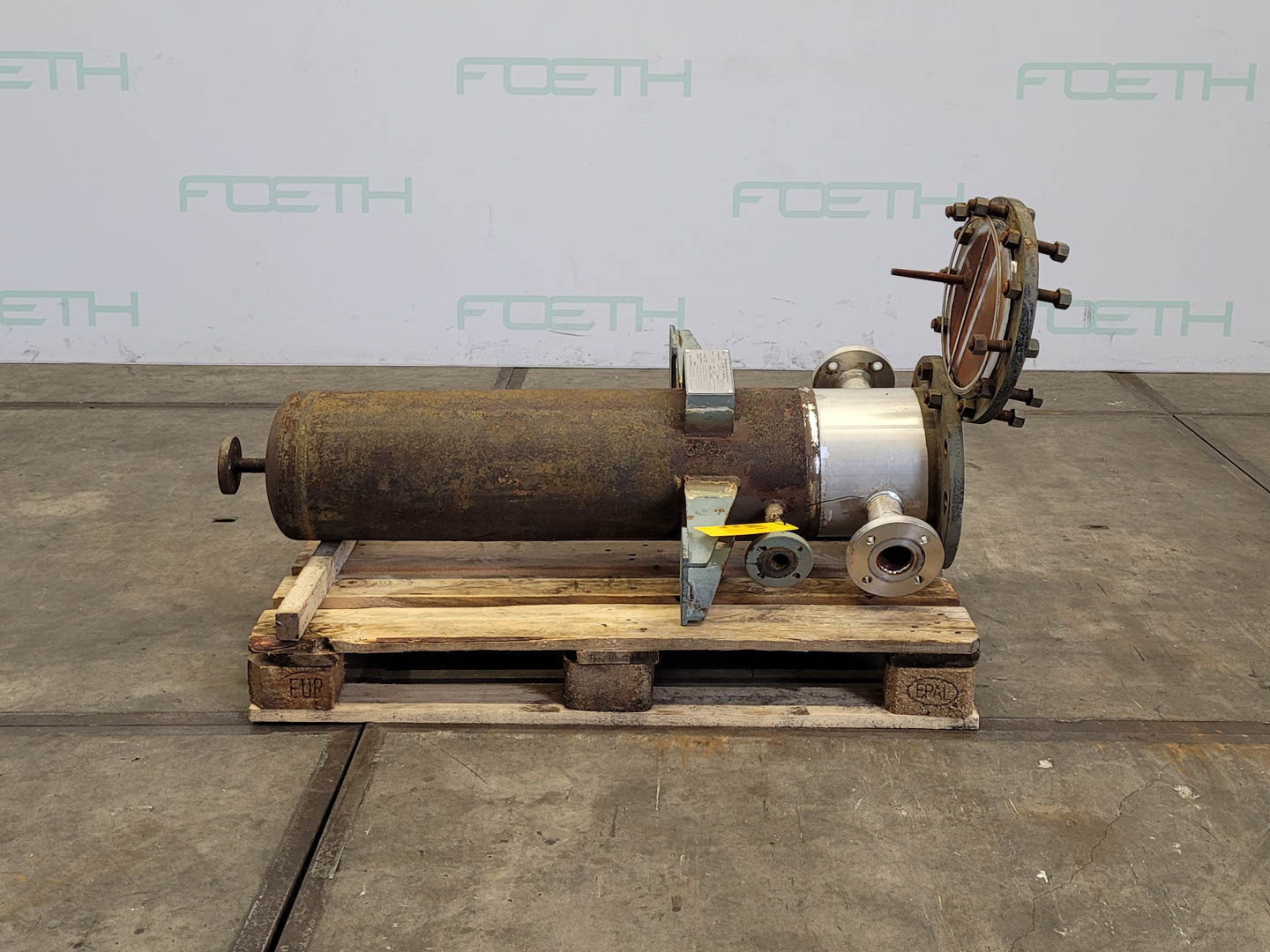

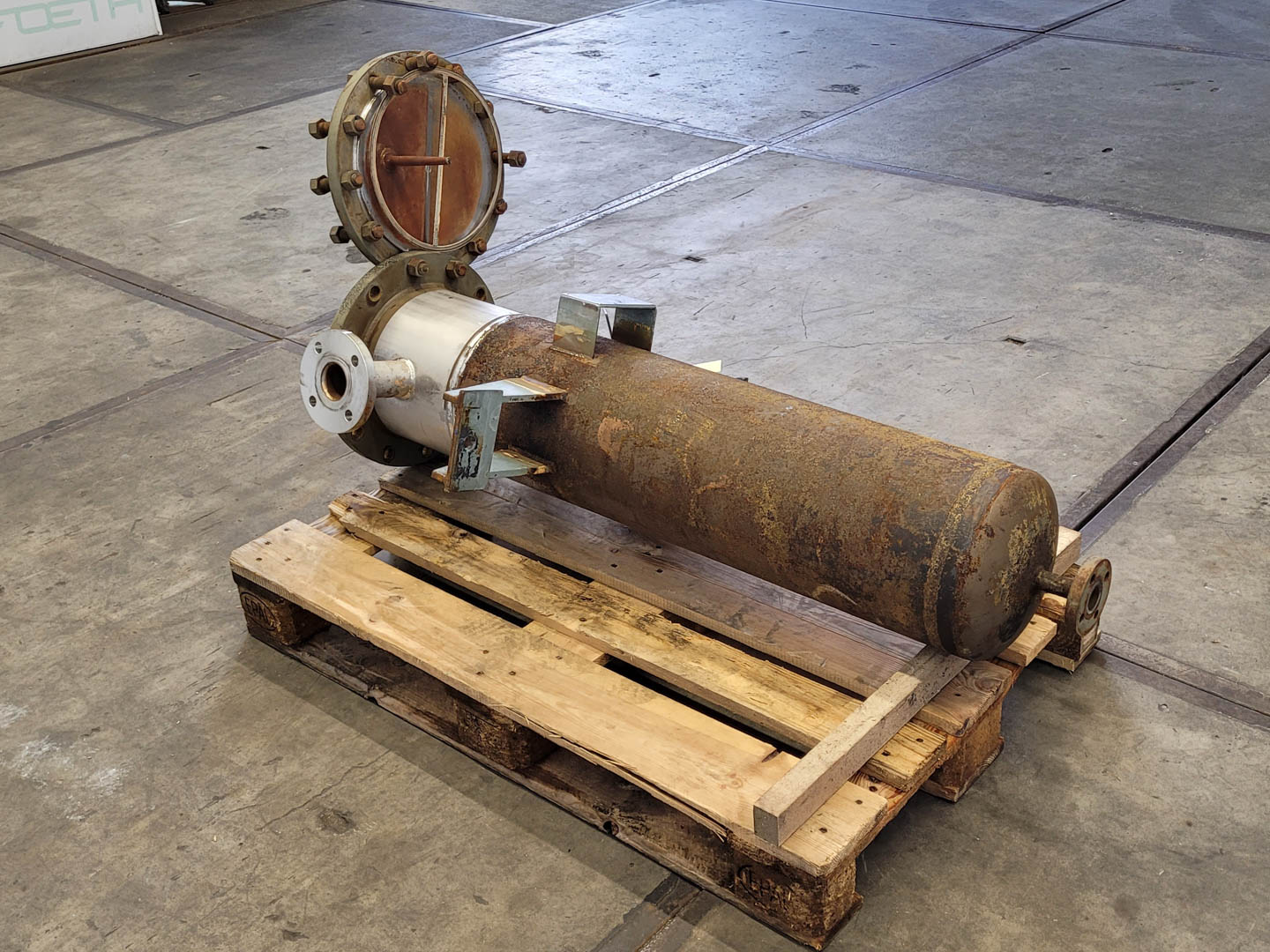

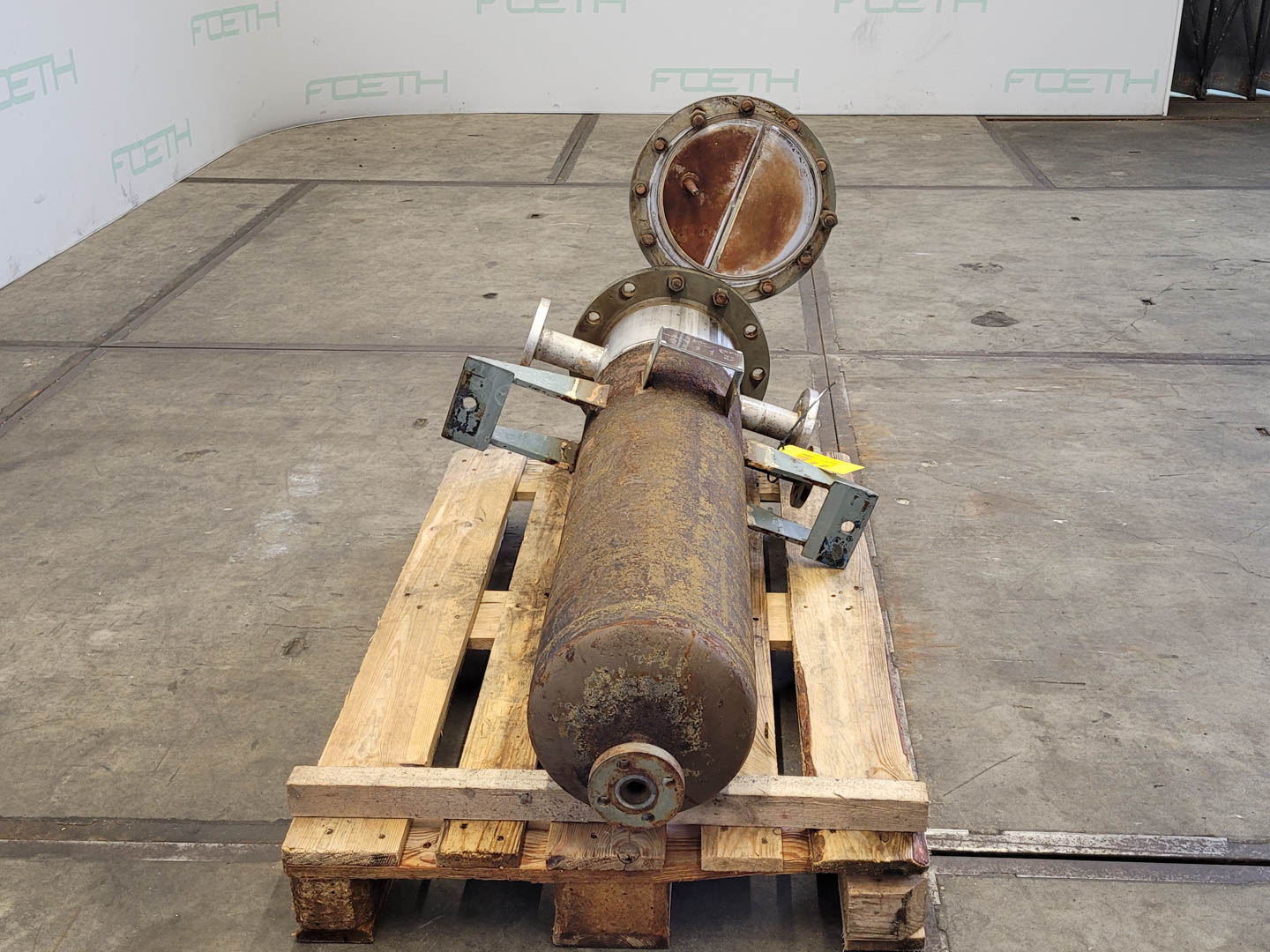

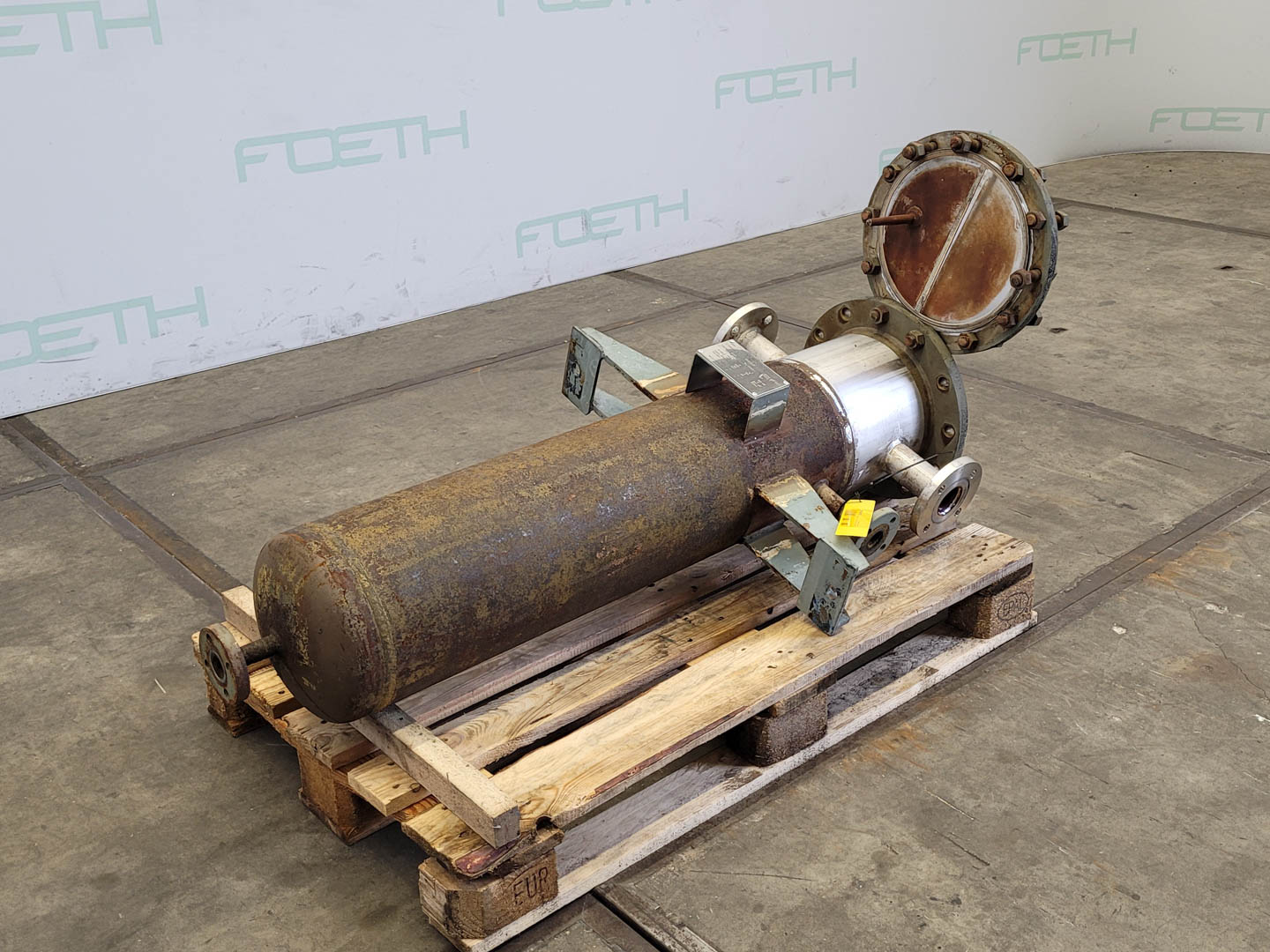

General SKU204W042 LocationBarneveld MakeSAG Pressure Working pressure shell8 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface2 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4305 (303) Heat exchangercheck Verticalcheck Heating surface2m² Tube capacity22 l. U-typecheck Number of tubes:29 Tube diameter15 mm Max. temperature150°C Shell capacity41 l. Shell diameter350 mm Shell length1350 mm Max. temperature180°C Shell connectionscheck Information No.10979/2 Year of construction2000 Floorspace0,70x0,50 m Total height1,60 m Weight160 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & metalFood additivesSug ...

Overview  The ALWID-KRONE-HV is a semi-automatic filling machine working with high vacuum. This model is suitable for filling still media into dimensionally stable containers. Many bottle shapes and sizes can be used, no format parts required. The filling level is set directly on the valve, so it remains constant regardless of the bottle volume. Vacuum level adjustable. Technical data  Filling points: 2 Filling valve diameter:  mm Suitable for filling highly viscous media Fields of application: food, beverage, pharmaceutical and chemical industry

General SKU204W035 LocationBarneveld CEcheck MakeSAG TypeASME VIII DIV 1 Pressure Working pressure shell8 Bar Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface1 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4301 (304), Stainless steel 1.4306 (304L) Heat exchangercheck Verticalcheck Heating surface1m² Tube capacity16 l. U-typecheck Number of tubes:9 Max. temperature-20°C/+160°C Shell capacity35 l. Shell diameter220 mm Shell length1350 mm Max. temperature0°C/+180°C Shell connectionscheck Information No.12327-2 Year of construction2007 Floorspace0,50x0,40 m Total height1,60 m Weight90 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste ...

General SKU204W037 LocationBarneveld CEcheck MakeSAG Pressure Working pressure shell8 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface1 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4301 (304), Stainless steel 1.4306 (304L) Heat exchangercheck Verticalcheck Heating surface1m² Tube capacity16 l. U-typecheck Number of tubes:9 Max. temperature-20°C/+160°C Shell capacity35 l. Shell diameter220 mm Shell length1400 mm Max. temperature0°C/+180°C Shell connectionscheck Information No.12327-1 Year of construction2007 Mounted on framecheck Floorspace0,73x0,55 m Total height1,70 m Weight120 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-wast ...

General SKU256W336 MakeDeller Type40m2 No.39588/2 Year of construction2017 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface40 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4571 (316Ti) Heat exchangercheck Verticalcheck Heating surface40 m2 Tube capacity550 l. Tube diameter25 mm Tube length2535 mm Max. temperature0°C/+200°C Shell capacity265 l. Shell diameter600 mm Shell length2750 mm Max. temperature0°C/+200°C Shell connectionsDN250 Information Floorspace0,80x0,80 m Total height3,10 m Weight1150 kg CEcheck Extra Specifications- multi-pass systemCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.Cosmeti ...

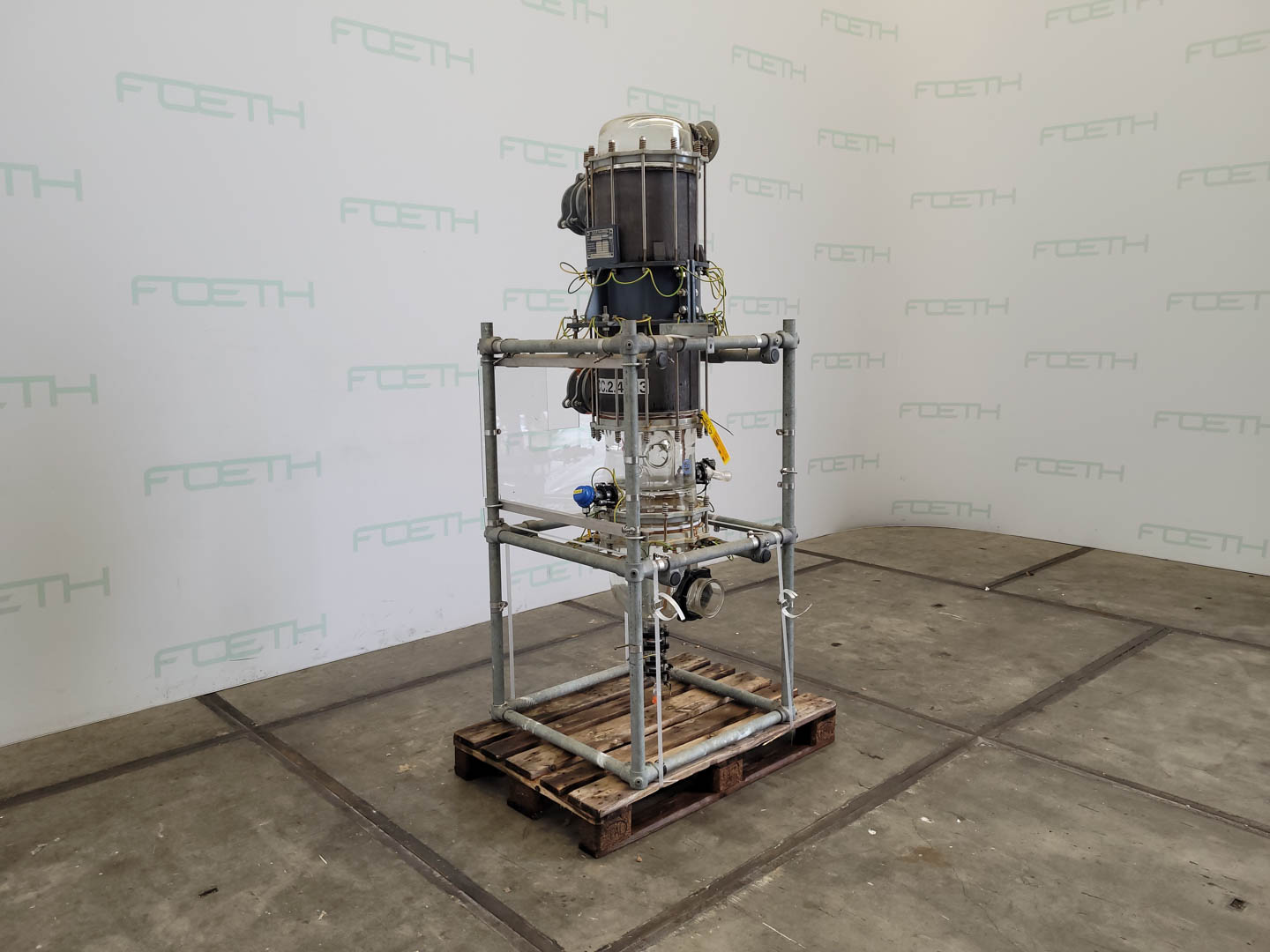

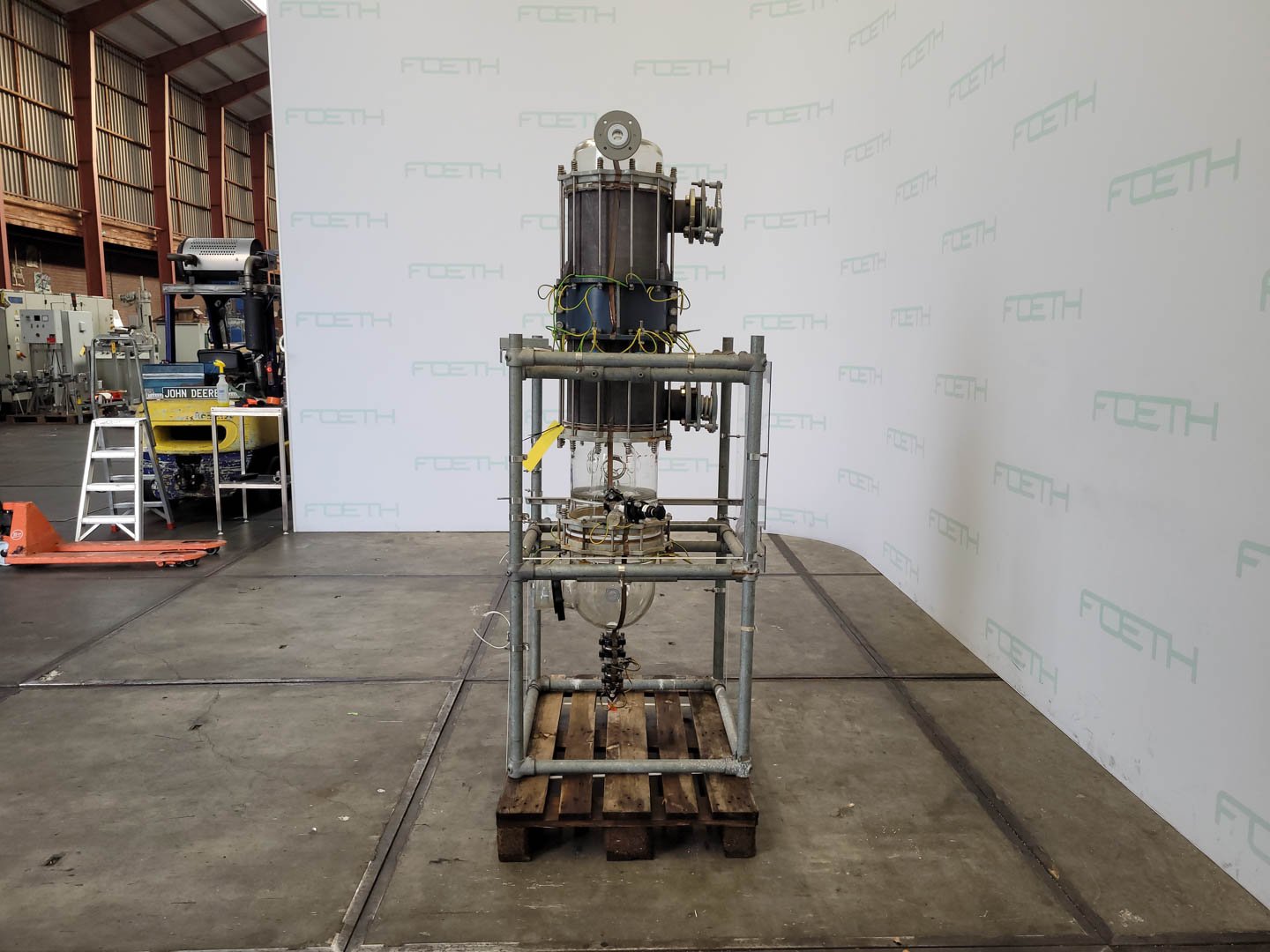

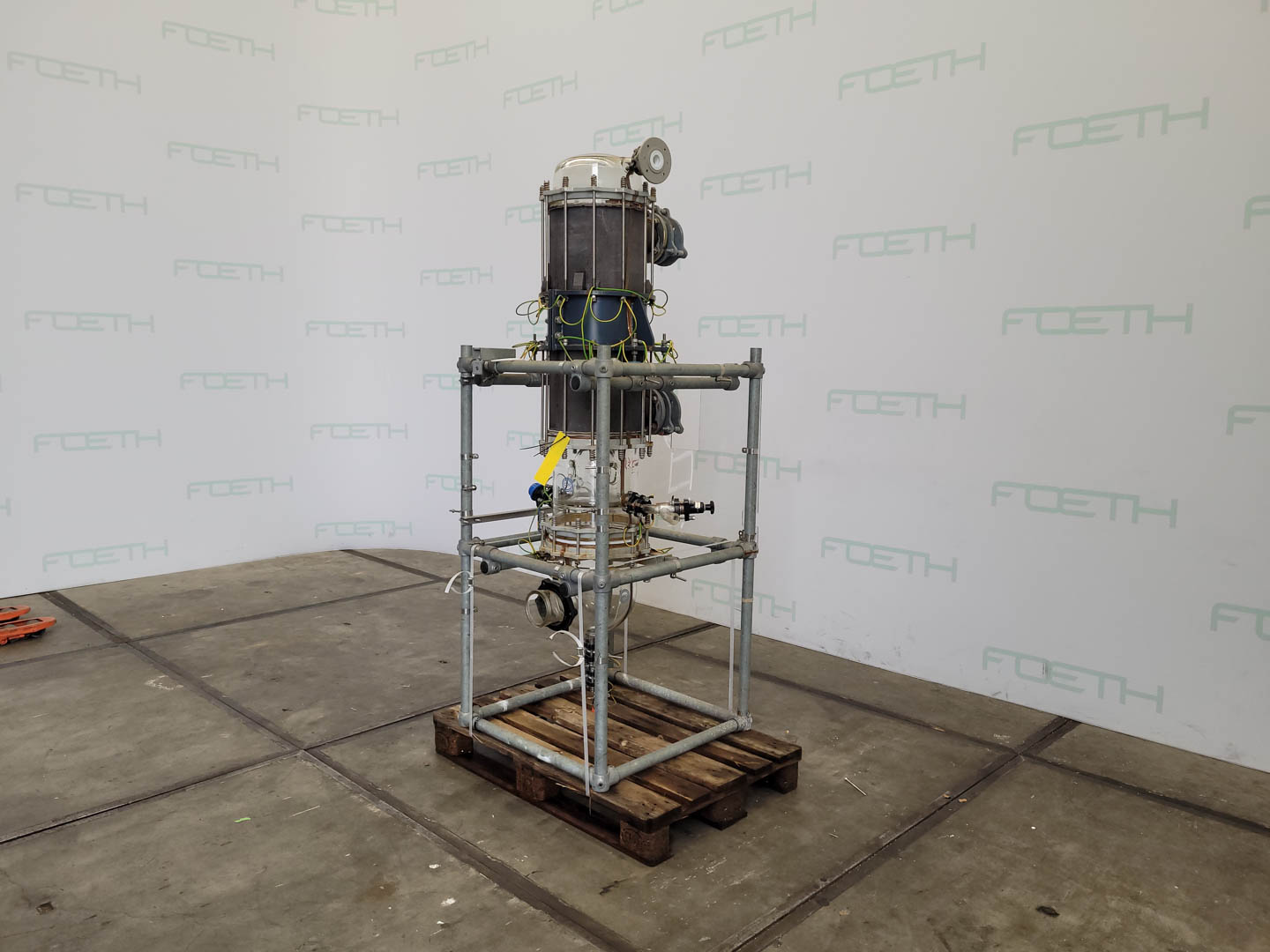

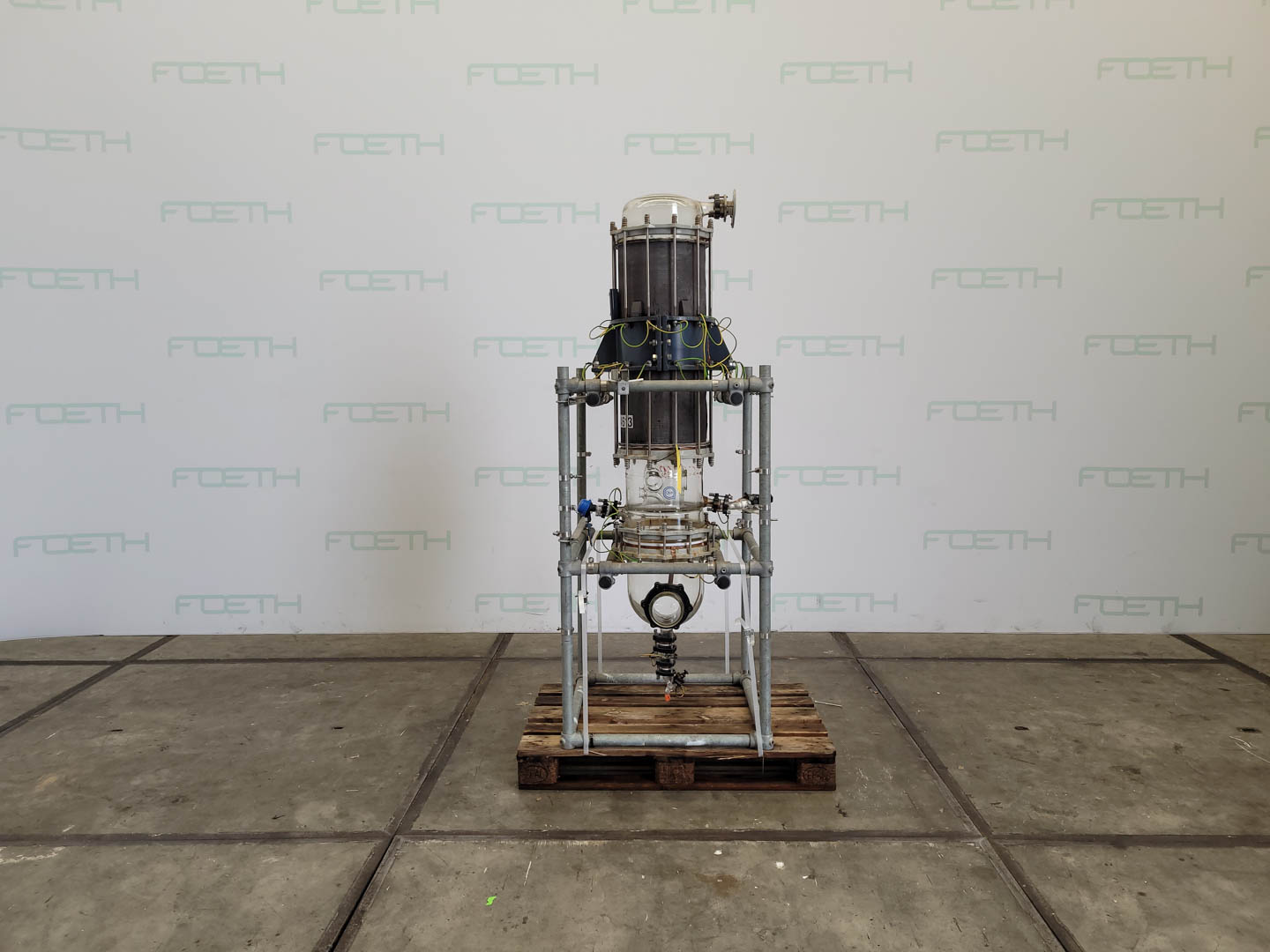

General SKU204W033 LocationBarneveld MakeGab Neumann TypeG1-300-7/10-Q Pressure Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Diabon Tube (Material)Diabon Surface2.45 m2 Specified Features - Shell and tube heat exchanger MaterialGlass, Graphite Diabon Heat exchangercheck Verticalcheck Heating surface2,45 m² Tube capacity10,5 l. Max. temperature-30°C/+180°C Shell capacity10,5 l. Shell diameter345 mm Shell length770 mm Max. temperature-30°C/+80°C Shell connectionscheck Information No.19914-16517 Year of construction2001 Floorspace0,85x0,80 m Total height2,15 m Weight135 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDa ...

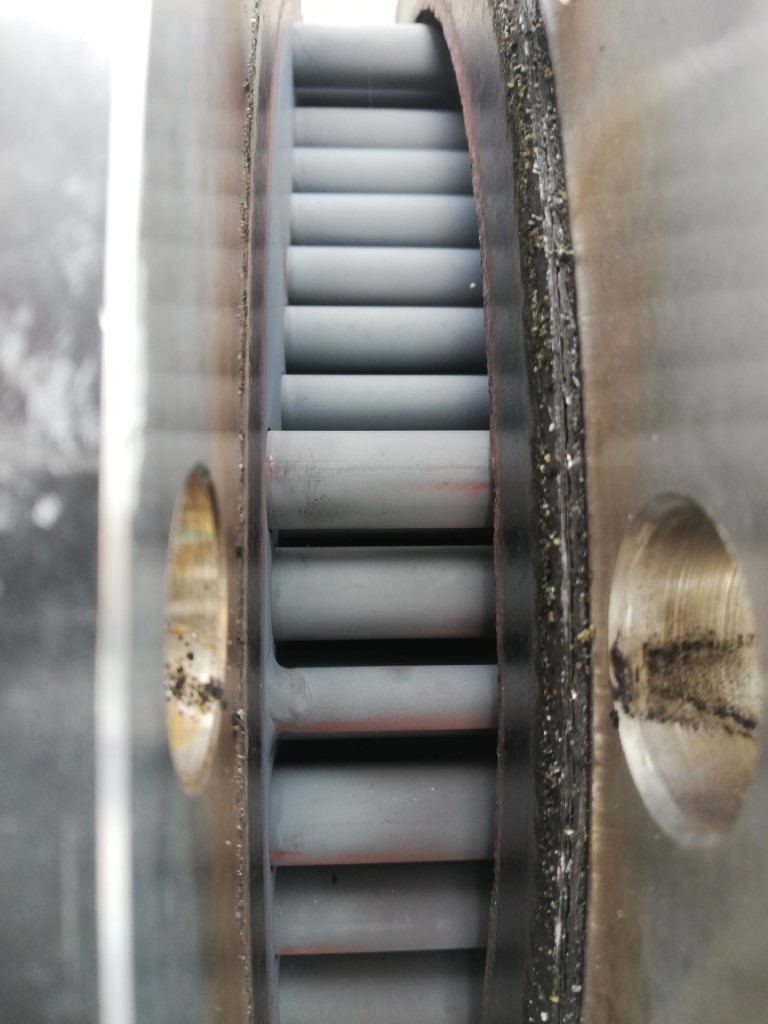

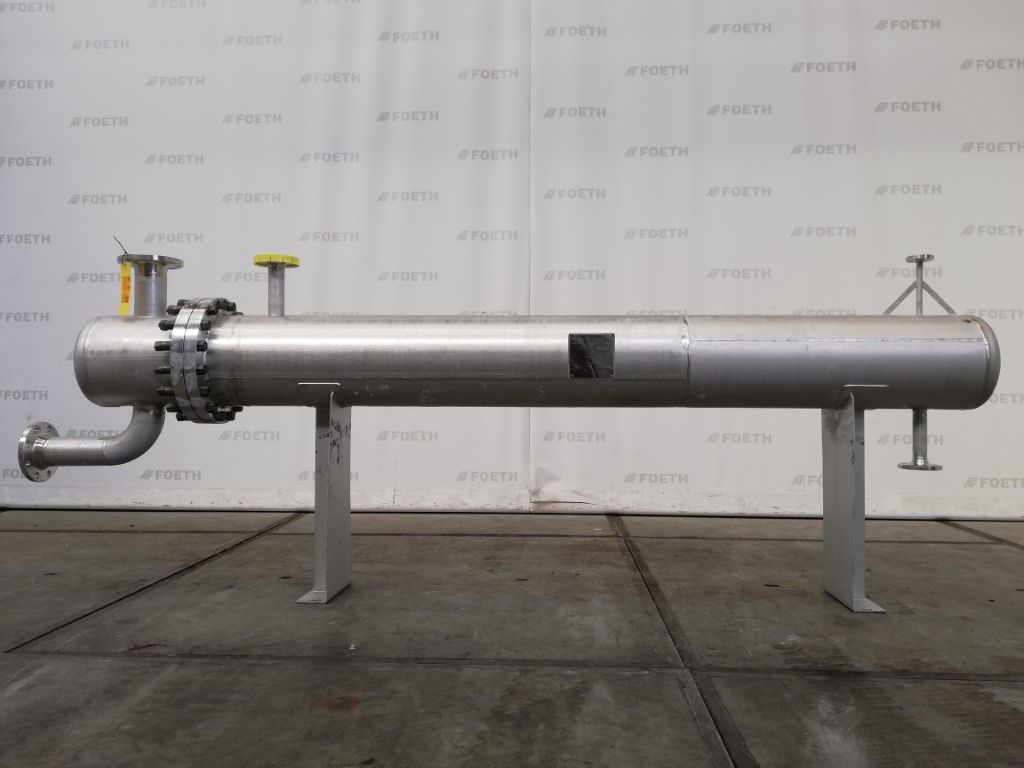

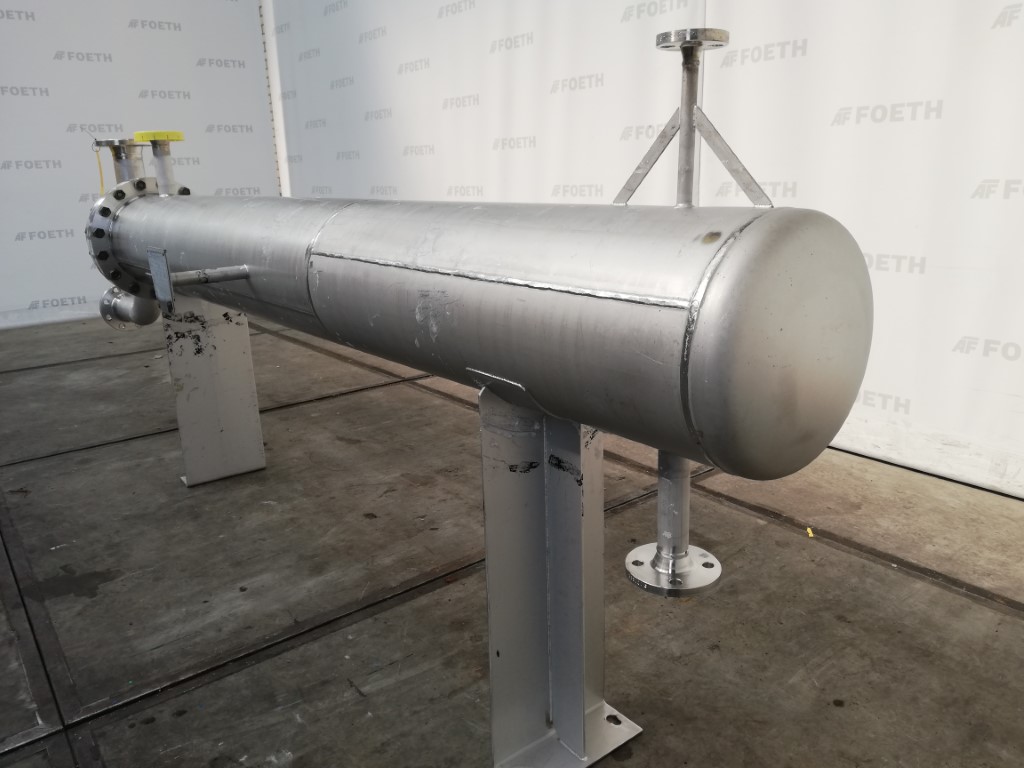

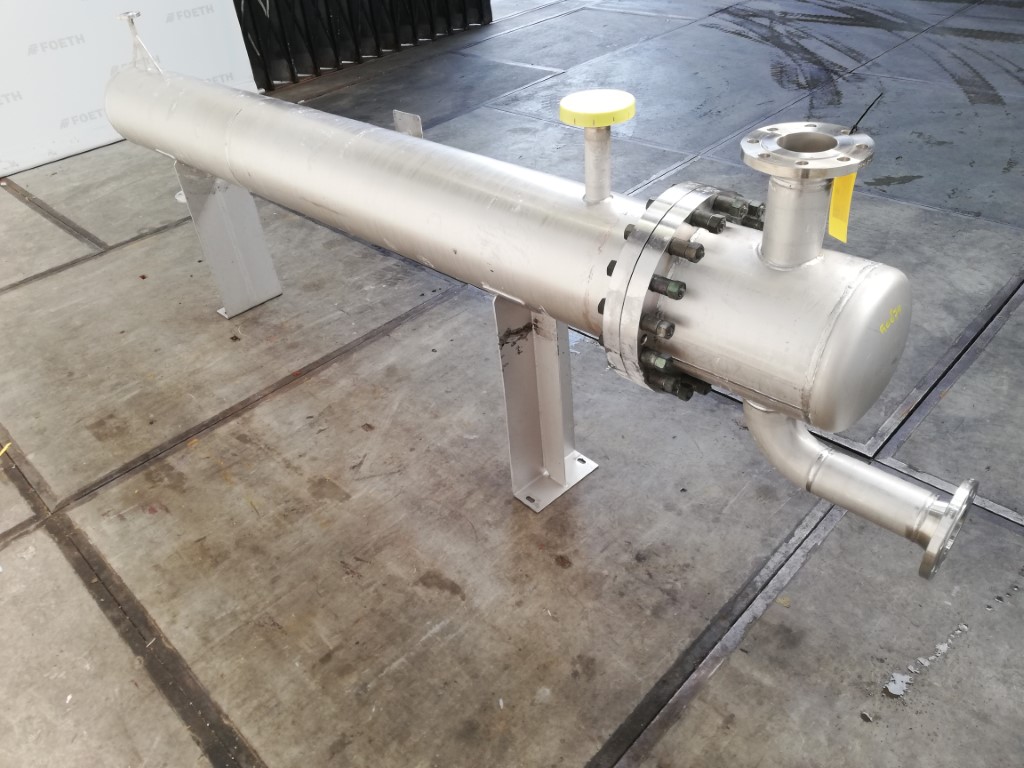

General SKUR0874 MakeJaeggi Guentner AG (CH) LocationBarneveld Type26,8 m2 Pressure Working pressure shell16 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface26.8 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface26.8 m2 Tube capacity125 ltr U-typecheck Number of tubes:89 Tube diameter16 Tube lengthca. 5500mm Wall thickness tubes1mm Max. temperature-30/250 Degr.C Shell capacity175 ltr Shell diameter355,6mm Shell length2716mm Wall thickness shell4mm Max. temperature-30/250 Degr.C Shell connectionsDN50 (1x), DN40 (1x), DN15 (1x) Cover connectionsDN100 (2x) MaterialStainless steel 1.4435 (316L) Information No.2612 Year of construction1996 Mounted on legscheck Floorspace3,7x 0,6 M Total height1,3 M Weight600 KgCatalysts & fillersFeed ...

General SKU204W052 LocationBarneveld CEcheck MakeSAG Charlier Pressure Working pressure shell8 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface1 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4305 (303) Heat exchangercheck Horizontalcheck Heating surface1m² Tube capacity16 l. U-typecheck Number of tubes:9 Tube diameterinner14mm /outer19 mm Tube length1100 mm Max. temperature-20°C/+160°C Shell capacity35 l. Shell diameter220 mm Shell length1300 mm Max. temperature0°C/+180°C Shell connectionscheck Information No.12327 Year of construction2007 Floorspace0,55x0,55 m Total height1,55 m Weight90 kg Extra SpecificationsInlet 2x DN25, outlet DN25Catalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsD ...

Overview:  The ALWID KRONE-D is a semi automatic dosing filler. The machine is suitable for volumetric filling of not carbonated liquids (low viscosity up to high viscosity) for the pharmaceutical, chemical and food industry. Procedure: The ALWID KRONE-D is a semi automatic machine. The operator places the bottles on the height-adjustable worktable manually and presses the START switch at each filling valve. That way, also single bottles can be filled. As soon as the START switch has been activated, the filling valve moves down and opens. The bottle is filled. Then the filling valve closes and automatically moves up, when the adjusted volume has been reached. Now the filled bottle can be removed.The machine can be used for several different liquids, bottle shapes and bottle sizes without requiring additional format parts. As the construction is solid and clear, the format change only n ...

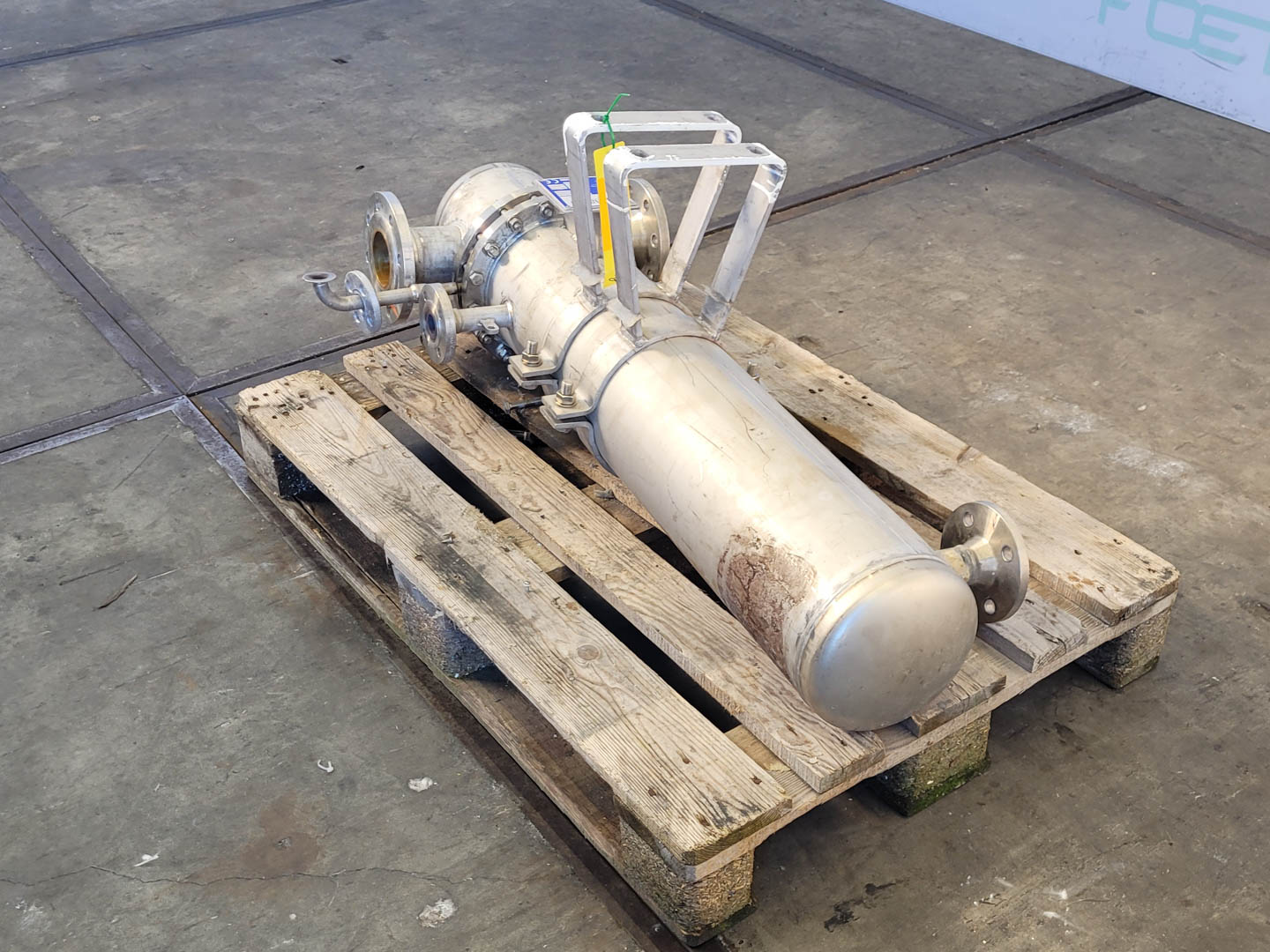

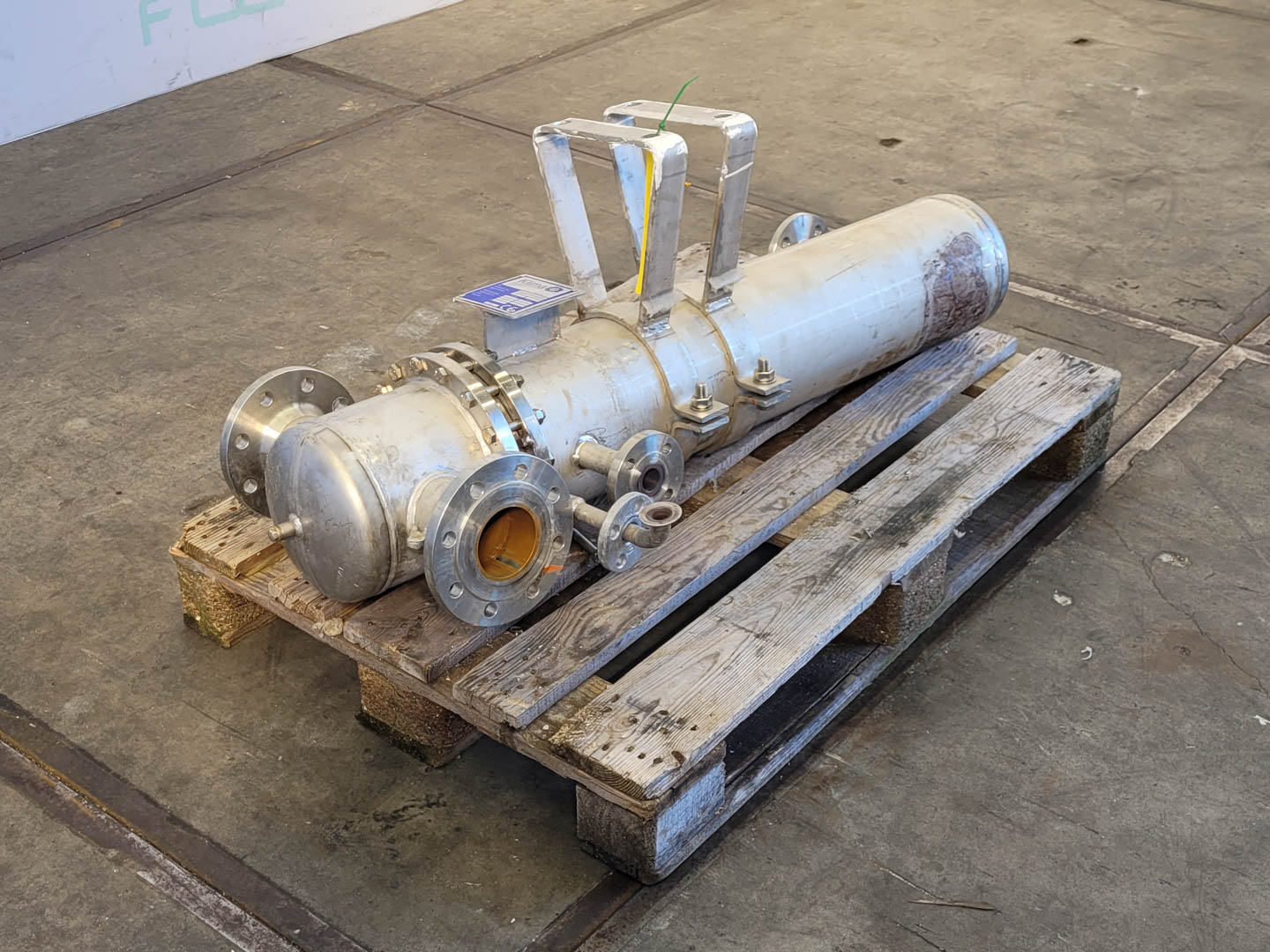

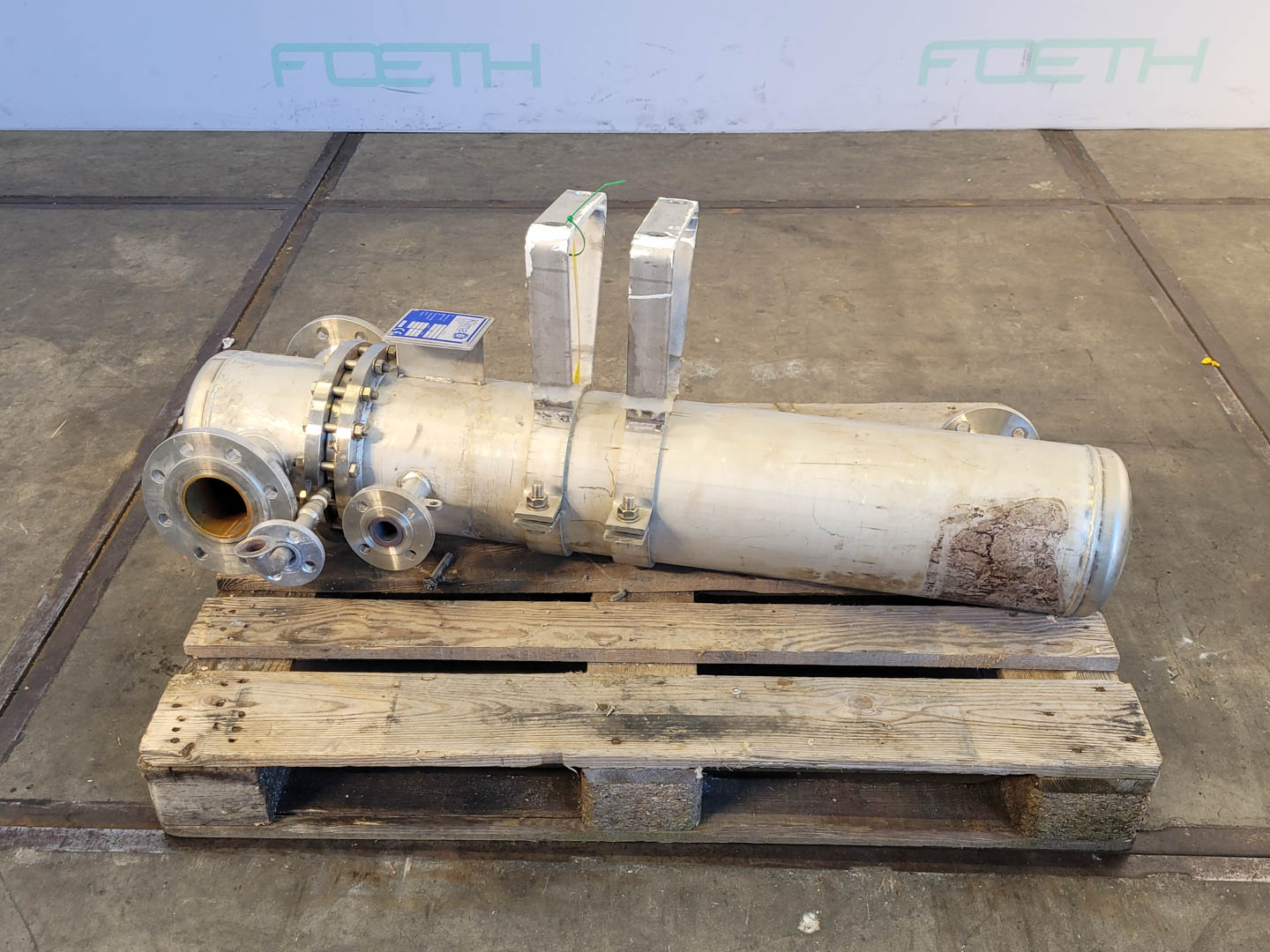

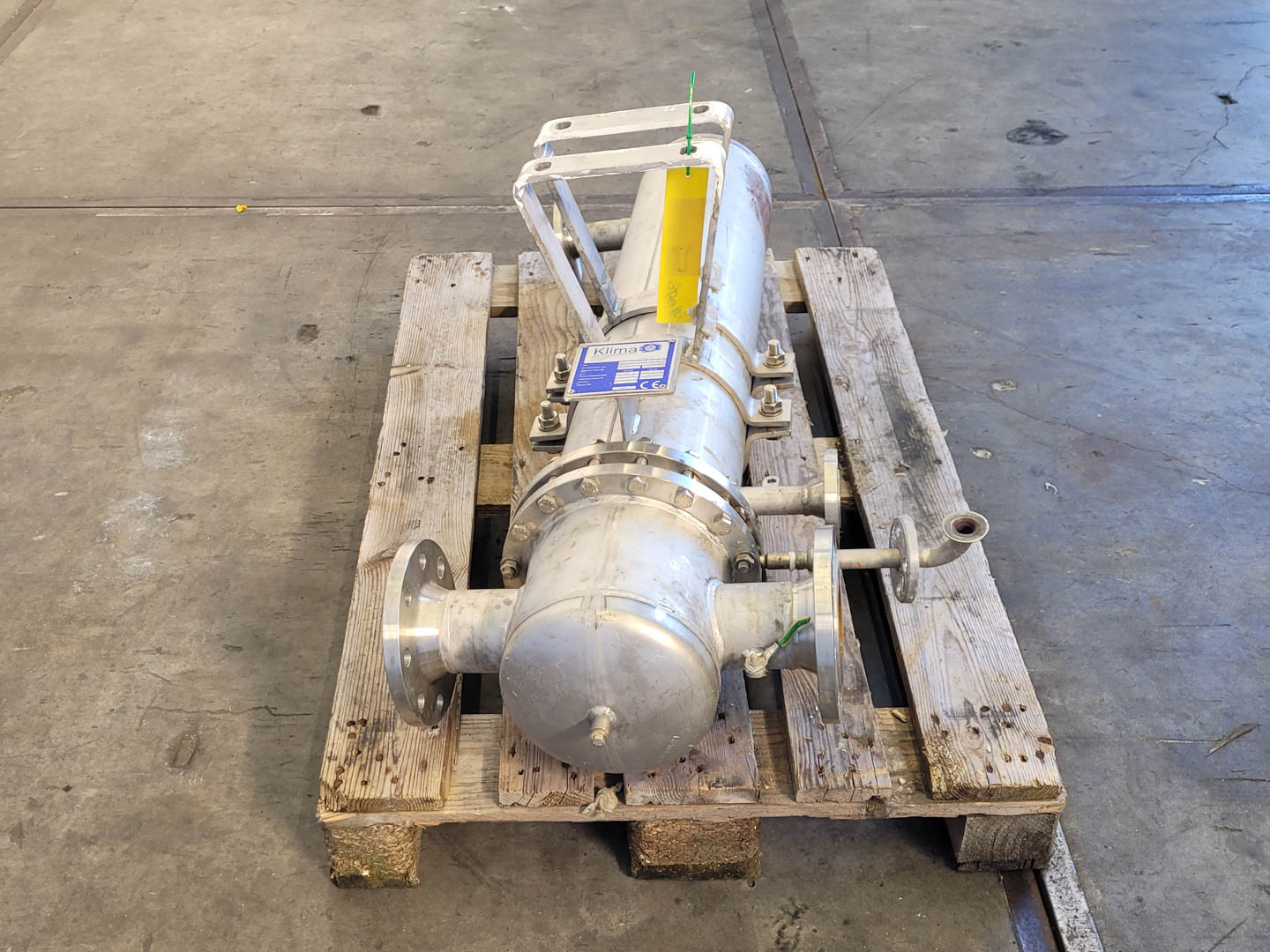

General SKU204W045 LocationBarneveld CEcheck MakeKlima TypeVU 2121 RRR 70 W S Pressure Working pressure shell10 Bar Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface3.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface± 3.5m² Tube capacity16,2l U-typecheck Number of tubes:59 Tube diameter10 mm Tube length950 mm Max. temperature0/120°C Shell capacity17,8l Shell diameter200 mm Shell length1000 mm Max. temperature0/200°C Shell connectionsDN40, DN25 Cover connectionsDN80 MaterialStainless steel 1.4306 (304L) Information No.06N9036/22272-B/2006 Year of construction2006 Floorspace0,55x0,50 m Total height1,25 m Weight360 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pha ...

General SKU214W273 MakeQVF Glasstechnik LocationBarneveld TypeROB DN100. 0.5m² Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5m³ Tube capacity3 ltr Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature+150°C Shell capacity7 ltr Shell diameter100 mm Shell length1100mm Max. temperature+150°C Shell connectionsDN50, DN80 Cover connectionsDN50 Information No.98068 Year of construction1998 Floorspace0,23x1,55 m Total height0,23 m Weight50 kg Technical specs Extra information- SIC better heat transfer coefficient than glass ...

General SKU214W274 MakeQVF Glasstechnik LocationBarneveld TypeROB DN100. 0.5m³ Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5m³ Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameter100mm Shell length1100mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN80 Cover connectionsDN50 Information No.98071 Year of construction1998 Floorspace0,22x1,50m Total height0,22m Weight50kg Technical specs Extra information- SIC better heat t ...

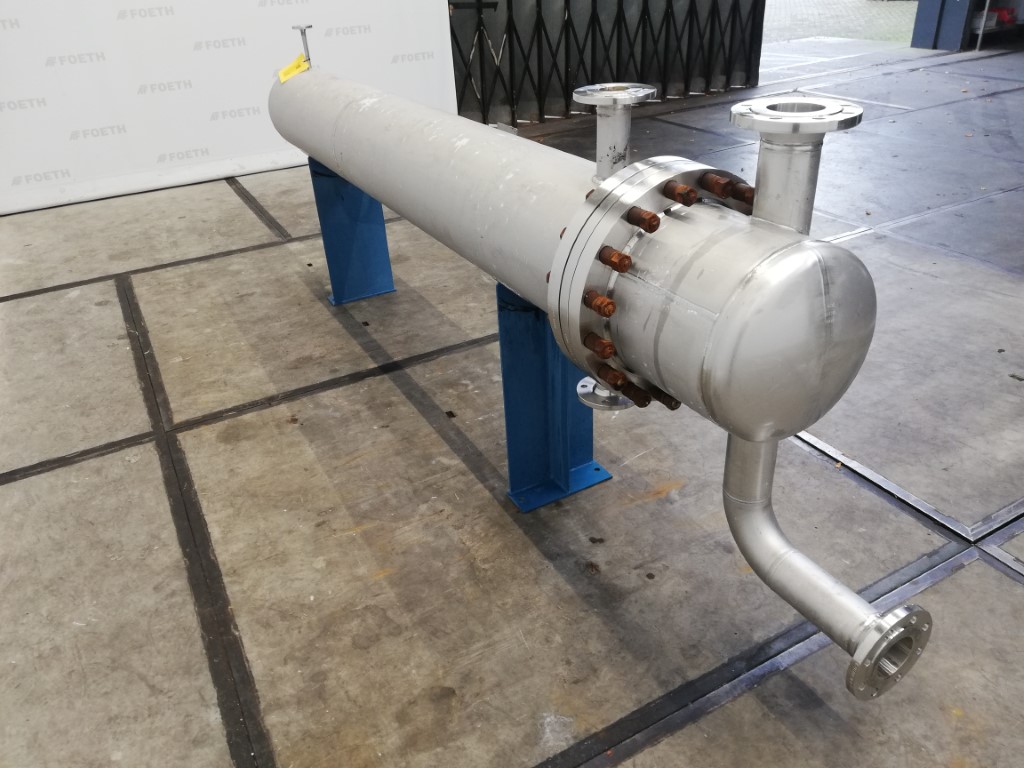

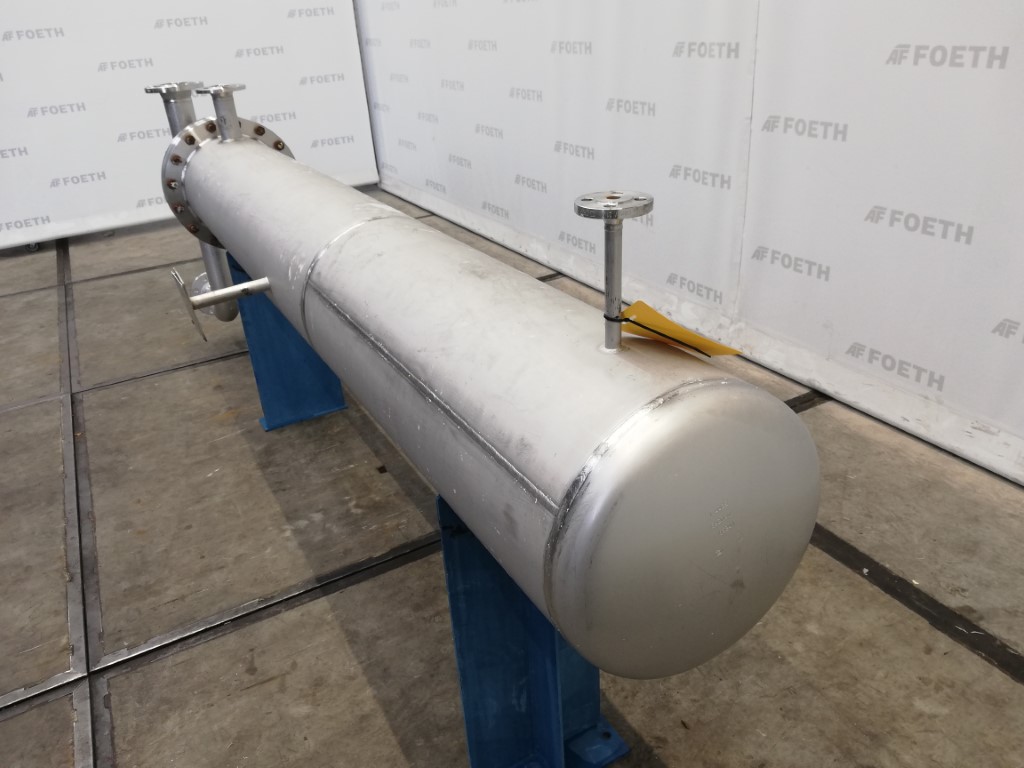

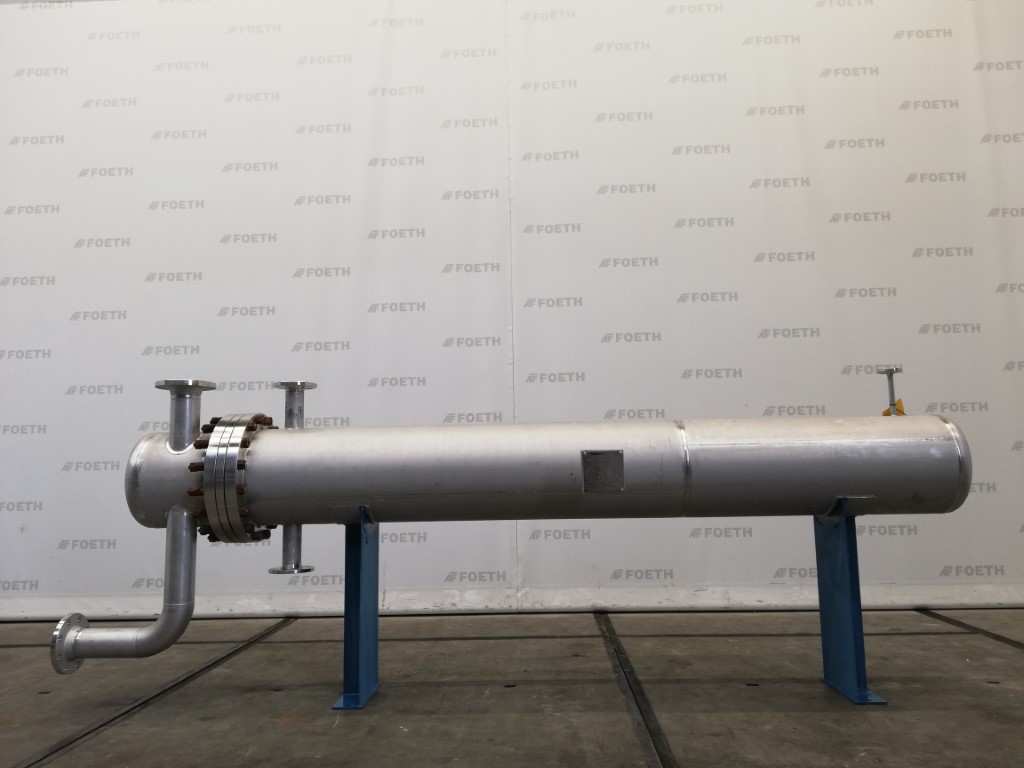

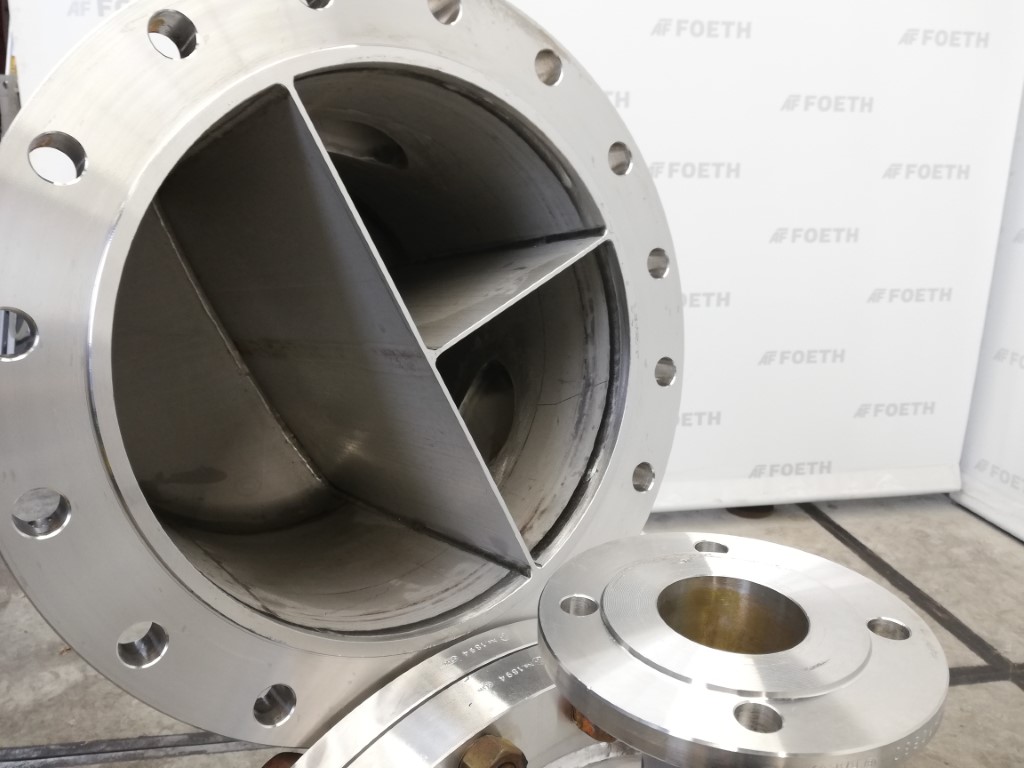

General SKUR0830 LocationBarneveld MakeJaeggi Bern (CH) Type35 M2 Pressure Working pressure shell6 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface35 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4435 (316L) Heat exchangercheck Horizontalcheck Heating surface35 m2 Tube capacity164 ltr U-typecheck Number of tubes:120 Tube diameter16mm Tube length6000mm Wall thickness tubes1mm Max. temperature-30/200 degr.C Shell capacity206.3 ltr Shell diameter406mm Shell length3000mm Wall thickness shell4mm Max. temperature-30/200 degr. C Shell connectionsdia. 65mm (2x) dia 15mm (1x) Cover connectionsdia. 100mm (2x) Information No.1894 Year of construction1990 Floorspace3.7x0.7 M Total height1.3 M Weight750 KgCatalysts & fillersFeed additivesShell and tube heat excha ...

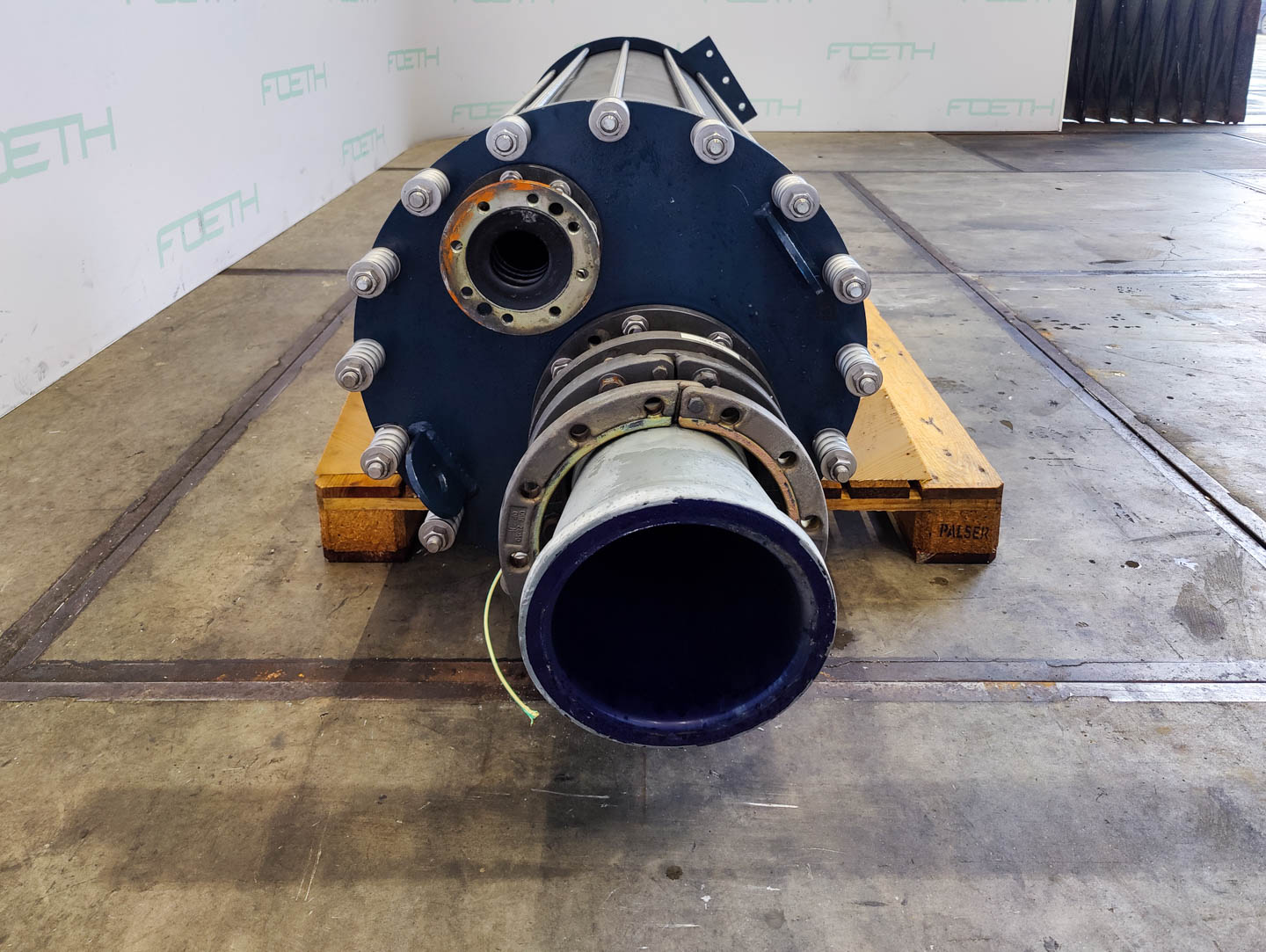

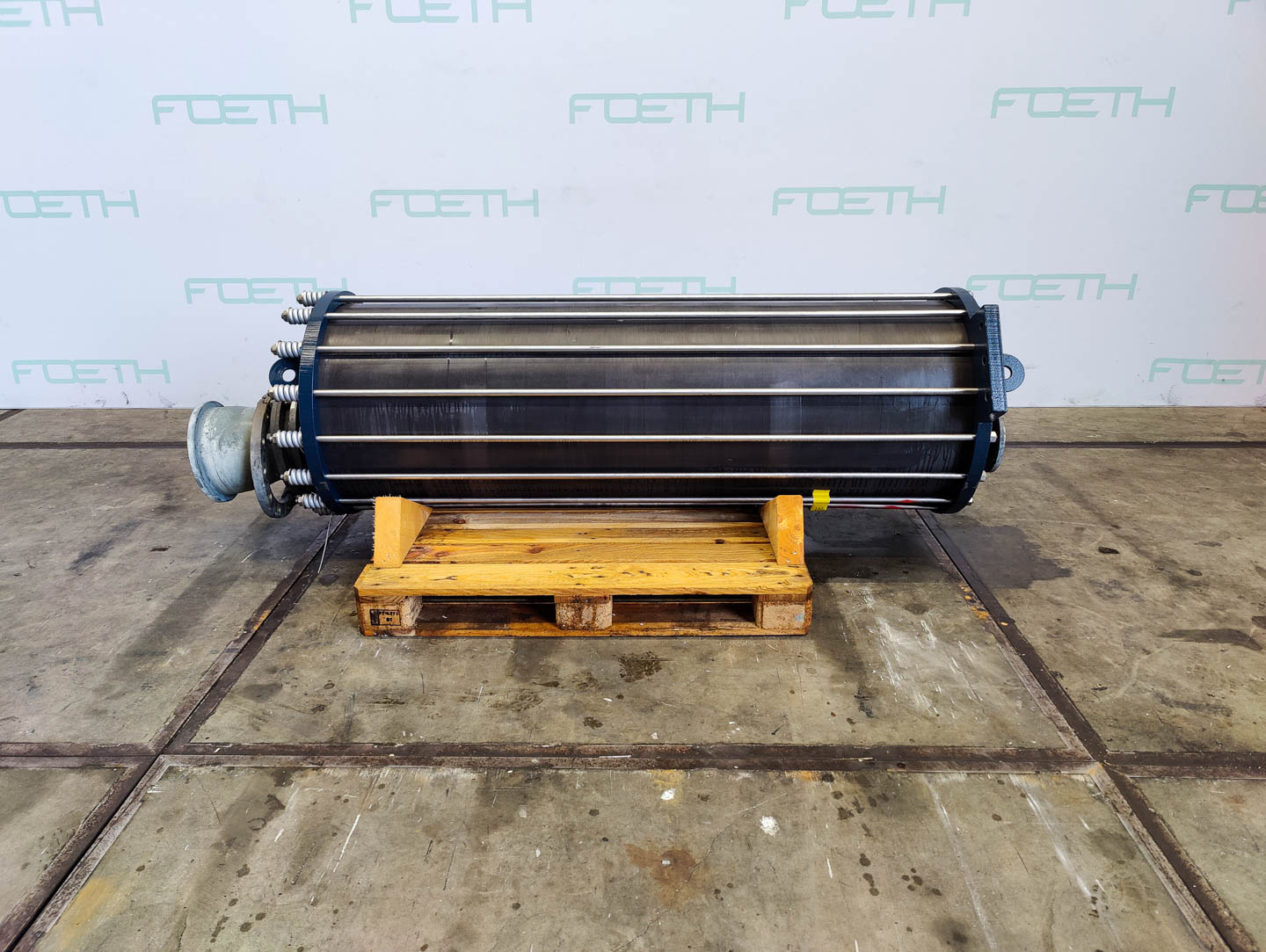

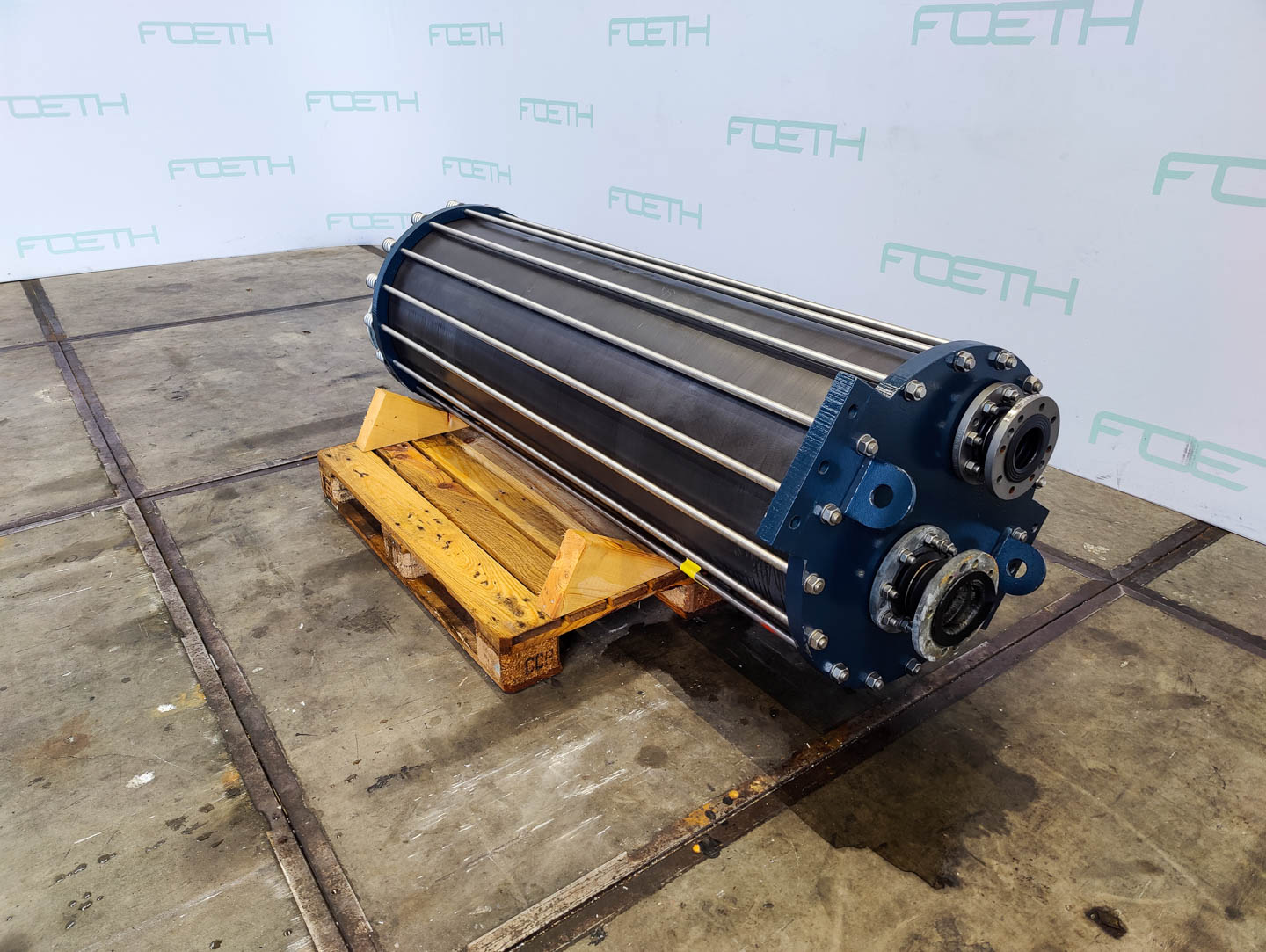

General SKU335W844 MakeGab Neumann TypeNB7-14 No.33187-23314 Year of construction2015 LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface16.1 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Verticalcheck Heating surface16,1 m² Tube capacity84 l Max. temperature-10/+80°C Shell capacity77 l. Shell diameter600 mm Shell length1835 mm Max. temperature-30/+180°C Shell connectionsDN80 Information Floorspace0,85x0,70 m Total height2,50 m Weight1030 kg CEcheckCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & metalFood  ...

General SKU345S697 LocationBarneveld MakeBarriquand Echangeurs (FRA) TypeIJS 1x9/1x10x110x330 No.24090E1 Pressure Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface0.7 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4571 (316Ti) Heat exchangerPlatular flatchamber Verticalcheck Heating surface0,7 m2 Tube capacity1,0 Ltr Max. temperature-30/120 degr.C. Shell capacity8 Ltr Max. temperature-30/120 degr.C. Shell connections(2x)DN50, DN25 Cover connections(2x) DN25 Capacity615 W Information Year of construction1994 Total height0,9 M Weight32KGCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther pharmaceuticsOrganicsE-waste & m ...

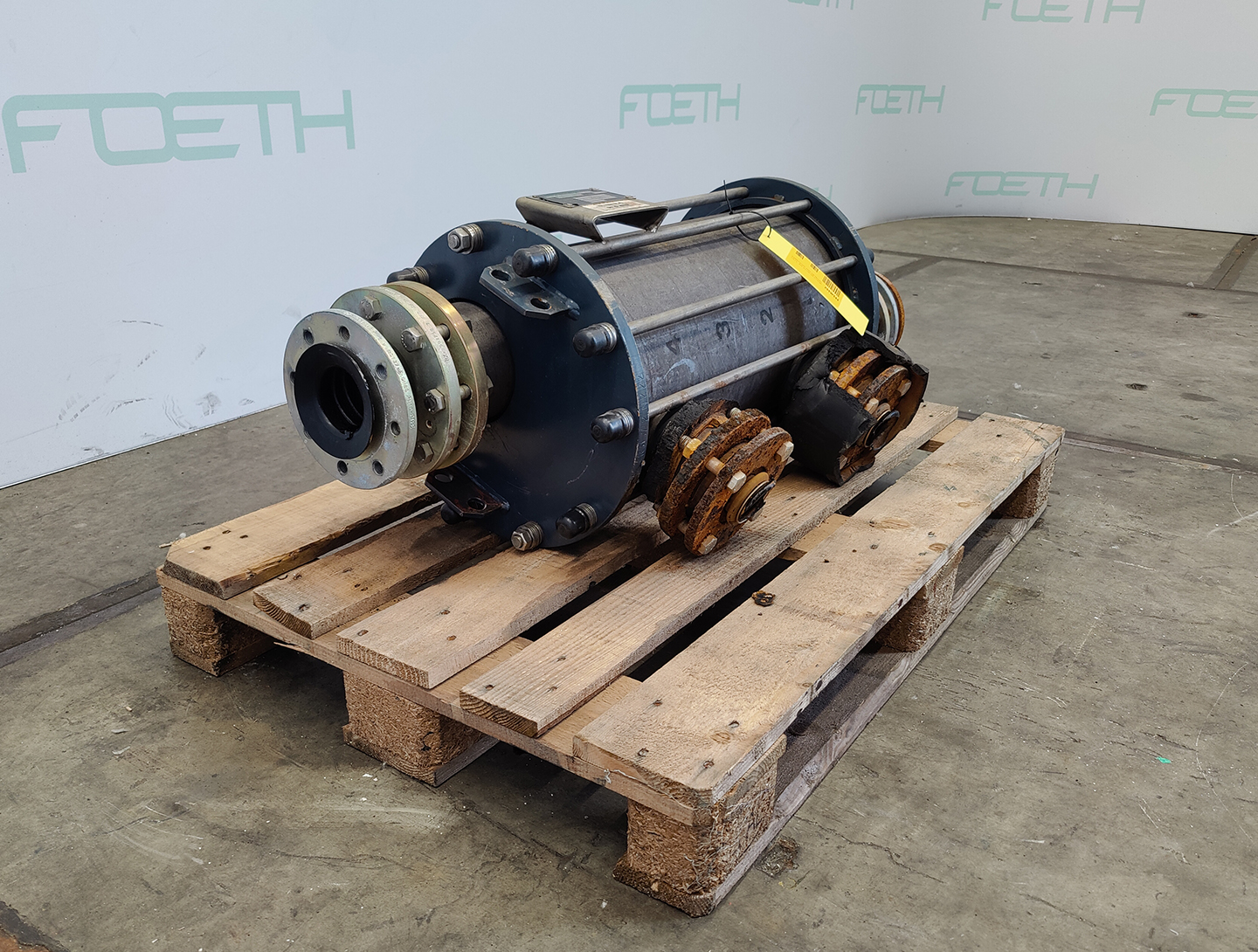

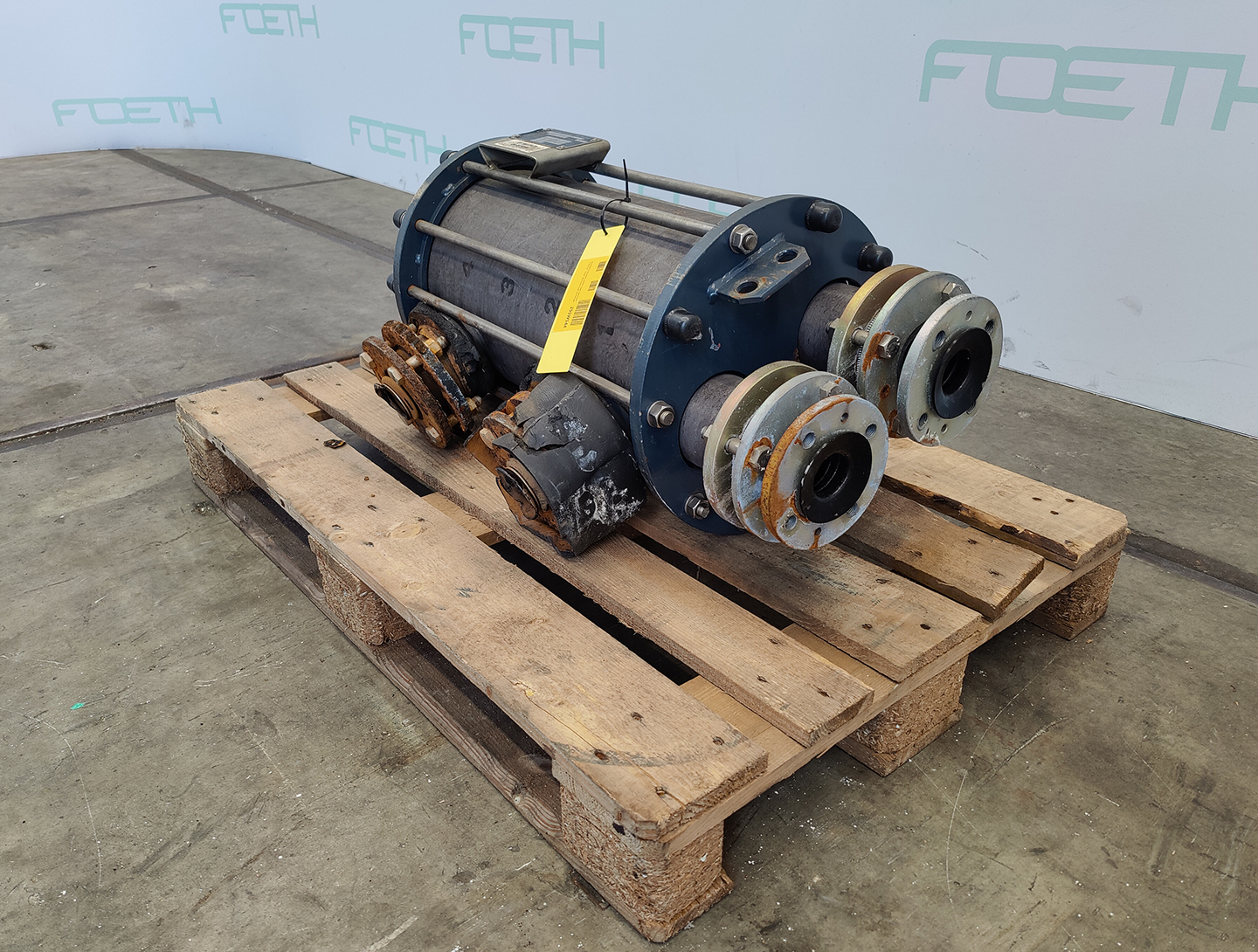

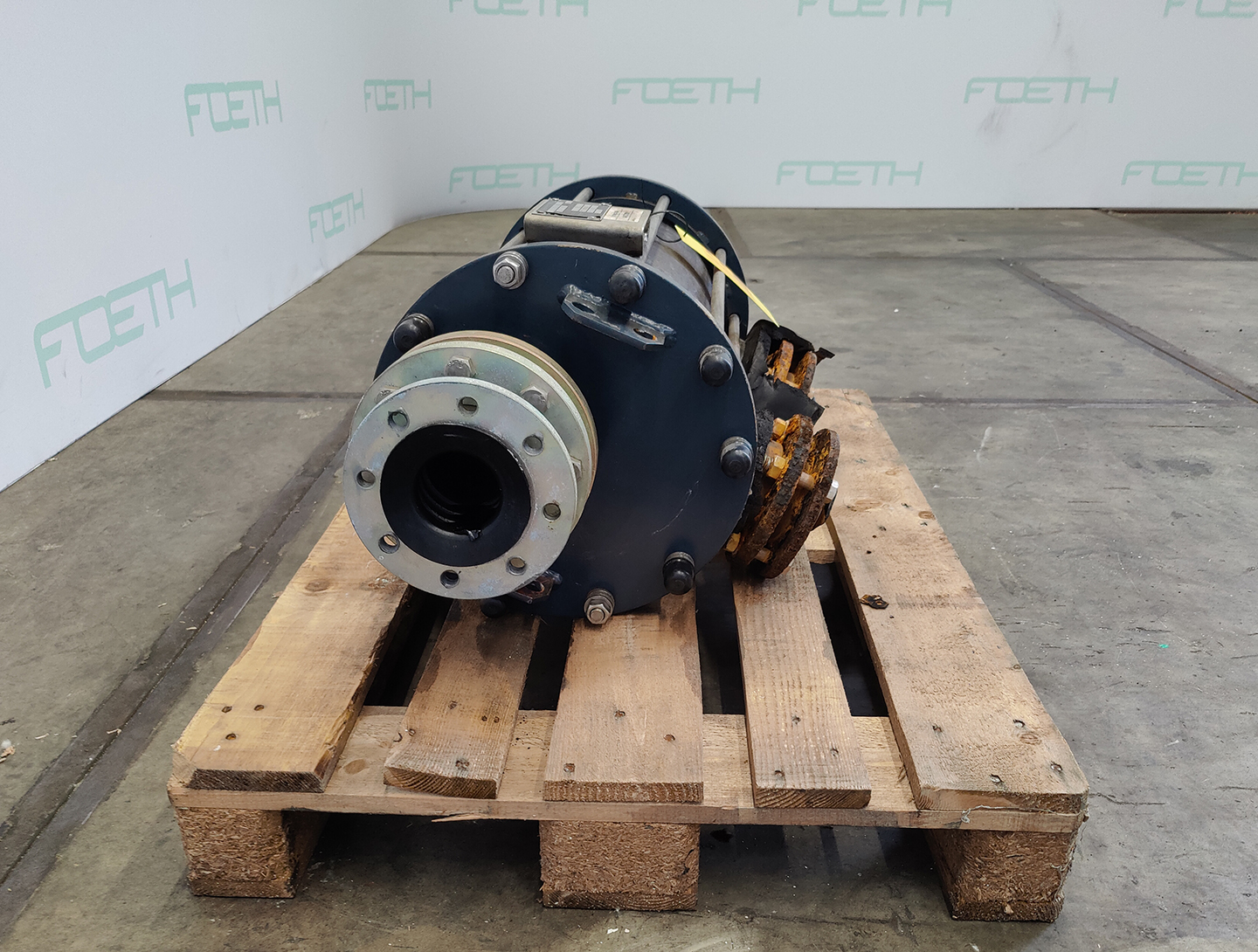

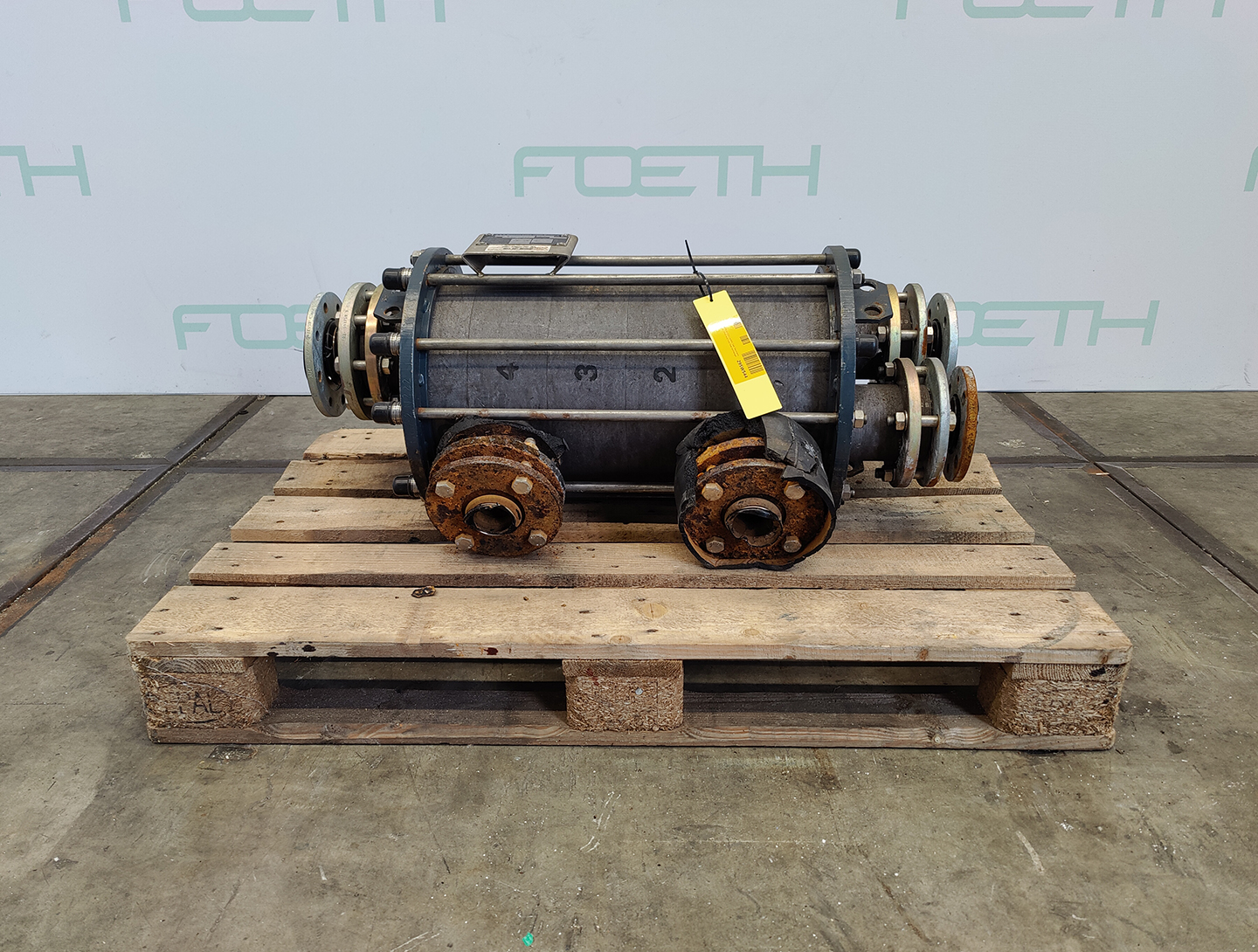

General SKU295W544 MakeG.A.B. Neumann TypeH-B-0,8 No.13001-10904 Year of construction1994 LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface0.8 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Verticalcheck Heating surface0,8 m² Tube capacity5 l Tube length550 mm Max. temperature-10°/+180°C Shell capacity5 l Shell diameter400 mm Shell length610 mm Max. temperature-10°/+80°C Shell connectionsDN50 Cover connectionsDN80, DN50 Information Floorspace0,5 x 0,5 m Total height1,05 m Weight110 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther p ...

General SKU295W543 MakeG.A.B. Neumann TypeH-B-11,5 No.13001-10902 Year of construction1994 LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface11.5 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Verticalcheck Heating surface11,5 m² Tube capacity44 l Tube length1270 mm Max. temperature-60°/+180°C Shell capacity41 l Shell diameter700 mm Shell length1340 mm Max. temperature-60°/+80°C Shell connectionsDN50 Cover connectionsDN250 Information Floorspace0,8 x 0,8 m Total height1,8 m Weight750 kgCatalysts & fillersFeed additivesShell and tube heat exchangersPaper & otherSolventsDetergent & surf.CosmeticsOther  ...

General SKU214W277 MakeQVF Glasstechnik LocationBarneveld CEcheck TypeROB DN100,0,5M Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0.5m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameterDN100 Shell length1425 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN100 Cover connectionsDN50 Information No.98069A Year of construction1998 Floorspace0,22 x 1,57 m Total height0,22 m Weight70 kg ATEX com ...

General SKU214W275 MakeQVF Glasstechnik LocationBarneveld CEcheck TypeROB DN100,05M Pressure Working pressure shell2 Bar Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity7 Ltr Shell diameterDN100 Shell length1100 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN80 Cover connectionsDN50 2x Information No.98067a Year of construction1998 Floorspace0,22 x 1,50m Total height0,22 m Weight50 kg ATEX compatiblecheck Technical specs Extra information- SIC ...

General SKU214W276 LocationBarneveld CEcheck MakeQVF Glasstechnik Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface3.2 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface3,2 m2 Tube capacity10 Ltr. Number of tubes:37 Tube diameter14 mm Tube length1980 mm Max. temperature+150°C Shell capacity24 Ltr. Shell diameter124 mm Shell length2250 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN100 (2x) Cover connectionsDN40: DN50 Information TypeROB32/150/SH/3/SIC Year of construction1998 Floorspace0,25 x 2,30m Total height0,25 m Weight100 kg ATEX compatiblecheck Technical specs ...

General SKU214W272 MakeQVF Glasstechnik LocationBarneveld TypeS-ROB45/300/SH/3SIC Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface4.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface4,5m³ Tube capacity22 ltr Number of tubes:128 Tube diameter14 mm Tube length1000 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity53 ltr Shell diameter300 mm Shell length850 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150 2x Cover connectionsDN80 2x Information No.98087 Year of construction1998 Floorspace0,42x1,40m Total height0,42m Weight190kg Technical specs E ...

General SKU214W270 MakeQVF Glasstechnik LocationBarneveld TypeS-ROB71/300/SH/3/SIC Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface7.1 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface7,1m² ( in use 4,2m²) Tube capacity40 Ltr. Number of tubes:97 Tube diameter14 mm Tube length1980 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity113 Ltr. Shell diameter300mm Shell length1800mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150, DN200 Cover connectionsDN50, DN80 Information No.98072a Year of construction1998 Floorspace0,42x2,50 m Total height0,42 m We ...
