5 axis milling used for sale

GeneralHSC-Precision Centre - Active chiller for main spindle and linear drives - Active chiller for electrical cabinet - Direct absolute measuring system with air purge - Coolant-airblast changeover - MPC (Machine Protection Control); Control: 3D-control Heidenhain iTNC 530 HSCI Technical DataSpindle taperHSK-E 50 Feed rate longitudinal/transverse/vertical1-80000/1-80000/1-80000 mm/minRapid traverse longitudinal/transverse/vertical80/80/80 m/minWorking area 1Cross580 mmLongitudinal450 mmVertical460 mmTool changerType of magazineChain ApplicationVertical Type of gripperDouble gripper Number of tools30 Rigid tableRigid table, clamping area 460 x 600 mm / 18,11 x 23,62 inch Loading weight max. 600 kg / 1322 lbsSpindle speed up to 40,000rpm with Shaft CoolingSpindle speed 20 up to 40,000 rpm within shaft cooling for tool taper HSK-E50 DIN 69893 AC-Main drive with 19,5/15 kW (100/40%DC) 14,5 ...

GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal700 mmCross700 mmVertical700 mmMiscellaneousClamping SystemHSK-A 63 CabineFull protection cabinMain driveDrive power (100% DC) 20 kWDrive power (40% DC) 20 kWSpeed range - 12000 rpmSpindle taper HSK-A 63NC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 5Spindle taper HSK-A 63Spindle taper for HSK-A 63 to DIN 69893 (incl. adaptation working spindle, tool changer and tool magazine)4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmTool magazine, cha ...

GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal700 mmCross700 mmVertical700 mmMiscellaneousClamping SystemHSK-A 63 CabineFull protection cabinMain driveDrive power (100% DC) 20 kWDrive power (40% DC) 20 kWSpeed range - 12000 rpmSpindle taper HSK-A 63NC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 500 x 500 mmCentre bore 50 mmMaximum load (table centre) 600 KgSlot width 14 mmNumber of Slots 5Spindle taper HSK-A 63Spindle taper for HSK-A 63 to DIN 69893 (incl. adaptation working spindle, tool changer and tool magazine)4. Axes (swivelling range) 360 x 0,001 degreeRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmTool magazine, cha ...

GeneralHorizontal machining centre - Horizontal milling head; Control: CELOS with Siemens 840D sl Operate Technical DataRapid traverse longitudinal/transverse/vertical60/60/70 m/minFeed rate longitudinal/transverse/vertical60000/60000/70000 mm/minWorking area 1Longitudinal800 mmCross1050 mmVertical900 mmCabineFull protection cabinDirect measuring systemDirect path measuring systemNC rotary table with pallet changerType of Measuring system Direct measuring systemTable surface 630 x 630 mmRotation speed max.4. Axis 40 rpmDistance between T-Slots 100 mmNumber of Slots 5Slot width 14 mmMaximum load (table centre) 900 KgCentre bore 50 mm4. Axes (swivelling range) 360 x 0,001 degreePackage recirculation ballscrew spindlePackage recirculating ballscrew spindle X-,Z-axis:max. feed speed: 60.000 mm/min Y-axis: max. feed speed: 70.000 mm/min (basic machine without linear drive X-, Y-, Z-axis)Motor ...

GeneralHorizontal Machining Centre; Control: 3D Control Siemens 840D solutionline Working area 1Longitudinal560 mmVertical600 mmCross600 mmTechnical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minMiscellaneousClamping SystemDIN ISO 7388 CabineFull protection cabinNC rotary table with pallet carrierNC rotary table with pallet carrier permissible load 500 kg / 1,100 lbs (no indexing table 360 x 1° in basic machine)Table surface 400 x 400 mmMaximum load (table centre) 500 Kg4. Axes (swivelling range) 360 x 0,001 degreeTool magazine, chain Vert., 60 pocketsTool magazine Vertical chain magazine with 60 tool pockets SK 40 or optional chosen spindle tapersMotor spindle SK 40 18,000 rpmMain drive: Integrated motor spindle SK 40 Spindle speed max. 18,000 rpmDrive power (100% DC) 28 kWDrive power (40% DC) 34 kWSpi ...

Different types, sizes Auction-ID: A7-46802-38

GeneralVertical Machining Centres; Control: DMG MORI SLIMline® Multi-Touch control CharacteristicsTable surface900 x 560 mmMaximum load (table centre)600 KgDrive power (100% DC)9 kWSpeed max.12000 rpmDrive power (40% DC)13 kWDimensions (L x W x H)3,03 x 3,49 x 2,94 (5,8 x 5,5 x2,94) mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z600/560/510 mmSpindle taperSK 40 DIN 69871 Max. torque82 NmTool Magazine with30 PositionsTorque (100% DC)54 NmWeight approx.5200 KgDirect measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SystemDMG MORI IoTconnectorIoTconnector connects DMG MORI machines as well as third-party machines with CELOS. Standardized interfaces enable data exchange between the IoTconnector and CELOS APPs such as the NETservice. The integrated firewall with automatic updates ensures the hSafety Package for Power FailureSafety Package for Power ...

Magnetic swivel table as shown in the pictures. Further information on request

Mapal / different types, sizes Auction-ID: A7-46802-37

Key data: 1000 mm, 450 mm, 600 mm

Universal Milling Machine DUFOUR type F250 Travel X: 1000 mm Travel Y: 450 mm Travel Z: 600 mm Spindle SA 40 Table size: Length 1400 mm x Width 400 mm Horizontally + vertically swivel head Spindle speed: from 24 to 1500 RPM Scale 3 axes MITUTOYO Horizontally + Vertically spindle Rapid X - Y - Z Lubricant pump Centralized lubrication pump Voltage: 380 V Width: 2000 mm Depth: 2400 mm Total height: 2200 mm Weight: approx 3,5 T

Different types, sizes Auction-ID: A7-46802-40

Different types, sizes Auction-ID: A7-46802-42

Sell our old vertical milling machining center as a spare parts dispenser, unfortunately I can not say what the machine has exactly, I only know that the control unit is defective

For sale: Powerful Doosan vertical machining center type Mynx 7500/40, equipped with the well-known control system of the Fanuc i-series including Fanuc Manual Guide i dialog area. This model, with a net weight of 13,500 kilograms, has an X, Y and Z axis displacement of 1,525 x 762 x 625 mm each. The table size is 1,600 x 750 mm. The machine is fully equipped with block guides. The pivot shot is an ISO 40 shot. The machine has a so-called arm changer with 32 positions and is also equipped with cooling through the spindle. As an extra, the machine is equipped with an integrated fourth Nikken axle with counter center. The machine also has a right-hand discharge chip conveyor. On request, you can purchase additional tool holders for the machine. The machine is in excellent condition and for more information please send an email to chrismachinematch.nl

Machine type: CNC Vertical Machining Center Manufacturer / Brand: MÜGA Werkzeugmaschinen GmbH Model / Type: R6040 Year of manufacture: 2011 Serial number: ACMM6 004 Control unit: Mitsubishi M70 CNC Country of manufacture: Germany Worktable: Table size: 700 x 410 mm Max. table load: 250 kg Travel ranges: X-axis travel: 600 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Spindle: Spindle taper: ISO 40 Spindle speed: up to 12,000 rpm Spindle type: Direct drive Tool system: Tool magazine capacity: 12 positions Max. tool diameter: 80 mm Max. tool length: 250 mm Feeds: Rapid traverse: up to 28 m/min Measuring systems: Renishaw tool measurement: yes Renishaw workpiece measurement: yes Electrical data: Voltage: 400 V Frequency: 50 Hz Connected load: approx. 19 kW Dimensions and weight: Overall dimensions (L  ...

Corner Bearing Milling Machine Corner Connector Milling Knoevenagel Production of corner bearings, corner connectors For furniture construction Type US 1X Machine No. 5234 Year of manufacture 1980 Production of wooden corner connectors for tables and other furniture

IMA milling unit - several milling motors immediately available from stock - price on request, depending on equipment and condition

Manufacturer: JOBS Model: Grand Speeder Year of Manufacture: 2015 Type of Machine: Gantry type Milling Machine XYZ travel : 14000x 5000 x 2500 mm C-axis : 400 degrees (+/-200 degrees) A-axis : 220 degrees (+/- 100 dgrees) Electro spindle Speed 24000 RPM Spindle Taper : HSK63-A Two Chain Tool magazine : each 40 tools External Diameter : 170 mm Total length tool : 553 mm Working Table : 13000 x 5000 x 250 mm (capacity = 1000 kg/sqm) Machine weight : 70830 kg Find more here - / Contact us at -

Stock number: 3912 PROCESSING Manufacturer: EXCELL, Type: 810 Machine NO.: ES 8031, Year of manufacture: 0 Specifications: Table size 900 x 480 mm Large table load 400 kg Longitudinal movement (X) 810 mm Transverse movement (Y) 510 mm Vertical movement (Z) 560 mm Size distance spindle/table 700 mm Spindle Taper 40 Iso Spindle motor 9 Kw Tool changer 25 places Control Fanuc OM Fabr. Accessories: Cooling water system. Operating instructions Length: 2200 mm, Height: 2600 mm, Width: 3500 mm, Weight: 5400 kg

2 column portal gantry milling machine between columns: 2550 mm cooling through spindle total power: 90 kVa Longitudinal travel X-axe: 8000 mm Cross travel Y-axe: 2500 mm Travel Z-axe: 800 mm Dimensions clamping space- table: 9000 x 2550 mm Max height workpiece: 1200 mm Power on spindle: 20 kW Control: Siemens Power needed (KVA): 90 Weight: 55 ton ACCESSORIES & TOOLING: toolchanger - 28 toolpositions

Working width 140cm. Including PTO. Auction-ID: A3-43534-1006

Tool holder, milling holder, milling tool, milling mandrel -Milling tool holder: SK40 tool holders -Cutter holder: Ø 6 mm -Number: 35 milling tool holders available Price: per piece -Dimensions: Ø 64 / 120 mm -Weight: 0.9 kg

Swivel spindle milling machine Brand: Panhans type 245 10 New machine Technical data: Engine power: 5.5 kW / 7.5 hp table size: 1100 x 760 mm table height: 870 mm clamping height: 140 mm height adjustment: 140 mm speed: 3000 / 4500 / 6000 / 9000 rpm space requirement: 1145 x 1180 mm Net weight: approx. 800 Table milling machine with double-sided swiveling fixed milling spindle for the swiveling range from -5° to +45,5°. handwheel adjustment with analog dial gauges Belt quick tensioning device Electr. speed indicator Left and right rotation cutter quick clamping device fine planed cast iron table with rigid frame support Milling stop 215 total adjustment via handwheel incl. multiplex stop plates mechanical motor brake milling protection and pressure device GAMMA V 1629 curved milling fence 1639 Tapoa

Spindle milling machine, swiveable Brand: Panhans Type: 245/20 New machine Technical specifications: - Table size 1100 x 760 mm - table height 870mm - Milling spindle 30 mm, not exchangeable - Clamping height 140mm - Height adjustment 125mm - Extraction nozzle 2 x Ø 120mm - 4 speeds 3000/4500/6000/9000 rpm. - Weight approx. 800 kg - Motor power 5.5 kW / 7.5 PS - voltage 400V / 50Hz - Space requirement 1200 x 1400mm Solid German mechanical engineering Table milling machine with double-sided swiveling permanently installed milling spindle for a swivel range from -5 ° to + 45.5 ° Positioning control for height and swivel adjustment with zeroing of the height and offset Electronic position and speed indicators Quick release belt device Push button for spindle start and stop Left and right rotation Quick clamping device for milling cutters Finely planed gray c ...

Several milling motors Make: Perske - in different versions available from stock (0,2 till 8 kW) Price on request (depending on version) Please let us know which specification you are looking for: - power - shaft-type - torque - type - voltage

Milling unit IMA - heavy version - 600 mm heigh - motors as requested Price on request (depending on equipment)

Manual turning head Hydraulic clamping Longitudinal travel X-axe: 2000 mm Cross travel Y-axe: 1000 mm Travel Z-axe: 800 mm Dimensions clamping space- table: 2200 x 800 mm Power on spindle: 18,5 kWt Admission in millinghead (ISO): ISO 50 Max speedrange: 1500 rpm Control: Heidenhain Weight: 14000 kg

Inv. Num. : 8265 Type: FU 400/V/2 Producer: Heckert Generated: Parameters: Work table length: 1600 mm Work table width: 400 mm Maximum vertical spindle speed: 1400 1/min X-axis travel: 1150 mm Y-axis travel: 370 mm Z-axis travel: 430 mm Machine height: 1980 mm Machine length: 2490 mm Machine width: 2270 mm Machine weight: 3850 kg

Profilcut Tool Set Leitz Front Door as good as new Item No.: SE 220 1 50 4800-10600 Y30 ET 952141/711001 MAN

Manufacturer: Hebrock, Type: HFF 08, Year: 1993, Min.-max. workpiece height in mm: 15 - 50, Edgeband thickness max mm: 3, Machine lenght mm: 800 x 1400 x 1400, Wight approx. kg: 350, Year :1993

Manufacturer: Brandt, Type: Optimat F 13, Work piece width min-max mm: 50, Edgeband thickness max mm: 0,5-3, Edgeband height max mm: 55, Milling units: 2, rotations controlled: 18000, kW-Leistung Motor: 2 x 0,5, Work piece width min-max mm: 50,

Manufacturer: Brandt, Type: Eckenkopierautomat, Year: ca.1995, Control: hand, Monting of the machine: 1 Fräsmotor mit<CRLF>tastung, Year :ca.1995

This 3-axis PORTIC VTEC gantry milling machine was manufactured in 2016. It features an impressive X-axis travel of 2,000 mm, Y-axis travel of 1,600 mm, and Z-axis travel of 800 mm. The machine includes a robust table size of 2,000 x 1,300 mm and a maximum workpiece weight capacity of 8,000 kg. If you are looking to get high-quality milling capabilities, consider the PORTIC VTEC gantry milling machine we have for sale. Contact us for further details.

Manufacturer: BA, Type: 143, Year: 1992, Min.-max. workpiece length in mm: 250, Min.-max. workpiece height in mm: 60, Edgeband thickness max mm: 3, Panel length min mm: 250, Feeding speed max m/min: hand, Milling units: 2, rotations controlled: 18000, kW-Leistung Motor: 0,5, Trimming saw: yes, Flush/radius/chamfer milling: yes, Machine lenght mm: 1000, Maschine vorführbereit: yes, Year :1992

x-travel:600 mm y-travel:500 mm z-travel:450 mm weight of the machine ca.:3,5 t

x-travel:1000 mm y-travel:320 mm z-travel:400 mm Table dimensions:1000 x 400 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel:3.000 mm y-travel:700 mm z-travel:1.200 mm Spindle RPM:2.500 1/min tool taper:SK50

x-travel:100 mm y-travel:100 mm z-travel:100 mm total power requirement:0,6 kW weight of the machine ca.:130 kg dimensions of the machine ca.:1600 x 1000 x 1300 mm milling depth:0-50 mm

x-travel:630 mm y-travel:200 mm z-travel:360 mm total power requirement:7,5 kW weight of the machine ca.:2,5 t dimensions of the machine ca.:1500 x 1800 x 1900 mm spindle taper:SK40 table-size:250 x 1100 mm

x-travel:1120 mm y-travel:370 mm z-travel:410 mm total power requirement:14,5 kW weight of the machine ca.:3850 kg dimensions of the machine ca.:3,5 x 3,5 x 2,2 m Table dimensions:400 x 1600 mm spindle taper ISO:50

x-travel:1120 mm y-travel:345 mm z-travel:400 mm total power requirement:14,5 kW weight of the machine ca.:3,85 t dimensions of the machine ca.:3.500 x 2.920 x 2.710 mm table-size:1600 x 400 mm spindle taper:SK 50

Various face milling cutters and indexable insert milling cutters in different sizes and designs; see photos for more details

Manufacturer: Brandt , Type: F 10/100, Year: ca.2000, Control: hand, Edgeband thickness max mm: 3, Edgeband height max mm: 10-55, Feeding speed max m/min: hand, Milling units: 2, rotations controlled: 18000, kW output motor: 0,5, Inner radius in mm: 35, Suitable for shaped and straight parts: yes, Manual feed: yes, Mitre stations: yes, Year :ca.2000

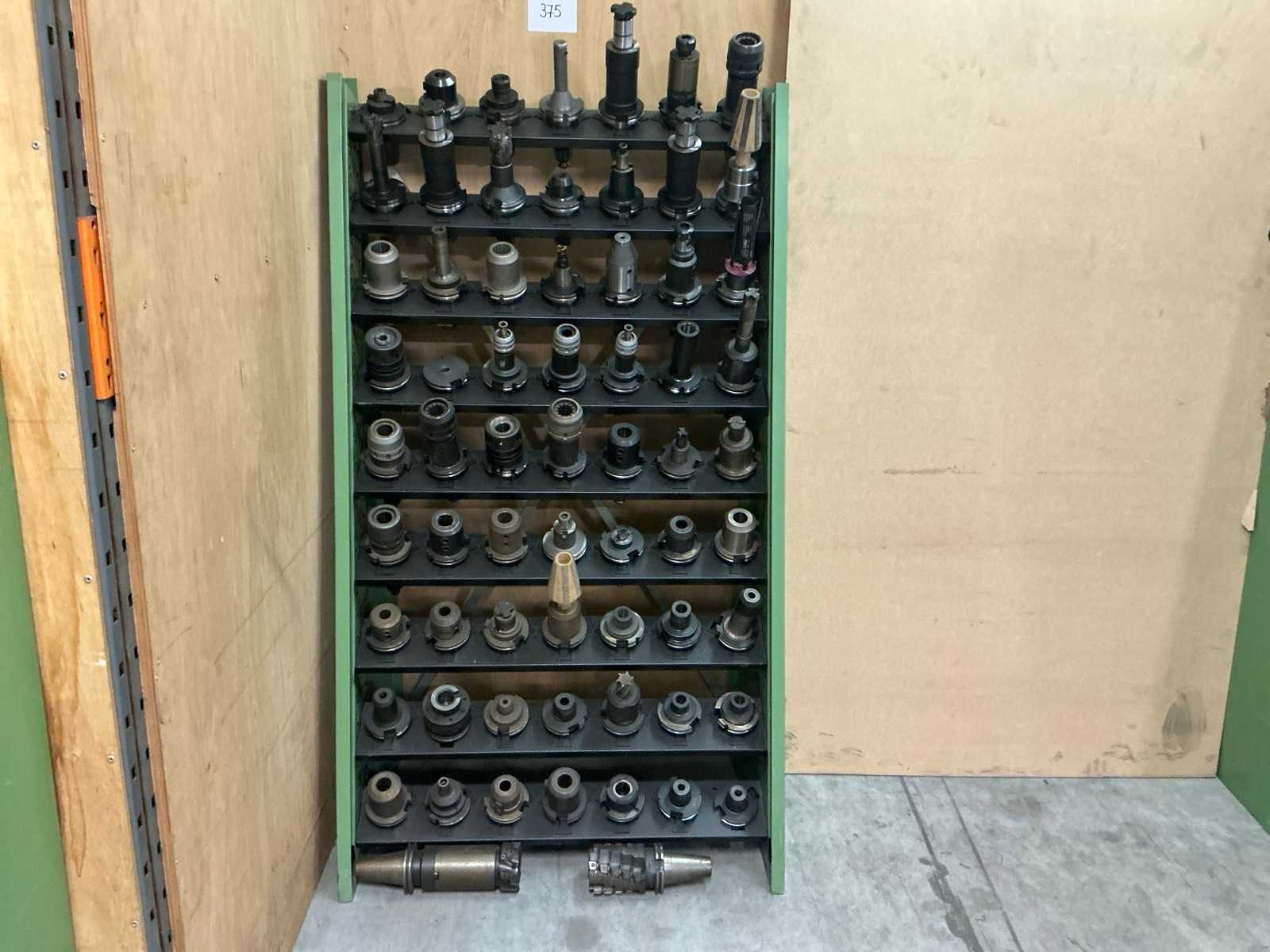

Including Weldon, power collet, face mill, tap holders, etc./ storage rack NOT INCLUDED

- Max. drilling diameter: 30 mm ø. - Fast and fixed clamping up to 60.3 mm ø. - Drill cutters at an angle of +50° to −50°.

Serial number: 100451 Clamping surface: approx. 400 x 120 mm with hand lever operation
