5 axis machining used for sale

Year of manufacture: 2007 Control: Haas Drive type: High-speed spindle (High Efficiency) Axis configuration: 3-axis machining Technical Data Travels: X-axis: 1,010 mm Y-axis: 660 mm Z-axis: 608 mm Spindle speed: up to 10,000 rpm Axis Drives X/Y/Z axes: Ball screws, precision linear guides 3rd axis: Tilting / rotary table integrated, CNC-controlled Tool Changer Capacity: 40 tool positions Taper: SK40 Spindle gearbox replaced in 2024 Equipment Chip conveyor Installation Dimensions Approx. 3,870 x 2,510 x 2,690 mm (W x D x H) Machine weight: approx. 6,260 kg Condition The machine is fully operational both electrically and mechanically. Technical documentation is included. The machine can be inspected under power by appointment. Subject to prior sale. All specifications are indicative; errors and omissions excepted.

Year of manufacture: 2004. Control: Heidenhain iTNC 530. Technical data: Travel distance X: 2,500 mm. Travel distance Y: 920 mm. Travel distance Z: 820 mm. B-axis: x/- 105° Work table: 3100 x 900 mm Spindle exception: HSK 63 Spindle speeds: 20 - 18,000 rpm Tool changer: 30 pcs. Equipped with: - Chip conveyor - Cooling via spindle 40 bar - Operating instructions Country of origin: Germany Motor power: 35 KW Machine LxWxH: 6000 x 3800 x 2950 mm Machine weight: 25,000 kg The machine can be viewed by appointment. Subject to changes and errors in the technical data and specifications, as well as prior sale!

Year of manufacture: 2004 – major overhaul by manufacturer CHIRON in 2013 The machine underwent a complete factory overhaul by CHIRON in 2013. Operating hours: approx. 80,374 h Spindle replacement: March 2021 – spindle hours: approx. 8,000 h Last maintenance performed: January 2024 Technical Specifications: Control: Siemens 840D (PCU50, NCU572.4) NC swivel head High-speed package: Motor spindle up to 12,000 rpm, 140 Nm Travels: X 6,000 mm / Y 630 mm / Z 550 mm Rapid traverse in X / Y / Z: 60 m/min Chip-to-chip time: 3.0 sec (3.3 sec DIN) vertical / 4.7 sec (5.0 sec DIN) horizontal Production package: Scraper belt conveyor, discharge height 1,050 mm Preparation for internal coolant supply (IKZ) Vacuum rotary filter KNOLL VRF250 (for steel, cast iron, aluminum, plastic, brass) High pressure 70 bar with HP pump and variable valve Automatic loading doors Central partition for pendulum ma ...

Includes oil cooler, cooling water mixer, 30 tool holders and various accessories Auction-ID: A1-43894-1

Equipped with 30 tool holders and various accessories Auction-ID: A1-43894-2

A deposit of €4125.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Fast feed speed 42 m/min Cutting speed 1-8000 mm/min 30-position tool changer Max tool diameter 80-125 mm Max tool weight 8 kg X-axis positioning accuracy 0.015 mm Positioning accuracy Y/Z axes 0.010 mm X-axis repeatability 0.006 mm Y/Z axis repeatability 0.004 mm Tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. It should be noted that the dismantling and loading operations of the machinery subject to sale must be carried out exclusively by a specialized ...

x-travel:800 mm y-travel:410 mm z-travel:510 mm control:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/min table surface area:1100 x 450 mm tool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mm max. tool weight:8 kg power requirement:7,5/5,5 kW turning speed range:6000 1/min weight of the machine ca.:6,3 t Under offer is a complete CNC tool shop, which will be given up due to old age of owner. The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine. All measuring devices also come with the machine. Upon request orders for parts to be made can be passed on to new owner. This is a low cost all inclusive opportunity for a "Startup"

x-travel:1400 mm y-travel:1200 mm z-travel:1350 mm control:MSX- 701 Mapps III table surface area:800 x 800 mm rapid traverse:50 m/min table rotating:360.000 x 0,001 B-Achse ° table load:2,0 t numbers of pallets:2 turning speed range:8000 1/min power capacity - milling spindle:37 kW no. of tools in the magazine:60 Stück tool taper:HSK-A 100 weight:31 t dimensions:5,9 x 3,48 x 3,68 m Equipment: - Thru-the-spindel coolant system Mayfran Consep 2000 70 bar with chipconveyor - Helical cutting + Synchronized tapping - Parts program memory 1 MB - Knoll 70 bar high pressure and filter system - Electrostatic oil dust collector LTA - elect. hand wheel - renishaw probe - abso- scale i X/Y/Z- axis - 5 free m- funktions - 48 extra off sets - dual ballscrews on X/Y/Z- axis

x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...

x-travel:630 mm y-travel:630 mm z-travel:630 mm control:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mm max. clampable workpiece diameter:720 - 850 mm spindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/min Spindle power:20 / 30 kW Spindle Torque:95/143 Nm tool magazin::80 SK 40 total power requirement:55 kW weight of the machine ca.:11 t Machine with Unipro 90 control for 5 axis - twin palette changer - tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels - full A & B-axis - chip conveyor

x-travel:1530 mm y-travel:530 mm z-travel:465 mm side by side, right side fixed table X =:925 mm side by side left side 2 axis table X =:780 mm control:Heidenhain TNC 640 tool magazin::122 SK 40 spindle turning speed - stepless:12.000 1/min Spindle Torque:120 Nm power capacity:22 kW Fixed Table Dimensions:920 x 540 mm Table load fixed table:2000 kg Max. parts size on fixed table:900 x 500 x 400 mm Diameter of integrated 2-axis rotary table:650 mm Table load rotary table:500 kg B-axis swivel angle:-90°/+110° ° / deg Max. parts size on rotary table:600 x 500 x 400 mm Max. Parts size over both tables:1500 x 500 x 400 mm internal coolant system feed:70 bar bar weight of the machine ca.:10,5 t dimensions of the machine ca.:3,65 x 2,53 x 2,81 m pendant hand wheel:HR 510 FS Measuring probe for work piece:Blum TC 52 The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:600 mm y-travel:770 mm z-travel:675 mm total power requirement:47 kW weight of the machine ca.:13 t Tool bore:HSK-A63 numbers of tools in magazin:40 including additional tool magazine ZM 182 1 spindle , 5 axes Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to

spindle speed::max. 12000 tool taper:HSK 80 . b-axis:360 x 0,001 ° worktool support (A-axis):+40 / -95 ° weight of the machine ca.:25 500 Kgs. x-travel:800 mm y-travel:700 mm z-travel:630 mm dimensions of the machine ca.:6200 x 3000 x 3200 mm pallet size::500 x 500 mm no. of tools in the magazine:61 Nos. Weight approx.:23,5 t Horizontal Machining Center with CNC Control System SIEMENS 840 C in well maintained condition. Single spindle

x-travel:800 mm y-travel:950 mm z-travel:1020 mm weight of the machine ca.:17 t dimensions of the machine ca.:6 x 3 x 3,2 m Diameter of the table:770 mm max. table load:800 kg tool taper:HSK-A63 max. tool length:465 mm no. of tools in magazin:60 spindle turning speed range:12.000 U/min feed power:8 kN kp power capacity:25/35 kW 5 axis G550-1024 HSK A-63 Grob (Bezeichnung G550-1024) 1 spindle Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

x-travel:700 mm y-travel:630 mm z-travel:700 mm weight of the machine ca.:15 t dimensions of the machine ca.:4,20 x 2,90 x 2,90 m pallet size::500 x 500 mm tool taper:SK 40 Tool taper:HSK-A 63 turning speed range:10.000 U/min

x-travel:2000 mm y-travel:1600 mm z-travel:1140 mm b-axis:0.0001° x 360° ° number of pallets:4 table surface area:1000 x 1450 mm max. table load:6.000 kg turning speed range:4 - 10000 U/min power capacity at 100 % load:40 kW kW tool taper:HSK100 DIN69893A machine weight ab.:63.000 kg space required L x W X H:12320 x 11000 x 4700 mm incl. 50 x HSK100 tool tapers

x-travel:450 mm y-travel:450 mm z-travel:450 mm weight of the machine ca.:14 t size of pallet:320 x 320 mm number of spindles:2 Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site Workpiece positioning stations can be rotated manually with hydraulic workpiece clamping 60 bar Pneumatic support control on the workstation Automatic swing gate Extended coolant layer 70 ba ...

x-travel:800/945 mm y-travel:800 mm z-travel:600 mm spindle motor:27 kW spindle turning speed range:10 - 8000 U/min spindle taper ISO:40 c-axis:360.000 x 0,001 table load capacity:600 kg table clamping surface::800 630 mm total power requirement:55 kW weight of the machine ca.:16 t Machine with Heidenhain iTNC 530 CNC control for 5 axis - pendulum operation with turn- swivil table left and fixed table right - tool changer for 30 tools - coolant device, chip conveyor - complete splash housing

x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1.100 mm y-travel:900 mm z-travel:1.250 mm tool length:750 mm rapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daN feed capacity Z - max.:17.000 N spindle taper:SK50 max. workpiece weight:1500 kg revolutions per minute:10.000 U/min pallet table size:630 x 630 mm tool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW

travel -x axis:800/1825 mm travel -y axis:800/460 mm travel -z axis:600 mm Feeding X,Y,Z up to:0 - 40/40/40 mm/min. swival range +/-:+10 bis -90 x 360 Grad Rotary-table:800 x 630 mm number of T-slots:5 T-slot - distance:125 mm T-Slots:18 mm center hole:30H7X15 mm swival range +/-:90 Grad turning speed:20 m/min. Number of axles:3-7 St. Spindle RPM:12.000 1/min max. tool weight:10 kg max. tool length:330 mm diameter of tools max.:80 mm tool changing time:4 sec CNC control with 15.1" color flat-screen 19" machine control panel PCU 50 with Intel Pentium II Windows XP 10.0 GB hard drive

x-travel:1.250 mm y-travel:880 mm z-travel:800 mm spindle turning speed range:1 - 10.000 U/min high speed spindle taper ISO:50 table-size:1.250 x 1.000 mm max. workpiece weight: 2.000 kg feed speeds infinitely variable:1 - 30.000 mm/min rapid traverse speed:40 m/min weight of the machine ca.:16 t dimensions of the machine ca.:7,2 x 4,4 x 2,9 m

distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg

x-travel:800 mm y-travel:690 mm z-travel:630 mm total power requirement:76 kW weight of the machine ca.:25,5 t b-axis:630 Rundeinheit control:Siemens 840 D workpiece weight:max . 1.100 kg spindle turning speed range:15000 U/min Boring power:30 mm plate size:630 x 630 mm Dimension:6000 x 2900 x 2400 mm spindle taper::HSK 63 Documents:vorhanden

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment

x-travel:850 mm y-travel:500 mm z-travel:610 mm rotary table::400 mm spindle turning speed range:12.000 1/min drive capacity - spindle motor:17/10 kW control:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 t total power requirement:28,5 kW dimensions of the machine ca.:3 x 2.70 x 3,2 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 400mm, 3D infrared touchprobe, el. handwheel, chipconveyor, airblast through spindle, internal coolant supply 40bar, flushgun, direct measuring system, approx. 38.000h "machine on", approx. 14.500h "spindle on"

x-travel:600 mm y-travel:410 mm z-travel:520 mm tool change unit:16 turning speeds:8000 1/min control:SIEMENS 810 shopmill table surface area:840 x 420 mm rapid traverse X- and Y-axis:36 m/min rapid traverse Z-axis:20 m/min taper ISO:SK 40 spindle drive:15 kW weight of the machine ca.:2,5 t space requirements approx. LxWxH:2,2 x 2,3 x 2,3 m vertical machining center, el. handwheel, no chipconveyor, known defect: control starts not 100% special price

x-travel:1270 mm y-travel:660 mm z-travel:610 mm table surface area:1500 x 660 mm table load:1,3 t control:ULTIMAX 4 turning speeds:10000 1/min spindle:15 kW Tool bore:SK 40 rapid traverse:X/Y/Z 30/30/20 m/min tool change unit:24 Pos. total power requirement:30 kVA weight of the machine ca.:9,5 t dimensions of the machine ca.:4,8 x 4,56 x 2,95 m vertical machining center, el. handwheel, chipconveyor,

x-travel:1.500 mm y-travel:700 mm z-travel:610 mm control:HEIDENHAIN iTNC 530 table-size:1.400 x 700 mm tool taper:SK 40 numbers of positions in the tool changer:48 fach spindle turning speed - stepless:15000 1/min rapid traverse:36 m/min table load capacity:700 kg spindle drive:25 kW total power requirement:30 kVA weight of the machine ca.:9,1 t dimensions of the machine ca.:3,7 x 2,65 x 2,9 m vertical machining center, 20 bar internal coolant supply with paper filter, 3D-touchprobe, chipconveyor, el. handwheel meter readings: approx. 43.600 h "machine on", approx. 20.000 h "spindle on",

x-travel:1250 mm y-travel:880 mm z-travel:800 mm control: Heidenhain TNC 430 tool change unit:60 Pos. Tool bore:SK 50 turning speeds:8000 1/min size of pallet:1000 x 800 mm total power requirement:56 kVA weight of the machine ca.:14,3 t dimensions of the machine ca.:5,5 x 3 x 3,1 m 5-axis machine with controlled universal milling head (B-axis), 2-palett changer incl. 2 palets, 1000 x 800 mm Production package: - internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg), - chipconveyor (4,85 x 1,2 x 1,75m / 600kg), - ROTOCLEAR, - 3D touchprobe RENISHAW MP 10 - 60 pos. ATC SK 50 - el. handwheel - mech. tool-breakage control, accessories (SK 50 toolholders approx. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020

x-travel:700 mm y-travel:700 mm z-travel:700 mm turning speeds:18.000 1/min max. torque on the spindle:110 / 84 Nm tool taper:SK 40 control:HEIDENHAIN iTNC 530 tool change unit:180 fach size of pallet:500 x 500 mm mm max. workpiece weight:600 kg spindle:34 / 28 kW rapid traverse:60 m/min total power requirement:68 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:9,5 x 7,5 x 3,4 m dimensions for transport:4,3 x 2,4 x 2,6 m horizontal machining center with linear drives,, NC-roundtable, pallet pool RS 10 for totally 12 pallets, monitor for workpiece setting-up device, high pressure coolant through spindle 40bar, internal air blast supply, mode 4, hydraulic clamping 2/4 for workpiece setting-up device and working table, BLUM laser, oilmist suction, 3D touch probe TS 649, tool-breackage control, mechanical, SDS spindle diagnosis system, flush gun, el. handwheel, chipconveyo ...

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:12.000 1/min tool taper:SK 50 control:SIEMENS 840D shopmill tool change unit:240 fach size of pallet:630 x 630mm mm spindle:52 kW / 430Nm total power requirement:87 kVA weight of the machine ca.:15 t dimensions for transport:4,6 x 2,95 x 2,7 m horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours

x-travel:500 mm y-travel:400 mm z-travel:330 mm control:FANUC 31i B5 tool change unit:21 fach rapid traverse in x-y-z axis:54 m/min taper ISO:BT 30 turning speed range::10.000 1 / min spindle drive:11 / 3,7 kW max. table load:300 kg surface area:600x 400 mm Dimensions (L/W/H):1,6 x 2,1 x 2,25 m rapid traverse:48 m/min total power requirement:11 kVA weight of the machine ca.:2,1 t vertical CNC-milling-drilling machining center, Infrared Touch probe, el. handwheel, autom. door on right side, no internal Coolant Supply, Approx. 65.500 hours "machine on", approx. 8.200 hours "machine run"

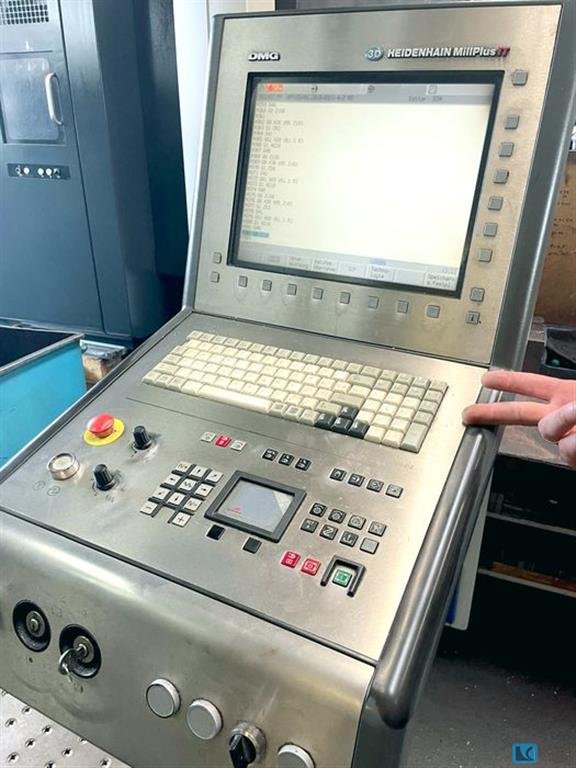

x-travel:1.250 mm y-travel:710 mm z-travel:710 mm table surface area:1500 x 800 mm table load capacity:800 kg turning speeds:12000 1/min spindle drive:15 / 10 kW control:MILLPLUS iT HEIDENHAIN spindle taper:SK 40 tool change unit:60 Pos. capacity:44 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:3,5 x 2,65 x 2,65 m 5 axis simultaneously machining center, B-axis (-120° / +30°), NC-rotary-table integrated in rigid table, direct measuring system, 3D probe infrared, HEIDENHAIN TS 640, internal coolant supply 40 bar, 600l, flushgun, chipconveyor, mode 4, 3D quickset software (no hardware), Higher noise in rush on X-axis and roundtable approx. 48.500 hours "machine on" / approx. 18.000 hours "spindle on"

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:35-10.000 1/min spindle:37 / 30 kW max. torque on the spindle:525 / 206 Nm Tool bore:BT 50 rapid traverse:60 m/min tool change unit:160 Pos. size of pallet:500 X 500 mm control:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kg workpiece height max.:1.000 mm interference area:900 mm 2 pcs. horizontal machining centers (HCN 6000 + HCN 6000-II, 2008), interlinked with pallet pool (16 pallets) MAZAK FMS, 2 pallet changer, chipconveyor, coolant device with internal coolant supply, accessories for both machines: 18 pallets, approx. 300pcs. toolholders, miscellaneous devices for workpiece-clamping...

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:35-10.000 1/min spindle:37 / 30 kW max. torque on the spindle:525 / 206 Nm Tool bore:BT 50 rapid traverse:60 m/min tool change unit:160 Pos. size of pallet:500 X 500 mm control:MAZATROL 640M Nexus c-axis:0,001° x 360.000 workpiece weight:1.000 kg workpiece height max.:1.000 mm interference area:900 mm 2 pcs. horizontal machining centers (HCN 6000-II + HCN 6000, 2005), interlinked with pallet pool (16 pallets) MAZAK FMS, 2 pallet changer, chipconveyor, coolant device with internal coolant supply,

x-travel:410 mm y-travel:610 mm z-travel:500 mm turning speeds:15000 1/min tool adaptor:SK 40 control:iTNC 530 HEIDENHAIN smart NC table::320 x 320 mm table load:100 kg tool change unit:48 Pos. total power requirement:35 kVA weight of the machine ca.:7,4 t dimensions of the machine ca.:4,15 x 3,8 x 3,28 m 5-axis simultaneously machining center, NC-round-swivelling table, C-axis 360°, B-axis +30/-120°, chipconveyor, 3D touchprobe, internal coolant supply 20bar, el. handwheel, kinematicsopt, meter readings: approx. 9.600h "machine on", approx.3.500h "spindle on"

x-travel:2300 mm y-travel:1200 mm z-travel:600 mm turning speeds:30-10.000 1/min max. torque on the spindle:254 / 159 Nm control:HEIDENHAIN TNC 430 tool taper:SK 40 tool change unit:60 Pos. spindle:40 / 25 kW fixed working table:surface area:1.100 x 1.100 mm rotary table:1.100 x 1.100 mm rapid traverse:30 m/min total power requirement:69 kVA weight of the machine ca.:20 t universal machining center with indexing head (2,5°), NC-rotary table, max. table load 1.500kg, internal coolant supply 30 bar, paper filter, el. handwheel, chipconveyor, automatic doors, flush gun, no touch probe available, approx. 81.400 h main swich on approx. 72.200 h control on approx. 26.700 h program running on machine under power , for functional testing

x-travel:1000 mm y-travel:610 mm z-travel:600 mm table-size:1150 x 600 mm table load capacity:1000 kg rapid traverse X- and Y-axis:24 m/min rapid traverse Z-axis:24 m/min spindle taper::SK 40 spindle turning speed range:10.000 1/min spindle drive:15/22,5 kW tool change unit:30 Pos. CNC-control:SIEMENS 828D operate shopmill distance spindle nose and table:110 / 710 mm weight of the machine ca.:7 t dimensions of the machine ca.:3,2 x 2,2 x 2,7 m vertical machining center, - internal coolant supply 30 bar - chipconveyor - cartridge filter - flat tracks - el. handwheel - prepared for 4th axis - 3D touchprobe RENISHAW OMP 60 - indirect measuring system - accessories (approx. 30 pcs. SK 40 toolholders incl. 2 racks, chip tray) approx. 6.000h "spindle on"

x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:800 kg control:SIEMENS 840D shopmill turning speeds:12.000 1/min tool adaptor:HSK 63 rapid traverse:50 m/min tool change unit:30 Pos. electr. connected load with add. coolant:56 kVA weight of the machine ca.:9,5 t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm, internal cooling device 40 bar, 600l prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe), prepared for el. handwheel (without handwheel), mode 4, approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)

x-travel:8500 mm y-travel:2000 mm z-travel:1500 mm rapid travel x/y/z:25 m/min table-size:10.000 x 1.350 mm table load:max. 5 t/qm universal head:orthogonal 1° x 1° tool taper:SK 50 milling head speed:4.000 1/min power capacity:37 kW max. torque on the spindle:900 Nm internal coolant system feed:15 bar control:HEIDENHAIN iTNC 530 Tool changer:60 Pos. total power requirement:75 KW dimensions of the machine ca.:12,7 x 5,2 x 4,6 m weight of the machine ca.:35 t universal travelling column - universal machining center, orthogonal milling head, water-cooled, with 1° indexing in 2 axis (360 pos. in rear layer, 270 pos. in front layer) 3D touch probe M&H 20.41, dividing wall for 2 table machining, internal air blast, 15bar high pressure pump, prepared for HSC milling heads incl. torque support, moveable operator-cabin/panel, chipconveyor, handwheel HR 410, controlled security fence, miscella ...

x-travel:2600 mm y-travel:1100 mm z-travel:900 mm table surface area:3200 x 1100 mm rotary table diameter:1050 mm table load:1,2 t control:Heidenhain iTNC 530 HSCI ergoline 19" turning speeds:20 - 14.000 1/min taper ISO:SK 40 tool change unit:30 Pos. rapid traverse:40 m/min spindle:14 / 19 kW total connected load:46 kVA weight of the machine ca.:25 t dimensions of the machine ca.:6,70 x 3,40 x 2,95 m 5-axis universal machining center, rigid table with integrated NC-rotary table left side and B-axis in milling head, direct measuring system, Swarf Conveyer, Rotoclear 3D Touch probe HEIDENHAIN TS 649, BLUM laser, mode 4, prepared for 3D quick set (software yes, hardware no), NO INTERNAL COOLANT SUPPLY (upgrade on request, additional costs 15.000?) approx. 70.500 h machine on, approx. 14.000 h Programm run last known spindle change in 2021
