5 axes machining used for sale

General SKU361T1082 MakeFerrum LocationBarneveld CEcheck TypeDSZ-OR/T 1000/500 Main Features MaterialStainless steel Motor11 KW Inlet diameter50 mm Specified Features - Basket centrifuge Basket centrifugecheck Rubber linedhallar chamber Perforated basketcheck Capacity200 Ltr. Basket sizesDia 1000x500 mm Max. loading weight250 kg Hydraulic operatedcheck Liquid outletDia. 100 mm With hydraulic unitcheck Wandfluh HN10-6nvh, motor: 0,75 kW, 230/400 volt, 1380 rpm Motor11kW, 400/690 volt, 1475 rpm Max. basket speed1200 rpm MaterialStainless steel 1.4404, Stainless steel 1.4435 (316L) Information No.414-092 396 Year of construction2001 Mounted on foundation platecheck Floorspace1,8x2,2 m Total height1,7 m Weight2400 kg ATEX compatiblecheck Extra SpecificationsRevised machine! Including: new motor, pulleys, belts, shaft seal, and bearings. Filter area 1.57 m². C ...

General SKU309N500 MakeFalk gmbh & Co. KG No.3304 Year of construction2007 Mounted on legscheck Material Shell materialStainless steel 1.4571 (316Ti) Cover materialStainless steel 1.4571 (316Ti) Tube materialStainless steel 1.4571 (316Ti) Pressure Working pressure shell1 Bar Working pressure tubes4 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface150.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Notified bodyAD2000 Heating surface150,5 m2 Tube capacity830 Ltr U-typecheck Number of tubes:157 Tube diameter25mm Tube length(2x)5900mm Wall thickness tubes2,0mm Max. temperature100 degr.C Shell capacity1530 Ltr Shell diameterdia.711mm Shell length6370mm Wall thickness shell5mm Max. temperature100 gr.C. Shell connectionsdn500, dn80 Cover connections(2x)dn200 Information Loca ...

General SKU018W114 MakeApex Engineering UK TypeGranupex GR 311-565 No.A-46560 Year of construction1998 LocationBarneveld Material Jacket materialStainless steel Pressure Working pressure0 Bar Vacuum possiblecheck Working pressure jacket2.5 Bar Main Features MaterialStainless steel Volume565 Ltr. Specified Features - Tumbler dryer MaterialStainless steel 1.4401 (316) Tumbler dryer/granulator (1x) Capacity450-565 Ltr, Bulk density max. 1,2 G/CC Diameter± 800mm Cylindrical length± 1200mm Inletdia. 460mm Outletdia. 200mm With jacketcheck With braking motor11,0 KW, 400/690 Volt Dryer speed5,5-17,5 Rpm With lump breakerLiquid Dispersion Bar, Max. 2000 Rpm Motor11,0 KW, 380-415 Volt With vacuum pumpmake PIAB type MLL-400 With condensermake APEX, type 61A Information With switchgear(Dim. 100x400x150 CM)DiscountTumbler dryersApexDiscountDryers > Tumbler dryersBr ...

General SKU295W543 MakeG.A.B. Neumann TypeH-B-11,5 No.13001-10902 Year of construction1994 LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface11.5 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Heat exchangercheck Verticalcheck Heating surface11,5 m² Tube capacity44 l Tube length1270 mm Max. temperature-60°/+180°C Shell capacity41 l Shell diameter700 mm Shell length1340 mm Max. temperature-60°/+80°C Shell connectionsDN50 Cover connectionsDN250 Information Floorspace0,8 x 0,8 m Total height1,8 m Weight750 kgCatalysts & fillersFeed additivesPaper & otherSolventsShell and tube heat exchangersDetergent & surf.Other pharmaceu ...

; Power [PS]: 680; Gross weight [kg]: 14240; Engine: Battery System: LIFePO4; Accessories: Tanker, Control Panel, Wiring port: L1, L2, L3, N, PE, Power Input: , - AC socket: 3P/5W, 1x500kW, 5x16kW , - AC copper: 3P/4W, 500kW , - DC socket: 110kW, Power Output: , - AC socket: 3P/5W, 1x500kW , - AC socket: 1P, 1x16A; 3P, 1x32A , - AC copper: 3P/4

General SKU214W277 MakeQVF Glasstechnik TypeROB DN100,0,5M No.98069A Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0.5m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameterDN100 Shell length1425 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN100 Cover connectionsDN50 Information Floorspace0,22 x 1,57 m Total height0,22 m Weight70 kg CEcheck ATEX com ...

: neu : 2026 : 070217 : Juni 2026, Zwischenverkau : Türkei : 4800 € : 500 kg : 1200 mm : 400 mm : 550 mm : 300 mm : 50 mm : 80 mm : 0.55 kW : 1400 mm : 1200 mm : 1550 mm : 190 kg motorized drive mechanical adjustable coil mandrel with 4 jaws speed control for decoiling speed aswell as acceleration- and deceleration times photoelectric proximity ensor SICK for sag control ALTERNATIVES (prices on request): Version with pneumatic pressure arm Version with brake, without motor, with or withaout pneumatic pressure arm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

General SKU214W274 MakeQVF Glasstechnik TypeROB DN100. 0.5m³ No.98071 Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5m³ Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameter100mm Shell length1100mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN80 Cover connectionsDN50 Information Floorspace0,22x1,50m Total height0,22m Weight50kg Technical specs Extra information- SIC better heat t ...

: neu : ca. 4 Monate ab Auftragse : Bulgarien : 44400 € : 848.04 € : 500 mm : 1500 mm : 250 mm : 80 mm : 300 mm : 400 mm : 8 : 80 MK : 21 : 20-2000 1/min : 120 : 0.04 - 12 mm/U : 0.02 - 6 mm/U : 64 : 0.5 - 120 mm : 60 - 1/4 Gänge/ : 0.125 - 30 : 240 - 1 : 315 mm : 130 mm : 90 mm : 5 MK : 230 mm : 7,5 kW : 3100 mm : 1250 mm : 1400 mm : 2820 kg driven by manual transmission 3-axes digital readout quick change toolpostAmestra with 4 holders (3 square, 1 round) 3-jaw chuck Bison 3204/DIN6350, Ø 250 mm spindle dead center longitudinal stop for 1 position coolant equipment full length rear splash guard leadscrew and shaft protection safety guard for the chuck toolholder guard levelling bolts and plates quick release tailstock low voltage machine lamp operating manual machine according to ",CE", FURTHER TURNING LENGTHS: turning length1.000 mm € 43 420,00 turning length2.000 mm ...

General SKU214W273 MakeQVF Glasstechnik TypeROB DN100. 0.5m² No.98068 Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5m³ Tube capacity3 ltr Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature+150°C Shell capacity7 ltr Shell diameter100 mm Shell length1100mm Max. temperature+150°C Shell connectionsDN50, DN80 Cover connectionsDN50 Information Floorspace0,23x1,55 m Total height0,23 m Weight50 kg Technical specs Extra information- SIC better heat transfer coefficient than glass ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

General SKU214W272 MakeQVF Glasstechnik TypeS-ROB45/300/SH/3SIC LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface4.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface4,5m³ Tube capacity22 ltr Number of tubes:128 Tube diameter14 mm Tube length1000 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity53 ltr Shell diameter300 mm Shell length850 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150 2x Cover connectionsDN80 2x Information No.98087 Year of construction1998 Floorspace0,42x1,40m Total height0,42m Weight190kg Technical specs E ...

General SKU214W146 MakeQVF GLASTECHNIK TypeROB DN 100, 0,5m² No.98066 A Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell2 Bar Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) Heat exchangercheck Horizontalcheck Heating surface0,5 m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature150 °C Shell capacity7 Ltr. Shell diameterDN100 Shell length1425 mm Max. temperature150 °C Shell with expansion jointcheck Shell connectionsDN80 (2x), DN50 Cover connectionsDN50 (2x) Information Floorspace0,2x1,4 m Total height0,2 m Extra Specifications- SIC better heat transfer coe ...

General SKU169K559 Makeunknown Year of constructionunknown Mounted on legscheck Material Shell materialStainless steel Cover materialStainless steel Tube materialStainless steel Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface39.5 m2 Specified Features - Shell and tube heat exchanger Heat exchanger/Steam generator (1x) Heating surface39,5 M2 Number of tubes:168 Tube diameter25mm Tube length3000mm Shell capacityunknown Shell diameter1200mm Shell length2600mm Information LocationBarneveld Floorspace4,0x1,5 M Total height2,5 MCatalysts & fillersFeed additivesPaper & otherSolventsDiscountShell and tube heat exchangersDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBeveragesDyes & pigmentsBiopharmaceuticalAPIPlastic & r ...

General SKU201P093 MakeSGL Technik Gmbh Meitingen (DE) TypeRS-77-2-5515.1 LocationBarneveld Material Tube materialGraphite Diabon-NS1 G20-3-170 Pressure Working pressure shell6 Bar Working pressure tubes6 Bar Main Features Shell (Material)Graphite Tube (Material)Graphite Surface8 m2 Specified Features - Shell and tube heat exchanger MaterialGraphite Diabon-NS1 G20-3-170 Heat exchangercheck Verticalcheck Notified bodyTÜV Heating surface8m2 Tube capacity62 Ltr Number of tubes:55 Tube diameter37mm Tube length1500mm Wall thickness tubes5mm Max. temperature170 Degr.C. Shell capacity100 Ltr Shell diameter406mm Shell length1380mm Wall thickness shell6mm Max. temperature170 Degr.C. Shell connections(2x)DN80, DN40 Cover connections(2x)DN150 Information Floorspace0,7x0,7 M Total height2.2M Weight600 KGCatalysts & fillersFeed additivesPaper & otherSolventsShell ...

General SKU050C389 Makeunknown, manufacturer tag is missing LocationBarneveld Material Shell materialStainless steel 1.4401 (316) Tube materialStainless steel Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface1.5 m2 Specified Features - Shell and tube heat exchanger Heat exchanger(1x) Heating surface± 1,5 m2 Number of tubes:25 Tube diameter24mm Tube length± 900mm Information Floorspace2,2x0,7 MCatalysts & fillersFeed additivesPaper & otherSolventsShell and tube heat exchangersDetergent & surf.Other pharmaceuticsCosmeticsOrganicsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBeveragesDyes & pigmentsBiopharmaceuticalAPIPlastic & rubberMinerals & inorganicPlastic & polymersSpicesAgrochemicalsBiotechnologyRubberOther chemicalStarchFine chemicalsTea, herbs & coffeeOintmentsGene ...

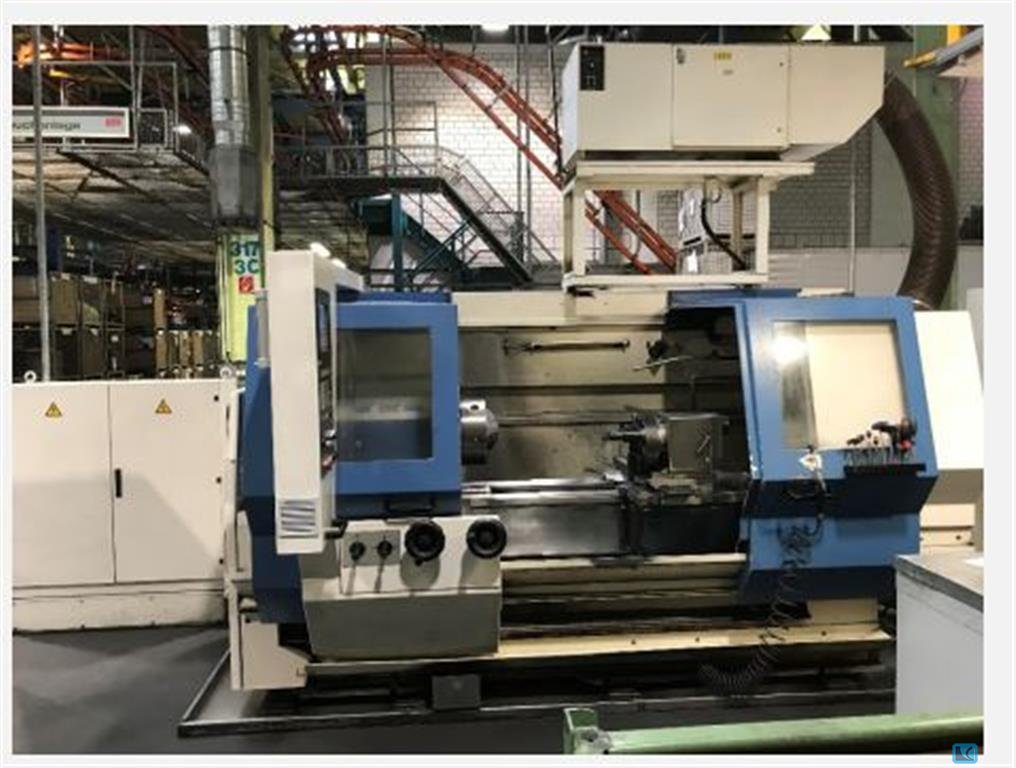

turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.

turning diameter:570 mm turning length:1000 mm dimensions of the machine ca.:3,25 x 2,03 x 1,95 m Tool disc turret for 8 tools with VDI 30. Not for power tools machine manual, technical documentation; Accessories: 3-jaw chuck, various tool holders Video is available

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

max. wheel diameter:780 mm gear width:130 mm max. module:10 weight of the machine ca.:8,5 t no. of strokes:30 Hub/min Hier fully functional machine, Little used There are some Tools and Change gears Liebherr WSC501 CNC gear shaping machine, used, ready for use Manufacturer: Liebherr Type: WSC 501 Mach.- No.: 4407/05 Year of manufacture: 1985 Details: Max. gear shaping module: 8mm (30°gears possible up to module 10°) Max. gear width: 130mm Diameter of the machine table: 500mm Maximum wheel diameter: 780mm Shut height ? table: 650mm Stroke rate min. 30DH/min Continuously adjustable max. 1500 DH/min. Operating voltage: 380V Frequency: 50Hz Control voltage: 110V Connected load: 36 kVA Rated current: 55A Weight: 8500kg Dimensions: approx. 4,85 x 3,655 x 3,78 (width x depth x height in m) The machine has seen only very limited use in our company. It remains fully operational and can be dem ...

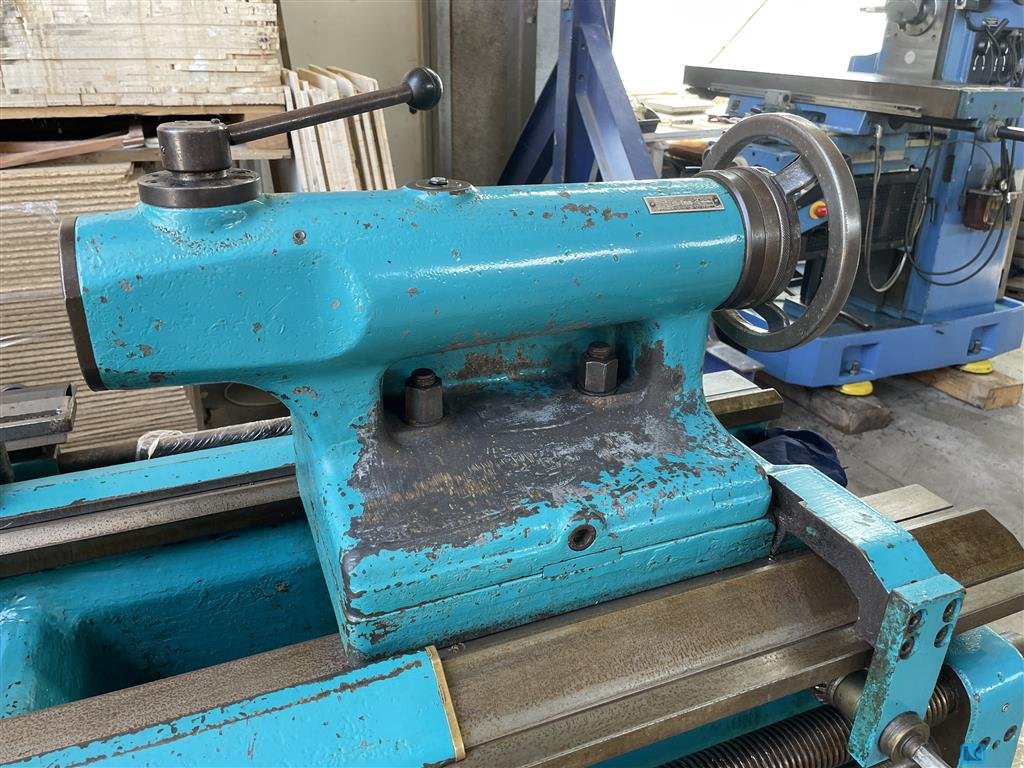

turning diameter:500 mm turning length:1500 mm spindle motor:16 kW Spindle RPM:1 - 2500 1/min taper in tailstock MT:5 tailstock quill stroke:160 mm tailstock quill diameter:70 mm total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,2 x 1,8 x 1,4 m Machine with Heidenhain Manual plus control - Multifix quick tool change device - 3-jaw chuck - sliding splash door - various accessories.

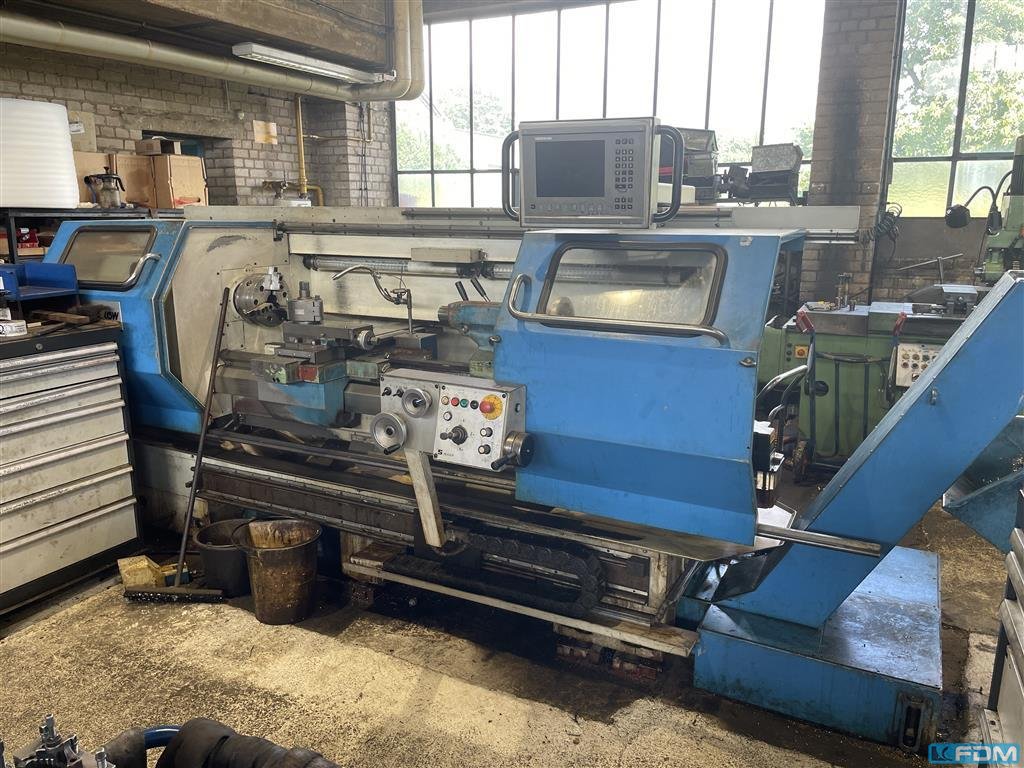

turning diameter over bed:500 mm turning diameter over slide rest:310 mm turning length:1500 mm spindle turning speed range:7 - 710 U/min feed range:5,6 - 224 mm/min total power requirement:15 kW weight of the machine ca.:3,7 t dimensions of the machine ca.:2,9 x 1,4 x 1,6 m Machine with 2-axis digital readout - MULTIFIX quick tool change device - 3-jaw chuck

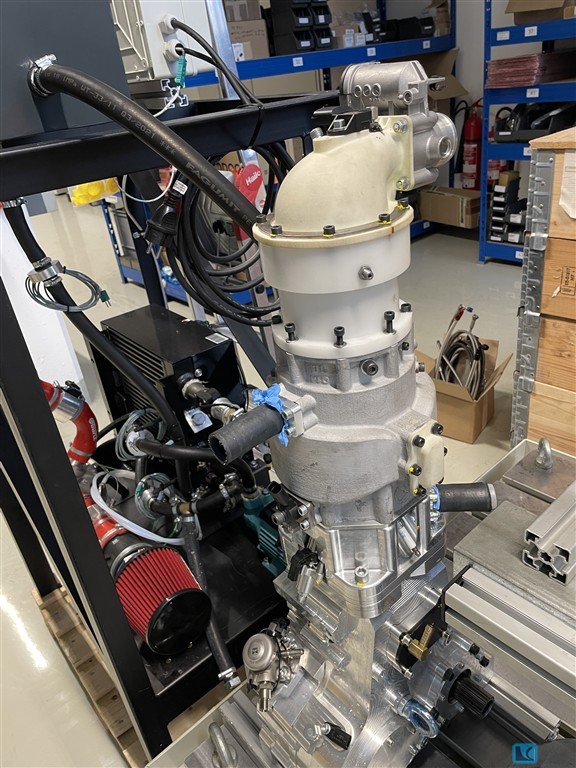

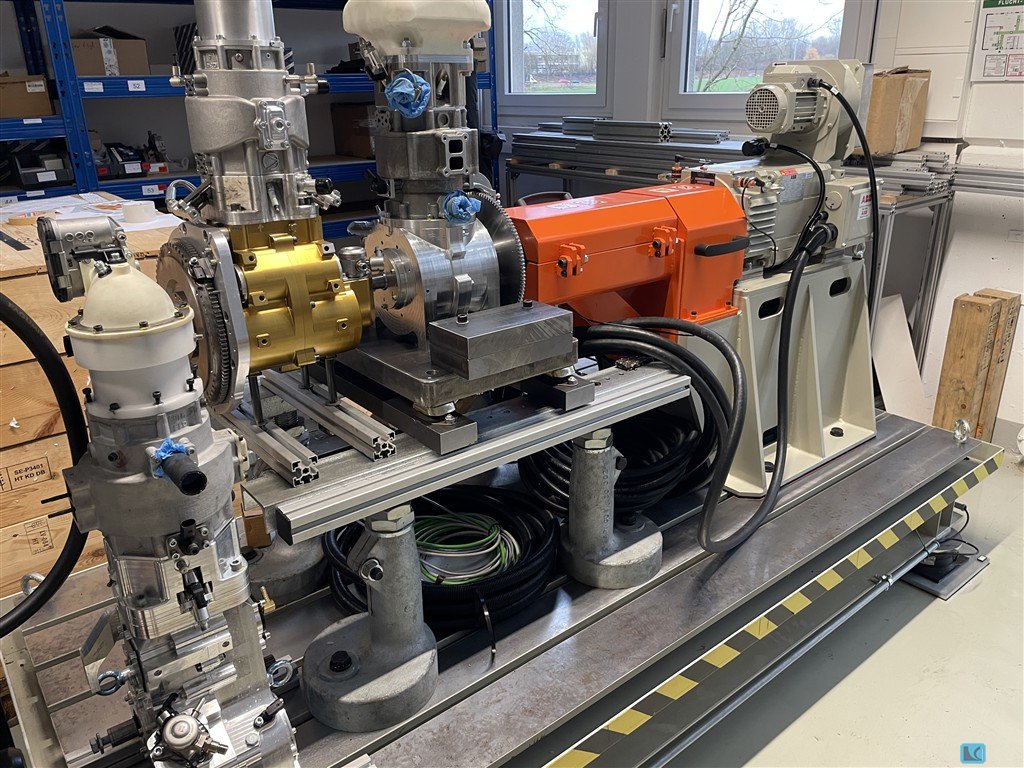

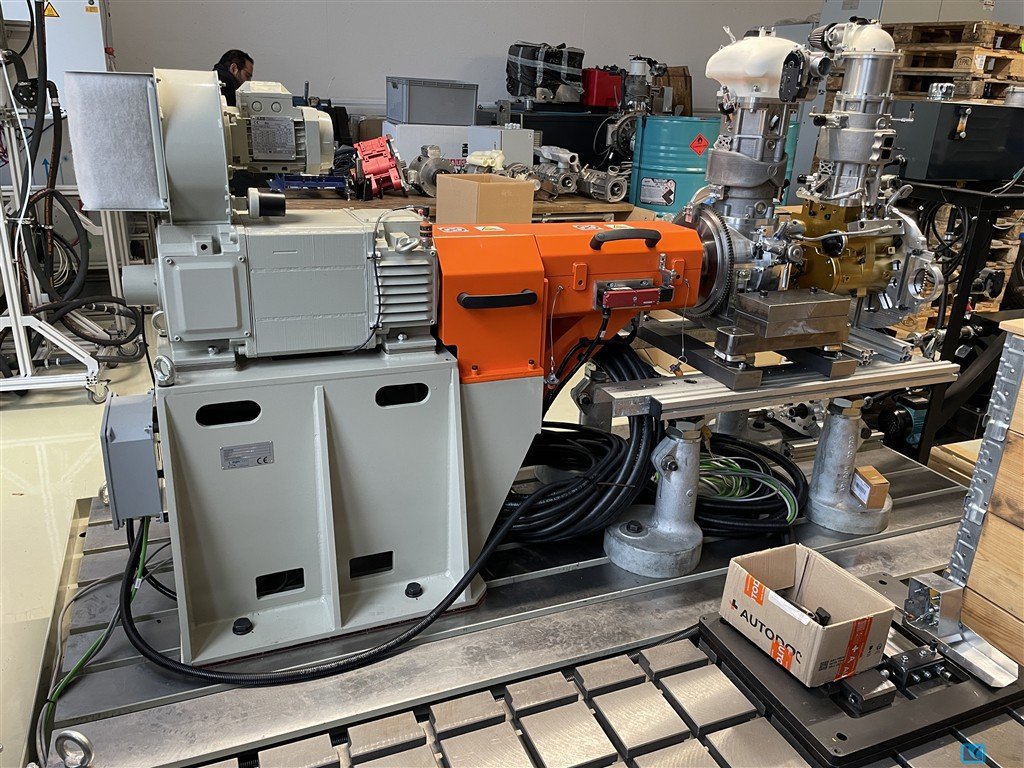

Performance ·Max. motor power: 30 kW ·Max. engine speed: 10,000 rpm ·Rated torque (test bench): > 100 Nm ·Max. braking torque: up to 122 Nm ·Max. braking power: up to 46 kW (overload) Dynamometer ·Type: AC asynchronous dynamometer, frequency-controlled ·Voltage: 360 V ·Cooling: Forced ventilation (IC06) ·Protection class: IP23 ·Insulation class: F ·Speed range: 0 ? 10,000 rpm ·Continuous operation: up to 40 kW (depending on speed) ·Overload capability: 1 min every 10 min Measurement System ·Torque measurement: oHBM T12HP torque flange oMeasurement range: 200 Nm oAccuracy class: 0.02 ·Speed measurement: oIncremental encoder, 1024 pulses/rev oAccuracy: ±0.01 rpm ·Vibration monitoring: oIntegrated vibration sensor Mechanical Structure ·Slotted base plate with air suspension (Bilz air springs) ·Vibration-damped test bench ·Motor mounting system: oAdjustable aluminum fram ...

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2.000 mm feed per revolution:0,06 - 58/ 0,03 -28 mm spindle turning speed range:11,2 - 2.240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW dimensions of the machine ca.:4,5 x 1,5 x 1,4 m weight of the machine ca.:4,8 t

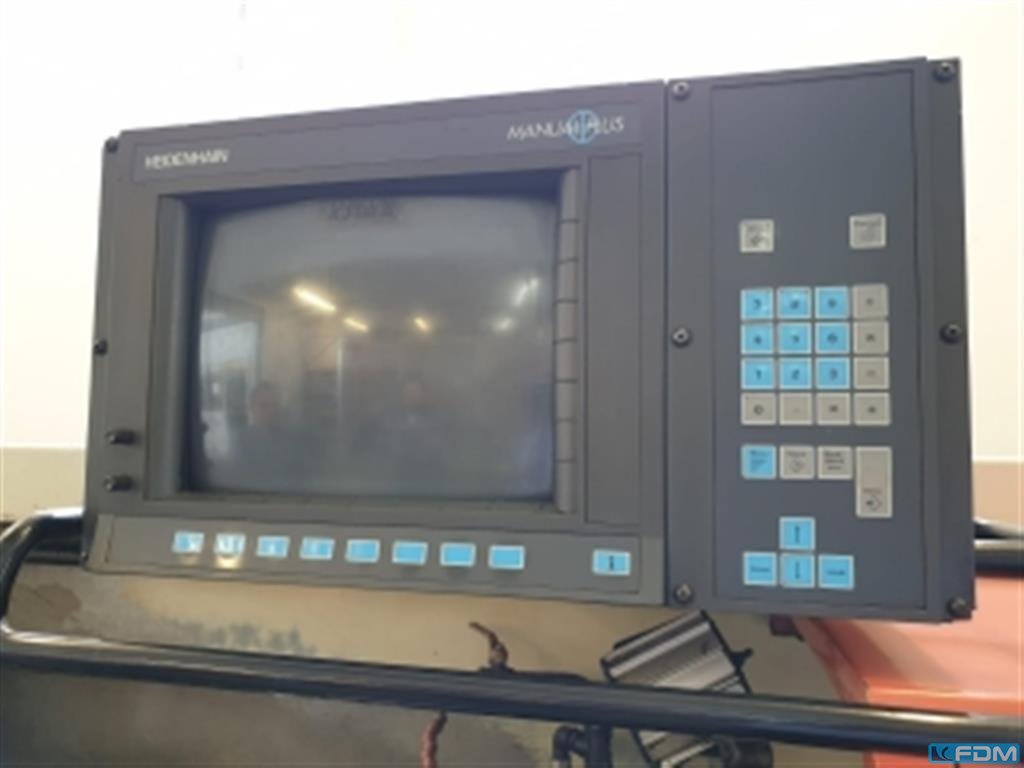

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

turning length:2000 mm control:- total power requirement:25 kW weight of the machine ca.:3 t dimensions of the machine ca.:3800 x 1800 x 1850 mm swing over bed:500 mm swing diameter over face slide:280 mm control:Zyklen-Steuerung Heidenhain bed width:350 mm Documents:vorhanden

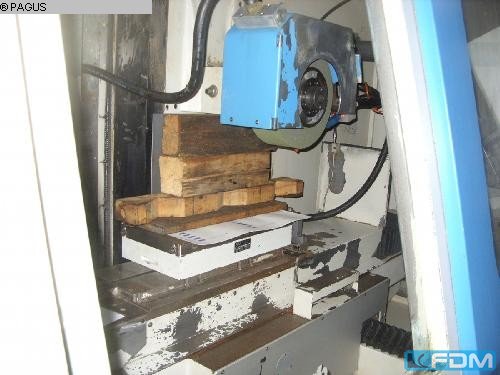

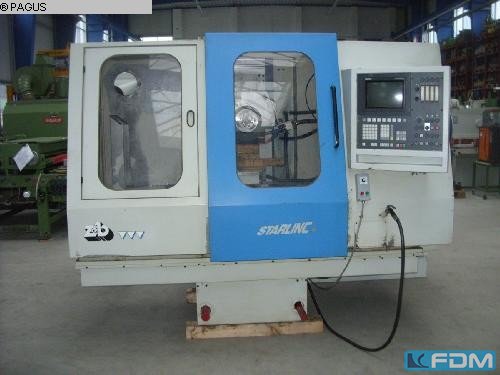

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2000 mm feed per revolution:0,06 - 58 / 0,03 - 28 mm spindle turning speed range:11,2 - 2240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW weight of the machine ca.:4,8 t dimensions of the machine ca.:4,5 x 1,5 x 1,4 m with digital readout HEIDENHAIN rapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachment diverse toolholders, diverse jaws

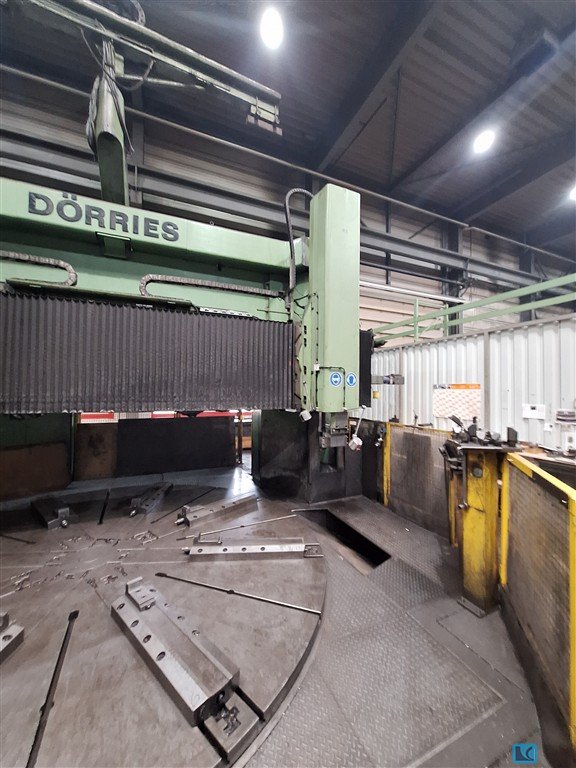

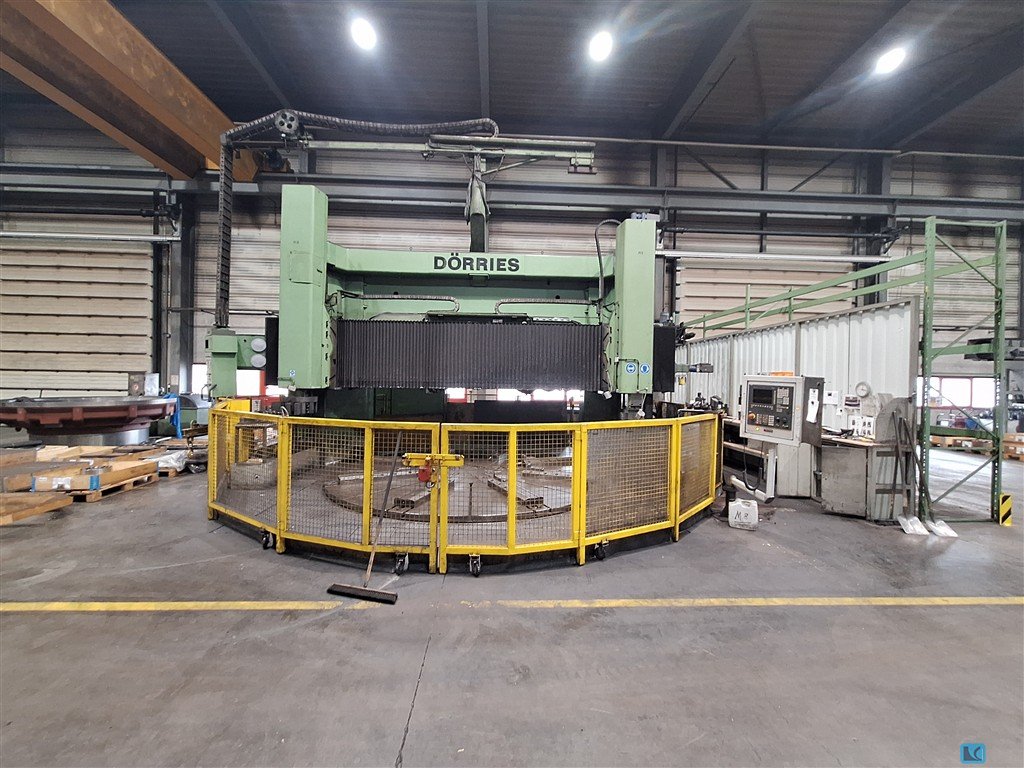

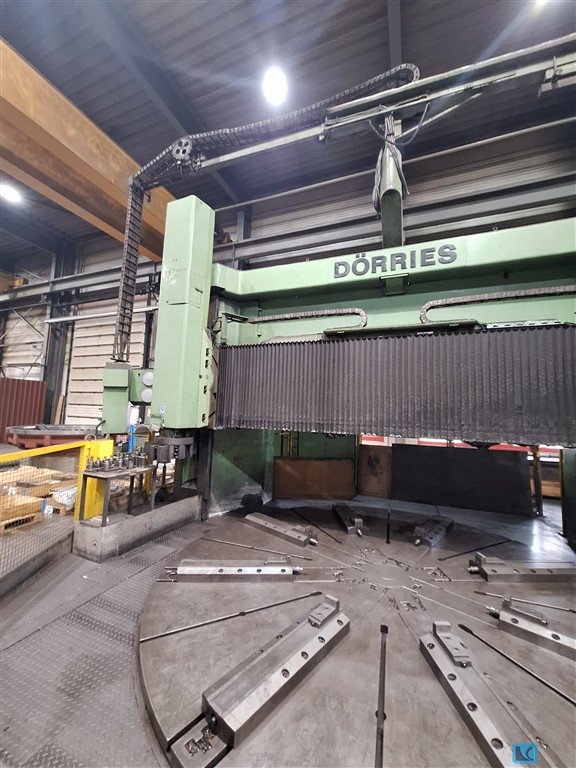

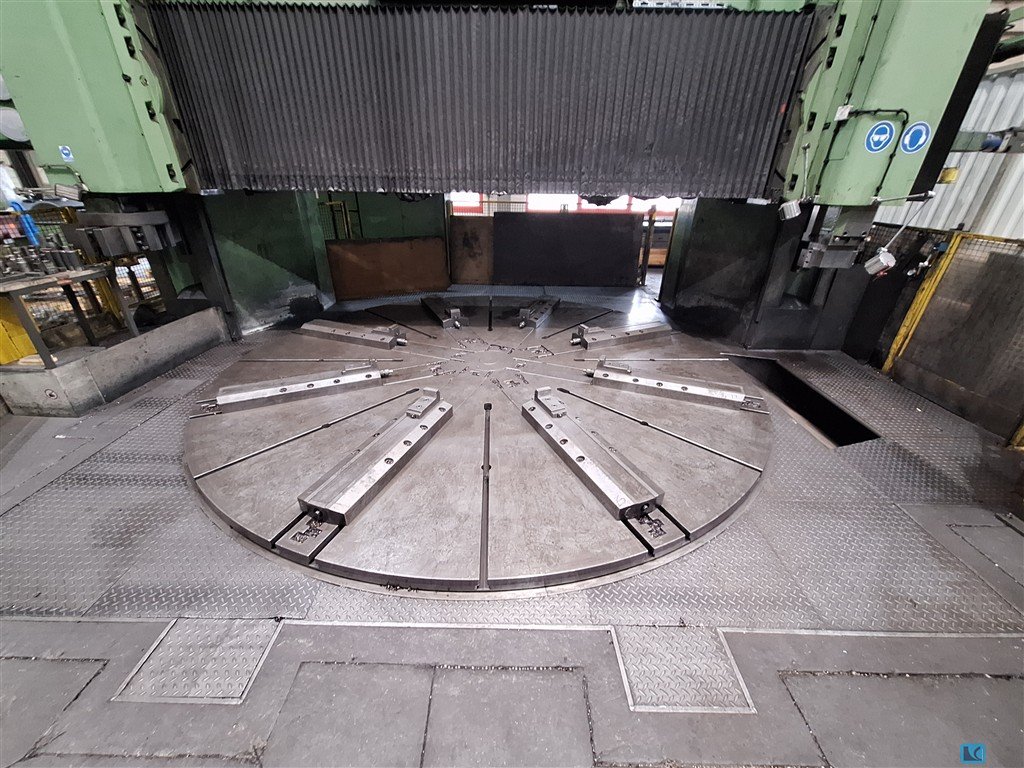

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D

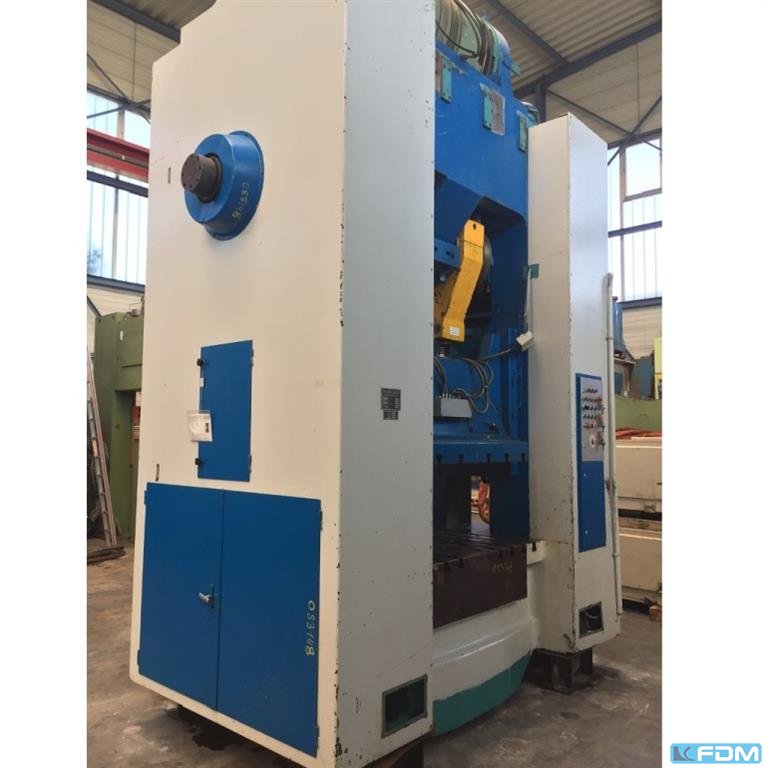

Pressure:500 t distance between columns:1550 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1200 x 1300 mm pressure of drawing cushion in table:250 t stroke of drawing cushion in table:150 mm die cushion area:950 x 950 mm table height over floor:1245 mm side window:1250 mm ram surface:1200 x 1300 mm speed down:750 mm/s speed up:780 mm/s working speed:105 mm/s oil volume:4000 l power requirement:263,0 kW weight:45,0 t Dimensions (WxDxH):3,3 x 3,3 x 6,1 m height over floor:6,1 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table:hydraulic cutting impact cushioning:motoric adjustable

pressure:500 t distance between columns:2400 mm stroke:400 fix mm no. of strokes:13 - 23 /min Distance table/ram, max. stroke up, adjustment up:1600 mm table surface area:2300 x 1800 mm column travel -side:1600 mm ram surface:2170 x 1800 mm ram adjustment:300 mm total power requirement:110,0 kW Weight:135,0 t Dimensions (WxDxH):3,35 x 4,85 x 7,0 m clutch:pneumatic overload protection in ram:hydraulic ram adjustment:motoric

pressure:500 t distance between columns:2240 mm stroke:1180 mm distance table/ram, max. stroke up, adjustment up:1800 mm table surface area:2050 x 1800 mm pressure of drawing cushion in table:250 t stroke of drawing cushion in table:380 mm drawing cushion surface in table:1800 x 1200 mm pressure of drawing cushion in ram:122 t stroke of drawing cushion in ram:200 mm drawing cushion area in ram:1800 x 1200 mm ram surface:2215 x 1800 mm table height over floor:500 mm speed down:400 mm/s speed up:10 - 400 mm/s working speed:10 - 100 mm/s depth of the foundation:3,0 m power requirement:122 + 75 + 64,5 kW weight:110,0 t Dimensions (WxDxH):3,6 x 2,2 x 8,5 m height over floor:6,8 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in table and ram:hydraulic

pressure:500 t distance between columns:3200 mm stroke:1250 mm distance table/ram, max. stroke up, adjustment up:1810 mm table surface area:3000 x 1900 mm pressure of drawing cushion in ram:150 t stroke of drawing cushion in ram:200 mm drawing cushion area in ram:2400 x 1200 mm ram surface:3160 x 1900 mm speed down:400 mm/s speed up:250 mm/s working speed:18 - 58 mm/s height over floor:6,5 m power requirement:90,0 + 36,5 kW weight:110 t German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 drawing cushion in ram:hydraulic

nominal force:315 t stroke:300 mm no. of strokes:36 /min distance between columns:540 mm distance table/ram, max. stroke up, adjustment up:750 mm table surface area:530 x 630 mm blow die to die:630 t Allowed max. force:500 t ram surface:450 x 560 mm spindle diameter:180 mm power capacity:18,0 kW weight:13,0 t Dimensions (WxDxH):2,5 x 2,0 x 4,0 m

pressure:500 t stroke:40 - 160 mm no. of strokes:32 / 48 /min distance between columns:1620 mm distance table/ram, max. stroke up, adjustment up:660 mm table surface area:1600 x 1300 mm table height over floor:750 mm column travel -side:400 x 430 mm ram surface:1400 x 1200 mm ram adjustment:120 mm pressure of drawing cushion in table:60 t stroke of drawing cushion in table:100 mm drawing cushion surface in table:1300 x 810 mm material width of feeder:1000 mm material thickness of feeder:- 6,0 mm feed length:350 mm height beneath floor:0,3 m power requirement:44,0 / 66,0 kW weight:56,0 t Dimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 m height beneath floor without drawing cushion:0,3 m height beneath floor with drawing cushion:1,0 m clutch-/ brake combination:pneumatic; Desch overload protection in ram:mechanical ram counterbalance:pneumatic ram adjustment:motoric drawing cushion in table:pneum ...

pressure:500 t stroke:40 - 160 mm no. of strokes:32 / 48 /min distance between columns:1620 mm distance table/ram, max. stroke up, adjustment up:660 mm table surface area:1600 x 1300 mm table height over floor:750 mm column travel -side:400 x 430 mm ram surface:1400 x 1200 mm ram adjustment:120 mm material width of feeder:1000 mm material thickness of feeder:- 6,0 mm feed length:350 mm power requirement:44,0 / 66,0 kW weight:56,0 t Dimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 m height beneath floor:0,3 m pneumatic clutch-brake combination:Desch Mechanical pincers feed:Obru, BVK 3.10.3

pressure:500 t stroke:40 - 160 mm no. of strokes:32 / 48 /min distance between columns:1620 mm distance table/ram, max. stroke up, adjustment up:660 mm table surface area:1600 x 1300 mm table height over floor:750 mm column travel -side:400 x 430 mm ram surface:1400 x 1200 mm ram adjustment:120 mm pressure of drawing cushion in table:60 t stroke of drawing cushion in table:100 mm drawing cushion surface in table:1300 x 810 mm material width of feeder:1000 mm material thickness of feeder:- 6,0 mm feed length:350 mm power requirement:44,0 / 66,0 kW weight:56,0 t Dimensions (WxDxH):3,55 x 2,55 x 5,1/5,8 m height beneath floor without drawing cushion:0,3 m height beneath floor with drawing cushion:1,0 m pneumatic clutch-brake combination:Desch drawing cushion in table:pneumatic Mechanical pincers feed:Obru, BVK 3.10.3

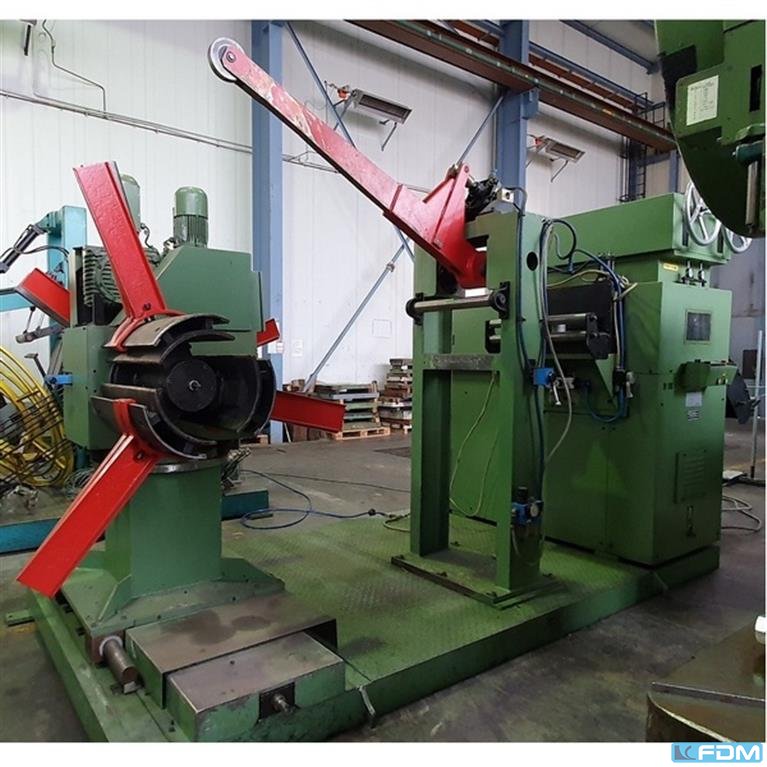

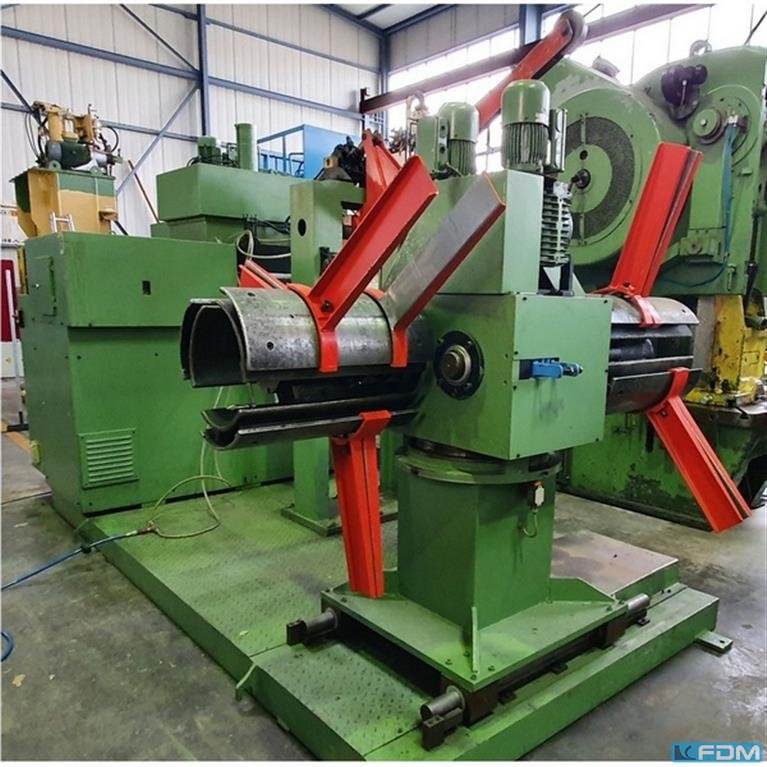

material width:600 mm coil weight:5,0 t material thickness: - 5,0 mm coil internal diameter:360 - 660 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:80 mm number of draw-in rolls:2 material cross-cut:1600 mm² weight of feeeder-straightener:2,5 t weight of decoiler:1,5 t dimensions feeder-straightener (WxDxH):1,7 x 1,7 x 2,6 mm dimensions decoiler (WxDxH):1,8 x 2,0 x 2,3 mm feeder-straightener:VCRL 650, Bj. 1994, GR 2001 height adjustment:motorisch alligator opening:hydraulisch decoiler:SHR 5000, Bj. 2000 expansion:hydraulisch

pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive tool changing unit:2 x

pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive tool changing unit:2 x

pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive tool changing unit:2 x

pressure:500 t distance between columns:3400 mm stroke:850 mm no. of strokes:9 - 18 /min distance table/ram, max. stroke up, adjustment up:2050 mm table surface area:3100 x 1900 mm table height over floor:400 mm side window:1550 mm ram surface:3100 x 1900 mm ram adjustment:350 mm pressure of drawing cushion in ram:70 t pressure of drawing cushion in table:140 t stroke of drawing cushion in table:0 - 250 mm stroke of drawing cushion in ram:150 mm height beneath floor:6,0 m height over floor:8,3 m weight:155,0 t dimensions (WxDxH):5,1 x 4,5 x 12,3 m Kind of drive:link drive overload protection in ram:hydraulic ram adjustment:motoric tool changing unit:2 x

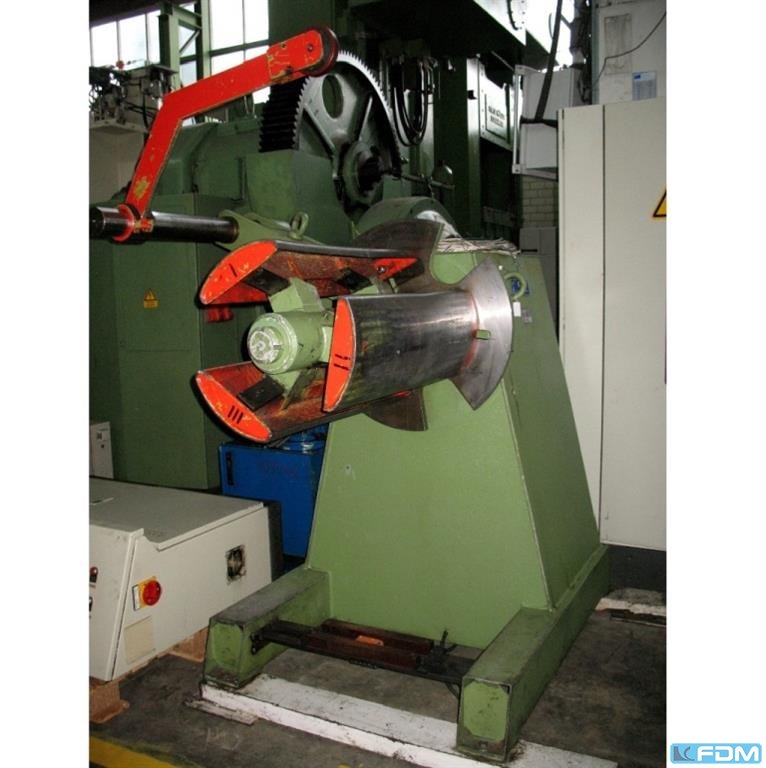

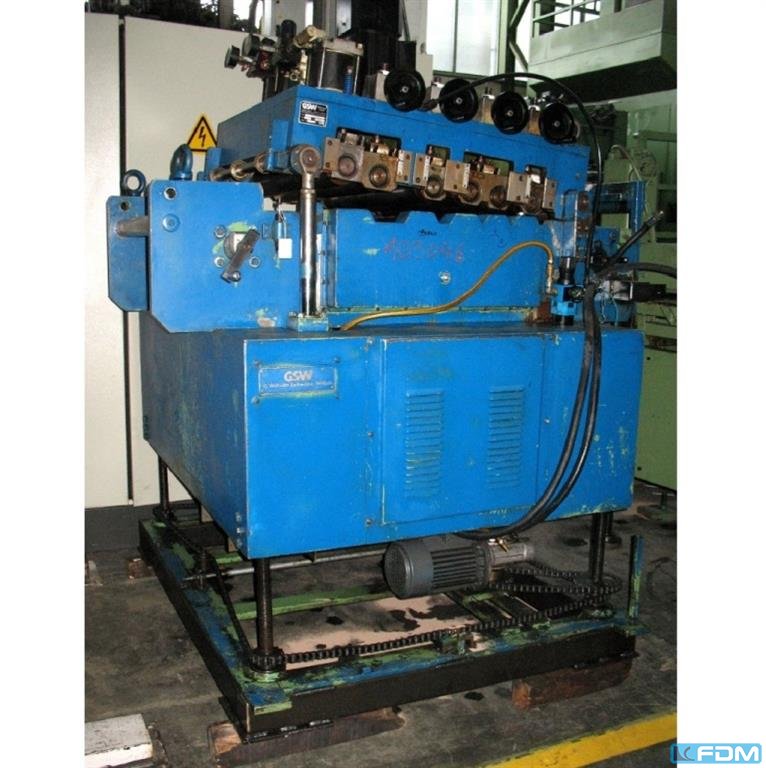

material width:500 mm coil weight:2 x 2,0 t material thickness:1,0 - 6,0 mm coil internal diameter:350 - 420 mm coil external diameter:1600 mm no. of straightening rolls:9 straightening roll diameter:50 mm number of draw-in rolls:2 speed:0 - 40 m/min material thickness at 500 mm material width:3,5 mm power requirement:17,5 kW Dimensions (WxDxH):2,3 x 4,2 x 2,4 m straightening machine:RM 5050.4/9 double decoiler:AH 2000/2/M snubber roll:pneumatic interchangeable jaws:130 mm expansion of the inner diameter

pressure:500 t distance between columns:1220 mm stroke:600 mm distance table/ram, max. stroke up, adjustment up:1000 mm table surface area:1600 x 1200 mm pressure of drawing cushion in table:320 t stroke of drawing cushion in table:150 mm drawing cushion surface in table:750 x 625 mm pressure of drawing cushion in ram:180 t stroke of drawing cushion in ram:100 mm drawing cushion area in ram:750 x 625 mm ram surface:1600 x 1200 mm table height over floor:800 mm speed down:665 mm/s speed up:530 mm/s working speed:34 - 100 mm/s quantity of oil:2000 l power requirement:180,0 kW weight:40,0 t Dimensions (WxDxH):3,2 x 2,4 x 7,5 m Depth of foundation pit:4,1 m Height above floor:5,55 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

material width:500 mm coil weight:3,0 t material thickness:0,2 - 2,5 mm coil internal diameter:470 - 530 mm coil external diameter:1400 mm no. of straightening rolls:9 straightening roll diameter:40 mm number of inlet and outlet rolls:4 material cross-cut:1200 mm² speed:1,5 - 30 m/min dimensions decoiler (WxDxH):1,9 x 0,6 x 1,7 m weight decoiler:1,1 t dimensions straightener (WxDxH):3,3 x 1,3 x 2,7 m weight straightener:3,0 t straightening machine:RYD 40 x 500 decoiler:DY 500 x 3000 coil lifting device:hydraulic rool feed:elektronic; AESL 500-2,8 threading device:hydraulic expansion:hydraulic

pressure:500 t distance between columns:1910 mm stroke:500 mm Distance table/ram, max. stroke up, adjustment up:700 mm table surfache without cutting impact cushions:1910 x 1360 mm table surfache with cutting impact cushions:1600 x 1360 mm table height over floor:800 mm ram surface:1600 x 1270 mm Side window:600 mm speed down:400 mm/s speed up:330 mm/s working speed:10 - 28 mm/s oil volume:1200 l power requirement:60,0 kW weight:40,0 t Dimensions (WxDxH):3,6 x 2,5 x 5,0 m height over floor:4,5 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 cutting impact cushioning:hydraulic ram interlocking:hydraulic

pressure:500 t stroke:fix 300 mm no. of strokes:20 - 70 Hub/min distance between columns:3100 mm side window:1400 mm distance table/ram, max. stroke up, adjustment up:1000 mm Table area:2800 x 1600 mm ram surface:2800 x 1450 mm ram adjustment:100 mm power requirement:90,0 kW weight:100,0 t Dimensions (WxDxH):5,75 x 3,2 x 7,8 m height above floor:6,4 m height beneath floor:1,4 m clutch:pneumatic; Ortlinghaus ram adjustment:motoric overload protection in ram:hydraulic ram counterbalance:pneumatic

Year of construction 2003 Control Heidenhain iTNC 530 Table size 280mm Table load 200kg A-axis +/- 110 degrees B-axis 360 degrees X-axis displacement 700mm Y-axis displacement 590mm Z-axis displacement 480mm Spindle 15000 rpm Rapid passage 32m / min Automatic tool changer Yes, Big Plus spindle system Number of tools32 Tool length 280 mm Tool diameter 88 mm or 125 mm with adjacent pocket area Tool weight 7 kg Input400 / 3 / 50hz 33kW Equipment gap conveyors, coolant, handwheel, oil cooler Features Fully enclosed guarding Length 4000 mm Width 3000mm Height 3000 mm Net weight actually 9,490 kg. / 9.4 tons.

Ref. -No.: 10304 Manufacturer: SPINNER Year of construction: 2007 Type of control: CNC Control: Siemens 840 D with SHOP Mill Storage location: Halberstadt Country of origin: Germany X-Travel: 1100 mm Y-Travel: 610 mm Z-Travel: 610 mm B-Axis: 0.001 prepared for 4 th axis ° Main spindle drive power: 25 kW Main spindle speed range: 6000 RPM Table surface: 1200 x 600 mm Table Load: 1000 kg Tool Taper: SK 50 Numbers Of Tools In Magazin: 24 axes: 4 Rapid Traverse X-Axis: 18 m / min Rapid Travel Y-Axis: 18 m / min Rapid Traverse Z-Axis: 15 m / min Main Drive: 25 kW Weight Of The Machine Ca.: 8 t Further information: - additional 4 axis (Dividing head)
