Machine type: Universal milling machine Model: X6336A UNUSED - approx working hours around 20 Table size: 1370 x 360 mm Table travel X/Y/Z: 1000 / 320 / 400 mm T-slots: 3 / 18 / 80 mm Max table load: 800 kg Spindle taper (vertical): ISO 40 Spindle taper (horizontal): ISO 50 Spindle quill travel: 127 mm Spindle speed (vertical): 66 – 4540 rpm Spindle speed (horizontal): 60 – 1800 rpm Main motor (vertical): 5 HP Main motor (horizontal): 4 kW Z-axis rapid motor: 1.1 kW Coolant pump motor: 90 W Distance spindle to table (vertical): 155 – 700 mm Distance spindle to table (horizontal): 0 – 400 mm Extension arm travel: 450 mm Extension arm rotation: 360° DRO: 3-axis (SINO) Control: Manual Included accessories: – NT40 milling chuck – Tool kit – Quartz working lamp – Gad tongs – Partial protection Power supp ...

Milling machine DECKEL FP5CC With rotary table. Technical data X-axis: 800 mm Y-axis: 700 mm Z-axis: 550 mm Quill stroke vertical: 80 mm Auction-ID: A1-46872-32

Technical details Travel X: 600 mm Travel Y: 400 mm Travel Z: 600 mm Table size: 750 x 450 mm Control: HEIDENHAIN TNC 426 Main spindle speed: 10,000 rpm Magazine slots: 24 Auction-ID: A1-46872-41

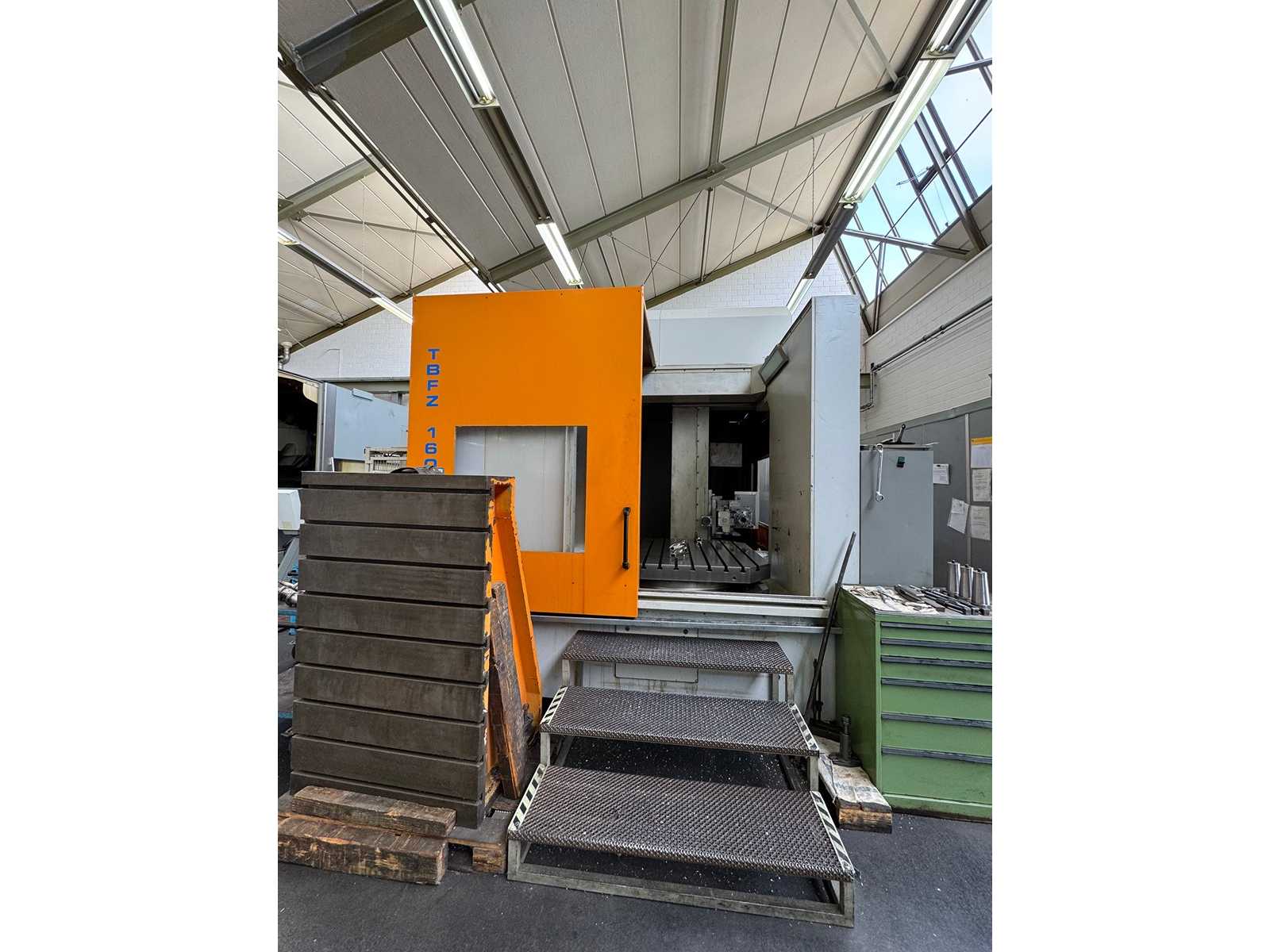

Deep Hole Milling Machine TBFZ 1600 CNC Year of Make: 2003 Technical data Travels X-axis travel: 1600 mm Y-axis travel: 1200 mm Z-axis travel: 500 mm W-axis travel: 1200 mm B-axis travel: 360° (turntable) Table Table size (L x W): 1500 x 1500 mm Slots (T-slot): 5 x DIN 650-22 H12, 150 mm spacing Facilities Tool clamping: hydraulic Electrical connection: 400 V, 50 Hz Compressed air connection: nominal flow rate 7000 rpm, operating pressure: 6 bar Botek Driller optionally available Feed Feed Drive: Brushless AC Servo Motors Feed speed: 0 - 20,000 mm/min Rapid traverse: X-axis: 20,000 mm/min Y- and Z-axis: 20,000 mm/min Operating modes Manual mode: 20,000 mm/min Set-up mode: 0 - 2,000 mm/min Auction-ID: A1-46872-2

CHIRON FZ 12 W Magnum High Speed Year of Make: 1998 Technical details Control: Sinumerik X-travel: 550 mm Y-travel: 300 mm Z-travel: 425 mm Rapid traverse: 30 m/min Spindle holder: ISO SK 40 Auction-ID: A1-46872-45

5-axis CNC machining center MIKRON XSM 600 U Year of Make: 2009 Control: Heidenhain iTNC 530 Technical data X-axis: 800 mm Y-axis: 600 mm Z-axis: 500 mm B-axis: +30° / -110° C-axis: n x 360° Working spindle: 100 - 36,000 min-1 Tool holder: HSK E 50 Auction-ID: A1-46872-58

OKUMA EURO CENTER V 50 Year of Make: 2002 Technical details Control: OSP-U100L Travel X: 1,020 mm Travel Y: 510 mm Travel Z: 525 mm Table Load: 680 kg Clamping area: 1,200 x 510 mm Tool Changer Magazine slots: 20 Facilities Chip conveyor Auction-ID: A1-46872-50

Technical data X-axis: 500 mm Y-axis: 380 mm Z-axis: 380 mm Table length: 500 mm Table width: 380 mm Dimensions (estimated) Length: 3,000 mm Width: 2,400 mm Height: 2,900 mm Auction-ID: A1-46872-57

Milling machine Kondia B640 Year of Make: 2004 Control: Heidenhain iTNC 530 Tool Measurement System: Tool Eye Tool Changer Magazine slots: 22 Travels X-axis: 600 mm Y-axis: 400 mm Z-axis: 510 mm Main spindle Speed: max. 12,000 rpm New main spindle: renewed in 2020 Tool holder: BT 40 Table Clamping area: 800 x 400 mm Refrigerant IKZ 20 bar External coolant supply Spindle cooling Accessories Chip conveyor Various tool holders Various clamping pins Machine documentation Auction-ID: A1-46872-39

Machining Center - Universal Lid Maho DMU 60 T Year of Make: 2002 Number of axes: 5 (3+2) Technical data Travels X-axis: 630 mm Y-axis: 560 mm Z-axis: 560 mm Magazine slots: 24 Tool holder: SK 40 NC rotary table NC rotary table built into the rigid table. Clamping area: 600 x 1000 mm Diameter: 600 mm Table weight: 800 kg Number of T-slots: 8 / 1 T-slots width: 14 H12 / 14 H7 T-slot spacing: 63 mm Max. load of the table: 350 kg Rotatable C-axis: 360° 5-axle equipment Controlled NC swivel milling head (B-axis) Rotary table integrated in rigid table (C-axis) Auction-ID: A1-46872-48

CNC Machining Center DECKEL MAHO DMC 64 V Year of Make: 2004 Control: Heidenhain iTNC 530 Technical data X-axis: 640 mm Y-axis: 600 mm Z-axis: 500 mm Table size: 800 x 600 mm Workpiece weight: max. 600 kg Spindle: SK 40 Speed: 12,000 rpm Auction-ID: A1-46872-24

CNC machining center WAGNER WMC 800 R Year of Make: 2008 Control: Siemens 810 D Technical data X-travel: 800 mm Y-travel: 500 mm Z-travel: 510 mm Table height: 830 mm Max. tool length: 250 mm Tool diameter: 80 mm Clamping area: 800 x 450 mm Number of tool positions in the magazine: 20 Speed range: 8,000 rpm Auction-ID: A1-46872-33

Technical details X-travel: 1,100 mm Y-travel: 510 mm Z-travel: 510 mm Rapid traverse: 18 / 18 / 15 m/min Control: Siemens 840 D SL Shop Mill Table surface: 1,200 x 600 mm Workpiece weight: 1,000 kg Spindle speeds - infinitely variable: 8,000 rpm Spindle holder: ISO 40 Tool Changers: 24 Cooling by the spindle: 20 bar Machine Details Machine weight: approx. 8 t Space requirement: approx. 3,000 x 2,350 mm Connected load: 400 V, 50/60 Hz Current: 50 A Facilities Shop Mill Preparation for 4th axis Auction-ID: A1-46872-51

CNC Machining Center KUNZMANN BA 1200 Year of Make: 2004 Technical details Travel X: 1,200 mm Travel Y: 700 mm Travel Z: 750 mm Maximum spindle speed: 8,000 rpm Machine Details Control: Heidenhain TNC530 Electrical data Operating voltage: 400 V / 50 Hz Control voltage: 24 V Power: 35 kVA Rated current: 50 A Main fuse: 6.3 A Operating hours Spindle hours: 5,238 h Switch-on hours control: 17,705 h Auction-ID: A1-46872-49

Heller MCH 280 C 5 axes Year of Make: 2006 Control: Siemens 840 D Technical data Spindle speed: 8,000 rpm Travels X: 1,000 mm Y: 1,200 mm Z: 1,100 mm Pallet size: 630 x 630 mm Rotary table: 360,000° x 0.001° Tool positions in the magazine: 400 Recording: HSK 100 Auction-ID: A1-46872-56

CNC dividing head and tailstock brand Walter with jaw chuck Röhm and jaws See pictures Viewing desired by appointment Auction-ID: A7-46993-6

MTCut V110 4 Axis Machining Center (2012) Manufacturer: MTCut Type: V110 Year of Make: 2012 Condition: used, very good, in production. Switch-on hours: 14150h Spindle hours: 3710h Control: Itnc 530 Travel range. X x Y x Z = 1100 x 640 x 610mm – 30-fold tool changer ISO 40 – 4th axle Lehmann, 200mm lining with hydr. Workpiece clamping and 350mm face plate. – Internal coolant supply 50bar – Spindle cooling – Measuring Buttons – Dimensions approx. L x W x H 3.2 x 3.2 x 3.1m (Transport height 2.5m). Incl. tools in the tool turret Auction-ID: A7-47048-25

LID MAHO DMU 125 T hi-dyn 3-axis CNC universal machining center Control: Heidenhain MillPlus Year of Make: 2002 Powerful and robust 3-axis machining center from DECKEL MAHO. Ideal for complex milling operations in tool, mould and machine construction. Travels • X-travel: 1,250 mm • Y-travel: 880 mm • Z-travel: 800 mm Main spindle • Speed range up to 18,000 rpm⁻¹ • Drive power: 15 / 10 kW • Max. torque: 500 Nm • Tool holder: SK 40 Work table • Table clamping surface: 1,500 × 1,050 mm • Max. table load: 2,500 kg • Number of T-slots: 10 • T-slot width: 18 H7 mm • T-slot spacing: 100 mm Tool Changer • 30 tool positions • Max. tool diameter: 80 mm • 160 mm with free adjacent position • Max. tool length: 315 mm • Max. tool weight: 8 kg • Max. total weight in the magazine: 100 kg Feeds • Rapid traverse  ...

Manufacturer: Siemens Spare part Item number: 6SN1118-0DH23-0AA1 Item Description: SIMODRIVE 611-D CONTROL PLUG-IN 2-AXIS PERFORMANCE CONTROL FOR DIGITAL DRIVE, VS+HS, WITH DIRECT MEASURING SYSTEM VOLTAGE SIGNALS Auction-ID: A1-47017-91

Offered is a CNC horizontal milling machine. Working area X/Y/Z: 1000mm/800mm/850mm, pallet size: 630x630mm, table load: 1300kg, B-axis indexing: 0.001°, spindle speed: 6000rpm, spindle power: 30kW, spindle torque: 600Nm, tool holder: SK50, magazine positions: 120, spindle internal cooling pressure: 70bar, pump capacity LD: 150l/min at 3bar, pump capacity MD: 40l/min at 7bar, pump capacity HD: 32l/min at 70bar, cooling capacity cooling unit: 11.8kW, control: FANUC 31iMA. Equipped with additional pallets with threaded grid (24xM16 in 125mm grid), direct absolute scales, spindle internal cooling system, automatic scraper belt chip conveyor with 1000l dirty water fine filtration, recirculating chiller, washing shower, mist extraction system, touch probe. Weight: approx. 18500kg, overall dimensions X/Y/Z: approx. 6800mm/4200mm/3400mm. Inspection possible by arrangement.

Offered is a CNC horizontal machining center. Working area X/Y/Z: 750mm/750mm/850mm, pallet size: 550mm/550mm (2-position changer), spindle speed: 15000rpm, tool holder: SK50, tool magazine: 60 positions (chain type), B-axis: 0.001°, max. loading weight: 800kg, rapid traverse: 60m/min, power-on hours: 64148h, feed time: 21867h, control: Fanuc 31i. Equipped with 2-position pallet changer, coolant filtration system (central system designed for up to 3 machines), cooling unit, oil mist extraction system, tool package (15x drill chucks, 8x collet chucks, 13x face clamping holders), linear measuring system X/Y/Z, weight: approx. 12500kg, overall dimensions X/Y/Z: approx. 5500mm/3500mm/3200mm. Inspection possible by arrangement.

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders.

Deep Hole Milling Machine TBFZ 1600 CNC Year of Make: 2003 Technical data Travels X-axis travel: 1600 mm Y-axis travel: 1200 mm Z-axis travel: 500 mm W-axis travel: 1200 mm B-axis travel: 360° (turntable) Table Table size (L x W): 1500 x 1500 mm Slots (T-slot): 5 x DIN 650-22 H12, 150 mm spacing Facilities Tool clamping: hydraulic Electrical connection: 400 V, 50 Hz Compressed air connection: nominal flow rate 7000 rpm, operating pressure: 6 bar Botek Driller optionally available Feed Feed Drive: Brushless AC Servo Motors Feed speed: 0 - 20,000 mm/min Rapid traverse: X-axis: 20,000 mm/min Y- and Z-axis: 20,000 mm/min Operating modes Manual mode: 20,000 mm/min Set-up mode: 0 - 2,000 mm/min

Control: Heidenhain iTNC 530 Speed: 10,000 rpm Travel in X/Y/Z: 1,050/540/720 mm Spindle: Technology: Belt spindle Speed: 10,000 rpm Power: 12 kW Tool holder: SK40 Work table: Clamping area: 1,120 x 610 mm Table load (max.): 1,000 kg General: Tool magazine: 30 stations Rapid traverse in X/Y/Z: 36/36/30 m/min Equipment/accessories: Chip management: Chip conveyor Coolant management: IKZ pump with filter and high pressure Setup operation: Electronic handwheel Other accessories: Div. gebr. Tool holder and 3 pcs machine vices (1x 125/2x 160), rinsing gun

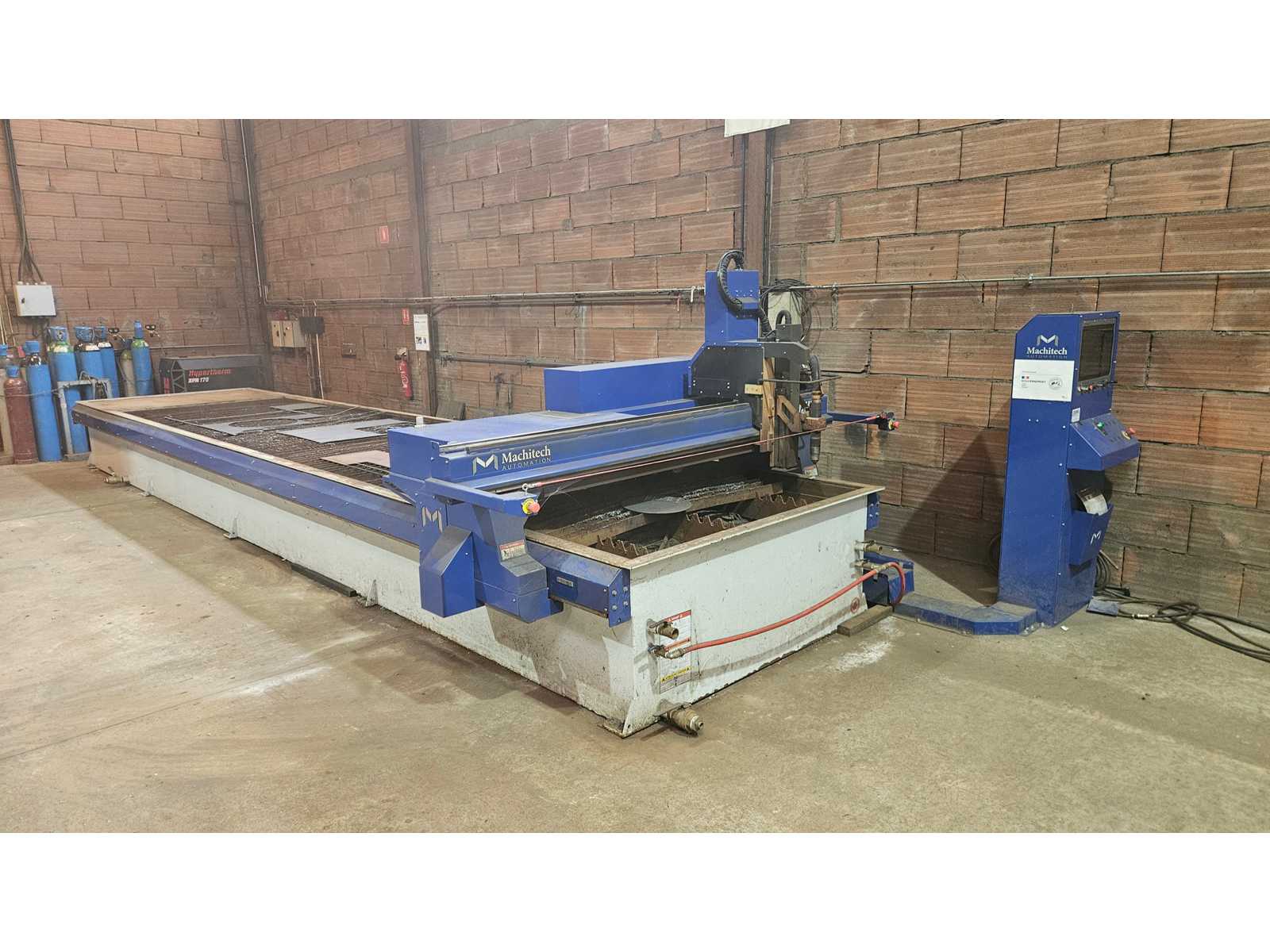

CUTTING SPEED: 0 to 12500mm/min, depending on the type of process and the power source MAXIMUM TRAVEL SPEED: 35000mm/min REPEATABILITY: 0.025mm POSITIONING ACCURACY: 0.05mm RAILS: High precision 20mm Agma10 helical inverted racks protected against dirt and impacts, 25mm linear bearings installed on machined surfaces. MOTORS / GEARBOXES: Simultaneous motor drives on each side of the rails, pneumatic clutch of the racks with linear bearings, ultra-precise helical planetary gearboxes for smooth movement CNC CONTROLLER: Edge Pro CNC Controller, Sercos III Windows base, 380mm glass touch screen 2 USB ports and network connection Phoenix Software MAXIMUM TABLE CAPACITY: Material thickness 120mm, changeable MOTORIZED STATIONS: 2 max. OXY COUPAGE STATIONS: 3 max. AUTOMATIC HEIGHT CONTROLLER: Machitech's automatic height controller uses arc voltage samplin ...

CNC lathe for turning and machining metal parts. CNC control: Traub TX 8 Max. turning circle: 275 mm Max. turning length: 450 mm Bar pass: 65 mm Chuck diameter: 210 / 250 mm Bench inclination: 40° Spindle speed: 0 – 4,000 rpm Spindle nose: A2-6 Spindle motor power: 11 / 18.5 kW C-axis: 0.001° with hydraulic brake Turret: 12 positions VDI 30 Motorized tools: 4,000 rpm – 4.4 kW Fast feeds: X 15 m/min / Z 20 m/min

Clamping Plate, Clamping Table, T-Slot Grid Plate PAGUS Working Area: 400 x 400 mm Working Height: 60 mm Groove Width: 14 / 24 mm Dimensions: 400 x 400 x 60 mm

Pneumatic cylinder FESTO DNGU-32-400-PPV-A S3 158098 stroke: 400 mm rod diameter Ø 12 mm Dimensions: 545 x 95 x 50 mm used tested.

Pneumatic cylinder NORGREN RA/8160/M/400/H stroke: 400 mm Rod diameter: Ø 40 mm pmax: 16 bar pivot: Ø 40 mm New ! Dimensions: 750 x 280 x 180 mm

Pneumatic cylinders, standard cylinders FESTO DNG-40-400-PPV-A 36343 DSBG-40-400-PPVA-N3 1646557 stroke: 400 mm rod diameter: Ø 16 mm pmax: 12 bar New !' Dimensions: 565 x 55 x 55 mm

Welding Table, Straightening Table, Straightening Plate, Work Table, Clamping Table Straightening Plate, Spotting Plate PAGUS Work surface: 400 x 400 mm Height: 100 mm used ! Dimensions: 400 x 400 x 100 mm

Welding Table, Straightening Table, Straightening Plate, Work Table, Clamping Table Straightening Plate, Spotting Plate PAGUS Work Surface: 410 x 410 mm Height: 105 mm Heavy Duty Version Dimensions: 410 x 410 x 105 mm

Auction-ID: A1-46801-87

COMMERCY 426 XP welding machine Complete MIG/MAG station with torches, hoses and cables. Gas bottle with regulator included. 400 V three-phase power supply. Dimensions 800 × 600 × 1500 mm. Weight approx. 120 kg.

\" Manufacturer: Werth Messtechnik GmbH Type / Model: Scope-Check 400 × 400 × 150 3D CNC Machine type: Multi-sensor coordinate measuring machine (optical / tactile) • Year of manufacture: 2006 • Serial number: 06-00376 Condition • Used, well-maintained overall condition • Machine was in measurement operation until the end • Regular calibrations documented • No obvious damage to granite, guides or measuring system Accessories / Scope of Delivery • Granite machine with measuring glass and cover • CNC control with scope controller • Renishaw pushbutton (several probe inserts available) • PC workstation with: • Computer • Monitor(s) • Keyboard, mouse • Control panel / joystick • Documentation: • User manuals (WinWerth) • Calibration and test protocols • Folder with machine and measuring room documentation • Software and calibration data carrier (CD/D ...

Clamping angle Clamping area 400 x 400mm each See pictures Auction-ID: A7-46460-623

Measuring range Z Measuring range X 450 / 620 / 820 mm 210 / 310 mm Max. tool Ø pharyngeal gauge Ø 420 / 620 mm 100mm incl. computer and printer Auction-ID: A1-46607-77

Useful working area: X: 3200 mm Y: 1360 mm Z: 175 mm Configuration: 16-core drill head 14 kW electro-chuck – HSK 63 F C-axis – gear rotation Rotating tool magazine 8 front positions HSK 63 8-position tool magazine at carriage edge Fixed head with 1 blade holder outlet Ø 250 – HSK 63 F \"K\" head with 1 outlet -10° / 90° blade Ø 180 + milling cutter – HSK 63 F Fixed head with 2 milling cutter outlets – HSK 63 F Equipment: 14 kW frequency inverter Cooling unit for 19 kW unit Table with 2 suction cups per support 6-bar / 12-suction cup 2 suction cups 114 × 140 mm – h 100 mm per support 2 stops per bar 6-bar table pre-arranged for locking with vices (plus set) 2 horizontal pneumatic vices Vacuum pump 250 m³/h Chip belt Remote control (hold-start override) CNC on external PC (PC included) 17\" TFT displayPC and instructions in English Mastercabinet level 1 Power supply:  ...

Usable working area: X: 4970 mm Y: 1390 mm Z: 110 mm Configuration: 16-core drill head Electro-chuck 8 kW – ISO30 Frequency inverter 8 kW Saw for longitudinal incisions Horizontal milling unit with 1 output – 2.2 kW 8-position tool magazine – ISO30 carriage edge Adapter support plate for index heads Table: Work table with bars and suction cups Pneumatic locking table 2 stops per bar 8 × suction cups 114 × 140 mm – H 100 (to be confirmed) 8 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed) 8 × suction cups 120 × 50 mm – H 100 longitudinal (to be confirmed) 8 front stops + 2 additional side stops Equipment: Vacuum pump 250 m³/h CN on external PC (PC included) 17\" PC TFT displayMastercabinet Level 1 Power supply: 400 V – 50 Hz Compliance: CE safety standards version L Dimensions: Estimated height: approx. 2400 mm (to be confirmed) Auction-ID: A1 ...

COMMERCY 426 XP welding machine Complete MIG/MAG station with torches, hoses and cables. Gas bottle with regulator included. 400 V three-phase power supply. Dimensions 800 × 600 × 1500 mm. Weight approx. 120 kg. Auction-ID: A1-46801-67

Usable working area: X: 3248 mm Y: 1390 mm Z: 110 mm Configuration: 16-core drill head 8 kW electro-chuck – ISO30 8 kW frequency inverter Saw for longitudinal incisions Horizontal milling unit with 1 output – 2.2 kW 10-position tool magazine – ISO30 carriage edge Adapter support plate for index heads Table: Work table with bars and suction cups 2 stops per bar 6 × suction cups 114 × 140 mm – H 100 (to be confirmed) 6 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed) Equipment: Vacuum pump 100 m³/h CN on external PC (PC included) 17\"PC TFT display and instructions in English Power supply: 400 V – 50 Hz Compliance: CE safety standards STANDARD version Dimensions (estimated): Length approx. 6,500 mm × Width approx. 4,100 mm × Height approx. 2,400 mm (to be confirmed) Weight (estimate): approx. 5,000 kg (to be confirmed) Auction-ID: A1-46801-70

Box consists of parts from MAN TGS 41.400 / CLA 26.280 parts. Please find the list of the items below. Auction-ID: A1-42017-21

Box consists of parts from MAN TGS 41.400 / CLA 26.280 parts. Please find the list of the items below. Auction-ID: A1-42017-20

Box consists of parts from MAN TGS 41.400 / CLA 26.280 parts. Please find the list of the items below. 1x 81.626456.6055 Window 2x 81.061130.0231 Intercooler 1x 81.62630.6106 2x 64.62450-0001 window 1x 81.62630.6207 2x 64.06101-6007 Radiator + box of various parts from epiroc etc. Auction-ID: A1-42017-22

Fanuc 21i-M control, enclosed VMC Spindle taper: BT40 Spindle speed range: 72–10000 rpm Spindle motor power: 5.5/3.7 kW Pull stud bolt type: MAS-P40T-1 Number of tools: 20 Maximum tool weight: 5 kg Maximum tool diameter: 100 mm Maximum tool length: 250 mm Tool change time (T-T): 1.2 sec Tool change time (T-C): 2.8 sec Pallet change method: Turning-table method Pallet change time: 4 sec Drilling capability: Ø22 mm Tapping capability: M18 Milling capability: 20 cc/min Machine weight: 4000 kg NC device: FANUC 21i-MA Auction-ID: A7-46053-21

Bi-metal saw blades / standard / solid material / M42-SPRINT-PLUS - Art.-Gr. 431 Dimensions: 4100x34x1.1 mm Gearing: 3/4 K-POS Packaging: 2 cartons ( 10 PCS / 12 PCS ) Auction-ID: A1-47017-46

Composite plant Linde New VPM 305-4640 R 404A Composite with 3pcs.Bitzer compressor Type:4FC-3.2Y 4OS

manual roll gap adjustment 2x7.5 kW motor Bearing Oil circulation lubrication adjustable roller speed 10-41 rpm BJ 1990

Kat-No 09-1020 Flat bottom tank/storage tank made of V2A 40,000 litres in very good condition! Standard equipment with: • with manhole front DN 400 x 300 mm • with residual drain DN 50 mm (DIN 11851) • with 2 x connections on the manhole DN 50 mm (DIN 11851) • with level indicator DN 10 with shut-off valve • with connection cover for agitator • with filling pipe DN 30 mm • with 2 x transport eyelets •with central threaded connection socket Dimensions and weight: Diameter:2800 mm Diameter Cyl. with filling pipe upwards:3000 mm Total height:6700 mm Weight approx:3 to For inquiries: Tel: 09353 90905-0 or Fax: 09353 90905-22 Mobile: 0171 651 82 48 We also have other items (new or used), tanks, pumps, filters, beverage technology and much more - Please request our complete catalogue! All prices are ex works plus law VAT. Intermedia ...

Cat.-Nr. 10-1460 in a very good condition Tecnical Details: Production Capacity: 40 boxes/minute Year of Construction: 2008 6 Cups/Tray = 240 Cups/Minute = 14.400 Cups/h each Cup 125 g Measurements: Packing Sizes – LxWxH: 698,5x168,0x1,5 mm Lid – LxDxH: 95,5x95,5x9,0 mm Cup – DxH: 92,5x42,0 mm Machine Measurements: LxWxH: 7500x7400x3000 mm Weight: approx. 6800 kg Operating Instructions available Original Price: Euro 655.000,00 For more Information please contact us under: Phone +49(0)9353-909050 Fax: 09353-9090522, Mobile: 0171-6518248 Subject to prior sale. All prices are valid Ex-Works, excl.VAT. Freight Charges: depending on dimensions and destination.
