130,522 used machines on RESALE, but how to find them? Machine Search
Single column pneumatic press, hydraulic press PAUL ANTON type PVT 2Pneumatic table press, embossing pressFabr. No. 97148 Year of construction approx. 1980Compressive force: 10 tonProjection: 100 mmPlunger stroke: approx. 25 mmPlunger surface: 32 mmTable size: 250 x 220 mmTable opening: 53 x 53 mmTable height: 1060 mmInstallation height: 155 mm- very stable construction- Hydro-pneumatic press with pressure transmission air on oil- pneumatic foot switch- Plunger with internal thread M12- Metal substructureSpace requirement L x W x H 850 x 620 x 1560 mmWeight
Hydr. Spotting press MILLUTENSIL type BV 25 PMMasch. No. 632 / 25111 Year of construction 1991Clamping force 18 ton. Opening force 15 ton. Table surface 775 x 760 mm Clamping surface of the upper table 900 x 550 mmStand width 900 mmInstallation height max. 750 mmInstallation height min. 230 mmStroke of the upper table 520 mmLifting speed stepless 0 - 1000 mm/min. Hydraulic pressure adjustable 10 - 200 barTool weight on the table max. 2500 kgTool weight on the upper table max. 800 kgTable height
Hydr. Hacksaw KASTO HBS 210 / 240Masch. No. 1116 145 220 Year of construction 1994Saw range at 90 round 210 mmflat 240 x 190 mmsquare 210 x 210 mmat 45 round 150 mmSaw blade length 400 mmStroke rates 62 / 125 strokes per min. Material support height: 500 mmMotor power: 0.5 / 0.75 kWNerg connection: 400 volts, 50 Hz- Drive motor with 2 speeds- Coolant pump in the machine baseSpace required: L x W x H: 1200 x 500 x 1200 mmWeight: 170 kgGood condition; used
Persico SMART LEO V2.8 Rotary Molding Machine (2022) The Persico SMART LEO V2.8 is a biaxial rotary molding machine for the production of high-volume hollow parts. It integrates the loading, heating, rotation, cooling and unloading steps in a single cycle. Temperature control is provided by sensors and software, ensuring consistent quality. Available in automatic or manual versions, this machine is ideal for the manufacture of tanks (gases, liquids), buoys, outdoor games or technical parts. Designed for high reliability, it can operate standalone or be integrated into a production line. Technical characteristics: • Manufacturer: Persico Engineering Division (Italy) • Model: SMART LEO V2.8 • Year: 2022 • Serial Number: 59416 SM • Power: 210–290 kW • Power supply: 400 V / 50 Hz / 3 Ph • Mould dimensions: 2800 × 1800 mm • Moulded weight: max. 1000 kg • Rot ...
General information • Brand: Wacker Neuson • Type: 9503-2 (wheeled excavator / hydraulic excavator) • Year of manufacture: 2011 • Serial number: AJ0L096 • Hours on display: 2,528 h Technical data • Engine power: 74.9 kW • Engine: Deutz Diesel, 4 cylinders • Operating weight: 9,750 kg (≈ 10 t class) • Net weight / transport weight: approx. 9,300 kg according to the nameplate • Tire size: Standard tires (please add exact information) Dimensions & Working Areas • Max. digging depth: 4,254 mm • Max. reach on the ground: 7,680 mm • Max. dumping height: 6,950 mm • Boom length: approx. 5.0–5.5 m (depending on the dipper arm variant) • Overall dimensions (L x W x H): approx. 6,200 × 2,400 × 2,950 mm Equipment & Accessories • Cab: yes, fully glazed with driver's seat & controls • Mechanical quick couple ...
Pneumohydraulic cylinder TOX PressotechnikHydro-pneumatic press, power packType: S 04.00.050.12 DFabr. Item No.: 208696.460 Year of construction approx. 2000Printing capacity: 4.0 ton. at 10 barPressure capacity: 3.0 ton. at 8 barPressure capacity: 2.6 ton. at 7 barPressure capacity: 2.4 ton. at 6 barPressure capacity: 2.0 ton. at 5 barPressure capacity: 1.6 ton. at 4 barPressure capacity: 1.2 ton. at 3 barTotal stroke: 50 mmPower stroke: 12 mmPiston rod: 30 mmThread mount piston rod: M22 x 2 mmCompressed air requirement: 3 to 10 bar- electronic
Hydraulically driven, roller length 1650 mm Auction-ID: A1-46064-89
A hydraulic single-column C-frame press Müller is available. Press force: 63t, stroke: 560mm, throat depth: 325mm, installation height: 700mm, table dimensions X/Y: 640mm/640mm, ram surface: 560mm/560mm, machine dimensions X/Y/Z: approx. 2000mm/1200mm/3100mm, weight: approx. 7500kg. The machine has a motor malfunction. An on-site inspection is possible.
Installation height: 408mm, max. working pressure: 315bar, max. pressing force upper piston/lower piston: 630kN/100kN, upper piston retraction force: 71kN, max. stroke upper piston/lower piston: 160mm/80mm, overtravel: 26mm, overtravel time: 106ms, safety distance: 169mm, hydraulic oil capacity: 250l, weight: approx. 3700kg, operating hours: 9283h. Documentation available. On-site inspection is possible.
Max. Press force: 1000kN, max. retraction force: 110kN, max. stroke: 360mm, max. working pressure: 251bar, installation height: 560mm, control panel: Siemens SIMATIC OP27, weight: 7.5t, on-site inspection is possible.
SC7 CNC-besturing: - automatische snijhoek - mes spel automatisch - automatische achteraanslag Cutting length: 3100 mm Max sheet thickness st 45: 16 mm Strokes/min: 5 > 10 str/min Backgauge: CNC - 1000 mm Adjustable cuttingedge: 0,5 - 4°30´ Electric motor (power): 37,5 kW Length: 4160 mm Depth: 2220 mm Height: 2450 mm Weight: 12 ton
A dismantled Mecamaq hydraulic press is available. Pressing force: 100t, max. pressure: 290bar, main piston diameter: 200mm/120mm, auxiliary cylinder diameter: 40mm/25mm. Main cylinder working stroke: 500mm, max. installation height: 800mm, working height: 800mm, effective dimensions X/Y: 700mm/500mm, table dimensions X/Y: 800mm/500mm, working speed: 6mm/s, return speed: 150mm/s. Max. tool dimensions X/Y: 800mm/600mm, max. tool weight: 1000kg. Machine dimensions X/Y/Z: approx. 1000mm/1350mm/2750mm, weight: approx. 4000kg. Documentation available. On-site inspection is possible.
connected load frequency: 220 V rated current: 263/152 : 01516 81 663 694 weight of the machine ca.: 1 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: mm plate thickness: mm distance between columns: mm digital: working width: 4500 mm : 8mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 63 t distance between columns: 650 mm stroke: 200 mm total power requirement: 30 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width: 2500 mm plate thickness: 12,5 mm distance between columns: mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Width of metal, max. 2,500 mm Metal thickness, max. 12.5 mm Weight, approx. 19,000 kg Drive 40 kW Equipment / Special Features: Adjustment of cutting gap. Hydraulic blank holder. Automatic arrester adjustment for cutting blanks. Program input and piece number input. Transportation device for blanks. Stacking device. This is an ideal machine for cutting lots of small blanks out of large pieces of sheet metal. Machine is equipped with a complex stacking device on the back of the machine. This is a heavy and rigid machine. Condition : Good to very good. Machine can soon be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. The data for th ...
pressure: 75 t throat: 280 mm stroke: 303 mm total power requirement: 15 kW weight of the machine ca.: 7000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 25 t throat: 250 mm stroke: 100 mm total power requirement: 7,5 kW weight of the machine ca.: 3200 kg dimensions of the machine ca.: 1000 x 1700 x 2600 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 200 t passage width: NA mm stroke: 180 mm table length: 690 mm table width: 530 mm distance between columns: 420 mm total power requirement: 18 kW weight of the machine ca.: t dimensions of the machine ca.: m Hydr. 4-Pillar Press for Embossing/Calibration The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 10 t throat: 0 mm stroke: 400 mm total power requirement: 7,5 kW weight of the machine ca.: 6500 t dimensions of the machine ca.: m D U N K E S (Germany) CNC Controlled Hydraulic Double Column Press Model HD 10 Year 1993 ________________________________________________________ Pressure 10 tons Ram stroke 400 mm Mounting height 600 mm Table size 400 x 300 mm Table height above floor 820 mm Ram area 400 x 300 mm Ram bore 40 mm Quickspeed, downwards, max. 70 mm/s Working speed, downwards, using max. pressure 40 mm/s Working speed, min. 5 mm/s Working speed adjustable from 5 - 70 mm/s Return stroke speed, min./max. 20 / 175 mm/s Drive 7.5 kW Total electrical load, approx. 12 kW - 380 V - 50 Hz Weigh ...
pressure: 125 t distance between columns: 1050 mm stroke: 250 mm total power requirement: 40 kW weight of the machine ca.: 8,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
pressure: 160 t throat: 360 mm stroke: 560 mm total power requirement: 33 kW weight of the machine ca.: 6000 kg dimensions of the machine ca.: 2000x2400x3650 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

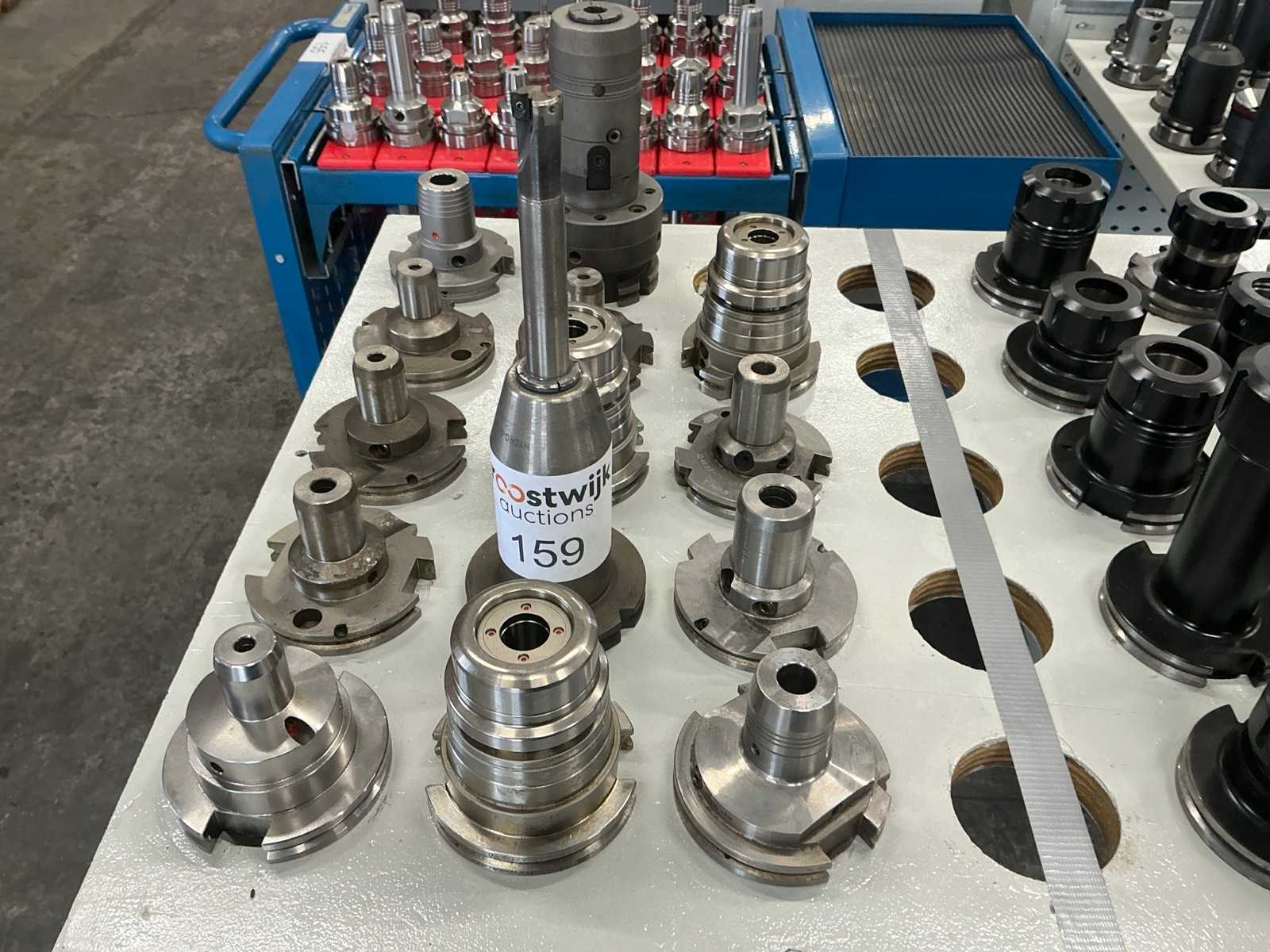

Various diameters and lengths Auction-ID: A1-46698-159
