10 mw used for sale

Genlab Oven Model: PRO/100/TDIG Internal dims 485 w x 445 h x 415 deep Volts 240 AC, 1 PH, 50/60 Hz Load 1.5 KW, 6 amps Year 2023 CE marked

Gr. working width: 1020 mm for sheet metal (at 40 kg strength) up to: 2 mm kl. Tail width: 10 x s kl. Inner radius: 1.5 - 2 x s Upper beam opening width: 190 mm Highest working point of the upper beam: 120 mm Lower beam positionability: 60 mm kl. Box profile (WxH): 165 x 125 mm Space requirement (WxD): 1700 x 550 mm Height with raised counterweight: 1650 mm Weight: 560 kg

Inv. Num. : 9141 Type: W 100 Producer: TOS Created: 1973 Parameters: Work table length: 1250 mm Work table width: 1250 mm Maximum weight of the workpiece: 3000 kg X-axis travel: 1600 mm Y-axis travel: 1120 mm Travel travel Z-axis: 1250 mm Machine weight: 14000 kg

Overview  This 5/10hl 3-device brewhouse was manufactured in 2017 by the Austrian manufacturer Labu. The brewhouse has various automation features such as automatic starting, automatic sparging and automatic spent grains discharge. It is currently available for sale, including additional equipment. Technical data  Capacity: 5/10hl Electrical heating: 27kW / 400V (special ceramic heating element) Equipment: 3 appliances: brewing kettle, lauter tun, whirlpool Additional equipment included: Manual filler (wall-mounted) Keg filler 2 fermentation and storage tanks (650L each) 1 fermentation and storage tank (1200L) All tanks from L-Inox, equipped with jacket and cone cooling (3 bar operating pressure, tested up to 4.5 bar) Glycol cooler Plate heat exchanger Scope of delivery  1x 5/10hl 3-device brewhouse (brewing kettle, lauter tun, whirlpool) 1x manual filler (wall-mounted) 1x keg filler  ...

2 complete precision press systems are offered. Press force: 220kN, stroke: 100/12mm, operating pressure: 3/6bar, tool holder X/Y: approx. 350mm/300mm, safety distance: 355mm, overrun time: 0.07s, control system SCHMIDT PressControl 500: control type: PRC 500, incl. operating panel with display and keypad, two-hand control according to EN 574 Type III B. Accessories: machine frame with integrated safety device BGR 500 inspection, machine weight: 800kg, inspection possible by arrangement.

A roller straightening machine is offered. Working width: approx. 100-120mm, max. material thickness: approx. 0.1-1.0mm, multi-roll system, 4 integrated ARKU precision dial gauges, inspection is possible by arrangement.

: neu : 2026 : 070168 : prompt, Zwischenverkauf v : Türkei : 10900 € : 209.28 € : 1 : 150 to : horizontal verschiebbar : 300 mm : 1070 mm : 280x200 mm : 5 mm/s : 10 mm/s : 2110 mm : 1000 mm : 2480 mm : 1870 kg horizontal adjustable cylinder with clamping lever steel welded frame stop at any position pressure manometer safety valve against overloading 2 V-blocks table height adjustable table up-down movement attachment control by operating lever according to CE regulations user manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: gebraucht : 2411 : China : 120 € : 1 : 100 mm : 40 mm : 108 mm : 13 kg MINT CONDITION drilling machine vice (sample photo) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 6-8 Wochen ab Auftrag : Italien : 7700 € : 148.61 € : 100 to : fix : 900 mm : 1050 mm : 1900 mm : 850 mm : 2250 (PSS: 2400) mm The table can be lifted with a chain Hydraulic unit with motor and pump Adjustable maximum pressure Manometer Equipment compliant with CE regulations. Operating instructions in German and English. MODEL VERSIONS: PSS 100 TL: 1 speed 4 mm/s, single-hand control with lever € 7.700,00 PSS 100 L: 2 speeds 9 / 3 mm/s, single-hand control with lever € 8.400,00 PSS100 NC: 2 speeds29 / 4 mm/s, two-hand control with lever and push button € 9.000,00 PSS 100: same as PSS 100 NC but with stroke 500 mm € 10.500,00 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 6-8 Wochen ab Auftrag : Italien : 8600 € : 165.98 € : 100 to : horizontal verschiebbar : 900 mm : 1050 mm : 1900 mm : 1000 mm : 2250 (PSS: 2400) mm The table can be lifted with a chain Hydraulic unit with motor and pump Adjustable maximum pressure Manometer Equipment compliant with CE regulations. Operating instructions in German and English. MODEL VERSIONS: PSS 100 M TL: 1 speed 4 mm/s, single-hand control with lever € 8.600,00 PSS 100 M L: 2 speeds 9 / 3 mm/s, single-hand control with lever € 9.300,00 PSS 100 M NC: 2 speeds29 / 4 mm/s, two-hand control with lever and push button € 9.900,00 PSS 100 M: same as PSS 70 M NC but with stroke 500 mm € 11.400,00 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: gebraucht : 2023 : 8285 : prompt, Zwischenverkauf v : Türkei : 33900 € : 1 : 30 to : 1050 mm : 3 (Y1, Y2, X) : 160 mm : 850 mm : 250 mm : 390 mm : hydraulisch : 10 mm/s : 130 mm/s : 495 mm : 250 mm/s : 835 mm : 104 mm : 75 l : 7.5 kW : 2470 mm : 1250 mm : 2245 mm : 3250 kg demo machine / mint condition net price (price for new machine € 41.200,00) Y1, Y2, X - 3 Axis Control Unit - DT 10 Touch screen 2D graphic (Remote Control) Back gauge: motorized &, linear guide &, ballscrew European clamping system European clamping system top tool European style bottom tool holder Support arms with T-Slot Safety side covers (Non CE) World known electrical equipments OPTION: DBend, 3D CAD/CAM importing- and simulation program (step, iges and dxf file import) € 2.110,- The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: gebraucht : WA0039 : 180 € : 1 : 415 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : 2025 : 00774 : prompt, Zwischenverkauf v : Deutschland : 523.41 € : 1 : 100 mm : 32 mm : 12 kg Vice [felix] 2.0 100 Quick-action drill chuck B18 3-16 mm (accuracy 0.17 mm) Taper mandrel B18/MK II Reducing sleeve MK II/MK I The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 2 Wochen ab Auftragse : 428.36 € : 100 mm : 32 mm : 135 mm : 13 kg [felix] 2.0 Easy and safe drilling operations - Thanks to the innovative machine vice by Felix Röwekamper. The machine vice for freely adjustable clamping of the workpiece. Simple, fast, secure and superior in use. With two hand movements the vice is clamped on the drilling machine table, precisely and safely adjusted. Prism jaws with shoulder and horizontal and vertical holding recesses to clamp a wide range of workpieces Hardened and precision ground clamping jaws No additional clamping devices necessary The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 12 Wochen ab Auftrags : Türkei : 18200 € : 349.44 € : 100 to : fix : 1500 mm : 300 mm : 1520 mm : 680 mm : 10 mm/s : 5 mm/s : 6 mm : 500x1520 mm : 100 mm : 190 mm : 2630 mm : 1000 mm : 2275 mm : 2500 kg 2 guidings big upper tool holder and table with t-slots upper and lower pressbrake tool manometer rapid down move with automtic change to working speed piston stops in every position 2 hand operating panel Tisch höhenverstellbar according to CE regulations user manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Manual length adjustment via hand slider For mounting on any Elumatec single-head saw (right) Max. feed length: 3,000 mm

Used Injection Molding Machine AOKI year 2014 The Used Injection Molding Machine AOKI year 2014 represents a highly efficient and precise solution in the field of packaging, specifically designed for the production of preforms for plastic bottles through the injection and molding process. Manufactured by Aoki Technical Laboratory, Inc., a recognized leader in molding technology for packaging, this machine offers reliable performance with a proven track record. The model SBIII-100L-20, produced in May 2014, is a used machine in excellent condition, providing exceptional value to companies looking to integrate it into their existing production lines. Moreover, the machine’s advanced features and high output make it suitable for large-scale production environments. Injection and Molding Technology The Used Injection Molding Machine AOKI year 2014 utilizes the highly advanced injection  ...

Used SACMI VOLOMAS 3S10020 filling triblockTechnical Specifications & Performance DataThis rotary isobaric filling monoblock is engineered for high-speed PET bottle applications in beverage production and industrial packaging. Designed and manufactured by Sacmi, it combines precise filling with integrated capping to deliver reliable performance in a used bottling line or second hand packaging environment. With neck-handling transfer and CO2 capability, it is suitable for both still and carbonated products, including soft drinks.Production speed: up to 40,000 bottles per hourCurrent bottle format: 1.0LContainer type: PET bottles, neck-handling transferFiller valves: 100Capper heads: 20Machine type: Rotary, counterclockwise rotationCO2 capability: Yes (isobaric filling for carbonated products)Maximum container height: 350 mmMachine pitch: 113.1 mmOverall dimensions (mm): 8,964 x 6,663Elect ...

Used Mesal Filling triblock 12000 BPH - year 2011Technical Specifications & Performance DataThis is an automatic isobaric filling monoblock engineered for PET bottle handling and optimized for carbonated beverage production. Manufactured by MESAL in 2011, model E30-30-10IA1, it combines rinsing, isobaric filling, and capping in a compact rotary platform suitable for medium-speed beverage production. As a versatile second hand asset for a used bottling line, it provides reliable industrial packaging performance with efficient changeover and robust construction.Manufacturer: MESALModel: E30-30-10IA1Year: 2011Production speed: up to 12,000 bottles/hour (format dependent)Container type: PETBottle format: 0.24L (240 ml)Neck finish: 28 mmFilling technology: Isobaric (for carbonated products)Operating mode: AutomaticElectrical data: 400 V, 60 HzPLC/HMI: Omron controlAdvanced Automation & Contro ...

Used Overhauled Capsuling Machine Bertolaso ZETA 105 up to 5000 bph Introduction The used overhauled Bertolaso ZETA 105 capsuling machine offers a reliable and efficient solution for high-speed bottling. Specifically, this machinery works with polylaminate caps and ensures optimal productivity of up to 5000 bottles per hour. Technical Features of the Used Overhauled Capsuling Machine Bertolaso ZETA 105 Moreover, the Used Overhauled Capsuling Machine Bertolaso ZETA 105 features five smoothing heads that enable rapid and uniform capping of bottles. Additionally, its multi-head configuration processes each bottle with precision, significantly minimizing the risk of errors and enhancing the overall efficiency of the production line. Consequently, the machine weighs 830 kg, reflecting its robust and durable construction, which withstands intensive operations. It is important to note that the  ...

Used Capping Machine BERTOLASO up to 4500 bph Technical Analysis of the BERTOLASO Capping Machine The BERTOLASO SIGMA 103 model exemplifies capping technology that significantly enhances high-speed bottling processes. Originally designed in 1983, this machine delivers a production capacity of up to 4500 bottles per hour (bph), thus showcasing its effectiveness in intensive industrial settings. Importantly, its long operational life and minimal maintenance requirements solidify its market value among used capping machines. Operational Details and Functionality Equipped with three capping heads, the SIGMA 103 allows for precise application of plastic press-on caps. Furthermore, its clockwise rotation direction facilitates seamless interactions with bottling line components, consequently promoting a continuous and uninterrupted workflow. This specification not only boosts productivity but a ...

Used Capping Machine Bertolaso Sigma 103: A Detailed Analysis One of the machines that has shaped the evolution of the bottling industry is the capping machine Bertolaso Sigma 103. This model remains an epitome of excellence in its domain, ensuring precision and quality in the bottle capping phase. Main Features: This capping machine stands out for its 3 pressure heads, specifically designed for the 31.5 X 18 H Aluminium Screw cap. This particular configuration guarantees an effective and secure seal, preserving the properties of the bottle’s contents. Another noteworthy feature is the vibration cap distributor. This ensures a technology which provides consistent, even distribution of the caps and prevents interruptions in the production process. The mobile capping heads and the manually height-adjustable capping head provide increased flexibility in handling different types of bot ...

Used line tetra pak TBA 8 - 1L slim 6000 PPHTechnical Specifications & Performance DataThis second hand complete bottling line is engineered for industrial packaging of aseptic carton containers, centered on the renowned Tetra Brik Aseptic platform. Designed for beverage production environments that demand hygiene and reliability, it provides end-to-end handling from aseptic filling through cap application to final case packing. As a used bottling line, it offers a cost-effective route to expand capacity while maintaining quality standards.Main filler: Tetra Brik Packaging Systems AB TBA 8 / 1000 SLIMConstruction year (main filler): 1994Package format: 1.0L Slim cartonSpeed: 6000 Packs/hour (PPH) Auxiliary equipment: Tetra Pak Cap Applicator 21; Tetra Pak Cardboard Packer 70Line application: Aseptic carton filling with downstream capping and case packingCompliance: CE markedAdvanced Auto ...

Used Flow Pasteurizer with separator 2000 L/h Structure and Operating Principle The Used Flow Pasteurizer with separator 2000 L/h operates as a continuous flow pasteurizer with a plate heat exchanger, designed specifically for the thermal processing of milk and cream. The system uses a plate heat exchanger to ensure efficient heat transfer, enabling rapid product heating and cooling. As a result, it maintains product quality while maximizing energy efficiency. Moreover, the continuous operation delivers a consistent throughput of 2,000 liters per hour. Therefore, this model suits medium-scale facilities that demand precise thermal treatment and high microbiological safety standards. Construction Features and Manufacturer Jedinstvo, a Croatian manufacturer, built the Used Flow Pasteurizer with separator 2000 L/h in 1998 under model number 43.107072. At present, the machine remains dismant ...

Used Flash Pasteurizer UDMACHINES Year 2022 Introduction To begin with, the Used Flash Pasteurizer UDMACHINES Year 2022 emerges as a cutting-edge solution in the liquid thermal treatment sector. This machine, meticulously designed by UDMACHINES, is a model PAS-10000-45-2P-E. It’s distinguished by its operational efficiency and precision, setting a new standard in the industry. Key Characteristics UDMACHINES, known for their innovation, manufactured this “Used Flash Pasteurizer” in 2022, making it a relatively new addition to the market. Importantly, it boasts a remarkable operational capacity of 10,000 liters per hour. This capacity is a testament to its significant efficiency, especially in handling large volumes for treatment. Pasteurization Method and Functional Aspects This pasteurizer operates using the flash method, a critical feature. Specifically, it rapidly hea ...

Working width: mm Number of sanding units: st. Workpiece thickness max.: mm sanding belt measurements: mm Motor roller: kW Motor pad: kW Feed motor: kW Feed speed: m/min. Overall size: mm Weight: kg Control: The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 10 Wochen ab Auftrags : Türkei : 8300 € : 160.19 € : 1 : 100 to : horizontal verschiebbar : 300 mm : 1070 mm : 5 mm/s : 10 mm/s : 2110 mm : 1000 mm : 2430 mm : 1500 kg demo machine / mint condition net price (price for new machine € 9.000,00) horizontally displaceable cylinder with clamping lever steel welded frame stop at any position pressure manometer safety valve against overloading 2 V-blocks table height adjustable table up-down movement attachment control by operating lever according to CE regulations user manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 8 Wochen ab Auftragse : Italien : 29100 € : 555.81 € : 100 mm : 500 mm : 1200 mm : 850 mm : 480 kg : 43 cm³ : 100 x 6 mm : 3 1/2 x 4 mm : 100 x 6 mm : 100 x 3,6 mm : 100 x 3,6 mm : 114,3 x 6,3 mm : 114,3 x 6,3 mm : 114,4 x 6,3 mm : 88,9 x 3,65 mm : 100 x 5 mm : 70 mm : 100 x 25 stehend, 100 x 5 mm : 400 mm : 36 mm : 10 mm : 0 - 1,3 U/min : 3.5 kW quick-change tooling system digital display of bend material spring back compensation remote control of bend, return and emergency stop functions accurate counterbending die positioning footswitch 3 hexagonal tool holders heavy-duty steel gear case users manaul tools not included, prices on request The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 107500 € : 2031.75 € : 360 mm : Ø360 x 40 mm : 40 - 280 U/Min : rund: 20 - 100 mm, quadra : 60 mm : 10 - 9999 mm : 900 mm : 15 kW : 3400 mm : 2675 mm : 2750 mm : 3450 kg : 21,65 kW Mass production in continuous operation is done by BMDO 100 XS when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 100 mm. BMDO 100 XS is designed to be used with TCT circular saw blade in order to cut solid bars in high speedand excellent precise. It is also suitable for HSS blades to cut tubes. With the Standard 800mm stroke servo feeding and 6 meters automatic loader. BMDO 100 XS is perfect for large-scale production of solid bars. STANDARD ACCESSORIES: automtic loader 6 m motorized roller table 3 mMikrospray Coolant Hydraulic Vice Inverter Control Panel Saw Blade Brush Cover Switch Heavy Duty Gear ...

: neu : ca. 4 Monate ab Auftragse : Italien : 31200 € : 595.92 € : 100 to : horizontal verschiebbar : 500 mm : 700 mm : 1550 mm : 25 mm/s : 2 mm/s : 2400 mm : 1200 mm : 2450 mm : 1960 kg HORIZONTAL MOVABLE CYLINDER 1.050 MM 2 speeds control by handwheel and push button (2-hand) adjustable max. pressure manometer according to CE regulations user manual in GERMAN and ENGLISH (sample photo) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 14 - 16 Wochen ab Auf : Türkei : 70300 € : 1328.67 € : 100 to : 4.5 mm : 700 mm : 1000 mm : 210 mm : 1 - 132 mm : 58 1/min : 6 : 90 mm : 60 mm : 300 mm : 445 mm : 7.5 kW : 1650 mm : 1545 mm : 3011 mm : 7000 kg Welded steel construction body frame Crankshaft made of AISI 4140 (42CrMo4) alloy steel, CNC grinded for max. precision SnBz-12 quality bronze to bearings, grinded for min surface resistance Ram supported from 6 sides Pneumatic counter-balancing of the ram 7", touchscreen Gears in oil bath Pneumatic clutch-brake combination PLC control for safety Photocell light barriers Motorized slide adjustable Mechanical overload fuse Two hand and foot pedal control Adjustable stroke (inverter) automatic centrallubrication Machine and equipment in conformity with CE-regulations OPTIONS: vibration pads € 192,00 bolster plate € 2.580,00 The data for this ad was created ...

: neu : Bulgarien : 127060 € : 2401.43 € : 1090 mm : 3000 mm : 500 mm : 155 mm : 690 mm : 700 mm : 15 : 160 MK : 4 : 3,7 - 15,6, 14,7 - 62, 58 U/Min : 160 : 0.032 - 38.9 mm/U : 0.016 - 19.45 mm/U : 0.5 - 480 mm : 60 - 1/16 Gänge/ : 0.125 - 120 : 240 : 525 mm : 270 mm : 125 mm : 6 MK : 260 mm : 30 kW : 8050 kg driven by variable speed control (4 steps) 3-axes digital readout FAGOR with CSS (constant surface speed) quick change toolpostAmestra with 4 holders (3 square, 1 round) 3-jaw chuck Bison 3204/DIN6350, Ø 500 mm spindle dead center coolant equipment full length rear splash guard leadscrew and shaft protection safety guard for the chuck toolholder guard levelling bolts and plates tailstock quill reducer electric motor movement of tailstock low voltage machine lamp operating manual machine according to ",CE", FURTHER TURNING LENGTHS: turning length1.500 mm € 112 010,00 ...

: neu : ca. 12 Wochen ab Auftrags : Türkei : 12150 € : 233.28 € : 0.4 - 2 mm : 100 mm : 200 mm² : 63 mm : 150 m/min : 10 m/s² FESTO pneumatic system SIEMENS servo drive and control system 7’ colour touch screen SIEMENS 2 feed rollers Option: Handwheel and Simlinx remote maintenance module € 4.290,-- The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

workpiece dia.: ~ 10 - 100 mm grinding band dimension: 120 x 3.500 mm engine: 4 kW Round rod sanding machine Löser type RS 100 for sanding and processing round rods, handles and cylindrical workpieces made of wood. The machine enables an even surface finish and is particularly suitable for handrails, round bars, tool handles and similar long parts. Includes a batch of various new sanding belts. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Rebord (Samed) Darix 46/100 semiautomatic casemaker year 2015 Size max. 46 x 100cm hot melt gluing weight 800 kg good condition

Homogenizing Mixer Manufacturer: Becomix Type RW 1000 CD Capacity 1000 litres Homogenizing mixer with agitator and wall scraping coolable and heated, pressure- and vacuum-resistant, homogenizer Included: - 1000 liter pre-phase tank MV with dissolver agitator - 3 energy and supply frames including vacuum pump - Valve manifold including flow meter - Control cabinet with PLC 7 control (was converted to PLC 7 in 2008) - Control cabinet with FU - 3-part working platform with stairs The process vessel and the pre-phase vessel are placed on weighing cells

Homogenizing Mixer Manufacturer: Becomix Type RW 1000 CD Capacity 1000 litres Homogenizing mixer with agitator and wall scraping coolable and heated, pressure- and vacuum-resistant, homogenizer Included: - 1000 liter pre-phase tank MV with dissolver agitator - 3 energy and supply frames including vacuum pump - Valve manifold including flow meter - Control cabinet with PLC 7 control (was converted to PLC 7 in 2008) - Control cabinet with FU - 3-part working platform with stairs The process vessel and the pre-phase vessel are placed on weighing cells

Reversible clamping device, 4th axis, rotary table, rotary indexing table, controlled rotary table, dividing head, dividing head, rotary indexing table, rotary coupling -Manufacturer: NIKKEN Rotary table with drive -Type: CNC-100 -Recording: SK40 -Clamping: pneumatic -Control: Z3BF UNIT -Tailstock: 2 pieces type P-105 -Dimensions of transport trolley: 600/940/H720 mm -Weight: 119 kg

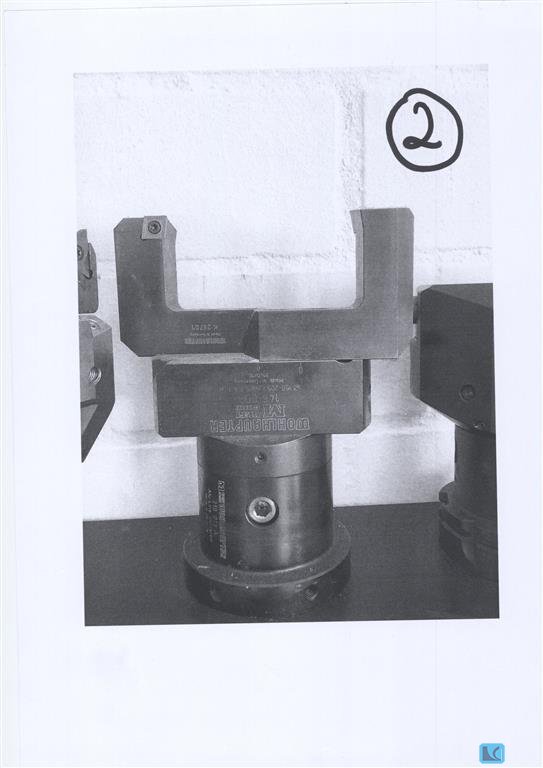

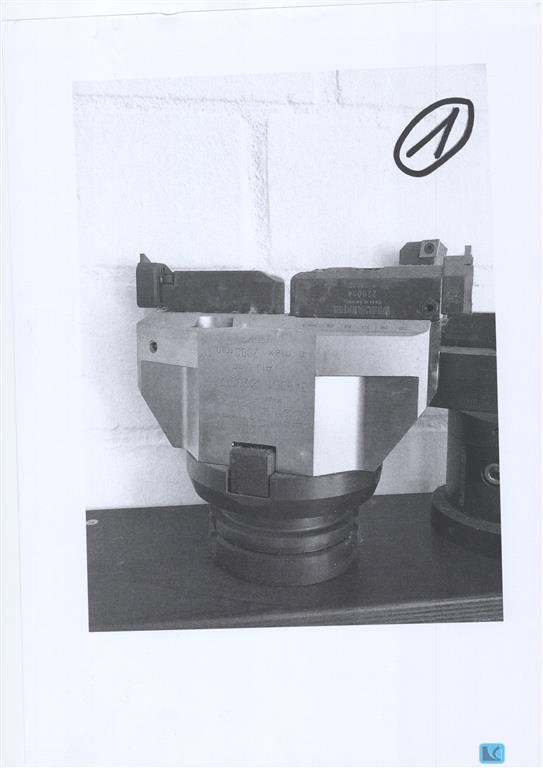

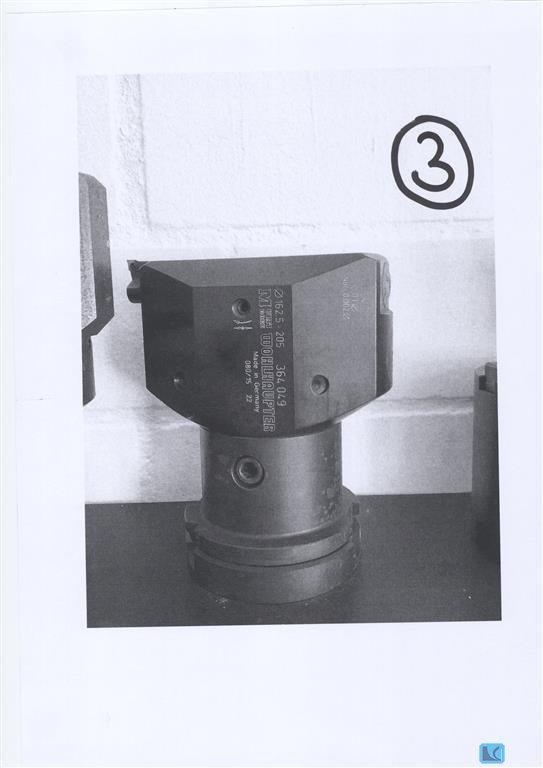

Tool holder shaft type:HSK-A 100 Tool holder shaft type:Wohlhaupter Tool holder shaft type:Feindrehwerkzeuge Ausdrehkopf / Precision Turning Big selection of Wohlhaupter HSK-A 100 Tool holders / precision turning tools / adapters /extenders etc. for sale Sales list with prices upon request.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

pressure:1000 t table length:4000 mm table width:1600 mm Controls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mm RAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between side c ...

max. workpiece diameter:29 mm min. workpiece diameter:26 mm workpiece length:66 mm the system was originally delivered for the following workpiece sizes: diameter 26mm - 29mm length 65mm - 66mm Changing parts in the clamping device, handling, etc. would probably result in diameters of up to approx. Ø50mm Total length will probably be almost 400 mm possible with a few conversions. Also dependent on tool lengths, machining lengths on the component, etc. Workpiece: Piston pin Drawing number: WHT 000 718, WHT 000 718 A Workpiece dimensions (Ø, WxH): Ø26 x 66; Ø29 x 65 Length: 66 or 65 mm Material: 17Cr3 Quantity: xxx parts / year Cycle time: 5 sec. However, workpiece lengths up to 600mm are manageable. The machining diameter can be adjusted if the appropriate tools are available. The clamping station can currently only accommodate this product. However, this can be adapted by changing th ...

pulling force - max.:2,5 t max. ram stroke:1000 mm max. workpiece diameter:40 mm Broaching speed:60 m/min. return speed:20 m/min. total power requirement:24 kW weight of the machine ca.:6 t dimensions of the machine ca.:1,7 x 2,4 x 4,77 m clamping plate:320 mm It is a hydraulic machine.

x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t

turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse

bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel

x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden

turning diameter:1000 / 700 mm turning length:3000 mm face slide travel:600 mm turning diameter over slide:700 mm turning speeds:1-1.800 1/min transmission ratio:2 spindle:46 (60%) kW spindle bore:132 mm quill stroke:280 mm workpiece weight max.:2.560 kg total power requirement:38 kW weight of the machine ca.:6 t dimensions of the machine ca.:5 x 2,6 x 1,9 m teach in lathe, PARAT tooling system, SCHUNK ROTA NC 500-160 hydr. power chuck, tailstock, chipconveyor

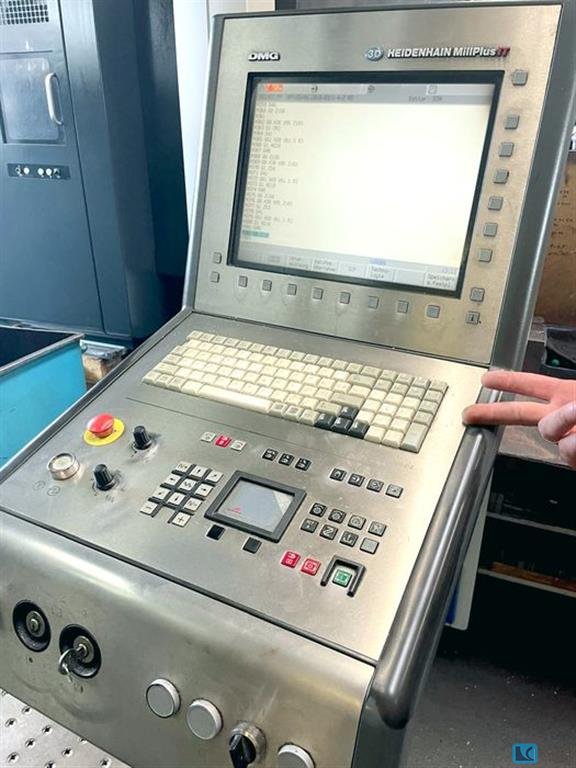

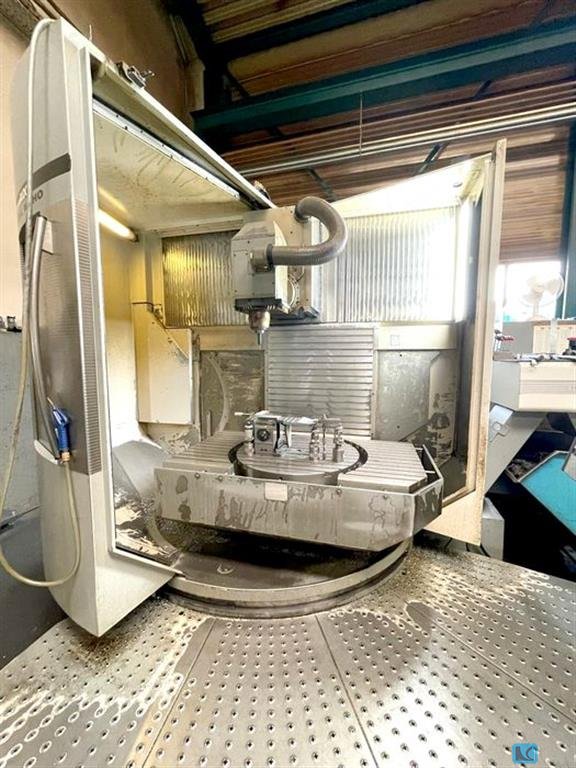

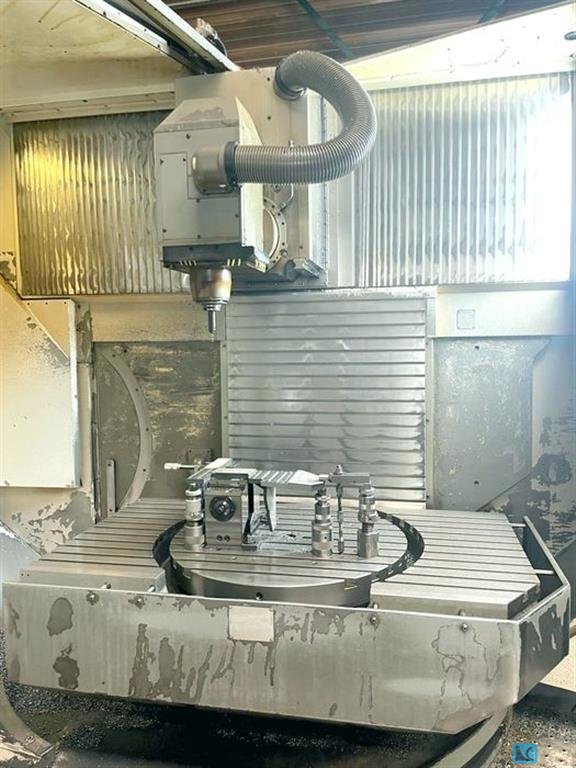

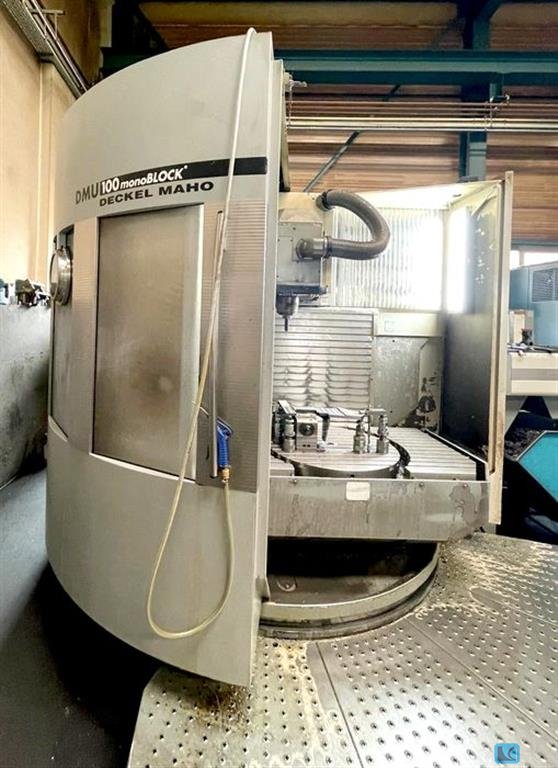

x-travel:1.250 mm y-travel:710 mm z-travel:710 mm table surface area:1500 x 800 mm table load capacity:800 kg turning speeds:12000 1/min spindle drive:15 / 10 kW control:MILLPLUS iT HEIDENHAIN spindle taper:SK 40 tool change unit:60 Pos. capacity:44 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:3,5 x 2,65 x 2,65 m 5 axis simultaneously machining center, B-axis (-120° / +30°), NC-rotary-table integrated in rigid table, direct measuring system, 3D probe infrared, HEIDENHAIN TS 640, internal coolant supply 40 bar, 600l, flushgun, chipconveyor, mode 4, 3D quickset software (no hardware), Higher noise in rush on X-axis and roundtable approx. 48.500 hours "machine on" / approx. 18.000 hours "spindle on"

x-travel:1000 mm y-travel:610 mm z-travel:600 mm table-size:1150 x 600 mm table load capacity:1000 kg rapid traverse X- and Y-axis:24 m/min rapid traverse Z-axis:24 m/min spindle taper::SK 40 spindle turning speed range:10.000 1/min spindle drive:15/22,5 kW tool change unit:30 Pos. CNC-control:SIEMENS 828D operate shopmill distance spindle nose and table:110 / 710 mm weight of the machine ca.:7 t dimensions of the machine ca.:3,2 x 2,2 x 2,7 m vertical machining center, - internal coolant supply 30 bar - chipconveyor - cartridge filter - flat tracks - el. handwheel - prepared for 4th axis - 3D touchprobe RENISHAW OMP 60 - indirect measuring system - accessories (approx. 30 pcs. SK 40 toolholders incl. 2 racks, chip tray) approx. 6.000h "spindle on"
