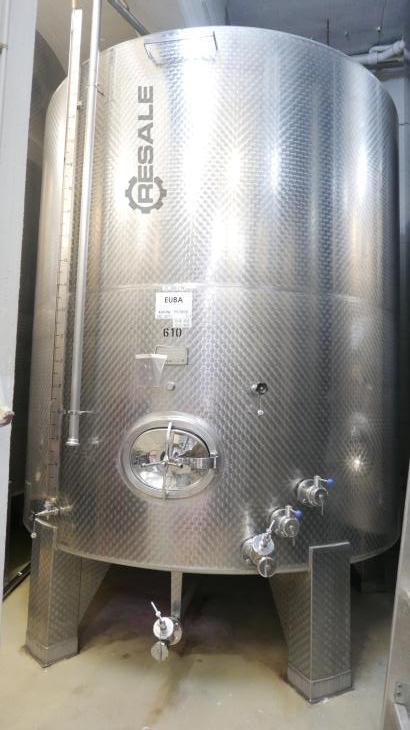

Features
Volume 15180 L
Material V2A (AISI 304) 1.4301
Vertical design
Last Use Food
Number of feet 4
Total height 3750 mm
Height 2250 mm
Diameter width 2600 mm
Weight 1050 kg
Material 2B=IIIC ground
Surface outside 2B=IIIC ground
Description
Topsoil:
Clapper bottom
Downward-swept vent pipe DN 40 with threaded connection DN 50
according to DIN 11851
Threaded weld-on nozzle DN 40 with T-piece and airlock connection DN
50, thread according to DIN 11851
Tank cylinder:

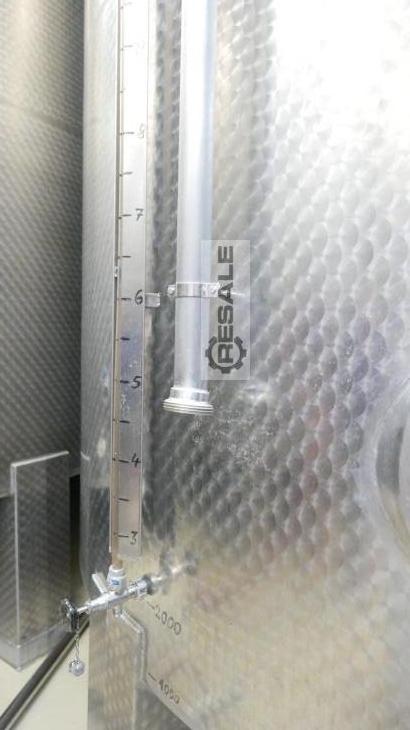

Level indicator with bar, scale and standpipe valve DN 15

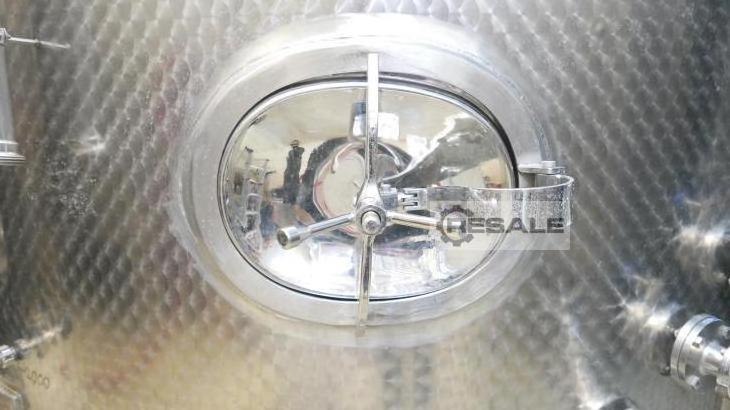

Manhole 430x320 mm
Sample tap DN 15
Ladder hook at the top
Downward-swept CIP cable DN 50

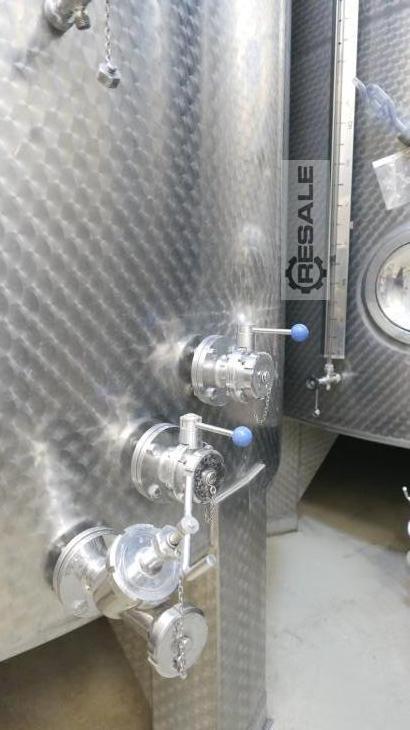

Clear drain with angled seat valve with flange with disc valve DN
50
Underbody:
Clapper bottom
Remaining drain with forward-drawn outlet surround with flange and
angled seat valve DN 50 with sealing cap
4 calotte feet, height-adjustable, with washers
Germany
