Capacity: 800 tons Stroke of slider: 400 mm Number of strokes per minute 12 Adjustment of slider: 185 mm Max. daylight betwen bolster and slider SDAU: 850 mm Table area: 1250 x 1650 mm Slider dimensions 1000 x 1250 mm Main motor power: 55 kW Distance between columns 1250 mm Cushion capacity, ton 125 Cushion stroke, mm 160 Press dimensions, mm 3800 x 2800 x 6900 Weight: 77 tons
Maximum force of slide: T 250 Stroke of slide: mm 400 Stroke rate per min 12 Adjustability of slide: mm 120 Bed area (W x D): mm 2500x1400 Main motor power: kW 32 Max depth of extraction 100mm pressing force during the maximum depth of extraction T 100 Force holding extract unit: T 50 Height above ground: mm 5000 Weight: 66 ton
Capacity, ton 1250 Stroke, mm 500 Min number of no-load stroke: 8 /per min Slider adjustment, mm 215 Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 1100 Table size, mm 1600 x 1850 Slider size, mm 1300 x 1400 Table gap size, mm 1100 x 1100 Distance between columns, mm 1630 Distance between slides, mm 1580 Cushion travel, mm 200 Cushion capacity, ton 200 main motor power, kW 90 Press weight, kg 110000
Capacity, ton 1250 Stroke, mm 500 Maximum drawing depth,mm 200 Min number of no-load stroke: 14 /per min Slider adjustment, mm 315 Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 1250 Table size, mm 1600 x 1800 Slider size, mm 1530 x 1800 Aperture in a table, mm 1100 x 1100 Distance between columns, mm 1600 Cushion travel, mm 200 Cushion capacity, ton 200 Maximum push force ton 31.5 main motor power, kW 125 Press overall dimensions: 5850x3100x8950 mm Press weight, kg 195000
Capacity 100 ton Table 880x715 mm Max. sheet thickness 3 mm Stroke per min. 360 Stroke 25 mm Ram adjustment 70 mm Distance Ram-table 400 mm 15 kW Dimensions LxWxH 3300x1600x2600 mm Total weight 10 tons
Inv. Num. : 5831 Type: PKnT 160 Producer: ERFURT Created: 1987 Parameters: Compressive force: 160 t Maximum stroke rate top table: 15 1/min Total power requirement: 21 kW Ram stroke: 265-425 mm Adjusting the plunger: 130 mm
PKZZ 250 Double Column Crank stamping Press Completely overhauled. Electric and Control- Not available. Table 2500 x 1400 mm Ram 2320 x 1250 mm Distance between uprights 2525 mm Window in table width 2300 mm Window in table depth 850 mm Stroke 400 mm Strokes per minute SPM 12 Adjustment of ram 120 mm Shutheight 550 mm Table cushion force 50 to Cushion stroke 160 mm Motor 32 kW Weight ca. 39 tons
Max shearing power: 315 ton Stroke: 70 mm Single stroke: 30/1 min Square: 100 mm Max billet cut : 106 mm Main motor power: 20 kW Weight: 14 ton
Capacity, ton 1250 Stroke, mm 500 Min number of no-load stroke: 8 /per min Slider adjustment, mm 215 Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 860 Table size, mm 1600 x 1850 Slider size, mm 1300 x 1400 Table gap size, mm 1100 x 1100 Distance between columns, mm 1630 Distance between slides, mm 1580 Cushion travel, mm 200 Cushion capacity, ton 200 main motor power, kW 90 Press weight, kg 130000
Max shearing power: 500 ton Max speed: 40/1 min Stroke: 100 mm Single stroke: 25/1 min Square: 125 mm Max round: 132 mm Length of blades: 420 mm Main motor power: 45 kW Height above floor: 3500 mm Weight: 23 ton
course of the blade slide 100 mm number of moves at idle position 25 / min Main drive motor 30 kw in 1480 rev / min cutting power Strength of the material Tensile N/mm2 450 500 600 700 800N/mm2 square mm 125 118 105 95 85 round mm 132 125 112 100 90 flat 375x 60 45 40 35 32 Weight 23,000 kg (50,692 lb) Length x width x height 1850 mm × 2450 mm × 3750 mm
cutting effort 800t the number of strokes (no load) 20 /min single strokes 16 /min course a support of the blades 125mm Main drive motor 55 kw in 1475 rev / min cutting power Strength of the material Tensile N/mm2 450 500 600 700 800 900 N/mm2 square mm 160 150 132 118 106 100 round mm 170 160 140 125 112 106 strip steel 425x 67 60 53 47 42 38 320 x 80
cutting effort 1000t the number of strokes (no load) 17 /min course a support of the blades 140mm Max. cutting diameter of rounded workpiece, mm 190 Max. cutting diameter of squared workpiece, mm 180 for 450 N/mm2. Machine weight, kg 60000
effort 250 ton stroke 315 mm slide adjustment 160 mm distance slide- table 800 mm die height 555 slide 620x950 mm table 800x1180 mm 28 kW Total weight 25t

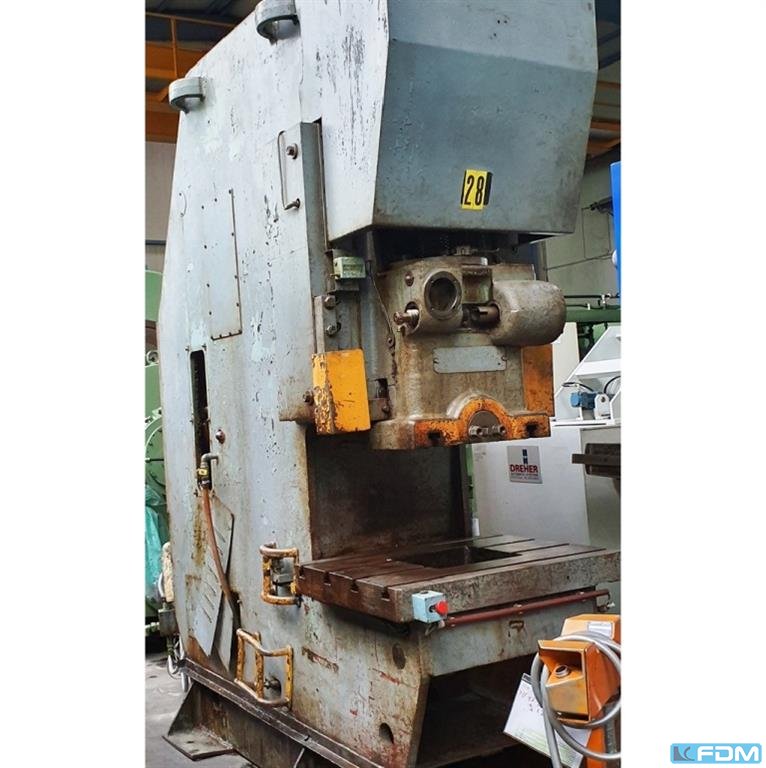

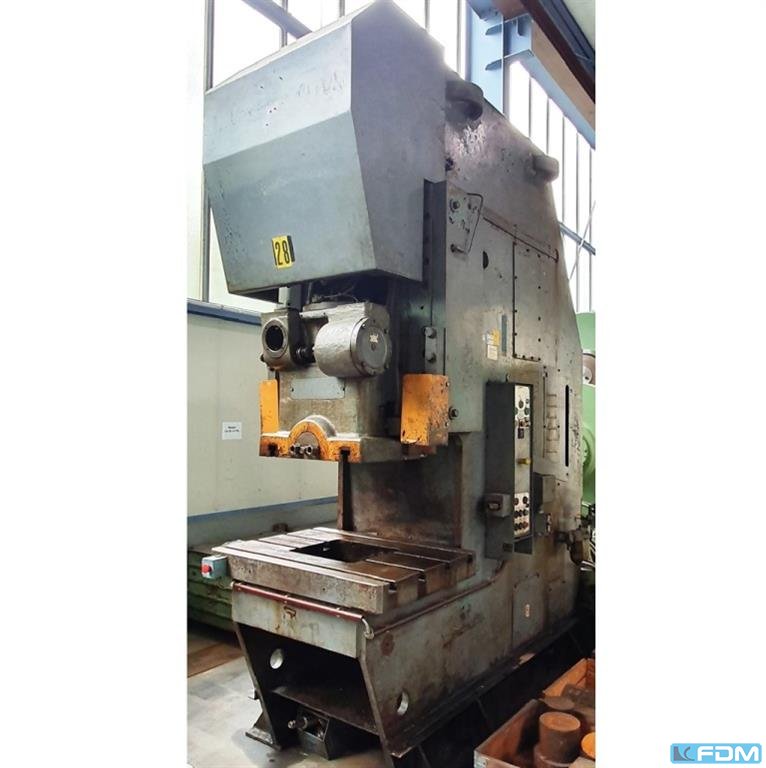

pressure:250 t throat:450 mm stroke:36 - 126 mm no. of strokes:40 /min distance table/ram, max. stroke up, adjustment up:525 mm table surface area:1000 x 750 mm hole in the table:400 x 360 mm table height over floor:1000 mm ram surface:600 x 500 mm ram adjustment:111 mm power requirement:19,0 kW weight:13,5 t Dimensions (WxDxH):1,3 x 3,2 x 3,35 m clutch:pneumatic overload protection in ram:mechanical ram adjustment:motoric
Pressure total: 2800 ton Ram stroke: 1120 mm Slide adjustment: 550 mm Shut height (stroke down, adjustment up): 1650 mm Free frontal opening L-R: 5100 mm Table surface area : 5000 x 2500 mm Slide area: 5000 x 2500 mm Die cushion capacity in table: 600 ton Die cushion stroke: 350 mm Number of strokes: 6 - 15 s.p.m. Height over floor approx.: 10800 mm Weight of machine approx.: 805 ton
