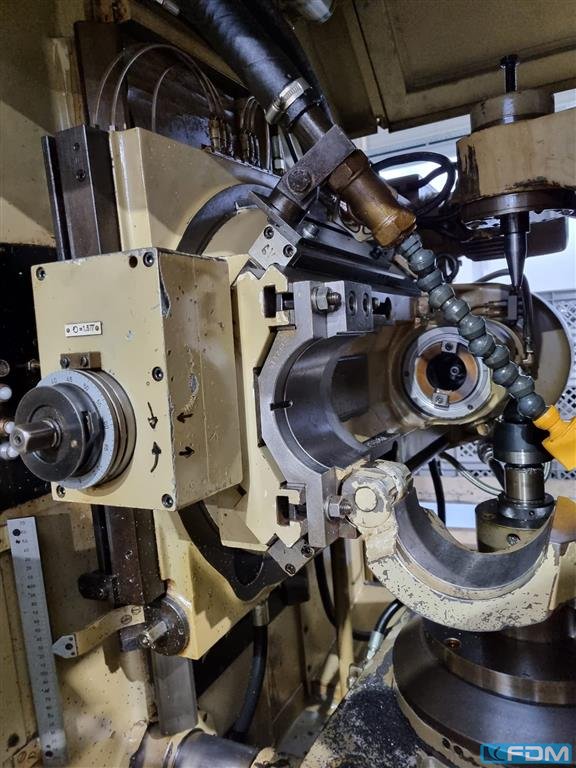

2 WMW horizontal gear milling machines used machines

Max diam 250 , max lenght 2000, 3 x heads , change gears

MAX DIAM 250 X 2000

control:siemens 1P 6SL 3054--0CE01-1AA0 Documents:vorhanden

[ 5000 characters max., no information about the advertiser ] Brand:MODUL Model:ZFWZ 2000/3 Type:Gear Hobbers Year:1981 Location:Czech Republic Specification: Max diameter of gear without tailstock 2100 mm Max diameter of gear with tailstock 1450 mm Max face of gear 1060mm Max module with hobbing head 22 Max/ Min center distance 1240/150 mm Min number of teeth 10 Max pressure angel 45 deg Table dia / number of slots 1800 mm/12 Bore in table / length 600/800 mm Max dia of hob / length 300/330 mm Max weight of workpiece 15000 kg Accessories: Standard milling head Tailstock (no clamping) Set of gear supports (shoes) Set of arbors Set of change gears

MAX DIAMETER 1500 MAX MODUL 15

Key data: 460 mm, 10

BEVEL GEAR SPIRAL GENERATOR

max diam 340 , max modul 8

Spiral bevel gear machine ZFTKK 500/3V. Some of the change gears missing

Wheel width: 600mm, module range: 2-16, cutter dimensions X/Y: 240mm/280mm, table diameter: 1020mm, speed: 200rpm, swiveling: +/-45°, max. wheel diameter with/without counterholder: 1250mm/800mm. Machine dimensions X/Y/Z: approx. 4500mm/2100mm/3300mm, weight: approx. 16200kg. An on-site inspection is possible.

WMW MODUL ZFWZ 160/3 gear hobbing machine was built in 1971 in the GDR by VEB Werkzeugmaschinenkombinat “7. Oktober” Berlin. The machine is used in plants manufacturing extremely precise drive components for, among others, the automotive, aerospace and machinery industries. It enables the efficient machining of spur and worm gears with a maximum external diameter of 160 mm. The machining process is performed by means of a spindle with a cutter with a maximum diameter of 110 mm. The spindle of the MODUL ZFWZ 160X3 machine moves along the contour of the workpiece, cutting the material along its entire circumference. Using this method, it is possible to achieve the desired shapes and teeth finish with the highest accuracy. The WMW MODUL ZFWZ gear hobbing machine weighs 3000 kg. Technical specifications of the WMW MODUL ZFWZ 160/3 gear hobbing machine General data - maximum external ...

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Key data: 850 mm, 270 mm, 355 mm

Table width 315 mm, table length 1250 mm Tool holder SK 50 Speed range 28 - 1400 rpm Feed range 16 - 800 mm/min Travel x=850 mm, y= 270 mm, z=355 mm Connected load 8 kW Incl. Electric clamp horizontal Vertical head in X swivel with manual tightening Dispensing as present, no longer energized

Key data: 1120 mm, 345 mm, 400 mm

Table width 400 mm, table length 1600 mm Tool holder SK 50 Speed range 28-1400 1/min Travel X/Y/Z 1120/345/400 mm Feed range X/Y 16 - 800 mm/min, Z 5 - 250 mm/min Rapid traverse Milling head swivel range +/- 45°, quill stroke 90 mm Connected load approx. 14 kW Incl. coolant device Electric tensioner, bracket cover

WMW HECKERT FU450R-51 universal milling machine was built in 2009 in Belarus by Gomel Machine Tool Plant S.M. Kirov.. This extremely versatile, functional and reliable machine is designed for precision machining of workpieces with a maximum weight of 1500 kg. The machining process is performed by a powerful spindle on a large work table. T-slots in the table allow for quick installation of additional tooling such as a vice. The precision and repeatability of the manufactured parts, in turn, is maximised by the design made of the highest quality cast iron, which maintains excellent stability during even the most intensive challenges. All this makes the offered FU450R conventional milling machine an excellent choice for both unit and series production. The WMW HECKERT vertical milling machine weighs 4300 kg. Technical specifications of the WMW HECKERT FU450R-51 milling machine - number ...

Tool holder, milling holder, milling tool -Quantity: 4x recording SK40 -1x Ø: 16 x 19 mm -1x Ø: 16 x 25 mm -1x Ø: 27 x 25 mm -1x: drill chuck - is only sold complete -Weight: 6kg

Milling cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 160 ( 4x25x160 ) TGL 30-4113 MK4 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 490 x 45 x 45 mm

Cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 80 ( 4x25x80 ) TGL 30-4113 MK4 shaft diameter: Ø 16 mm Tool holder: Ø 25 mm New ! Dimensions: 300 x 45 x 45 mm

Milling cutter mandrel, tool holder, with tightening thread WMW 3 x 25 x 160 ( 3x25x160 ) TGL 30-4113 MK3 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 425 x 45 x 45 mm

Travel X/Y/Z: 850mm/280mm/355mm, table dimensions X/Y: 1250mm/315mm, feed X/Y: 800mm/min, feed Z: 250mm/min, spindle mount: ISO 50, spindle speed: 1400rpm. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2400mm, weight: approx. 3300kg. On-site inspection is possible.

Heckert CWK 400 Built in 1995 Control Siemens 840 Travel X/Y/Z 650/650/680 mm Spindle speed up to 10,000 rpm HSK 40 Tool Changer Rotary table 400 x 500 mm, Conveyor Weight 12.5 t.

Gear milling cutter, modular milling cutter, hob cutter, tooth form milling cutter, modular milling head, shell end mill, roller milling cutter, milling cutter, hob cutter, spline shaft hob cutter -Manufacturer: WMW PWS, 17 hob cutters -Hole: Ø 27 mm 4 pieces, Ø 32 mm 7 pieces, Ø 40 mm 6 pieces -Different types: see photos, more pictures can be sent -Price: complete -Dimensions: 400/400/H150 mm -Total weight: 52.5 kg

Spline hobs, gear cutters, modular milling cutters, gear hobbing cutters, gear form cutters, modular milling heads, shell end mills, cylindrical milling cutters, milling cutters, hobs, spline hobs -Manufacturer: WMW PWS, 29 hob cutters -Hole: Ø 27 mm 25 pieces, Ø 32 mm 4 pieces -Different types: see photos, more pictures can be sent -Price: complete -Dimensions: 490/300/H70 mm -Total weight: 30.7 kg

Universal milling head, milling holder, milling extension, angle milling head -Manufacturer: WMW HECKERT, milling head from milling machine FSS 315-V -Recording output: SK50 -Recording: Input gear -Milling head: fully pivotable -Stroke: 72 mm -Transport dimensions: 850/650/H520 mm -Weight: 277 kg
