Max tube diameter 76 mm Max thickness 3 mm Max bending degree 180 Bending radius max 260 mm
used
Hydraulic pipe bending machine make BANNING type MB 32Machine -No: 3017 built in 1976Technical specifications:largest tube diameter: 32 x 2 mmBending Radius: 150mmBend Angle:180°largest pipe extension length: 3000 mmDrive power: 5.5 kWWith- 13 sets of bending tools: 10x1.5mm, 13x2.3mm, 15x1.5mm, 16x1.8mm 17.2x2mm, 18x1.5mm, 20x2mm, 21.3x2.6mm 24x2mm, 25x2.9mm, 26.9x2.6mm, 29.5x2mm 30 x 2mm- left and right bending- Program switching for a maximum of 12 bending angles- Length stops for max. 12 sheet spacings- Angle turning device- air-actuated positioning deviceused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Max. tube diameter 45 Bending capacity of thick walled tube 2 Arbor length 4.000 mm Equipped with: With dies
new
Bending capacity: Copper or brass tube: 54 x 4 mm Steel tube: 54 x 2 mm Stainless steel pipe AISI 304/316: 42 x 3 mm Hydraulic tube ST35: 54 x 4 mm Furniture construction tube: 54 x 3 mm Aluminium tube: 54 x 5 mm Gas pipe for piping: 1 1/2 " Maximum bending angle: 210° Engine power: 1,1 kW Voltage: 400 V Machine dimensions (W x D x H) without stand: 800 x 300 x 680 mm Approximate weight: 107 kg Scope of delivery: Bending segment 1/4 "G (Ø 13.72 mm) incl. counter rollers and race Bending segment 1/2 "G (Ø 21.3 mm) incl. counter rollers and race Bending segment 1 "G (Ø 33,7 mm) incl. counter rollers and race Bending segment 1 1/4 "G (Ø 42.25 mm) incl. counter rollers and race
used
Description: Operating voltage: 400 V Serial number: 0013471 Incl. feederweight approx.: 1,000 kg, Approx. Onsite Dimension. (l x w x h): 5,500 x 2,100 x 1,700 mm
used
Key data: 32 mm, 2 mm
Inv. Num. : 6997 Type: CMH 32 NC Producer: Cansa Generated: Parameters: Maximum tube diameter: 32 mm Maximum pipe wall thickness: 2 mm Maximum bending angle: 1900 st Power consumption: 4.4 kW Mandrel length: 2000 mm Max pressure: 120 bar Equipment: Hydraulic clamping Hydraulically controlled mandrel Hydraulic collet Colour touch screen Display of the current position of the pipe on the monitor (displacement and rotation) Display of the daily production on the screen of the control system Display error messages on the control system screen Saving created programs in the memory of the control system Ability to store up to 100 bending programs
used
Description: bending diameter range for bending strength modulus (RS=250N/mm2): ,1.3 m3 maximum pipe diameter: ,32 mm minimum pipe diameter: ,4 mm maximum pipe length for mandrelless bending: ,9999 mm minimum pipe length for bending with a mandrel: ,4450 mm  , single dimensions machine: 5200 x 1000 x 1200 mm control cabinet: ,600 x 900 x1900 mm  , set includes a safety mat, a SICK light curtain and tools but only those visible in separate photos (not mounted on the machine) offer does not include fences or other tools mounted on the machine  , please also have a look at the PDF document of this machine tube length max.: 9,999 mm, weight approx.: 2,000 kg, Approx. Onsite Dimension. (l x w x h): 5,200 x 2,000 x 1,900 mm
used
Crippa tube bending machine 955LE CNC tube CNC tube bender Ø30 x 2 mm (max. Ø55 mm) - Tube wall thickness – 2.0 mm (max. 2.5 mm) - Tube material - steel - Bend radius 72, 90, 100, 150 mm (max. 250 mm) - 3-axis bending It was never working – new, but the production year ca. 2015
used
Inv. Num. : 5725 Type: A 89 TNCB Producer: CSM Created: 2014 Parameters: Maximum bending angle: 180 pcs Total power requirement: 15 kW The largest profile: 60x60x6 mm bending radius in the middle of the tube: 350 mm bending radius in the middle of the profile: 300 mm Machine height: 1200 mm Machine length: 4700 mm Machine width: 1200 mm Machine weight: 2500 kg
used

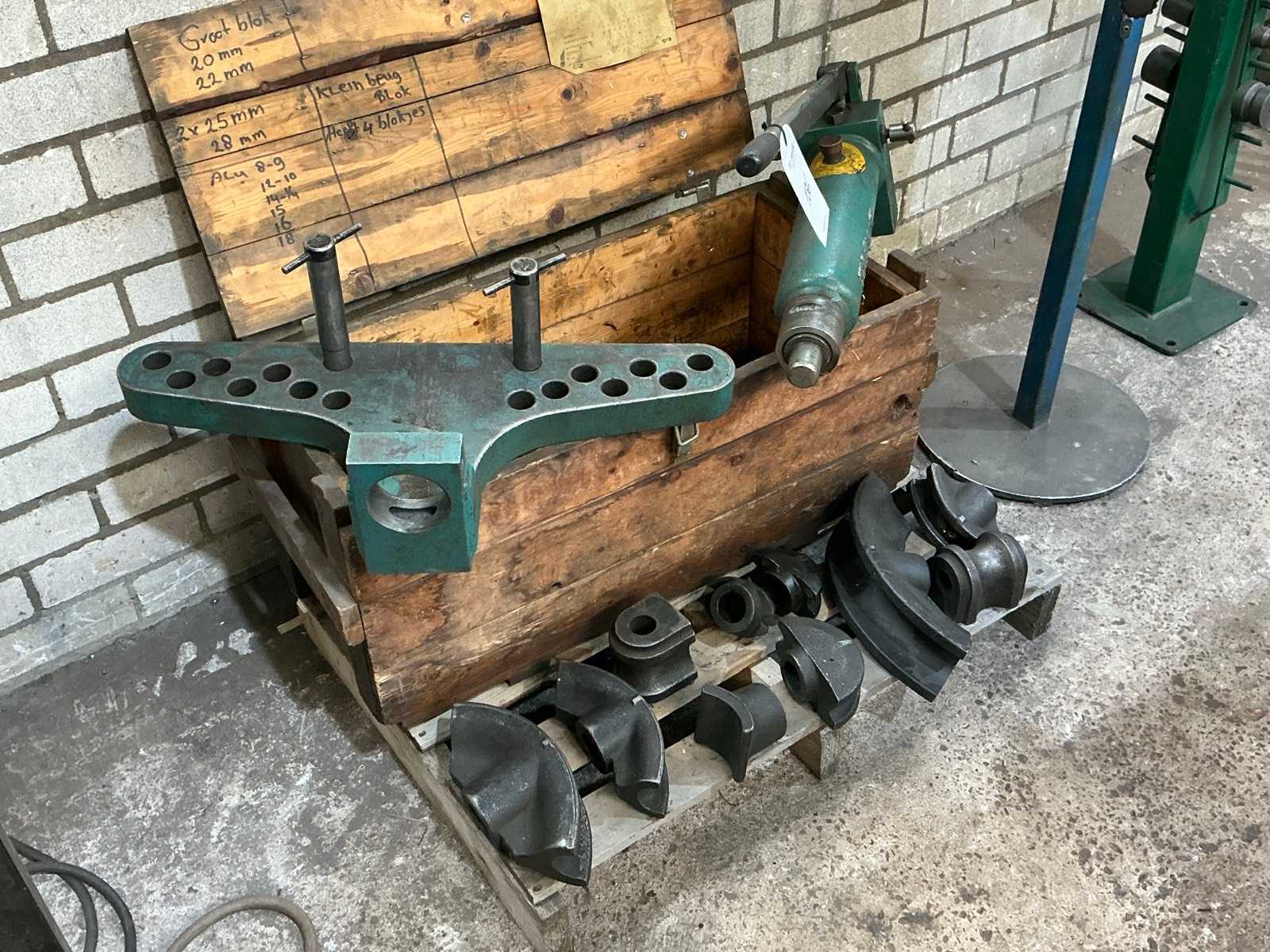

Hand-hydraulic tube bending machine with hinged bending frame for pipe Ø: 3/8 - 3"
new
tube diameter: 2 x 3,91 mm STtube diameter: 60 x 4,5 mm GASrevolutions per minute: 2,5 U/minradius: min. 2 x D mmbar material - diameter: 35,0 mmtotal power requirement: 1,5 kWweight: 130 kgFurnishing:- mandrelless tube bending machine- mechan. Angle adjustment via dial- Tool holder: hexagonal 40 mm + 50 mm- Bending angle: 0 ° to 180 ° (max. 210 ° angle of rotation)- Bending radius: R10 to R270 mm- integrated chassis Bending segments on requestThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
new
tube diameter: 33,7 x 3,4 GAS mmtube diameter: 35,0 x 2,5 STAHL mmbending radius min.: R10 - R 190 mmtube diameter: 35,0 x 1,5 EDELST mmbending angle max.: 0 - 180 °tool taper: 6-kant 40 mmvoltage: 230 Vtotal power requirement: 0,9 kWweight of the machine ca.: 23,0 kgDescription :- MediBender 070 digital- with maximum bending power steel tube 35 x 2.5 mm- Excellent bending quality with very tight bending radii (from 2 x tube Ø) & Bending angles between 0 ° to 180 °- Easy handling- High accuracy and reliability- Quick tool change (within a few seconds)- Easy to transport- A huge selection of inexpensive standard tools (metric, gas inch, inch) Bending segments available for an extra charge STAHL bending segment R-82 G-1 ... 308 euros SLIDING SHOE brass 1 gas = 33.7mm ... 93 eurosThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used

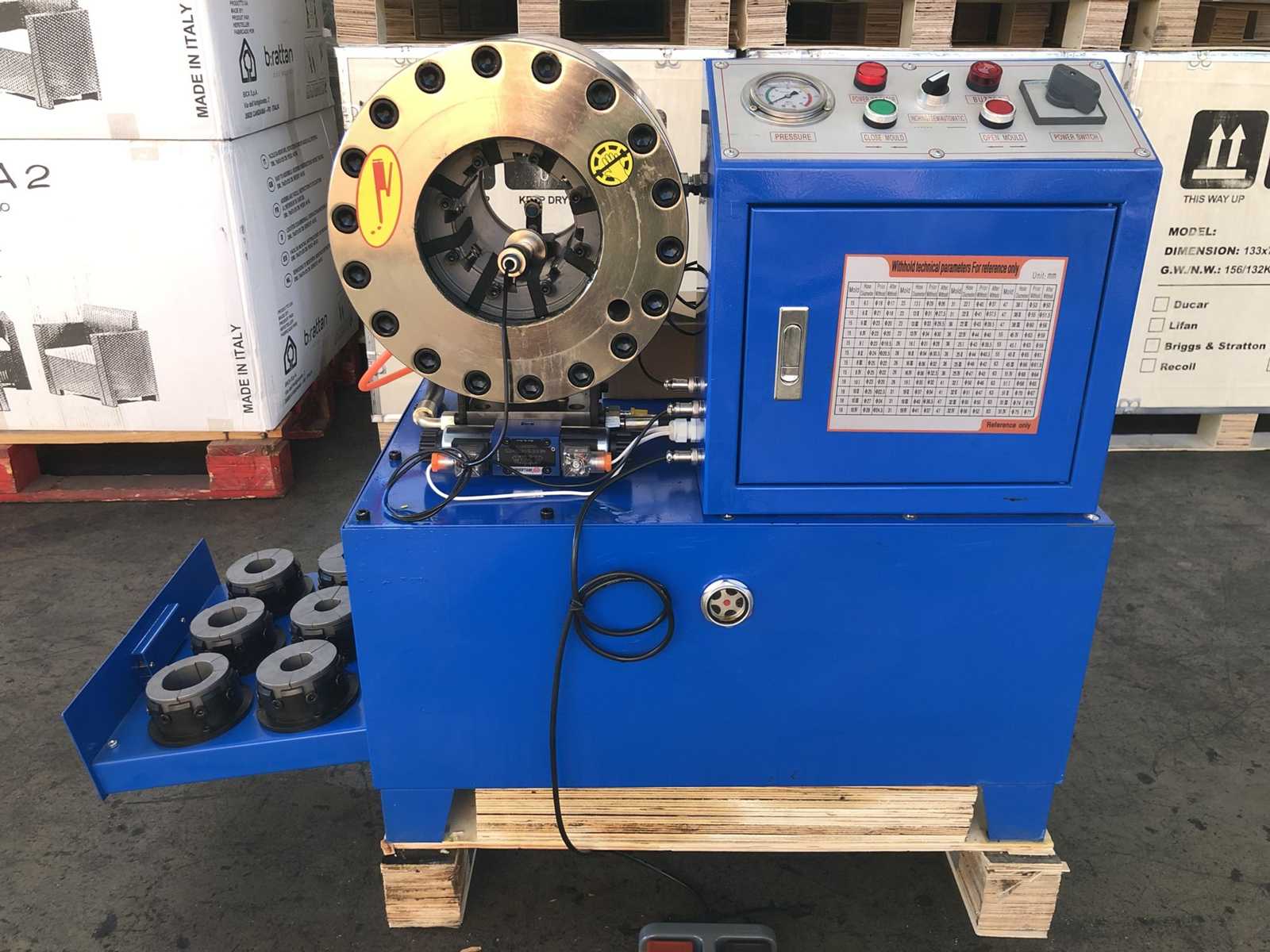

Description: Hydraulic press for crimping hydraulic pipes, equipped with all the necessary matrices for pipes from 0. 5 to 50 mm, never used 0 hours packed in wooden crateweight approx.: 270 kg, Approx. Onsite Dimension. (l x w x h): 1,000 x 800 x 1,000 mm
used
Description: Hydraulic press for crimping hydraulic pipes, equipped with all the necessary matrices for pipes from 0. 5 to 50 mm, never used 0 hours packed in wooden crateweight approx.: 270 kg, Approx. Onsite Dimension. (l x w x h): 1,000 x 800 x 1,000 mm
used

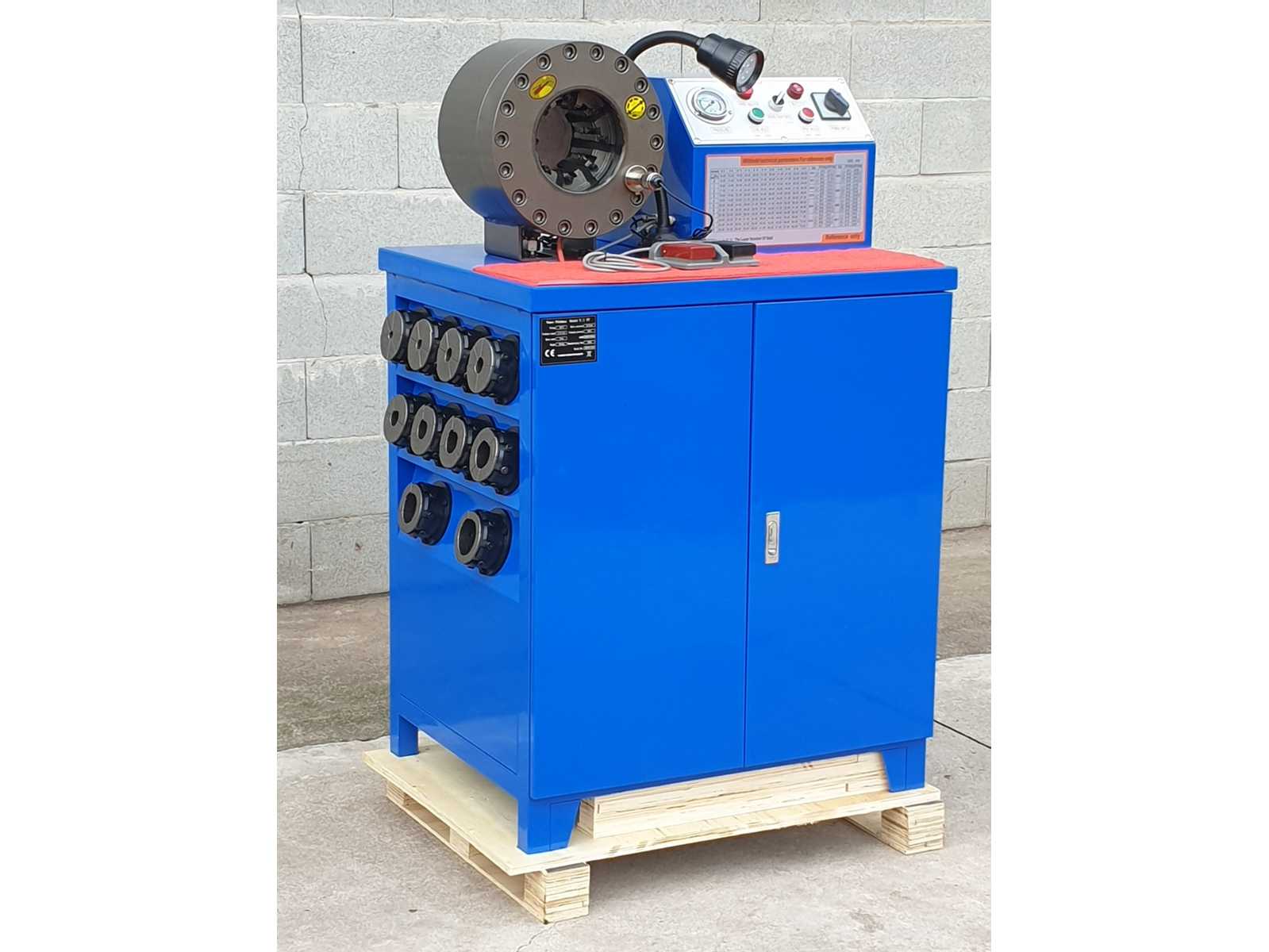

Description: Hydraulic press for crimping hydraulic pipes, equipped with all the necessary matrices for pipes from 0. 5 to 50 mm, never used 0 hours packed in wooden crateweight approx.: 310 kg, Approx. Onsite Dimension. (l x w x h): 1,000 x 1,000 x 1,400 mm
used
Description: Hydraulic press for crimping hydraulic pipes, equipped with all the necessary matrices for pipes from 0. 5 to 50 mm, never used 0 hours packed in wooden crateweight approx.: 310 kg, Approx. Onsite Dimension. (l x w x h): 1,000 x 1,000 x 1,400 mm
new
tube diameter: 16 / 12 mmwall strength: 1,5 mmbending radius min.: je nach Rohr r2 bis 3 x d total power requirement: 1,2 kWweight of the machine ca.: 0,5 tShaft diameter 20 mm (standard)Max. Bending radius 60 mmMax. Bending capacity steel 12 x 1.5Stainless steel 12 x 1Copper soft 16 x 1Length feed (accuracy): with electrical drive 0.1 mmRotation (accuracy): with electrical drive 0.1 °Three-jaw chuck: YesVoltage NC 2 / NC 3: 230V / 400VThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
new
sheet width: 1050 mmplate thickness: 3,0 mmpre-bending: / required space: 2,08 x 0,7 x 1,25 mweight of the machine ca.: 410 kgSheet width: 1050 mmSheet thickness: 3.3 mmRoller diameter - top: 110 mmRoll diameter - un: 110 mmTotal power requirement: 1.1 kWMachine weight: 1080kgMachine width (mm): 850Machine length (mm): 1820Machine height (mm): 1150The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Description: Pipe grinding / Burnishing - for sanding, satin finishing, and high-gloss polishing - large wrap angle of 270 ° for efficient work - Belt speed continuously adjustable - flexible and handy - perfect for railing construction Connection voltage 230Volt Power 800W Tape dimensions 40 x 760mmweight approx.: 4 kg, Approx. Onsite Dimension. (l x w x h): 60 x 220 x 180 mm
max. tube Ø: 6 - 48.3 mm Max. bending angle: 0 - 360° electr. Connection: 400 V, 1.8 kW Dimensions: 4200 x 1300 x 700 mm Weight: approx. 300 kg
used
Unbek. Type, YOC ca. 1990, Revision 2002 Specifications: - Bending capacity at 45 kg / mm² up to approx. Ø 25 x 3 mm - Bending angle left + right selectable - Hydr. Double-sided bending function - Hydr. Delivery ° - Drive 400 V / 11 kW - Space requirement approx. W 1750 x H 2200 x D 2300 mm - Weight approx. 1600 kg - with - bending angle adjustment - Hydr. Voltage - Bending tools
used
tube diameter: bis 3 Zollpiston stroke: 200 mmmotor: 400 Volttotal power requirement: 0,7 kWweight: 100 kgrange L-W-H: ca. 1000 x 950 x 1100 mmurnishing:- electro-hydraulic pipe bending machine- various bending shapes included e.g. bending segment: 3 / 2 1/2 / 2 / 1- Universally usable for gas, boiling and water pipes- Fast work thanks to electro-hydraulic feed- with tripod stand for safe working- Also ideal for copper pipes and coated pipes- Bends can be produced up to 90° Machine link:https://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machinen o=1008-9360572The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Description: serial number: KOSPAR/2025/08/2017 working hours: power on time: approx. 5460 hrs. run time: approx. 3129 hrs. cutting time: approx. 1233 hrs.  , max. component diameter: ,160 mm min. component diameter: ,50 mm max. component length: ,1000 mm min. component length: ,100 mm max. spindle working speed: ,1400 rpm min. spindle working speed: ,600 rpm  , overall dimensions including with all conveyors: ,5500 x 5450 x 2400 mm  , transport dimensions: machine: ,5100 x 1700 x 2400 mm feeder: ,2200 x 1400 x 1300 mm receiver: ,2200 x 1400 x 1300 mm chip conveyor: ,4950 x 1000 x 1900 mm  , tools are not included in the offer except the standard set of 4 clamping jaws  , please also have a look at the videos and the PDF document of this machine weight approx.: 6,700 kg, Approx. Onsite Dimension. (l x w x h) ...
used
Offer 23246 Specifications: - Bending performance - Tube at 45 kg / mm² Ø 6 - 48 mm - Max. bending angle 180 ° - Max. bending radius 145 mm - Drive 400 V / 1.7 kW - Space requirement approx. W 900 x H 1100 x D 1400 mm - Weight approx. 600 kg -with - Tubular circular saw - Inside and outside pipe end burr device - Mandrel bending device approx. 2000 mm - hydr. Spine Retraction - various bending tools as shown
used
Mandrel Tube Bender Fabr. LANG Type EL 65Machine -No: 2156 Year 1967for pipe diameter: 60 x 2 mmMax. Bending radius: 300 mmMax. Bending angle with existing normal tool: 180 °Mandrel holder length: 3000 mmBending speed for 90 ° approx: 3 selec. Connection: 380 V, 2.2 kWWeight approx: 1000 kgSpace required with / without mandrel holder W x L x H: 1600 x 1200/3900 x 1170 mmWith- mandrel bending length 2000 mmused, despite the year of constructionin very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Electro-hydraulic. Mandrel bending machine Fabr. LANG type EL-OR 50Machine -No: 4125 built in 1981Max. Pipe diameter at 40 kg mm²Radius 3 x outer pipe diameter: 50 x 2 mmMax. Bending radius up to middle pipe: 200 mmminute Bending radius up to inner pipe edge: 35 mmMax. Pipe insertion length: 3000 mmMax. Bending angle: 180 °Bending head speed: 14 rpmtheoretical number of sheets 90 / U.: 900Drive power: 7.5 kWWeight approx: 1800 kgDimensions approx: 4000 x 1300 x 1200 mmWith- Hydraulically powered and working automatically- bending table drive- Tube clamping device with infinitely adjustable clamping pressure- Dornrückzugseinrichtung- Automatic bending roller return device- Hand-operated length stop device- Bend angle selector for settingxa0xa0 4 different bending angles- automatic mandrel lubrication device- Use of running counter-pressure slide rails- Footswitch- without toolsused, i ...
used
Pipe Bender Fabr. LANG Type ONDOMAT 40 VSMachine -No: 3984 Year 1980for simultaneously dimensionally bending several parts in U-shape - with 2 or 3Turns - in a single operationBending after the back pressure bending systemWorking area: 32 x 2 mmMax. Bending radius at 180 ° bend and pipe drift. 280 mmLeg distance at U-parts: 200/680 mmMax. Pressure: 140 barWorking height: 950 mmHydraulic oil filling: 200 lConnected load: 13 kWWeight approx: 1600 kgDimensions: 2000 x 1400 x 1250 mmWith- different tools- Footswitchused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Pipe Bender Fabr. LANG Type ONDOMAT 60 VNMachine -No: 4035 built in 1980Working area: 60 x 2 mmPressure force: 20000 kgHolding force: 7500 kgStroke: 256 mmMax. Bending angle: 135 °Max. Bending radius with pipe diameter 25-90 °: 220 mmFeed rate: 100 mm / 1 sReturn speed: 100 mm / 0.6 sMax. Tool width: 124 mmMax. Installation dimension: 220 mmWidth of bender roll holder: 90 mmextreme bolt distance: 542 mmMax. Bending number p. Min .: 12Drive power: 22 kWWeight approx .: 3600 kgDimensions: 2700 x 1150 x 1550 mmWith- div. Bending tools- Length stopused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offerand are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Mandrel Tube Bender LANG type UGM 108Year of construction 1966Max. Tube bending capacity: 108 mmMax. Bending radius at 108 mm pipe with 3.9 mm wall thickness: 600 mmMandrel length: 2500 mmOutside dimensions approx: 3500 x 2200 x 1500 mmWeight approx: 1550 kgWith- hydr. Dorn return- Holder for wrinkle straightenerused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Description: Set of 5 manual tube bending machines Different sizes New and unused weight approx.: 40 kg, Approx. Onsite Dimension. (l x w x h): 900 x 500 x 500 mm
used
roll diameter: 50 mmroll diam. toproll: 155 mmroll diam. bottom roll: 155 mmtotal power requirement: 1,5 kWdimensions of the machine ca.: 1000x750x1400 mmweight of the machine ca.: 400 kgThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Tube bending machine make MEWAG type RB 35 AFabr. -No: 2309 Year Oct. 1977Bending line max .: 35 x 2 mmBending radius max.:180 mmBending radius min.:25 mmSpeed of the bending plate: 78.1 / 5.6 rpm.Drive power: 1.5 hpDimensions L x W x H: 720 x 485 x 1160 mmWeight approx .:270 kgwithout spine device!used, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
tube diameter: max 60 mmwall strength: 3 mmbending capacity pipes: 60 x 3 mmweight of the machine ca.: 2000 kgdimensions of the machine ca.: ca. 8000 x 1300 x 1200 mmincluding a lot of accessories6 mandrels, mandrel extension length 6000 mm and various bending tools (see photos)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
used
Hand hydraulic pipe bender make MINGORI type model 53Bending sizes: 3/8 - 2 With- fold-up upper rail- 9 bending diesused, ready for operationPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
new
Original MINGORI® Model OB40 - Mobile hydraulic tube bending machine with manually operated hand pump, suitable for bending pipes according to DIN, API and ASA standard, as well as coated PE-HD pipes. The machine works in the compression bending process. The greatest surmountable material resistance torque that can be overcome with the machine is about 28 cm³. Maximum bending force 18 tons Maximum bendable pipe diameter 88.9 mm Smallest possible bendable pipe diameter 17.2 mm Smallest bending radius depending on the radius of the bending punch from 46.5 mm to 330 mm Smallest bending angle 110° (this machine also available for bending angles up to 180°) Weight of the basic machine approx. 140 kg The machine is delivered in a storage chest – Dimensions of the chest approx. 102 x 32 cm x H 41 cm Weight basic machine 140 kg With electrically operated hand pump (as mo ...
used
Specifications Ø tubes / radius in mm: Ø 22 / 67 Ø tubes / radius in mm: Ø 10 / 36
OSTAS ROUND BENDING MACHINE TYPE SMR 1070 x 96 - Capaciteit 1070 x 3 mm - Conisch walsen - Wegdraaibare bovenrol - Voetbediening - Noodstop - Documentatie - 400V DUTCHMACH Metalworking machines ENSCHEDE - NETHERLANDS (3 km from the German border)
new
OSTAS ROUND BENDING MACHINE TYPE SMR 1070 x 96 - Capaciteite 1070 x 3 mm - Conisch walsen - Pathdraaibare bovenrol - Voetbediening - Noodstop - Documentatie - 400V DUTCHMACH Metalworking machines ENSCHEDE - NETHERLANDS (3 km from the German border)
new
CNC-controlled "high-tech" precision profile and tube bending machine with a fixed upper roller and two movable lower rollers Repeatable precision bending of profiles, tubes and solid material - CNC control based on Windows® 10 with special algorithms - Three to five CNC axes. Equipped with - - Touch screen and 3D color graphics - Imported DXF files are generated into work programs - Automatic calculation of distances - bending time and bending strength - Machine body made of cast steel - Shafts - upper and lower rollers Ø 70 mm - Shafts made of special steel - hardened and ground Bending force 190 kN Highest surmountable moment of resistance with standard rollers W = 35 cm³ Smallest possible bending radius with standard rollers 150 mm Roll speeds infinitely programmable 1 to 15.6 rpm Drive power mechanical roller drive 4 kW Drive power hydraulic unit 4 kW W ...
used
Manual Pipe Bender Fabr. PERTHEL, Gerafor pipe diameter: 18/20/22/28 mmOutside dimensions (without lever): 550 x 470 x 700 mmLever length: 1050 mmWeight approx: 100 kgWith- Bending tools:xa0xa0 Diameter 18 mm R 60, R 100, R 140, R 180xa0xa0 Diameter 20 mm R 75, R 115, R 155, R 195xa0xa0 Diameter 22 mm R 90, R 130, R 170, R 210xa0xa0 Diameter 28 mm R 120 mm- two adjustable counterpartsused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Electro-hydraulic mandrel bending machine make RASI type AUT 60Fabr. -No: 1332, built in 1981Max. Working area: 60 mmBending radius 1.5 x D min: 28 mmxa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa0xa 0xa0xa0xa0xa0xa0xa0xa0xa0xa0 max: 300 mmMax. Bending angle: 180 °Working height: 850 mmOil filling: 100 lMandrel length: 2000 mmDrive power: 3 kWWeight: 1050 kgWith- 2 speeds- Preselection for 5 bending angles- a lot of toolsused, in very good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Mandrel tube bending machine make RASI type UNI 3Machine -No: 1740, built in 1989Technical specifications:Bending capacityMandrel bending 180 °: 60 x 3 mmR =: 1.5 x DMandrel length: 6000 mmDrive power: 3 kWExternal dimensions of the machine L x W x H: 1100 x 1100 x 1250 mmMachine weight: 700 kgWeight mandrel: 350 kgWith- Mandrel bending device 6 m mandrel length L x W x H 6500 x 450 x 1200 mm- hydraulic mandrel retraction- 3-way foot switch- mobile on castors- 1 set of bending tools built upused, in good and functional conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Description: tube diameter: 75 mm consisting of three parts:  , 1/3 preparation table: dimensions: 4100 x 700 x 1000 mm 2/3 pipe finishing machine O25 (D=75 mm): dimensions: 6300 x 1000 x 1300 mm 3/3 receiving table: dimensions: 4100 x 600 x 1000 mm  ,please also have a look at the video of this machine weight approx.: 4,000 kg, Approx. Onsite Dimension. (l x w x h): 6,300 x 2,000 x 1,300 mm
used
Description: setting capacity over the entire working length 2 mm working length 1020 mm opening width 48 mm max. cutting angle 0 - 135° Segmented top clamp equipped with pneumatic cylinder manual back gauge unused !weight approx.: 300 kg, Approx. Onsite Dimension. (l x w x h): 1,400 x 1,000 x 1,250 mm
used
Pipe bending machine make ROUNDO type PM 1Year of construction 1985Working / roller length: 500 mmMax. Sheet thickness: 5.0 mmminute Pipe diameter: 120 mmMax. Pipe diameter: 500 mmupper shaft diameter: 70 mmlower roll diameter: 88 mmDrive power: 1.9 kWTotal connected load: 5.9 kWBending speed: 2.7 / 5.5 m / min.Weight approx: 1250 kgused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Technical data: -Bending performance mandrel bending -maximum Rohrdrm at 45 kg / mm² Ã? 60.3 x 3.2 mm -min tube diameter 20 mm -maximum bending angle 180 ° -Bending direction left + right -Modulus 7,8 cm³ -min. bending radius mid-tube 40 mm -maximum bending radius mid pipe 200 mm -Lift length 5000 mm -maximum bending speed infinitely adjustable up to 3 U/min -Drive 400 V / 4 kW -Space requirement approx. B 1400 x H 1500 X 8000 mm -Weight approx. 1200 kg -Automatic. Bending angle before eligibility - hand positioning adjustment, creep speed control
used
Electro-Hydraulic Bending Machine Fabr. SCHWARZE-WIRTZ type Perfect WE 40 Dmachine -No: 85500 year 1985Max. Bending capacity: 25 x 2 mmPipe diameter min.: 10 mmMax. Bending radius up to center of pipe: 100 mmminute Bending radius up to center of pipe: 25 mmBending angle max.: 180°Bending direction: LeftMax. Bending speed forfeed stepless: 19 rpm.Return constant: 19 rpm.Drive power: 7.5 kWWeight approx.: 700 kgExternal dimensions L x W x H: 2200 x 1100 x 1100 mmWith- Hydraulic slide rail feed- Creeper control- Footswitch- without toolsused, in good conditionPrice on request.Delivery: ex warehouse or location free loading truck.Payment: net at takeover or by appointment.Technical data are not binding. Errors excepted.We would be pleased, if you like our offer and are always available for your queries.Best regardsM. WaldeckWAHO Machine Tools
used
Max pipe Ø: 60,3 x 3.2 mm maximum bending angle: 180 ° PIN length: 3000 mm Electr. Supply: 380 V, 8.6 kW space: 2400 x 5700 x 1500 mm weight: approx. 2500 kg
used
Description: SEC-100 TBC is an automatic collaring machine for making manifolds It includes a feed table with either 1- or 2-axis control The tube is fastened from its both ends to the SEC-100 TBC A suitable collaring program is selected from the PC controls and an automatic cycle is started SEC-100 TBC makes all the collars according to the selected program Manual process: • preset the elliptical pilot hole parameters manually. • install the preadjusted collaring head and the clamps accoridng to the tube size. • set the axial tube stop. • mount the tube in the clamps. • push the start-button and the cycle will start. Automatic cycle: • the clamps close and the EC-100 mills the elliptical hole. • when the hole is ready, the EC-100 unit retracts. • the S-100 unit begins the collaring of the tube and the trimming of the collar. • finally the EC-100 returns to the milling ...
used
Specifications: - Bending performance - Pipe at 45 kg / mm² Ø 6 - 48 mm - Solid material up to approx. 30 mm - bending angle 180 ° - Bending radius 2 x D - Drive 400 V / 1.5 kW - Space requirement approx. W 4500 x H 1400 x D 1000 mm - Weight approx. 600 kg - with - Digital bending angle display + bending angle fine adjustment - Mandrel bending device 4.5 m. with hydr. Retreat - Bending tools 16 , 25 , 20 , 33.7, 38 mm - Bending blade 3000 mm
