PR9000 pallet rack for 42 Euro pallets
This pallet rack has been tested with a maximum load of 2,200 kg per
truss level in accordance with DIN EN 15512 and thus has a maximum bay
load of 9,000 kg and can be loaded with 550 kg per pallet.
The push-through protection prevents stored goods from slipping
through when shelves are positioned in parallel
Made of solid, high-quality steel for extreme robustness.
Easily withstands high loads of up to 9,000 kg per field
High-quality workmanship of the entire pallet rack
Plenty of storage space, thanks to the 2 levels and the 4 fields
Eye-catching blue and orange colour scheme for maximum safety
Stand profile:
Height: 5000 mm
Material: Steel S-355 JR
Dimensions:80 W x 70 D x 1.5
Perforation: 50 mm (grid – offset)
Surface: Powder-coated blue
Profile construction: Omega profile shape
Depth: 1100 mm
Manufacturing: Cold Rolled Profile
Bay load: 9000 kg
Trusses:
The trusses can be individually hung in height in a grid of 50 mm
Total load capacity per truss level
1800 mm Traverse: 2000 kg
2700 mm Traverse: 3000 kg
3600 mm Traverse: 2200 kg
Material Steel S-235 JR (Cold Rolled Steel)
Profile structure: Rectangular profile

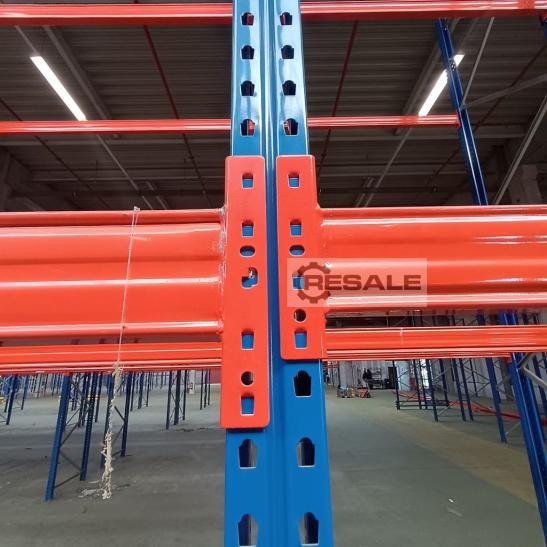

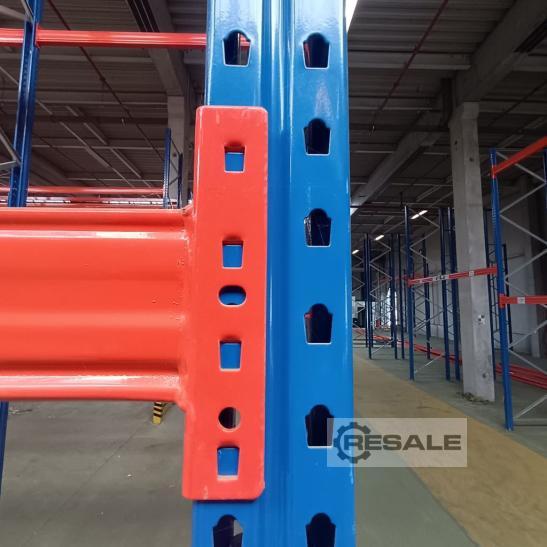

Fastening: Hook tabs on each side of the K5527004 crossbeam for
hooking, secured by locking pin
Surface: Powder-coated orange
Manufacturing: Beveled Steel Sheet
Scope of delivery
05 x PR9000 stand 5 m high / 110 cm deep Field load: 9,000 kg
12 x PR9000 crossbeam 3600 cm wide incl. locking pins, shelf load:
2200 kg
04 x Truss PR9000 1800 cm wide incl. locking pins, shelf load: 2000
kg
06 x Push-through protection PR9000 3600 mm
02 x Push-through protection PR9000 1800 mm
BJ 2020-2022
More items - new and used - can be found in our shop!
International shipping costs on request!
Germany
46325 Borken
