For sale on "as is" basis
Used Solar Gas Turbine Mars 100 SoLoNOx Natural Gas
Location: Europe
Year of manufacture: 2012
Output Power: 11,350 kWe
Heat Rate: 10.935 kJ/kWe-hr (10.365 Btu/kWe-hr)
Exhaust Flow: 153,245 kg/hr (337,950 lb/hr)
Exhaust Temperature: 485 °C (905 °F)
Frequency: 50 Hz
Package hours: 27206
Gas turbine hours: 20547
Number of starts: 216

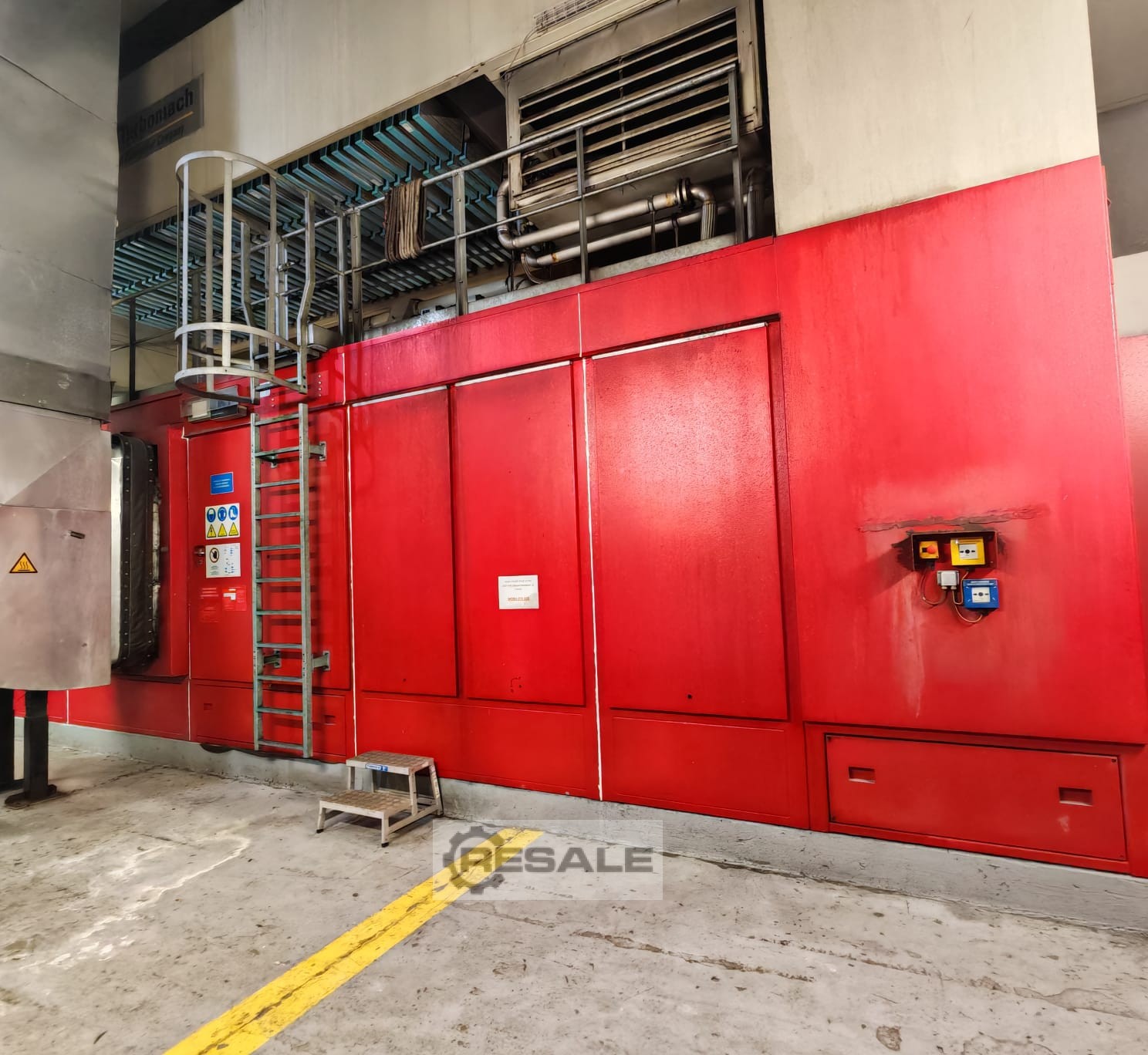

Housed on skid installed indoor with attenuating enclosure and fire
detection and suppression system. Inlet System Barrier Filter and
Silencer mounted on ancillary skid on the roof of the enclosure.
Gear Reduction Box RENK MAAG GmbH. Type: GPF3-28, Output Speed/Freq.
50Hz - 1500rpm
Generator Data: Electric Brushless AC Generator with Permanent
Magnetic Alternator. Alternator data: 2.2kW. PF.9. 1 Phase.
240V/10A/120Hz.
Gen Skid includes Lube oil tank, pumps, filters, start system with AC
Direct Drive AC Motor, VFD, Drive Adapter, & Clutch Assembly. Lube oil
cooler. Includes integrated PLC Control system and operator interface.
Lead Acid Batteries with Charger 24 Volt 30 amp Charger, Single phase
input.
The equipment is in very good conditions and was maintained from the
OEM Solar.
The gas turbine is in serviceable condition, the last borescope
inspection is from march 18, 2024 and since the engine was not
operated.
All reports are available with the equipment.
During the last borescope inspection the following was flagged
Combustion chamber: Minor burn spot
1st Stage Nozzles: Missing metal material, Cracks and Thermal
erosion with pitting. Serviceable as per the OEM and the gas turbine
is available for another run till the next borescope inspection.
1st Stage Turbine Blades: minor crack and missing coating
