Cantilever-type shelves SIPAG

Offer 25521

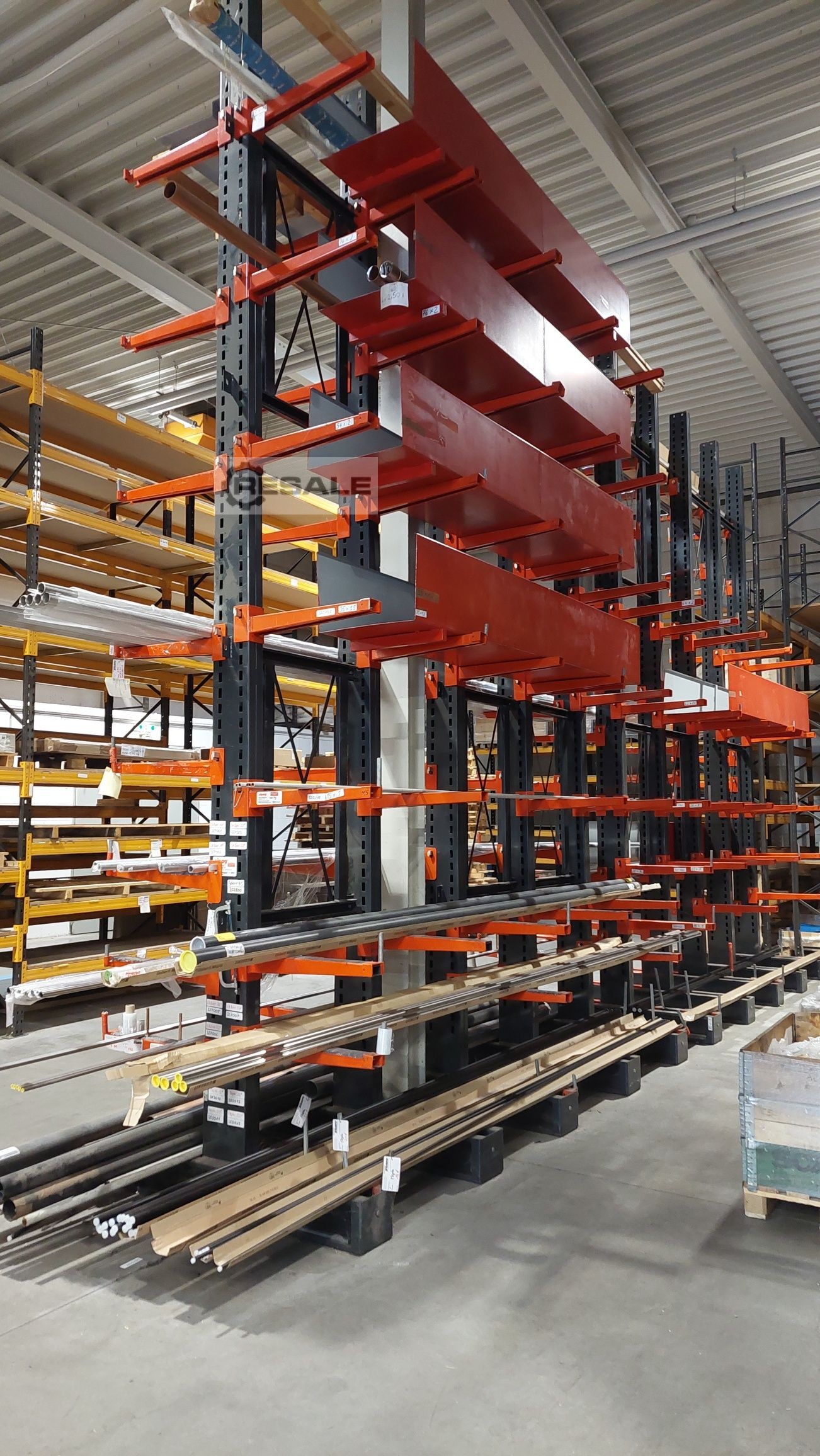

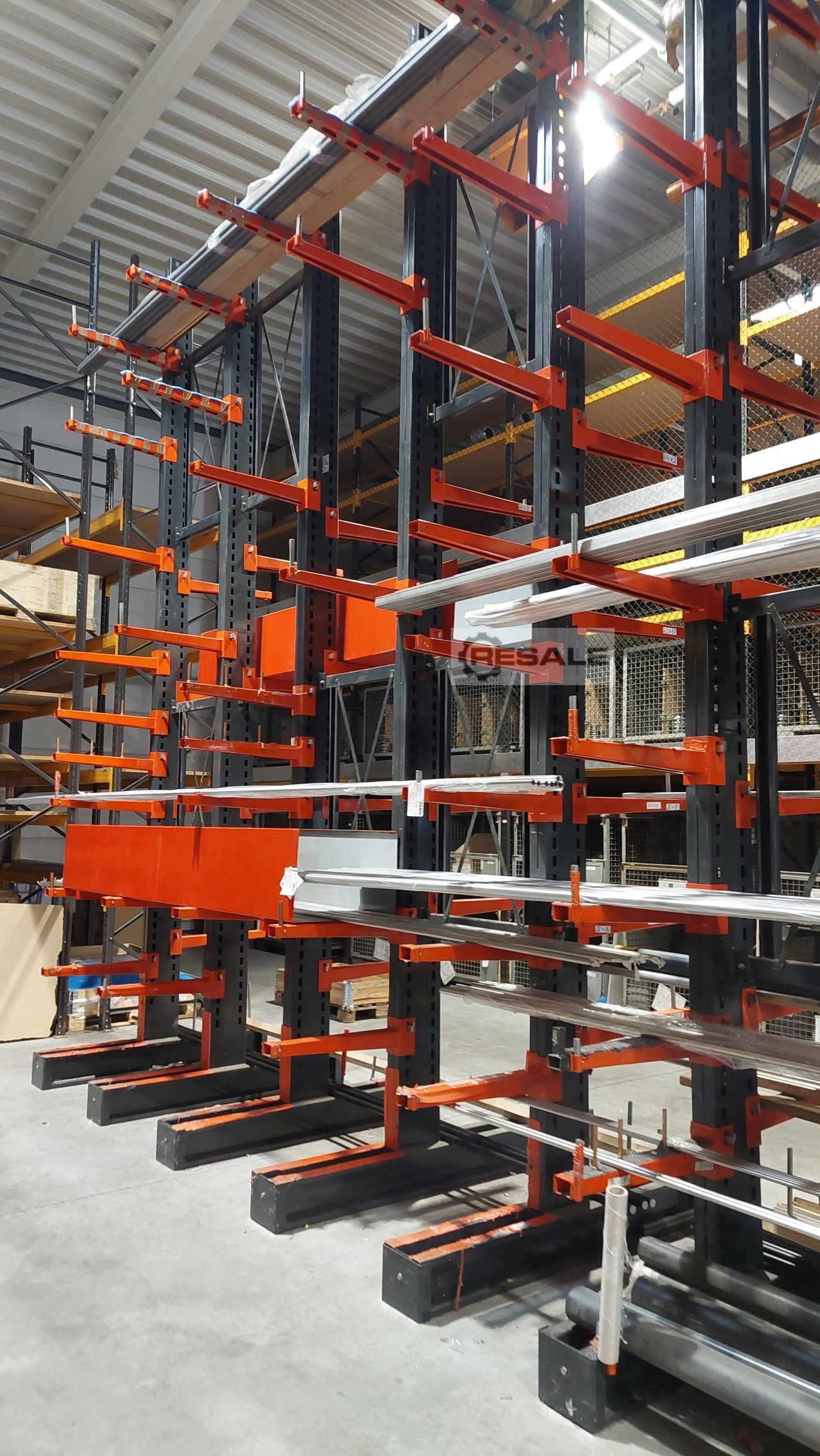

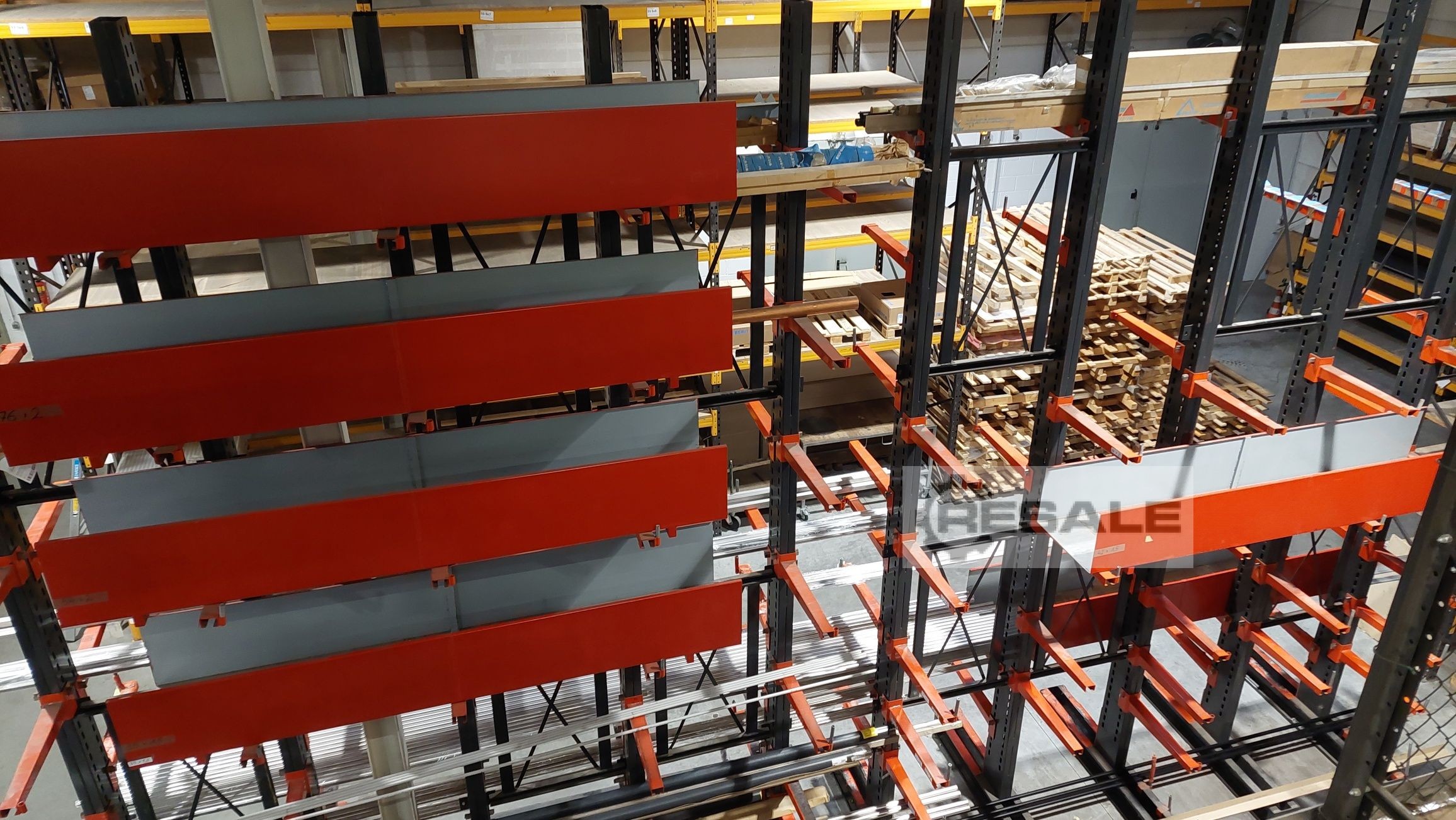

Double-sided long goods – cantilever rack without contents

Technical data:

- 2-sided cantilever rack consisting of 10 uprights with plug-in system
- Height-adjustable bearing arms
- 130 bearing arms
- Stand height approx. 6000 mm
- Wide stands + support arms approx. 1600 mm

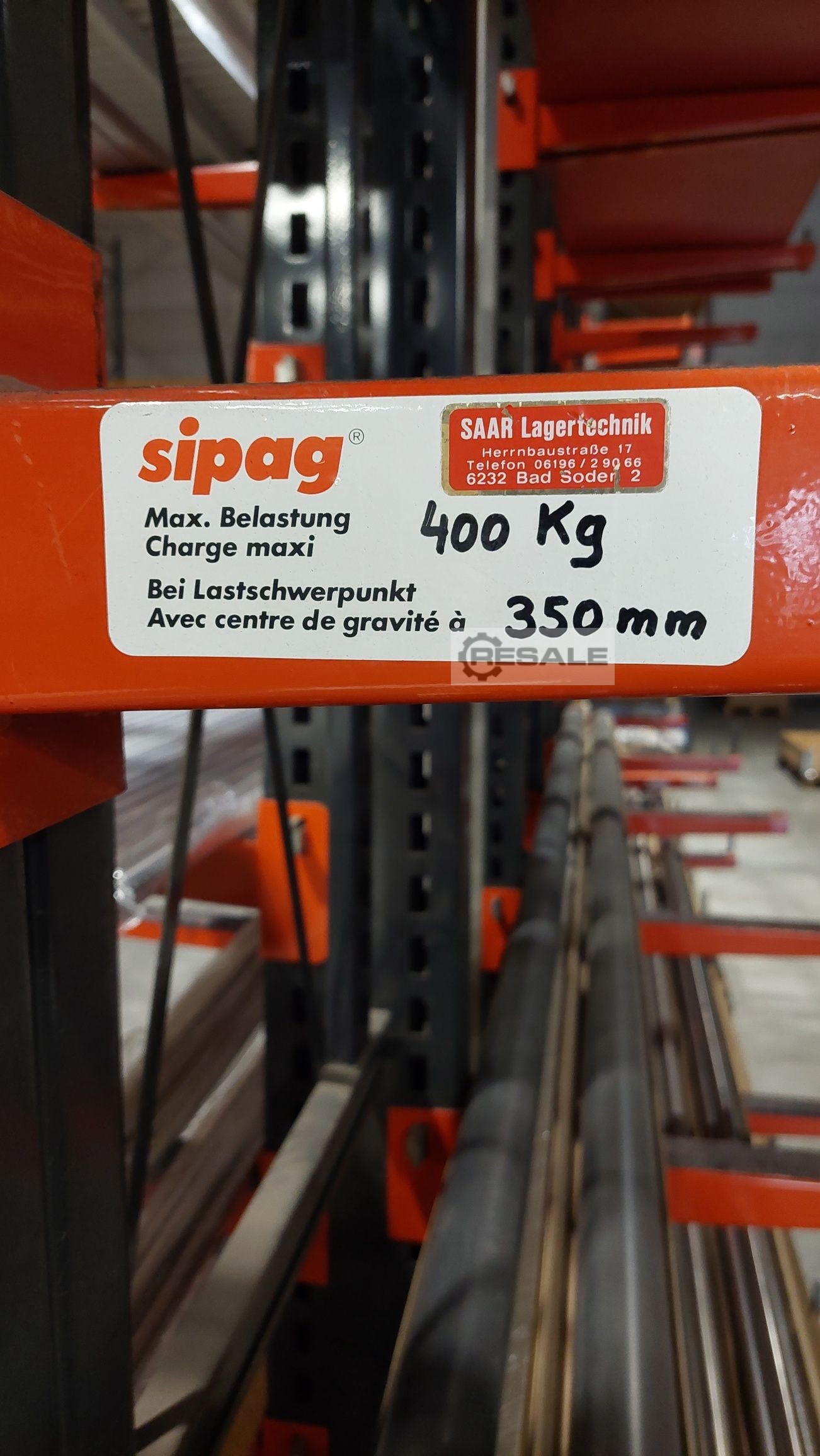

- max. arm load approx. 400 kg
- Max. drawbar load per support approx. 5000 kg
- Center distance of the shelf parts connected to diagonals approx. 1.0 m
- Grid spacing for the reg arm - Height adjustment 125 mm

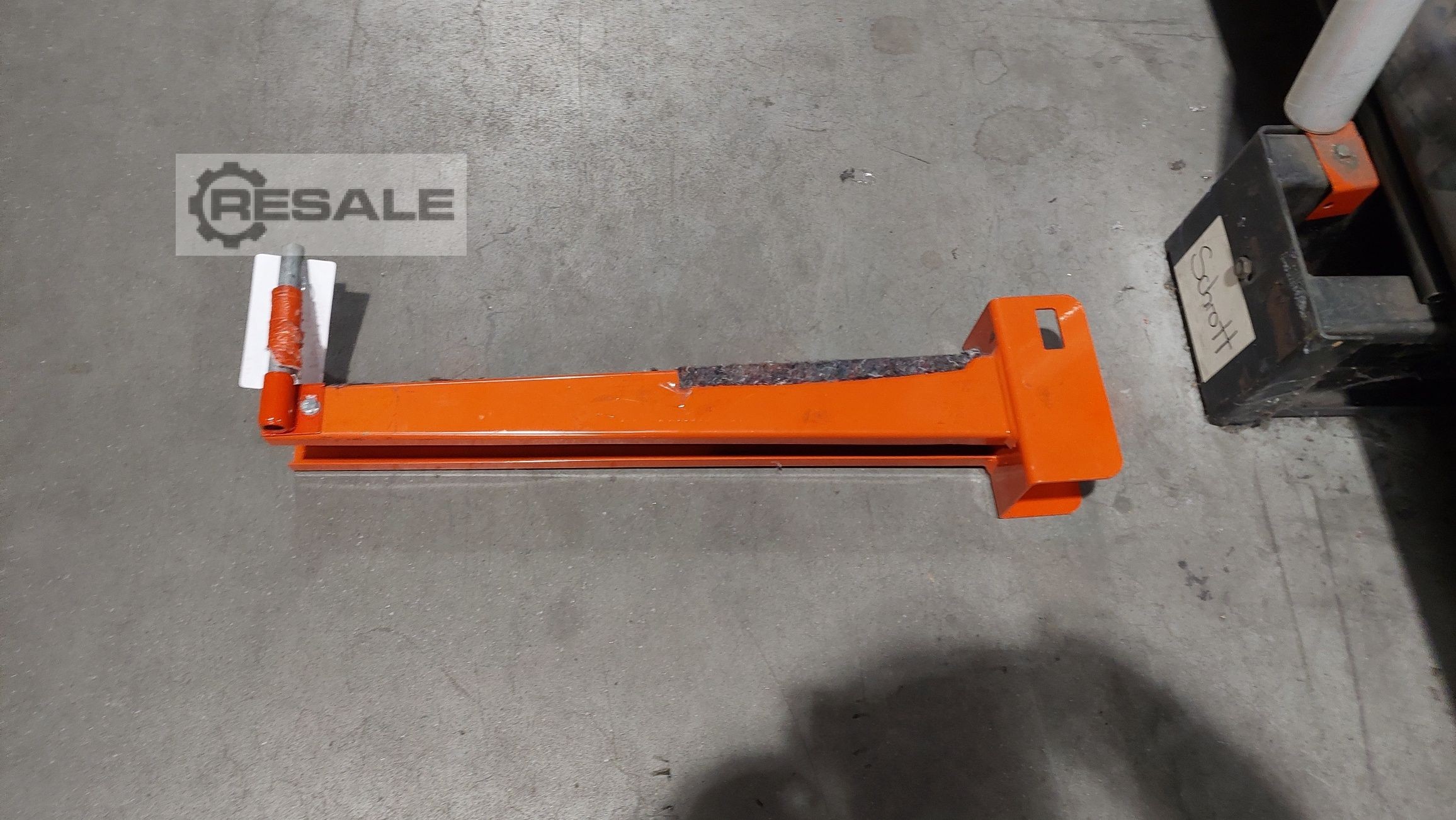

- Arm dimensions: L 700 x W 90 x H 70 mm
- Stand dimensions W 220 x H 150 mm
- Weight per post approx. 400 kg
- Weight per arm approx. 10 kg

seller offer No. resale Lg.-Nr. 25521
